100 MHz
PCBITE-6013

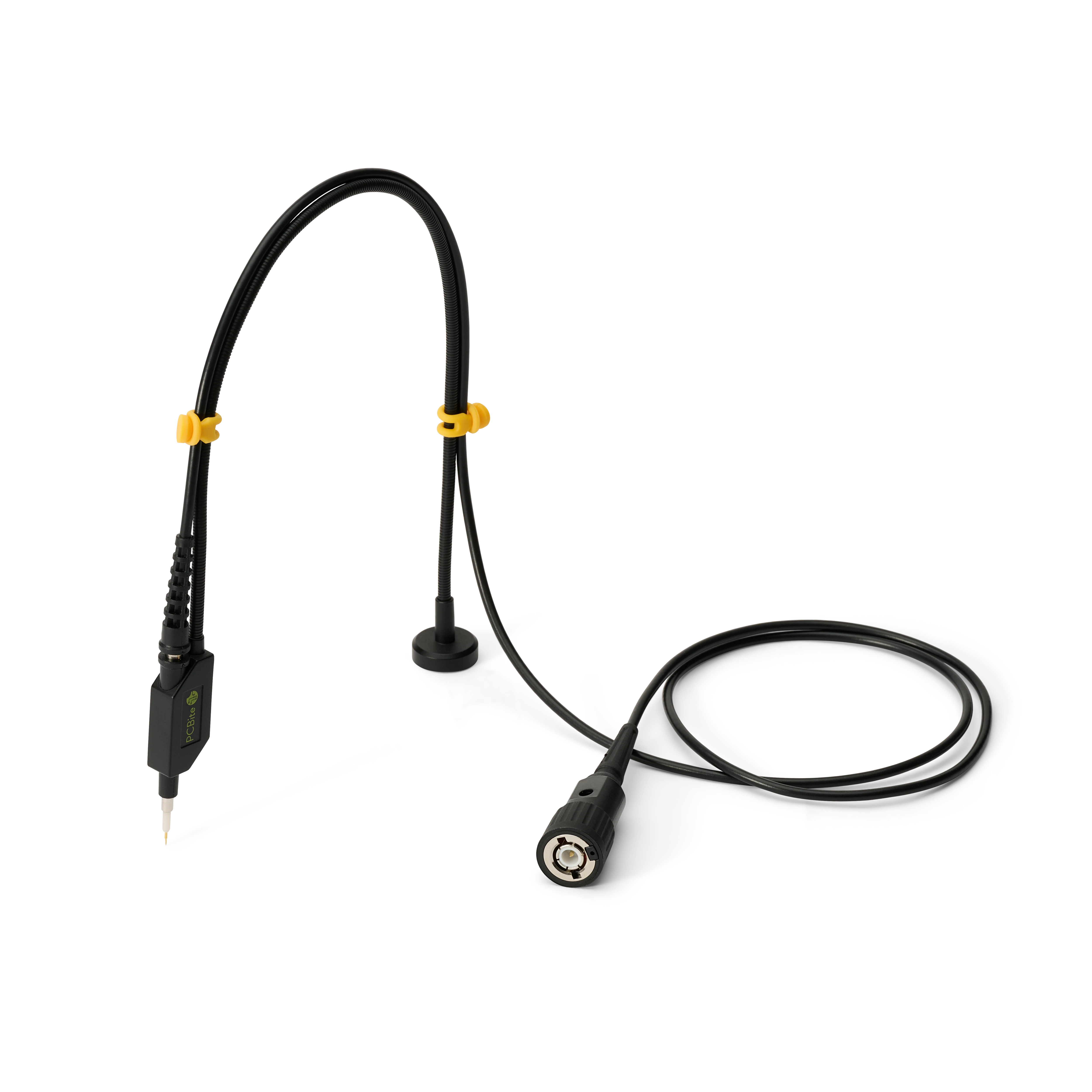

SQ100 – 100 MHz handsfree oscilloscope probe
59 €
In stock
SQ100: the 100 MHz probe joins the SQ series
News
SQ100
100 MHz joins the SQ series
The SP100 was our first handsfree 100 MHz probe, introduced in 2018. Its successor is here: the SQ100, a passive 10:1 probe for measurements up to 100 MHz, built like the SQ200, SQ350 and SQ500 in the same series.
Place the spring-loaded test needle on the signal, set the spring-loaded ground needle next to it and let go. The flexible arm holds the probe in position, and the N52 neodymium magnet in the base keeps it on the PCBite base plate.
- 10 MΩ and 13 pF at the tip, with a standard BNC connector for any oscilloscope with a 1 MΩ input
- No probe ID pin: set the oscilloscope channel to 10:1 by hand
- Insulated, so it works handheld as well
- A low center of gravity that keeps it steady when it is used handsfree
- Color coded cable holders in four channel colors, and an adjustment tool for compensating the probe to the oscilloscope
The SQ100 replaces the SP100, and deliveries start after the new year. See all our handsfree probes.
