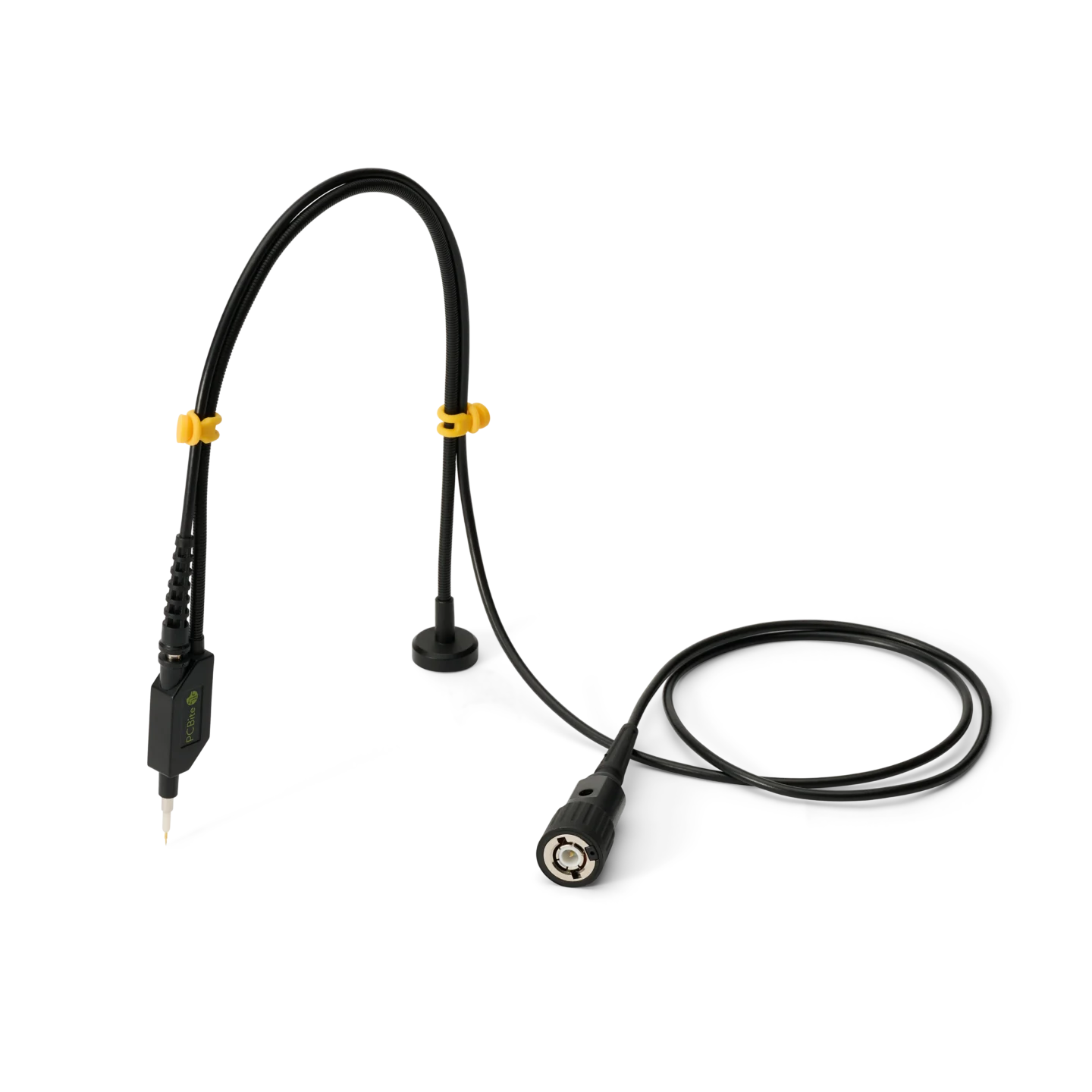

Single handsfree SQ100 100 MHz probe with yellow color-coded cable holders and BNC connector (PCBITE-6013)

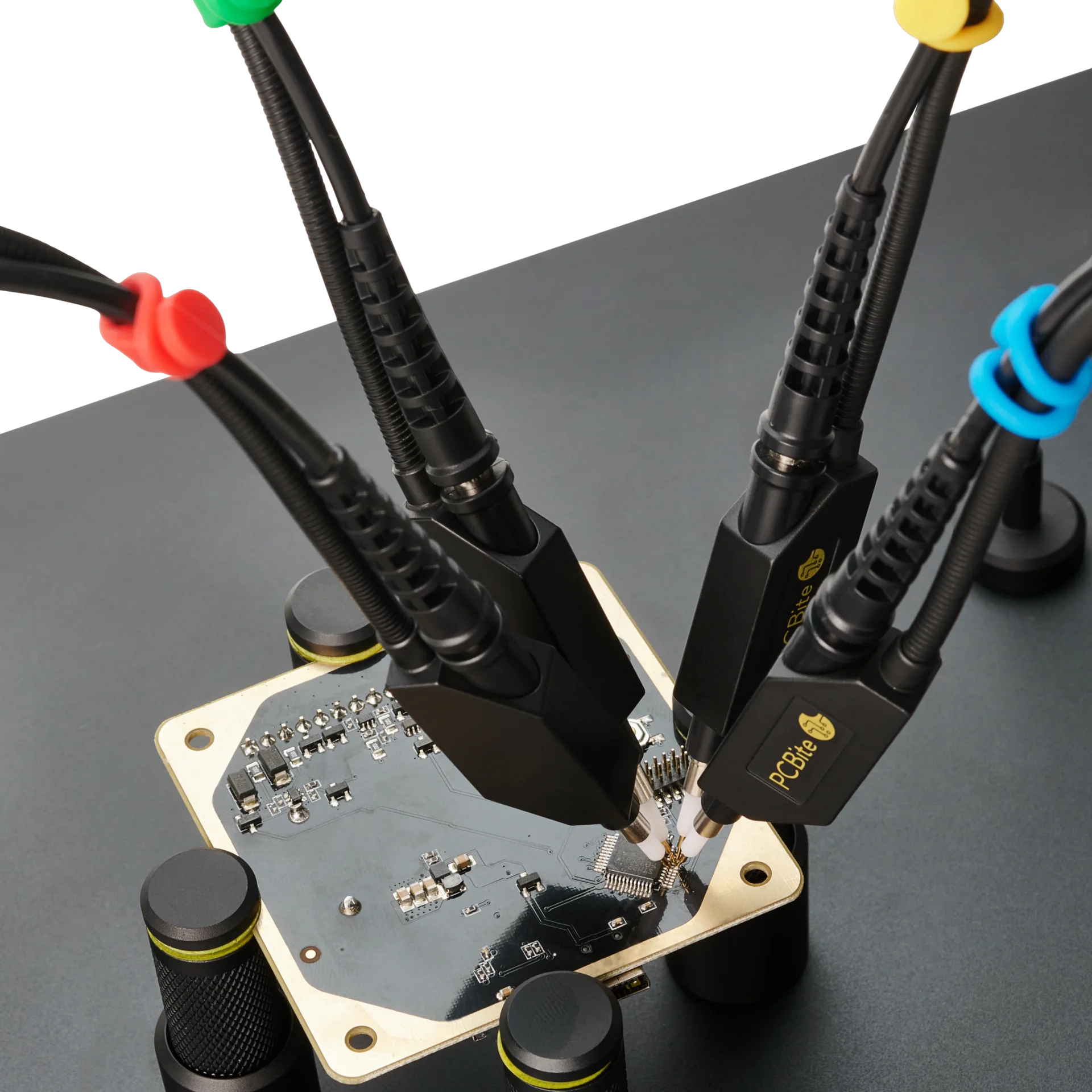

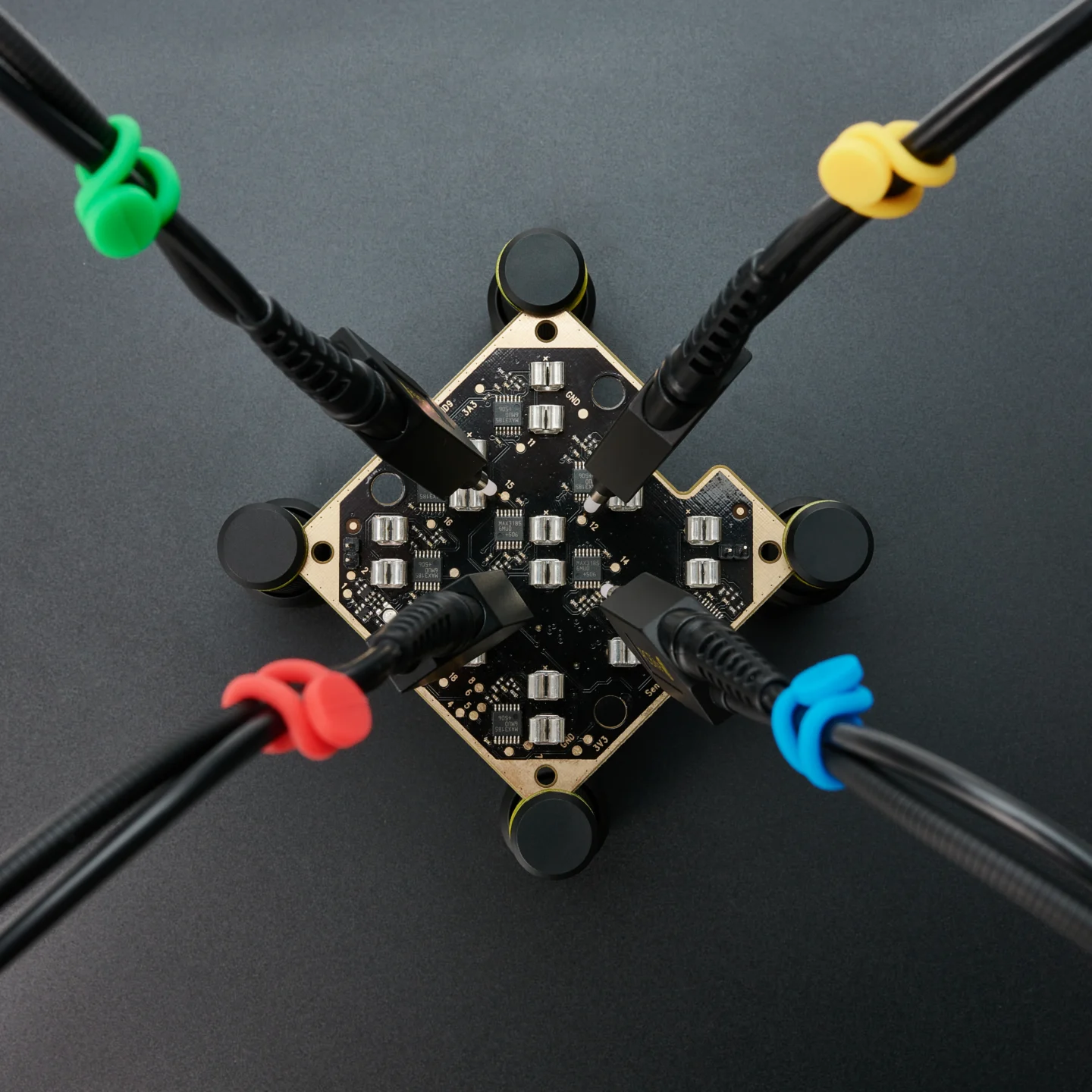

Four handsfree SQ100 100 MHz oscilloscope probes measuring close signal pins on MCU test PCB (PCBITE-6013)
SQ100 100 MHz Probe with probe holder and accessories included with a single probe purchase (PCBITE-6013)

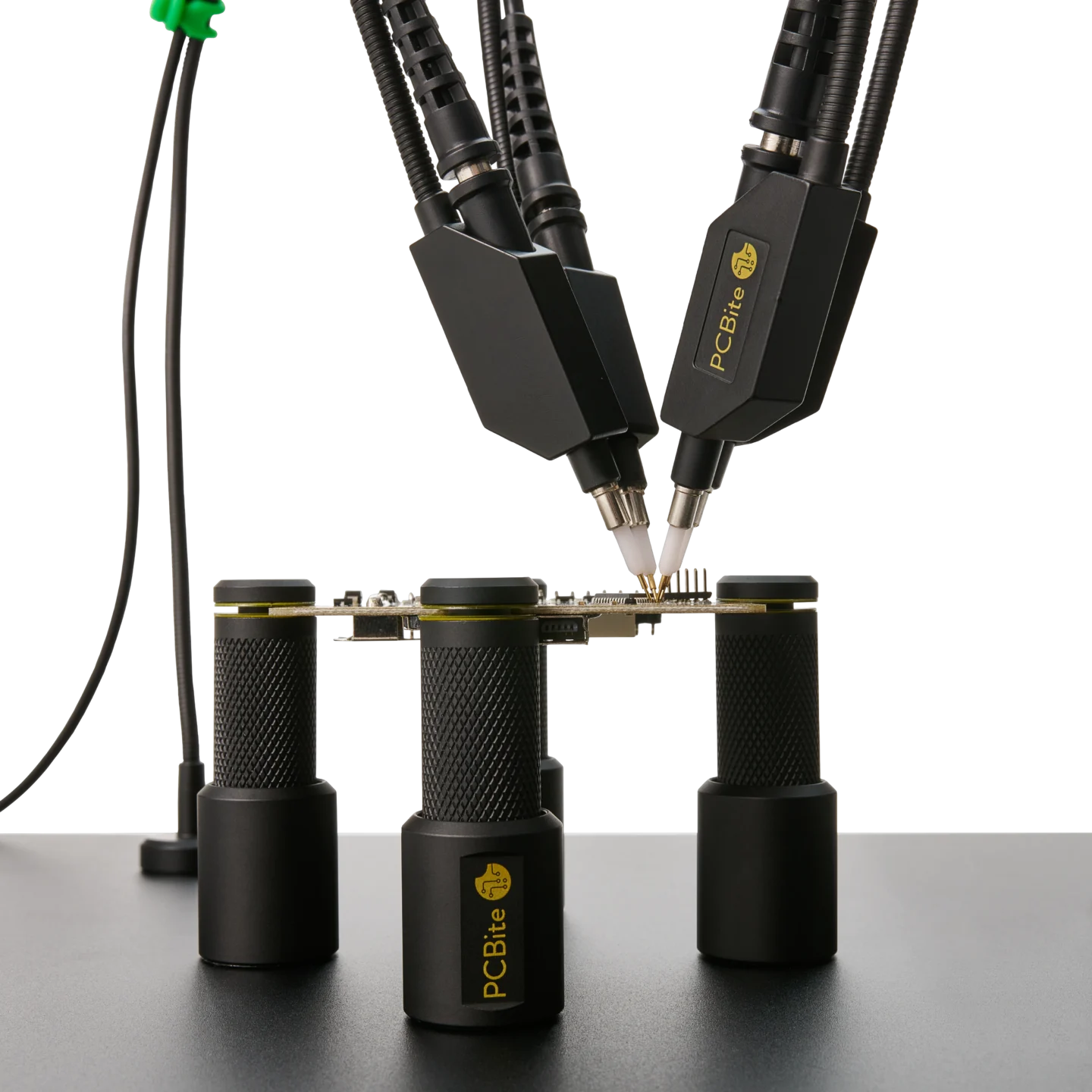

Complete PCB under test with PCBite holders and four handsfree SQ100 100 MHz oscilloscope probes testing signals (PCBITE-6013)

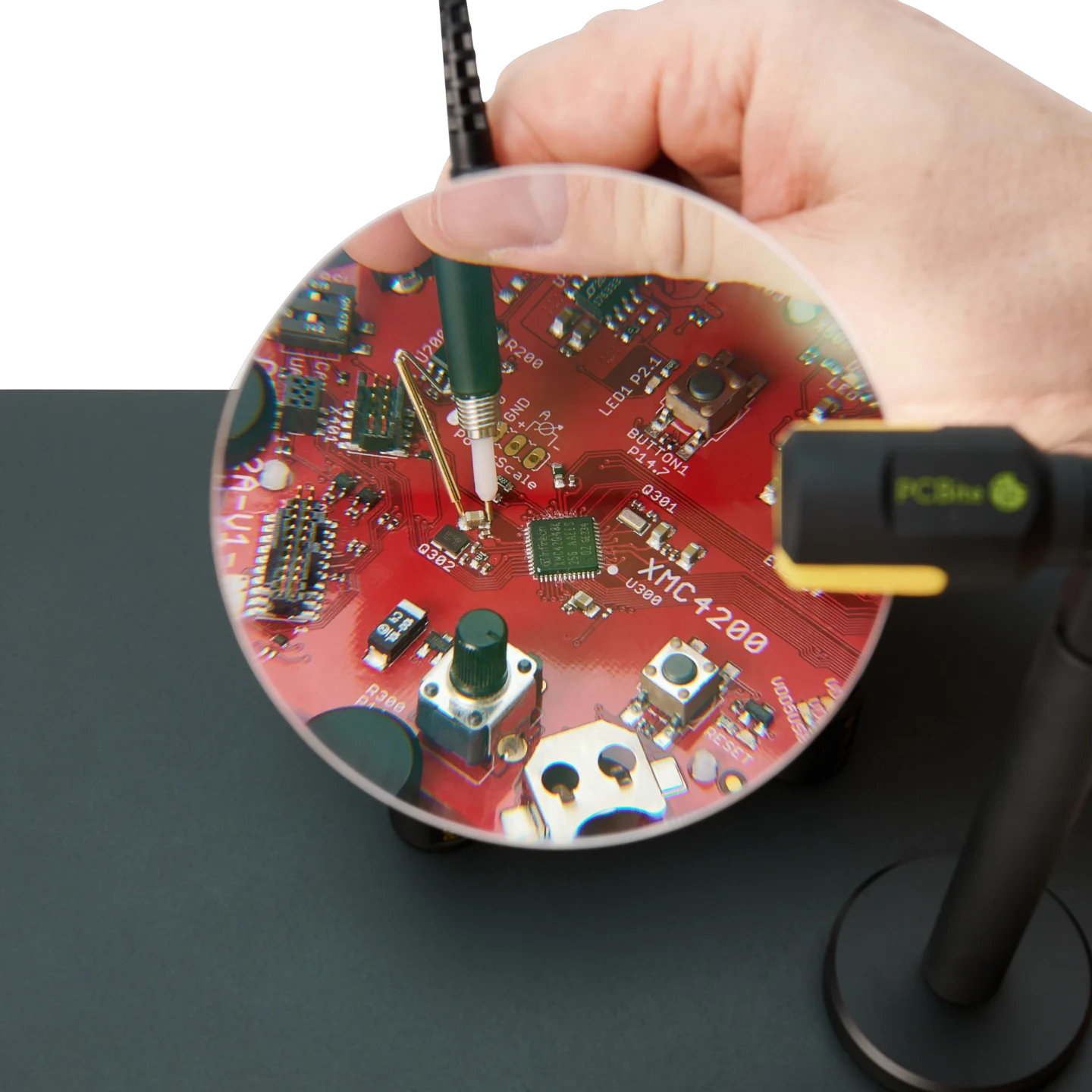

Measuring handheld on SMD component using SQ100 100 MHz oscilloscope probe with the ground spring needle (PCBITE-6013)

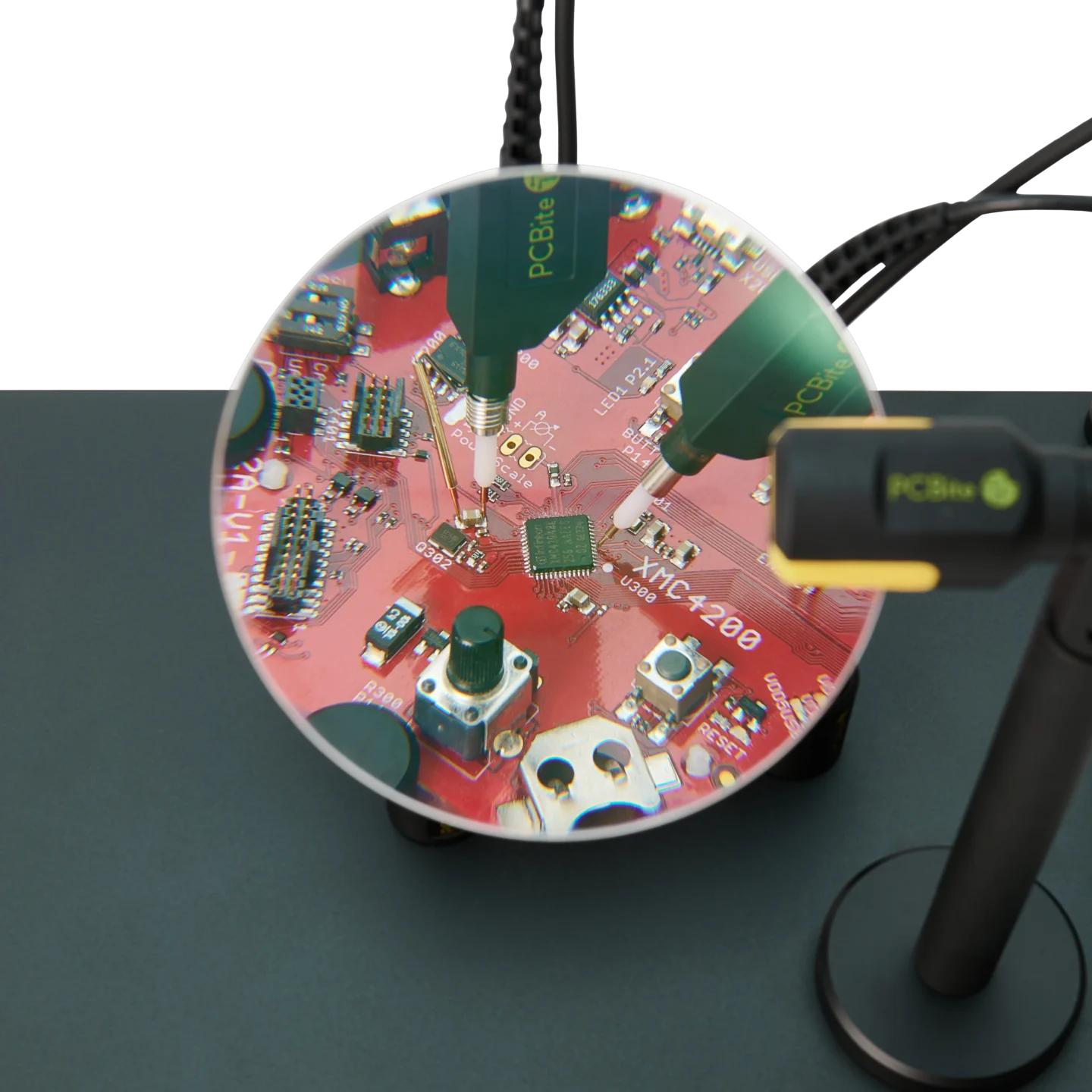

Two SQ100 100 MHz oscilloscope probes measuring handsfree on PCB showing different grounding options through magnifier lens (PCBITE-6013)

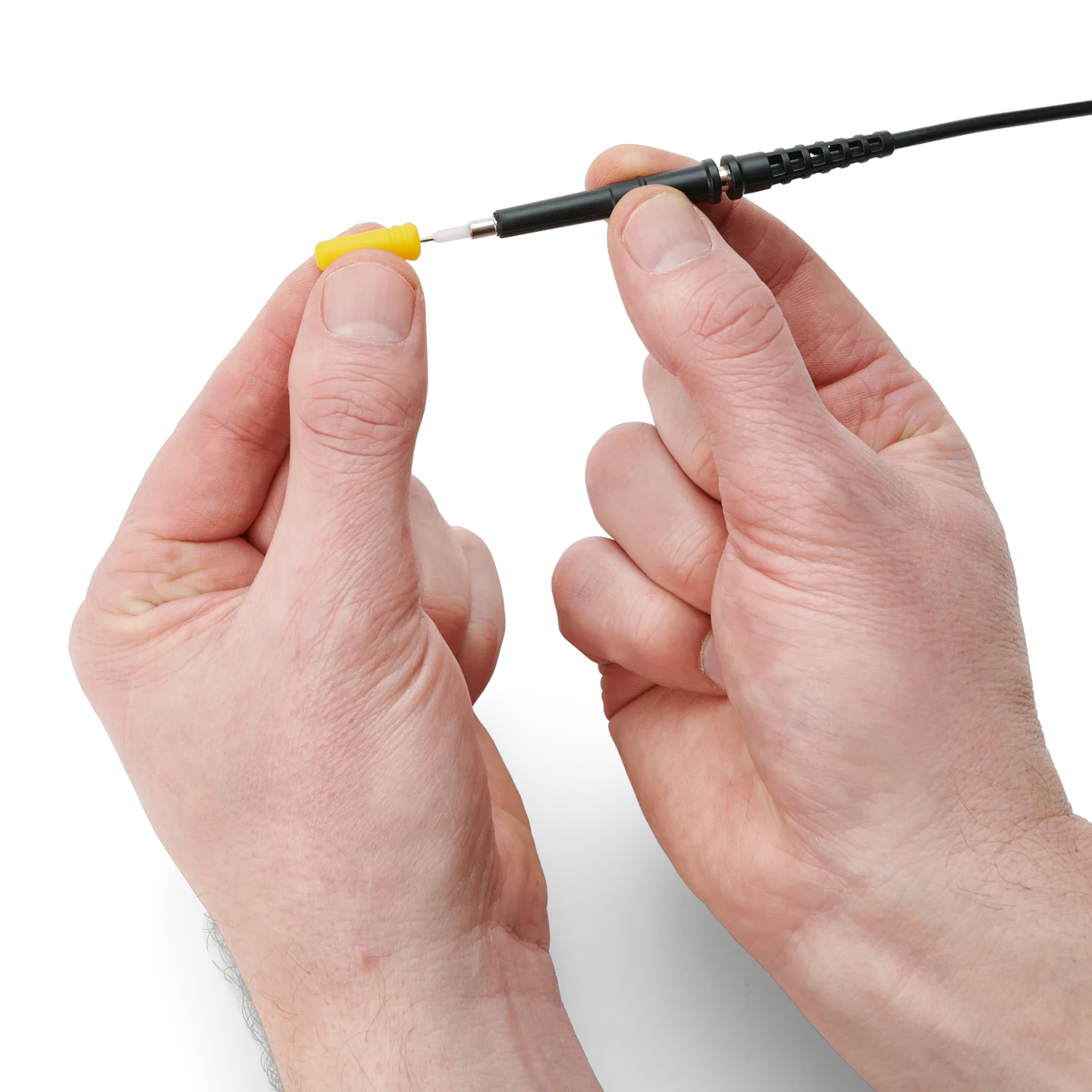

Hand showing how to mount or dismount the probe protection from the SQ100 100 MHz oscilloscope probe (PCBITE-6013)

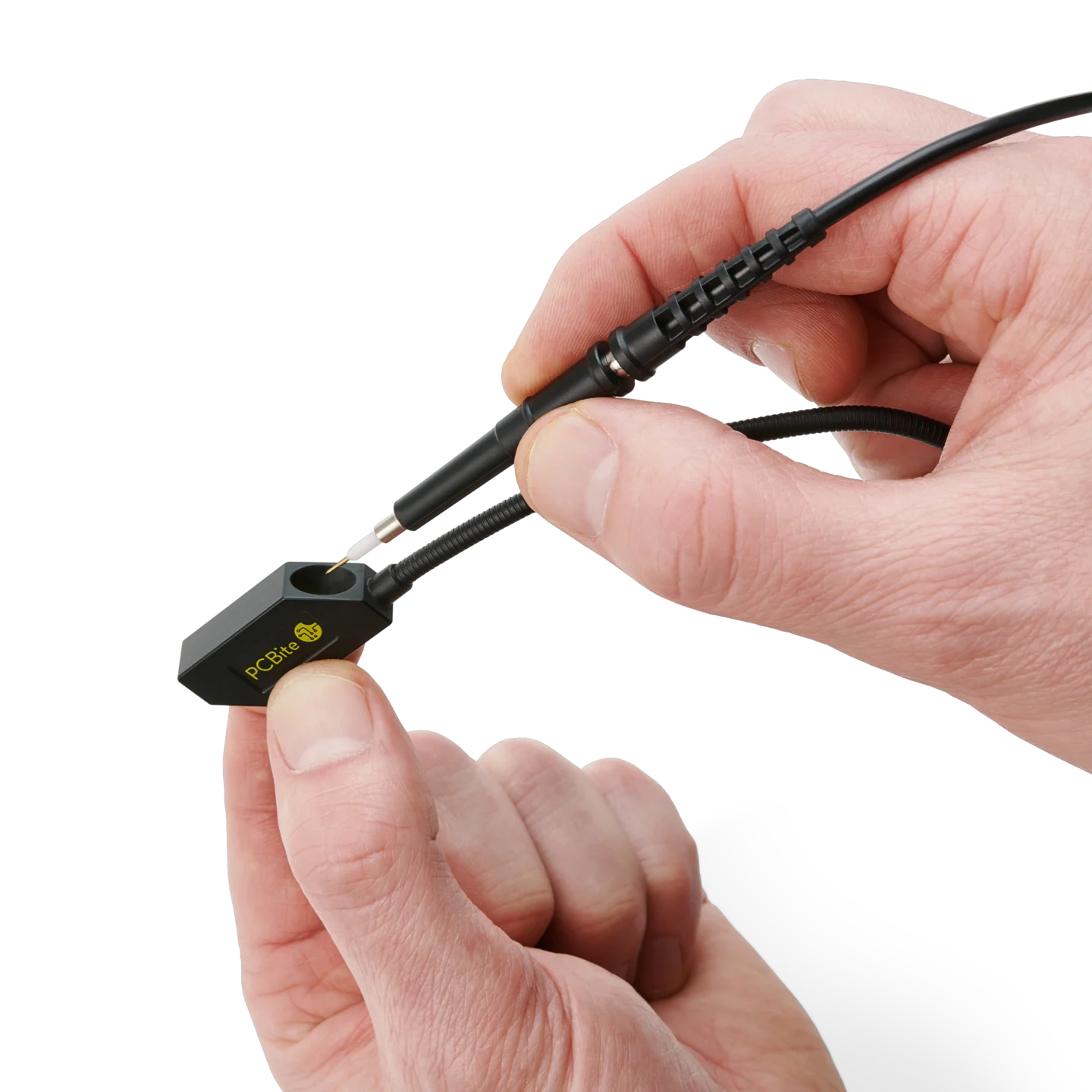

Hand showing how to mount SQ100 100 MHz oscilloscope probe in the SQ probe holder for handsfree measurements (PCBITE-6013)

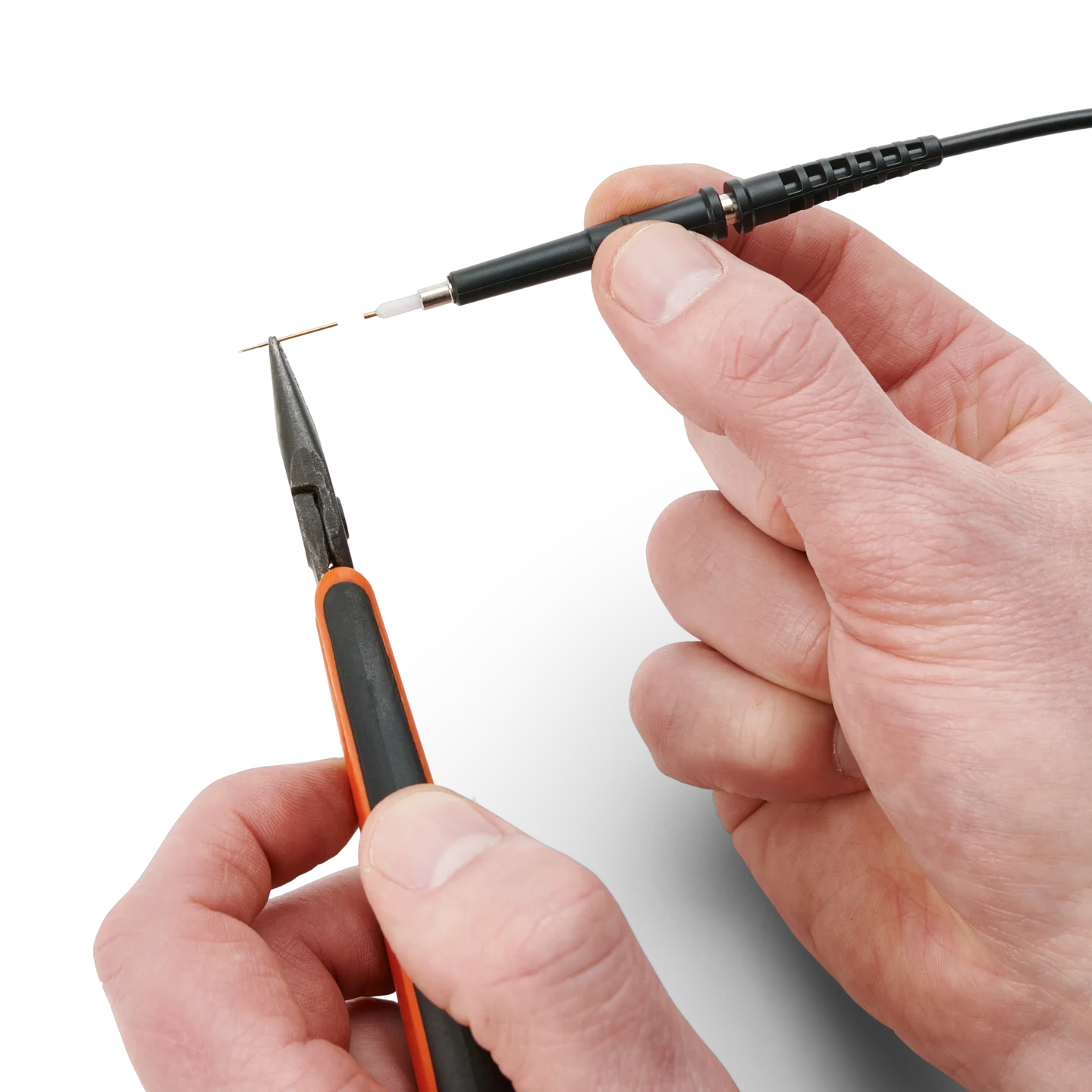

Hands showing how to change the replaceable spring-loaded test needle of the SQ100 100 MHz oscilloscope probe (PCBITE-6013)

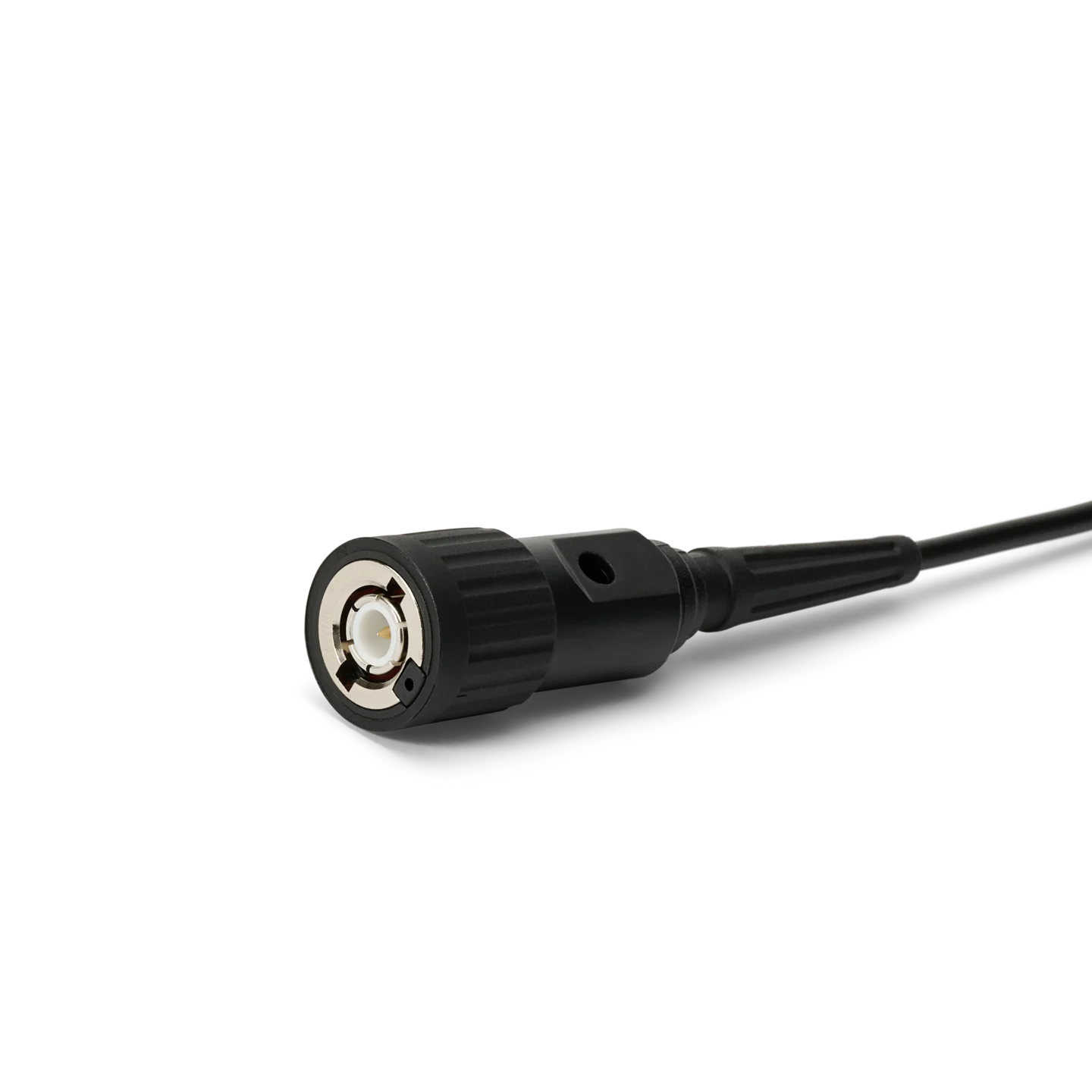

BNC connector of SQ100 100 MHz oscilloscope probe (PCBITE-6013)

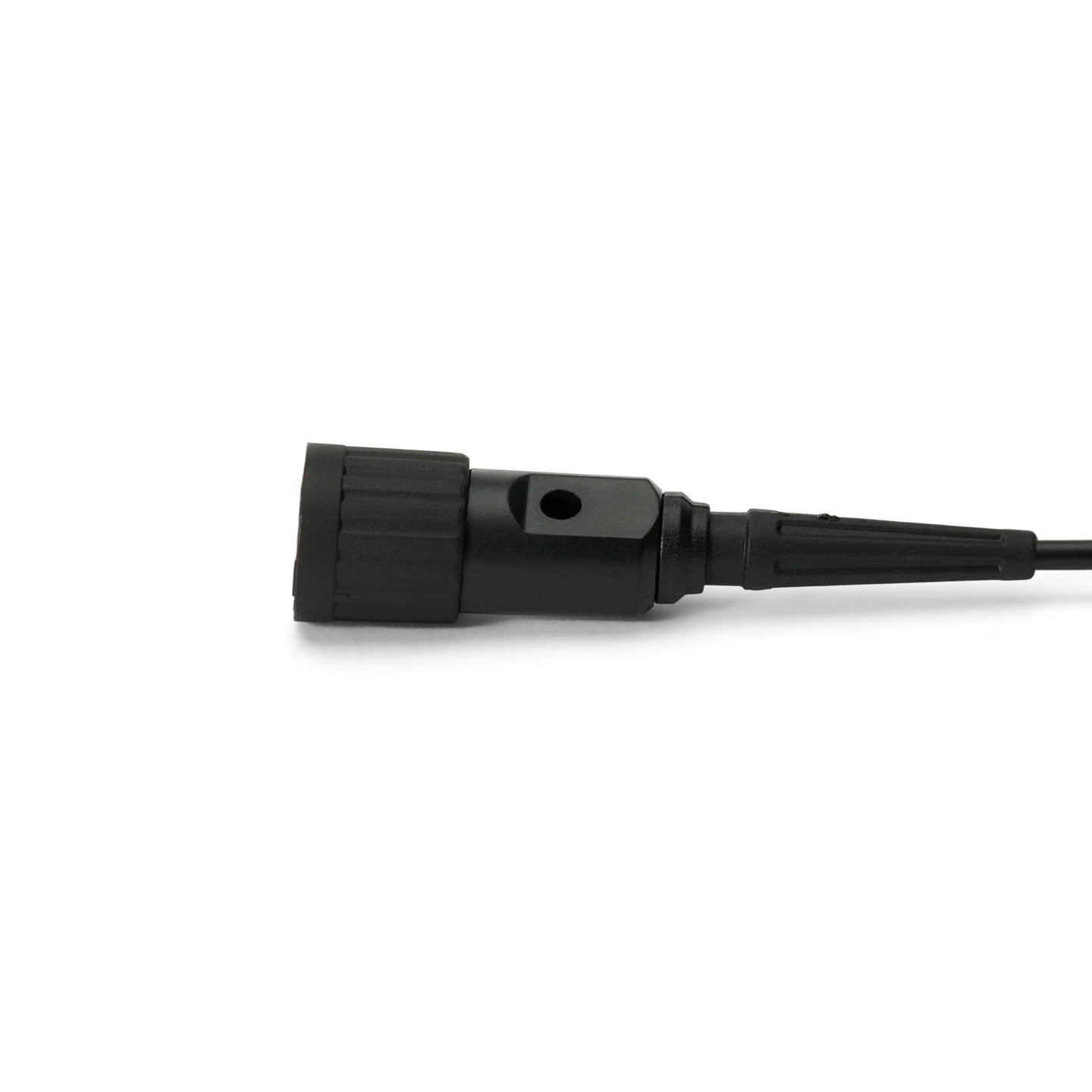

SQ100 100 MHz, Side view of BNC connector showing the hole for tuning low frequency response (PCBITE-6013)

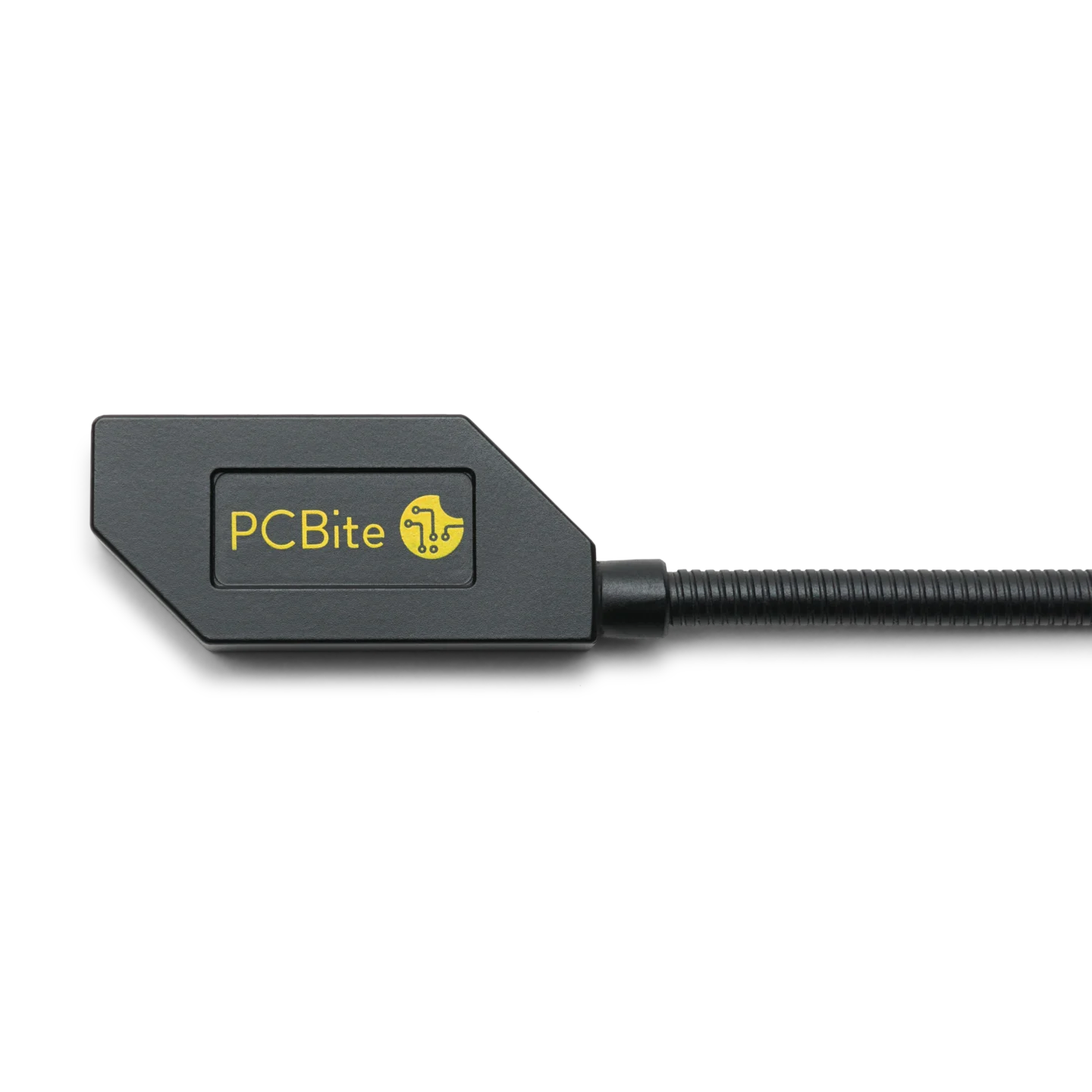

SQ100 100 MHz Probe holder with magnetic base for handsfree PCB testing, fits any SQ series probe (PCBITE-6013)

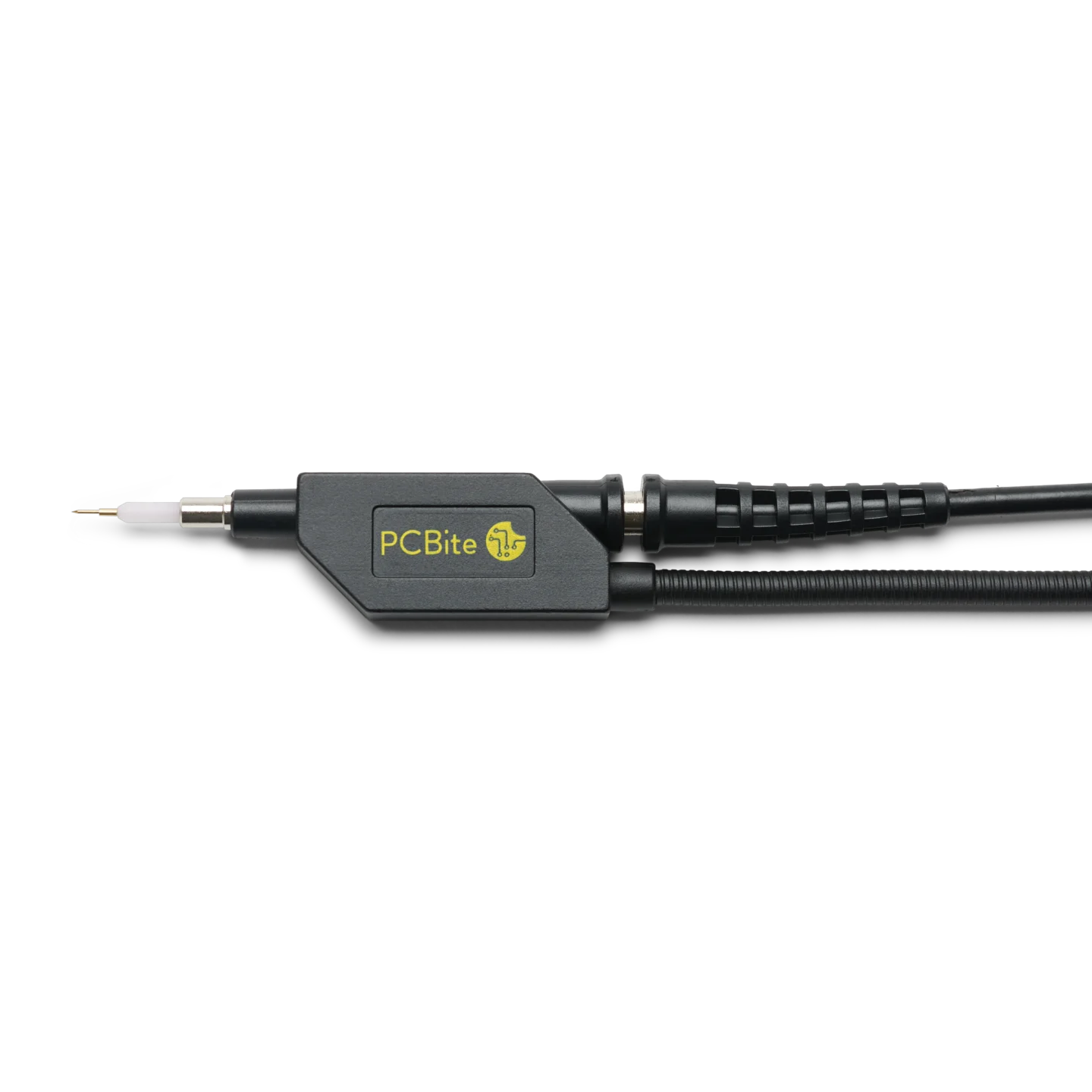

SQ100 100 MHz Oscilloscope probe mounted in probe holder without any ground options connected (PCBITE-6013)

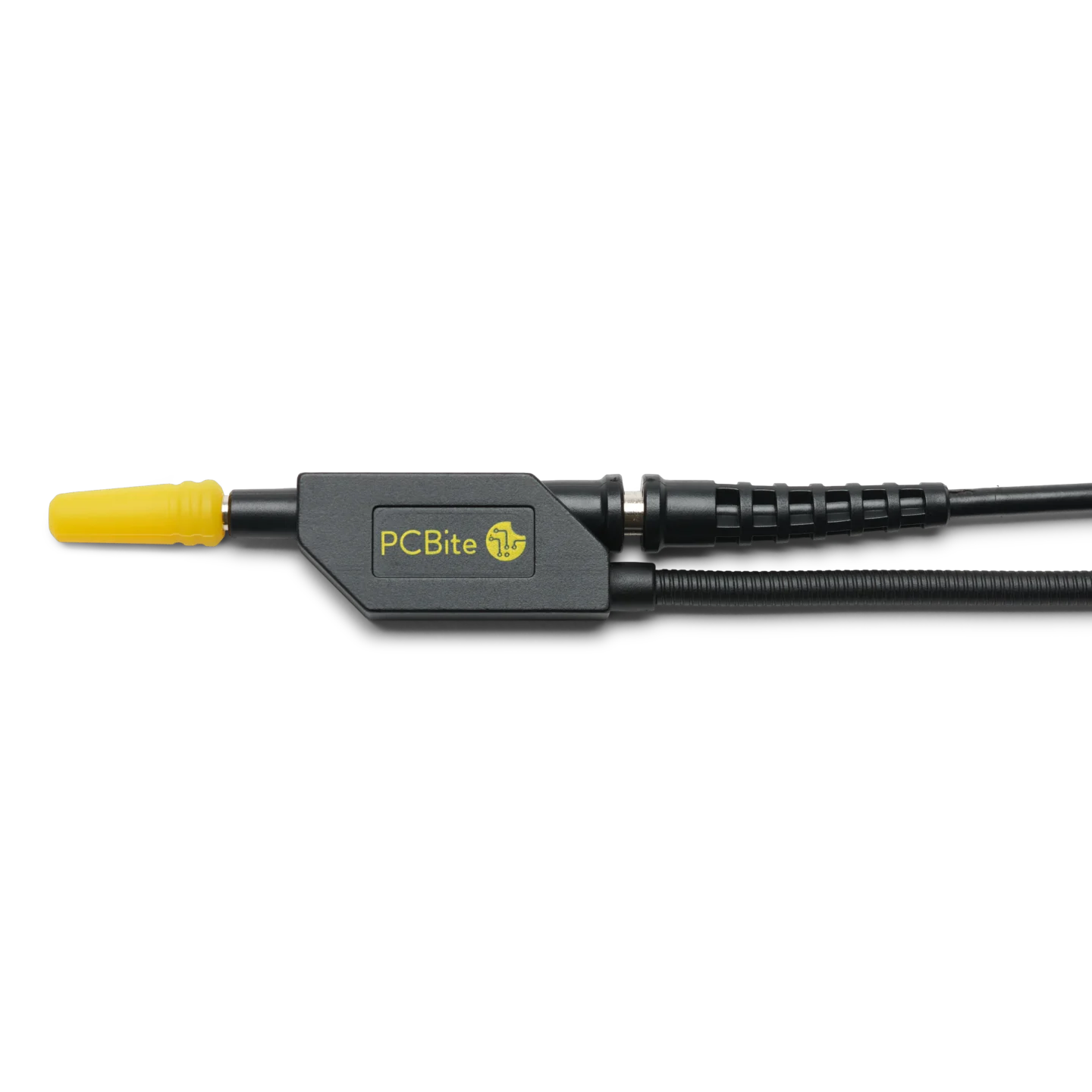

SQ100 100 MHz Oscilloscope probe mounted in holder with protective cap covering the probe tip (PCBITE-6013)

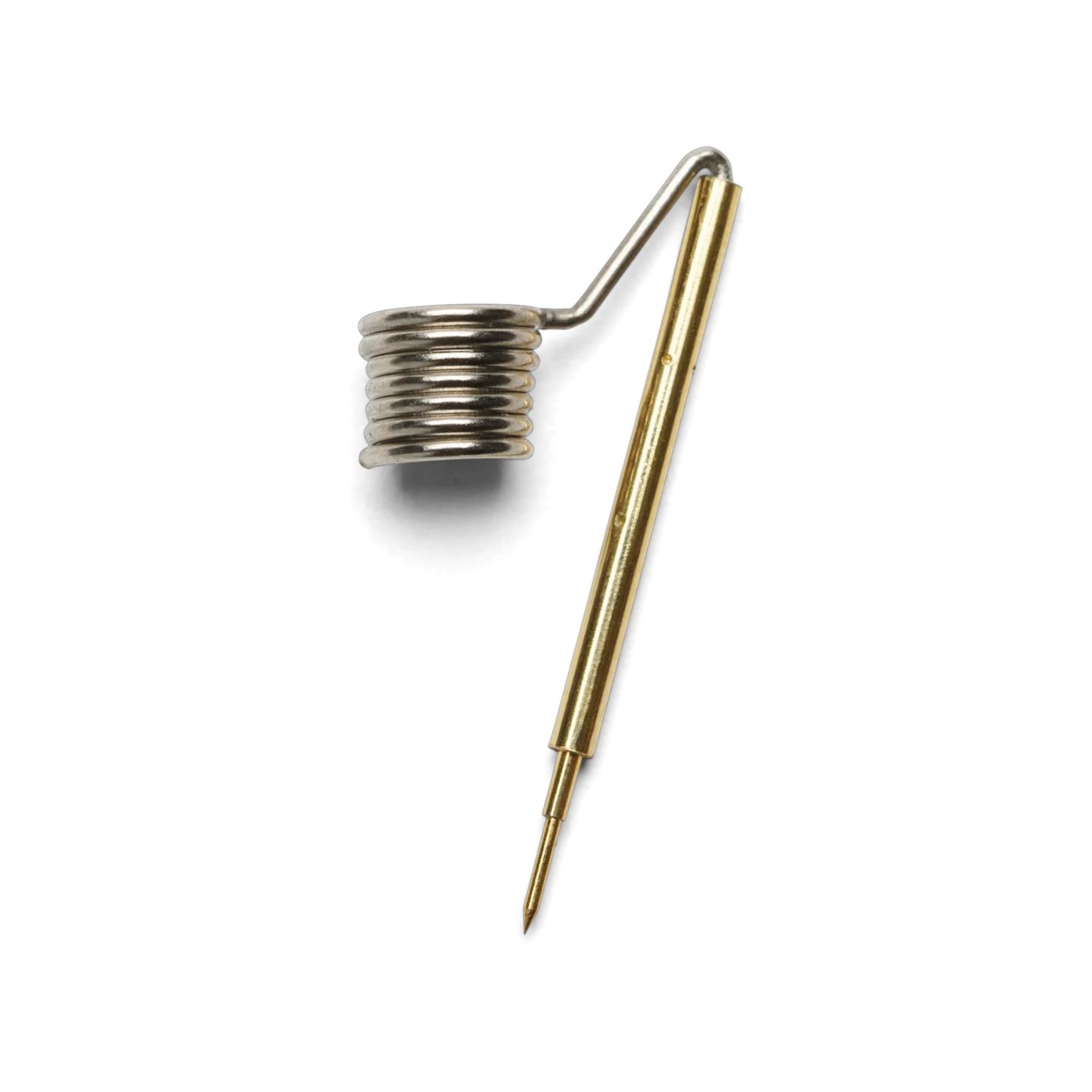

Spring-loaded ground needle for highest possible SQ100 100 MHz probe bandwidth during handheld or handsfree measurements (PCBITE-6013)
SQ100 100 MHz Oscilloscope probe in holder with unique ground spring with spring-loaded ground needle (PCBITE-6013)

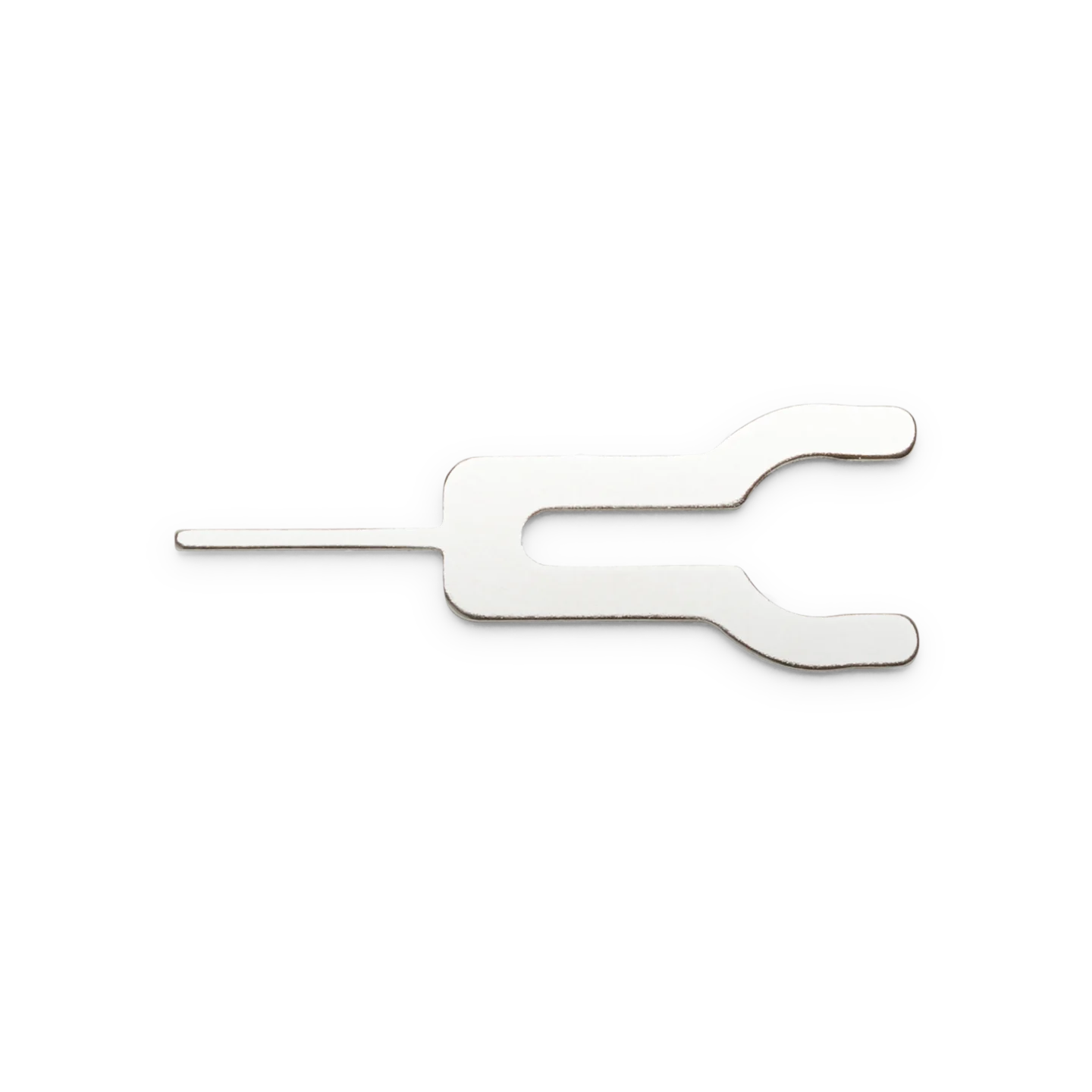

SQ100 100 MHz, Ground clip for the 5mm convenient ground interface to connect to any dupont accessory (PCBITE-6013)

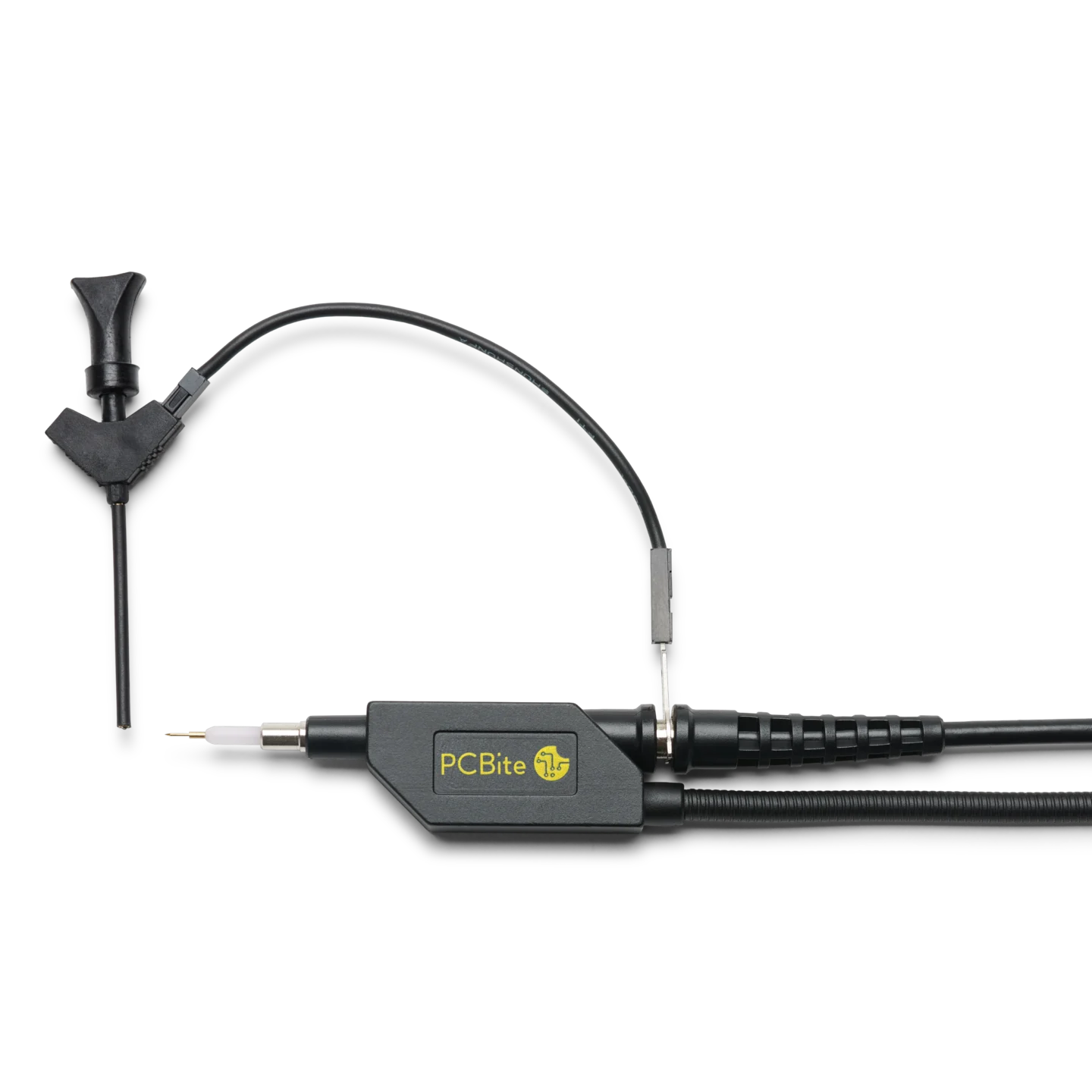

SQ100 100 MHz Probe in holder with airplane test hook connected to 5mm ground via dupont cable (PCBITE-6013)

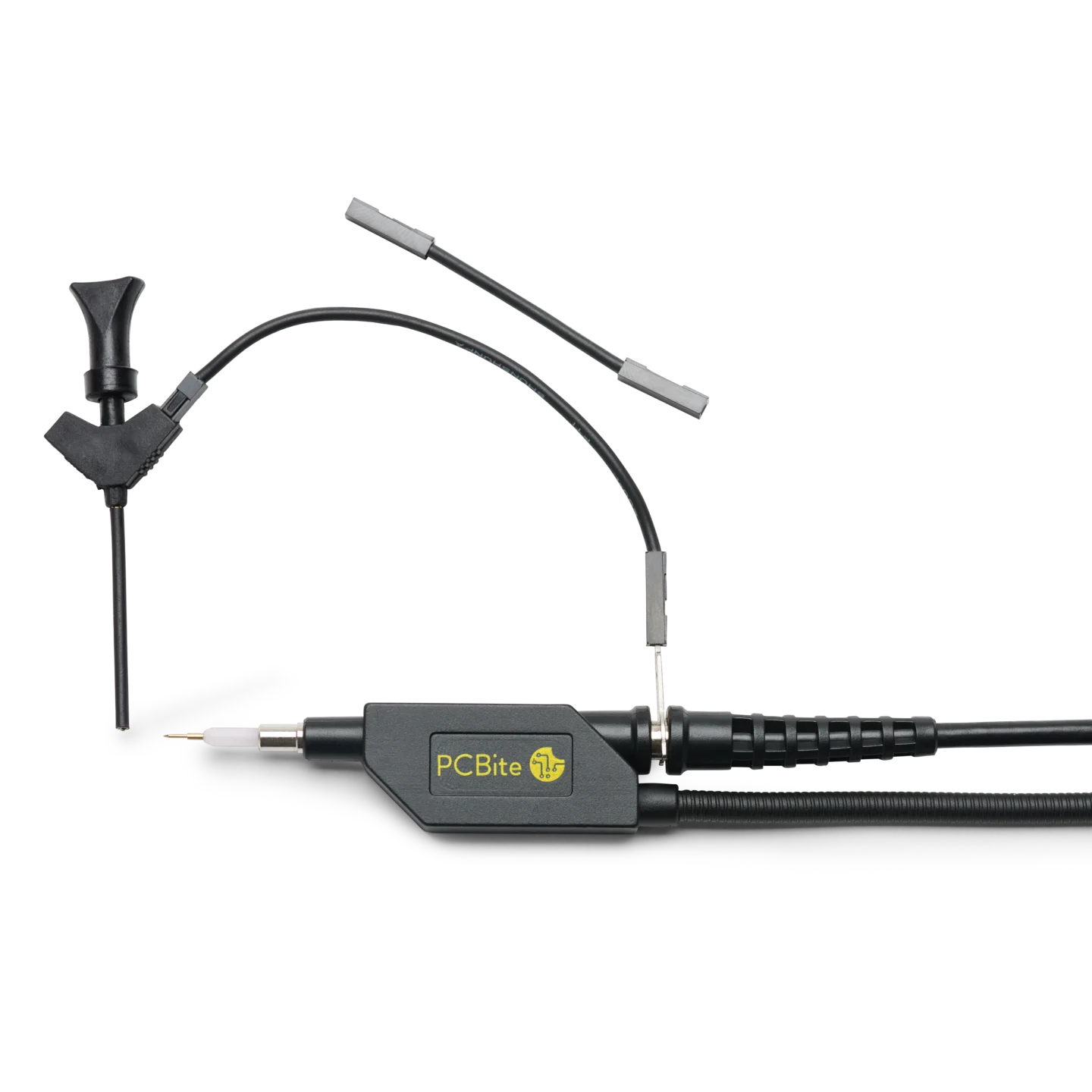

SQ100 100 MHz Probe in holder with airplane test hook connected to 5mm ground using dupont cable (PCBITE-6013)

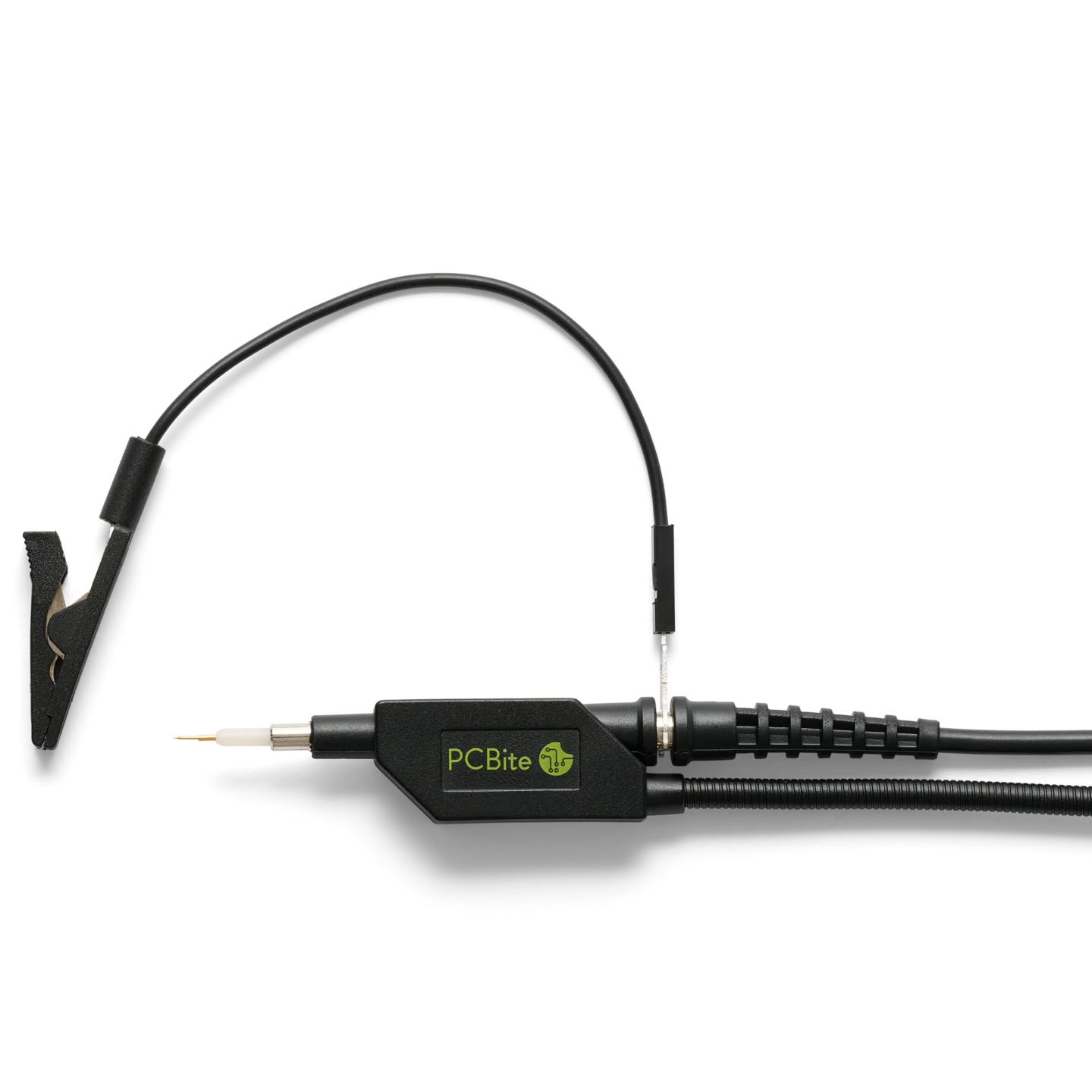

SQ100 100 MHz Probe in holder with high quality alligator and clip connected to 5mm ground interface (PCBITE-6013)

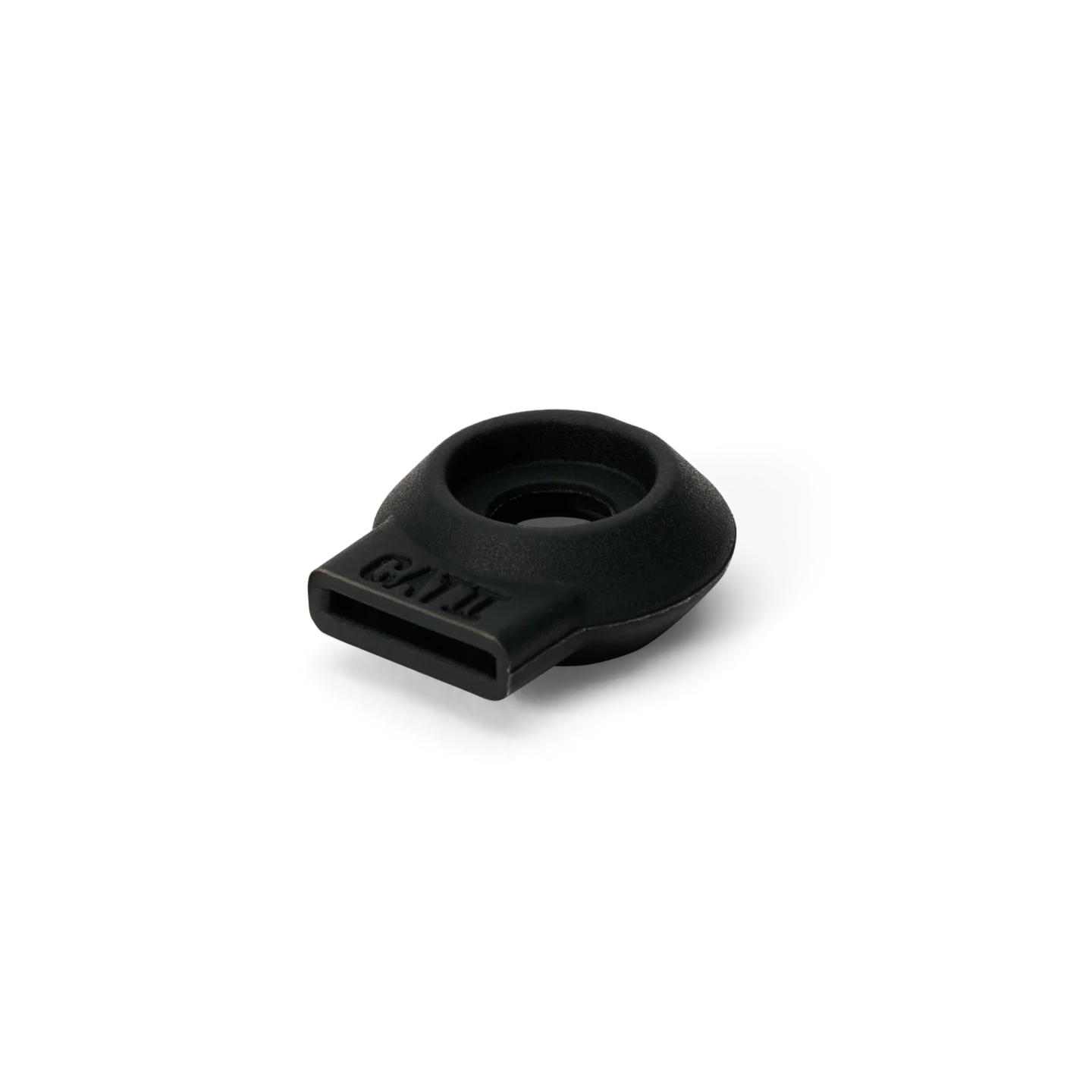

CAT2 safety accessory for SQ100 100 MHz oscilloscope probe 5mm ground interface enabling safe measurements (PCBITE-6013)

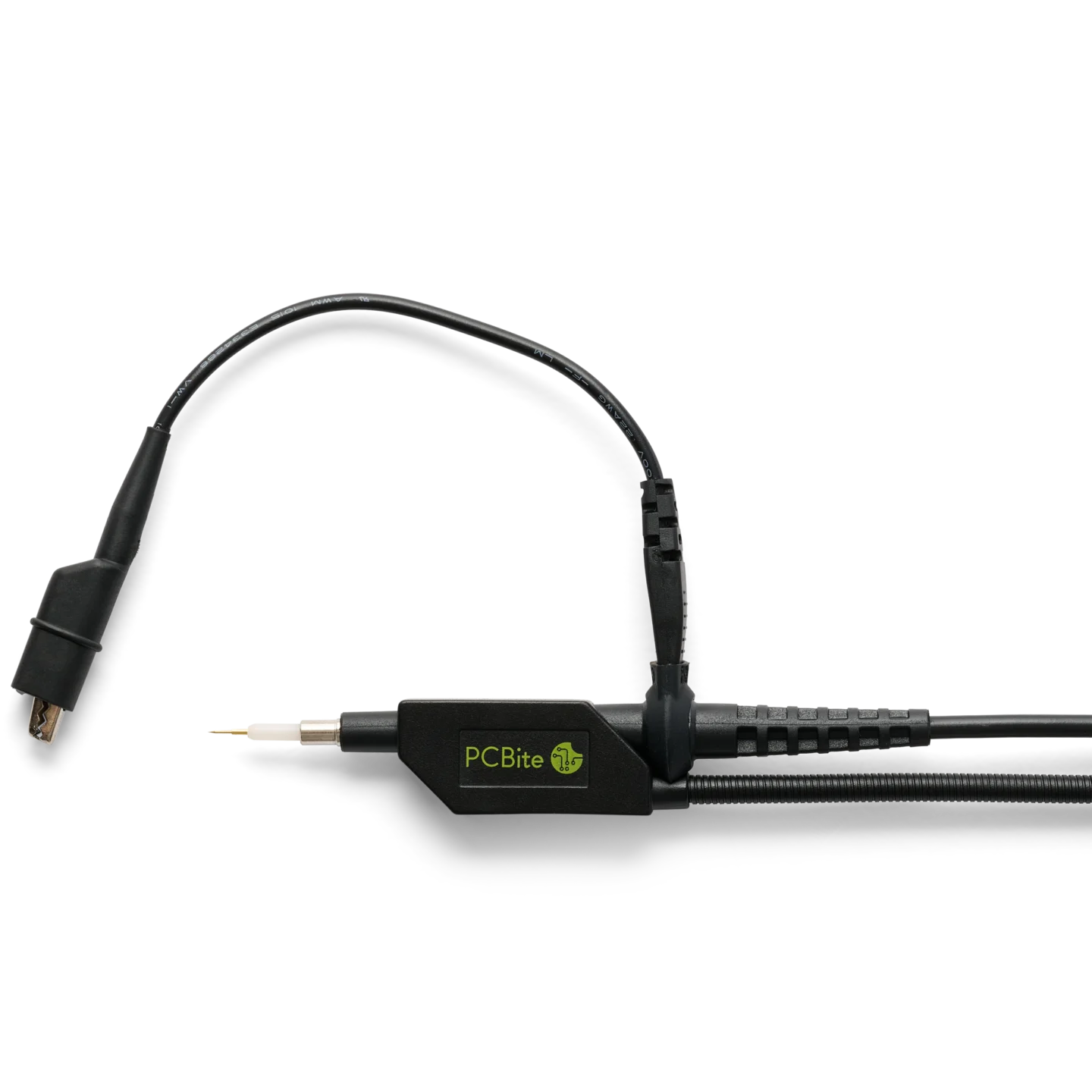

SQ100 100 MHz Probe in holder with insulated alligator clip together with insulator connected to 5mm ground interface (PCBITE-6013)

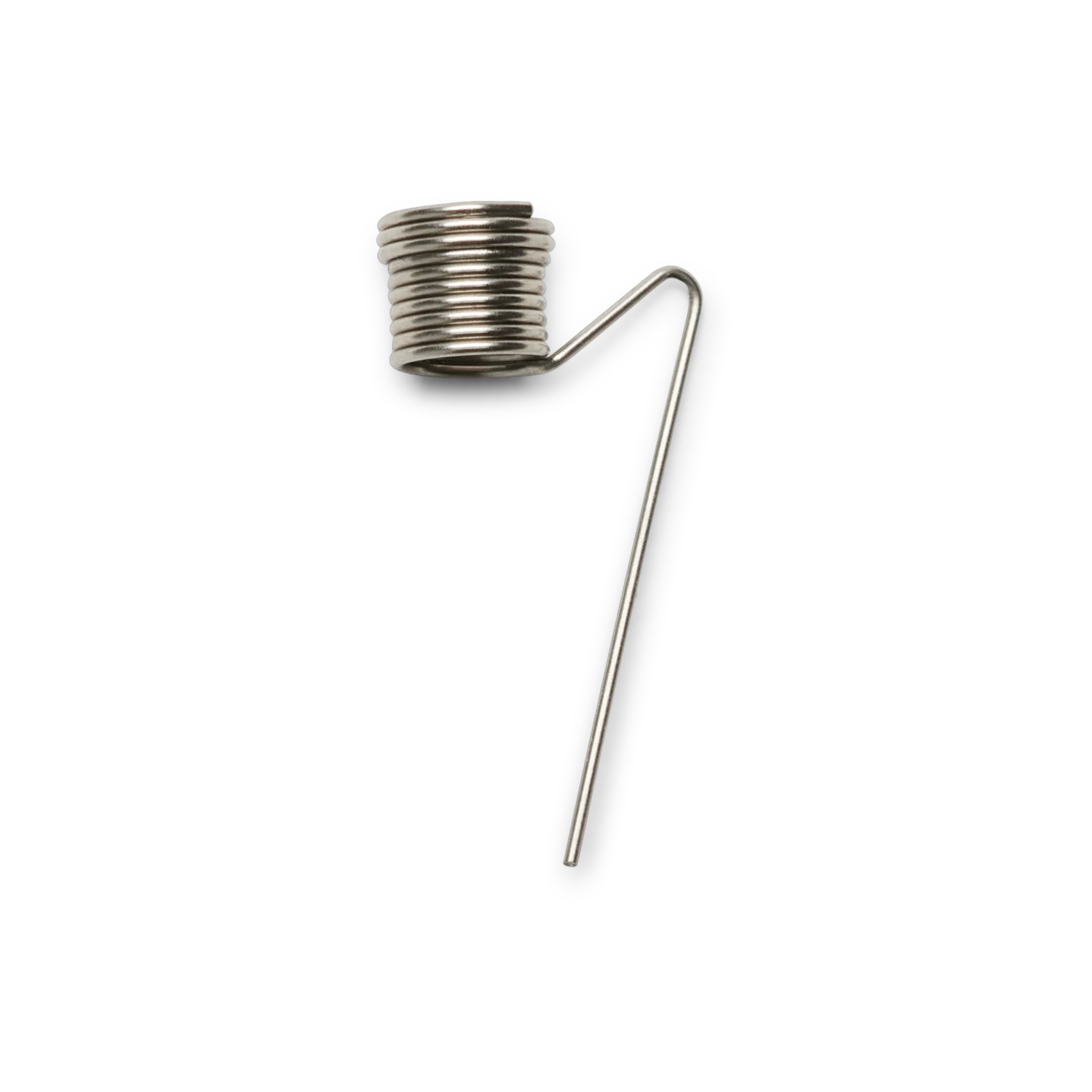

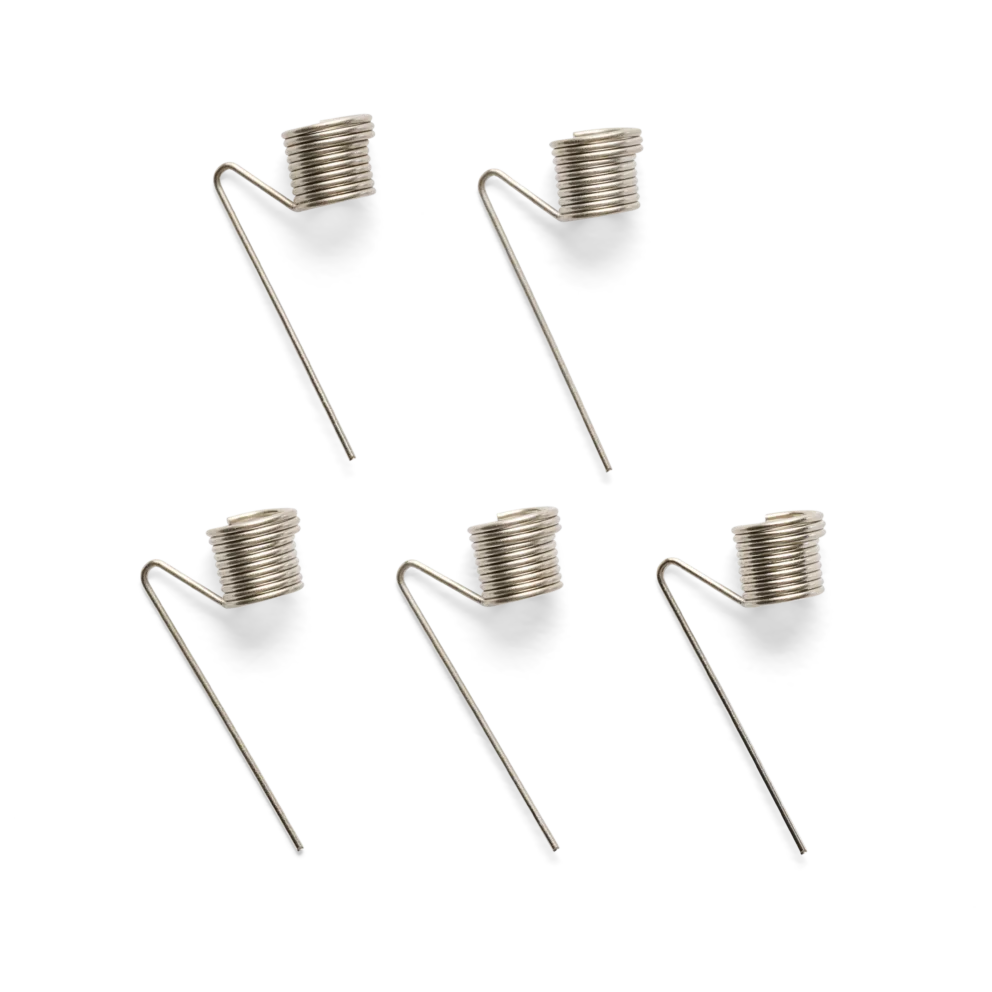

Ground spring for handheld SQ100 100 MHz oscilloscope probe measurements (PCBITE-6013)

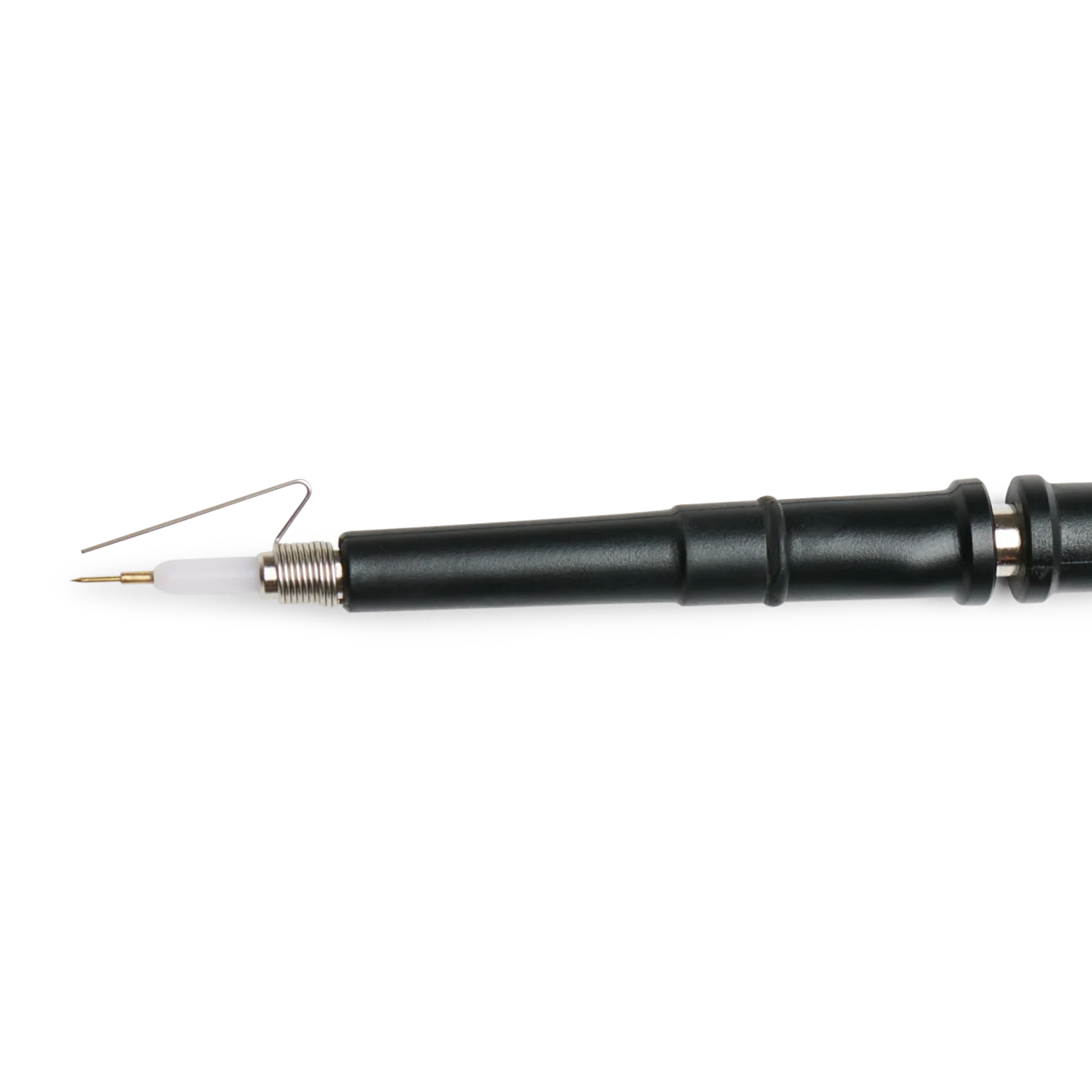

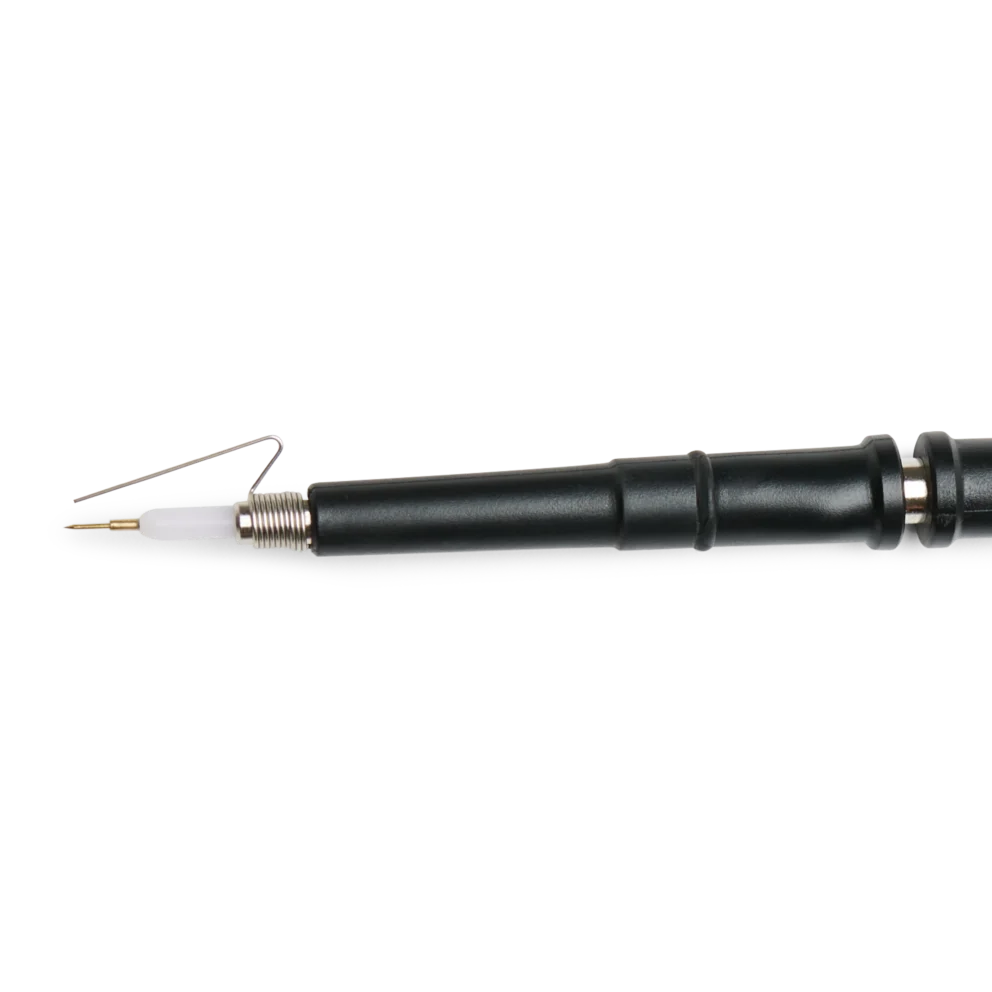

Closeup of SQ100 100 MHz oscilloscope probe front showing a mounted ground spring for handheld oscilloscope probe measurements (PCBITE-6013)

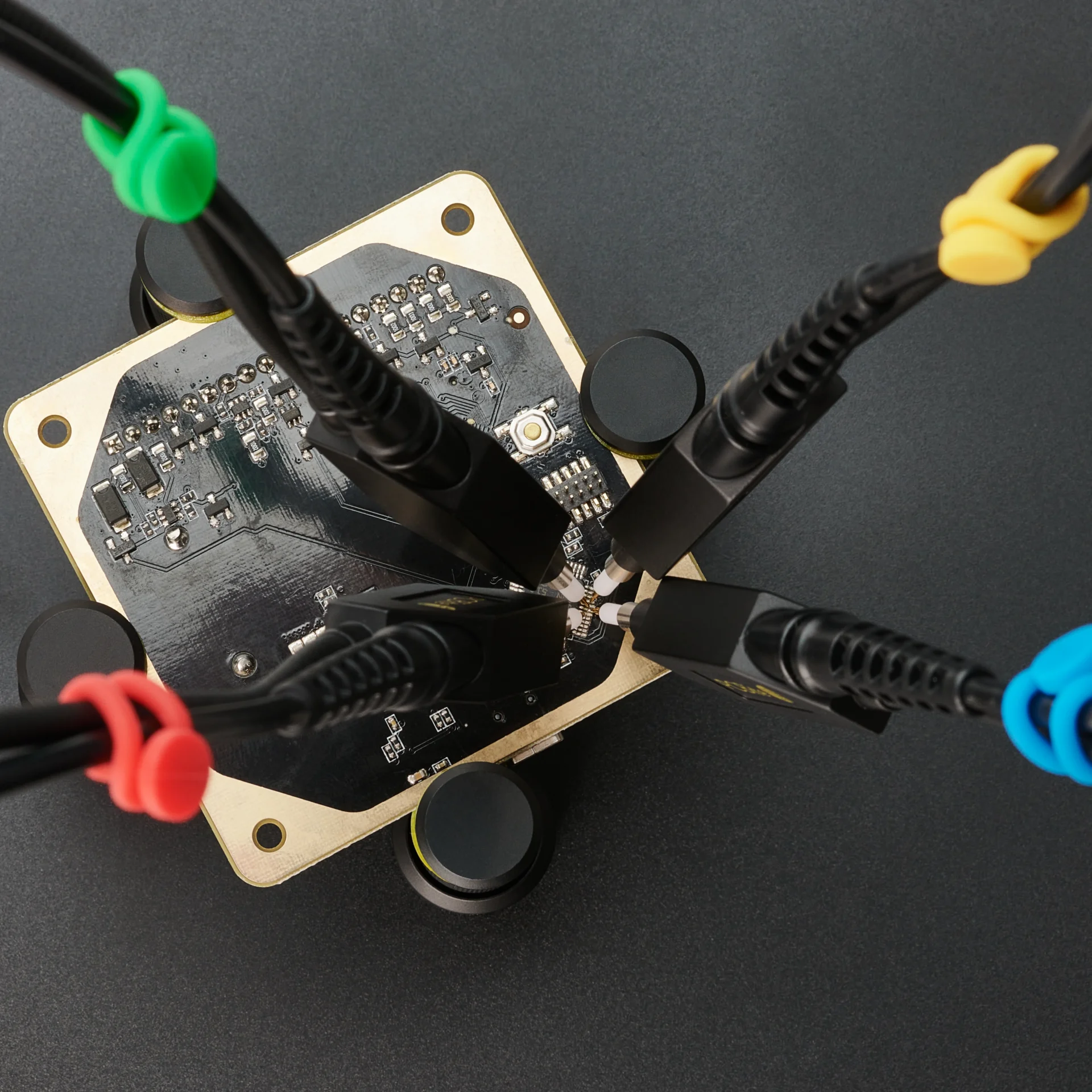

Four handsfree SQ100 100 MHz oscilloscope probes measuring on PCB with different color-coded cable holders (PCBITE-6013)
Four handsfree SQ100 100 MHz probes measuring on different PCB testpoints with color-coded cable holders (PCBITE-6013)

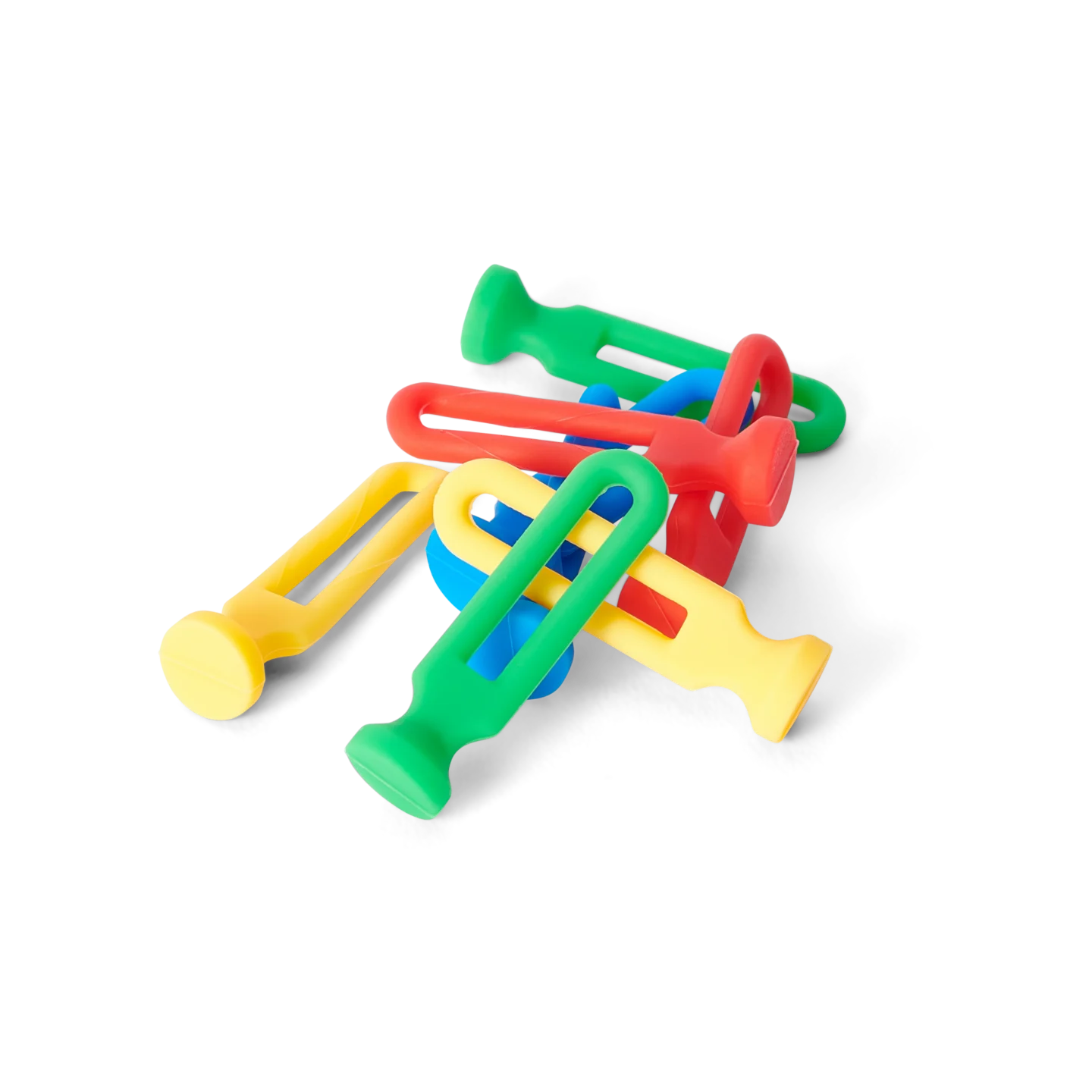

SQ100 100 MHz, Cable holders in four colors matching oscilloscope input channel identification (PCBITE-6013)
PCBITE-6013

SQ100 – 100 MHz handsfree oscilloscope probe

Entry-level handsfree 100 MHz oscilloscope probe, passive 10:1 with a standard BNC for any oscilloscope with a 1 MΩ input.

Secure paymentGlobal deliveryPremium quality
In stockDelivery: 1-2 business days

59 € excl. VAT

Accessories

Five yellow probe tip protection caps, protecting the spring-loaded needle tips when stored (PCBITE-7007)
PCBITE-7007
Probe tip protection caps
7 €
Out of stockExpected back in stock 2026-11-30
Add to cart
Cable holders in eight colors for organizing test cables away from PCB under test (PCBITE-7006)
PCBITE-7006
Cable holders
9 €
In stockDelivery: 1-2 business days
Add to cart
Ground cable accessories, test hooks, alligator clips and ground clips for secure connections (PCBITE-7004)
PCBITE-7004
Ground cable accessories
18 €
In stockDelivery: 1-2 business days
Add to cart

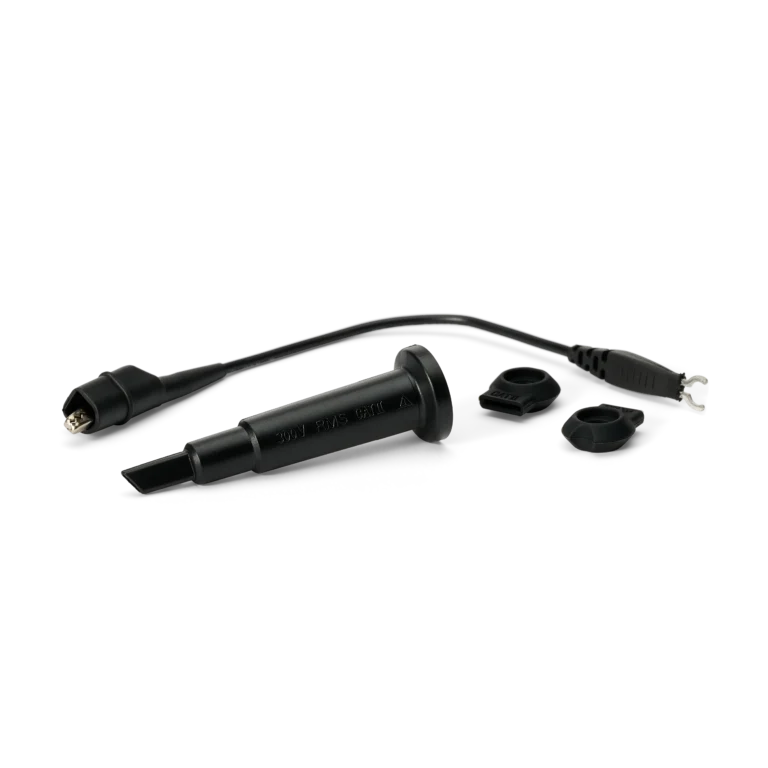

Sprung hook CAT II, secure wire grabber with spring mechanism for safe probing connections (PCBITE-7005)
PCBITE-7005
Sprung hook CATII
12 €
In stockDelivery: 1-2 business days
Add to cart

Introduction

The SQ100 brings handsfree probing to any oscilloscope with a 1 MΩ input. Place the spring-loaded needle on the signal and let go, and the probe stays put while you set up the measurement.

Place the spring-loaded test needle on the signal, set the spring-loaded ground needle next to it and release. The flexible arm holds the probe in position and the N52 neodymium magnet in the base keeps it on the PCBite base plate. The SQ100 is a passive 10:1 probe for measurements up to 100 MHz, with 10 MΩ and 13 pF at the tip and a standard BNC connector. It has no probe ID pin, so the oscilloscope channel is set to 10:1 by hand.

The insulated probe can also be used handheld. A low center of gravity keeps it steady when used handsfree, and color coded cable holders in four channel colors show which probe goes to which input. An adjustment tool is included for compensating the probe to oscilloscope inputs from 8 pF to 27 pF.

The ground spring needle gives a short ground path for handsfree use and the ground spring does the same handheld, both at the full rated bandwidth. For ground points further away, a test hook, an alligator clip and ground leads with 2.54 mm (0.100 in) jumper connectors, often called Dupont connectors, are included.

The SQ100 is designed to IEC 61010-031 and rated CAT II 300 V RMS with the finger protection mounted. A PCBite base plate and holders are required for handsfree use.

Compatible accessories

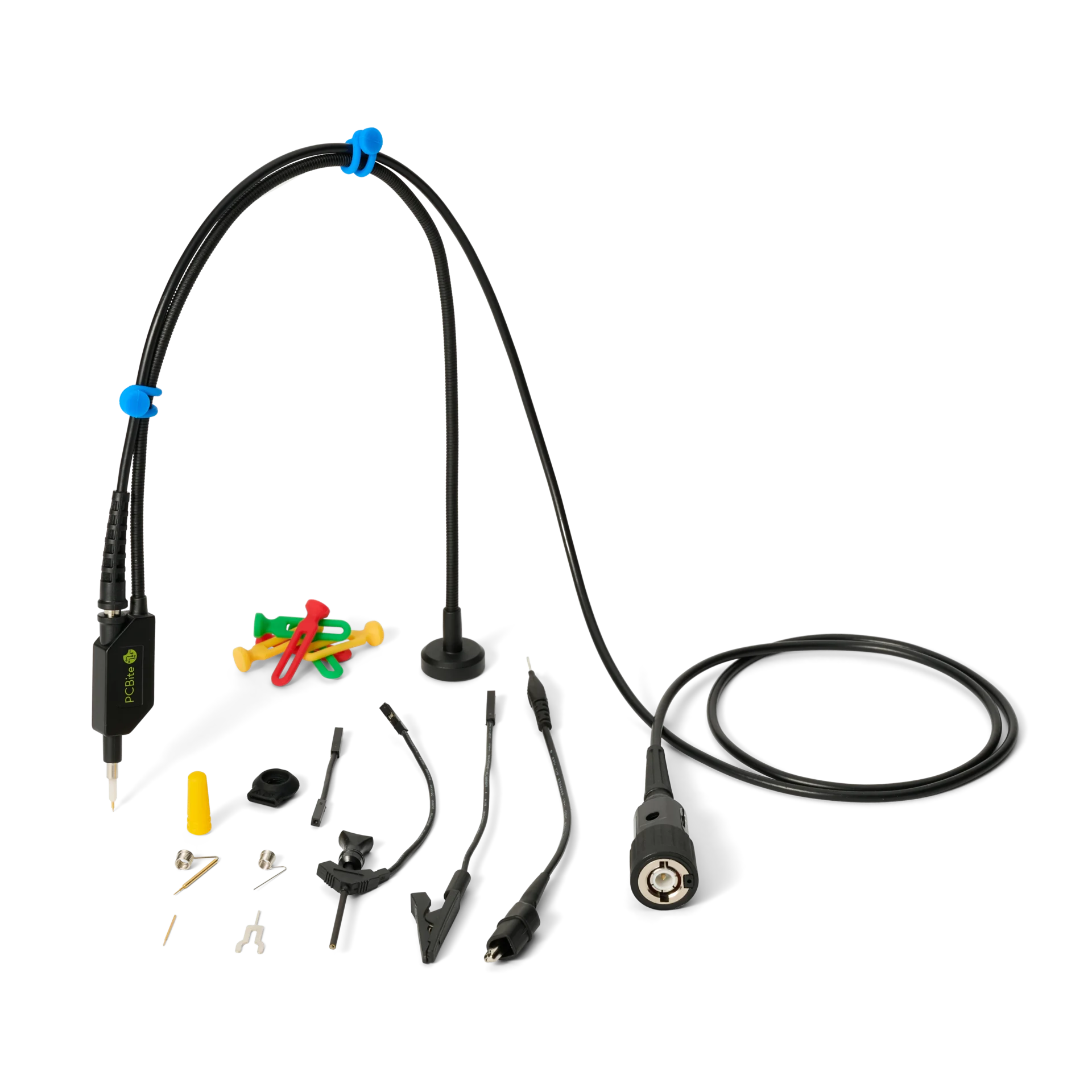

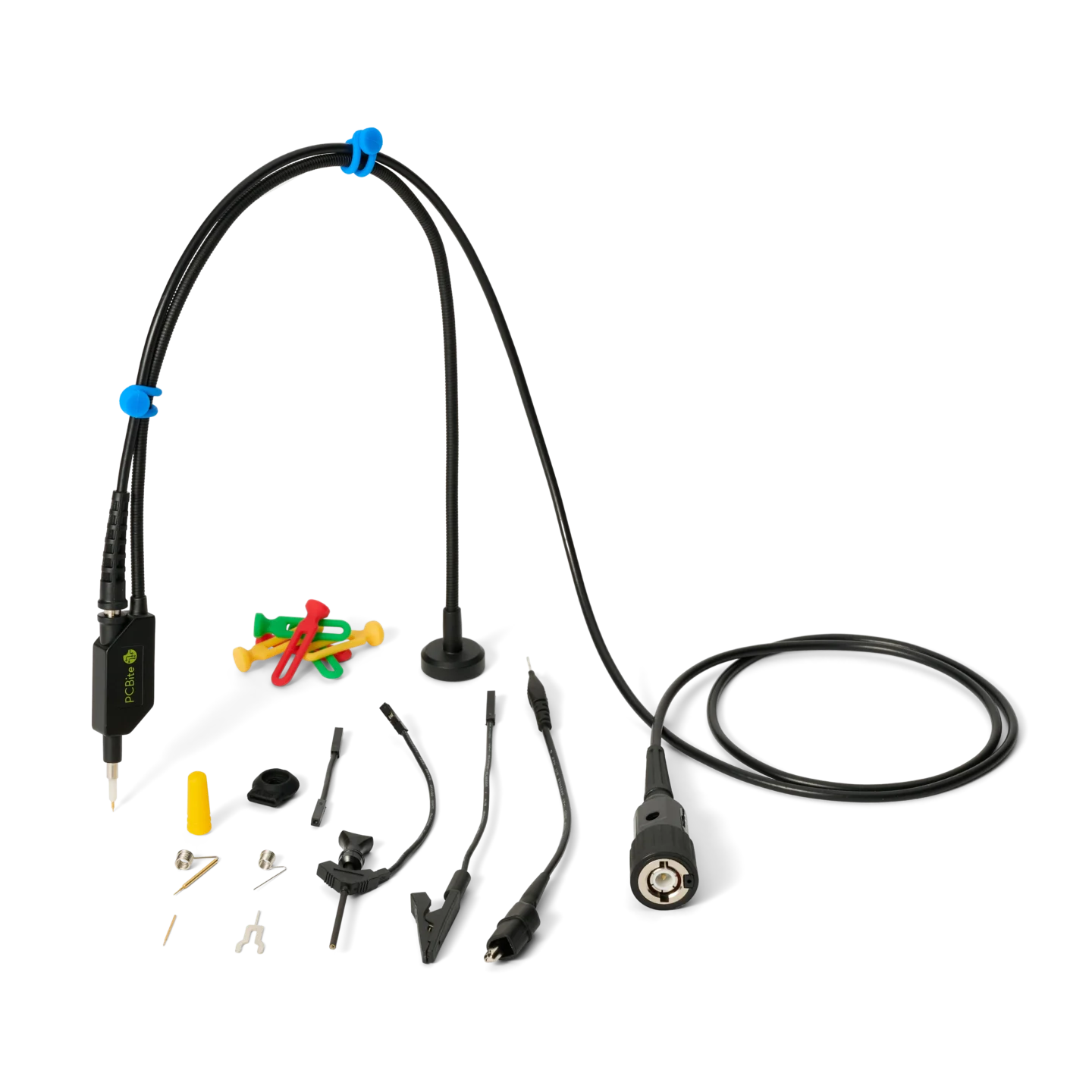

SQ100 100 MHz Probe with probe holder and accessories included with a single probe purchase (PCBITE-6013)
  • 1X SQ100 100 MHz probe with spring tipped test needle
  • 1X SQ probe holder for handsfree measurement
  • 1X Dupont ground lead 10 cm (4 in)
  • 1X Dupont ground lead 5 cm (2 in)
  • 1X Test hook with Dupont connector
  • 1X Alligator to 5 mm clip ground lead CAT II
  • 1X Alligator to Dupont ground lead
  • 1X Ground clip 5 mm to Dupont
  • 1X Ground spring, for handheld measurements at rated bandwidth
  • 1X Ground spring needle, for total handsfree measurements at rated bandwidth
  • 1X Extra test needle (SP/SQ)
  • 1X Adjustment tool (for probe compensation)
  • 1X Set of cable holders (red, yellow, green, blue)
  • 1X Finger protection CAT II
  • 1X Probe tip protection cap
User guide SQ Oscilloscope probes Datasheet SQ-series oscilloscope probes

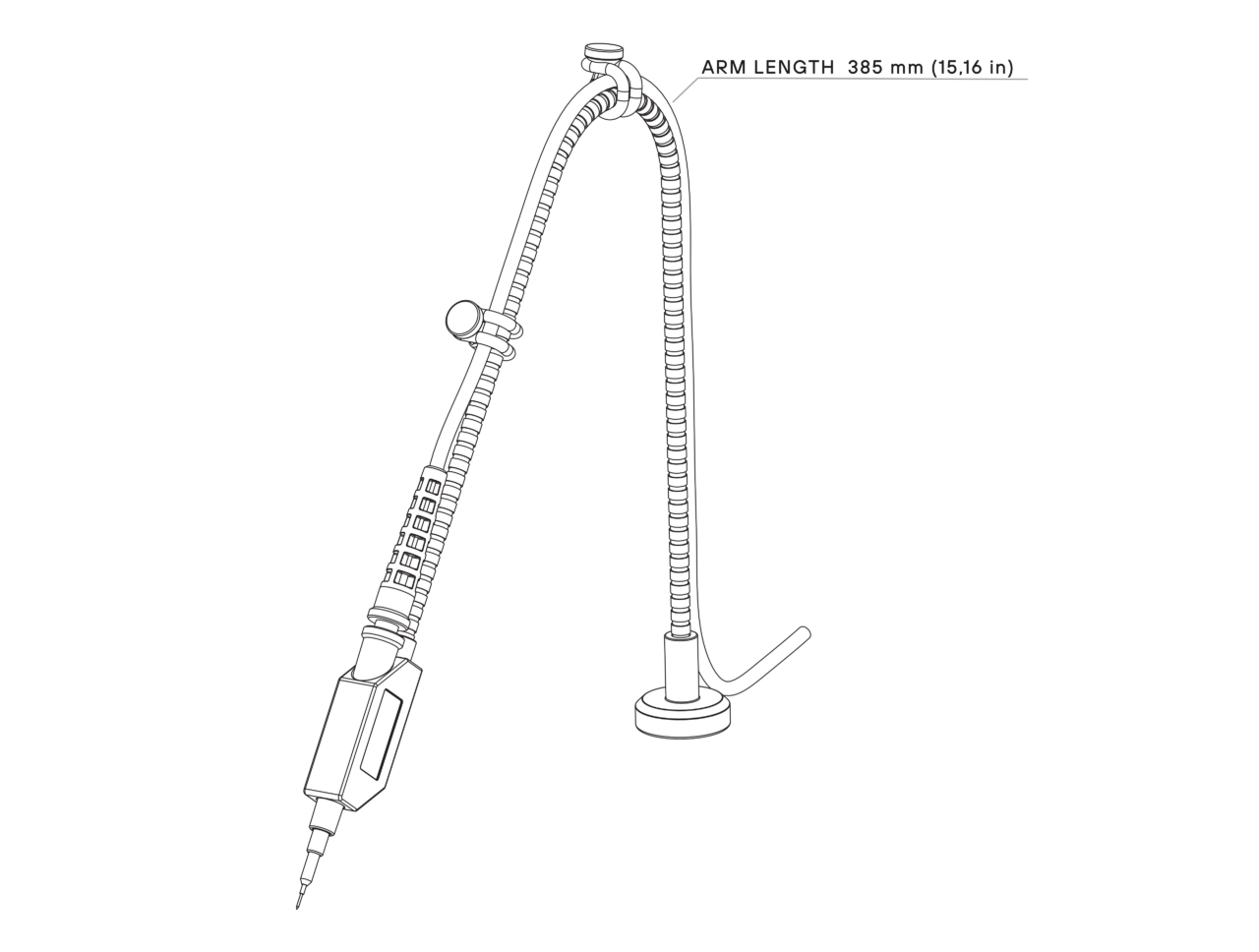

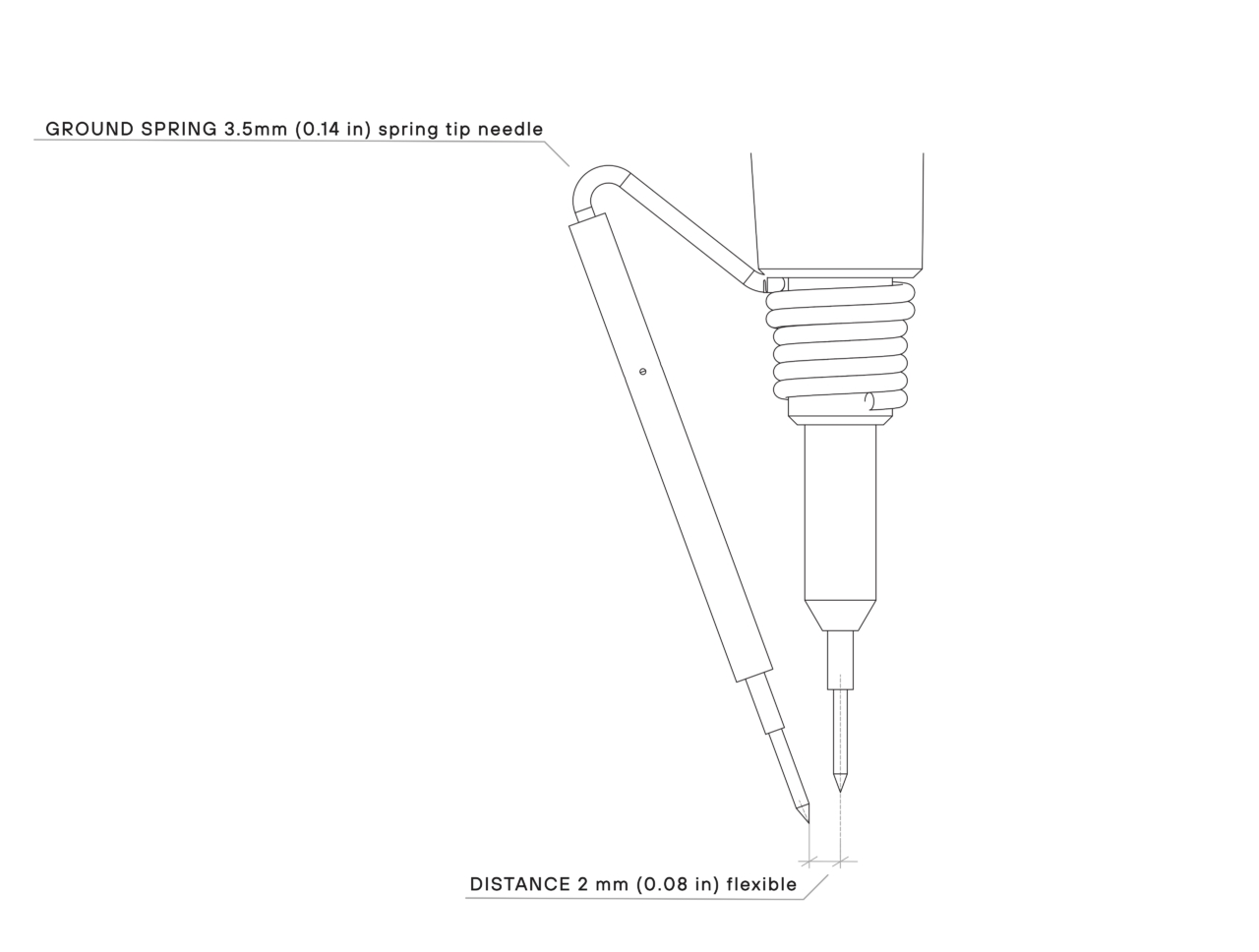

Dimensions of SQ100 - 100 MHz handsfree oscilloscope probe: SQXX0 Probes
Brand

PCBite
Manufacturer

Sensepeek AB
Article number

PCBITE-6013
GTIN

7350145660571
Country of origin

Sweden
HS code

90309000
HTS code

9030906800
ECCN

EAR99
Safety information

See downloads
Package weight 170 g
Package dimensions 145 × 220 × 20 mm
MATERIAL

Made to last

Every material and design detail is chosen to last for years in a demanding lab environment.

Flexible arm
Flexible, adaptable, mechanically stable metal design
Test needle
Exchangeable, fine-pitch spring-loaded
Magnet
Strong N52 neodymium
Connector
Standard BNC
MATERIAL
Flexible arm
Flexible, adaptable, mechanically stable metal design
Test needle
Exchangeable, fine-pitch spring-loaded
Magnet
Strong N52 neodymium
Connector
Standard BNC

Made to last

Every material and design detail is chosen to last for years in a demanding lab environment.

SQ100 100 MHz Probe with probe holder and accessories included with a single probe purchase (PCBITE-6013)
BANDWIDTH WITHOUT COMPROMISE

Your oscilloscope is only as good as the probe connected to it.

PCBite probes are engineered for low loading, flat frequency response and accurate signal reproduction. In many setups, replacing the supplied general-purpose probe with a carefully matched PCBite probe can improve the performance of the complete measurement system. We design the probe to reveal what your oscilloscope can really do, not to become its limitation.

APPLICATIONS

For power, digital and analog measurements.

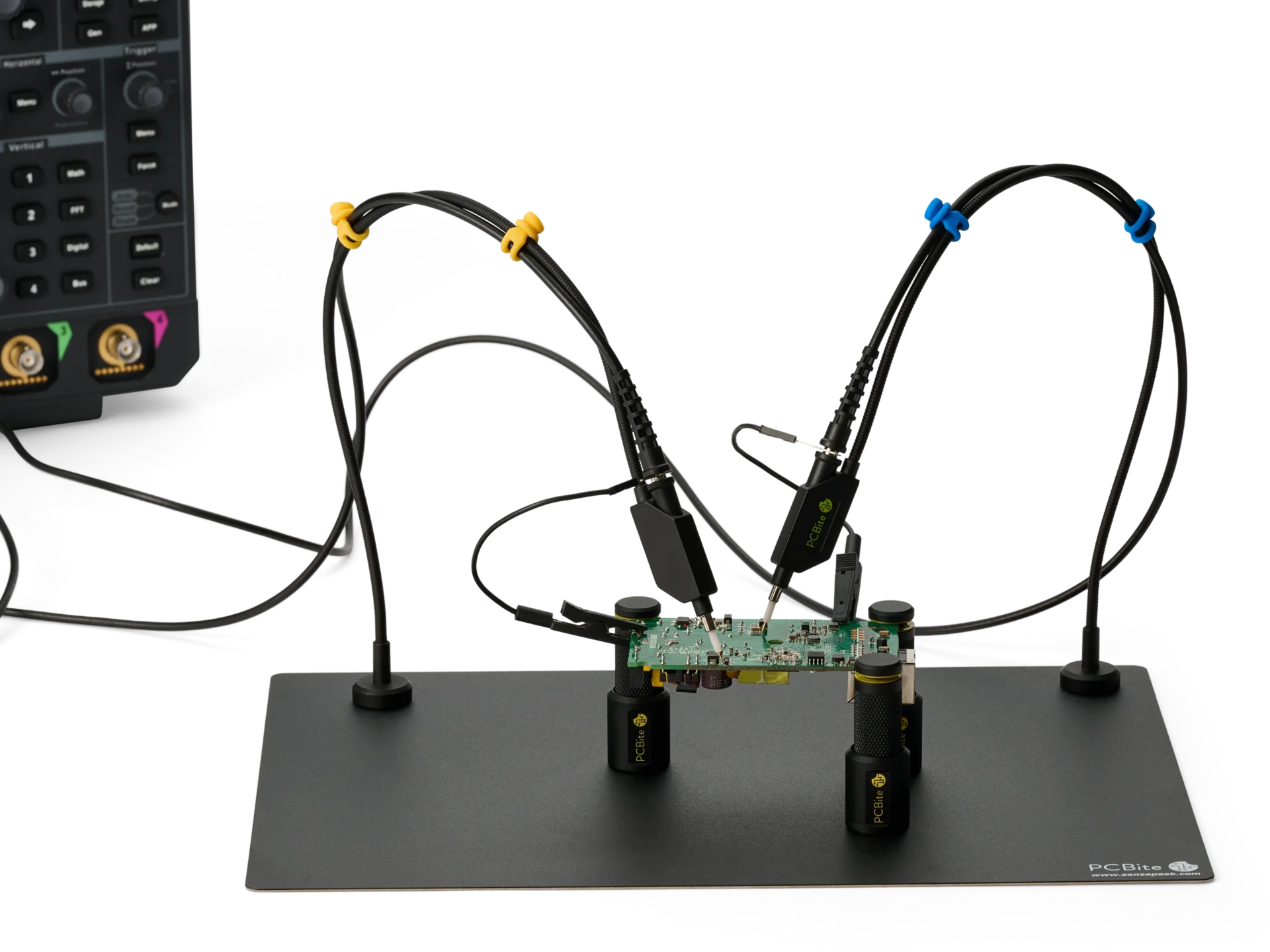

Two handsfree oscilloscope probes with long ground leads clipped on, measuring a PCB in PCBite holders for an oscilloscope.
PCB with multiple MMCX connectors and adapters for quick probe repositioning between test points
Two oscilloscope probes and four SQ10 probes measuring a PCB handsfree, connected to a Keysight oscilloscope.
Four SQ10 probes with gold spring-loaded needles on the pins of a fine-pitch IC, picking up bus signals handsfree.
Four handsfree oscilloscope probes with yellow, blue, green and red cable holders on a small PCB, one per scope channel.

Long ground leads are useful for locating the signal and making initial contact, but their added inductance can introduce ringing on fast switching edges. For accurate measurements, replace the long ground lead with the short spring-loaded ground to minimize the ground loop. This provides a cleaner view of edge shape, overshoot and dead time while keeping the probe in place handsfree. Leave the probe connected while adjusting the control loop or changing the duty cycle.

NEEDLES

Every needle, spring-loaded.

Both the test needle and ground needle are spring-loaded, providing a defined, consistent contact force on the pad. This keeps the connection stable throughout the measurement, even if the setup is bumped or exposed to vibration.

SPRING-LOADED GROUND

We reinvented the ground.

High-end probes often use a spring-loaded signal needle for reliable contact. The same principle is applied to ground with Sensepeek’s patented spring-loaded ground, positioned close to the signal point. The short ground path reduces loop inductance and improves signal integrity, while the spring-loaded ground adds the mechanical stability needed for reliable handsfree measurements.

Measuring handheld on SMD component using SQ100 100 MHz oscilloscope probe with the ground spring needle (PCBITE-6013)
CONTACT FORCE

Less force. More control.

With spring-loaded signal and ground needles, a PCBite probe needs only about 60 g (2.1 oz) to maintain reliable contact with the test point. That light contact force makes the probe easy to hold steady, even during long handheld measurements. Fixed-needle probes can require 5 to 8 times more force, which quickly becomes tiring and makes precise placement on small pads more difficult.

Four handsfree SQ100 100 MHz oscilloscope probes measuring on PCB with different color-coded cable holders (PCBITE-6013)
FREQUENCY RESPONSE

Why flatness matters beyond bandwidth.

Bandwidth alone doesn’t tell you how accurately a probe measures a signal. A probe can meet its bandwidth specification while amplitude changes significantly with frequency, which is why flat frequency response matters. For the SQ100, the goal is to preserve signal amplitude across its full 100 MHz usable bandwidth.

See datasheet
Four handsfree SQ10 probes with spring-loaded tips probing PCB signals with color-coded cable holders (PCBITE-6029)
CABLE HOLDERS

Know every channel at a glance.

Every SQ10 and PCBite oscilloscope probe includes cable holders in four standard channel colors used by leading test equipment manufacturers. They keep cables organized and make each channel easy to trace from instrument to measurement point. Eight colors are available for larger or more complex setups.

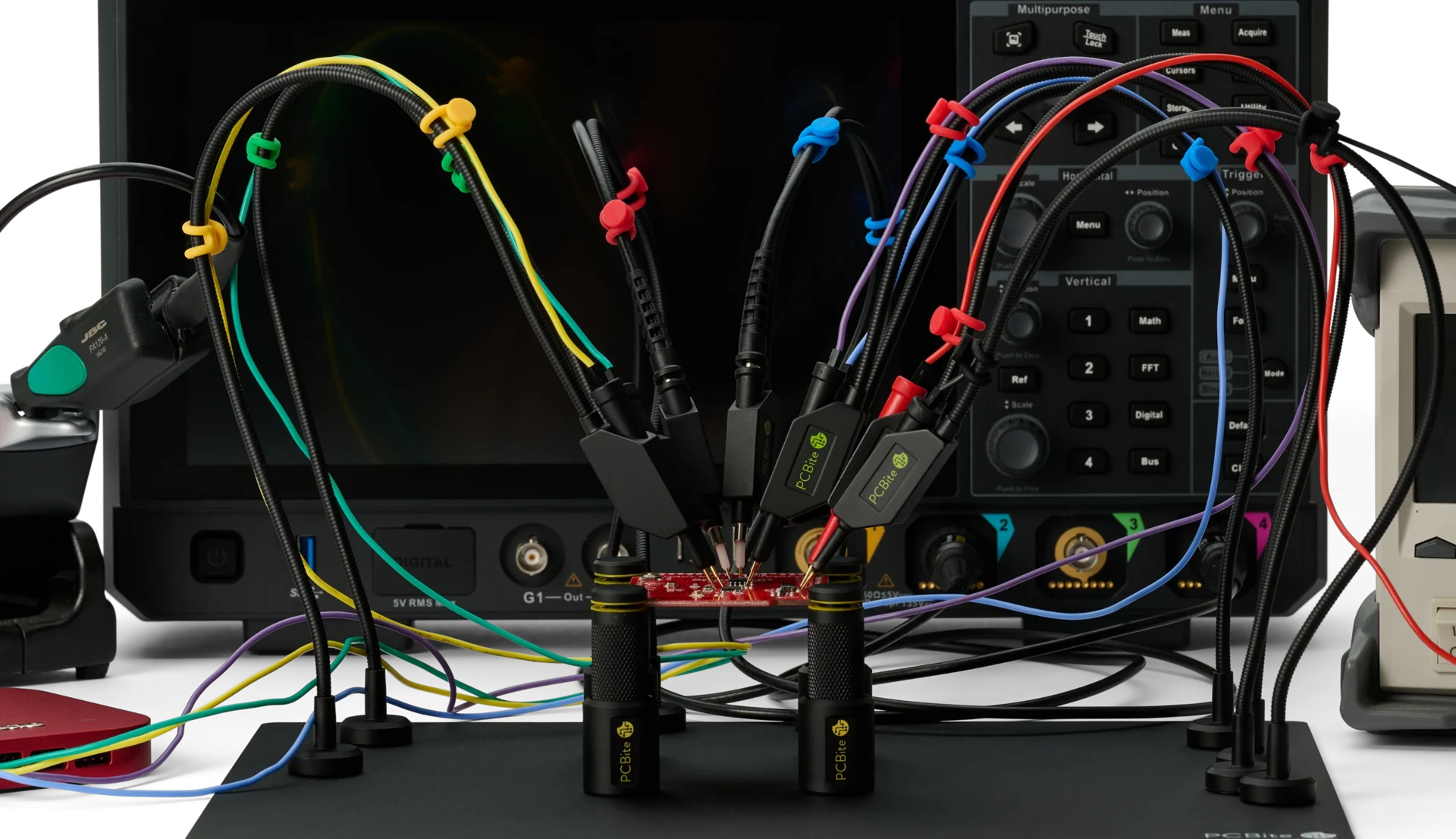

SQ oscilloscope probes and color-coded SQ10 handsfree probes on one PCB in PCBite holders, connected to a mixed signal oscilloscope.
Sprung hook CAT II, secure connection accessory for wires and pins with safety rating
SAFETY

Measure with confidence.

Our standard PCBite oscilloscope probes are designed and independently tested against IEC 61010-031 and rated CAT II 300 V RMS. Performance matters. So does using a probe designed for the measurement environment.

Hands lifting a whole PCBite setup with probes on a PCB and a Saleae logic analyzer, every needle staying in contact.
ANTI-SHAKE

Steady placement. Reliable contact.

The flexible arm and probe weight keep the spring-loaded needle partially compressed during measurement, maintaining contact even if the setup is disturbed. The arm also adds controlled resistance when positioning the needle on fine-pitch components, making precise placement easier even with a slightly unsteady hand.

Four handsfree SQ100 100 MHz oscilloscope probes measuring close signal pins on MCU test PCB (PCBITE-6013)
MULTI-POINT MEASUREMENT

Multiple probes. Long measurements. No hands required.

Position several SQ100 probes across the board and leave them in place for both quick measurements and long triggering sessions. The probes maintain contact throughout the measurement, enabling simultaneous multi-point measurements that are impractical with handheld probes.

GROUND ACCESSORIES

Every ground accessory you need, included.

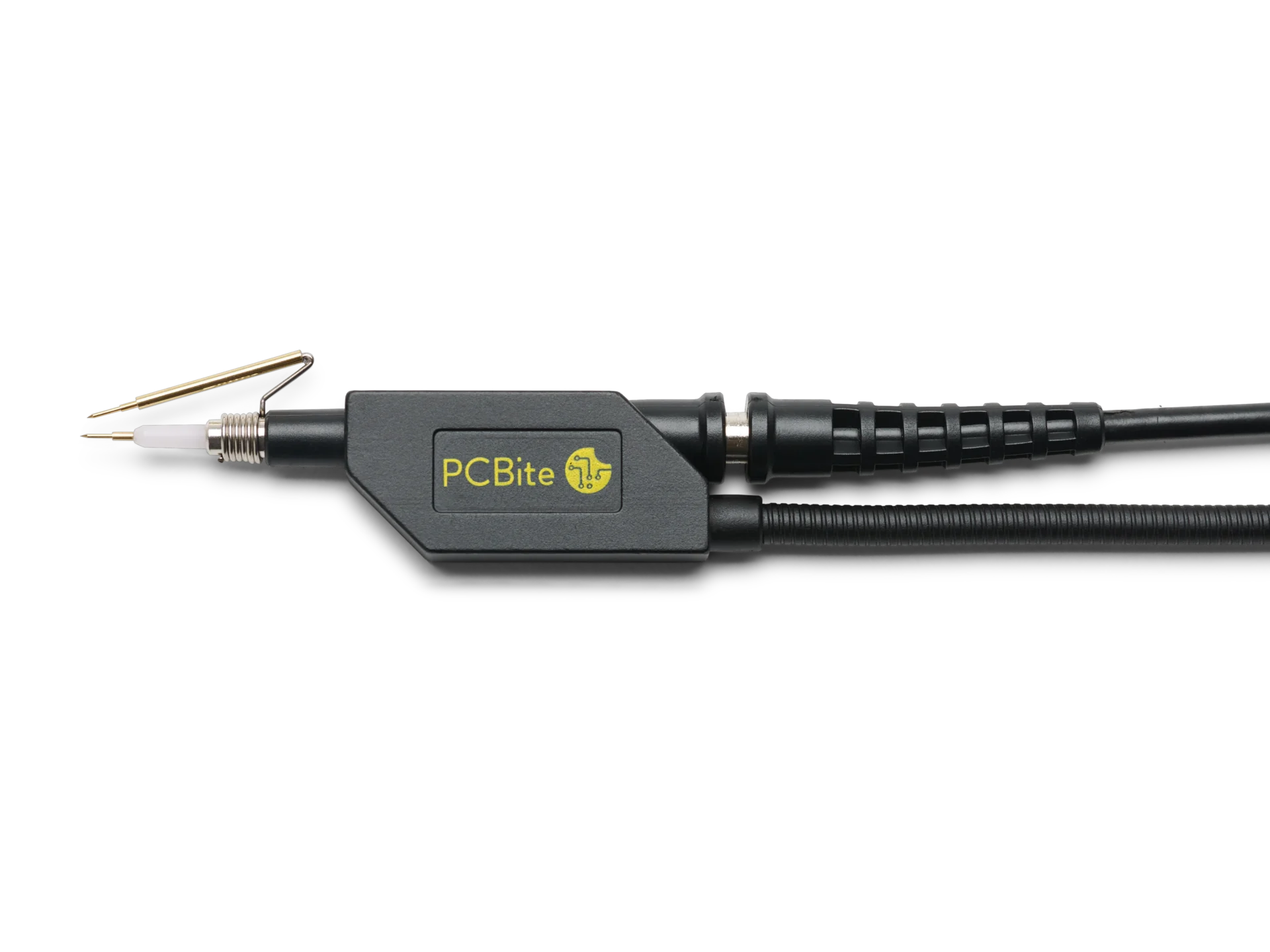

SQ200 200 MHz Oscilloscope probe in holder with unique ground spring with spring-loaded ground needle
Closeup of SQ200 200 MHz oscilloscope probe front showing a mounted ground spring for handheld oscilloscope probe measurements
SQ200 200 MHz, Ground clip for the 5mm convenient ground interface to connect to any dupont accessory
SQ200 200 MHz Probe in holder with airplane test hook connected to 5mm ground using dupont cable
SQ200 200 MHz Probe in holder with high quality alligator and clip connected to 5mm ground interface
SQ200 200 MHz Probe in holder with insulated alligator clip together with insulator connected to 5mm ground interface

A spring-loaded ground needle positioned next to the signal needle provides a short, stable ground path for handsfree measurements at the full rated bandwidth. The ground needle can be adjusted at the probe tip to match different component sizes and test point spacing.
