PCBite handsfree probes

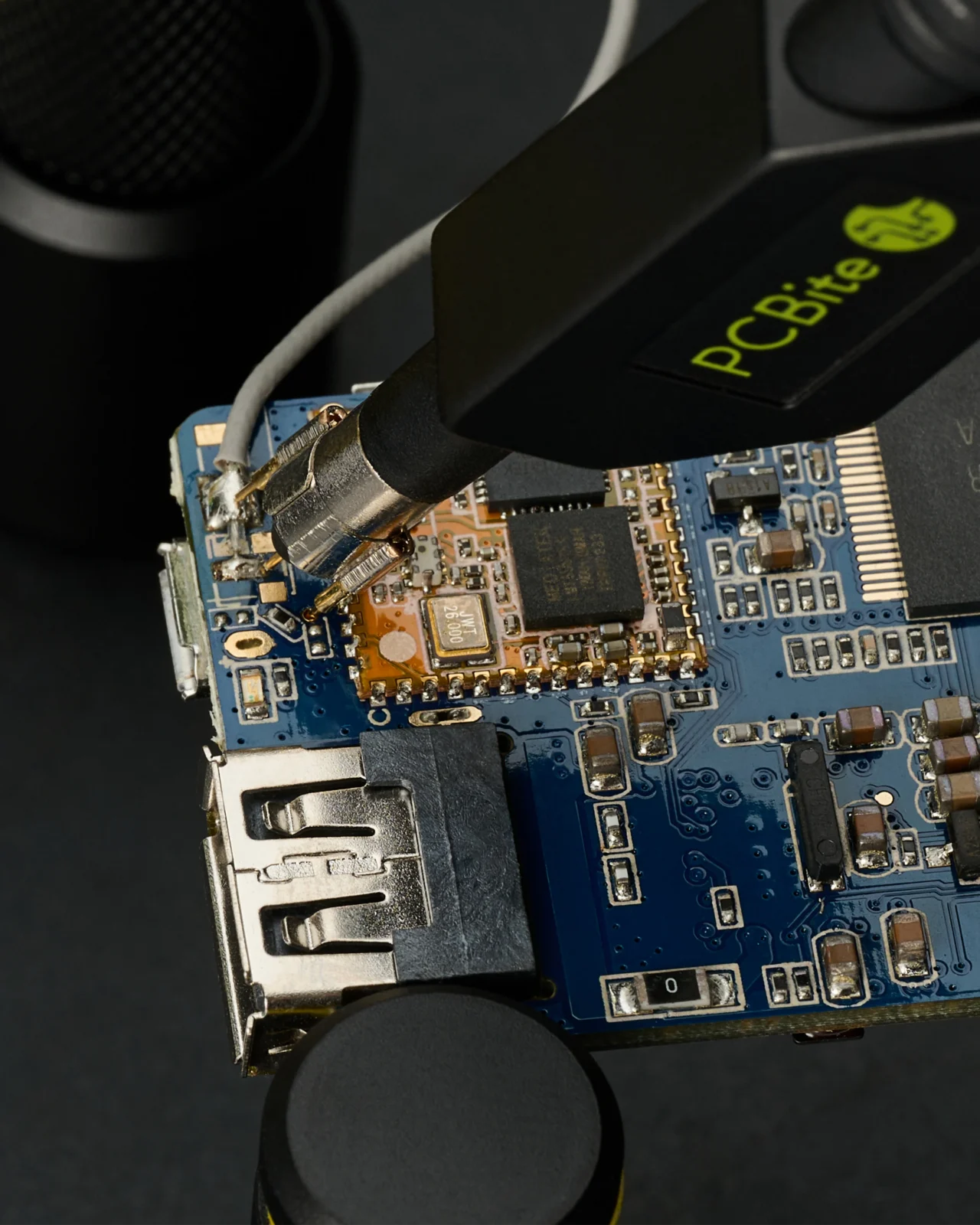

PCBite handsfree PCB probes cover every signal on the board, from DC and low-frequency digital buses to oscilloscope measurements up to 500 MHz and RF and high-speed digital signals up to 6 GHz. Each probe has a spring-loaded fine pitch needle and a magnetic base, so it stays on the test point without clips, soldered wires or fixtures. The 1:1 SP10 and SQ10 probes, also available as red and black pairs for DMM work, connect directly to multimeters, logic analyzers, programmers, bench power supplies and passive or active loads. Use them for I2C, I3C, UART and CAN debugging, or to power, monitor and load the circuit, and choose the SQ10 for an insulated design. The 10:1 SQ100, SQ200, SQ350 and SQ500 oscilloscope probes use BNC connectors and stay in place through long triggering sessions, and SQ200 to SQ500 add a probe ID pin for automatic 10:1 scaling. The 10:1 SQG15, SQG30 and SQG60 low impedance probes reach 1.5 GHz, 3 GHz and 6 GHz, in AC or DC coupled versions with BNC or SMA connectors for instruments such as oscilloscopes, vector network analyzers (VNA) and spectrum analyzers. They are built for USB, HDMI, SATA and other high-speed digital signals, RF validation and signal integrity work. Every probe works with PCBite holders and base plates as one modular handsfree probing system for PCB bring-up and debugging.
