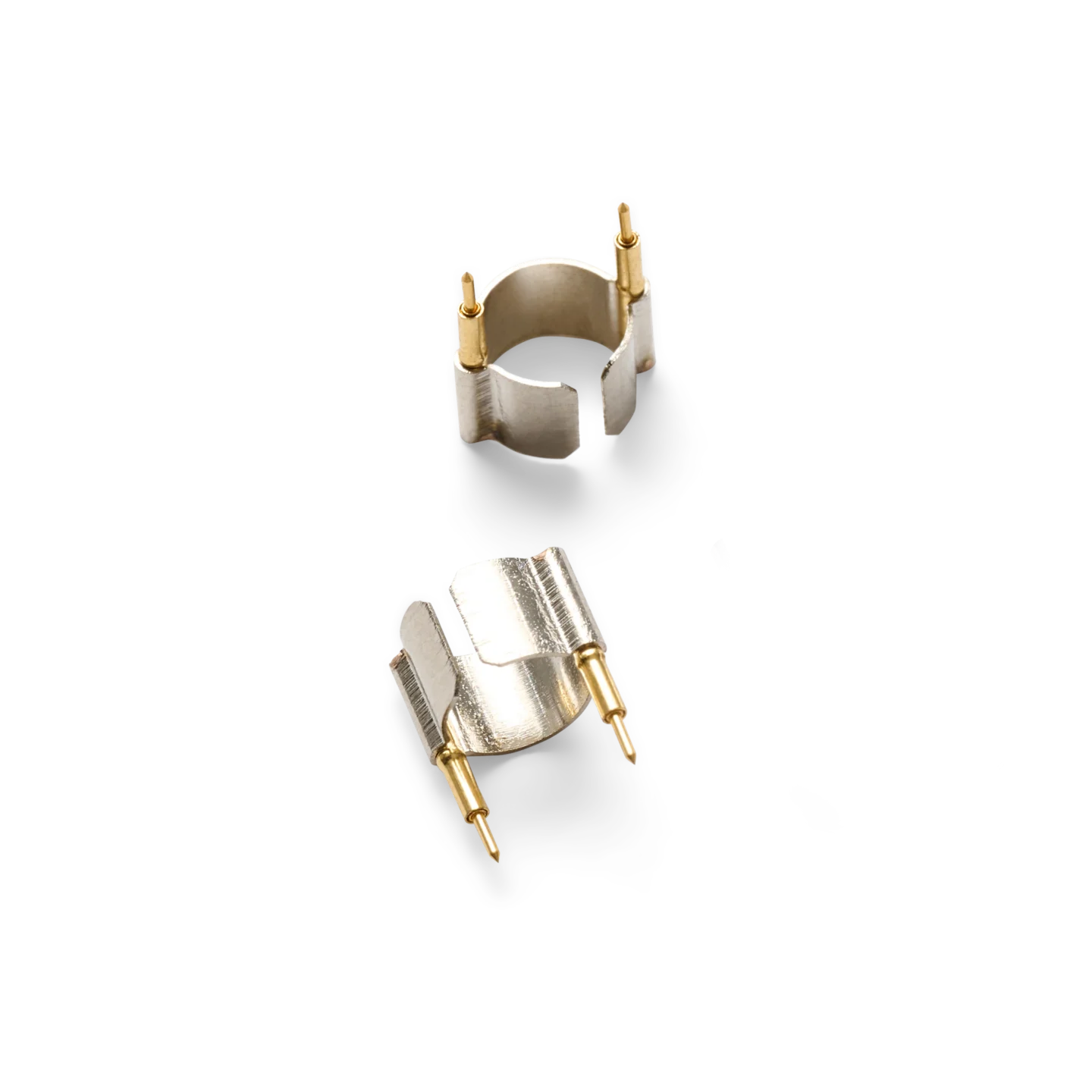

Two dual ground spring needle 5.0mm, replacement for SQG60 high-frequency probes (PCBITE-7015)

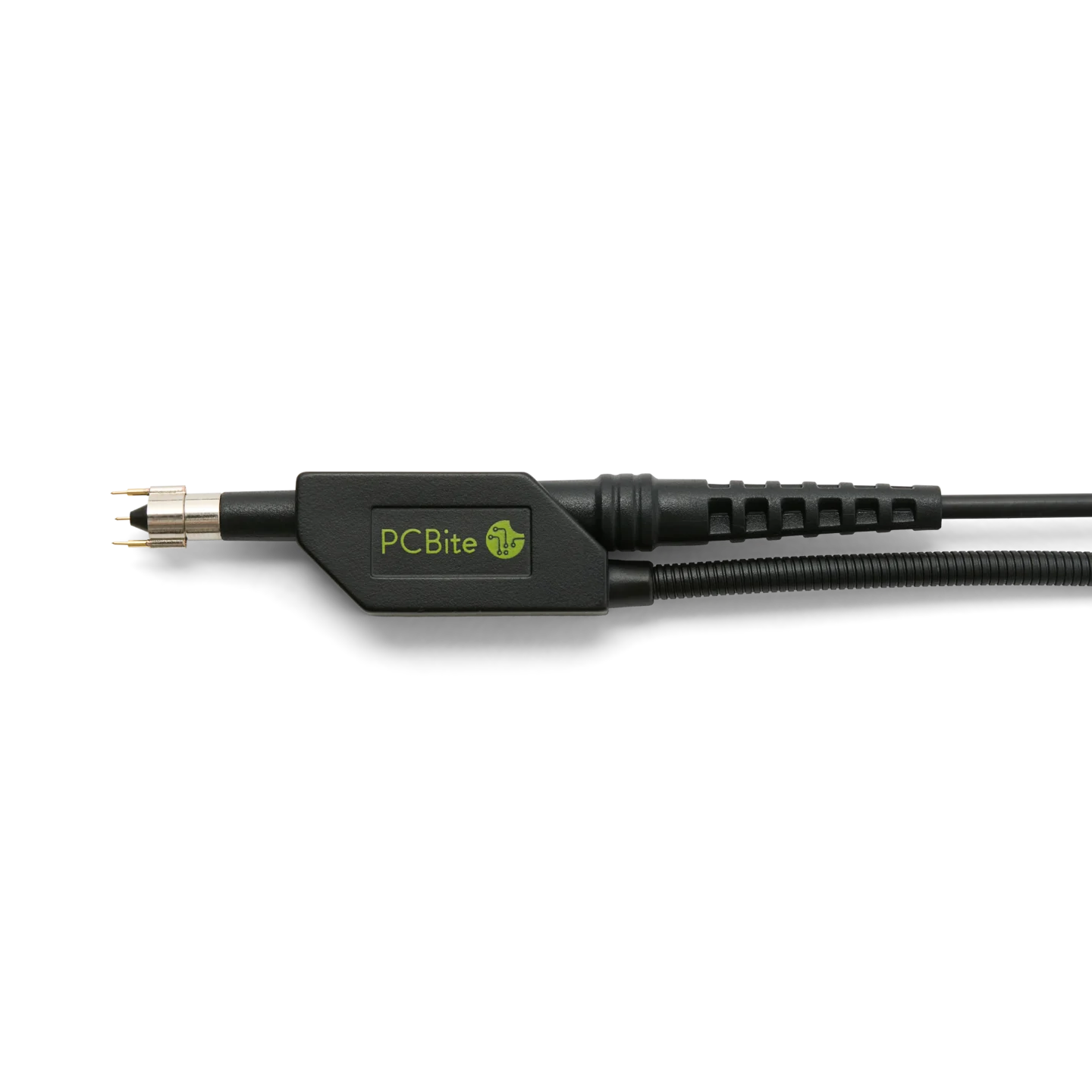

High frequency probe mounted in probe holder with 5,0mm dual ground clip (PCBITE-7015)
High frequency PCB measurement using probe with dual ground clip for handsfree testing (PCBITE-7015)

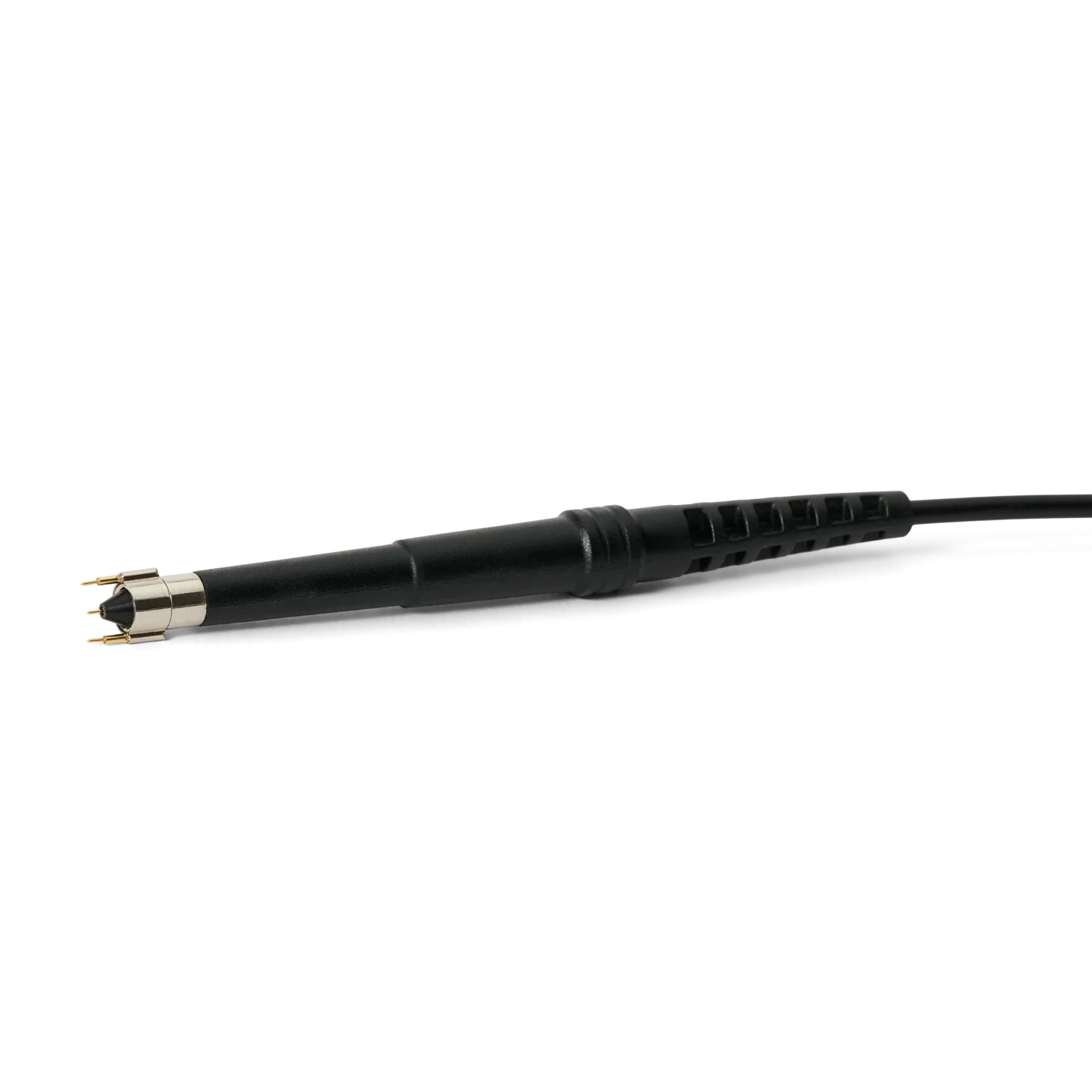

Probe with mounted dual ground spring for high frequency measurement (PCBITE-7015)

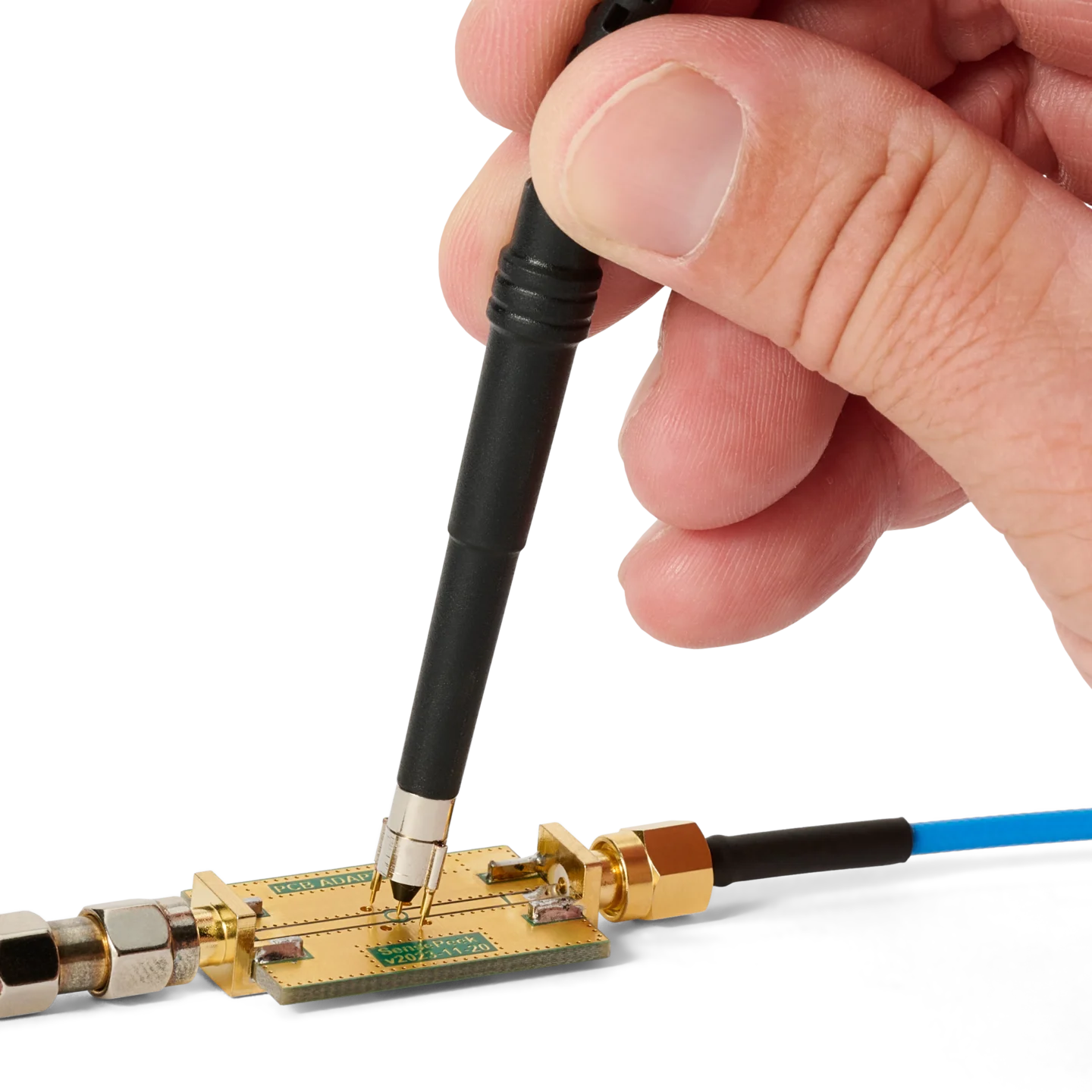

Hand measuring on PCB using probe with mounted dual ground spring (PCBITE-7015)
PCBITE-7015

2x Dual ground spring needle 5,0mm

Two dual ground spring needles, 5 mm (0.20 in), for SQG60 AC and DC probes. Full 6 GHz bandwidth with a short, symmetrical ground return.

Secure paymentGlobal deliveryPremium quality
In stockDelivery: 1-2 business days

39 € excl. VAT

Introduction

Spare dual ground spring needles for the PCBite SQG60. A short, symmetrical ground on both sides of the signal needle for measurements at the full 6 GHz bandwidth.

Two dual ground spring needles for the PCBite SQG60 probe, in both AC and DC versions. The ground part is 5 mm (0.20 in) in diameter and places two spring-loaded ground needles on either side of the signal needle, 3 mm (0.12 in) from the signal and 6 mm (0.24 in) apart.

The short, symmetrical ground return keeps the full 6 GHz bandwidth of the SQG60. The SQG60 has no single ground spring, so the dual spring-loaded ground needles are its ground connection for every measurement.

The spring-loaded needles give a consistent, low impedance ground contact without clips or soldering, whether the probe is used handsfree or handheld.

Compatible products

  • 2X Dual ground spring needle, 5.0 mm
Instruction 2x Dual ground spring needle
Dimensions of 2x Dual ground spring needle 5,0mm: SQG60 dual ground
Brand

PCBite
Manufacturer

Sensepeek AB
Article number

PCBITE-7015
GTIN

7350145660533
Country of origin

China
HS code

90309000
HTS code

9030906800
ECCN

EAR99
Safety information

See downloads
Package weight 40 g
Package dimensions 176 × 125 × 10 mm
MATERIAL

Made to last

Every material and design detail is chosen to last for years in a demanding lab environment.

Ground needles
Dual, spring-loaded
Fit
5 mm (0.20 in) diameter
MATERIAL
Ground needles
Dual, spring-loaded
Fit
5 mm (0.20 in) diameter

Made to last

Every material and design detail is chosen to last for years in a demanding lab environment.

Dual ground 5 mm needle geometry: 3 mm (0.12 in) from signal to ground needle and 6 mm (0.24 in) between the ground needles.
NEEDLE PITCH

Fixed spacing. Repeatable contact.

Know exactly where the needles land. The dual ground uses fixed geometry, so the signal and ground needles always land at known distances. The SQG60 uses 3.0 mm (0.12 in) from signal to ground and 6.0 mm (0.24 in) between the ground needles. The drawings show the exact needle geometry, whether you use existing pads, exposed copper or dedicated test points.

High frequency PCB measurement using SQG60 6.0 GHz probe with dual ground clip for handsfree testing (PCBITE-7012)
PATENTED GROUND DESIGN

Dual spring-loaded grounding.

High-end probes use a spring-loaded signal needle. The same principle is applied to ground through patented dual spring-loaded ground needles, improving contact stability and keeping the ground path short. On the SQG60, the dual ground keeps the full 6 GHz bandwidth.
