Kits for mixed signal oscilloscopes

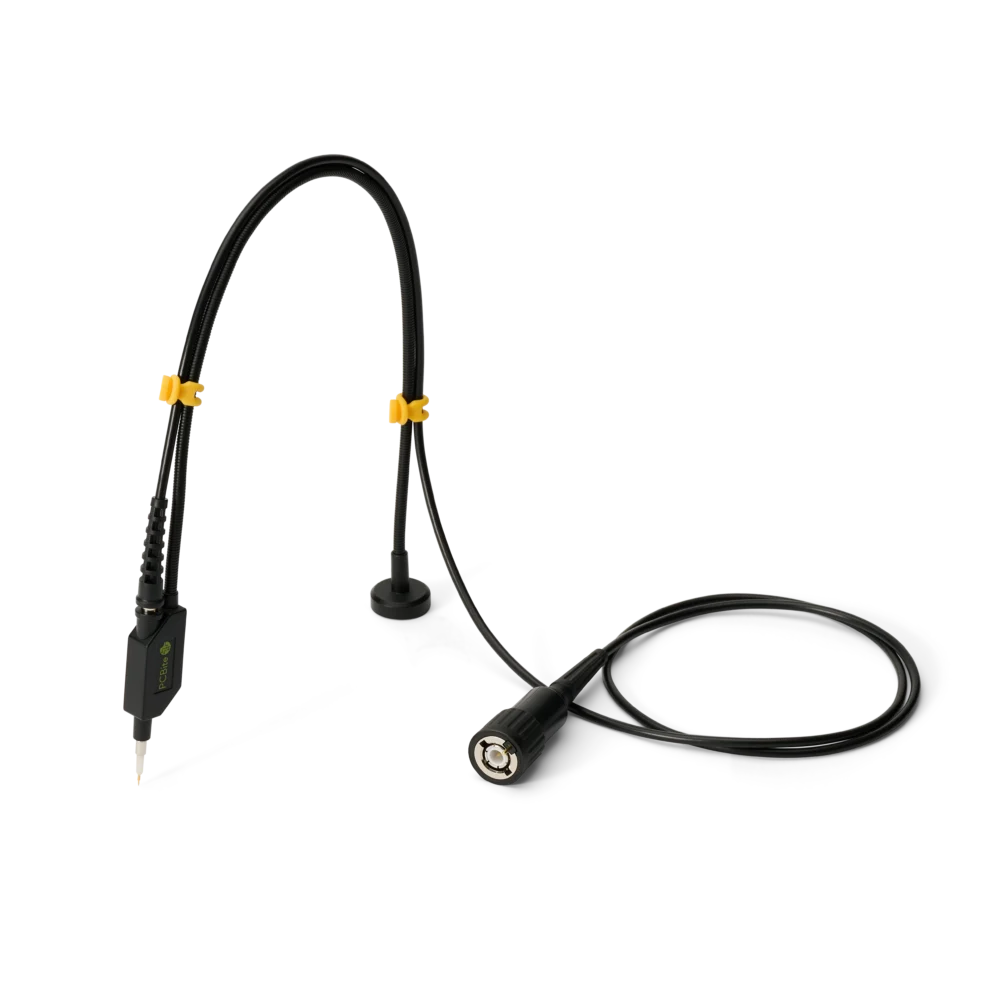

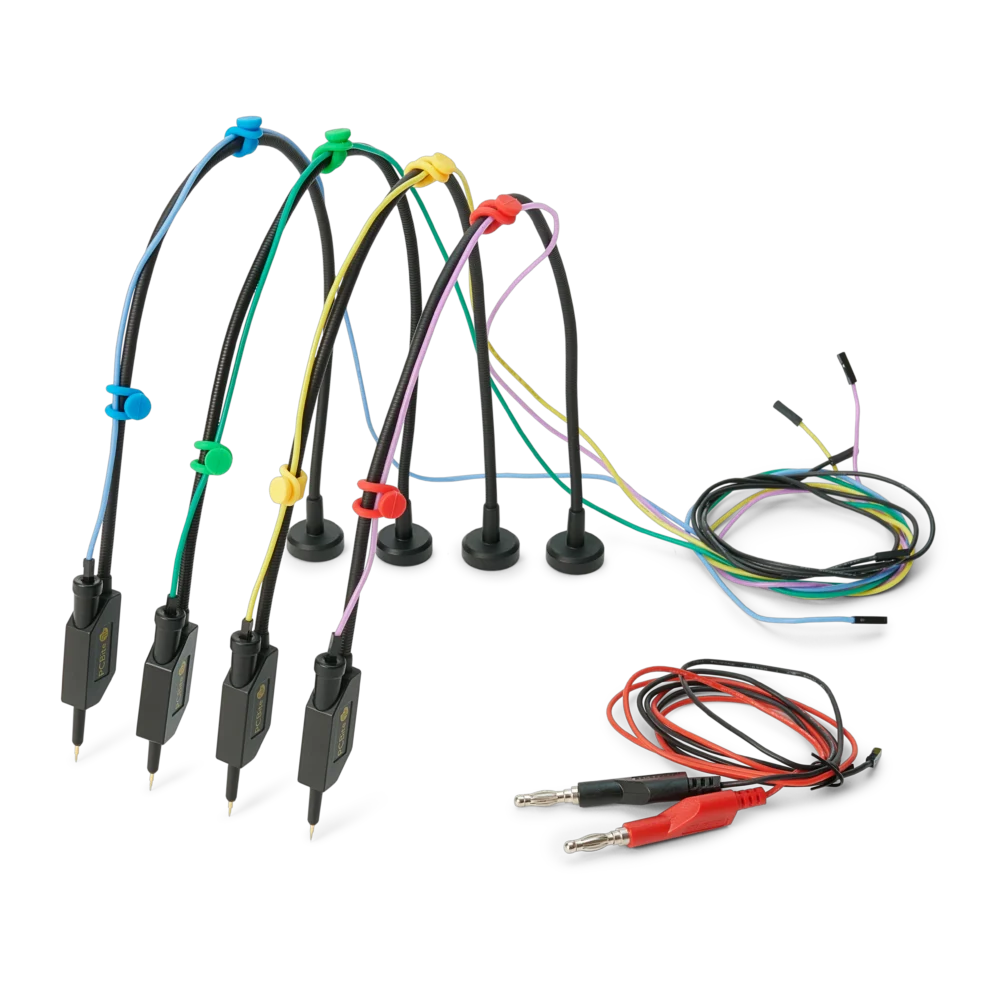

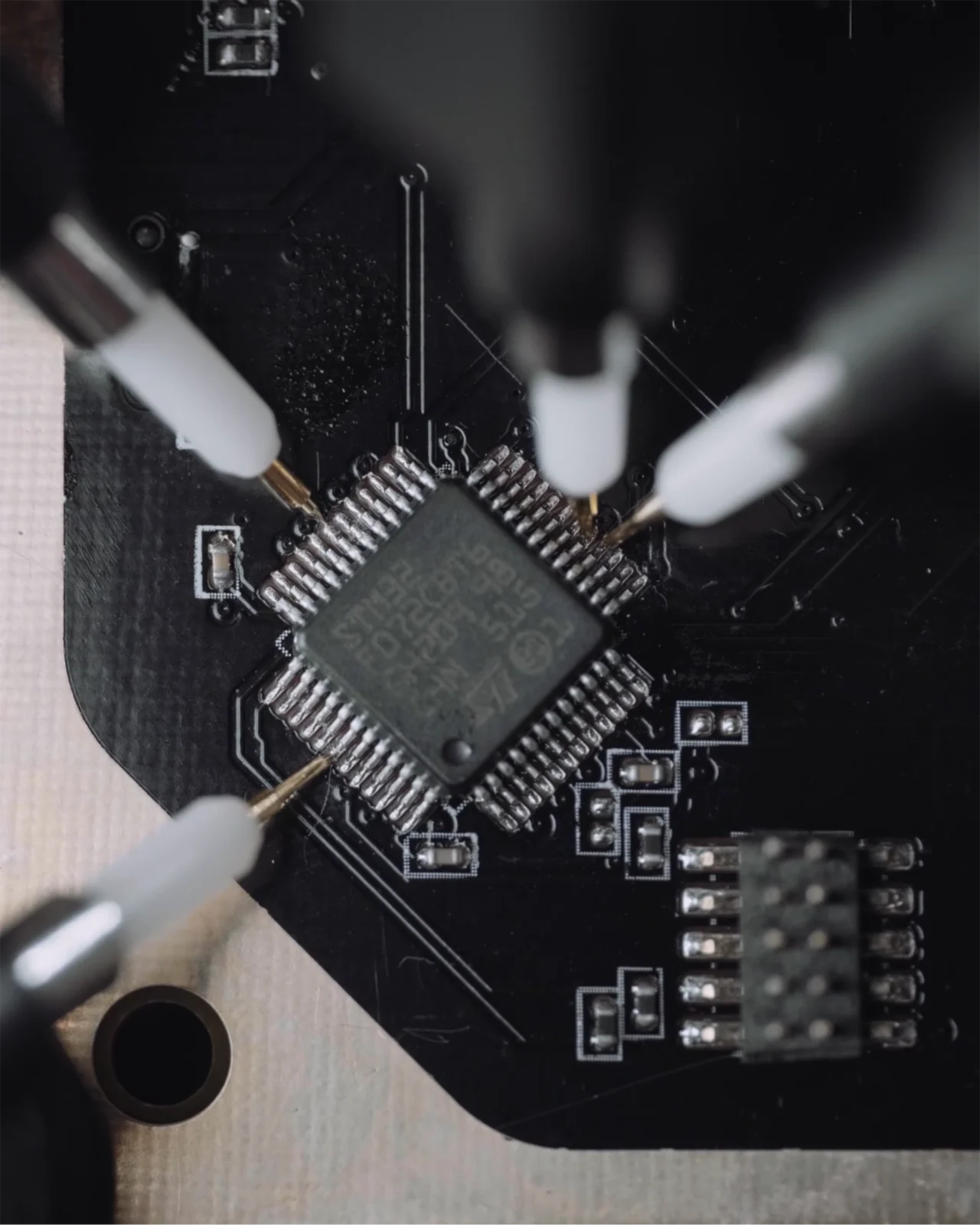

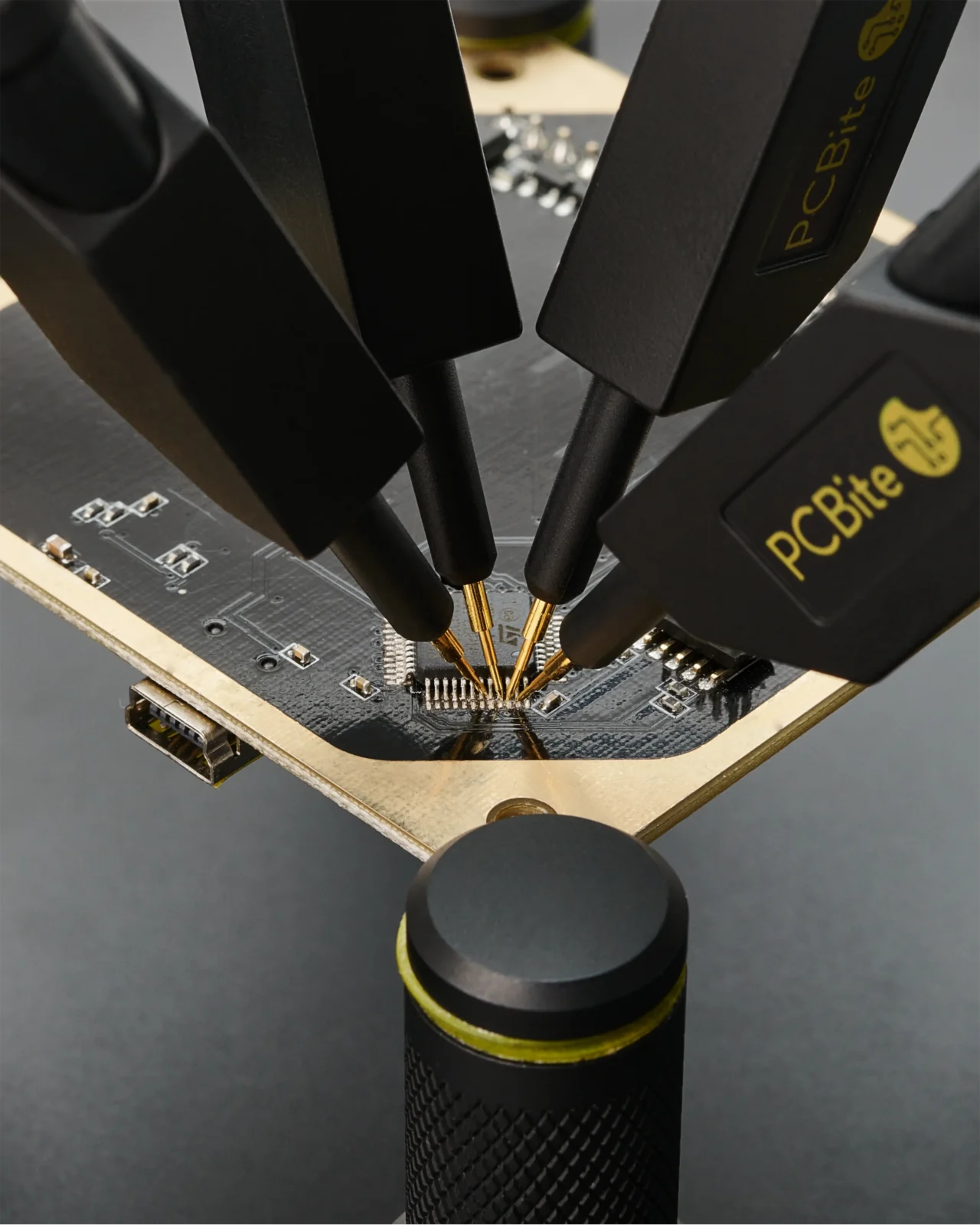

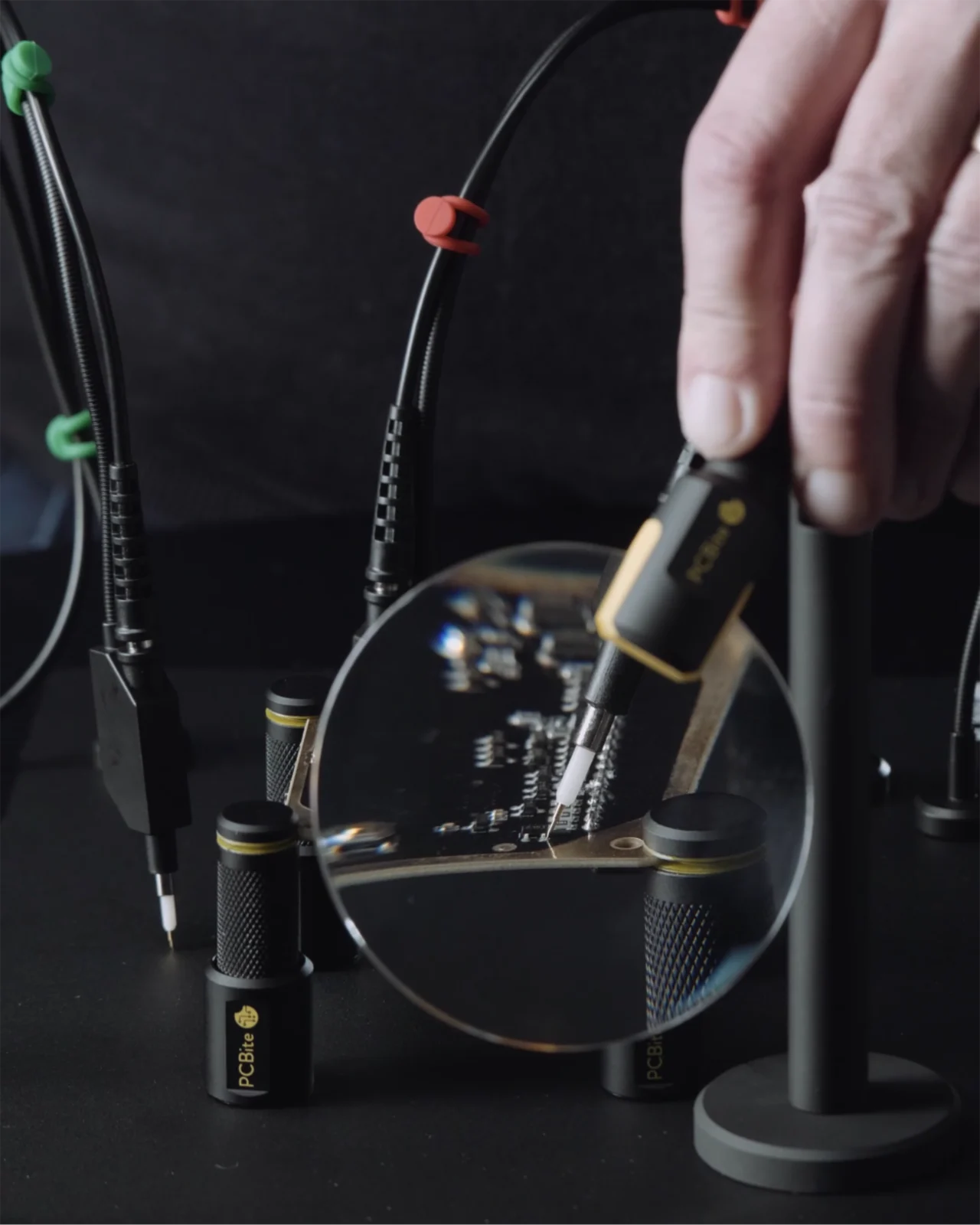

PCBite kits for mixed signal oscilloscopes (MSO) measure analog and digital signals on one setup, with two SQ200, SQ350 or SQ500 oscilloscope probes and four SQ10 handsfree probes. Each kit also includes four magnetic PCB holders and a 210 × 297 mm (8.27 × 11.69 in, A4) insulated base plate. The 10:1 oscilloscope probes cover 200 MHz, 350 MHz or 500 MHz, with a probe ID pin for automatic 10:1 scaling and a spring-loaded ground needle next to the test needle. The 1:1 SQ10 probes are designed for DC to 10 MHz measurements with the included test wires and well suited for I2C, I3C, UART and CAN bus decoding. Color coded test wires with 2.54 mm (0.100 in) jumper connectors, often called Dupont connectors, connect them to the digital inputs, logic analyzers or debug adapters. Red and black test leads with 4 mm banana plugs connect to multimeters, bench power supplies and passive or active loads. All six probes are insulated and stay in place through long triggering sessions. The same setup holds the board for soldering and inspection, and covers power rail ripple, switching, clock edges and serial buses during PCB bring-up and debugging.
