Probes for multimeters & logic analyzers

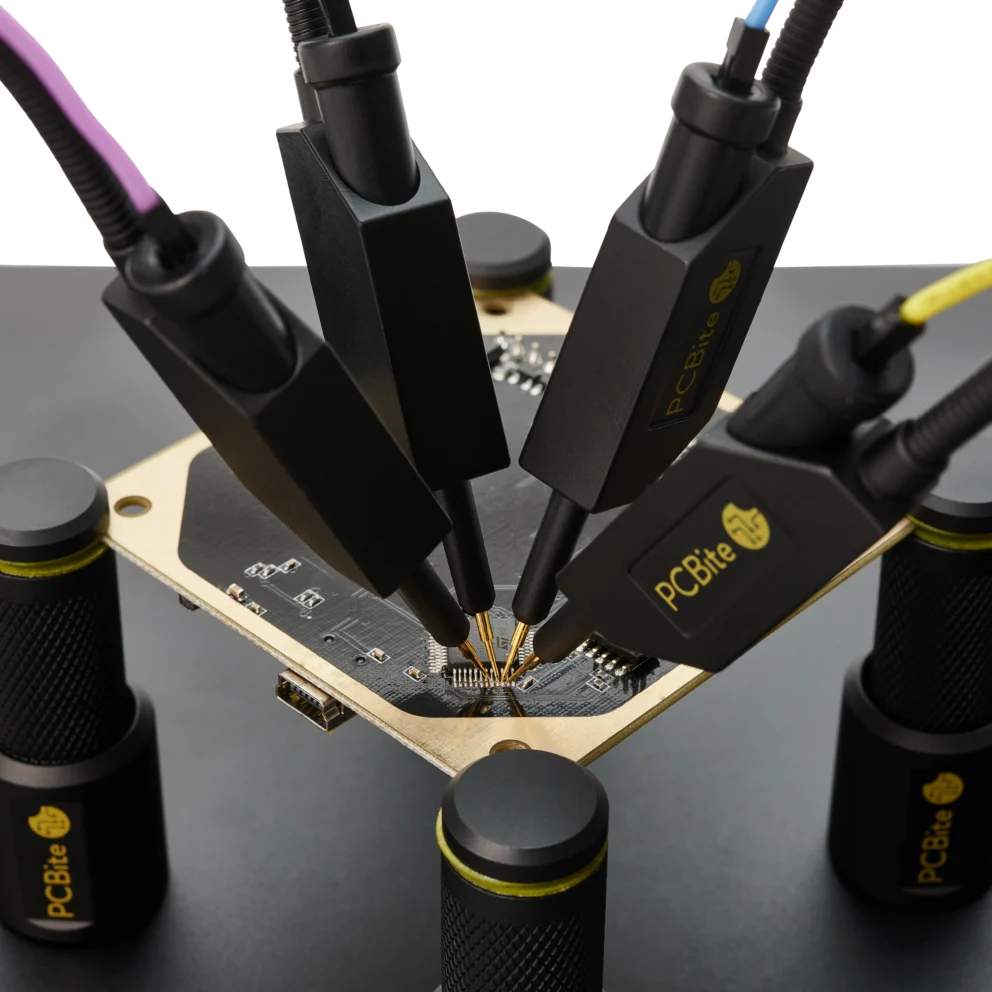

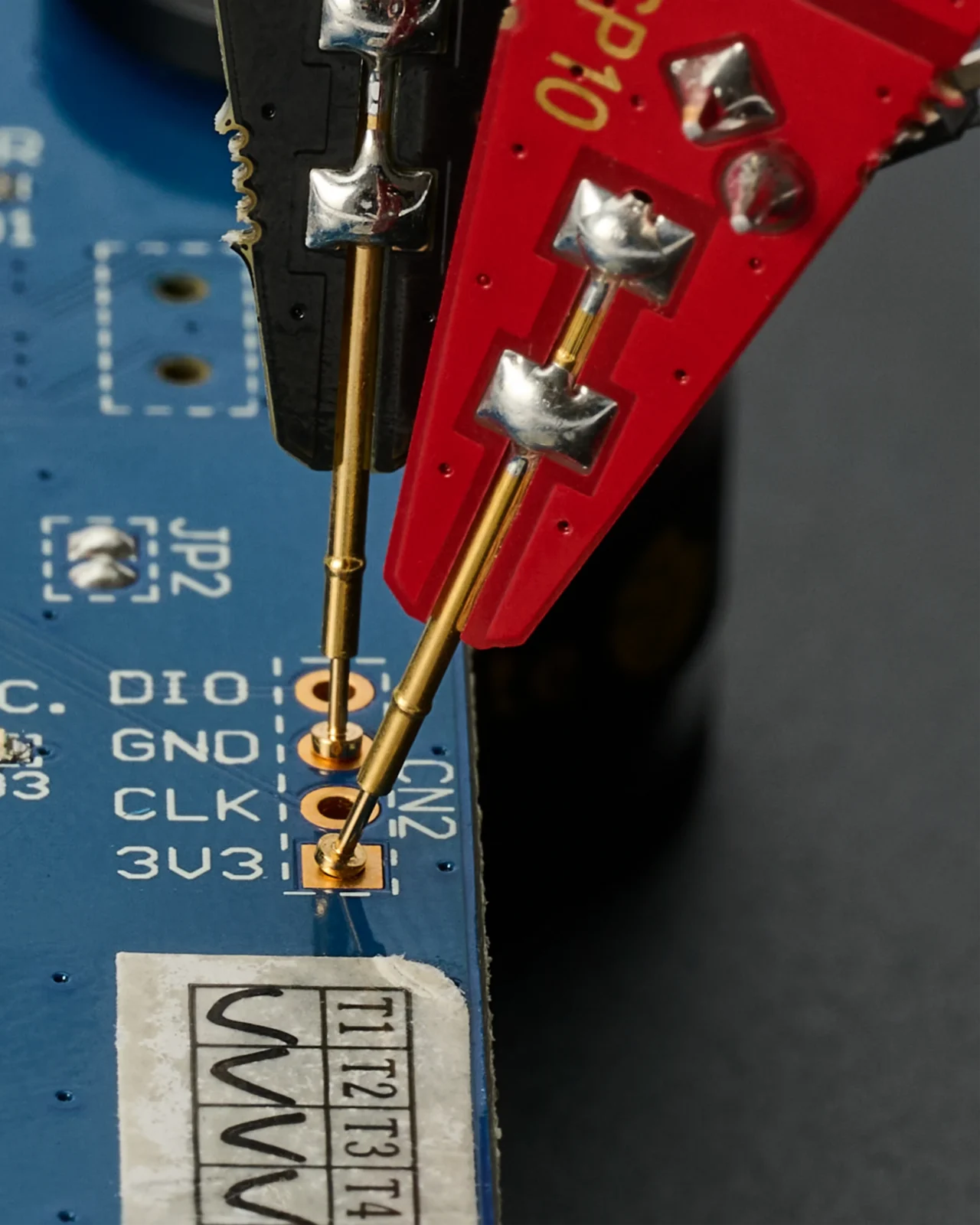

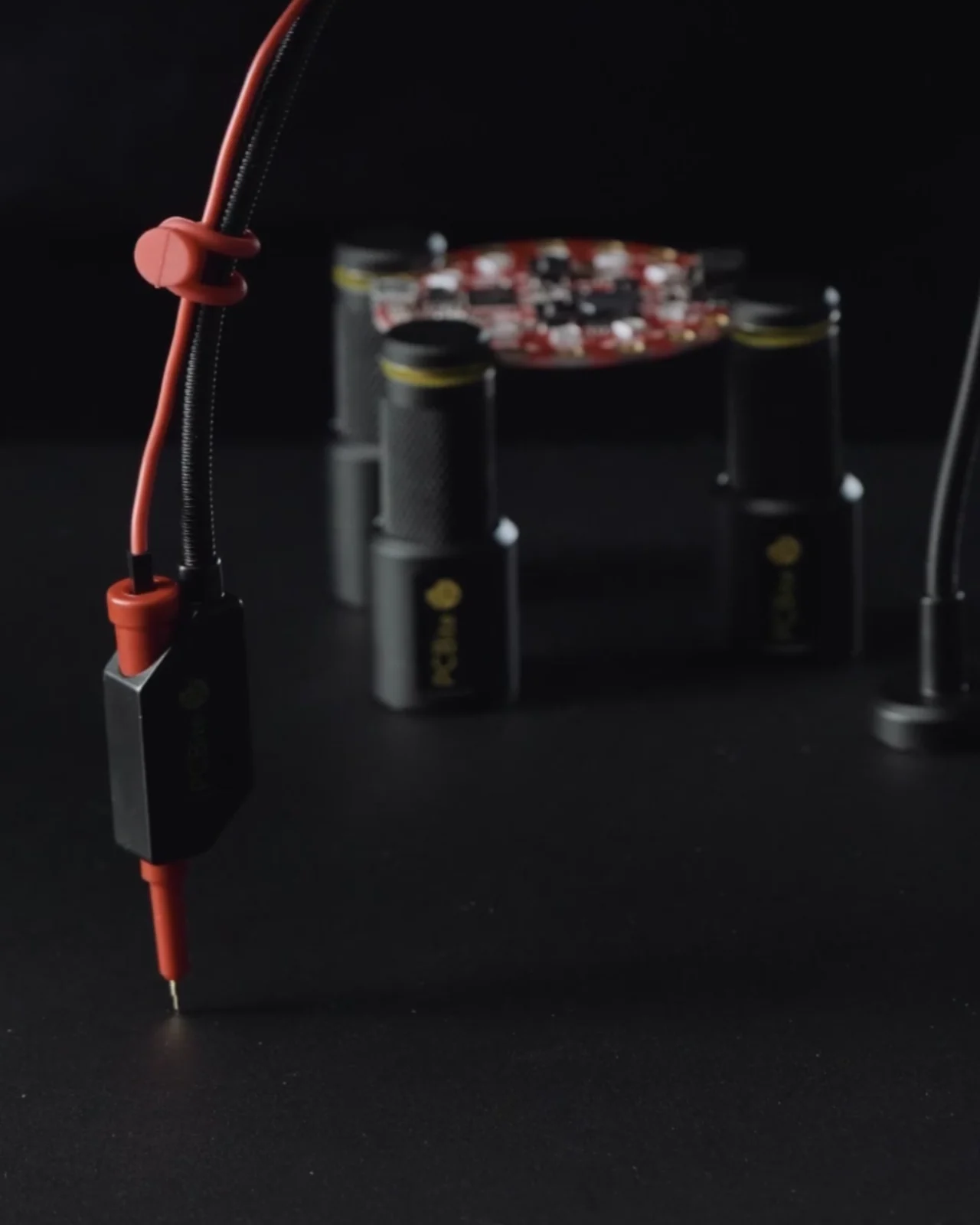

PCBite probes for multimeters and logic analyzers add handsfree measurement points to an existing PCBite setup, in packs of four SP10 or SQ10 probes with test wires or as red and black pairs for DMM work. The spring-loaded fine pitch needle and N52 neodymium magnet keep each 1:1 probe on the test point while you read the result on the instrument. The probes handle I2C, I3C, UART and CAN bus debugging and other measurements from DC to 10 MHz with the included test wires. The four-packs include color coded test wires with 2.54 mm (0.100 in) jumper connectors, often called Dupont connectors, for logic analyzers, programmers and debug adapters. Red and black test leads with 4 mm banana plugs come with every pack and connect to multimeters, bench power supplies and passive or active loads. SP10 has an ultra-thin probe head and a dual pin header that accepts two cables at once. SQ10 adds an insulated body and a low center of gravity, and can be detached for handheld use. A PCBite base plate and holders are required for handsfree use, and the probes fit every PCBite kit and base plate size.
