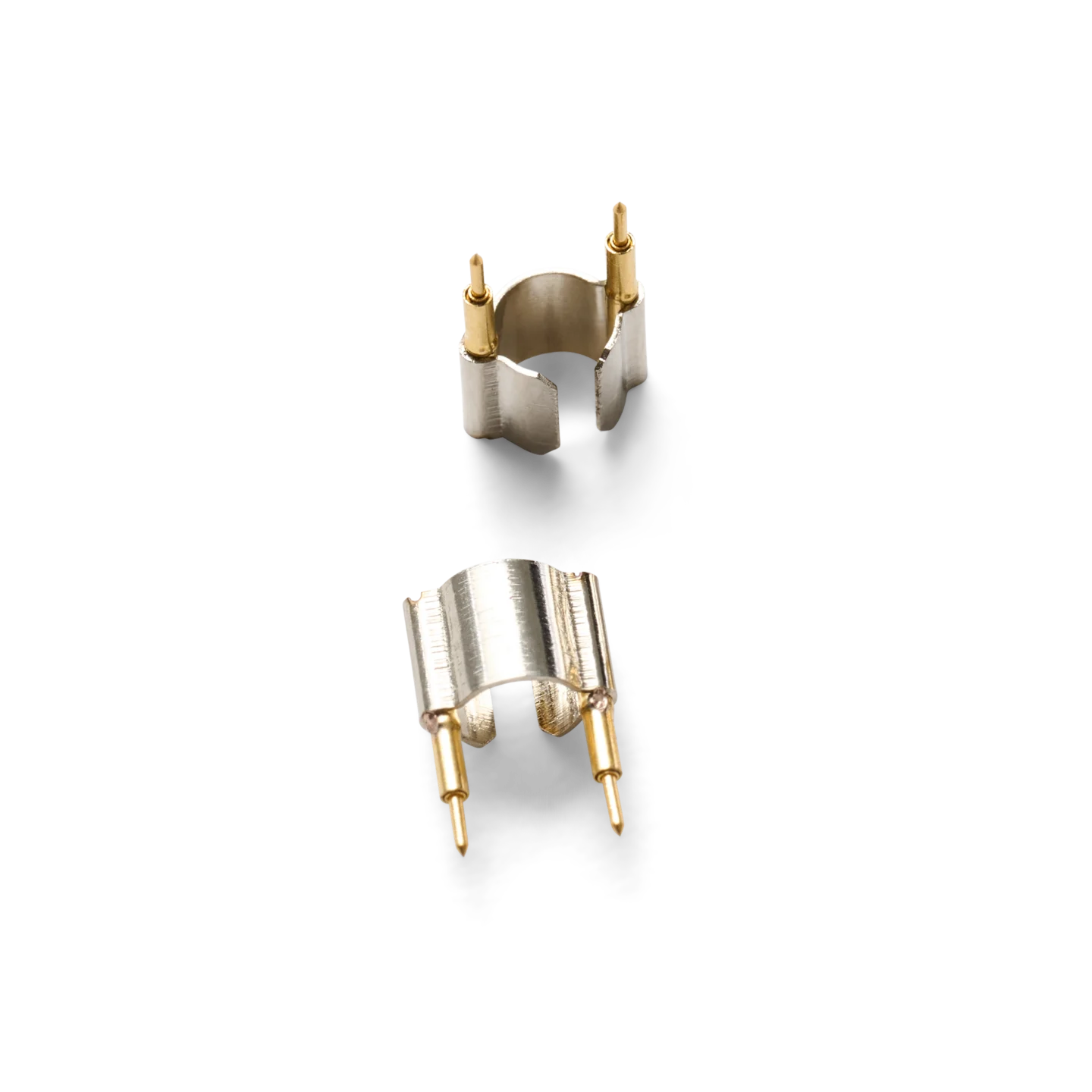

Two dual ground spring needle 3.5mm, replacement for SQG15 and SQG30 high-frequency probes (PCBITE-7014)

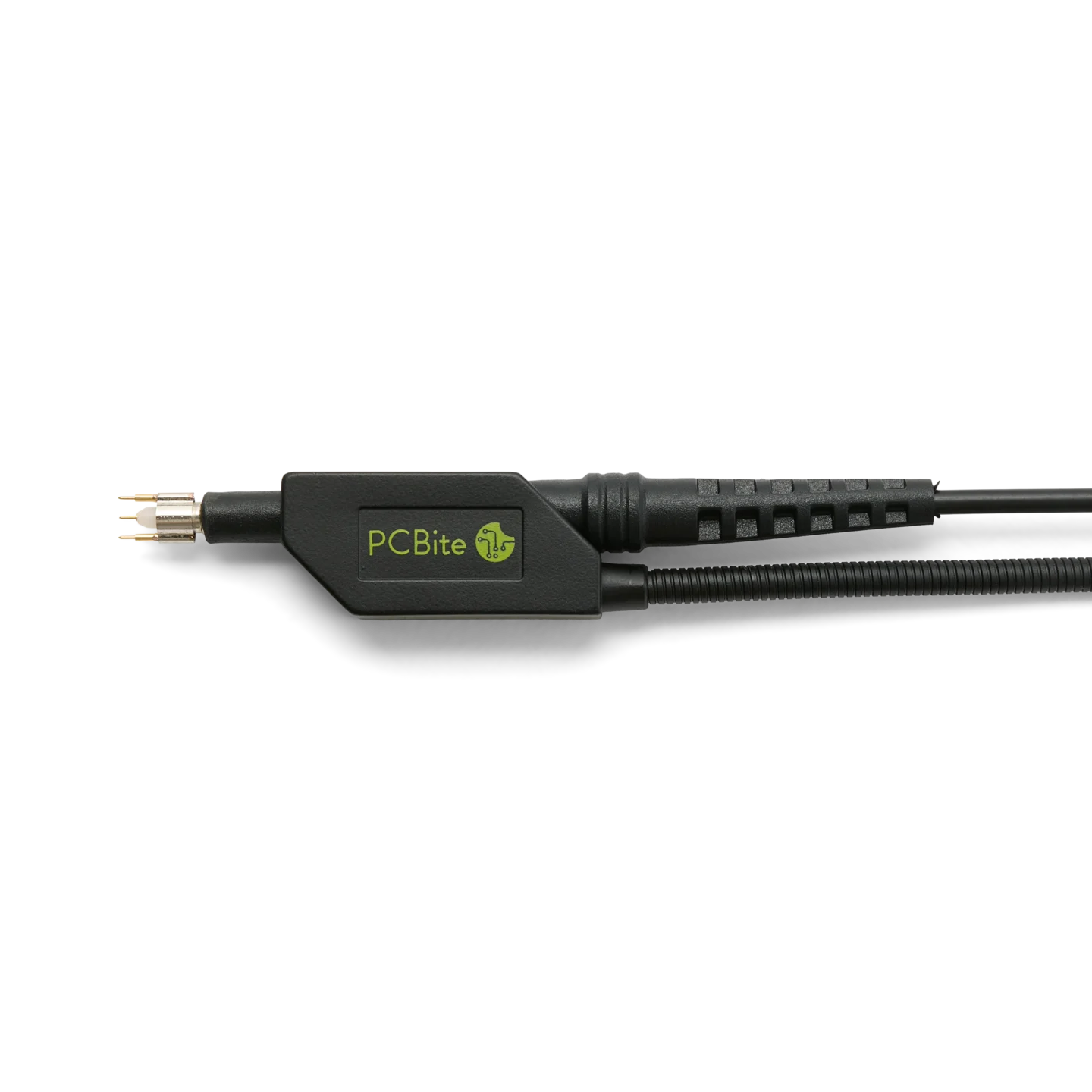

High frequency probe mounted in probe holder with 3,5mm dual ground clip (PCBITE-7014)

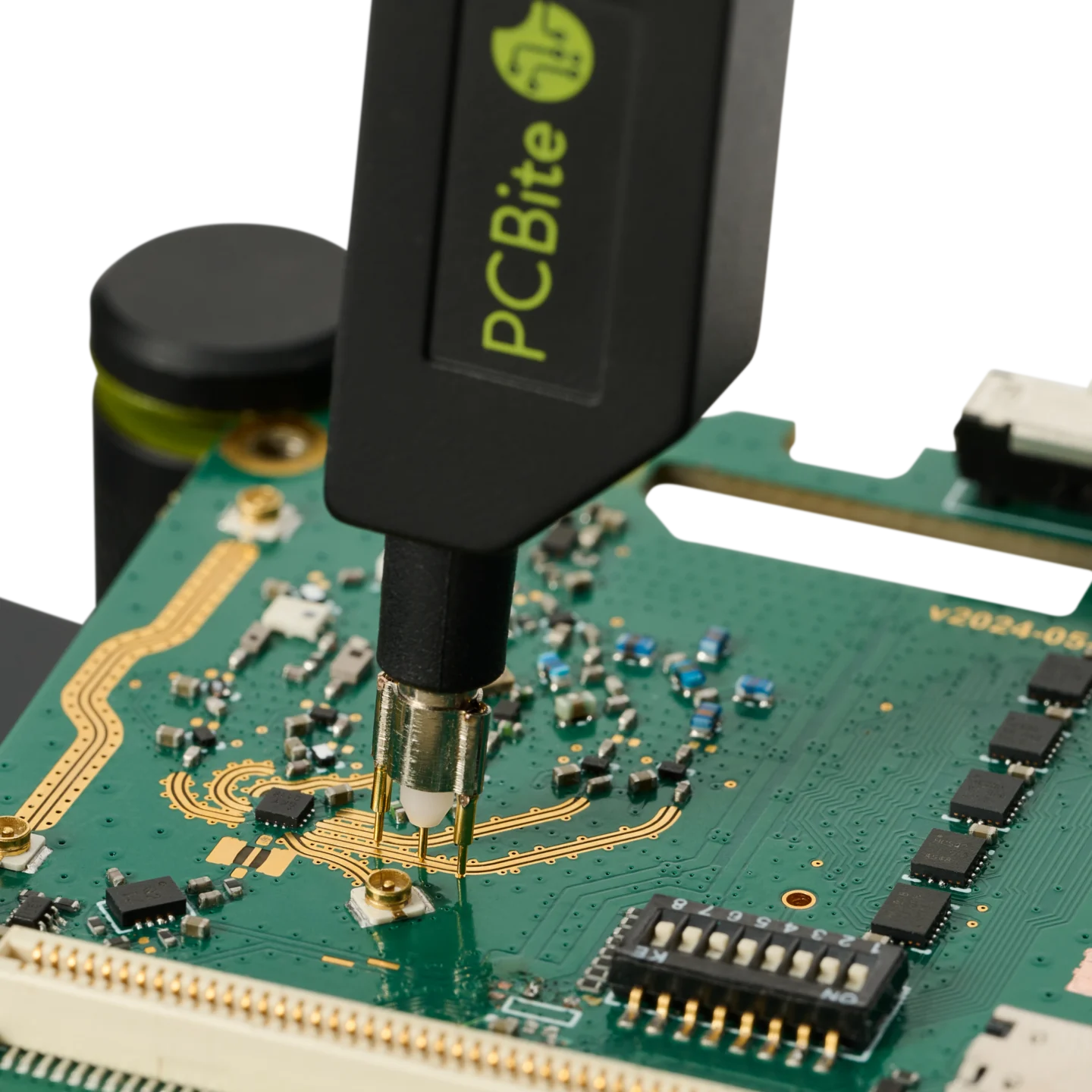

High frequency PCB measurement with probe, dual ground clip and spring-loaded tips (PCBITE-7014)

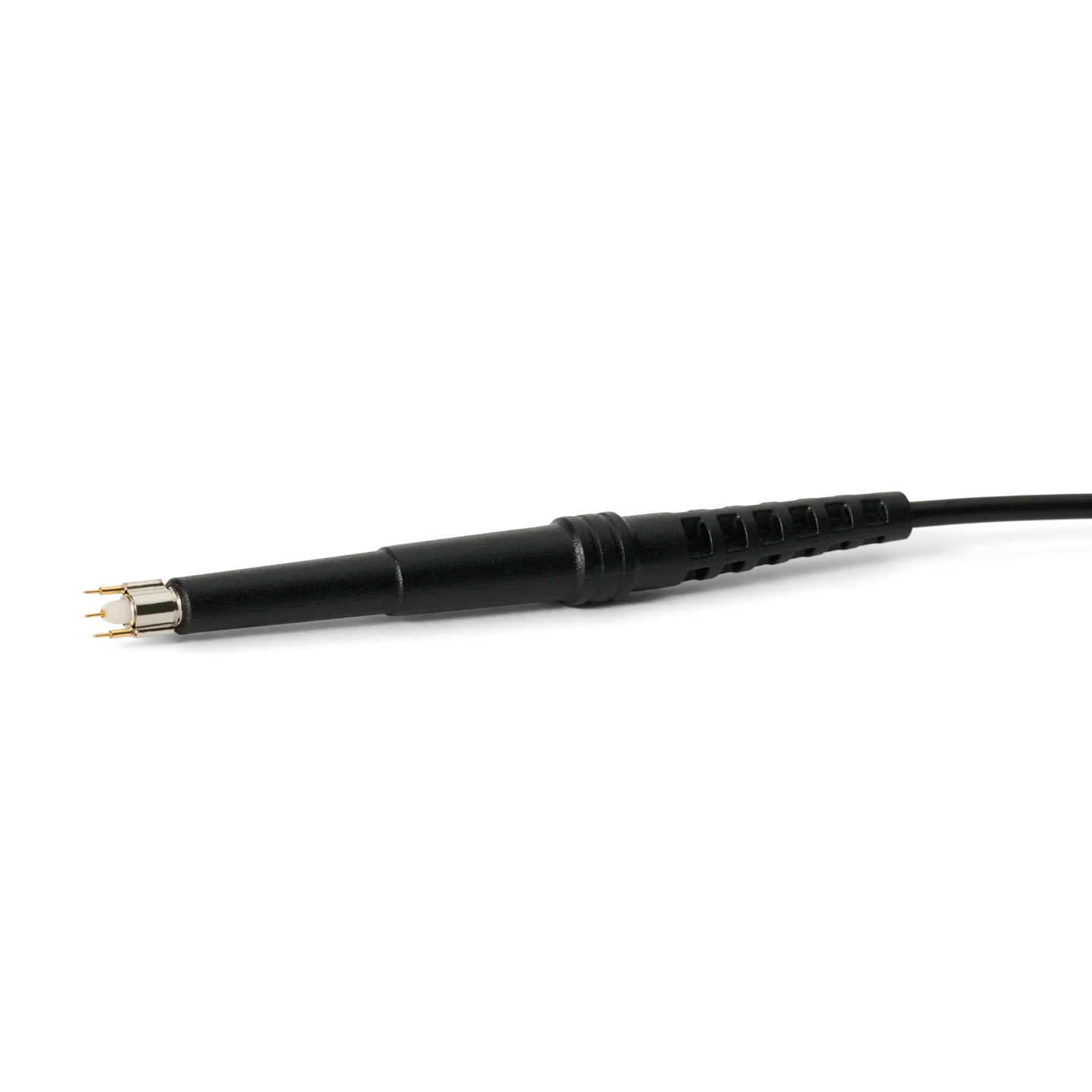

Probe with mounted dual ground spring for high frequency measurement (PCBITE-7014)
Hand measuring on PCB using probe with mounted dual ground spring (PCBITE-7014)
PCBITE-7014

2x Dual ground spring needle 3,5mm

Two dual ground spring needles, 3.5 mm (0.14 in), for SQG15 and SQG30 AC and DC probes. Full rated bandwidth with a short, symmetrical ground return.

Secure paymentGlobal deliveryPremium quality
In stockDelivery: 1-2 business days

39 € excl. VAT

Introduction

Spare dual ground spring needles for the PCBite SQG15 and SQG30. A short, symmetrical ground on both sides of the signal needle for measurements at the full rated bandwidth.

Two dual ground spring needles for the PCBite SQG15 and SQG30 probes, in both AC and DC versions. The ground part is 3.5 mm (0.14 in) in diameter and places two spring-loaded ground needles on either side of the signal needle, 2.3 mm (0.09 in) from the signal and 4.6 mm (0.18 in) apart.

The short, symmetrical ground return keeps the full rated bandwidth, 1.5 GHz on the SQG15 and 3 GHz on the SQG30. The single ground spring limits the SQG30 to 2 GHz, so the dual spring-loaded ground needles are the choice for measurements above that.

The spring-loaded needles give a consistent, low impedance ground contact without clips or soldering, whether the probe is used handsfree or handheld.

Compatible products

  • 2X Dual ground spring needle, 3.5 mm
Instruction 2x Dual ground spring needle
Dimensions of 2x Dual ground spring needle 3,5mm: SQG15 30 dual ground
Brand

PCBite
Manufacturer

Sensepeek AB
Article number

PCBITE-7014
GTIN

7350145660526
Country of origin

China
HS code

90309000
HTS code

9030906800
ECCN

EAR99
Safety information

See downloads
Package weight 40 g
Package dimensions 176 × 125 × 10 mm
MATERIAL

Made to last

Every material and design detail is chosen to last for years in a demanding lab environment.

Ground needles
Dual, spring-loaded
Fit
3.5 mm (0.14 in) diameter
MATERIAL
Ground needles
Dual, spring-loaded
Fit
3.5 mm (0.14 in) diameter

Made to last

Every material and design detail is chosen to last for years in a demanding lab environment.

NEEDLE PITCH

Fixed spacing. Repeatable contact.

Know exactly where the needles land. The dual ground uses fixed geometry, so the signal and ground needles always land at known distances. The SQG15 and SQG30 use 2.3 mm (0.09 in) from signal to ground and 4.6 mm (0.18 in) between the ground needles. The drawings show the exact needle geometry, whether you use existing pads, exposed copper or dedicated test points.

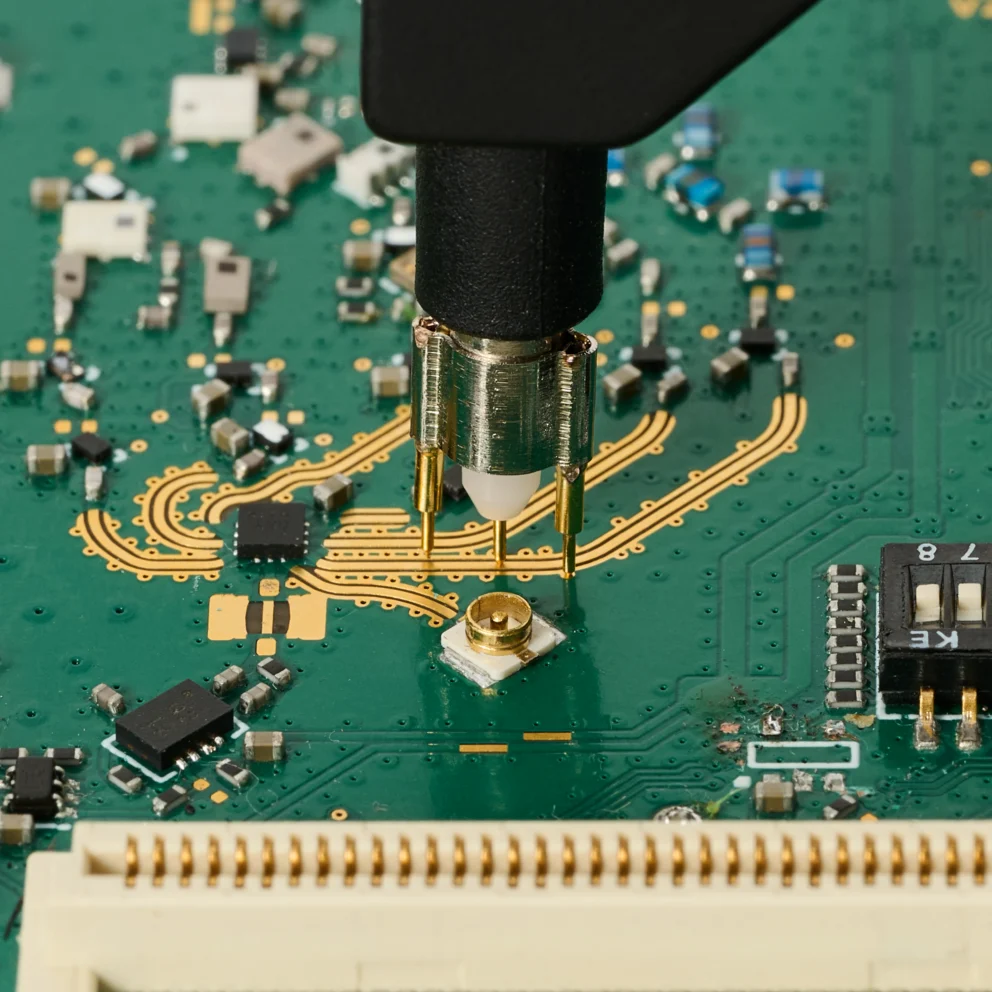

Handsfree SQG15 1.5 GHz probe measuring high-speed signal integrity on dense PCB traces (PCBITE-7008)
PATENTED GROUND DESIGN

Dual spring-loaded grounding.

High-end probes use a spring-loaded signal needle. The same principle is applied to ground through patented dual spring-loaded ground needles, improving contact stability and keeping the ground path short. On the SQG15 and SQG30, the dual ground keeps the full 1.5 GHz and 3 GHz bandwidth.
