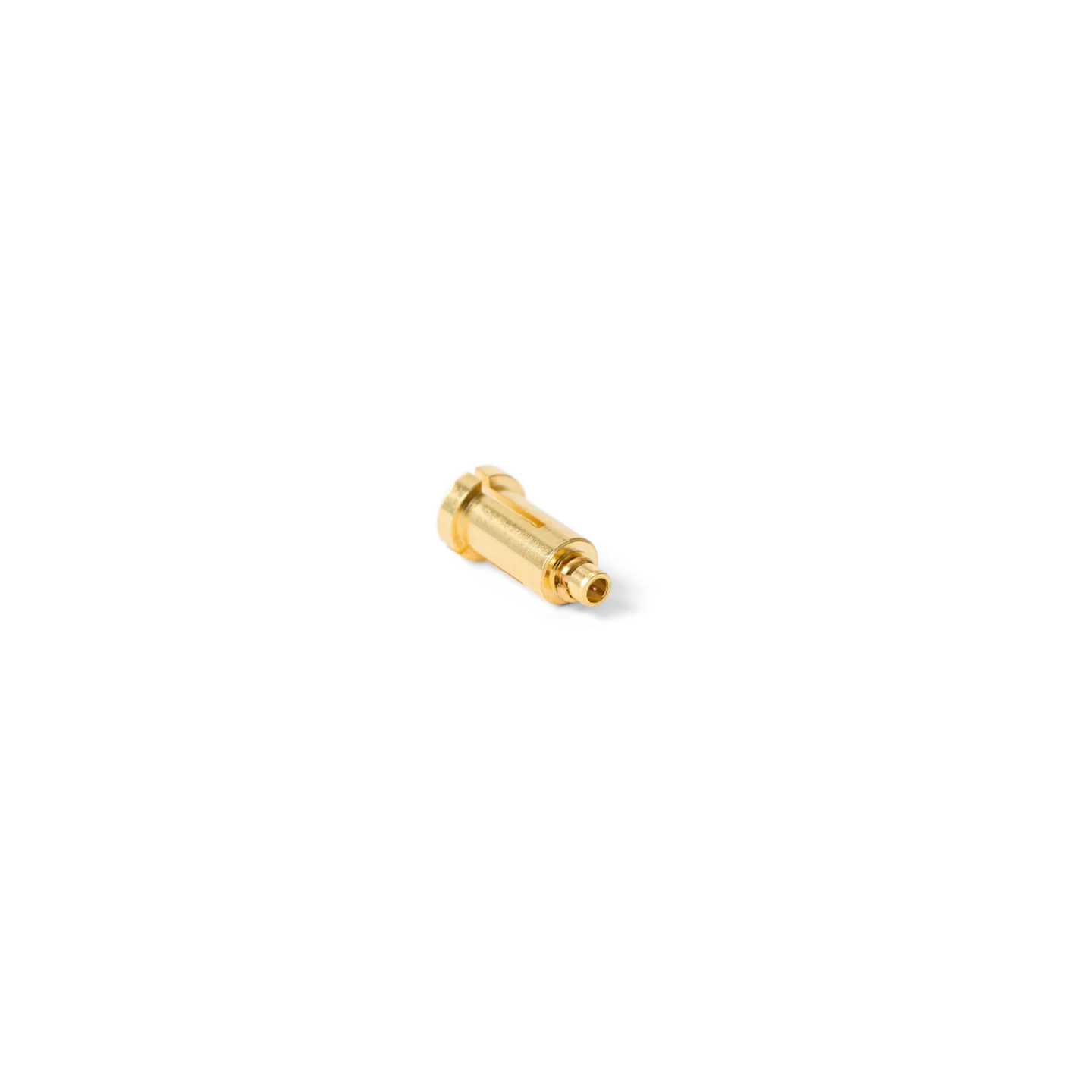

MMCX 3,5mm probe adapter to connect directly to an MMCX connector (PCBITE-7021)

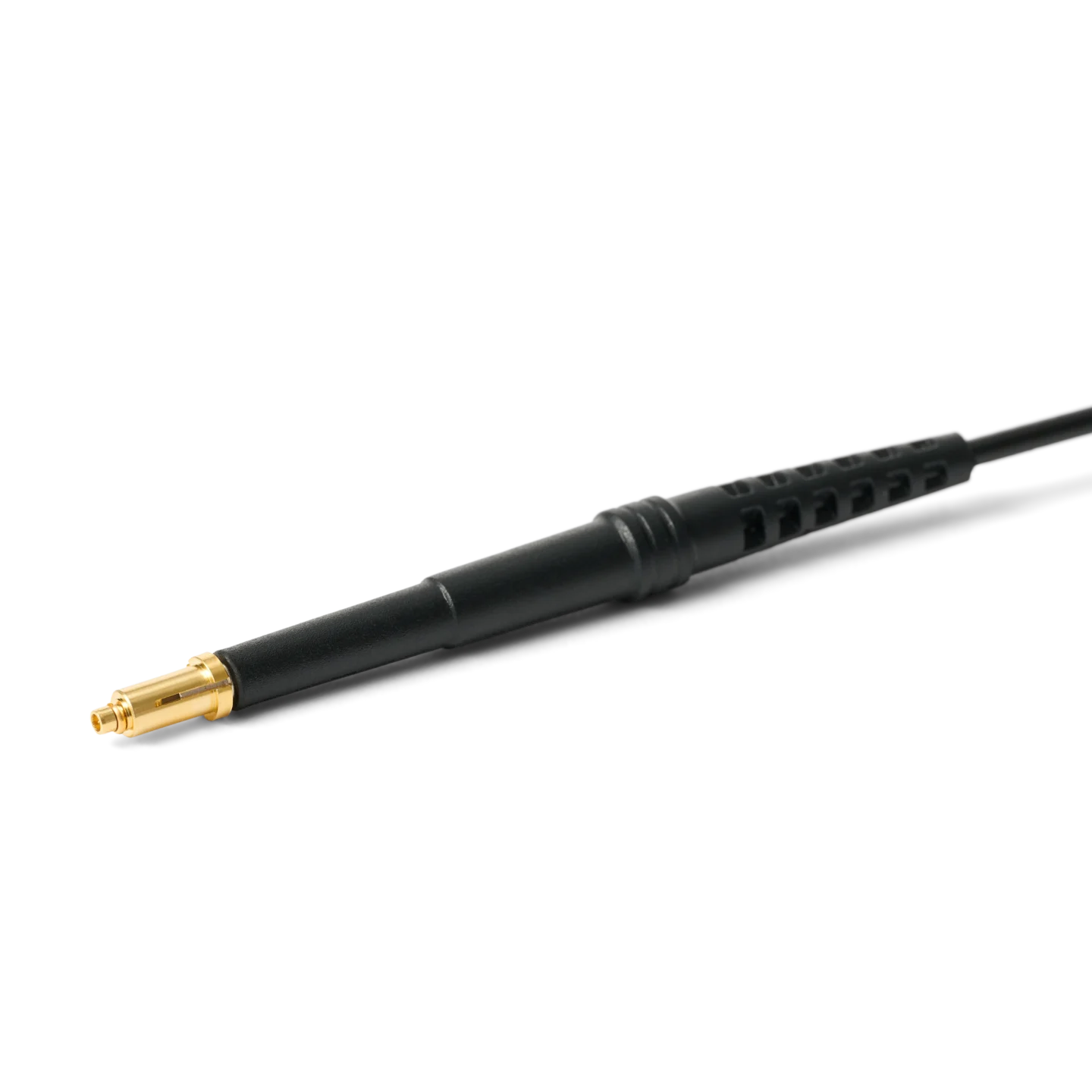

MMCX probe adapter mounted on probe to connect directly to an MMCX connector (PCBITE-7021)
PCB with multiple MMCX connectors and adapters for quick probe repositioning between test points (PCBITE-7021)

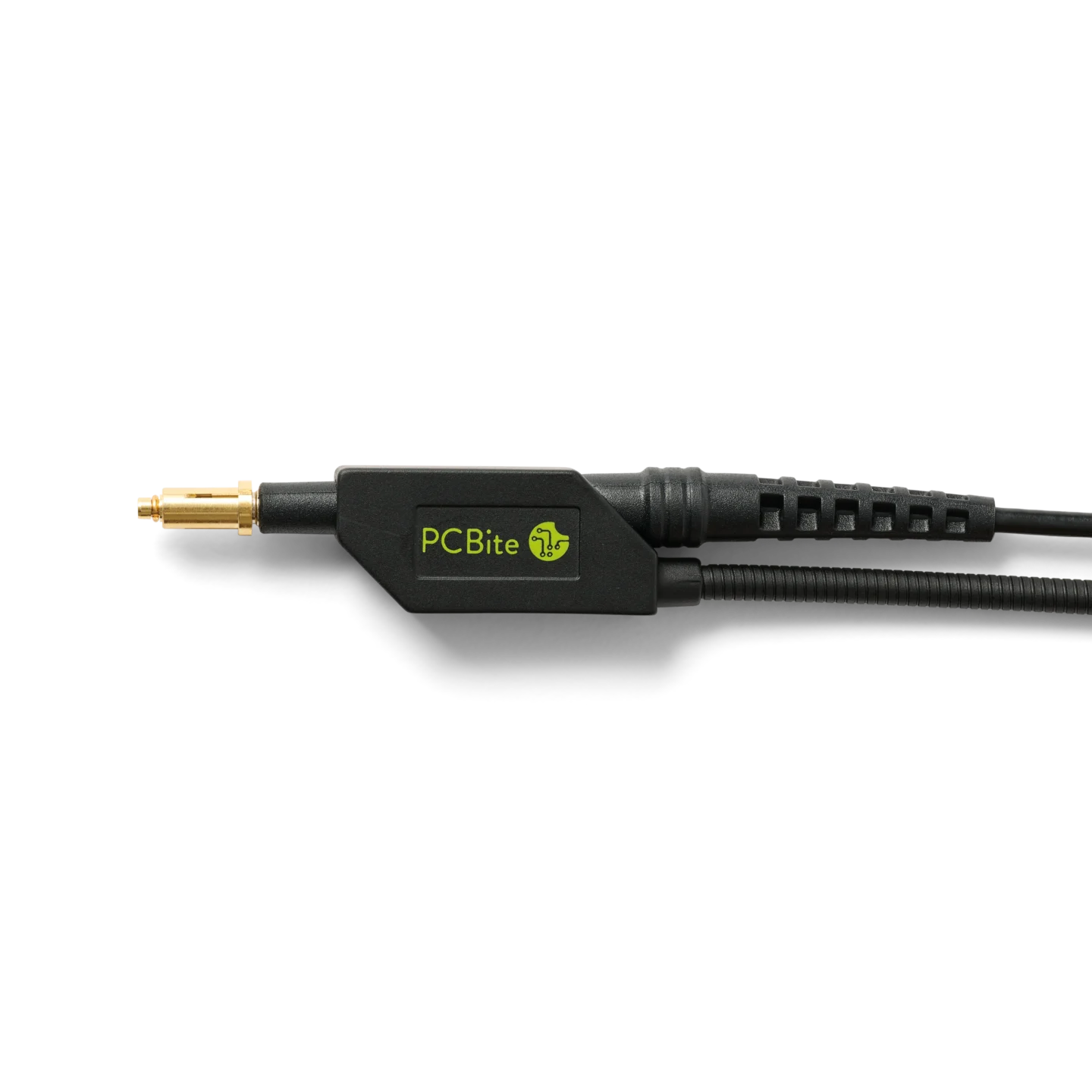

MMCX 3,5mm adapter mounted on oscilloscope probe with probe holder for increased stability (PCBITE-7021)
MMCX connector on PCB and probe with mounted MMCX adapter ready to connect (PCBITE-7021)
MMCX 3,5mm probe adapter from three angles for detailed view of adator (PCBITE-7021)
PCB with MMCX connectors ready for measurement with probe and MMCX adapter for reduced noise (PCBITE-7021)
PCBITE-7021

Probe MMCX adaptor 3,5mm

MMCX adapter for PCBite SQG15 and SQG30 probes. Connects signal and ground directly to an MMCX connector for the shortest ground path and minimal noise.

Secure paymentGlobal deliveryPremium quality
In stockDelivery: 1-2 business days

29 € excl. VAT

Introduction

A direct MMCX connection for the PCBite SQG15 and SQG30. The shortest possible ground path for clean measurements on power supplies, analog circuits and other sensitive signals.

The MMCX adapter fits the 3.5 mm (0.14 in) probe head of the PCBite SQG15 and SQG30 and connects the probe signal and ground directly to an MMCX connector on the PCB. The ground path becomes as short as possible, which keeps noise pickup to a minimum.

This matters most on sensitive circuits such as power supply designs and analog stages. With almost no noise picked up through the ground path, ripple on supply rails can be measured accurately instead of disappearing in probe noise.

With the MMCX adapter, the SQG15-AC and SQG15-DC keep their full 1.5 GHz bandwidth. On the SQG30-AC and SQG30-DC the adapter adds length to the signal path, which places the −3 dB bandwidth at about 2.6 GHz. Above that the probe continues to measure, with a gradually lower signal.

Compatible products

  • 1X Probe MMCX adaptor 3,5mm
Datasheet MMCX Adaptors
Brand

PCBite
Manufacturer

Sensepeek AB
Article number

PCBITE-7021
GTIN

7350145660601
Country of origin

China
HS code

90309000
HTS code

9030906800
ECCN

EAR99
Safety information

Not applicable
Package weight 30 g
Package dimensions 176 × 125 × 10 mm
MATERIAL

Made to last

Every material and design detail is chosen to last for years in a demanding lab environment.

Connector
Standard MMCX
Fit
3.5 mm (0.14 in) diameter
MATERIAL
Connector
Standard MMCX
Fit
3.5 mm (0.14 in) diameter

Made to last

Every material and design detail is chosen to last for years in a demanding lab environment.

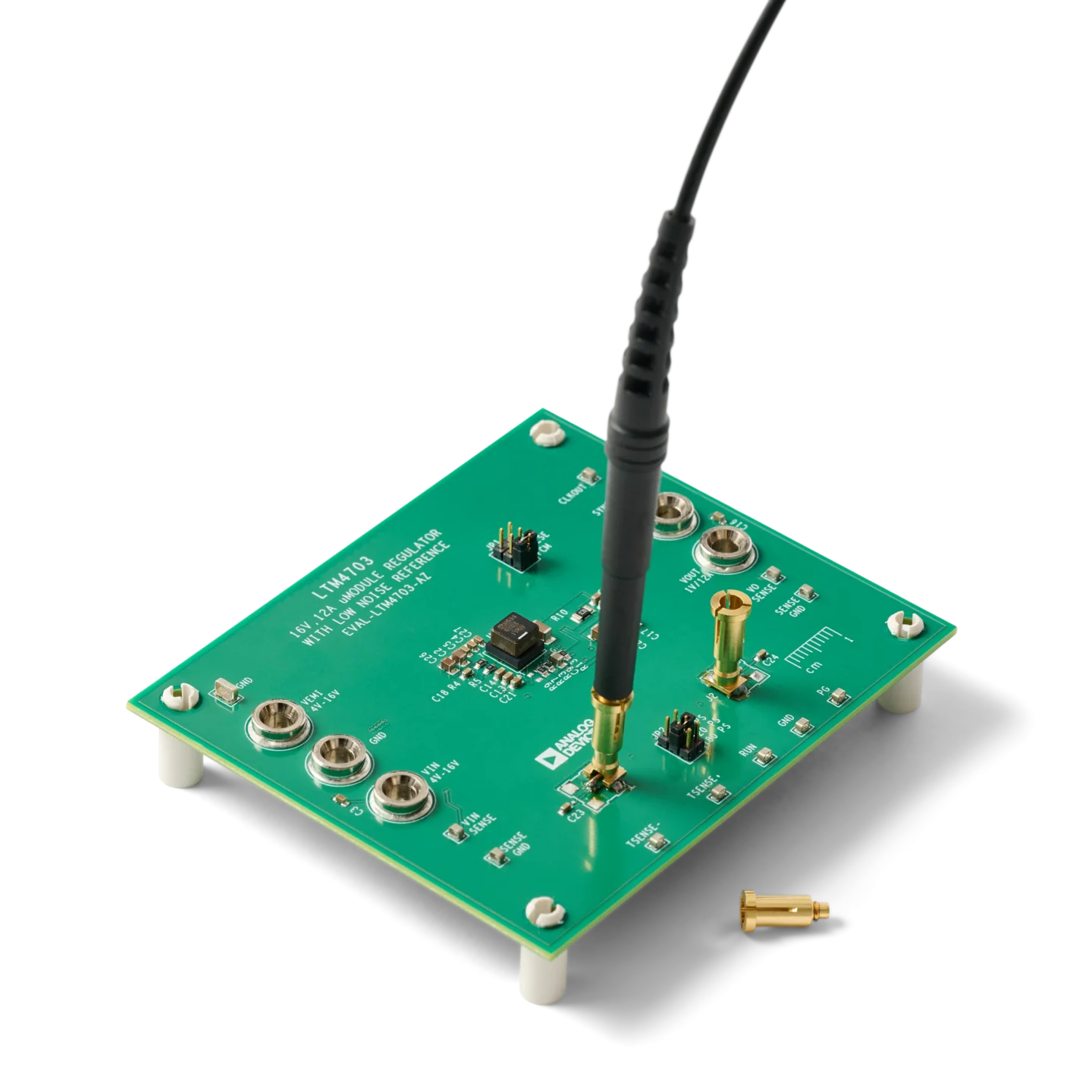

PCB with multiple MMCX connectors and adapters for quick probe repositioning between test points (PCBITE-7021)
MULTIPLE POINTS

Many test points. One probe.

Place MMCX connectors at several points on the board and move the probe from one to the next in seconds. With connectors at the input and output of a power supply, you can see whether noise enters or leaves through it. One probe is enough to scan many points quickly.

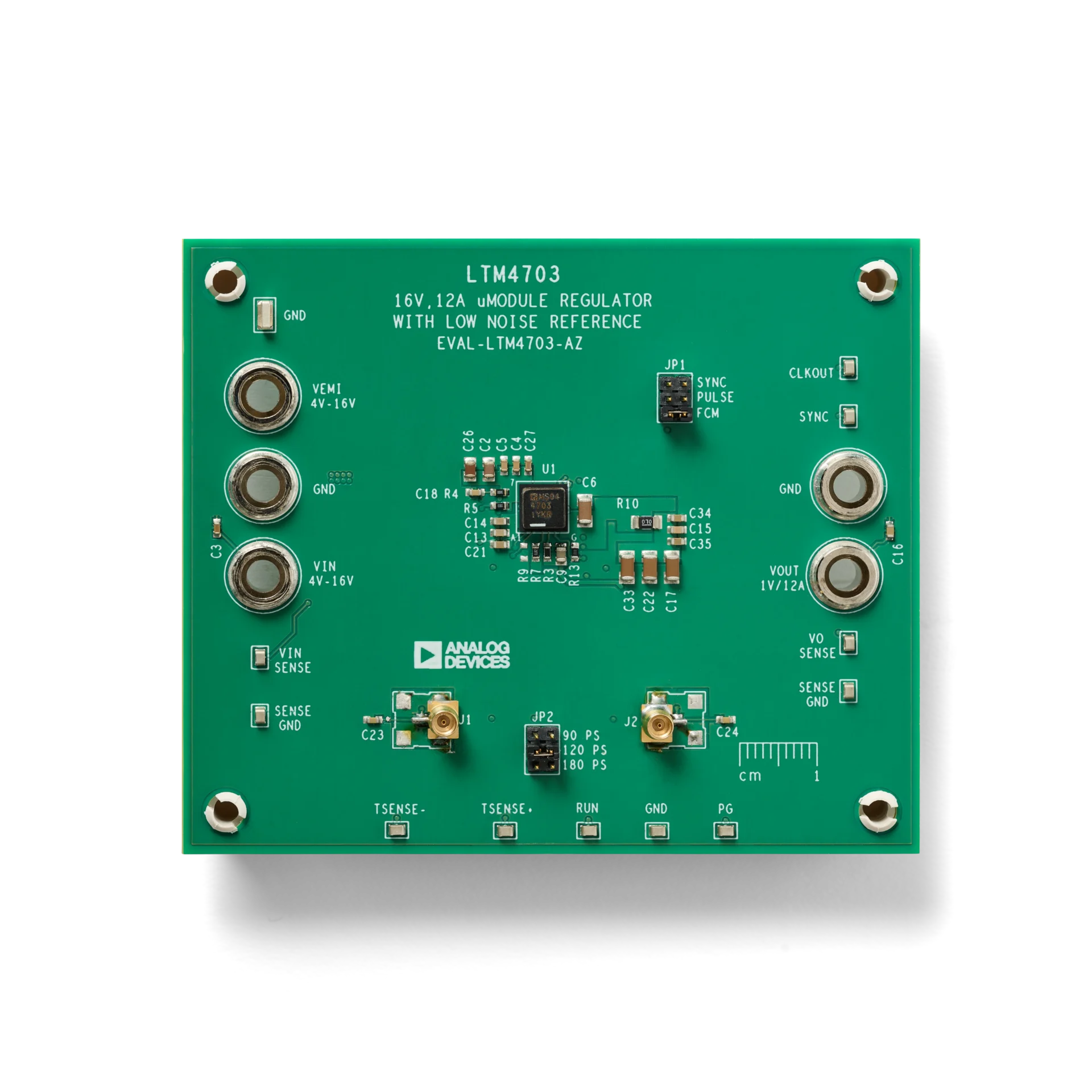

PCB with MMCX connectors ready for measurement with probe and MMCX adapter for reduced noise (PCBITE-7021)
SOLDER ON

Add a shielded test point.

No MMCX footprint is required in the PCB layout. Expose a small area of copper at the signal and a nearby ground, then solder an MMCX connector directly to the board. This creates a short coaxial connection for measurements at points such as a regulator output or ADC input, while minimizing noise pickup.

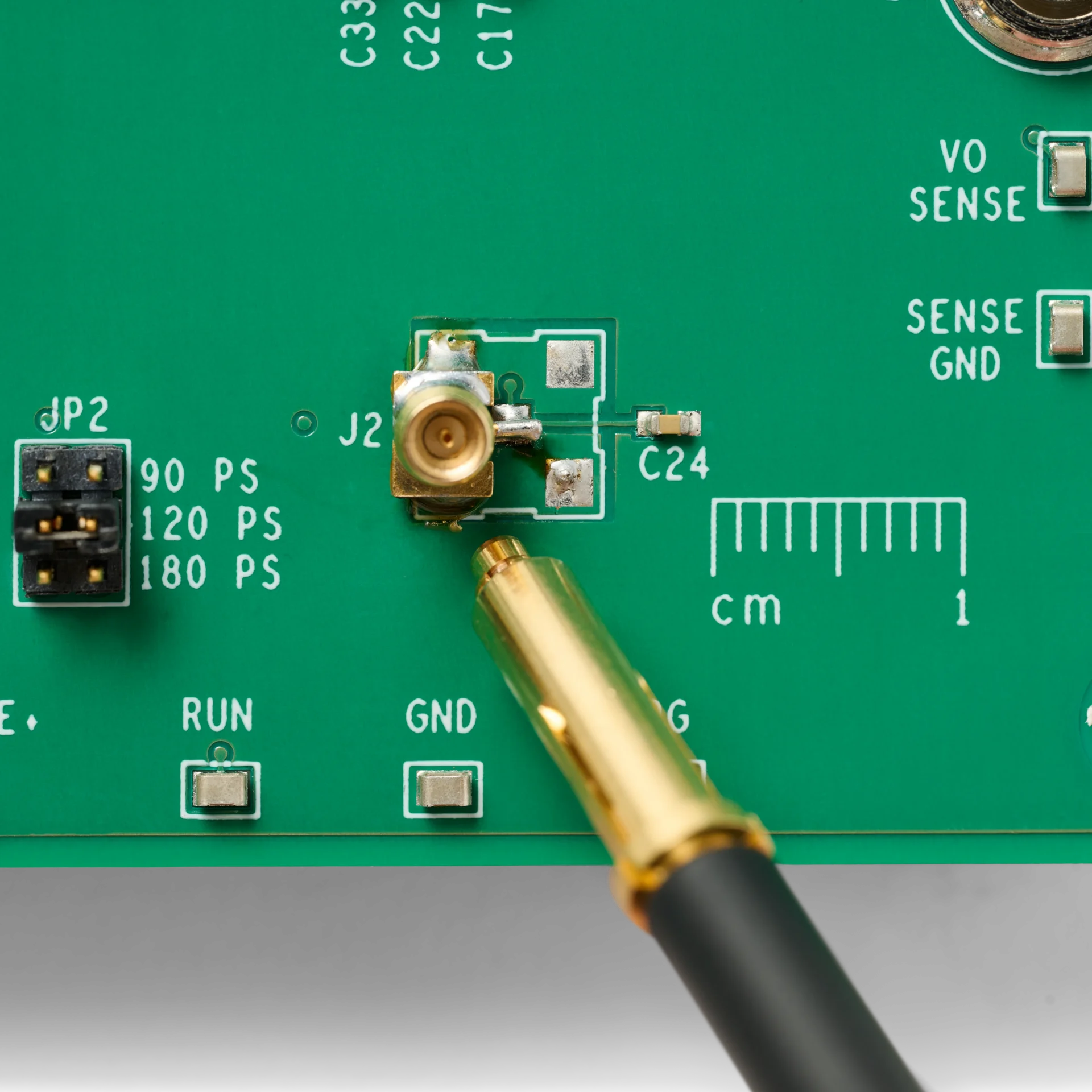

MMCX connector on PCB and probe with mounted MMCX adapter ready to connect (PCBITE-7021)
REPEATABLE

Same point. Comparable results.

The snap-on connection meets the board at the same point every time. Measure before and after a design change, or compare several boards, without differences in probe placement affecting the result.
