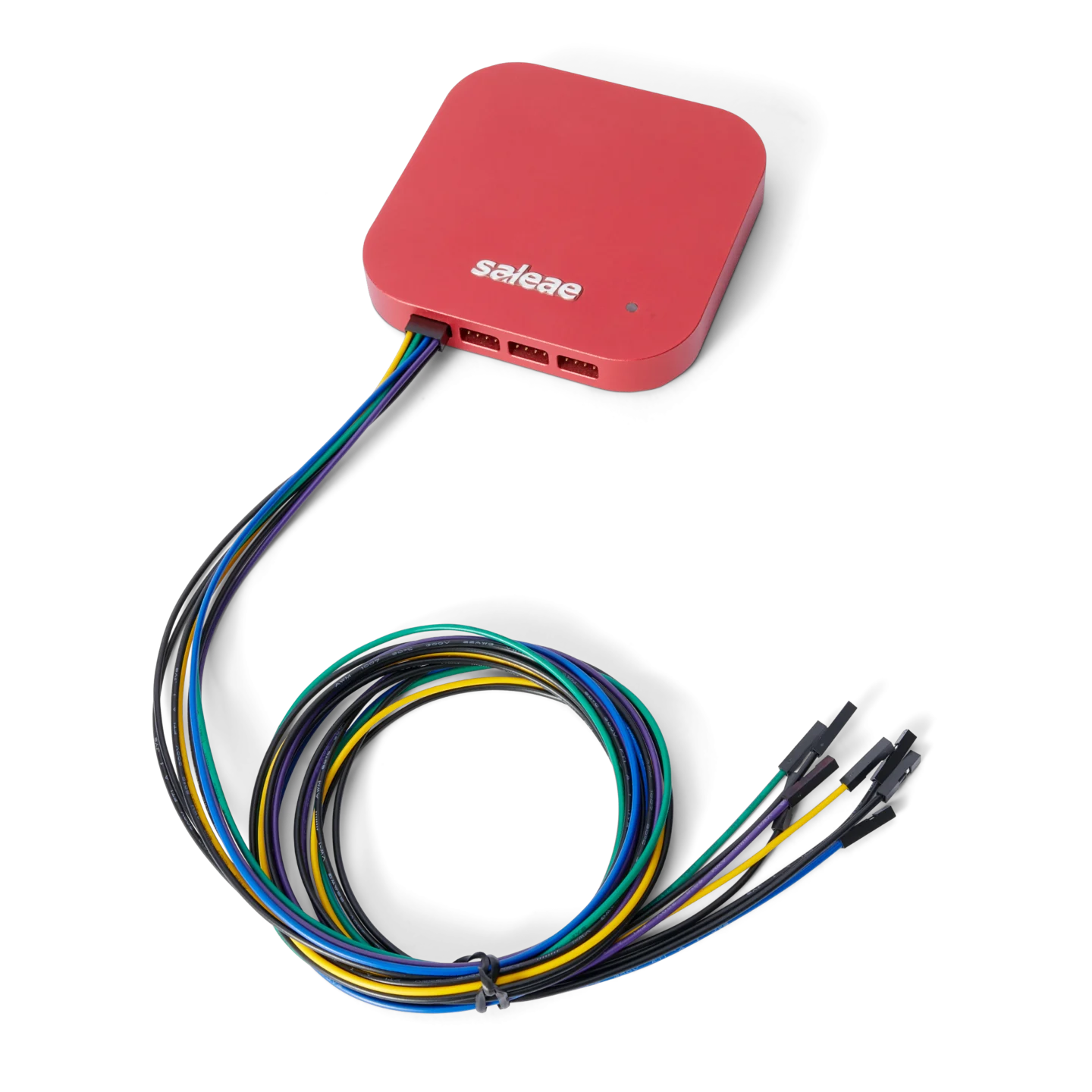

Color-coded wire harness connecting PCBite probes directly to Saleae logic analyzers (PCBITE-4008)

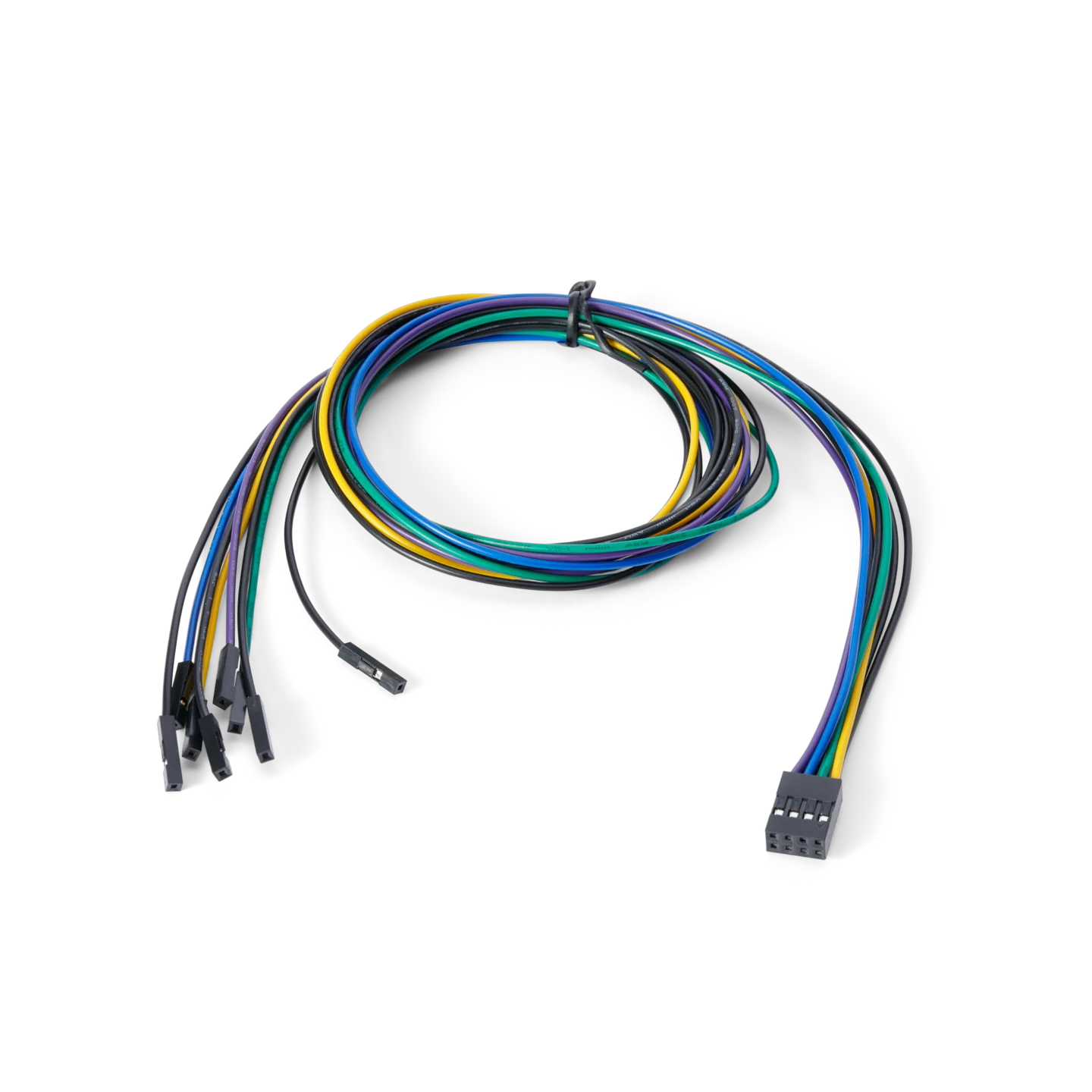

Wire Harness 2x4, color-coded dupont connectors to IDC connector (PCBITE-4008)

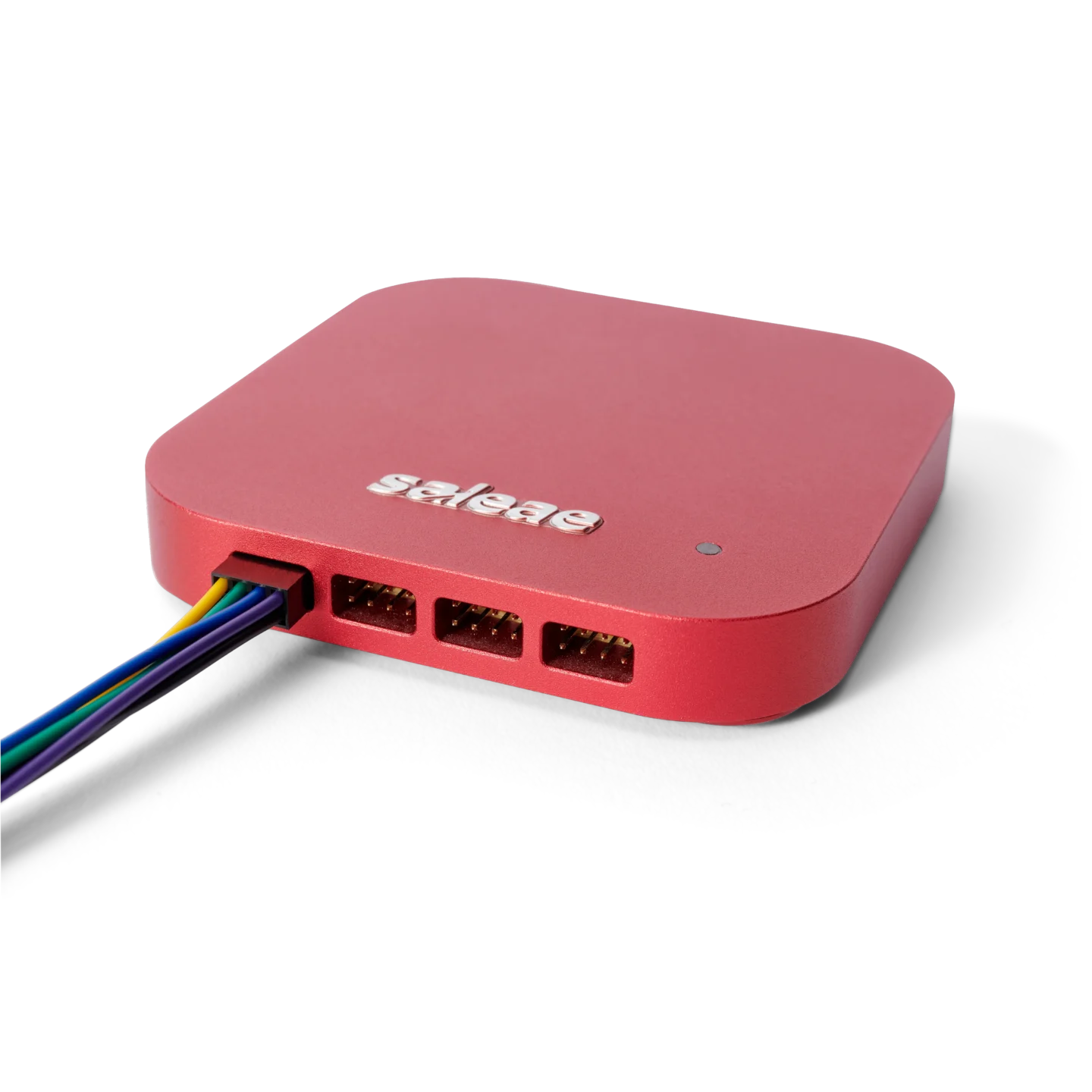

Closeup of wireharness connected directly to Saleae logic analyzer showing IDC end (PCBITE-4008)

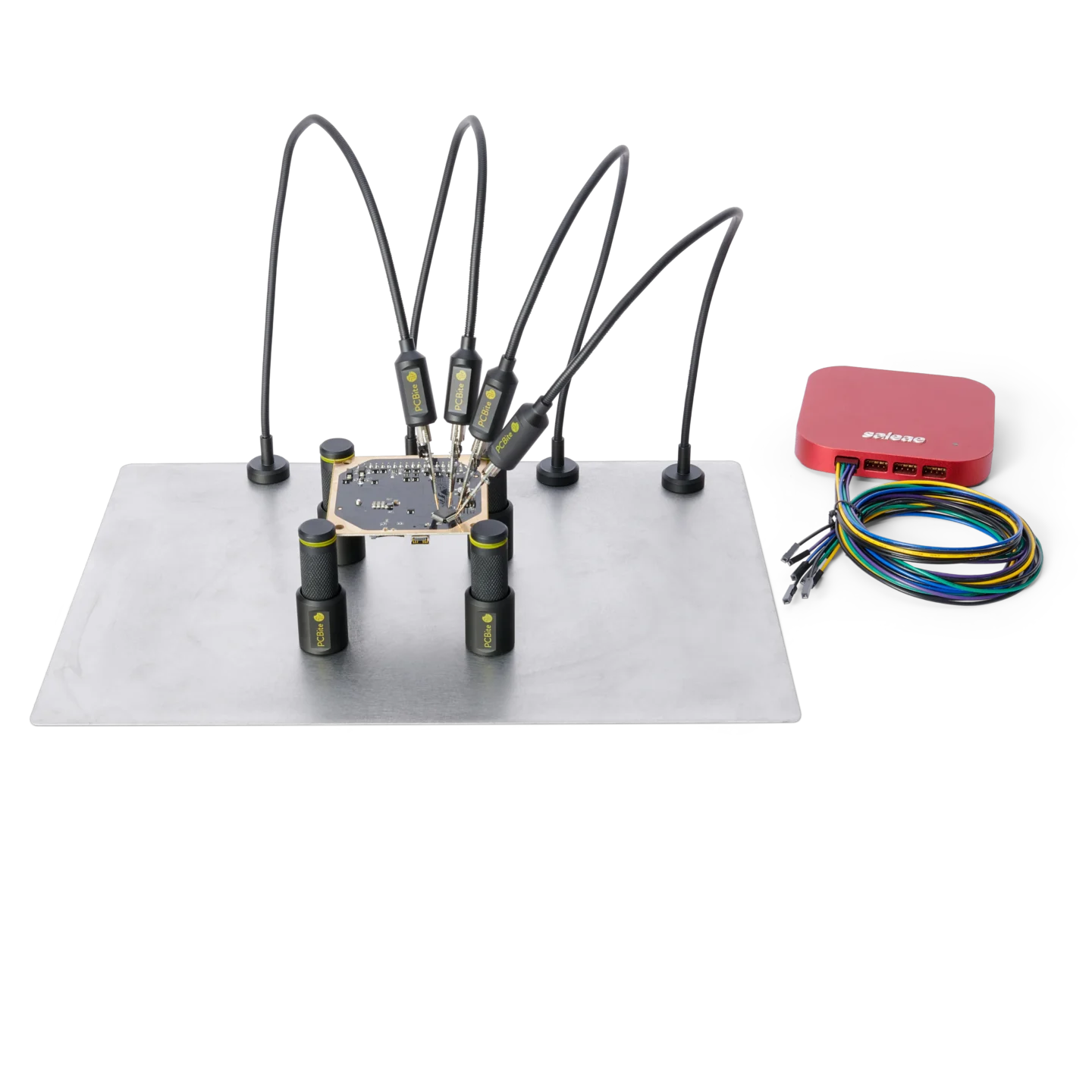

Complete debug test setup with Saleae logic analyzer and PCB and handsfree probe holders (PCBITE-4008)
PCBITE-4008

Wire Harness – 2×4 Saleae

2×4 wire harness, 0.8 m (31.5 in), from PCBite SP10 and SQ10 probes to a Saleae logic analyzer or any 2.54 mm (0.100 in) IDC header. Color coded to match Saleae channels.

Secure paymentGlobal deliveryPremium quality
In stockDelivery: 1-2 business days

10 € excl. VAT

Introduction

A clean connection from PCBite probes to your Saleae logic analyzer. Eight wires, color coded to match the Saleae software, with no loose jumper wires to sort out.

A 2×4 wire harness that connects PCBite SP10 and SQ10 probes directly to a Saleae logic analyzer, or to any instrument with a 2.54 mm (0.100 in) pitch IDC pin header. One end fits the 2×4 header on the instrument, and the other end has individual 2.54 mm (0.100 in) jumper connectors, often called Dupont connectors, that plug onto the probes.

Four wires carry the signals and four are ground. The signal wires are color coded to match channels 4 to 7 in the Saleae software, so it is easy to see which probe is on which channel.

The harness is 0.8 m (31.5 in) long and fits the Saleae range. It is tested with Saleae Logic 4, Logic 8, Logic Pro 8 and Logic Pro 16 (Generation 2).

Sensepeek uses Saleae logic analyzers together with PCBite probes every day in its own product development.

Compatible products

Wire Harness 2x4, color-coded dupont connectors to IDC connector (PCBITE-4008)
  • 1X Wire Harness - 2x4 Saleae
Brand

PCBite
Manufacturer

Sensepeek AB
Article number

PCBITE-4008
GTIN

7350145660069
Country of origin

China
HS code

90309000
HTS code

8544429090
ECCN

EAR99
Safety information

Not applicable
Package weight 90 g
Package dimensions 200 × 140 × 10 mm
MATERIAL

Made to last

Every material and design detail is chosen to last for years in a demanding lab environment.

Wires
Color coded to Saleae channels
Connector
2×4 IDC, 2.54 mm (0.100 in) pitch
MATERIAL
Wires
Color coded to Saleae channels
Connector
2×4 IDC, 2.54 mm (0.100 in) pitch

Made to last

Every material and design detail is chosen to last for years in a demanding lab environment.

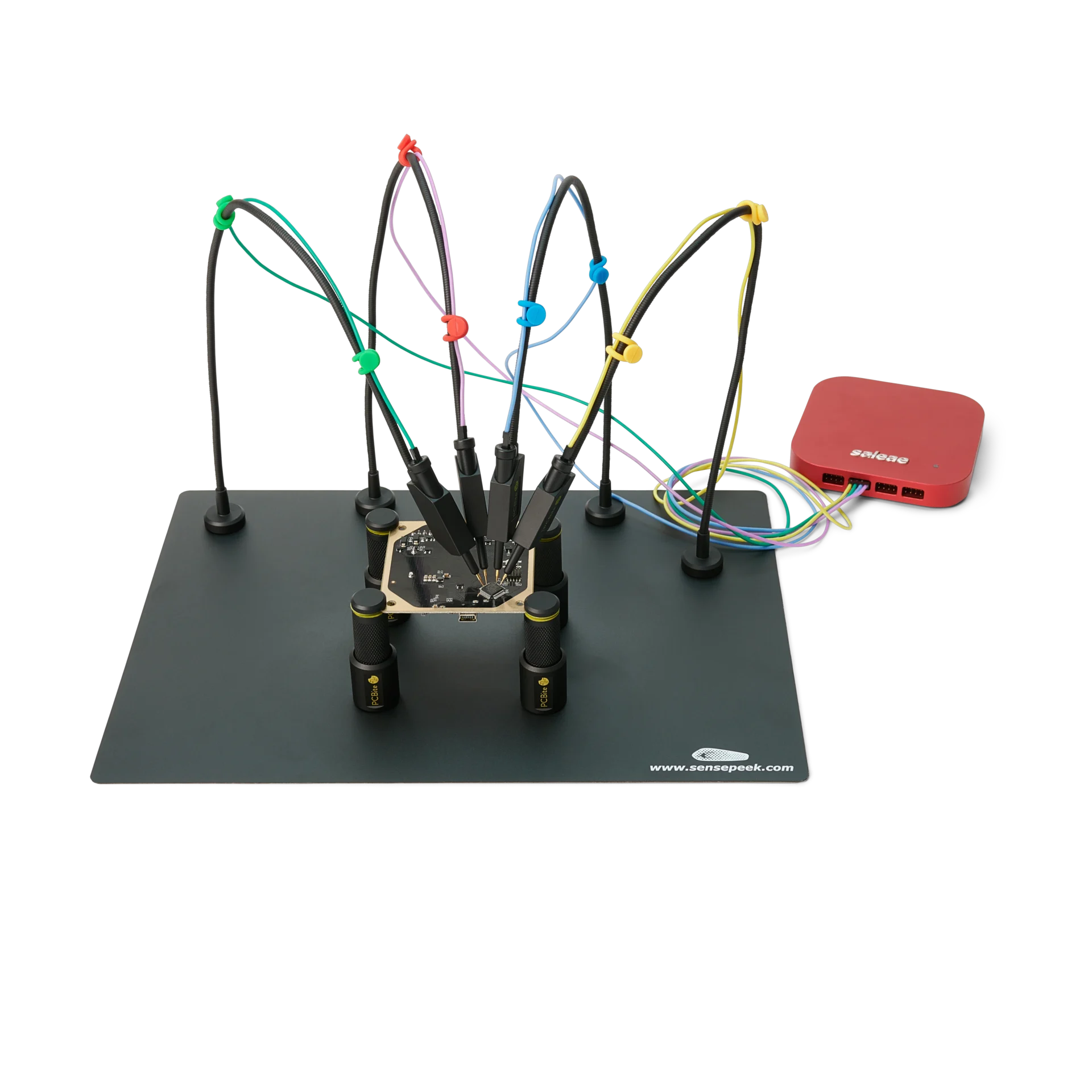

Four handsfree SQ10 probes with color-coded cable holders measuring finepitch IC on PCB (PCBITE-6003)
DECODE

From probe to protocol.

Place the probes on I2C, SPI or UART lines and decode the bus while the board runs. The probes stay in place handsfree, so you can change the code, reset the board and capture again without moving a wire.
