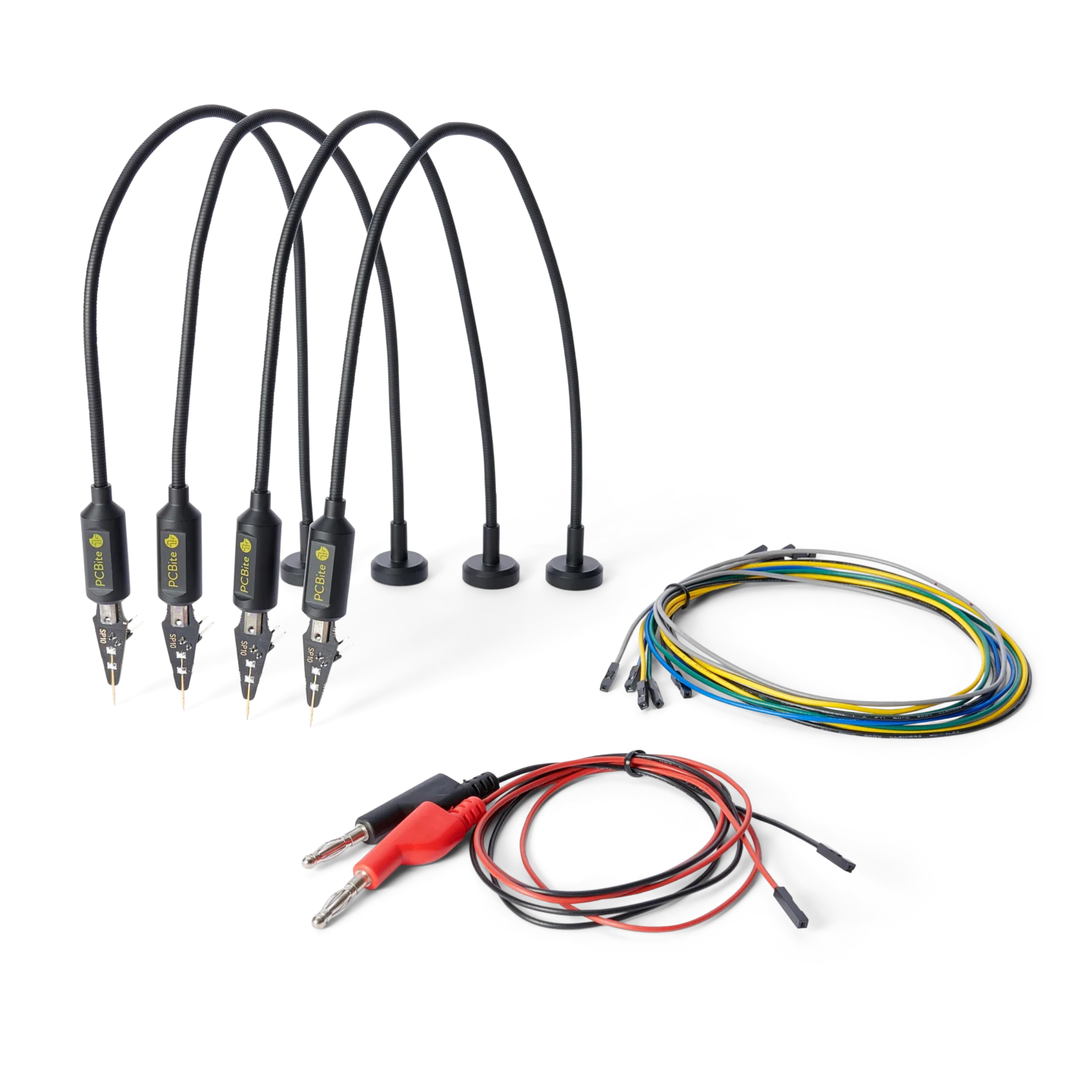

Set of four handsfree SP10 probes with spring-loaded tips plus test wires for PCB probing (PCBITE-4005)

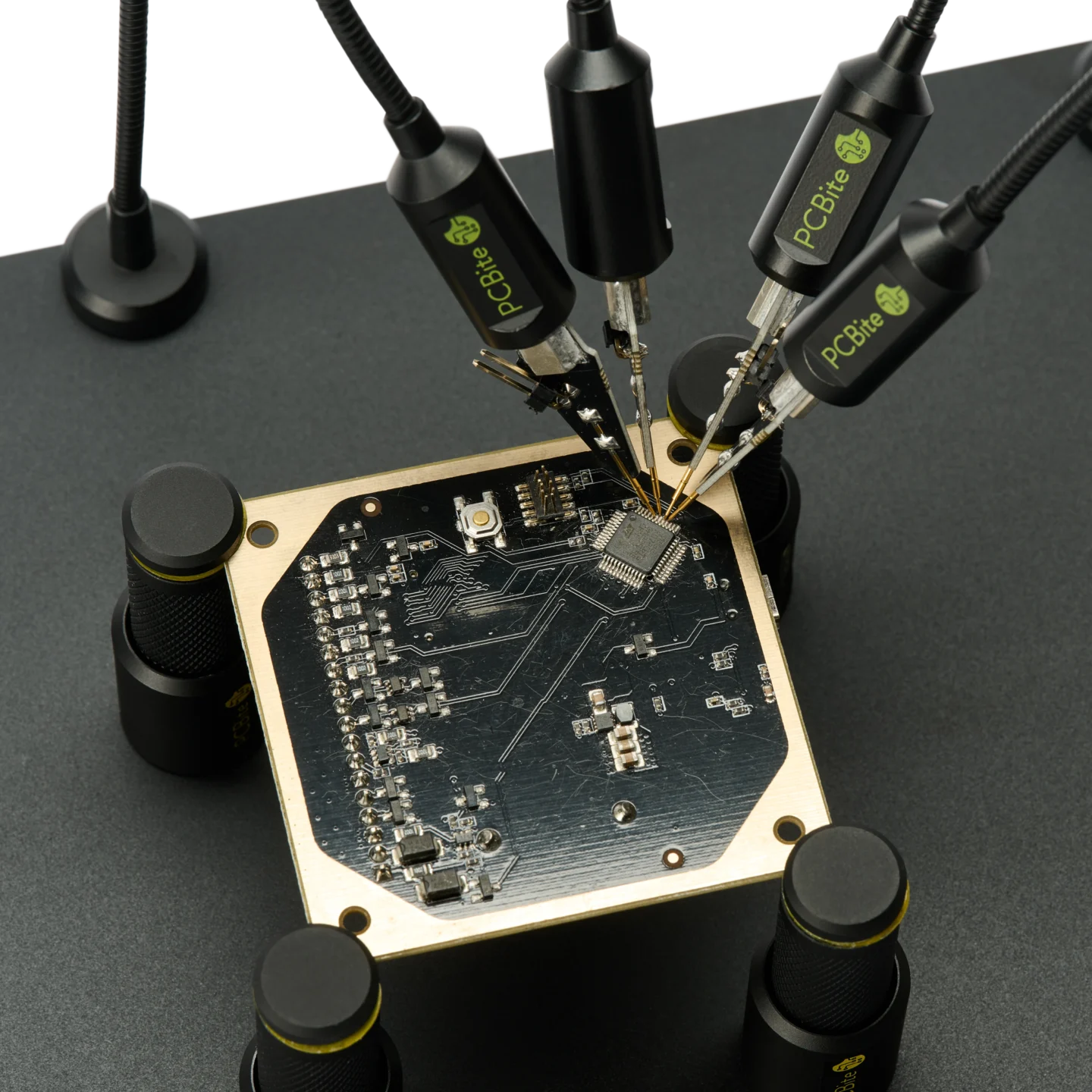

Four IC signals tested simultaneously completely handsfree using SP10 probes (PCBITE-4005)
Closeup of SP10 probe showing threaded interface, spring-loaded test needle and dual pinheader for cable connection (PCBITE-4005)

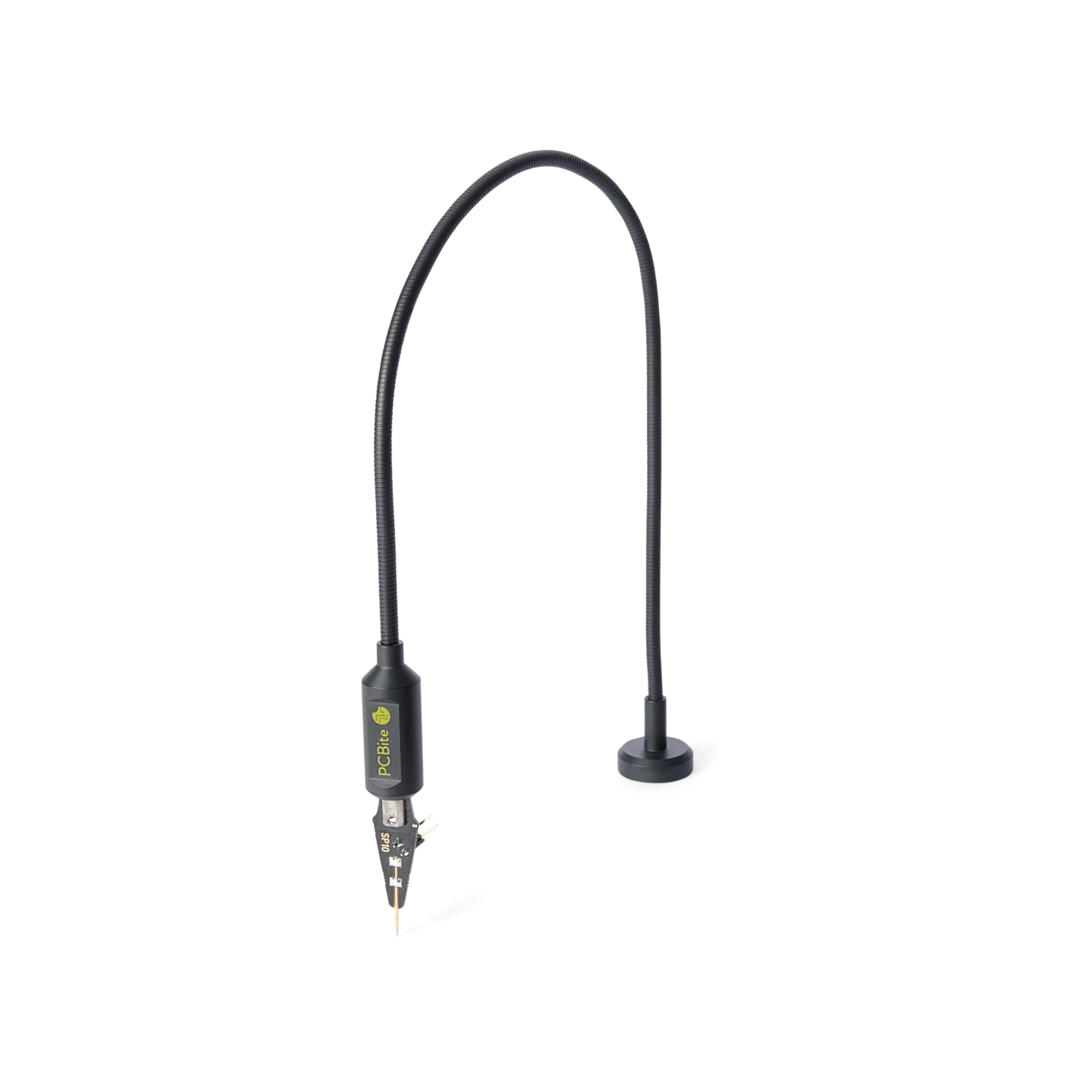

Single SP10 probe with flexible gooseneck arm and spring-loaded needle tip for hands-free PCB testing (PCBITE-4005)

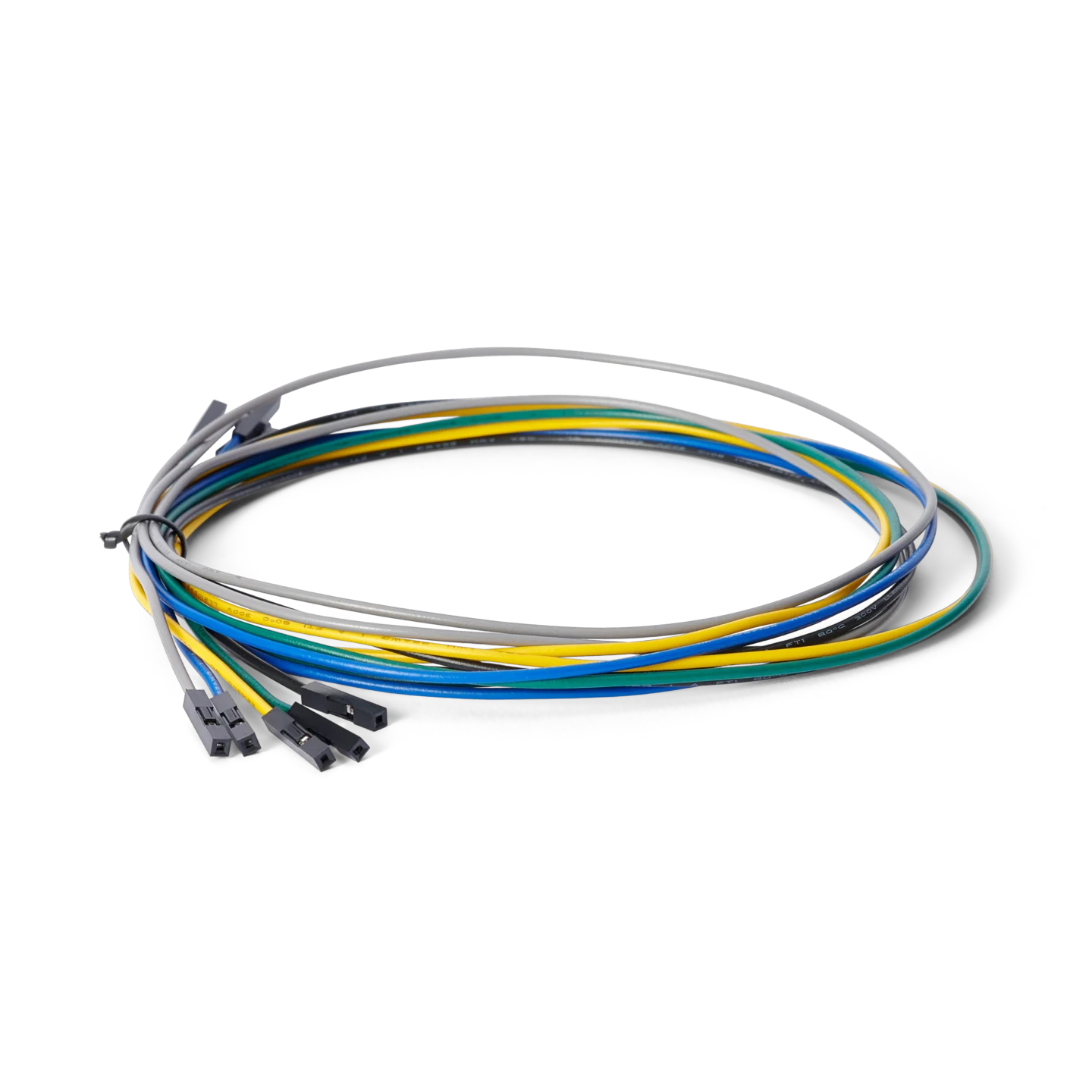

Test wires with dupont connector cables in multiple colors for SP10 probe connections (PCBITE-4005)

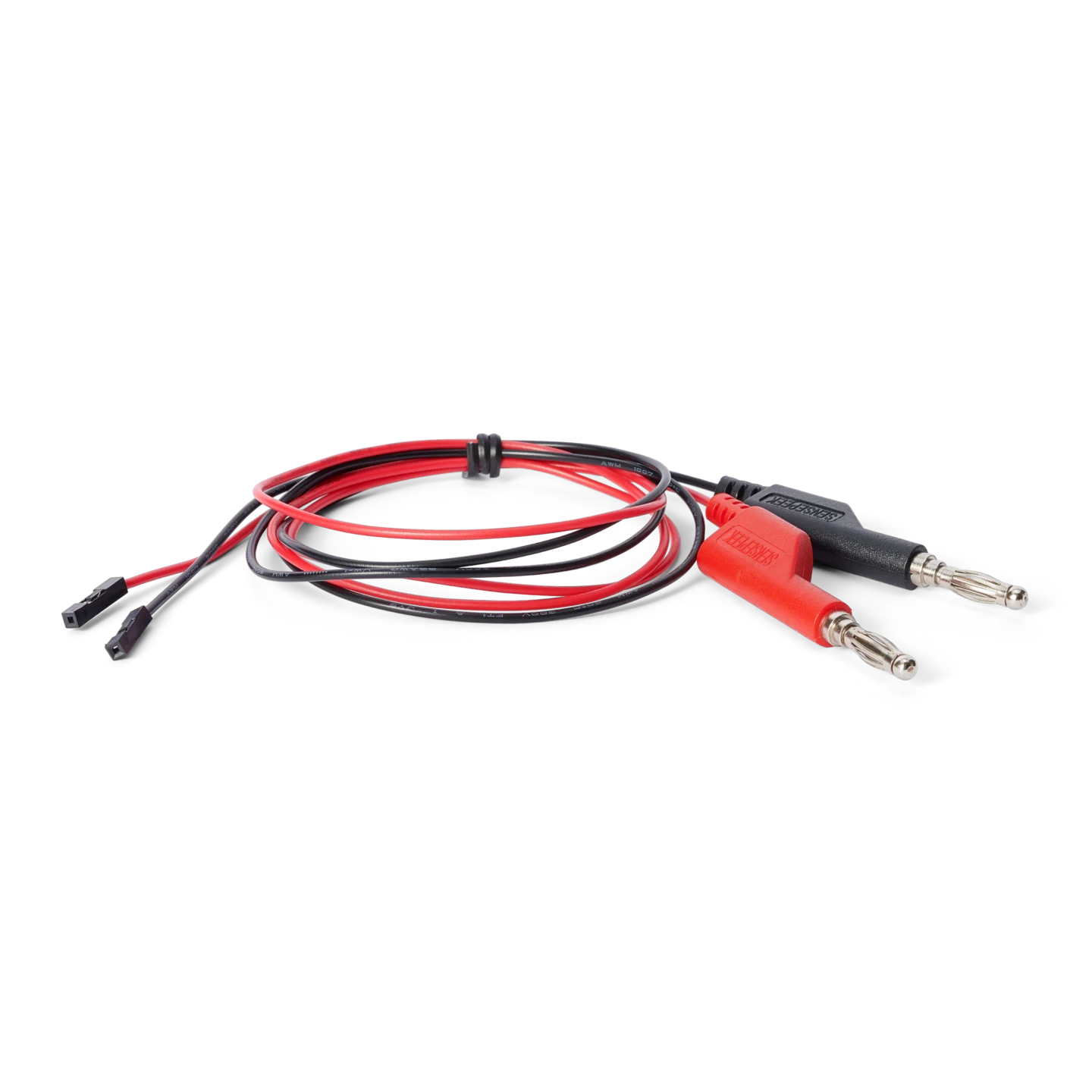

Red and black banana plug leads with dupont connectors for SP10 probe connection (PCBITE-4005)
PCBITE-4005

4x SP10 probes with test wires

Four SP10 handsfree probes with test wires add four measurement points to your existing PCBite setup.

Secure paymentGlobal deliveryPremium quality
In stockDelivery: 1-2 business days

69 € excl. VAT

Accessories

Cable holders in eight colors for organizing test cables away from PCB under test (PCBITE-7006)
PCBITE-7006
Cable holders
9 €
In stockDelivery: 1-2 business days
Add to cart
Color-coded wire harness connecting PCBite probes directly to Saleae logic analyzers (PCBITE-4008)
PCBITE-4008
Wire Harness - 2x4 Saleae
10 €
In stockDelivery: 1-2 business days
Add to cart
Ground cable accessories, test hooks, alligator clips and ground clips for secure connections (PCBITE-7004)
PCBITE-7004
Ground cable accessories
18 €
In stockDelivery: 1-2 business days
Add to cart

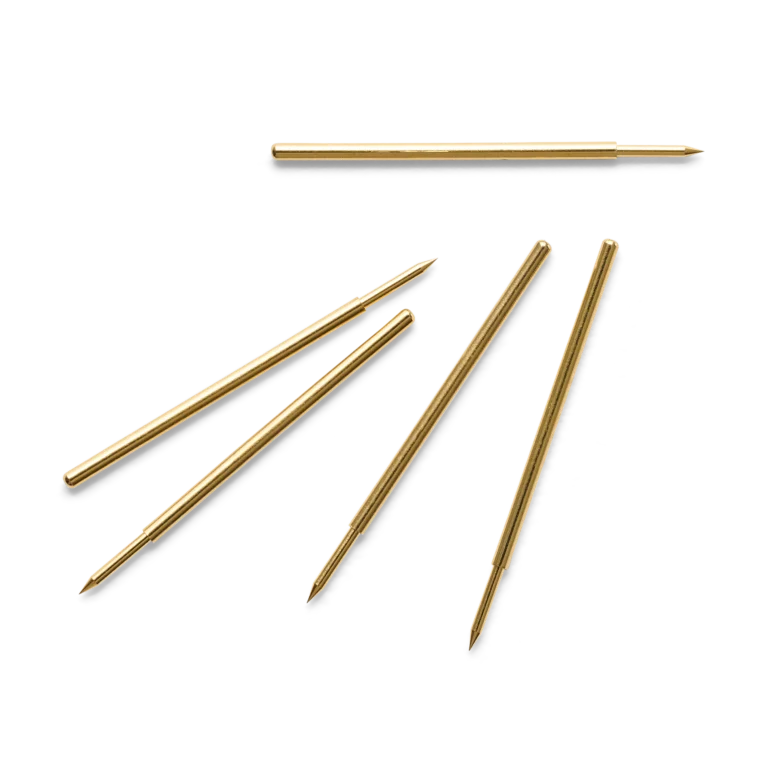

PCBite 5x replacement spring-loaded gold-plated needle tips for SP and SQ probes (PCBITE-7002)
PCBITE-7002
5x Probe tip needle
7 €
In stockDelivery: 1-2 business days
Add to cart

Introduction

These four handsfree SP10 probes expand your existing PCBite setup. Position each probe on the signals you need and monitor them with your logic analyzer, multimeter or debug adapter while keeping both hands free.

Place the spring-loaded needle on any test point in the signal path and release. The flexible arm holds the needle in position, while the N52 neodymium magnet in the base keeps the probe locked to the base plate. No soldered wires and no fixtures.

The 2.54 mm (0.100 in) dual pin header accepts two cables at the same time, enabling simultaneous power and measurement or signal pass through to another probe.

Color coded test wires with 2.54 mm (0.100 in) jumper connectors are included for direct connection to logic analyzers, multimeters, mixed signal oscilloscopes and debug adapters. Red and black test leads with 4 mm banana plugs connect directly to multimeters, bench power supplies and other instruments with standard 4 mm inputs.

Designed for DC to 10 MHz measurements and well suited for I2C, I3C, UART, CAN bus and other digital signals.

A PCBite base plate and holders are required.

Compatible accessories

  • 4X SP10 probe with spring tipped test needle (black)
  • 4X SP probe holder for handsfree measurement
  • 2X Banana to Dupont test lead (red, black)
  • 5X Dupont test lead 80 cm (31 in), 5 colors
  • 4X Extra test needle (SP/SQ)
User guide SP10 Probes
Dimensions of 4x SP10 probes with test wires: SP10 Probe
Brand

PCBite
Manufacturer

Sensepeek AB
Article number

PCBITE-4005
GTIN

7350145660045
Country of origin

Sweden
HS code

90309000
HTS code

9030906800
ECCN

EAR99
Safety information

See downloads
Package weight 320 g
Package dimensions 225 × 150 × 25 mm
MATERIAL

Made to last

Every material and design detail is chosen to last for years in a demanding lab environment.

Flexible arm
Flexible, adaptable, mechanically stable metal design
Test needle
Exchangeable, fine-pitch spring-loaded
Magnet
Strong N52 neodymium
Connector
Dual pin header
MATERIAL
Flexible arm
Flexible, adaptable, mechanically stable metal design
Test needle
Exchangeable, fine-pitch spring-loaded
Magnet
Strong N52 neodymium
Connector
Dual pin header

Made to last

Every material and design detail is chosen to last for years in a demanding lab environment.

Closeup of four IC signals tested simultaneously completely handsfree using SP10 probes
Closeup of four IC signals tested simultaneously completely handsfree using SP10 probes

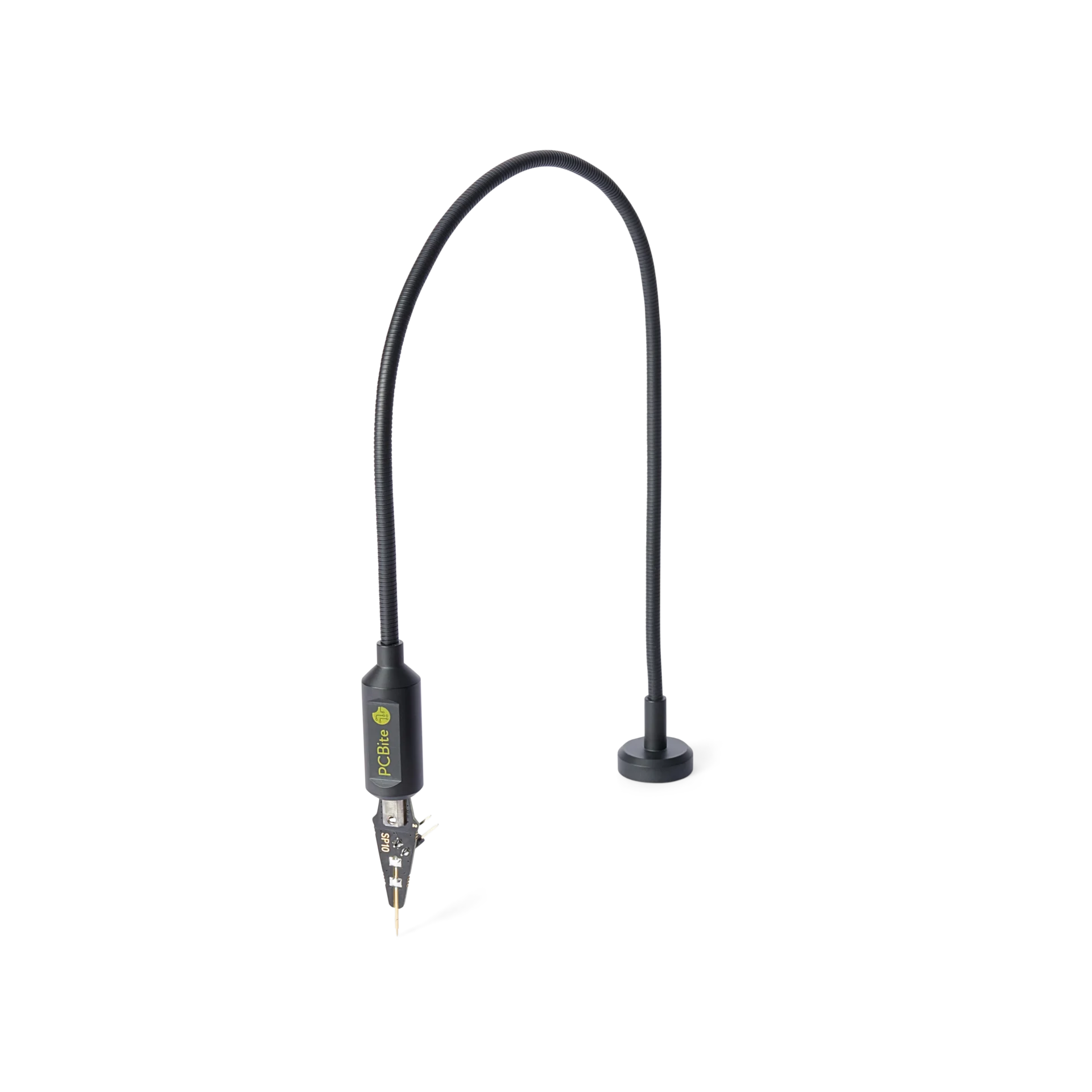

Single SP10 probe with flexible gooseneck arm and spring-loaded needle tip for hands-free PCB testing (PCBITE-4011)
ULTRA-THIN PROFILE

SP10 probes, built for fine pitch.

The SP10 probe head is a bare, ultra-thin PCB with no plastic body around the contact point. Several probes fit side by side on fine-pitch components, for measurements on I²C, I³C, UART, CAN bus and other signals from DC to 10 MHz. The 2.54 mm (0.100 in) dual pin header accepts two cables at the same time, for simultaneous power and measurement.

NEEDLES

Every needle, spring-loaded.

The test needle is spring-loaded, providing a defined, consistent contact force on the pad. This keeps the connection stable throughout the measurement, even if the setup is bumped or exposed to vibration. When the tip wears, pull it out and insert a new one.

DUAL PIN-HEADER

Two connections at once.

The 2.54 mm (0.100 in) dual pin header accepts two cables at the same time. Power the PCB from a bench supply while monitoring the same point with a multimeter, connect analog and digital instruments simultaneously, or pass the signal through to another probe. One probe can support several parts of the measurement setup without being moved.

COMPATIBILITY

Connects to the instruments on your bench.

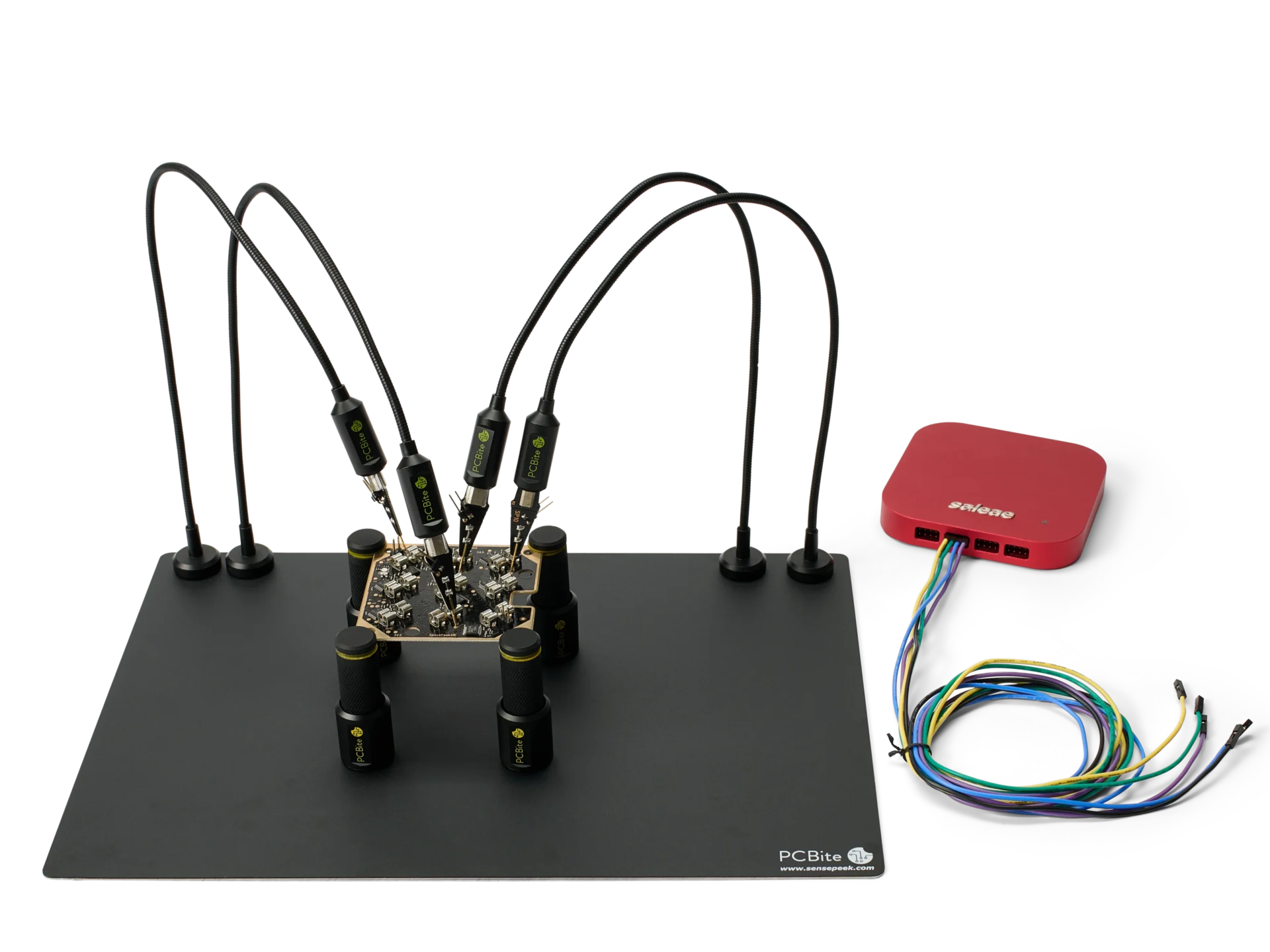

Complete debug test setup with Saleae logic analyzer and handsfree SP10 probes
PCBs in PCBite holders, with a rear display reflected in the base plate and probes supplying power from a Rigol bench supply.
Two SP10 probes on flexible arms holding contact on a PCB, connected to a Fluke multimeter so the readings need no hands.

Standard 2.54 mm (0.100 in) jumper connectors, often called Dupont connectors, plug straight into any logic analyzer. Put one probe per line and one on ground, and decode I2C, I3C, SPI or UART while the board runs. The same connectors reach a programmer or debug adapter for SWD and JTAG.

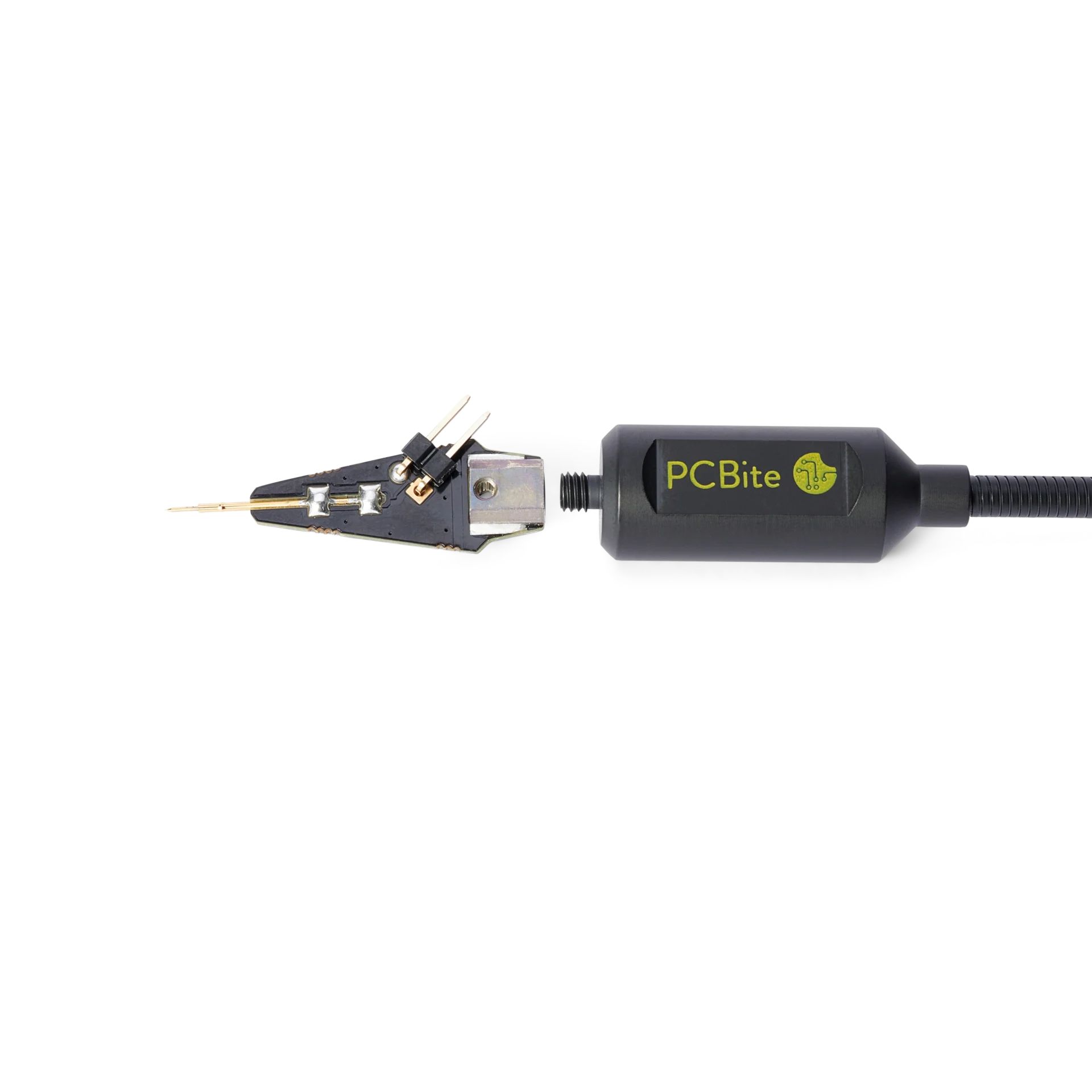

Closeup of SP10 probe showing threaded interface, spring-loaded test needle and dual pinheader for cable connection (PCBITE-7028)
OPEN MODULAR DESIGN

Open design, made to be modified.

The SP10 probe head is an open PCB design. Swap probe boards on the standard M4 thread, fit your own needle types or adapt the probe for a specialized measurement.

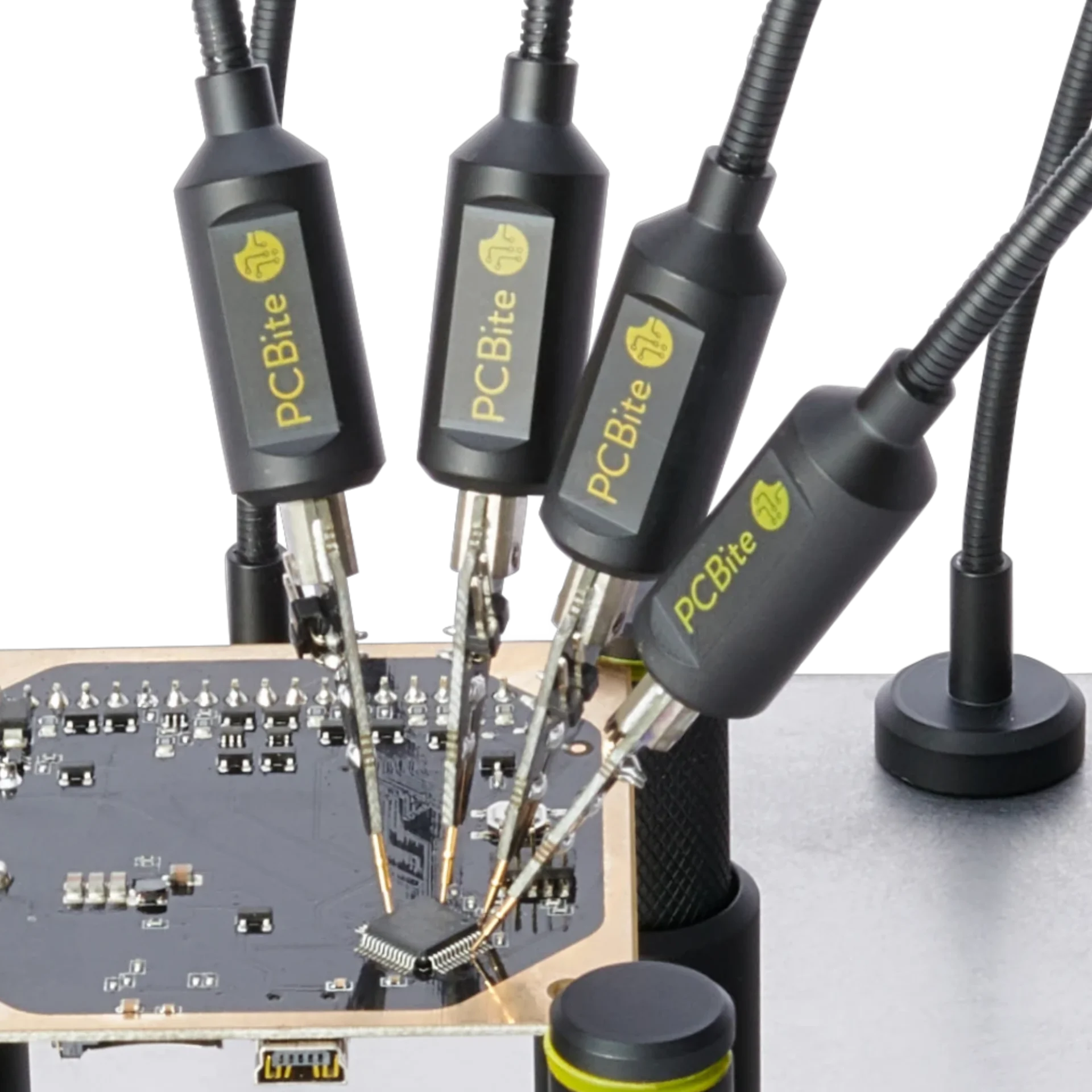

Complete debug test setup with Saleae logic analyzer and PCB and handsfree probe holders
ANTI-SHAKE

Steady placement. Reliable contact.

The flexible arm and probe weight keep the spring-loaded needle partially compressed during measurement, maintaining contact even if the setup is disturbed. The arm also adds controlled resistance when positioning the needle on fine-pitch components, making precise placement easier even with a slightly unsteady hand.

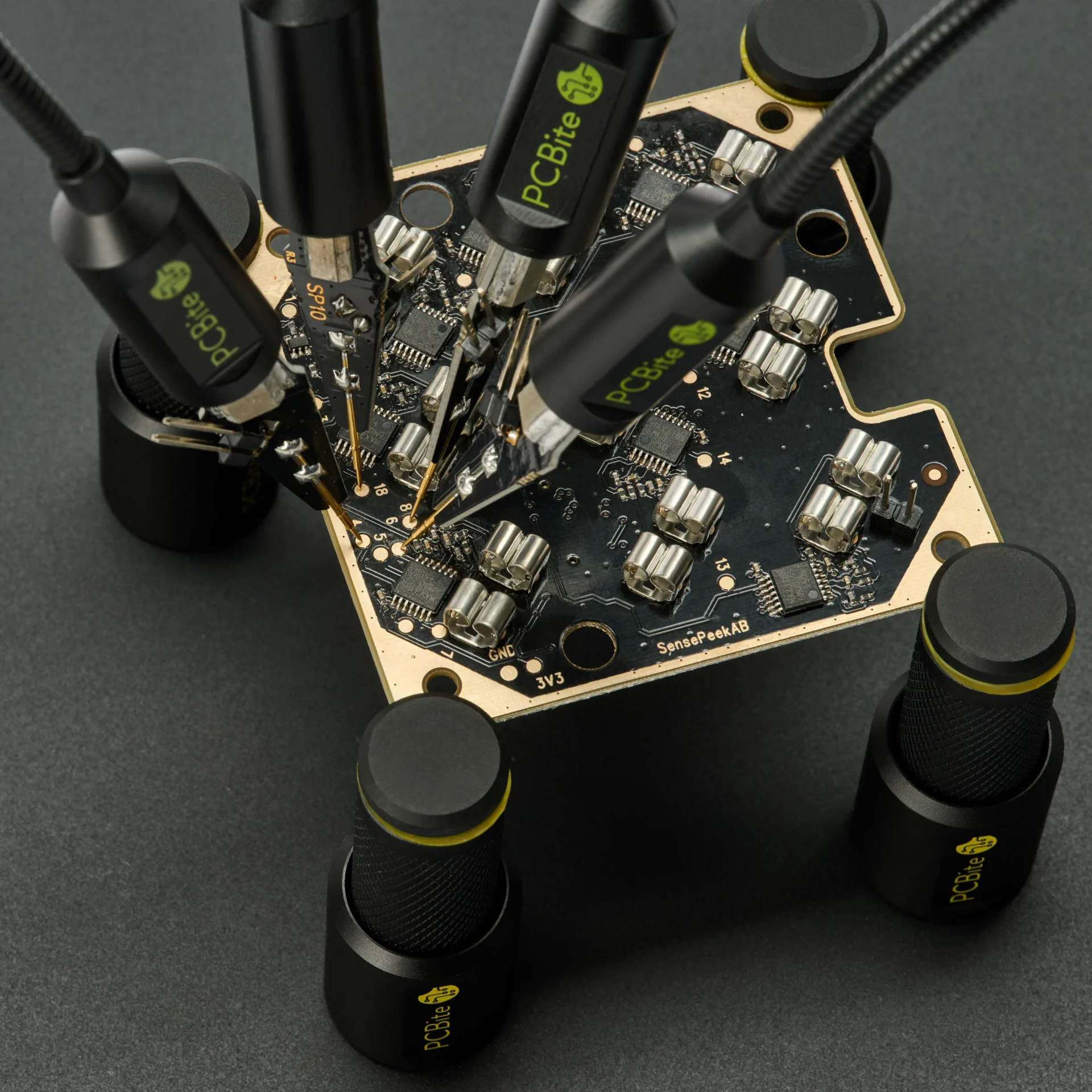

Multiple circuit board signals tested simultaneously completely handsfree using SP10 probes (PCBITE-7028)
MULTI-POINT MEASUREMENT

Multiple probes. Long measurements. No hands required.

Position several probes across the board and leave them in place for both quick measurements and long triggering sessions. The probes maintain contact throughout the measurement, enabling simultaneous multi-point measurements that are impractical with handheld probes.

EMBEDDED

SP10 for embedded developers.

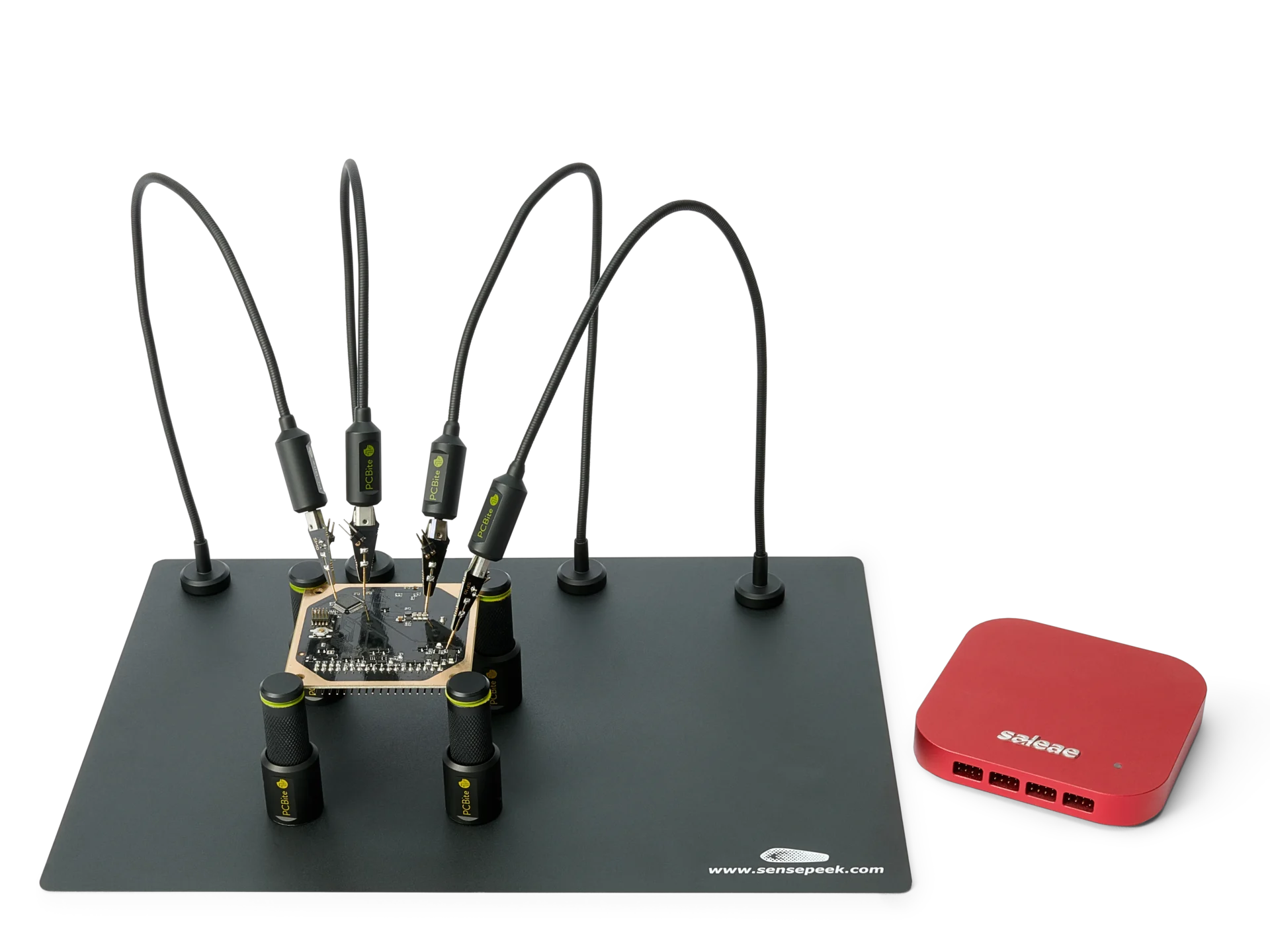

Complete handsfree test setup with SP10 probes and Saleae Logic analyzer ready for debugging
Segger J-Link debug probe with Dupont jumper wires plugged straight into its target header, ready for SWD or JTAG bring-up.
PCBs in PCBite holders, with a rear display reflected in the base plate and probes supplying power from a Rigol bench supply.
Complete debug test setup with Saleae logic analyzer and PCB and handsfree probe holders

Leave probes on I2C, SPI, UART or the TX and RX lines of a CAN transceiver, and watch the traffic on your logic analyzer while the code runs. One probe per line, one on ground, nothing to hold and nothing to solder.
