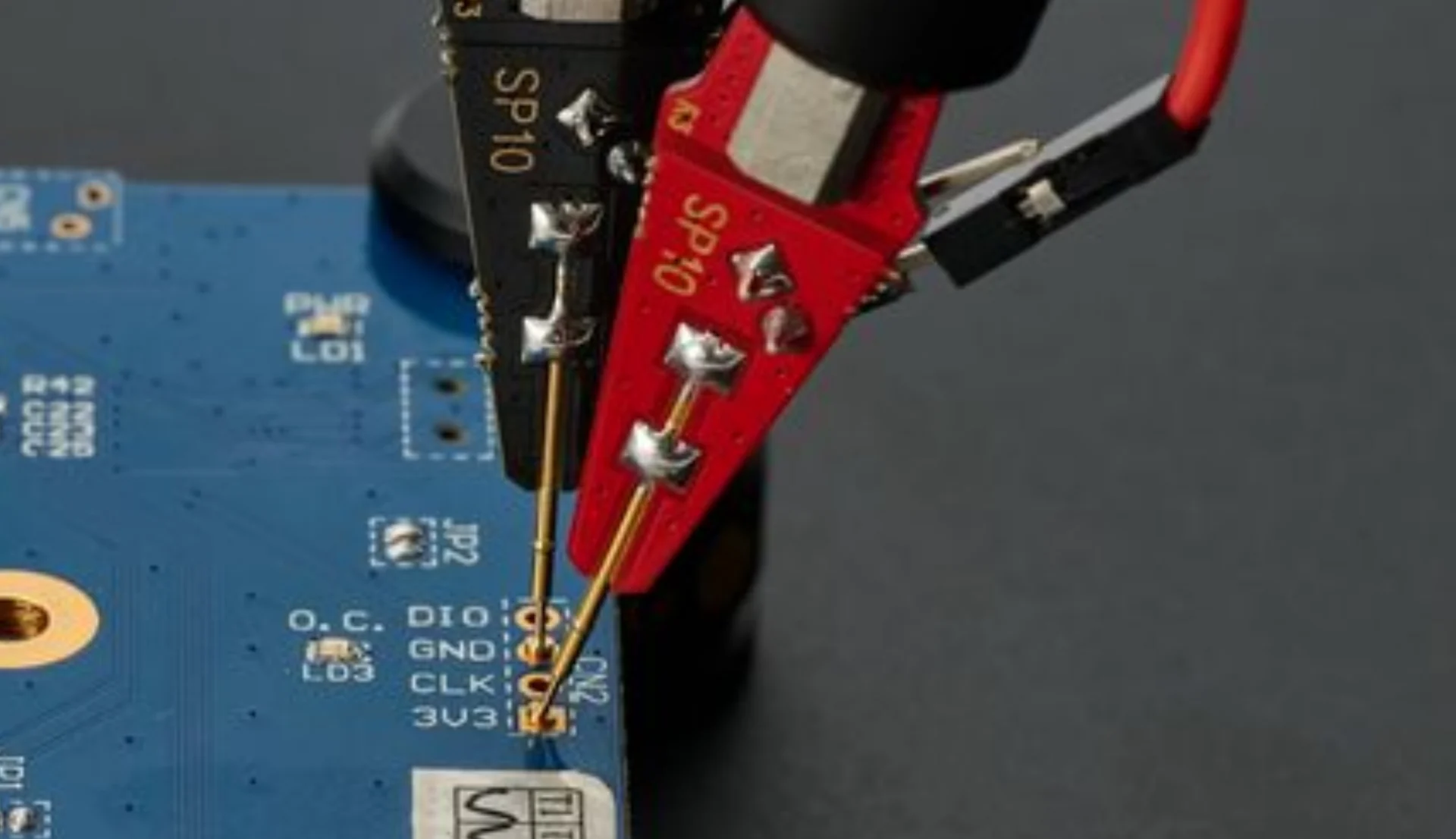

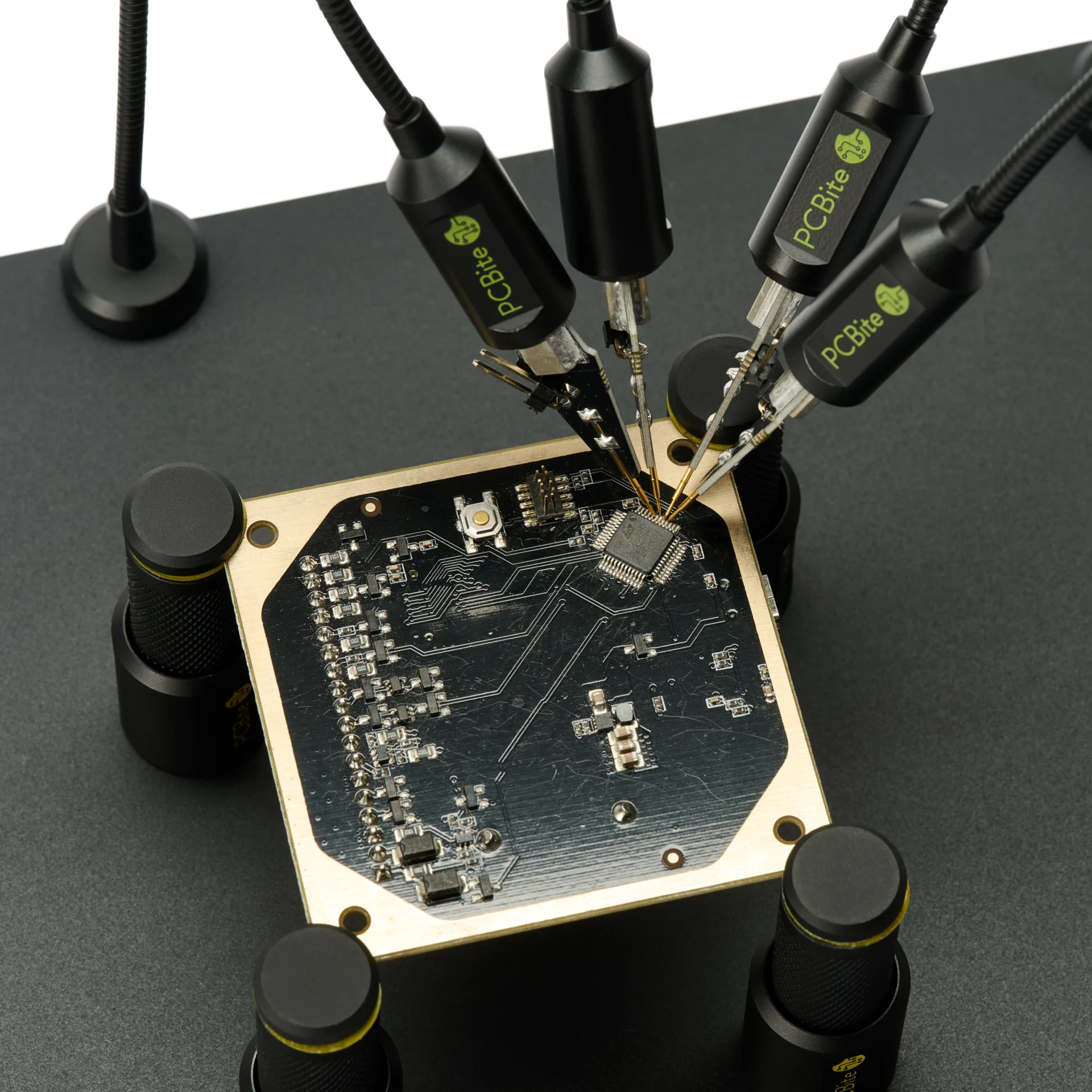

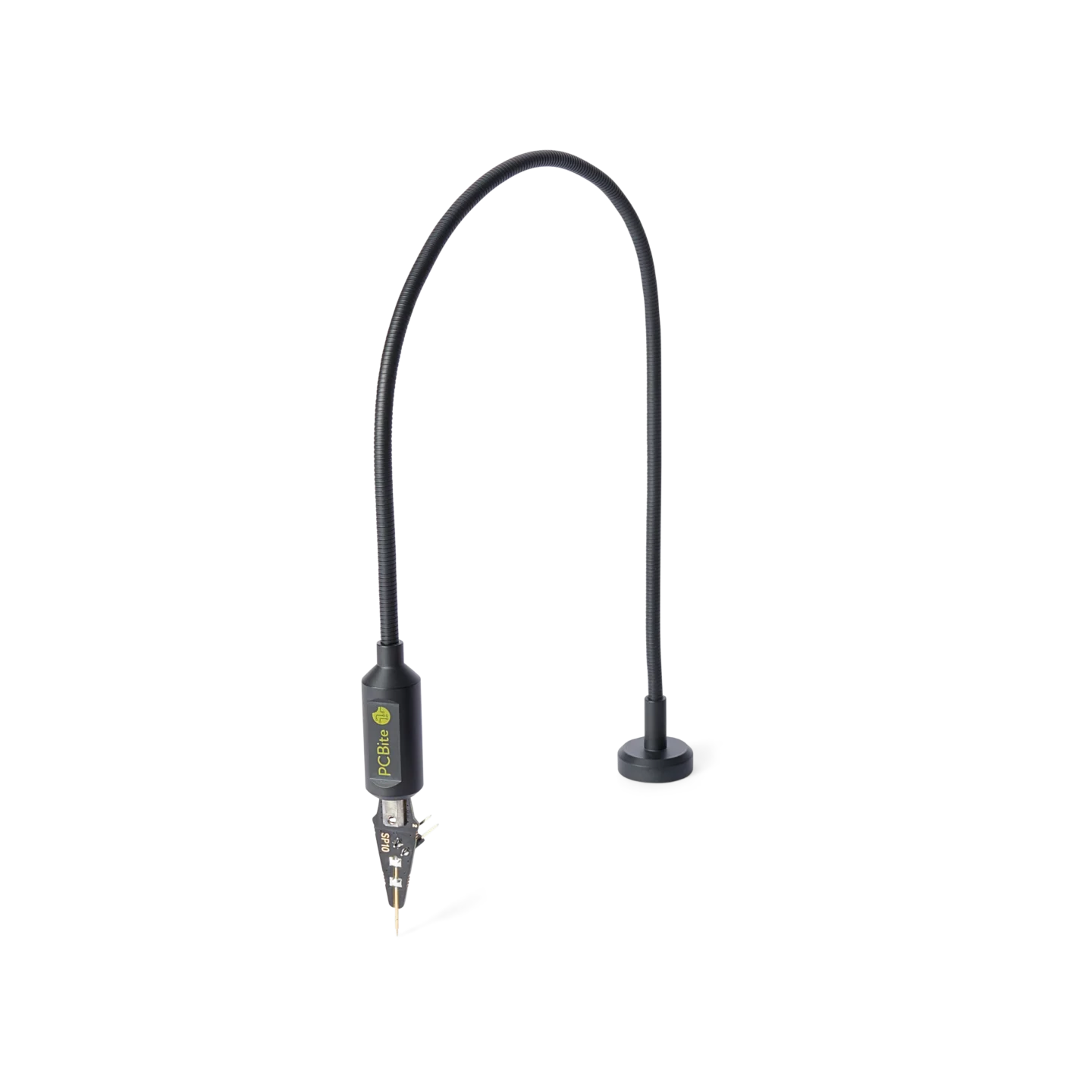

Place the spring-loaded needle on any test point in the signal path and release. The flexible arm holds the needle in position, while the N52 neodymium magnet in the base keeps the probe locked to the base plate. No soldered wires and no fixtures.

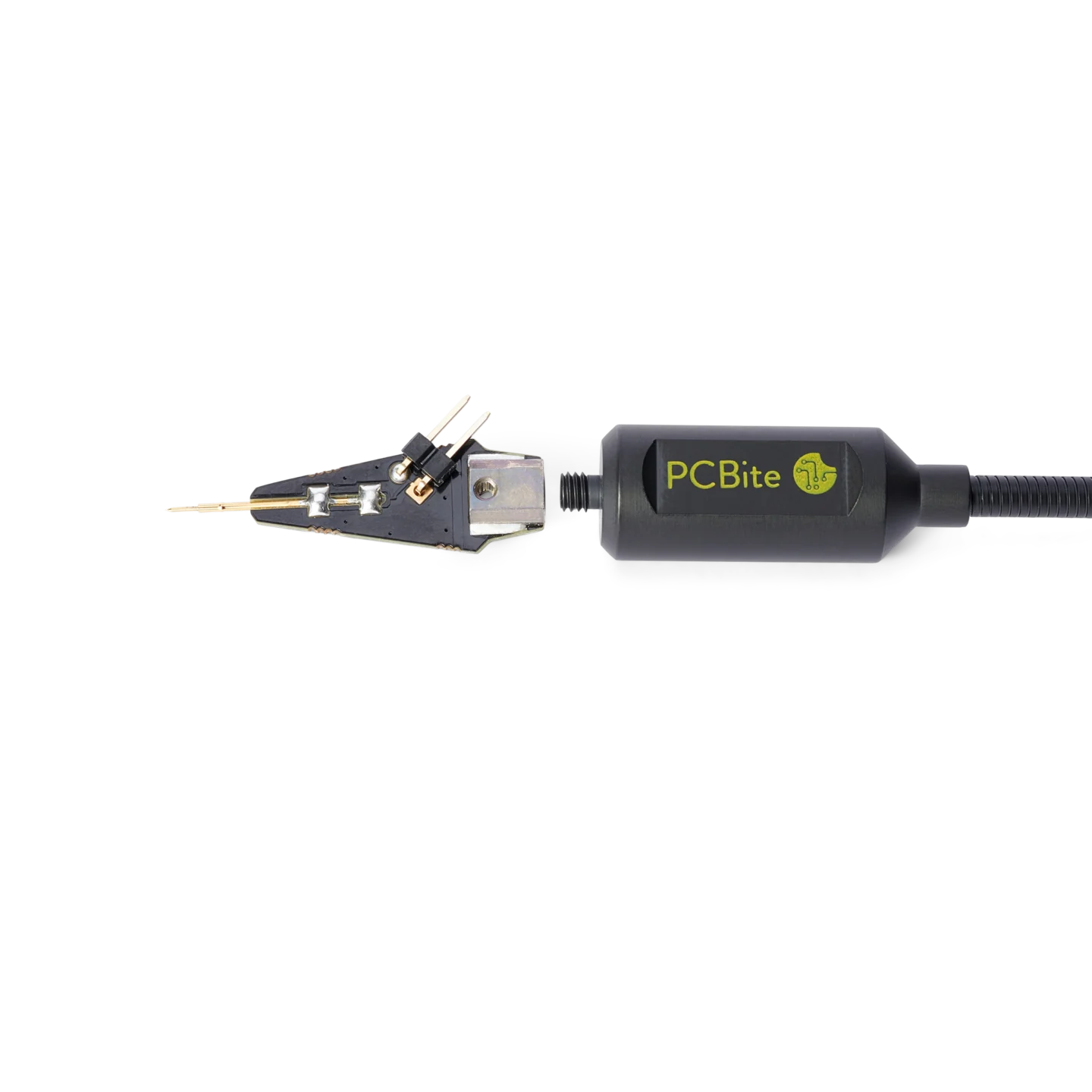

The 2.54 mm (0.100 in) dual pin header on each probe accepts two cables at the same time, enabling simultaneous power and measurement or signal pass through to another probe.

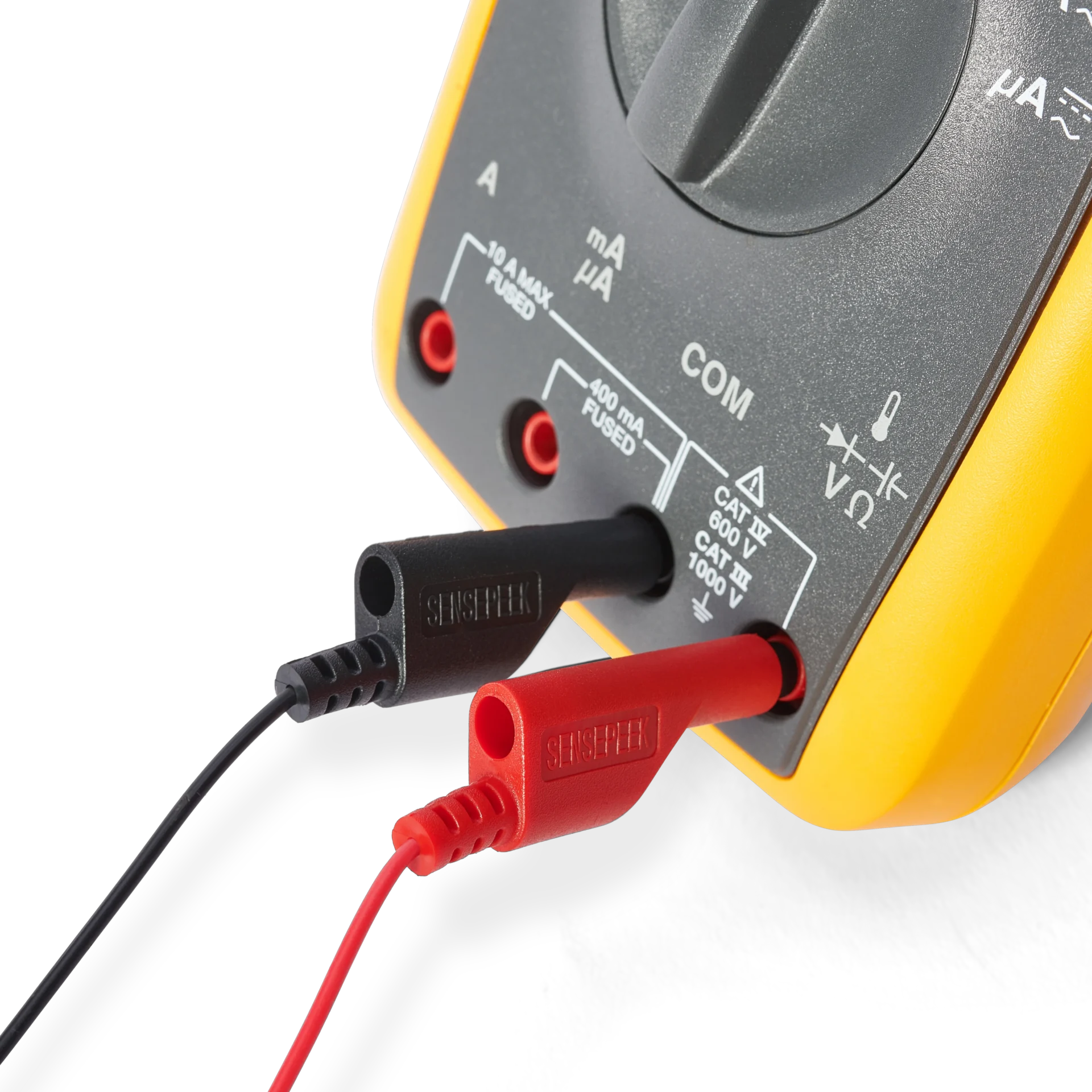

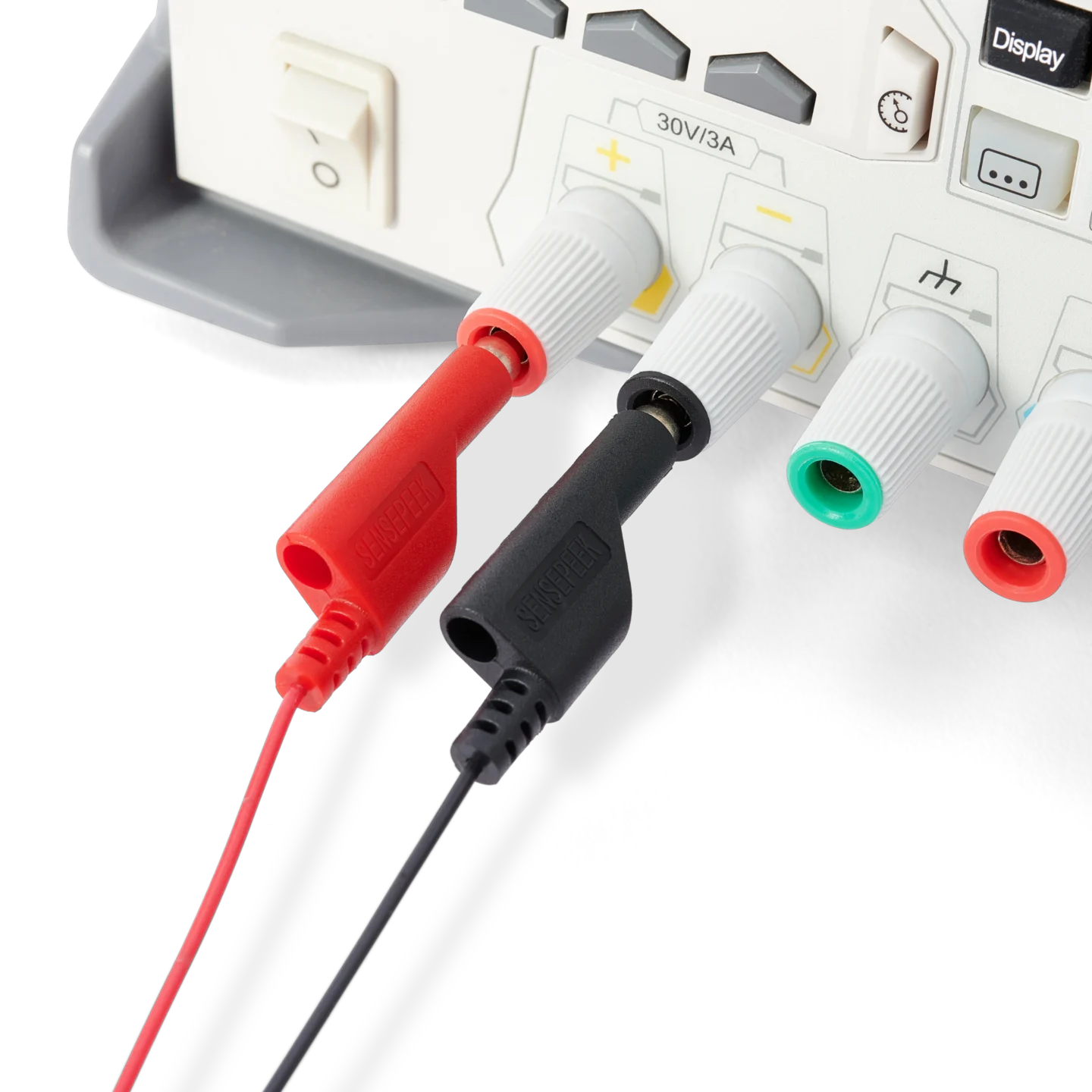

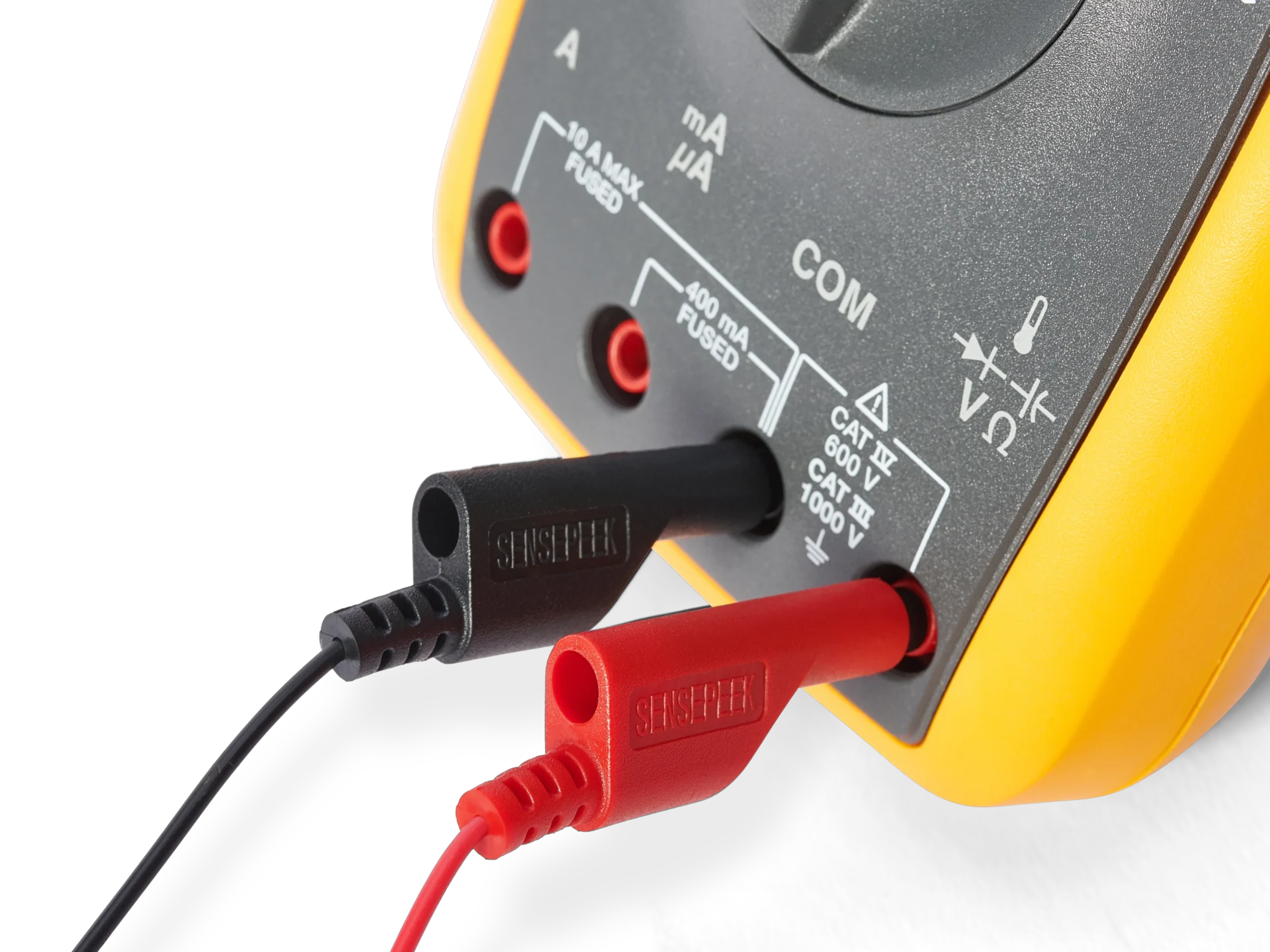

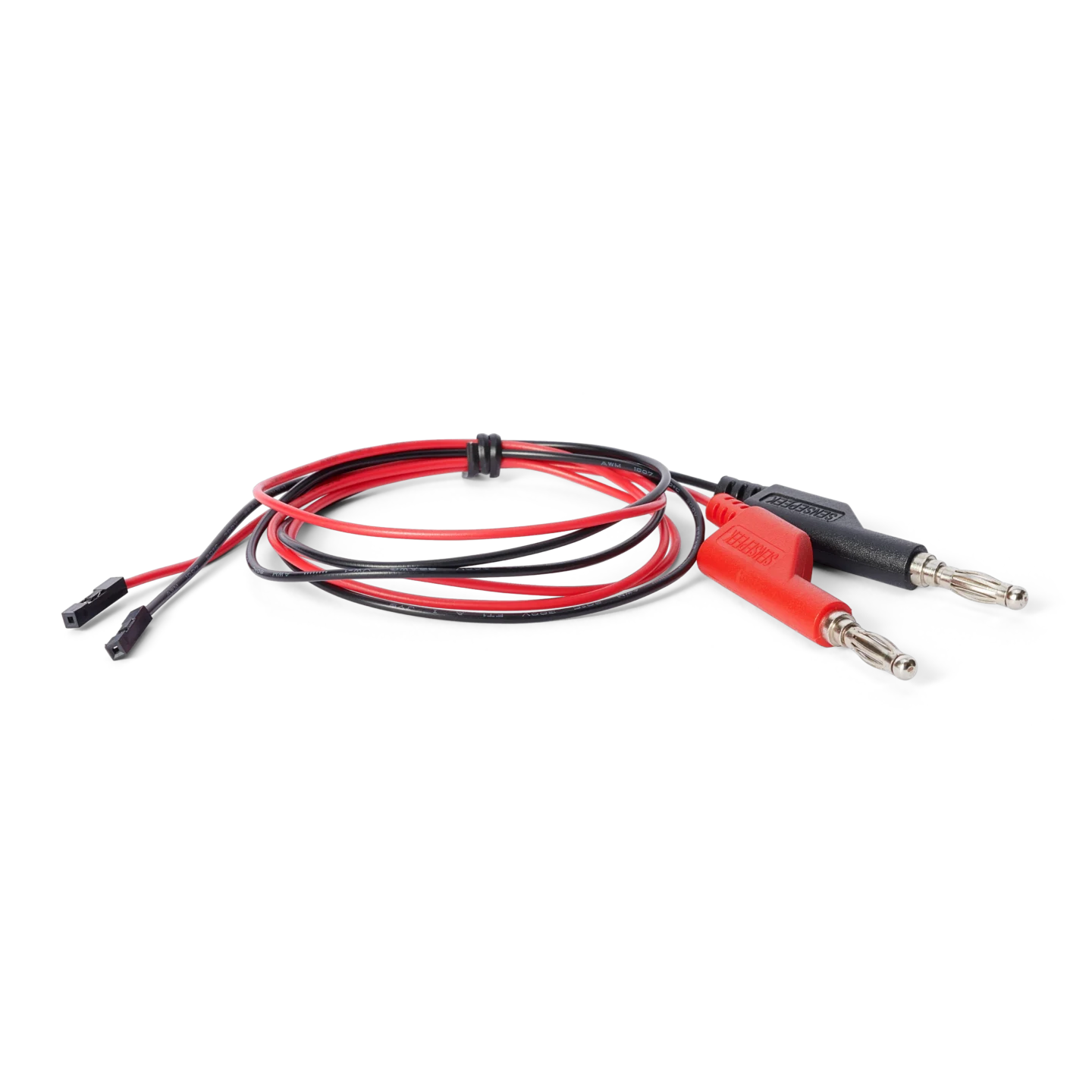

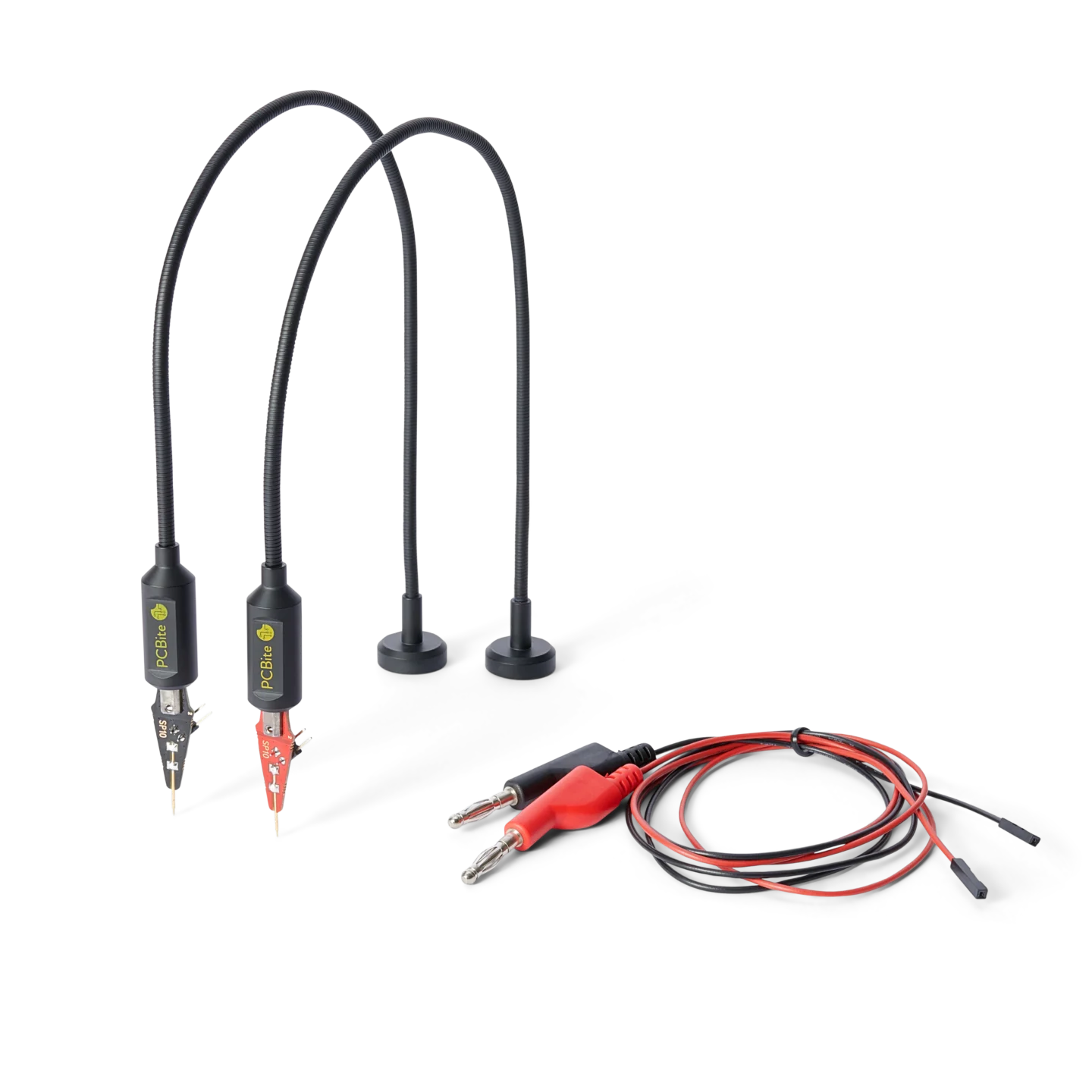

Color coded test wires with 2.54 mm (0.100 in) jumper connectors are included for direct connection to logic analyzers, multimeters, mixed signal oscilloscopes and debug adapters. Red and black test leads with 4 mm banana plugs connect directly to multimeters, bench power supplies and other instruments with standard 4 mm inputs.

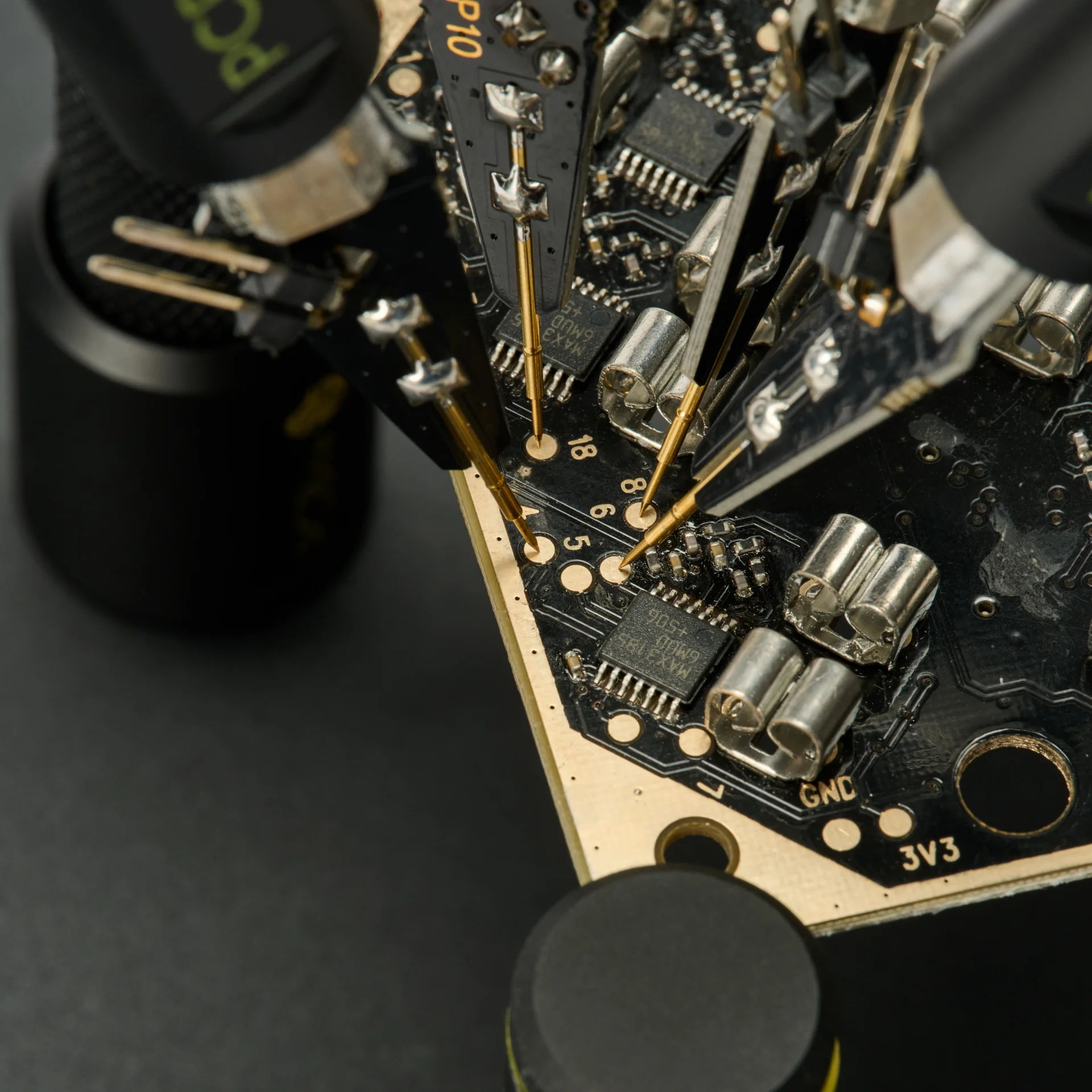

Both the red and black probe PCBs provide dual connection points, allowing the same node to be shared between instruments without moving the probe. The probes support DC to 10 MHz measurements and can also be used with I2C, I3C, UART, CAN bus and other digital signals when suitable connection leads are used.
A PCBite base plate and holders are required.
