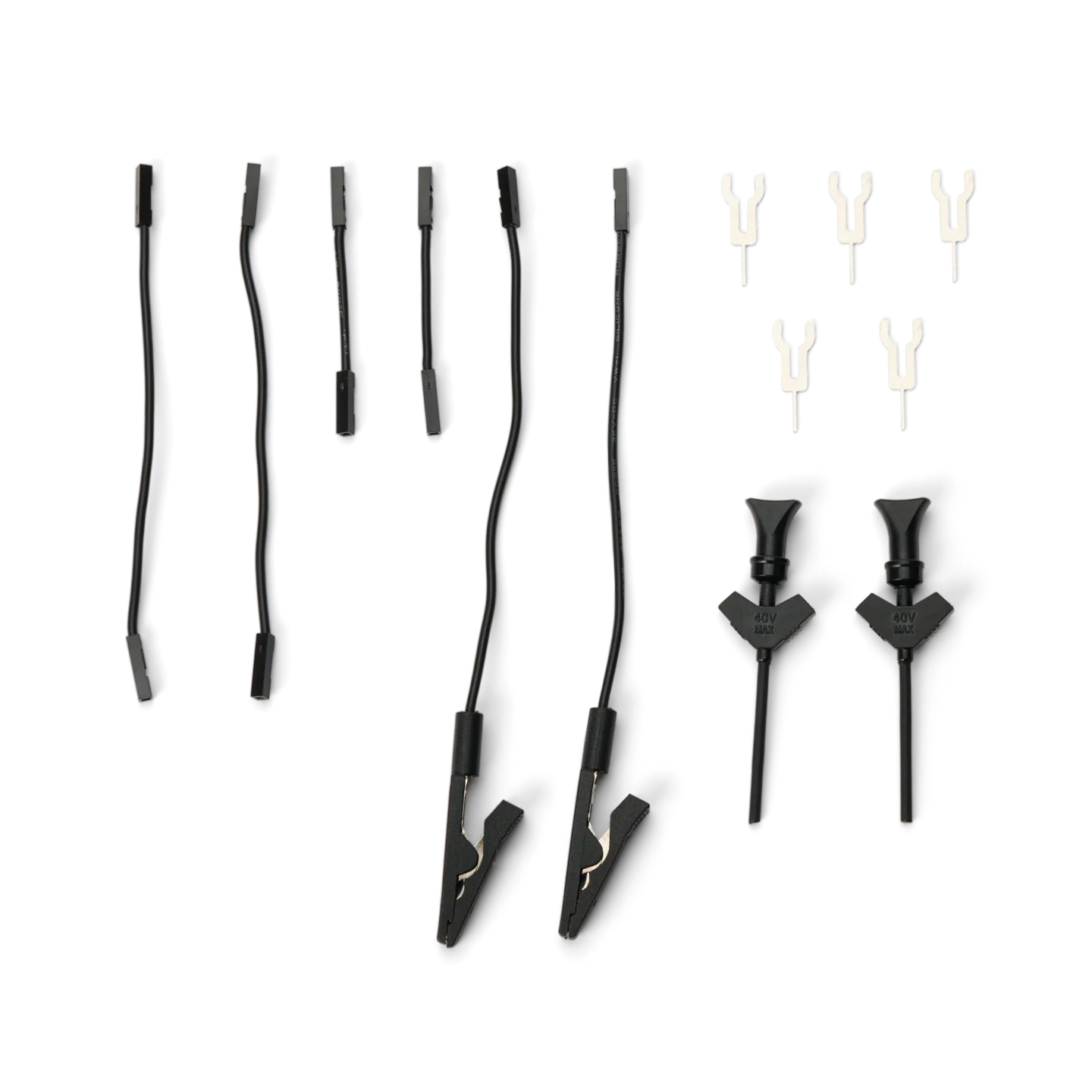

Ground cable accessories, test hooks, alligator clips and ground clips for secure connections (PCBITE-7004)

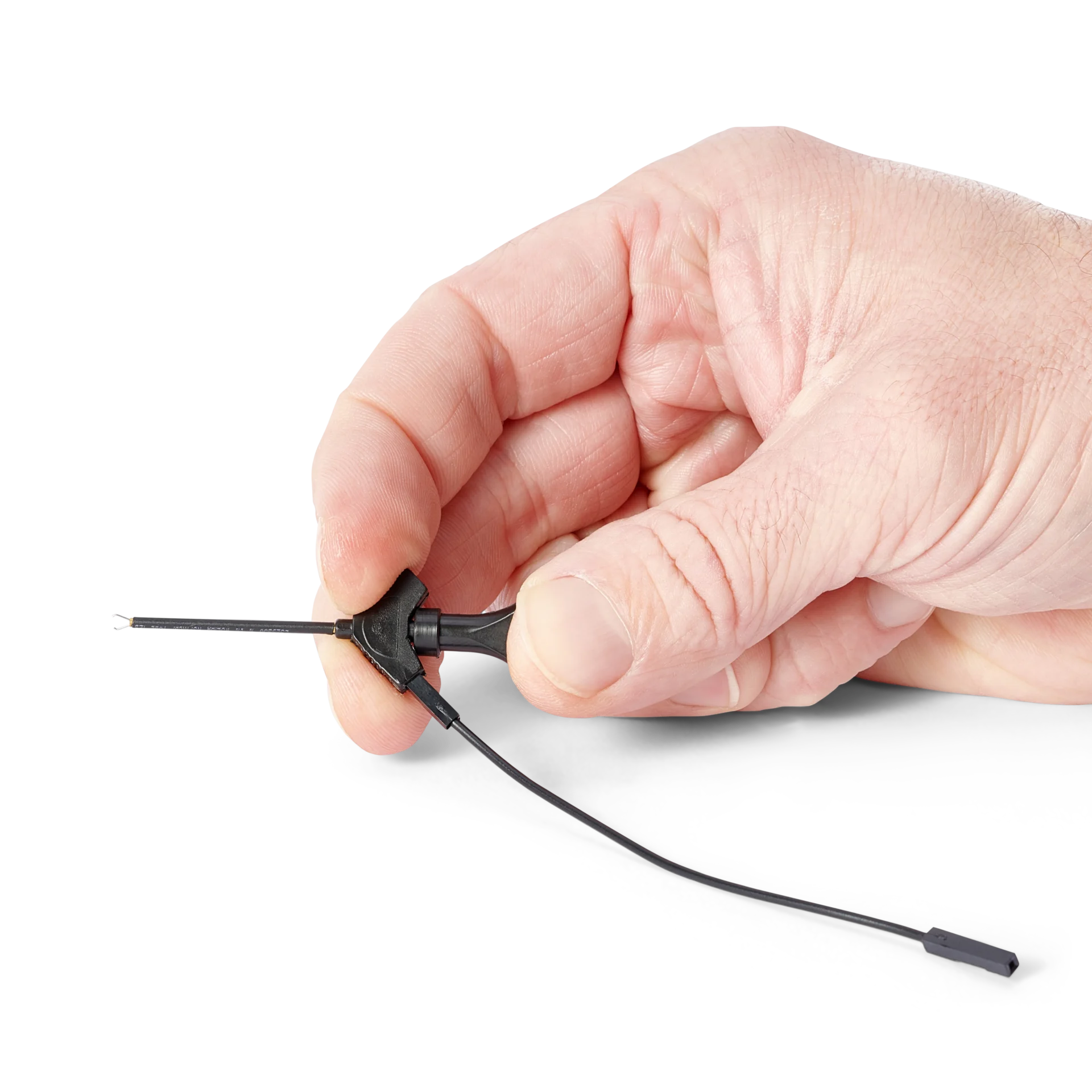

Hand showing the airplane test hook with attached 10cm dupont cable (PCBITE-7004)

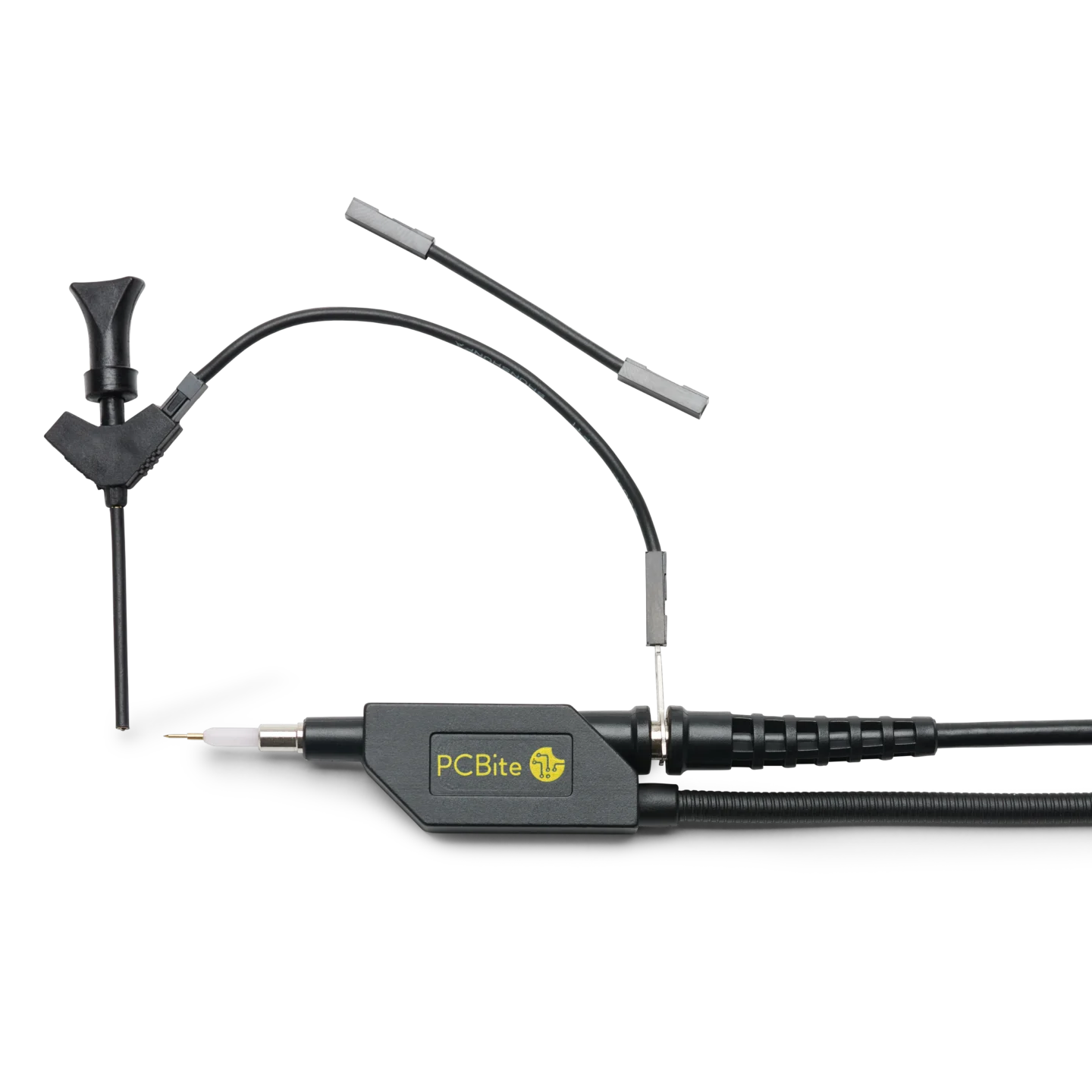

Probe in holder with airplane test hook connected to 5mm ground using dupont cable (PCBITE-7004)

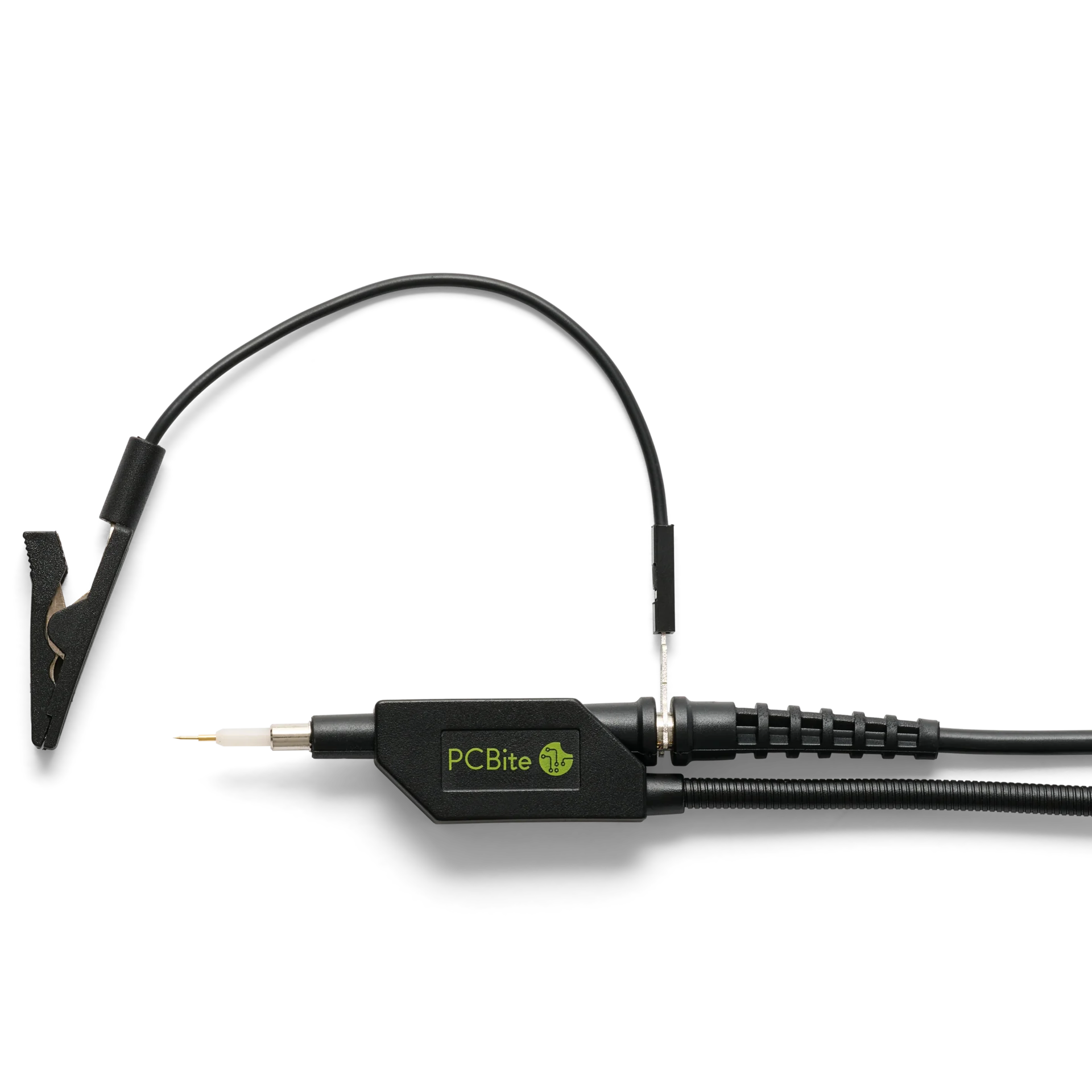

Probe in holder with high quality alligator and clip connected to 5mm ground interface (PCBITE-7004)

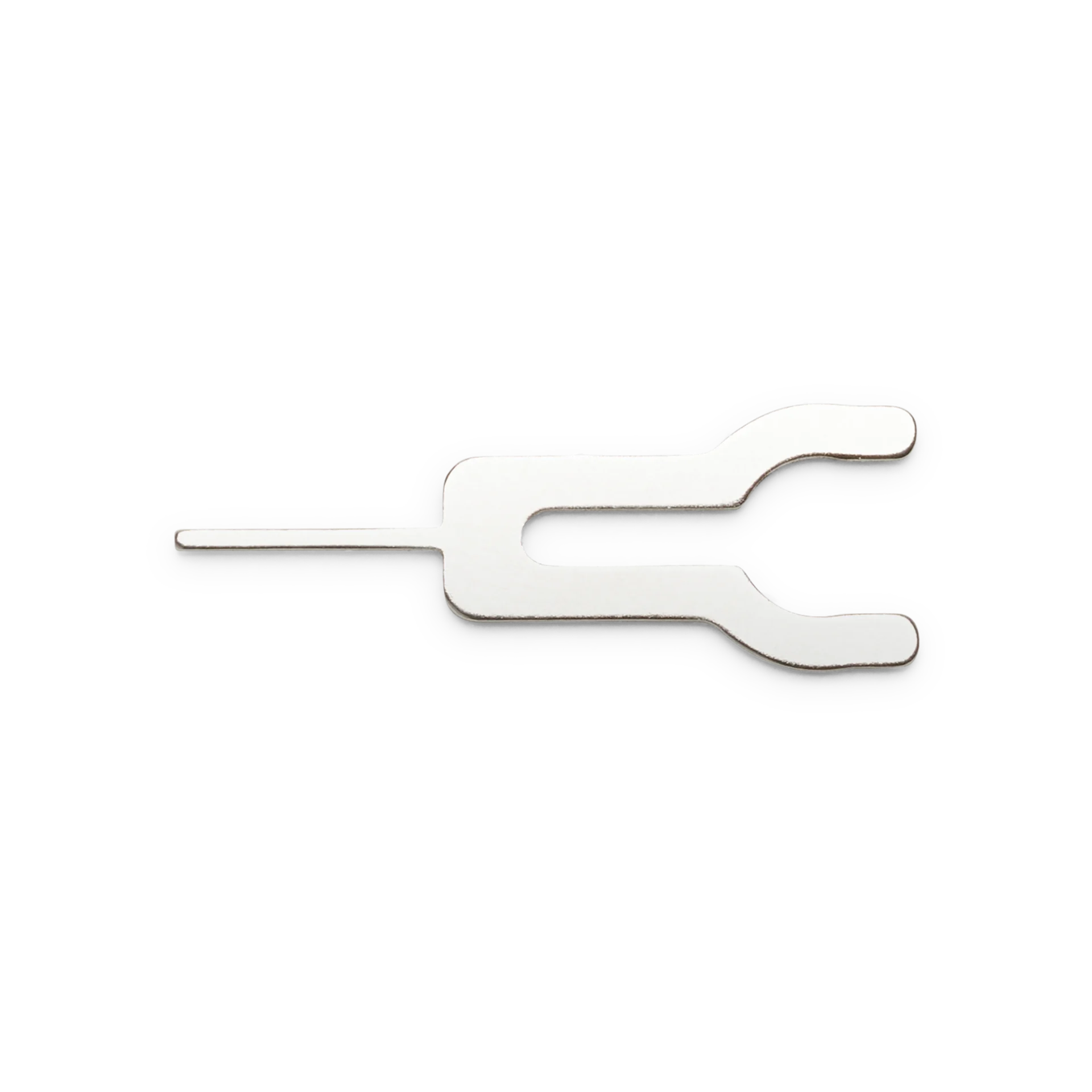

Ground clip for the 5mm convenient ground interface to connect to any dupont accessory (PCBITE-7004)

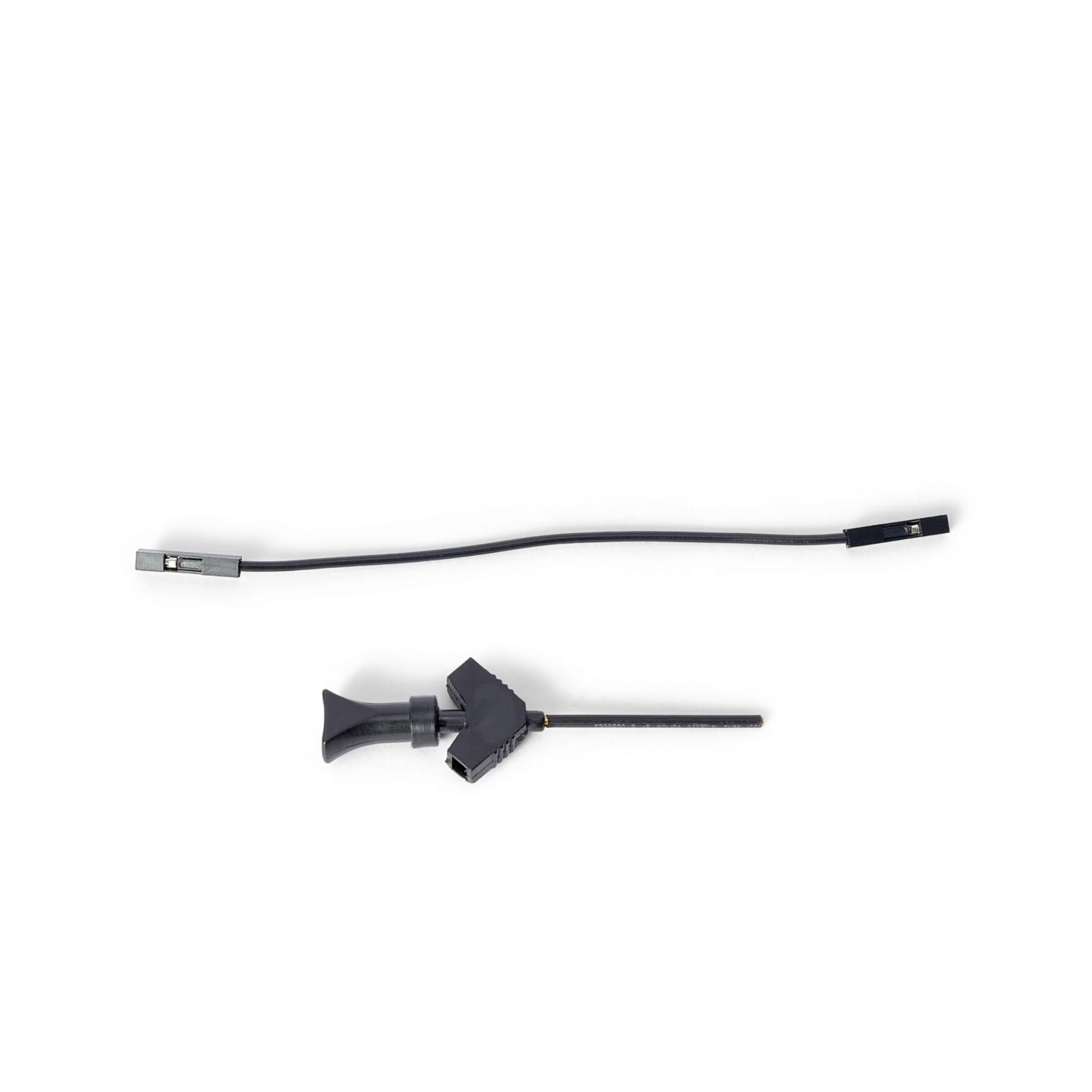

Airplane test hook with 10cm cable with dupont connectors for small signal connection (PCBITE-7004)
PCBITE-7004

Ground cable accessories

Ground cable set for PCBite SP10, SQ10 and SQ100 to SQ500 probes, with test hooks, alligator clip cables, 5 cm and 10 cm Dupont leads and ground clips.

Secure paymentGlobal deliveryPremium quality
In stockDelivery: 1-2 business days

18 € excl. VAT

Introduction

Provides a convenient ground connection to a component lead or other accessible ground point. Used with the 5 cm (1.97 in) or 10 cm (3.94 in) jumper ground lead, it supports measurements up to approximately 15 MHz. For safe operation, keep the measured signal within ±60 V DC, 30 V AC RMS or ±42.4 V peak.

A set of ground connections for PCBite probes, for test points where no ground pad sits close to the signal. All parts use 2.54 mm (0.100 in) jumper connectors, often called Dupont connectors, and plug directly onto the probe.

Two test hooks grip component leads and test pins, and two alligator clip cables reach larger ground points such as connector shields and mounting holes. Five 5 mm ground clips with Dupont connectors complete the set.

The short Dupont ground leads, two of 5 cm (2 in) and two of 10 cm (4 in), also connect two PCBite probes to each other. Place an SQ10 or SP10 on a ground point as a flying ground for an SQ100 to SQ500 oscilloscope probe, or connect two SP10 probes to link two points on the board, for example to simulate a button press.

Compatible products

  • 2X Dupont ground lead 10 cm (4 in)
  • 2X Dupont ground lead 5 cm (2 in)
  • 2X Test hook with Dupont connector
  • 5X Ground clip 5 mm to Dupont
Brand

PCBite
Manufacturer

Sensepeek AB
Article number

PCBITE-7004
GTIN

7350145660427
Country of origin

China
HS code

90309000
HTS code

9030906800
ECCN

EAR99
Safety information

Not applicable
Package weight 50 g
Package dimensions 176 × 125 × 10 mm
MATERIAL

Made to last

Every material and design detail is chosen to last for years in a demanding lab environment.

Bandwidth
Up to about 15 MHz
Rating
±60 V DC, 30 V AC RMS
MATERIAL
Bandwidth
Up to about 15 MHz
Rating
±60 V DC, 30 V AC RMS

Made to last

Every material and design detail is chosen to last for years in a demanding lab environment.

Ground clip for the 5mm convenient ground interface to connect to any dupont accessory (PCBITE-7004)
GROUND OPTION

Ground clip

Clips directly onto the probe’s 5 mm ground connection and provides a 2.54 mm (0.100 in) jumper interface for the test hook and 5 cm (2 in) or 10 cm (4 in) ground leads.

Hand showing the airplane test hook with attached 10cm dupont cable (PCBITE-7004)
GROUND OPTION

Test hook

Provides a convenient ground connection to a component lead or other accessible ground point. Used with the 5 cm (2 in) or 10 cm (4 in) jumper ground lead, it supports measurements up to approximately 15 MHz. For safe operation, keep the measured signal within ±60 V DC, 30 V AC RMS or ±42.4 V peak.

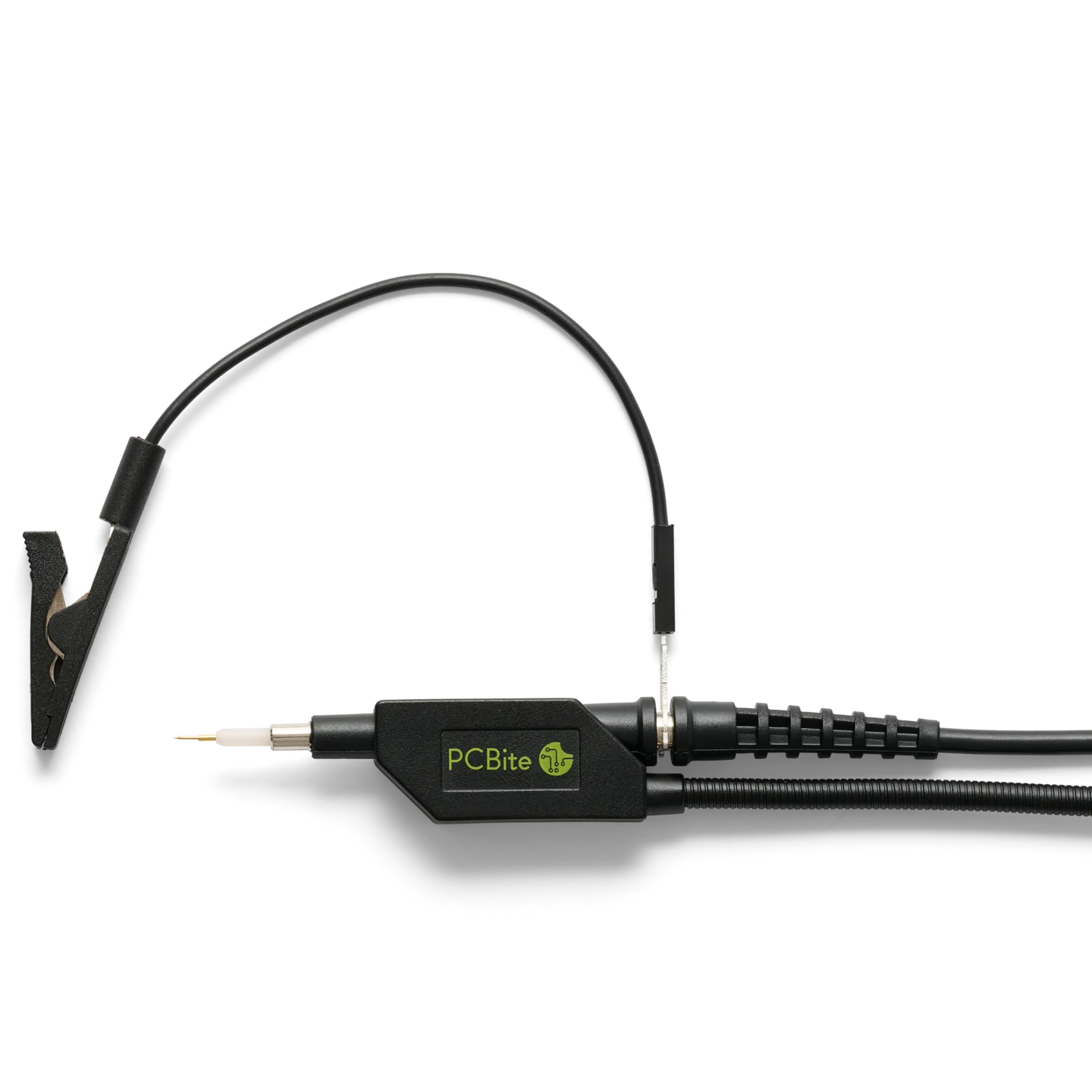

Probe in holder with high quality alligator and clip connected to 5mm ground interface (PCBITE-7004)
GROUND OPTION

Alligator to Dupont

Combines an alligator clip with a jumper connection for grounding to a wire, connector shell or chassis when a nearby ground point is not available. Supports measurements up to approximately 15 MHz. For safe operation, keep the measured signal within ±60 V DC, 30 V AC RMS or ±42.4 V peak.
