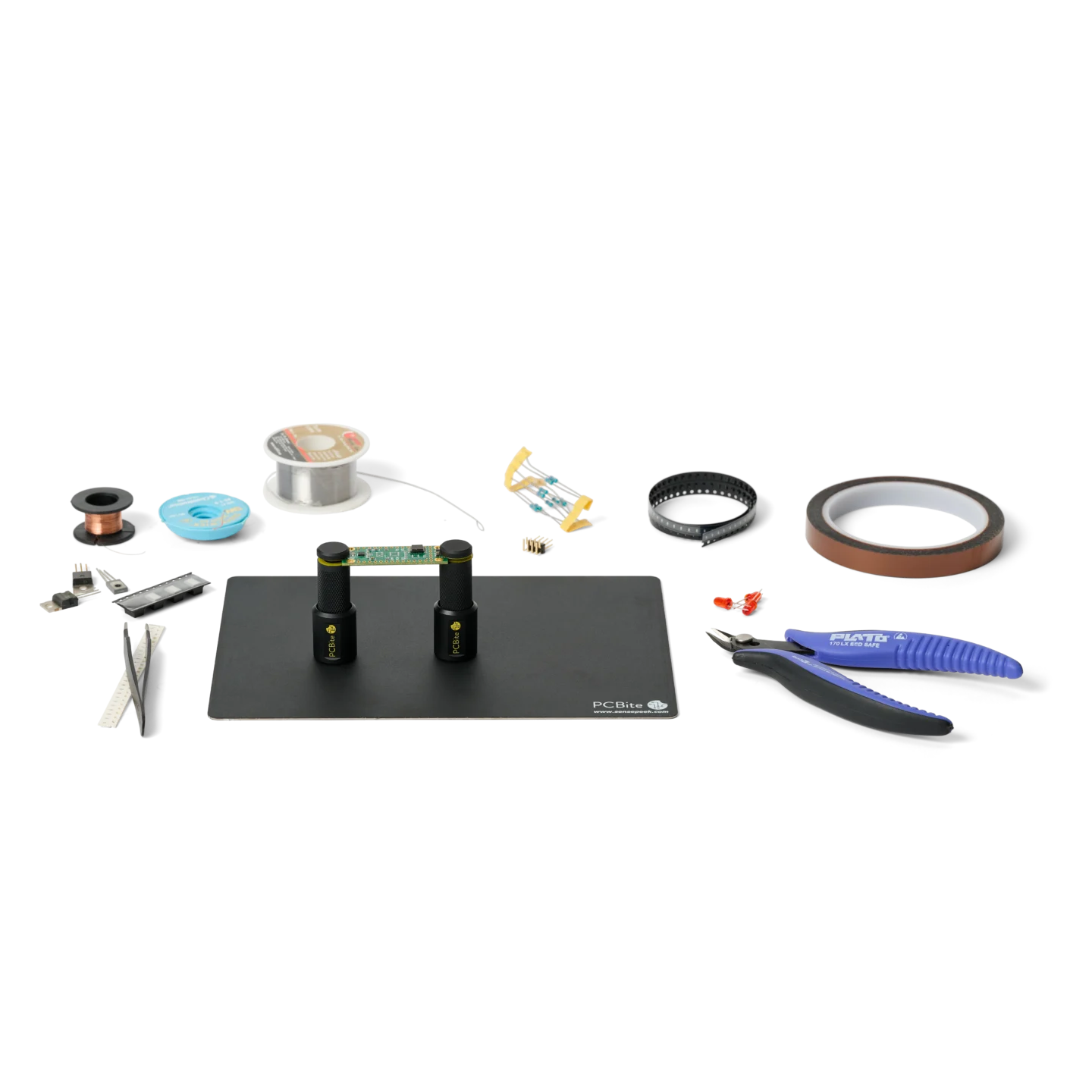

Complete soldering setup with PCB held by two PCB holders on small insulated baseplate (PCBITE-7025)

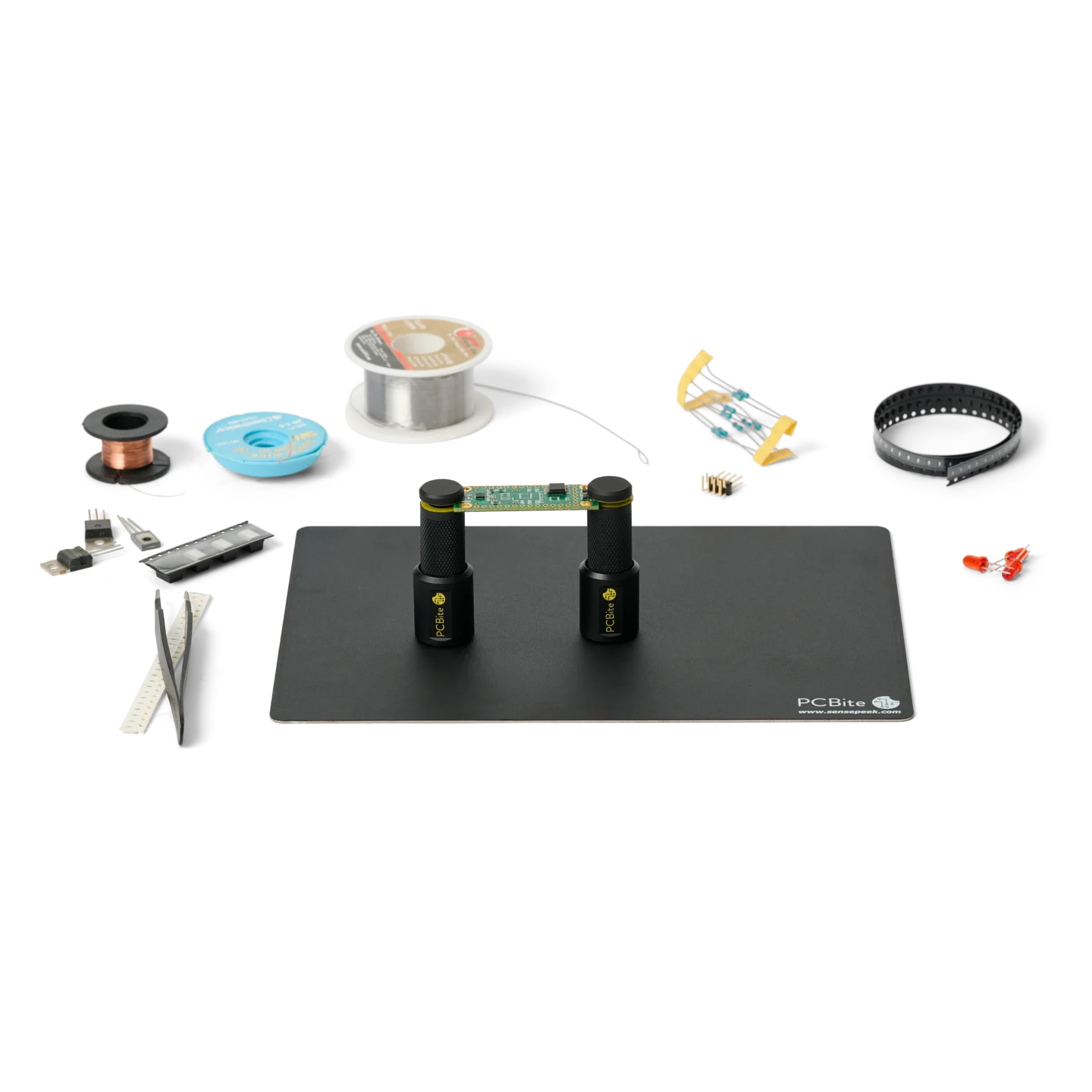

Soldering setup with two PCB holders on small insulated baseplate holding PCB for rework (PCBITE-7025)
Two PCB holders, magnetic spring-loaded with insulation washers for secure circuit board holding (PCBITE-7025)

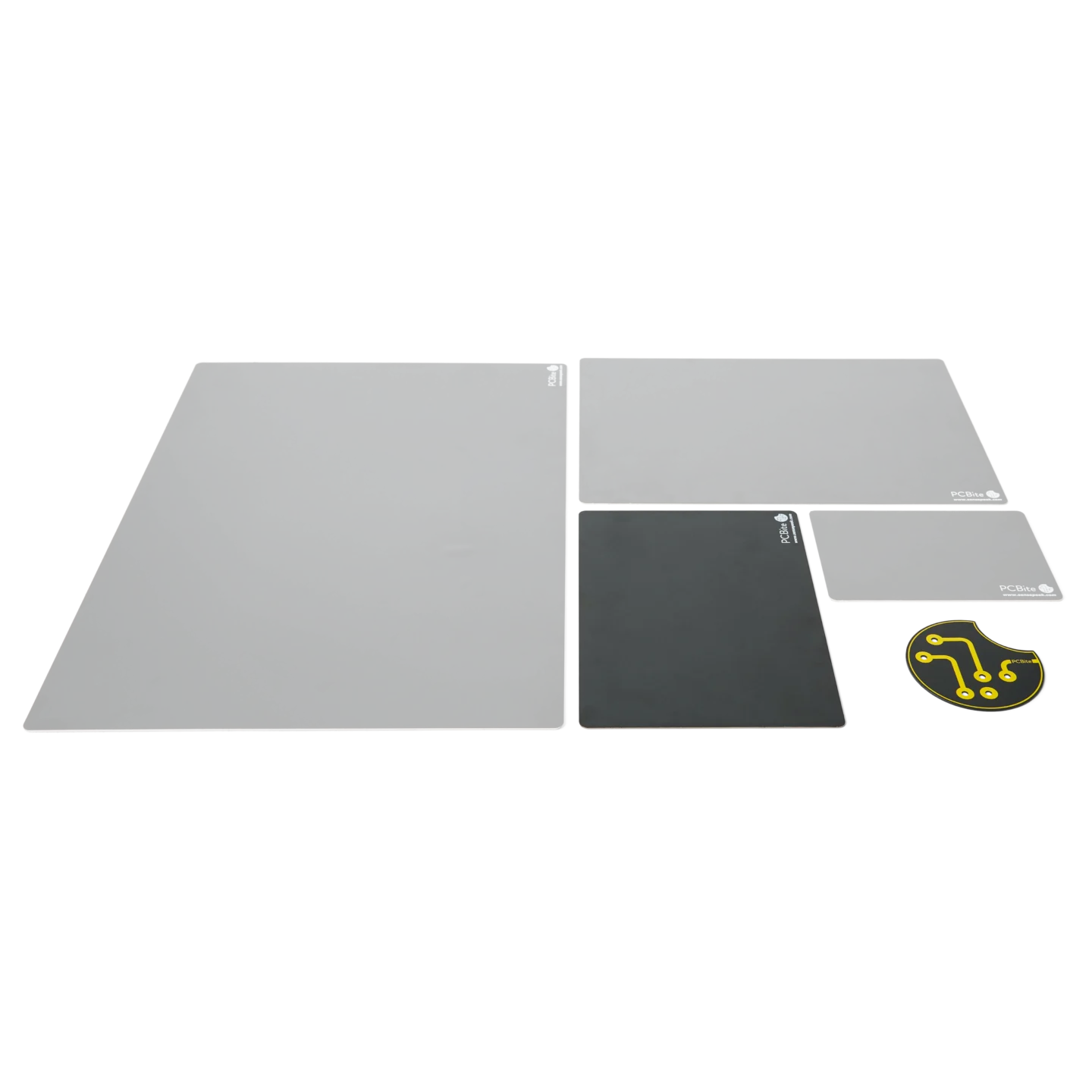

Size comparison of the small A5 insulated baseplate compared with other sizes side by side (PCBITE-7025)
Two magnetic PCB holders showing difference between an insulated and the mirror sides of baseplate (PCBITE-7025)
Polishing cloth with logo used to polish the mirror side of the baseplate (PCBITE-7025)
PCBITE-7025

PCBite kit S insulated

The mid-size insulated PCBite kit, with four standard holders on an A5 base plate.

Secure paymentGlobal deliveryPremium quality
In stockDelivery: 1-2 business days

59 € excl. VAT

Accessories

Magnifier with magnetic base, 3x magnification and AR coated lens for PCB soldering and inspection (PCBITE-4020)
PCBITE-4020
PCBite Magnifier 3x
59 €
In stockDelivery: 1-2 business days
Magnetic solder wire holder with rotating spool for hands-free soldering workstations (PCBITE-7030)
PCBITE-7030
PCBite Wire stand
25 €
In stockDelivery: 1-2 business days

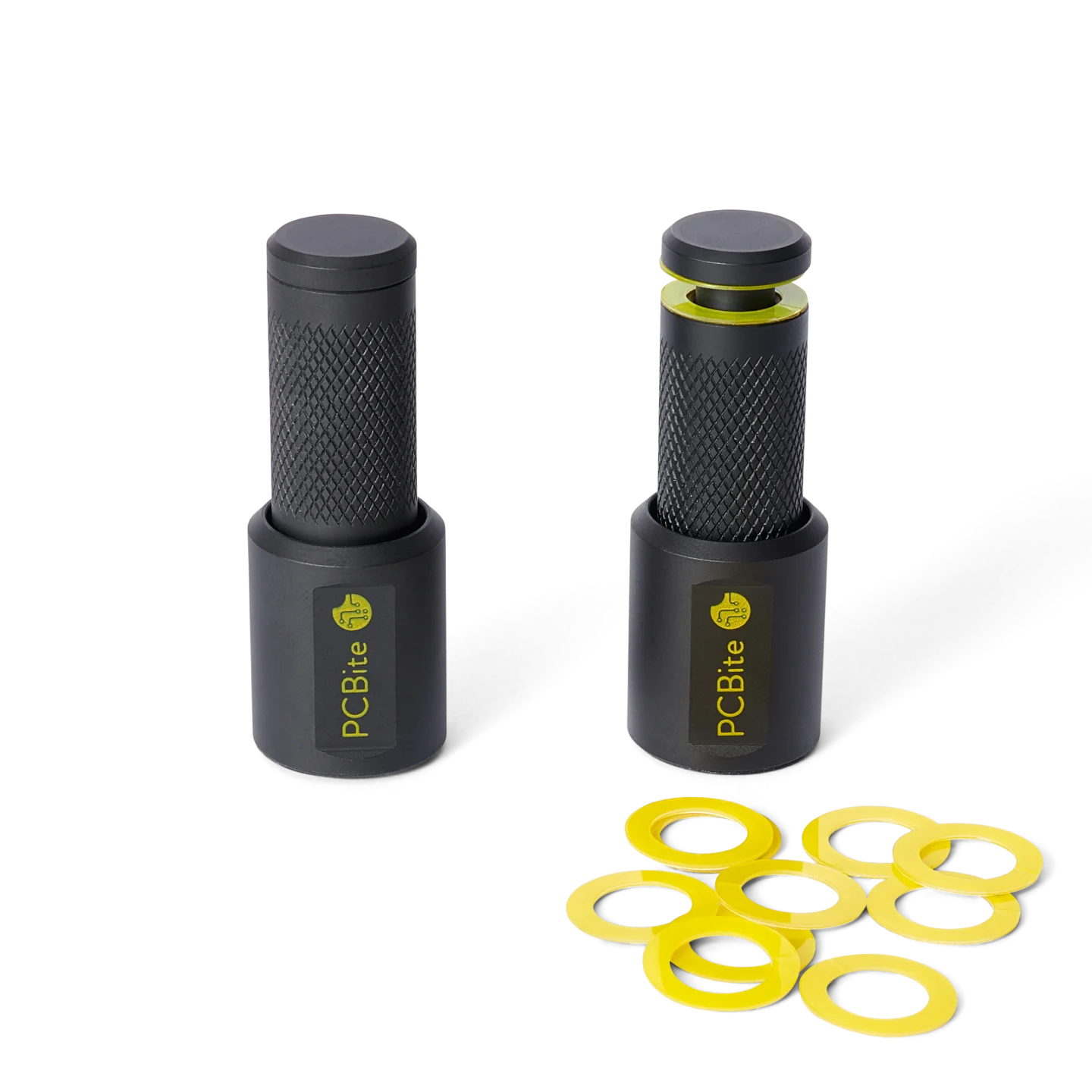

Two PCB holders, magnetic spring-loaded with insulation washers for secure circuit board holding (PCBITE-4022)
PCBITE-4022
2x PCBite PCB holders
30 €
In stockDelivery: 1-2 business days
Two low profile PCB holders, magnetic spring-loaded with insulation washers for secure circuit board holding (PCBITE-7023)
PCBITE-7023
2x PCBite PCB holders low profile
30 €
In stockDelivery: 1-2 business days

Introduction

Standard 50 mm (1.97 in) holders on a compact A5 base plate. Made for smaller PCBs and everyday bench work such as soldering, inspection and rework.

Each holder uses the same magnetic base, knurled grip and pressure spring as the rest of the PCBite family, at the standard working height of 50 mm (1.97 in). The height gives clearance for tall components and through-hole leads on the underside of the board, and access to the PCB from any angle. The holders come with insulation washers for powered boards, and each base glides on a low friction pad when you reposition it.

The S base plate measures 148 × 210 mm (5.83 × 8.27 in, A5) and comes with a pre-fitted polycarbonate insulation cover, so powered PCBs can rest safely on the working surface. The mirror-polished reverse side reflects the underside of the PCB, so LEDs, displays and other components below the board can be checked while it is powered.

The kit replaces PCBITE-4002 and now includes an insulation cover for the base plate.



Compatible accessories

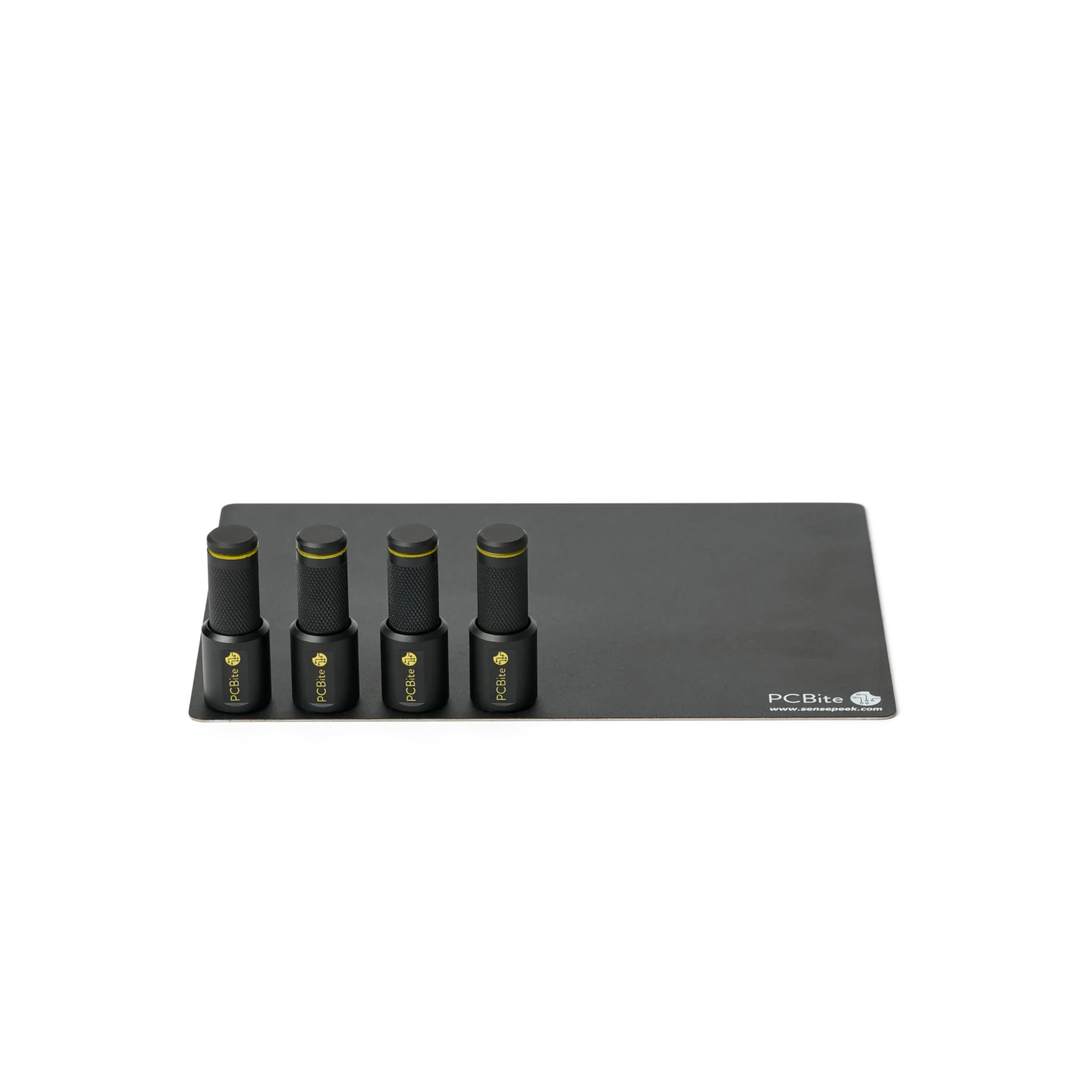

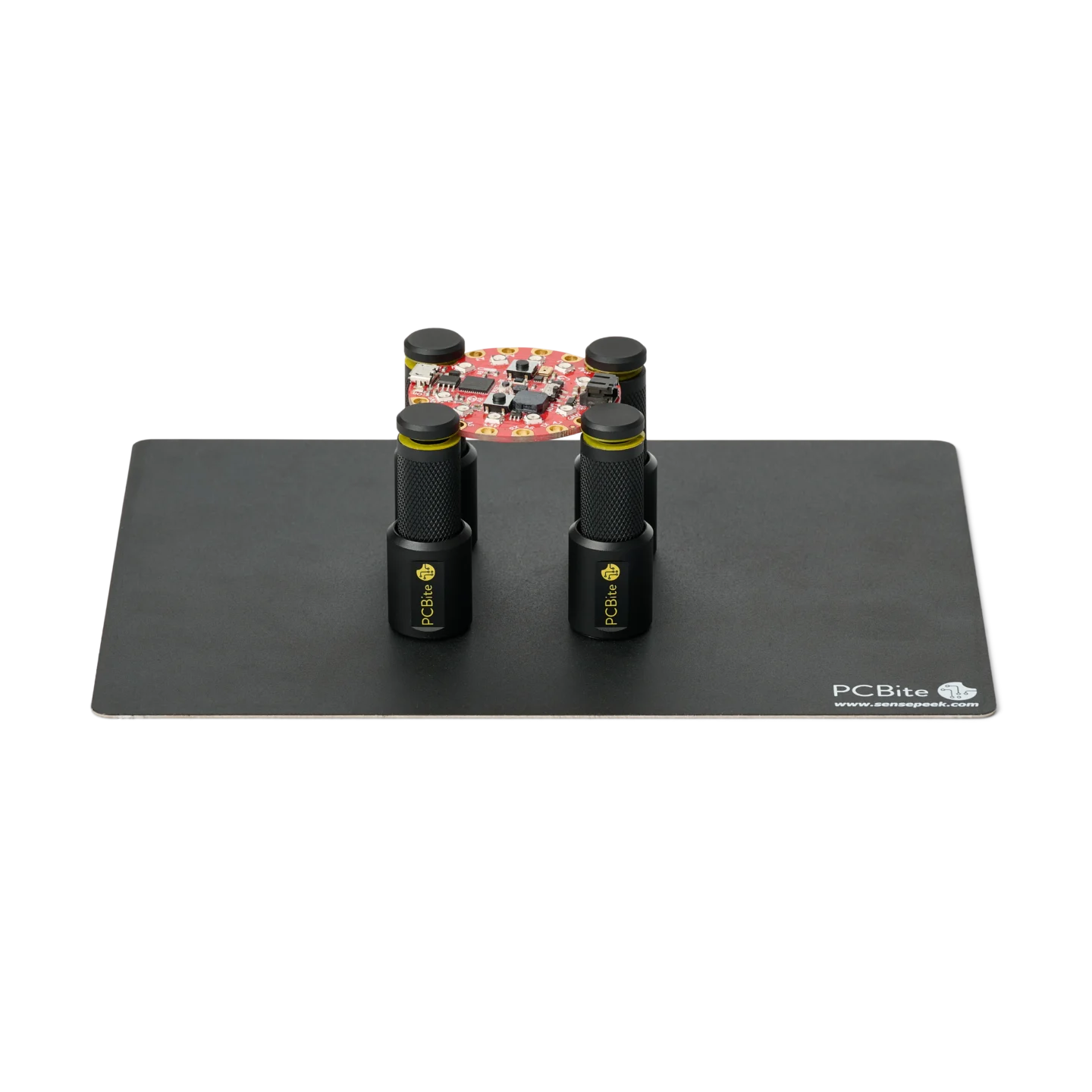

Small insulated A5 baseplate with 4 magnetic PCB holders (PCBITE-7025)
  • 1X Base plate, small
  • 4X PCB holder

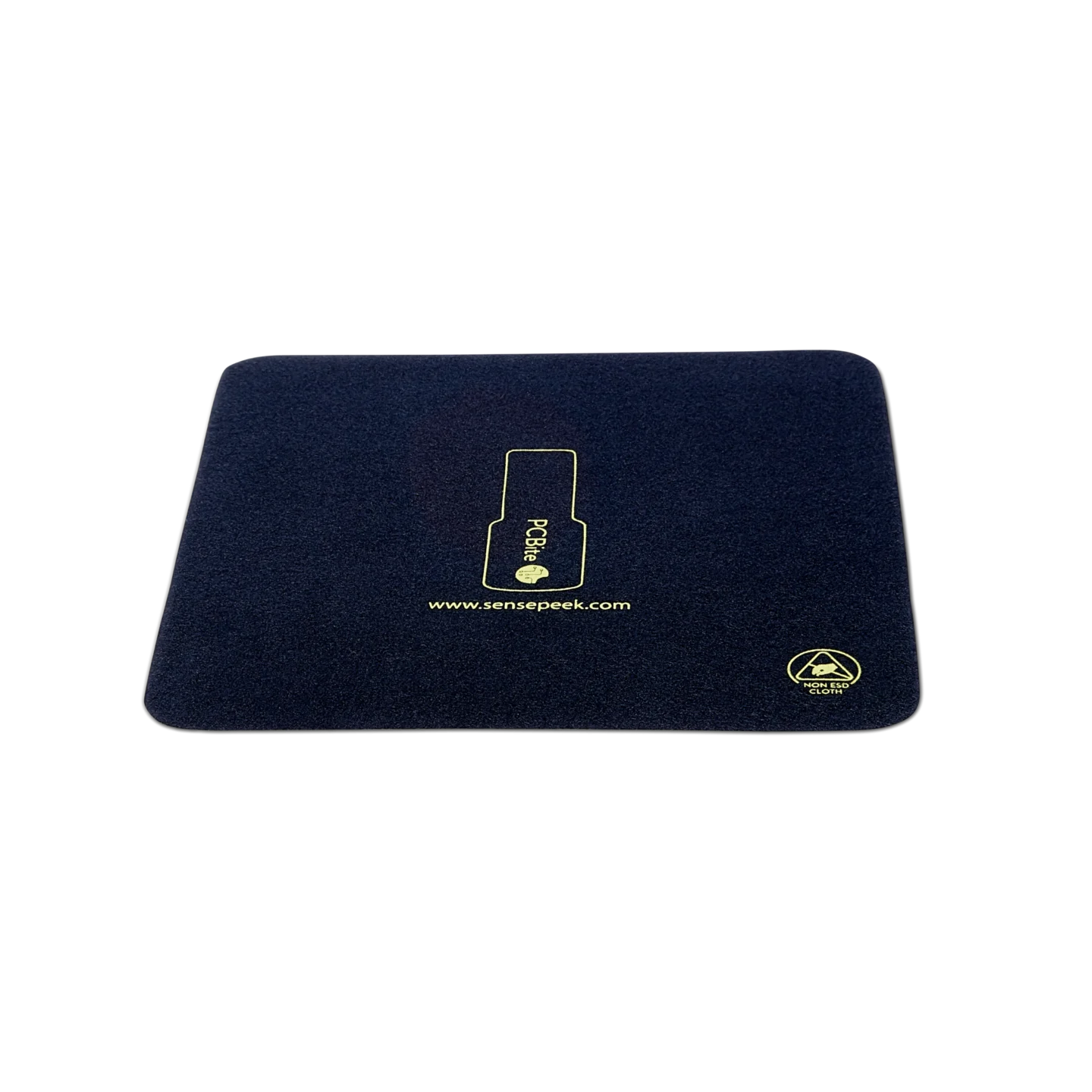

  • 1X Micro fiber cloth (to polish the mirror side of base plate)
  • 1X Set of insulation washers
  • 1X Insulation cover small (A5)
User guide PCBite kit
Dimensions of PCBite kit S insulated: Insulated Base Plate S
Brand

PCBite
Manufacturer

Sensepeek AB
Article number

PCBITE-7025
GTIN

7350145660649
Country of origin

Sweden
HS code

90309000
HTS code

9030906800
ECCN

EAR99
Safety information

Not applicable
Package weight 380 g
Package dimensions 225 × 150 × 25 mm
MATERIAL

Made to last

Every material and design detail is chosen to last for years in a demanding lab environment.

Base plate
Mirror-polished stainless steel
Insulation cover
Non-conductive polycarbonate (PC)
Holder chassis
Durable anodized aluminum
Magnet
Strong N52 neodymium
MATERIAL
Base plate
Mirror-polished stainless steel
Insulation cover
Non-conductive polycarbonate (PC)
Holder chassis
Durable anodized aluminum
Magnet
Strong N52 neodymium

Made to last

Every material and design detail is chosen to last for years in a demanding lab environment.

Eight magnetic spring-loaded PCB holders securing various sized boards on XL insulated baseplate (PCBITE-4021)
SECURE

Your PCB defines the fixture.

Place each magnetic holder exactly where the PCB allows it, and the board is held firmly in place. No fixed rails, slots or clamping positions. Rectangular, round, irregular, populated or cut-out boards are all secured in seconds.

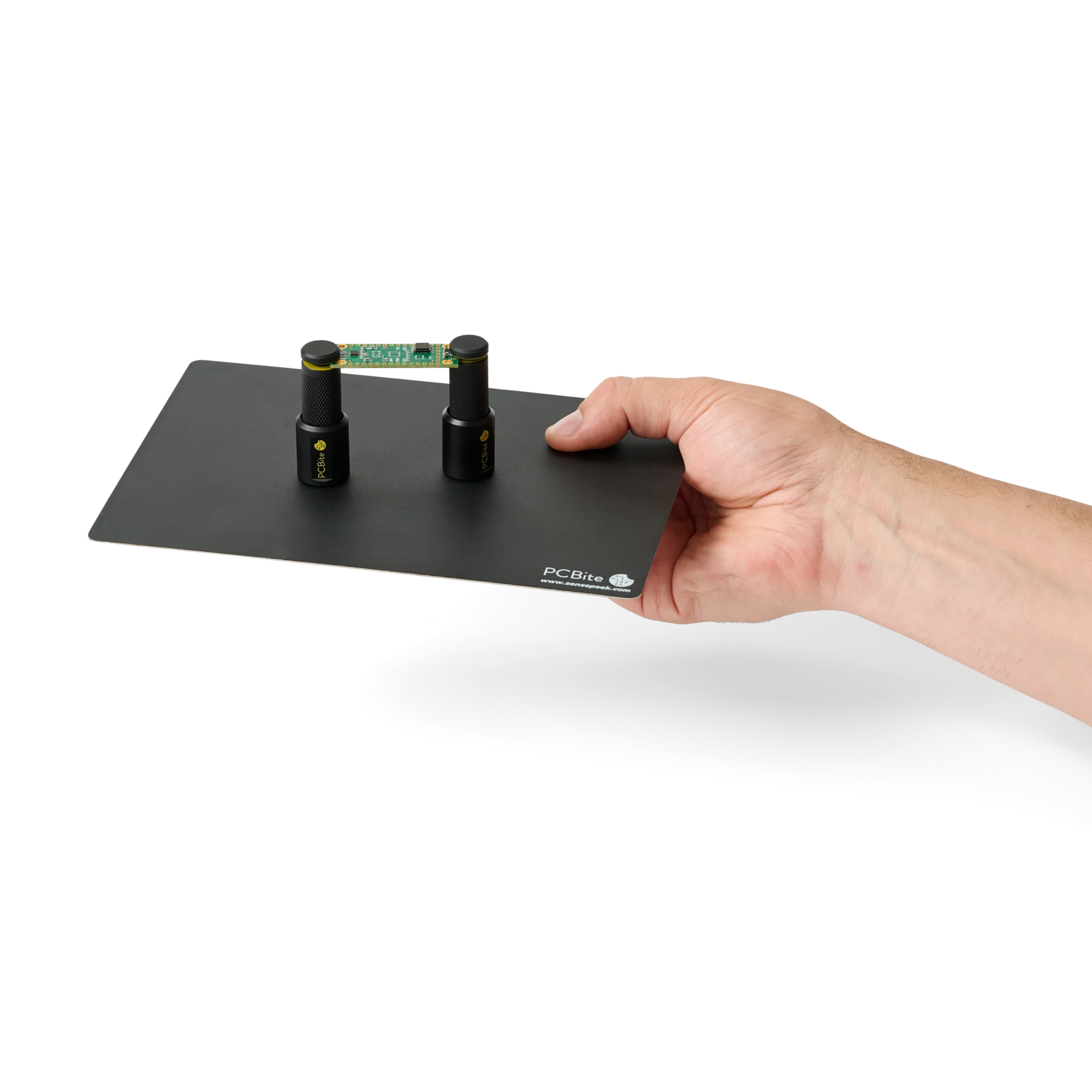

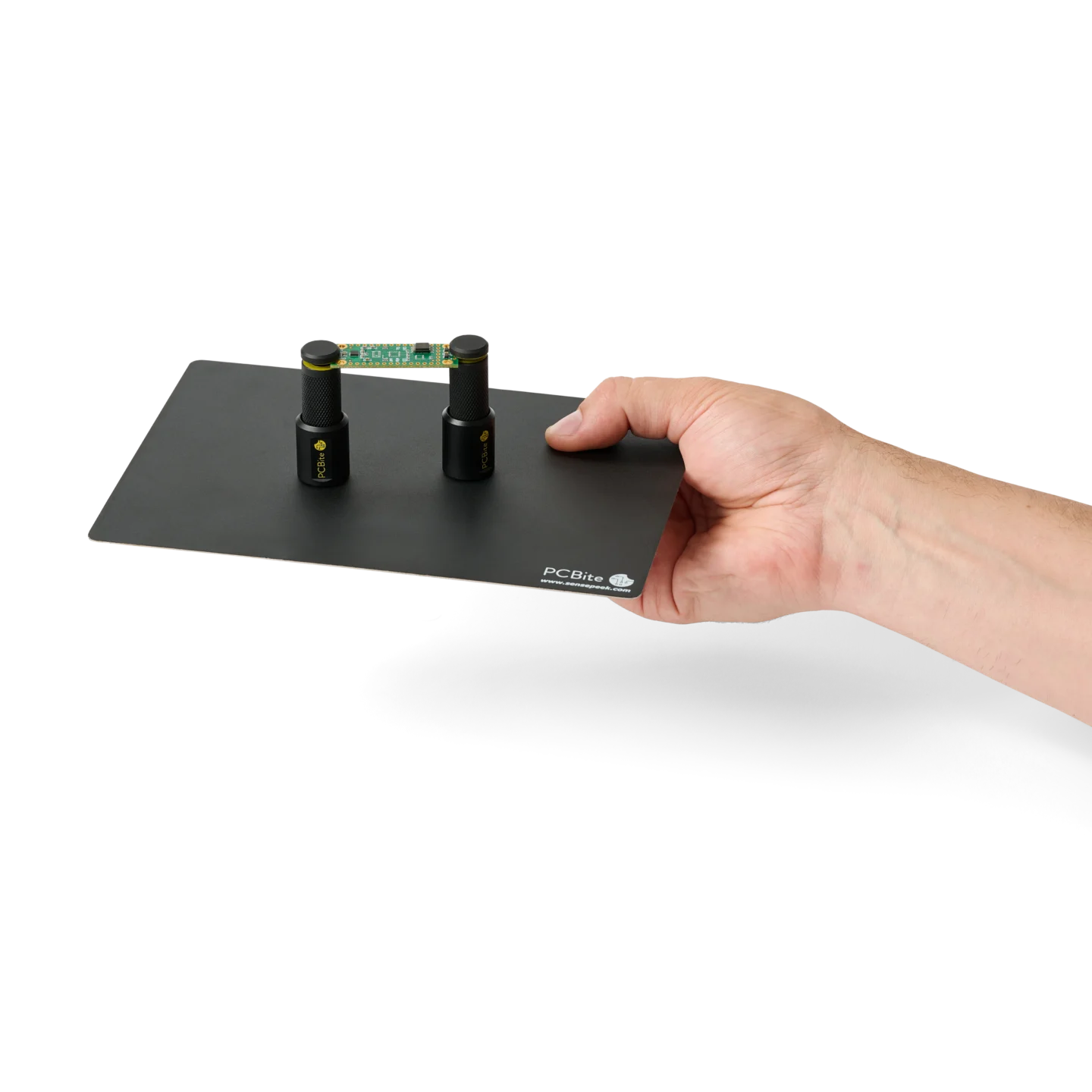

Hand handing over a setup with two spring-loaded PCB holders on a small insulated baseplate (PCBITE-7025)
Move the setup

Inspect. Move. Rework. Without remounting.

Keep the PCB securely mounted while moving the entire setup under a microscope. Inspect your soldering, identify a fault, replace a component and inspect again without removing or repositioning the board.



SOLDERING

Built for soldering.

Place a component, solder it, adjust and move on to the next one. The board stays where you put it, at a comfortable working height, from the first component to the last.

HEAT RESISTANT

Handles the heat of the lab.

The holders are made of anodized aluminum. The polycarbonate insulation cover and the optional insulation washers are rated from −40 to +120 °C (−40 to +248 °F). Mounted on the base plate, the cover handles even higher temperatures, because the steel plate works as a heat sink and draws the heat away. Solder and use a heat gun with confidence. For heavy soldering, skip the washers and flip the base plate to its steel side.

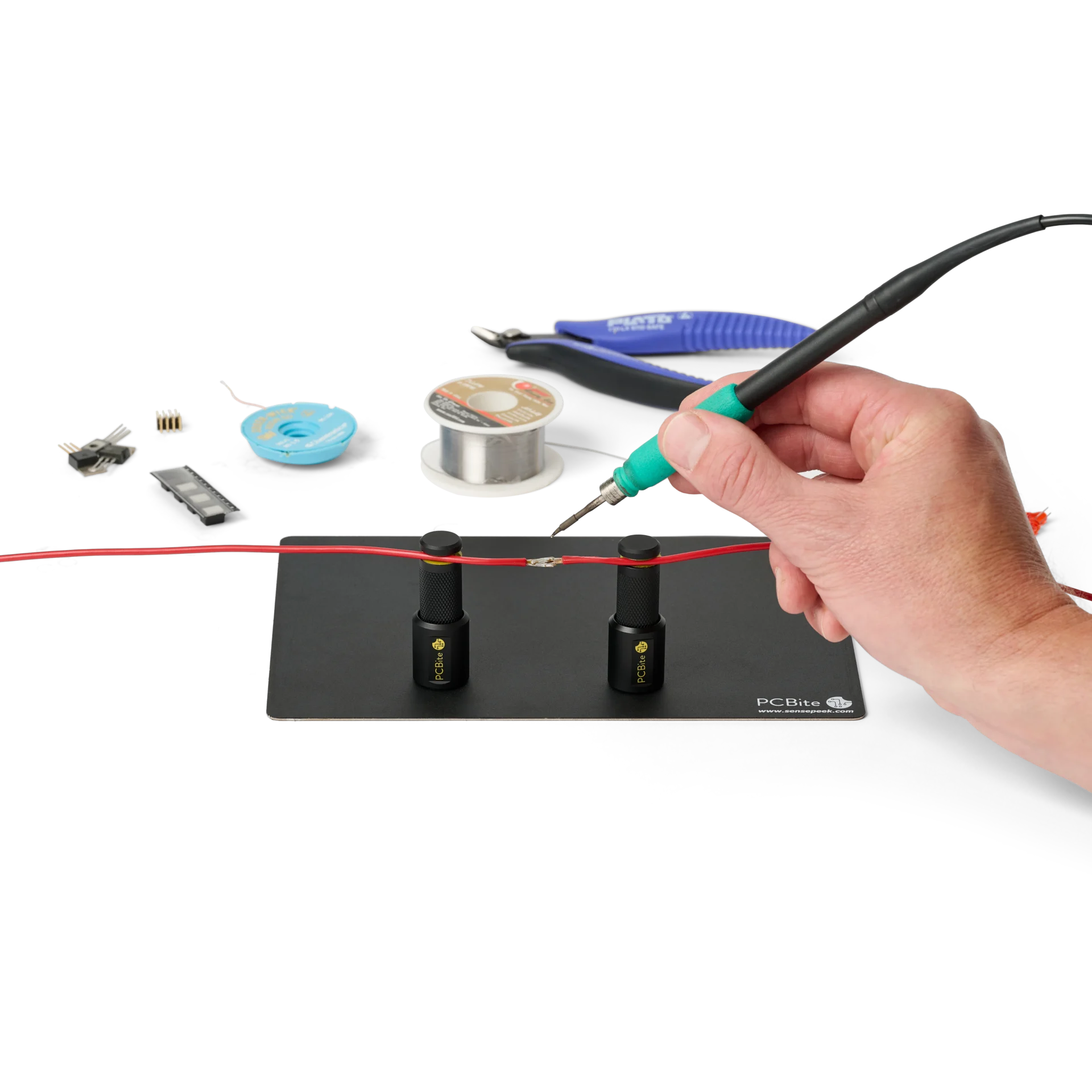

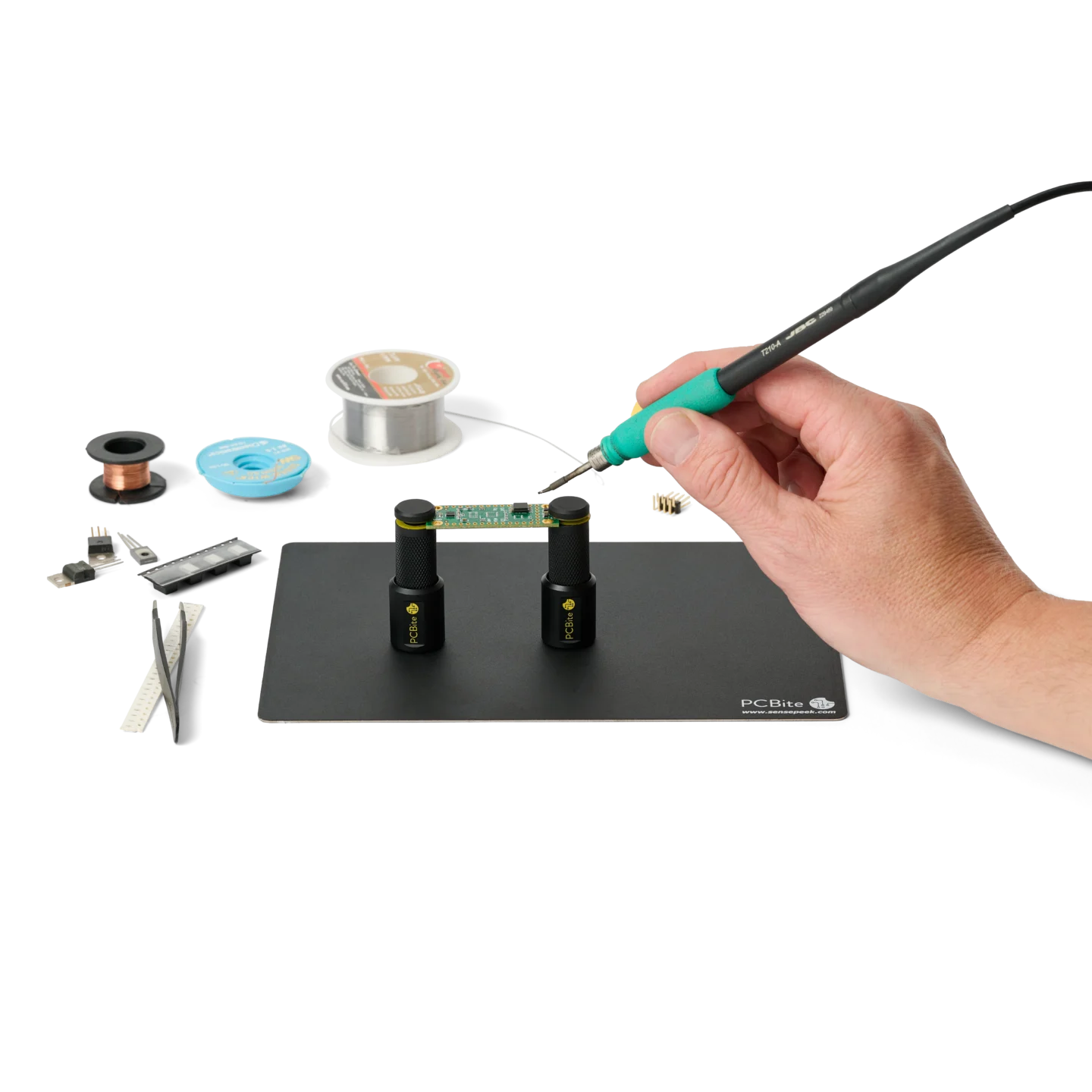

Hand soldering wire held by two magnetic spring-loaded PCB holders on the small insulated baseplate (PCBITE-7025)
NOT JUST PCBS

Cable soldering made easy.

PCBite holders grip wires just as well as boards, at exactly the same height as the PCB. Hold two wires end to end and solder them together, or keep a cable in place while you solder it to the PCB. The holders keep everything steady from start to finish.

Microscope work

Move the board, not the focus.

The PCB is held level at the same working height, so it stays sharp under the microscope. Slide the whole base plate sideways, forward or back to bring the next area into view, without touching the board or refocusing. Inspect, solder and rework in one continuous session.

Two PCB holder holding a PCB with multiple BNC edge connectors visible
COMPONENT CLEARANCE

Clearance where you need it.

The PCB is elevated above the work surface, leaving plenty of clearance underneath for large components, connectors and through-hole parts. Even boards with tall components on the underside can be held securely in the PCBite system.

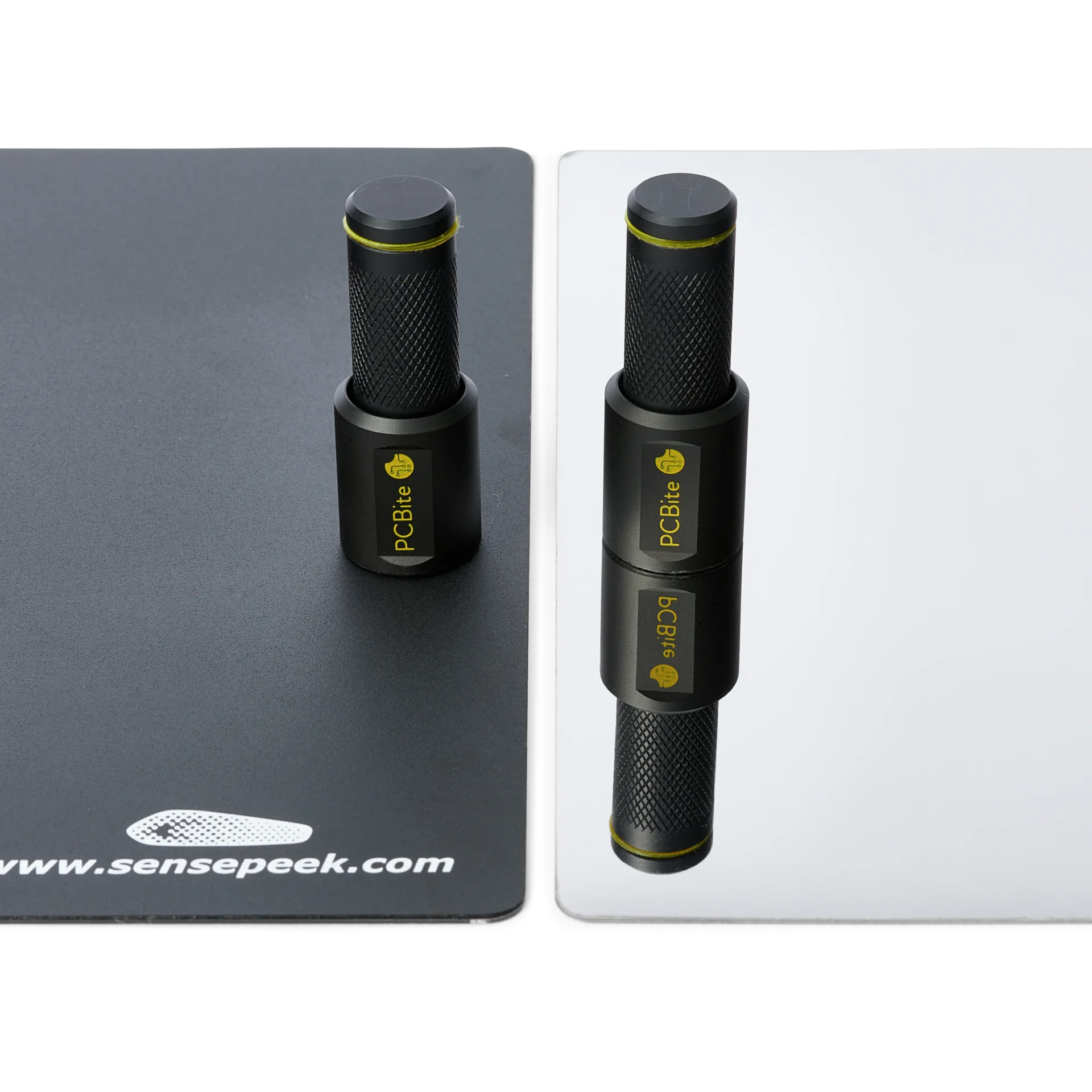

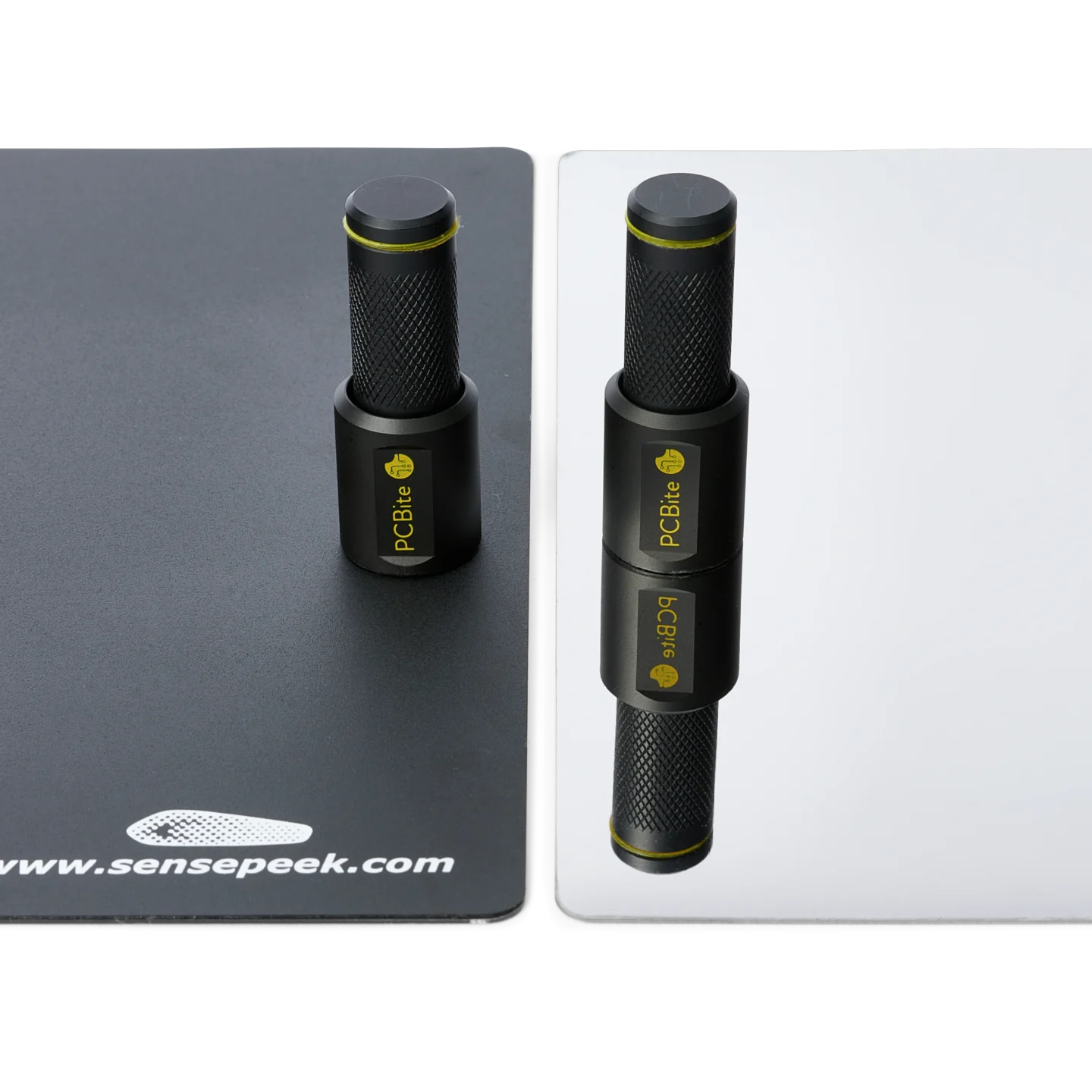

Two magnetic PCB holders showing difference between an insulated and the mirror sides of baseplate (PCBITE-7026)
BASE PLATE

Two sides. One base plate.

The base plate has two working sides. The insulated side has a pre-fitted polycarbonate cover that keeps powered boards safe. Flip the plate over for the mirror-polished steel side, which reflects the underside of the PCB so you can check LEDs and displays without turning the board. Every PCBite holder, probe and accessory locks magnetically to both sides.

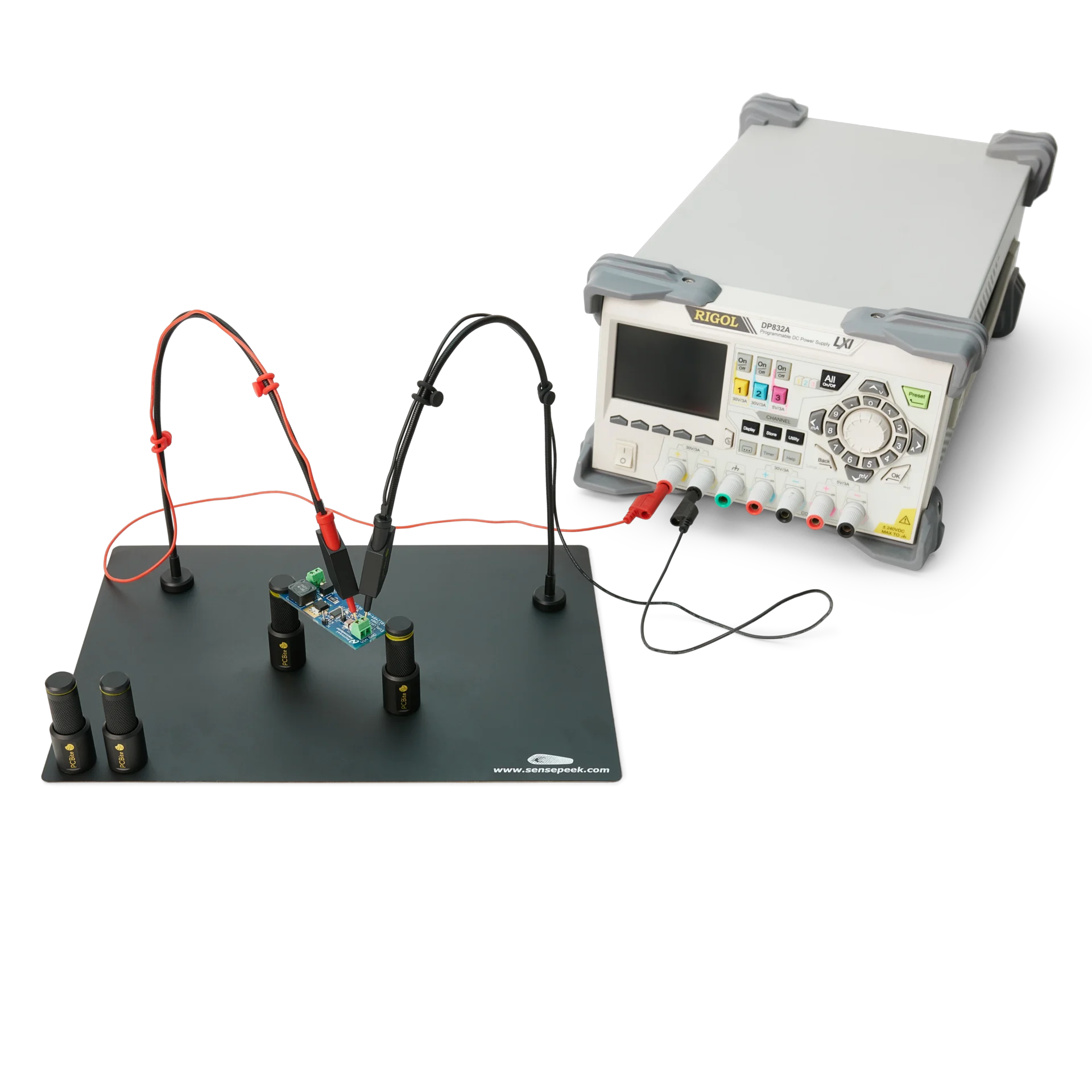

Complete test setup with two handsfree SQ10 probes connected to a power supply (PCBITE-6012)
DESIGNED FOR POWER

Power up your PCB safely.

Insulation washers keep the PCB isolated from the holders, and a pre-fitted polycarbonate cover gives the steel base plate a non-conductive work surface. Power up a board, probe it and leave it running without the risk of a short against the metal.

ECOSYSTEM

Built to work together.

PCBite base plates from XS to XL, each with PCB holders on it, plus a magnifier, a component tray and a solder wire stand.
Standard and low profile PCB holders holding PCBs for height comparison
Two PCBite component trays for SMD parts, mounted on a low and a standard PCBite holder to keep the parts at board height.
Three wire stand showing two different size of solder and one empty spool
Magnifier with magnetic base, 3x magnification and AR coated lens for PCB soldering and inspection
PCBite SQ, SQG, SQ10 and SP10 probe heads with color-coded cable holders mounted on flexible arms.

From XS to XL, every size uses the same magnetic system, so all holders and accessories fit.
