PCBITE-7023

2x PCBite PCB holders low profile

Two low profile PCBite PCB holders with insulation washers. They hold PCBs of any shape, or cables at board height, at a working height of 20 mm (0.79 in).

Secure paymentGlobal deliveryPremium quality
In stockDelivery: 1-2 business days

30 € excl. VAT

Introduction

Two extra low profile holders for your PCBite setup. They carry PCBs of any shape, or cables at board height, 20 mm (0.79 in) above the base plate for soldering, inspection and measurement where clearance is limited.

Two low profile PCBite PCB holders with the same magnetic base, knurled grip and pressure spring as the standard holders, but with a shorter body that carries the PCB at a working height of 20 mm (0.79 in) instead of 50 mm (1.97 in). Position them anywhere on the base plate to hold a PCB of any shape or outline during soldering, inspection and measurement.

Each holder opens up to 5 mm (0.20 in) and is operated with one hand. Press the knurled sleeve down, slide in the PCB and release, and the pressure spring holds it firmly. The holders grip cables just as well as boards, so a cable can be held at exactly the same height as the PCB while you solder it in place, or two wires can be held end to end and soldered together.

The lower height fits where standard holders do not, such as inside TEM cells and with low profile boards. Low profile and standard holders can share the same base plate, so different PCBs can be held at different heights in the same setup.

An N52 neodymium magnet keeps each holder in place, while a wear-resistant bottom cap lets it slide smoothly across the base plate when you reposition it. Add the extra holders when a PCB needs more support or when several boards share the same base plate.

The anodized aluminum body has a non-conductive surface, and the included yellow insulation washers separate the metal from the PCB traces, so powered boards can be held safely.

A PCBite base plate is required.

Compatible products

  • 2X PCB holder low profile
  • 1X Set of insulation washers
User guide PCBite kit low profile

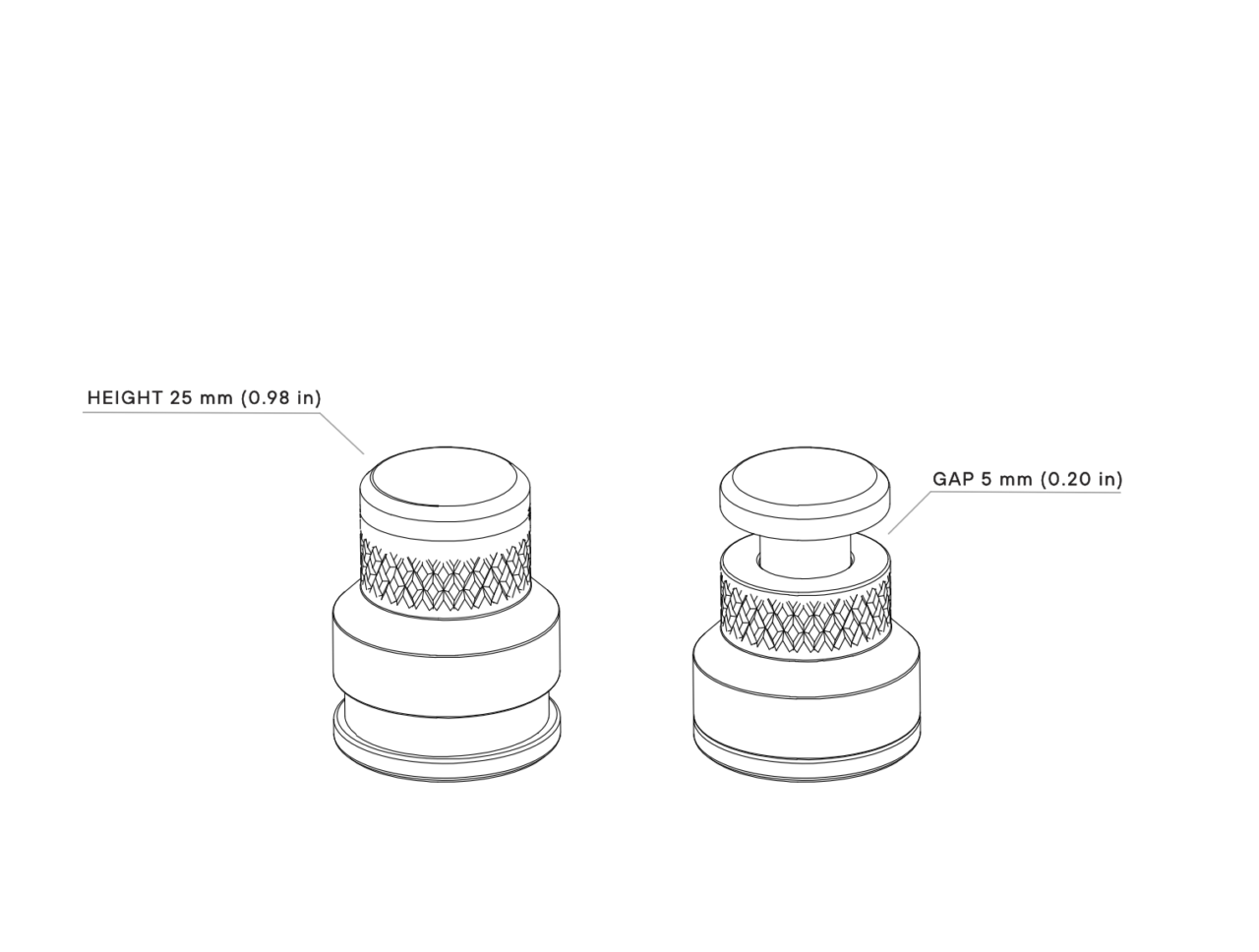

Dimensions of 2x PCBite PCB holders low profile: Holders
Brand

PCBite
Manufacturer

Sensepeek AB
Article number

PCBITE-7023
GTIN

7350145660625
Country of origin

Sweden
HS code

90309000
HTS code

9030906800
ECCN

EAR99
Safety information

Not applicable
Package weight 65 g
Package dimensions 150 × 100 × 30 mm
MATERIAL

Made to last

Every material and design detail is chosen to last for years in a demanding lab environment.

Holder chassis
Durable anodized aluminum
Pressure spring
Spring-tempered stainless steel
Bottom cap
Wear-resistant, low friction
Magnet
Strong N52 neodymium
MATERIAL
Holder chassis
Durable anodized aluminum
Pressure spring
Spring-tempered stainless steel
Bottom cap
Wear-resistant, low friction
Magnet
Strong N52 neodymium

Made to last

Every material and design detail is chosen to last for years in a demanding lab environment.

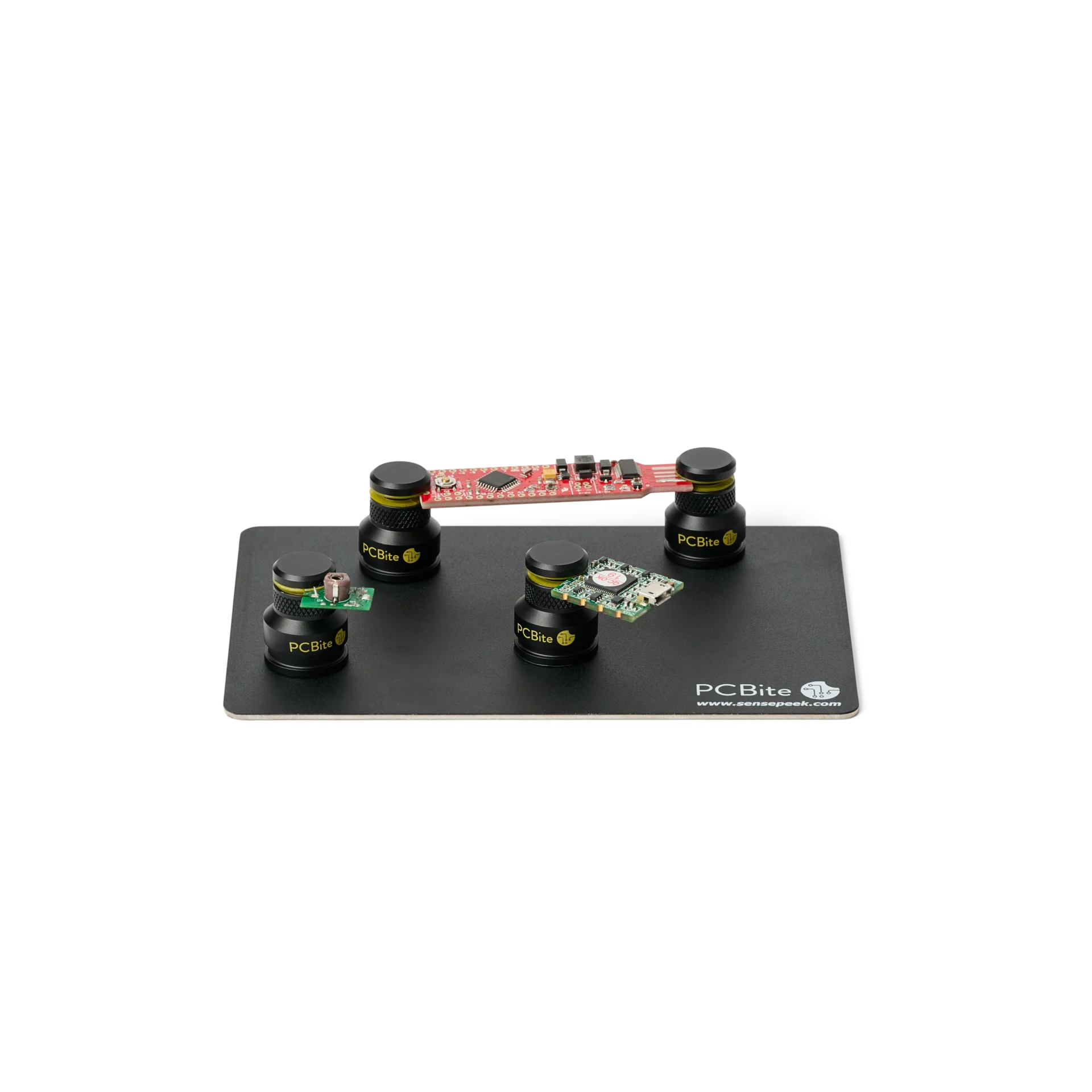

Four low profile PCB holders holding multiple small PCBs on the extra small insulated baseplate (PCBITE-7024)
SECURE

Your PCB defines the fixture.

Place each magnetic holder exactly where the PCB allows it, and the board is held firmly in place. No fixed rails, slots or clamping positions. Rectangular, round, irregular, populated or cut-out boards are all secured in seconds.

SOLDERING

Built for soldering.

Place a component, solder it, adjust and move on to the next one. The board stays where you put it, at a comfortable working height, from the first component to the last.

HEAT RESISTANT

Handles the heat of the lab.

The holders are made of anodized aluminum, and the included insulation washers are rated from −40 to +120 °C (−40 to +248 °F). Solder right next to the holders and use a heat gun with confidence. For heavy soldering, skip the washers and let the aluminum take the heat.

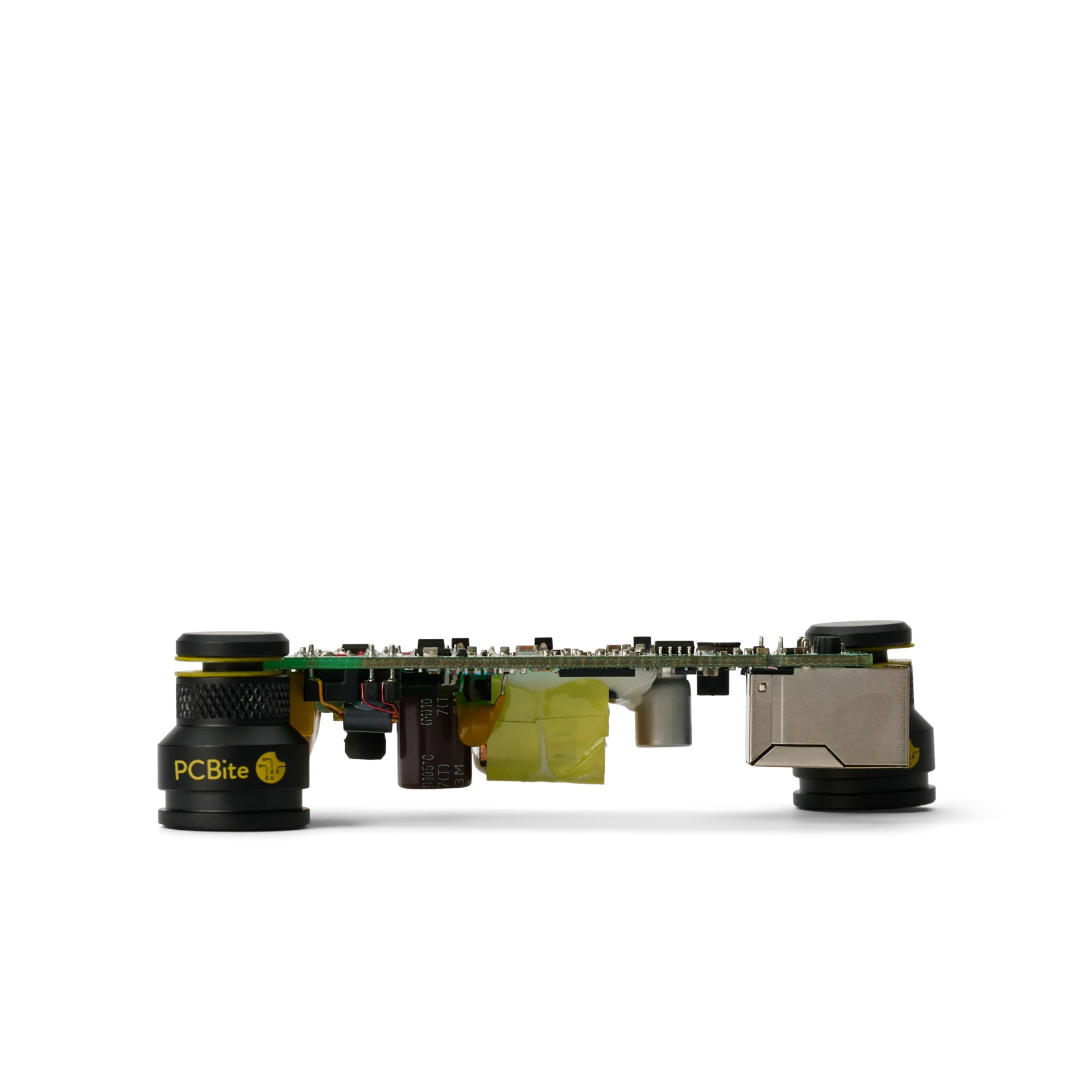

PCB held close to the surface by two low profile PCBite holders, seen from the side with tall parts fitting underneath.
LOW PROFILE

Low enough for tight spaces.

With the PCB just 20 mm (0.79 in) above the base plate, the whole setup fits inside a TEM cell or a shielded enclosure. On the bench, the low height brings the board close to your hands, so you can rest your wrists while you solder fine-pitch components.

Powered PCB held by two PCBite holders with yellow insulation washers, probed with red and black probes in front of a bench supply.
DESIGNED FOR POWER

Power up your PCB safely.

Every PCBite holder includes insulation washers, allowing you to power and test your design while keeping the PCB securely isolated from the work surface.

ECOSYSTEM

Built to work together.

PCBite base plates from XS to XL, each with PCB holders on it, plus a magnifier, a component tray and a solder wire stand.
Standard and low profile PCB holders holding PCBs for height comparison
Two PCBite component trays for SMD parts, mounted on a low and a standard PCBite holder to keep the parts at board height.
Three wire stand showing two different size of solder and one empty spool
Magnifier with magnetic base, 3x magnification and AR coated lens for PCB soldering and inspection
PCBite SQ, SQG, SQ10 and SP10 probe heads with color-coded cable holders mounted on flexible arms.

From XS to XL, every size uses the same magnetic system, so all holders and accessories fit.
