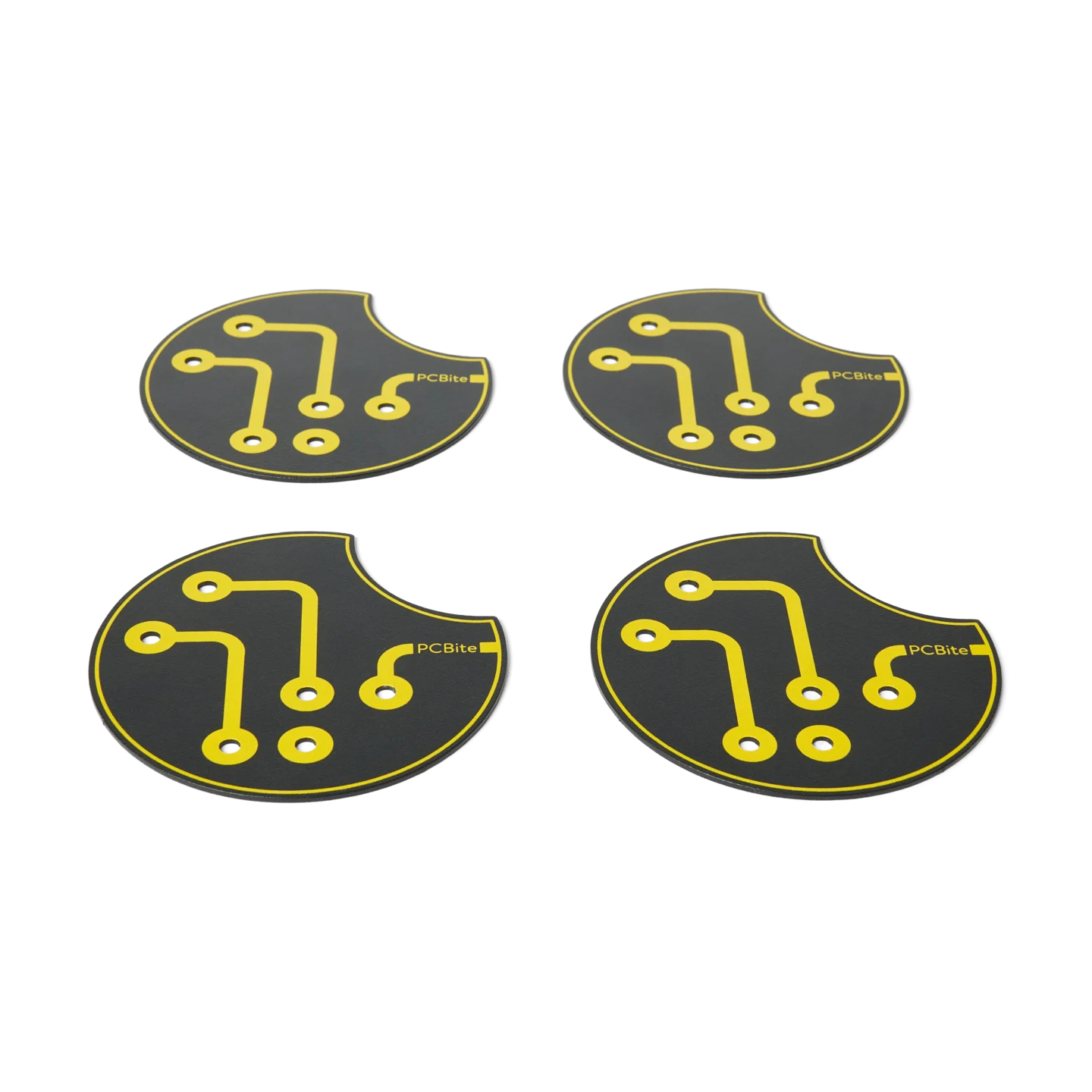

Multipurpose baseplates, four 80mm metal plates for magnifier support and flexible hands-free probe mounting (PCBITE-7027)
Wall-mounted multipurpose baseplate for flexible handsfree probe positioning where no standard baseplate can be used (PCBITE-7027)

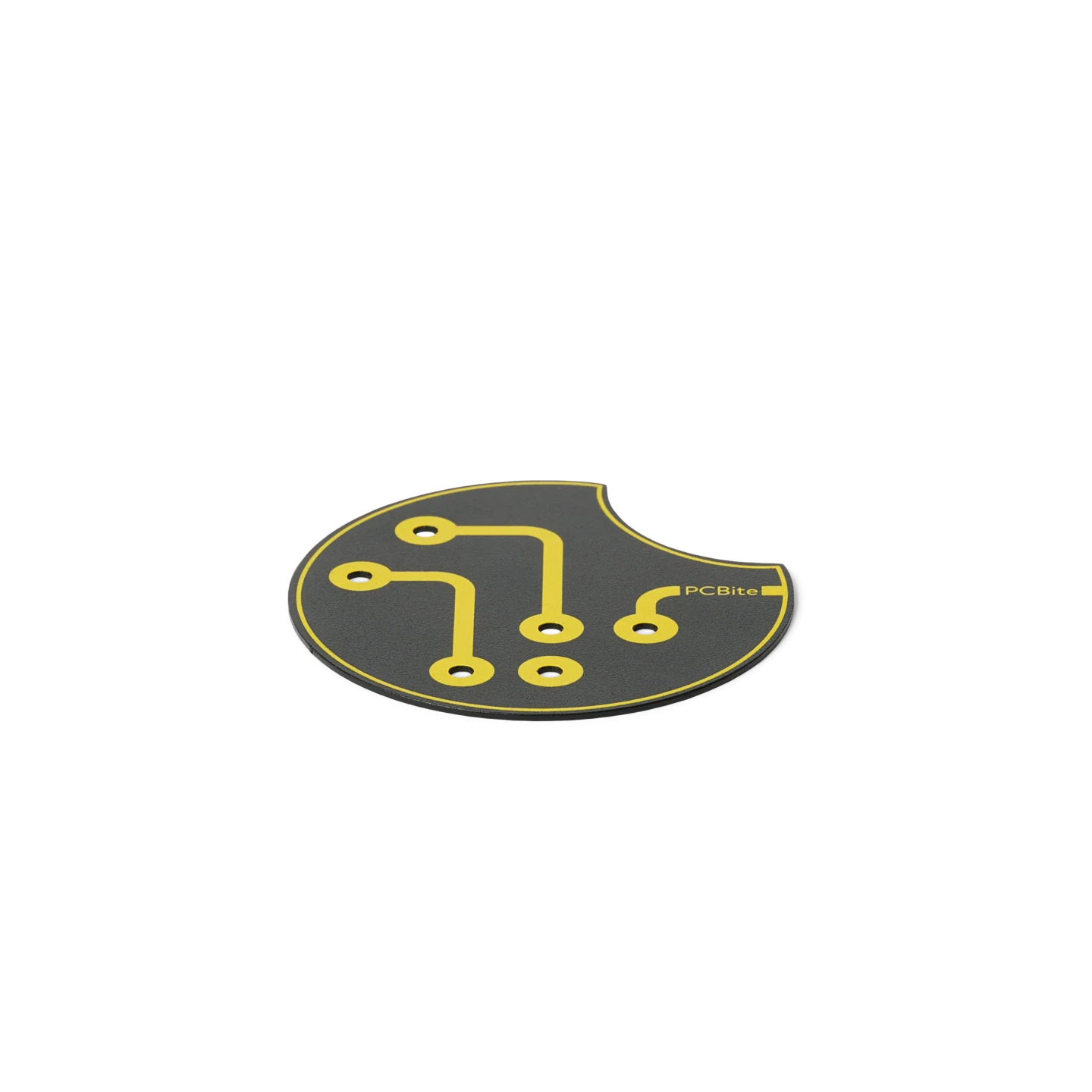

Single 80mm metal multipurpose baseplate with yellow PCB trace design (PCBITE-7027)
Single multipurpose baseplate used to support a single handsfree probe, extend your reach (PCBITE-7027)

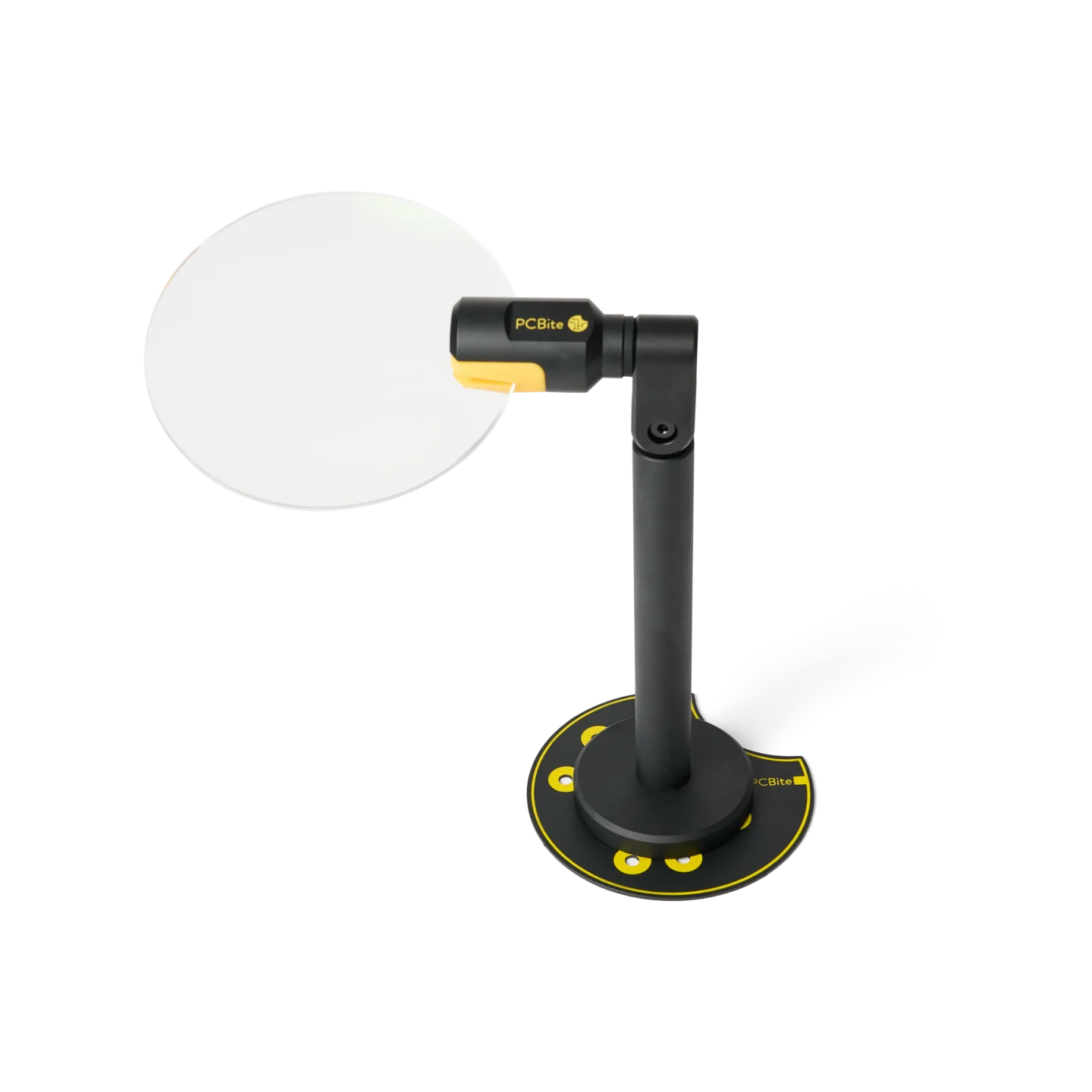

Single multipurpose baseplate used to support the magnifier when not used in a larger baseplate (PCBITE-7027)

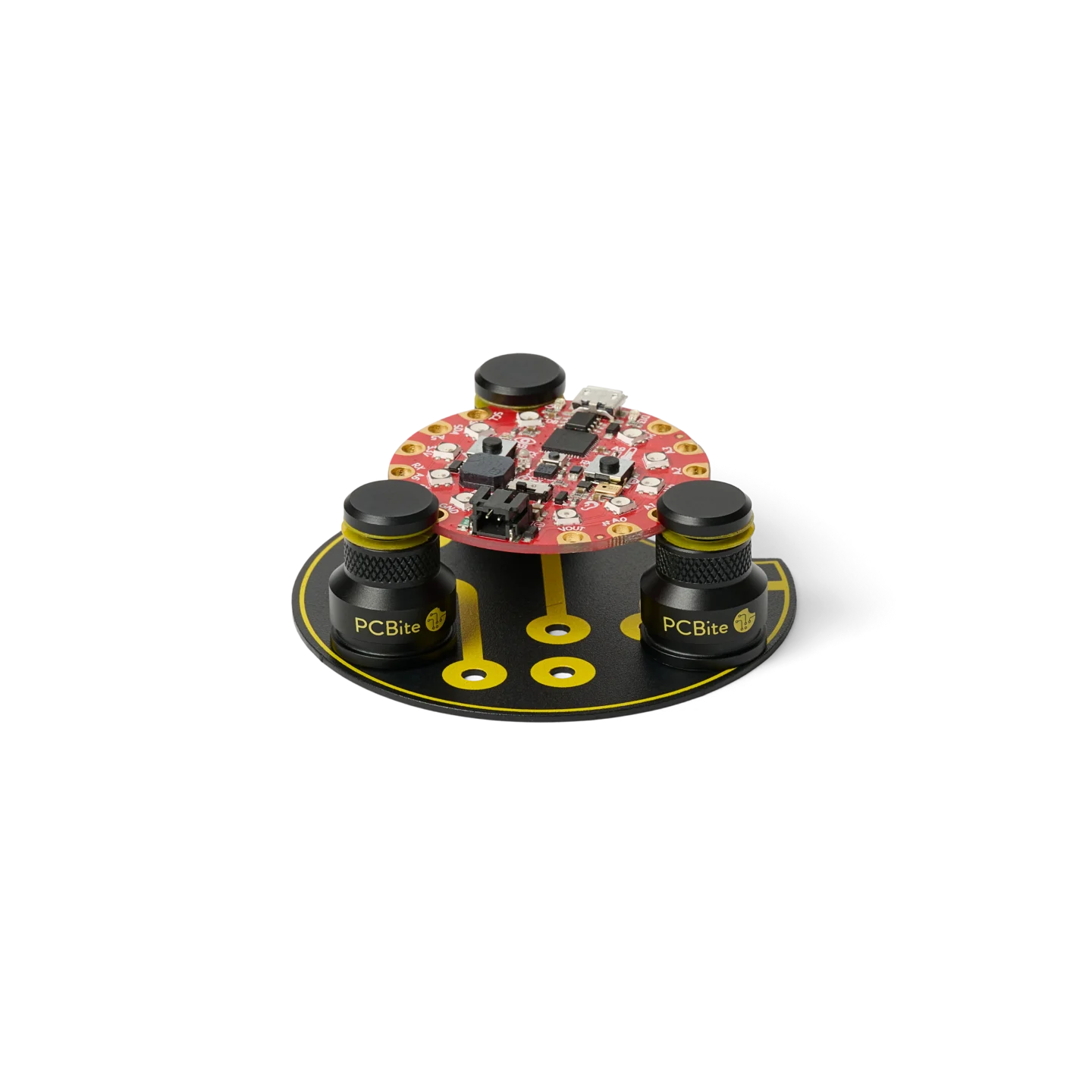

Single multipurpose baseplate used with three low profile holders to hold a small PCB (PCBITE-7027)

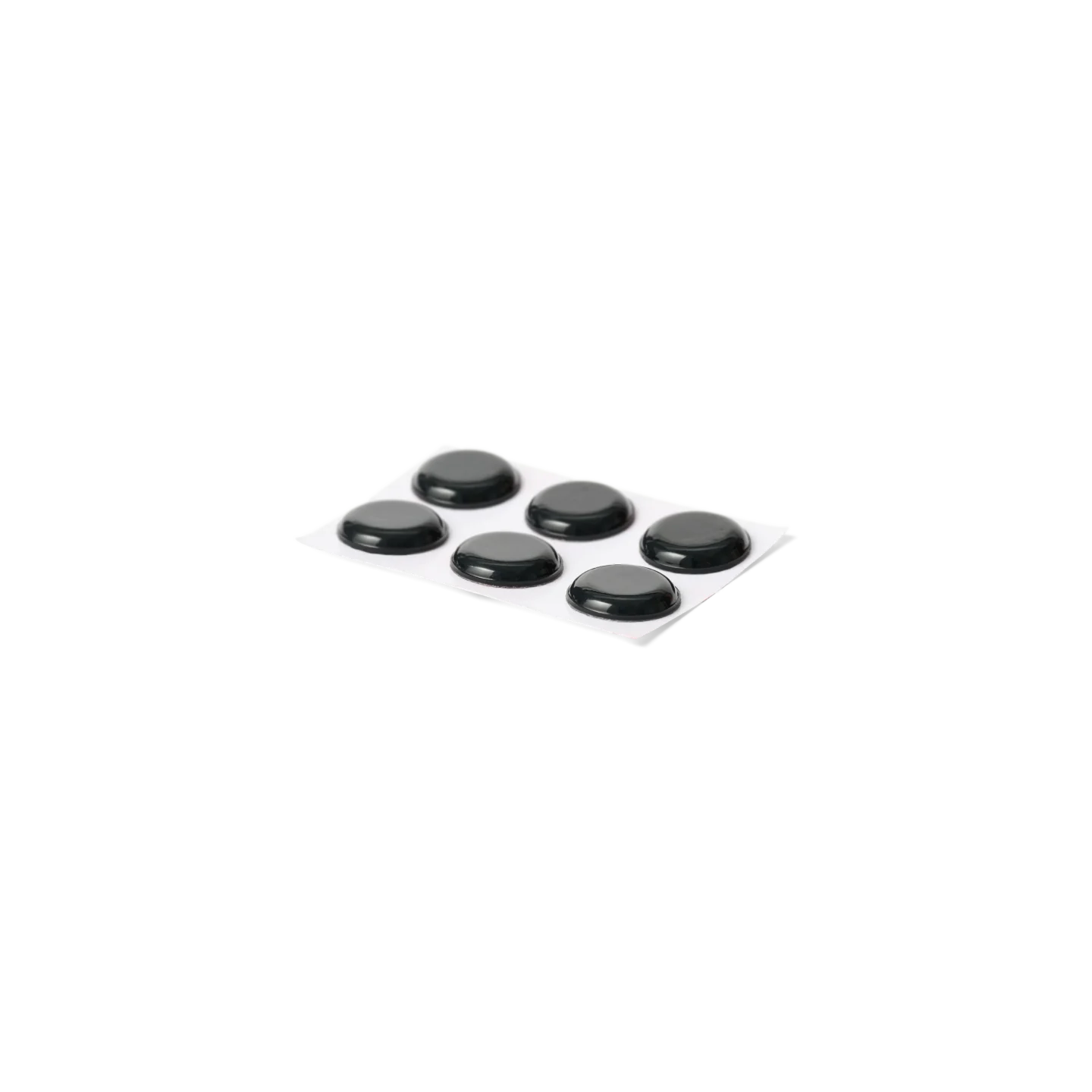

Rubber feets to use with the smaller baseplates to keep them from moving (PCBITE-7027)
PCBITE-7027

Multipurpose base plates

Four 80 mm (3.15 in) round PCBite base plates with a powder-coated finish, through-holes for mounting and rubber feet for free-standing use. Also a sturdy coaster.

Secure paymentGlobal deliveryPremium quality
In stockDelivery: 1-2 business days

29 € excl. VAT

Introduction

Four small magnetic surfaces for your PCBite setup. Place a handsfree probe, the magnifier or a small PCB where you need it, on the bench or mounted on a wall, shelf or fixture.

A set of four round PCBite base plates, each 80 mm (3.15 in) in diameter. Every plate gives a small magnetic surface for a handsfree probe, the magnifier or a small PCB in PCBite holders, wherever a full base plate would take up too much room.

Through-holes in each plate let you mount it on a wall, shelf or fixture, so a handsfree probe can be placed exactly where it is needed, also away from the bench. Three rubber feet per plate keep it stable when it stands on the bench.

The plates have a durable powder-coated finish instead of the insulation cover used on the PCBite kit base plates. All PCBite holders, handsfree probes and accessories attach to the magnetic surface. Off the bench, each plate also works as a sturdy coaster for your favorite drink.

Four plates and 12 rubber feet are included. Screws and fixtures for wall mounting are not included.

Compatible products

Single 80mm metal multipurpose baseplate with yellow PCB trace design (PCBITE-7027)
  • 4X Multipurpose base plate
  • 2X Set of rubber feets (6pcs)
Instruction Multipurpose base plates
Dimensions of Multipurpose base plates: Mulitpurpose base plate
Brand

PCBite
Manufacturer

Sensepeek AB
Article number

PCBITE-7027
GTIN

7350145660663
Country of origin

China
HS code

90309000
HTS code

9030906800
ECCN

EAR99
Safety information

Not applicable
Package weight 195 g
Package dimensions 176 × 125 × 10 mm
MATERIAL

Made to last

Every material and design detail is chosen to last for years in a demanding lab environment.

Base plate
Solid metal
Finish
Durable powder coating
MATERIAL
Base plate
Solid metal
Finish
Durable powder coating

Made to last

Every material and design detail is chosen to last for years in a demanding lab environment.

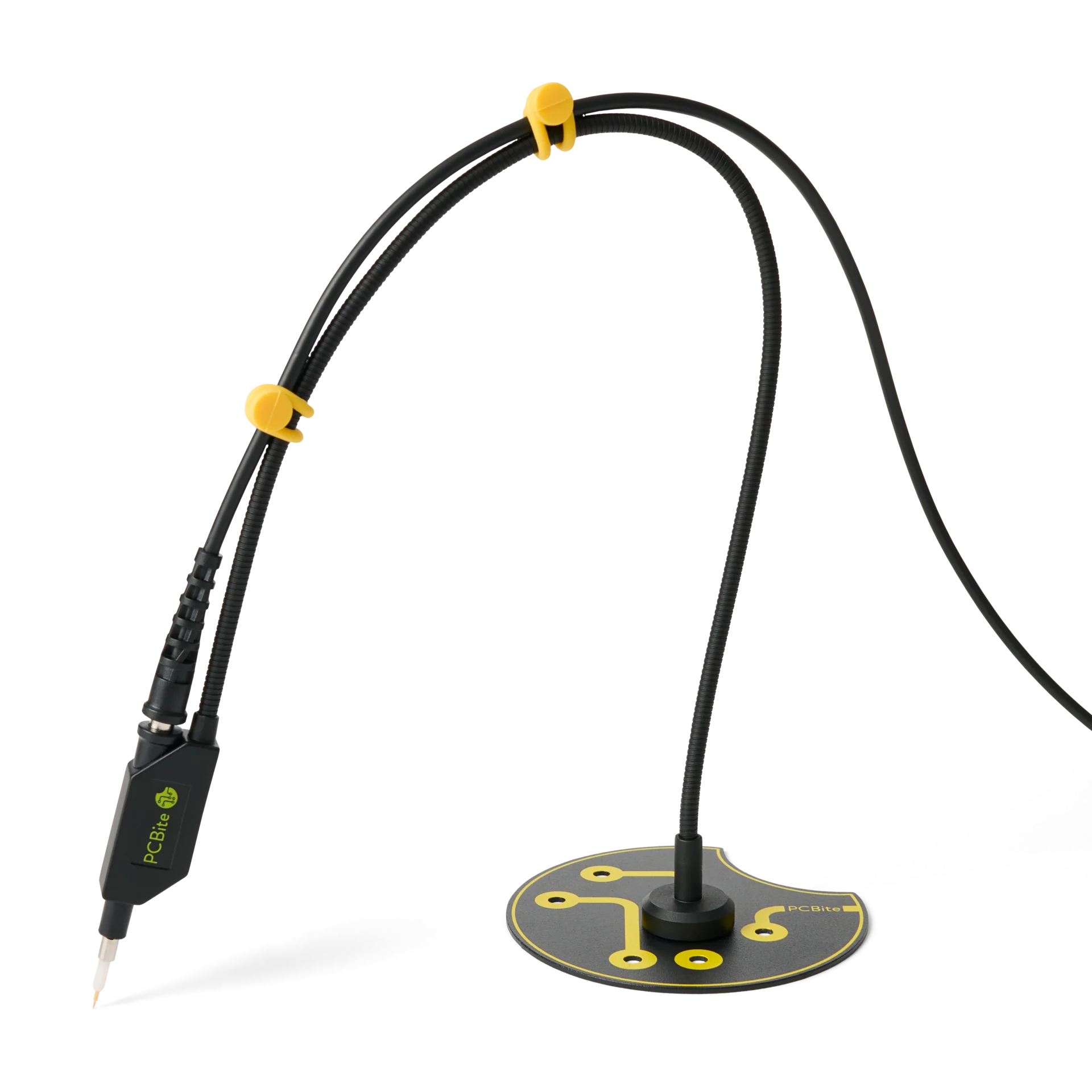

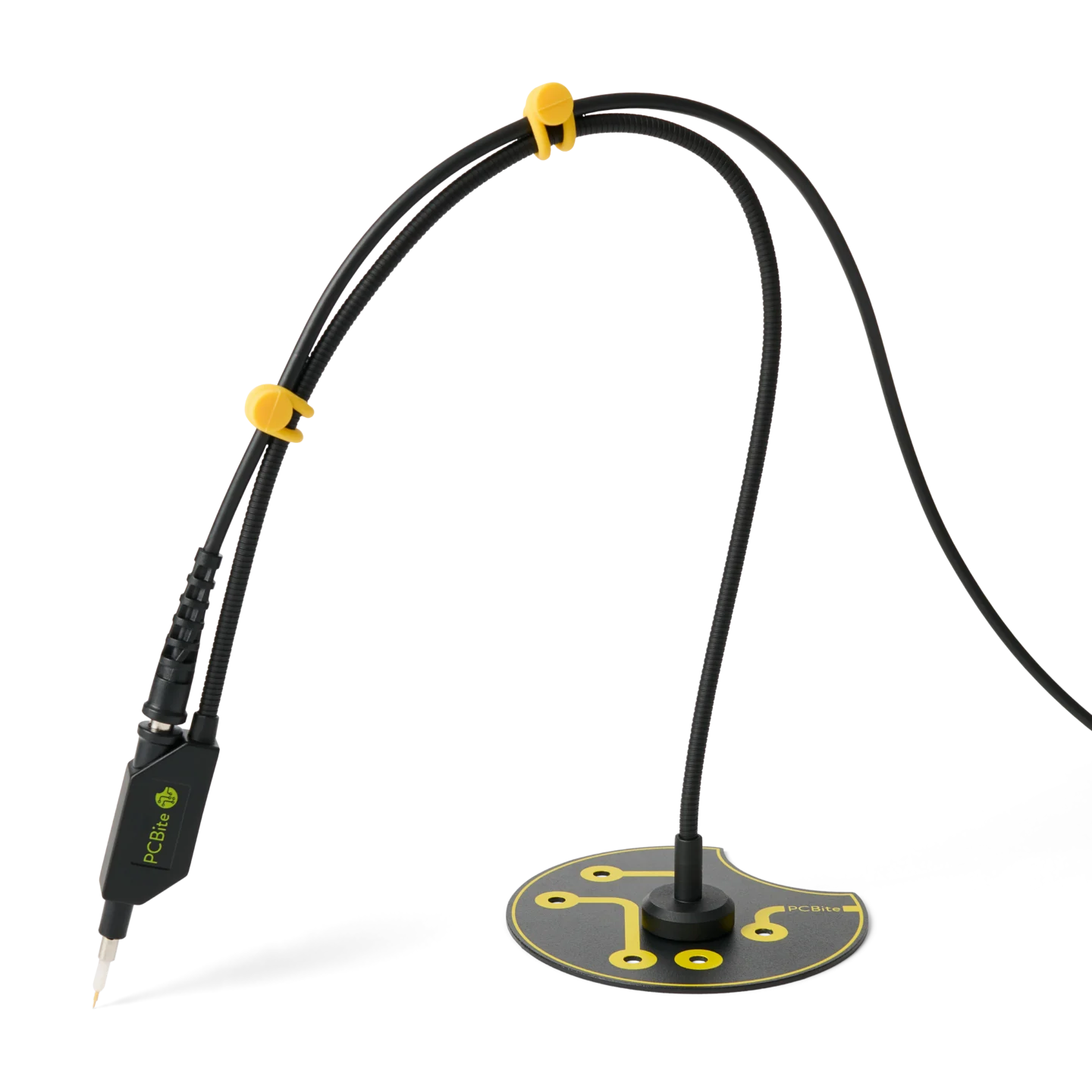

Single multipurpose baseplate used to support a single handsfree probe, extend your reach (PCBITE-7027)
MULTIPURPOSE

A magnetic surface wherever you need one.

Add an extra probe position next to the main setup, give the magnifier its own spot or hold a small PCB to the side. Each plate works on its own or alongside a larger PCBite base plate on the same bench.

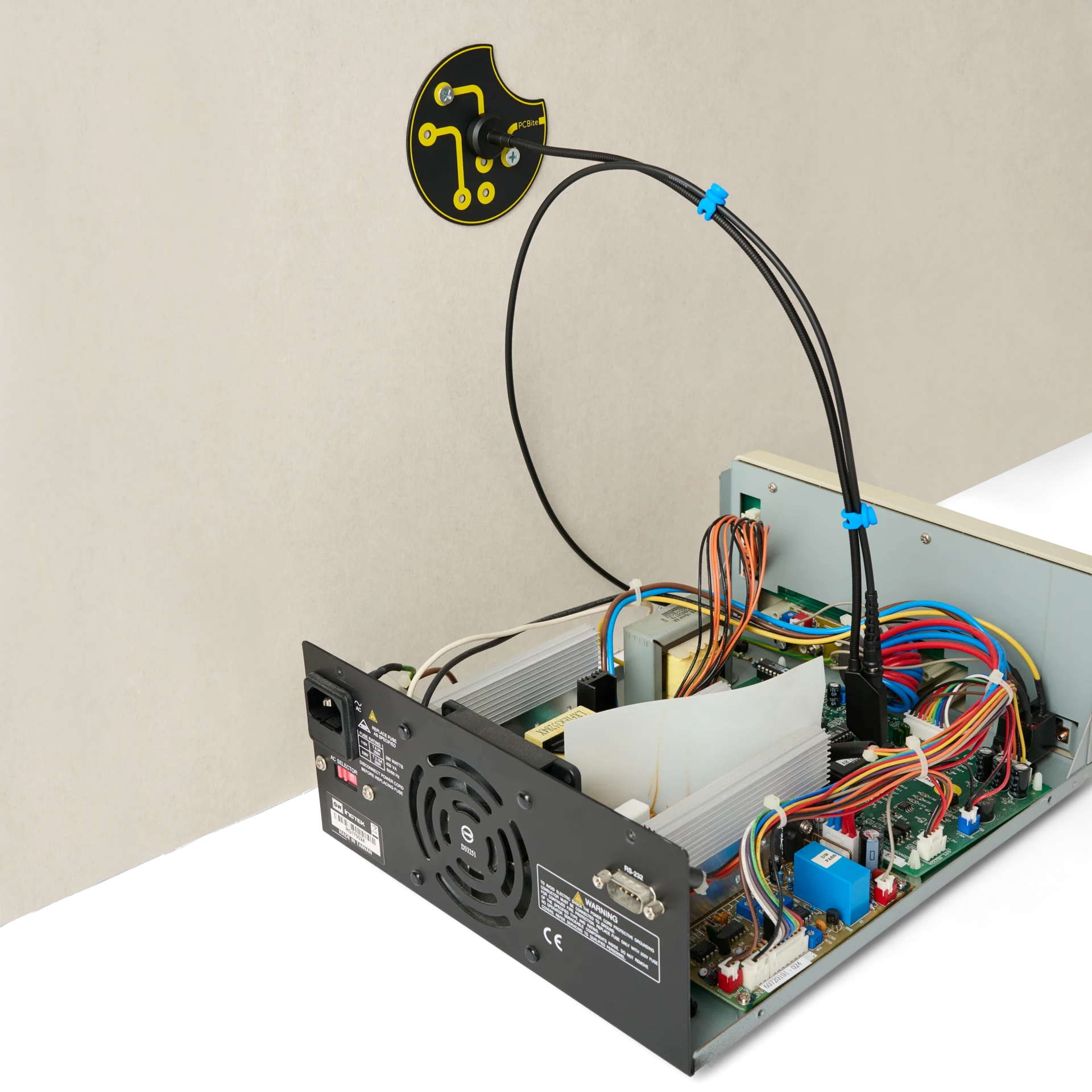

Wall-mounted multipurpose baseplate for flexible handsfree probe positioning where no standard baseplate can be used (PCBITE-7027)
MOUNTING

Take the probe off the bench.

Screw a plate to a test fixture, rack or enclosure, and the handsfree probe stays right at the measurement point. Ideal for test stations and setups that are used again and again.

Single multipurpose baseplate used as coaster for hot drinks (PCBITE-7027)
COASTER

Coffee break included.

Between measurements, any of the plates doubles as a coaster for your coffee. The rubber feet keep it steady on the desk, and the powder-coated surface wipes clean after every cup.

ECOSYSTEM

Built to work together.

PCBite base plates from XS to XL, each with PCB holders on it, plus a magnifier, a component tray and a solder wire stand.
Standard and low profile PCB holders holding PCBs for height comparison
Two PCBite component trays for SMD parts, mounted on a low and a standard PCBite holder to keep the parts at board height.
Three wire stand showing two different size of solder and one empty spool
Magnifier with magnetic base, 3x magnification and AR coated lens for PCB soldering and inspection
PCBite SQ, SQG, SQ10 and SP10 probe heads with color-coded cable holders mounted on flexible arms.

From XS to XL, every size uses the same magnetic system, so all holders and accessories fit.
