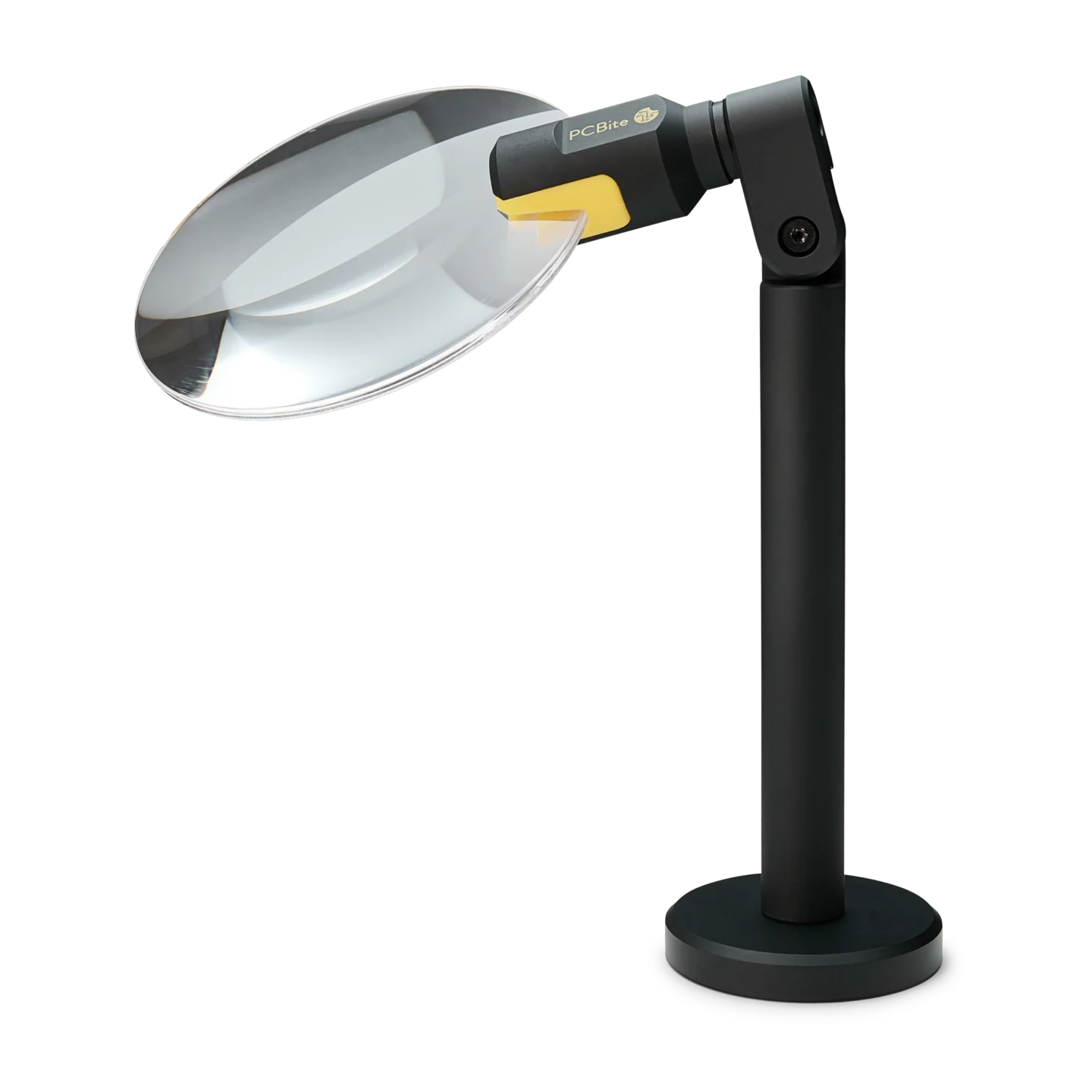

Magnifier with magnetic base, 3x magnification and AR coated lens for PCB soldering and inspection (PCBITE-4020)

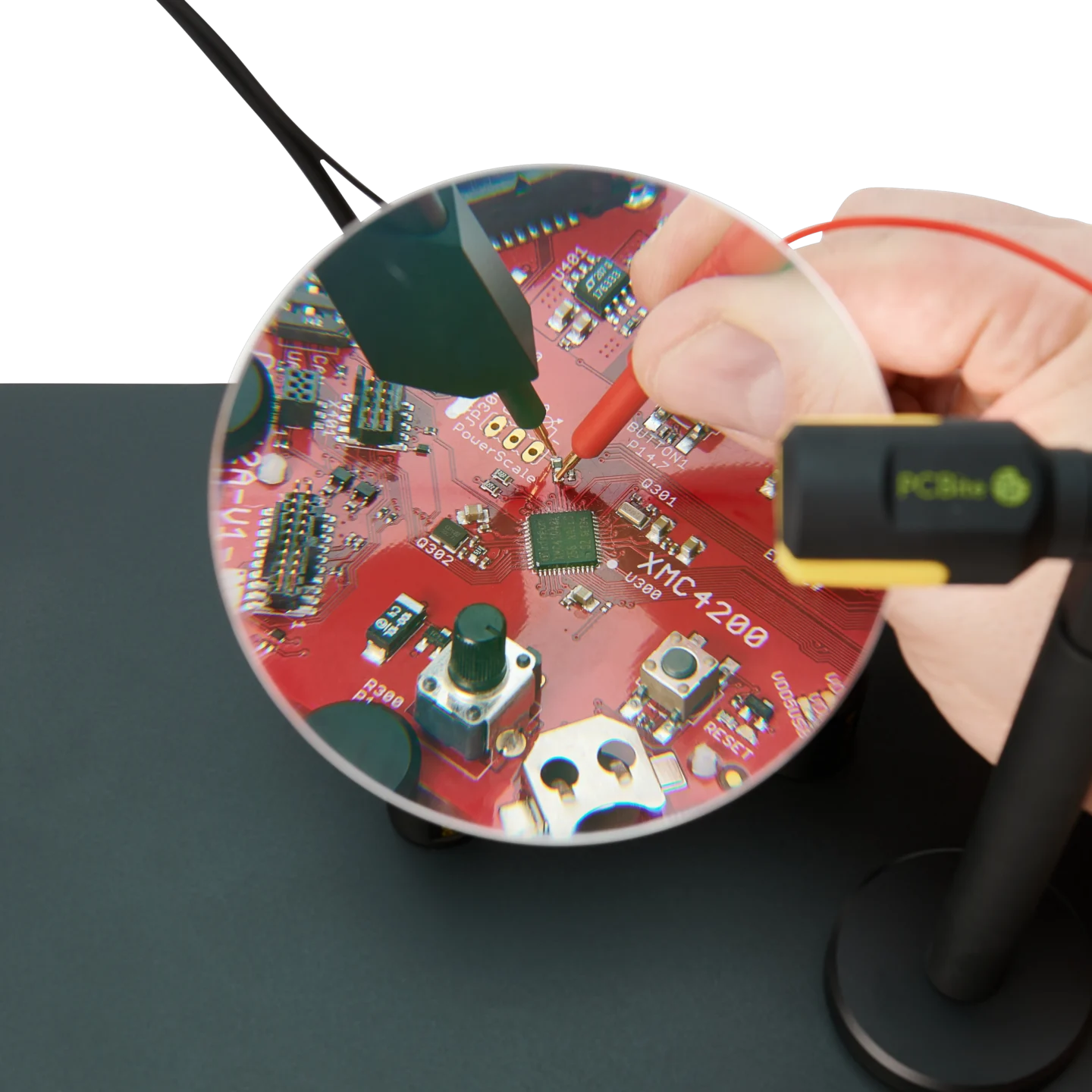

Hand measuring on small PCB components visible through the AR coated 3x magnifying lens (PCBITE-4020)

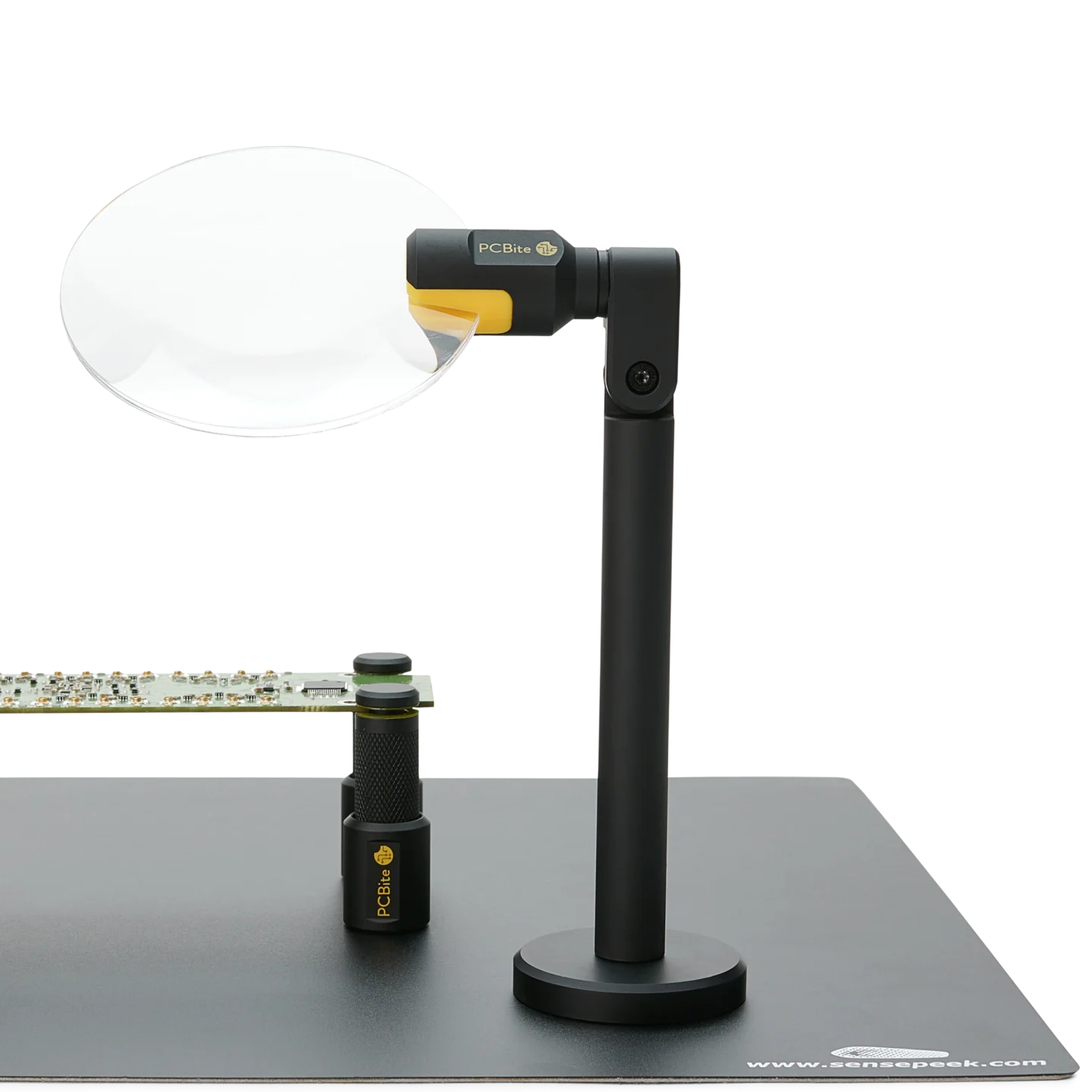

Magnifier with magnetic base stands secure on baseplate overlooking PCB held by PCB holders (PCBITE-4020)
Magnifier with magnetic base and friction adjustments for improved precision during inspection (PCBITE-4020)

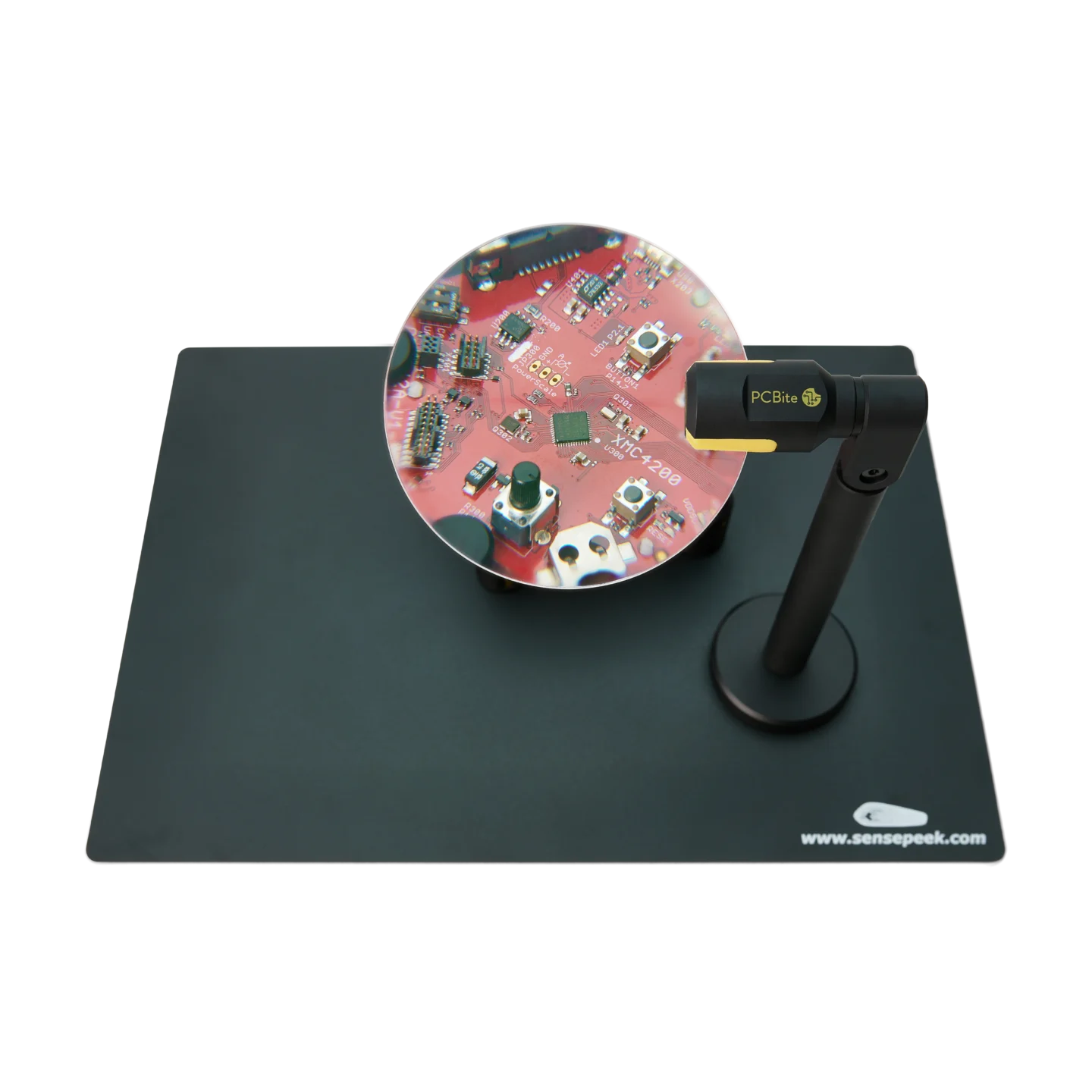

Magnifier with magnetic base standing on an insulated baseplate PCB components magnifyed through lens (PCBITE-4020)

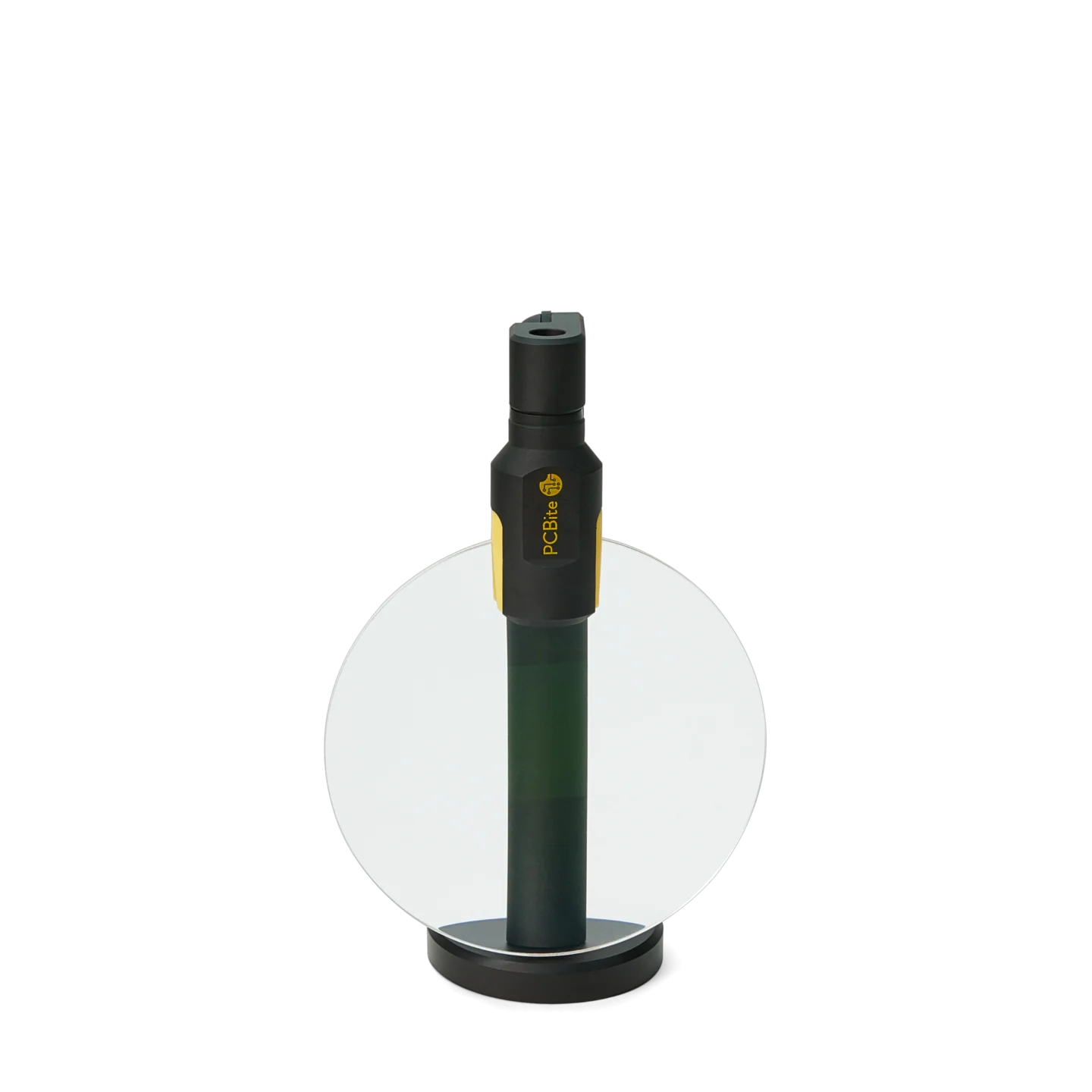

Magnifier with magnetic base and friction based adjustments, folded lens front view (PCBITE-4020)

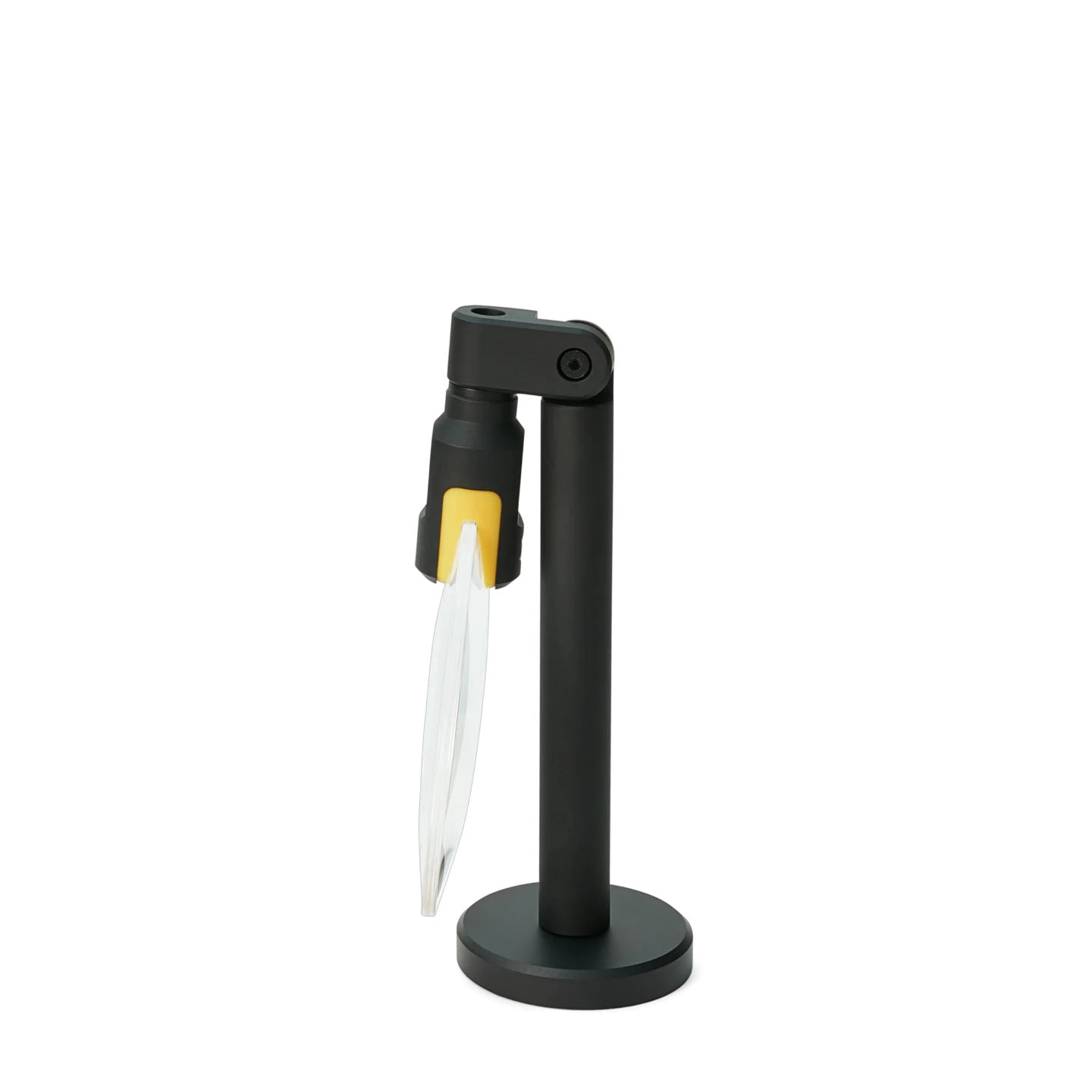

Magnifier with magnetic base and friction based adjustments, folded lens side view (PCBITE-4020)

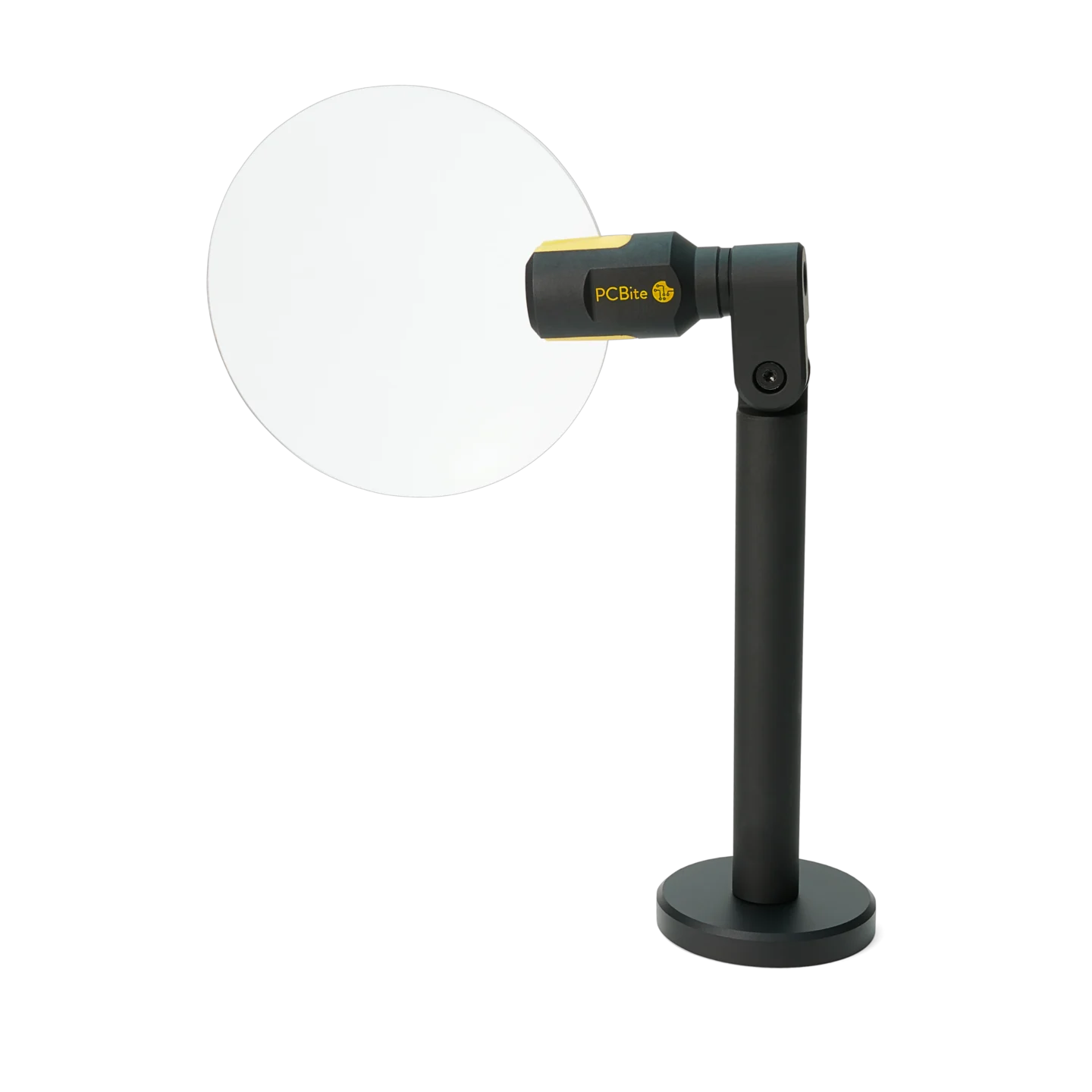

Magnifier with magnetic base and friction based adjustments, rotated lens (PCBITE-4020)

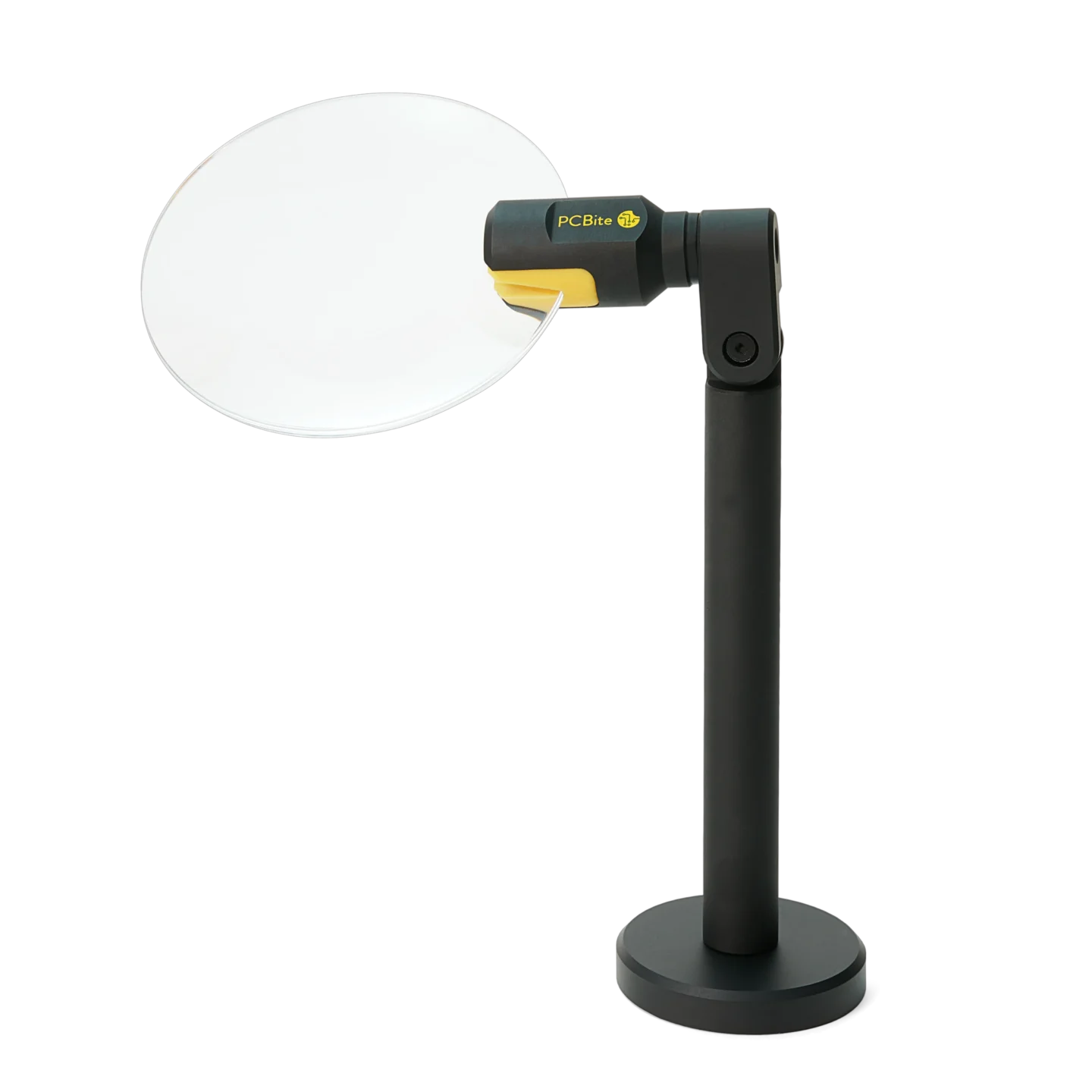

Magnifier with magnetic base and friction based adjustments, slightly rotated lens (PCBITE-4020)

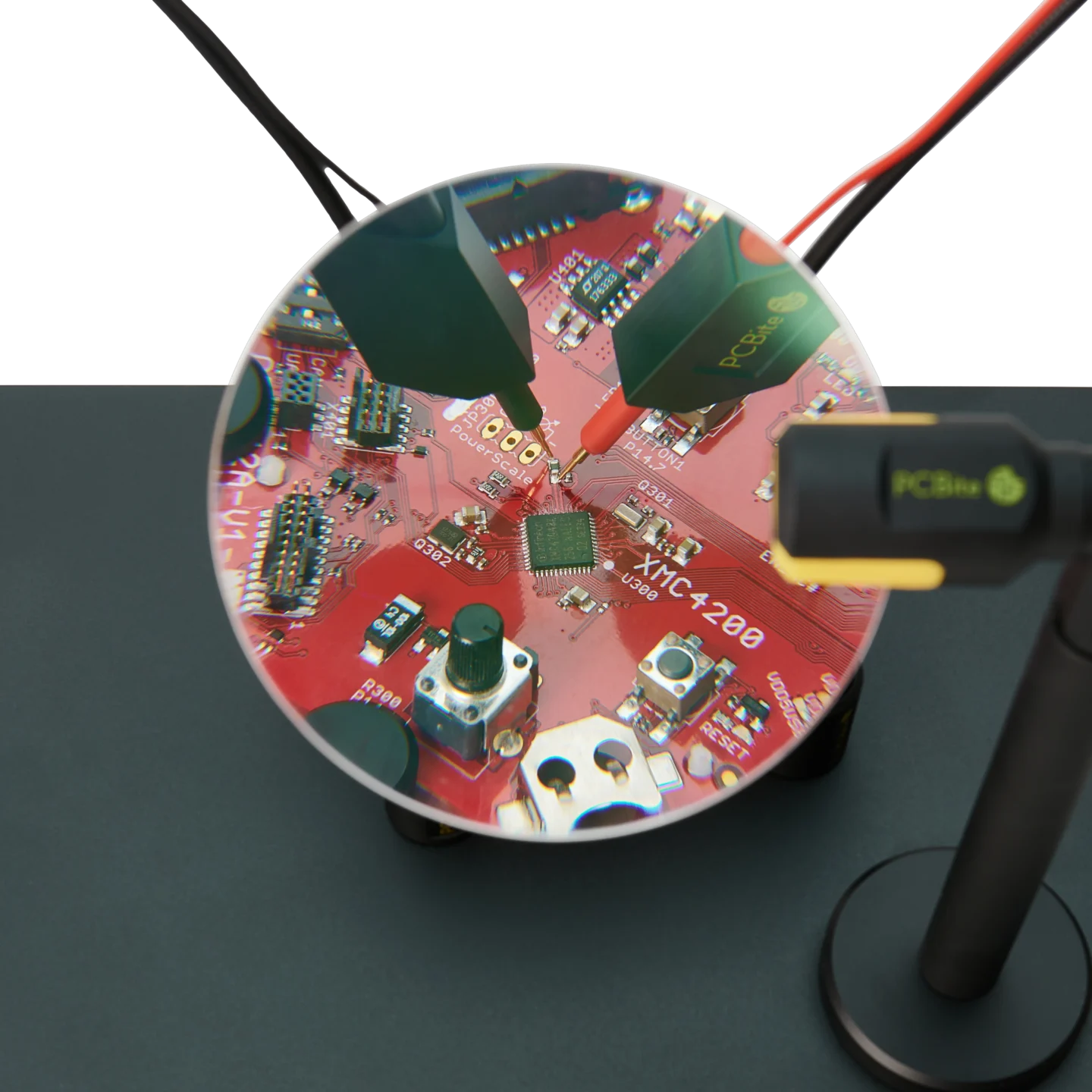

Two probes are placed on PCB under test visible through the magnifying lens of magnifier (PCBITE-4020)
PCBITE-4020

PCBite Magnifier 3x

3× magnifier with an edgeless, anti-reflection coated lens and a magnetic base for any PCBite base plate. Tilt and rotation hold their position without set screws.

Secure paymentGlobal deliveryPremium quality
In stockDelivery: 1-2 business days

59 € excl. VAT

Introduction

Fine-pitch pads, small components and probe placement, three times closer. The PCBite Magnifier mounts on the base plate next to the PCB and leaves both hands free for soldering, inspection and probing.

The PCBite Magnifier enlarges the work area and makes it easier to see during soldering, inspection and measurements. It is especially useful when placing PCBite handsfree probes on fine-pitch SMD components.

The edgeless lens gives 3× magnification across the work surface, and an anti-reflection coating reduces reflections from nearby light sources. The 90 mm (3.54 in) lens and its focal point are optimized for the PCBite holders and base plates included in every PCBite kit.

A strong N52 neodymium magnet in the foot holds the magnifier to the base plate, and a low friction bottom cap protects both the magnet and the plate. When the soldering is done or the probe is in place, fold the lens down and slide the magnifier aside without lifting it.

Friction based tilt and rotation hold the lens in any position without set screws. The magnifier can also be used handheld, and its CNC-machined aluminum construction matches the look and feel of the rest of the PCBite family.

Compatible products

  • 1X PCBite Magnifier 3x
User guide Magnifier
Dimensions of PCBite Magnifier 3x: Magnifier
Brand

PCBite
Manufacturer

Sensepeek AB
Article number

PCBITE-4020
GTIN

7350145660182
Country of origin

Sweden
HS code

9031808000
HTS code

9013802000
ECCN

EAR99
Safety information

See downloads
Package weight 233 g
Package dimensions 150 × 100 × 30 mm
Material

Made to last

Every material and design detail is chosen to last for years in a demanding lab environment.

Body
CNC-machined aluminum
Lens
Edgeless, anti-reflection coated
Magnet
Strong N52 neodymium
Finish
Durable anodized surface
Material
Body
CNC-machined aluminum
Lens
Edgeless, anti-reflection coated
Magnet
Strong N52 neodymium
Finish
Durable anodized surface

Made to last

Every material and design detail is chosen to last for years in a demanding lab environment.

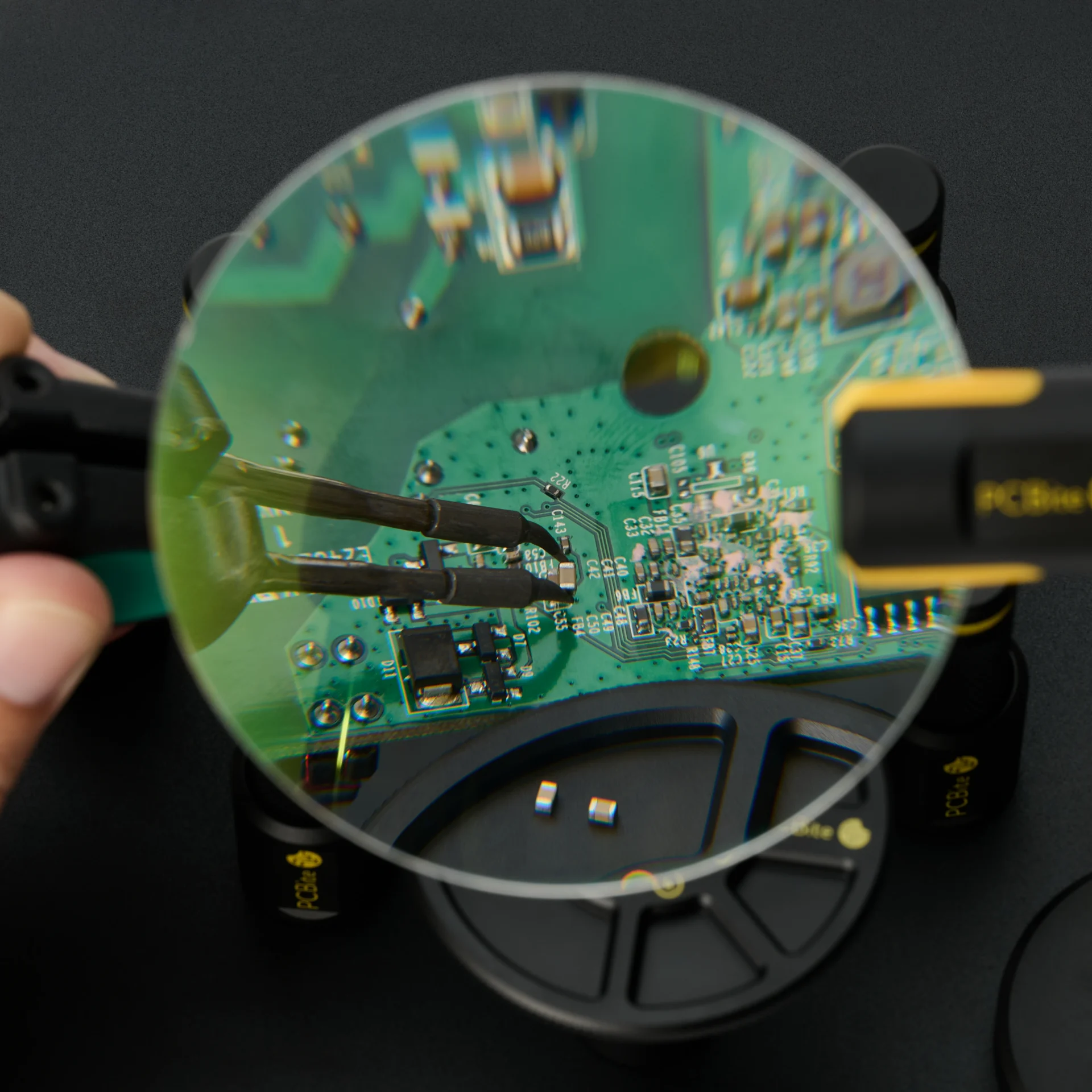

PCB in sharp focus through the PCBite magnifier while tweezers place an SMD part, with the component tray below.
FOCAL POINT

In focus from the start.

The lens and its focal point are optimized for the PCBite holders and base plates included in every PCBite kit. Place the magnifier next to the PCB and every component is already sharp, with no height to adjust and no distance to find.

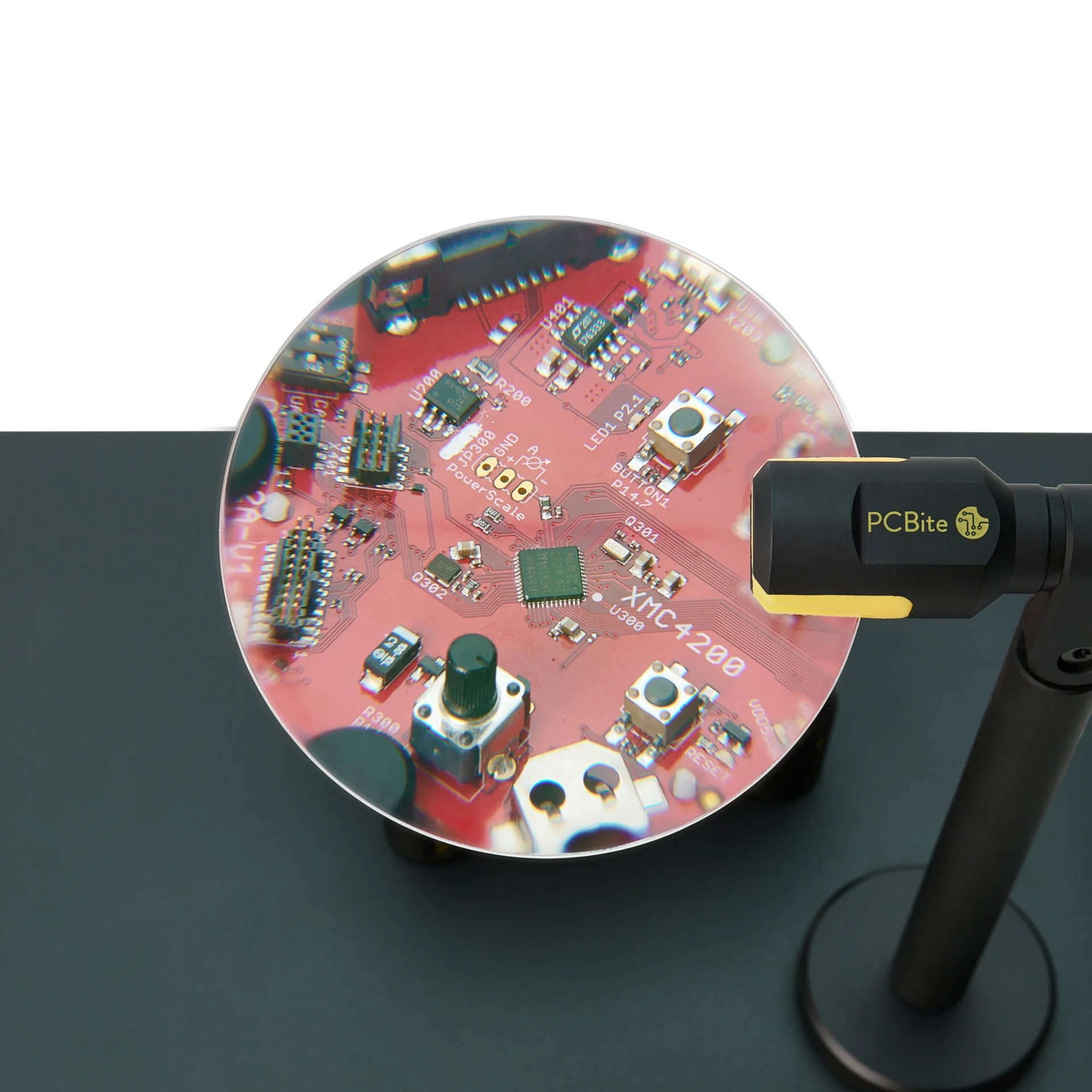

Magnifier with magnetic base and friction adjustments for improved precision during inspection (PCBITE-4020)
EDGELESS LENS

Full view across the work surface.

The edgeless lens has no surrounding frame, so nothing blocks the magnified image. You see the whole working area, all the way to the edge of the lens.

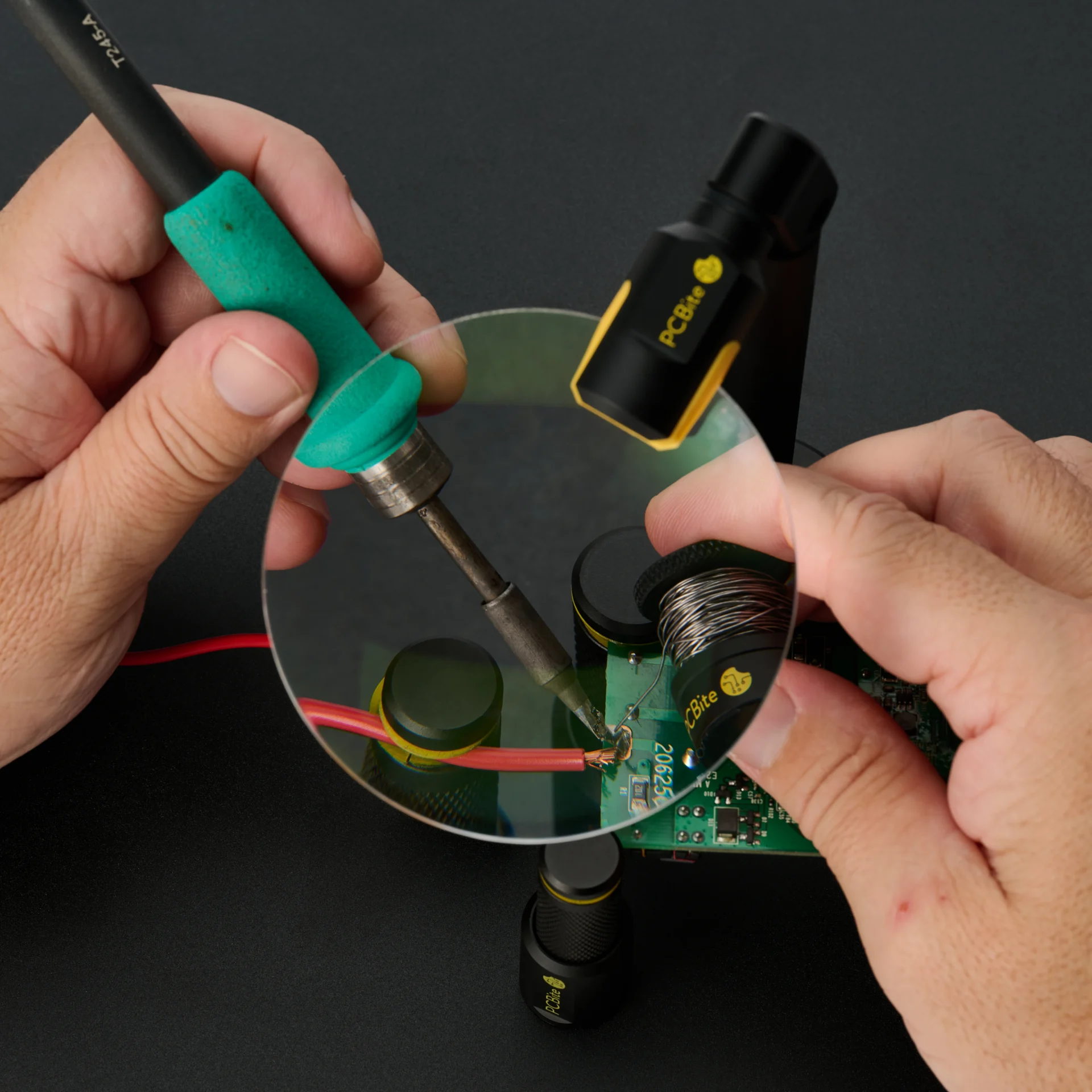

Soldering a red wire to a PCB through the PCBite magnifier, with PCBite holders keeping the wire and the board steady.
ADJUSTMENT

Set it once. It stays.

Friction based tilt and rotation hold the lens in any position without set screws. Fold it down when you are done, and it takes up minimal space until the next time you need it.

ECOSYSTEM

Built to work together.

PCBite base plates from XS to XL, each with PCB holders on it, plus a magnifier, a component tray and a solder wire stand.
Standard and low profile PCB holders holding PCBs for height comparison

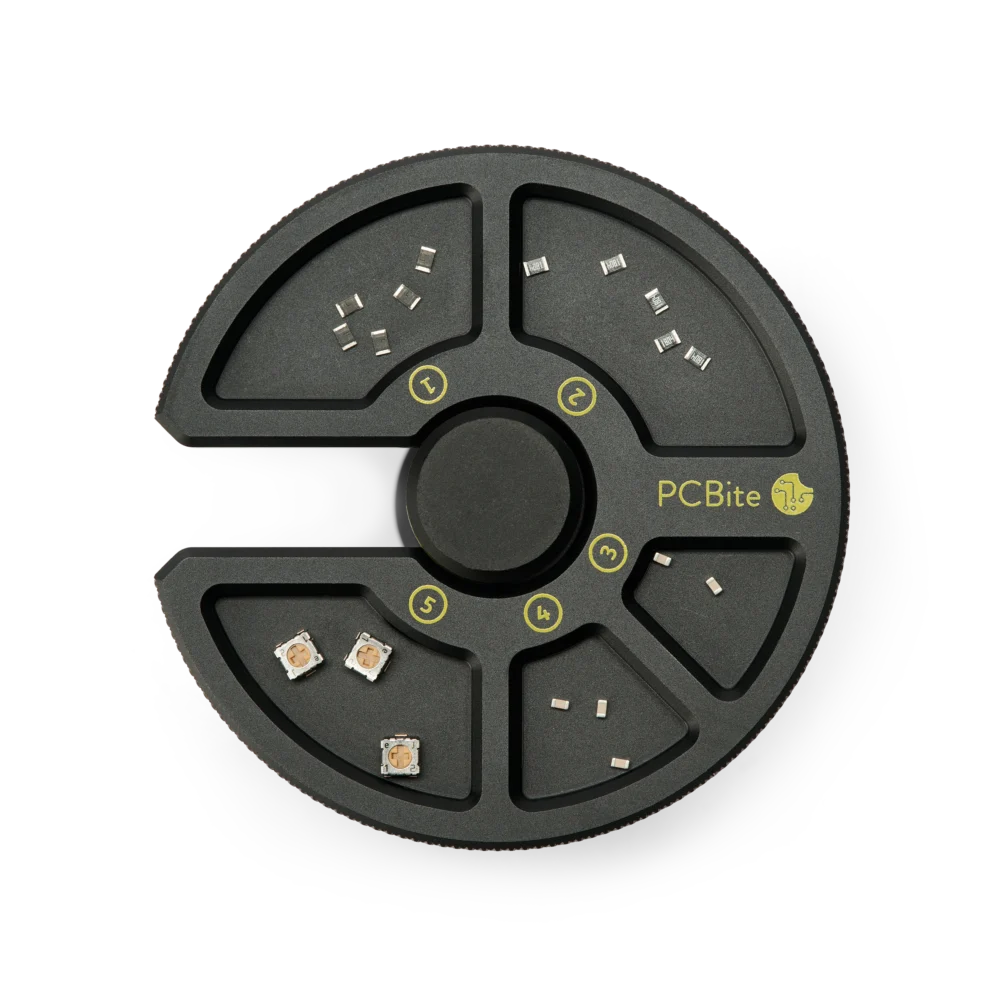

Two PCBite component trays for SMD parts, mounted on a low and a standard PCBite holder to keep the parts at board height.
Three wire stand showing two different size of solder and one empty spool
Magnifier with magnetic base, 3x magnification and AR coated lens for PCB soldering and inspection
PCBite SQ, SQG, SQ10 and SP10 probe heads with color-coded cable holders mounted on flexible arms.

From XS to XL, every size uses the same magnetic system, so all holders and accessories fit.
