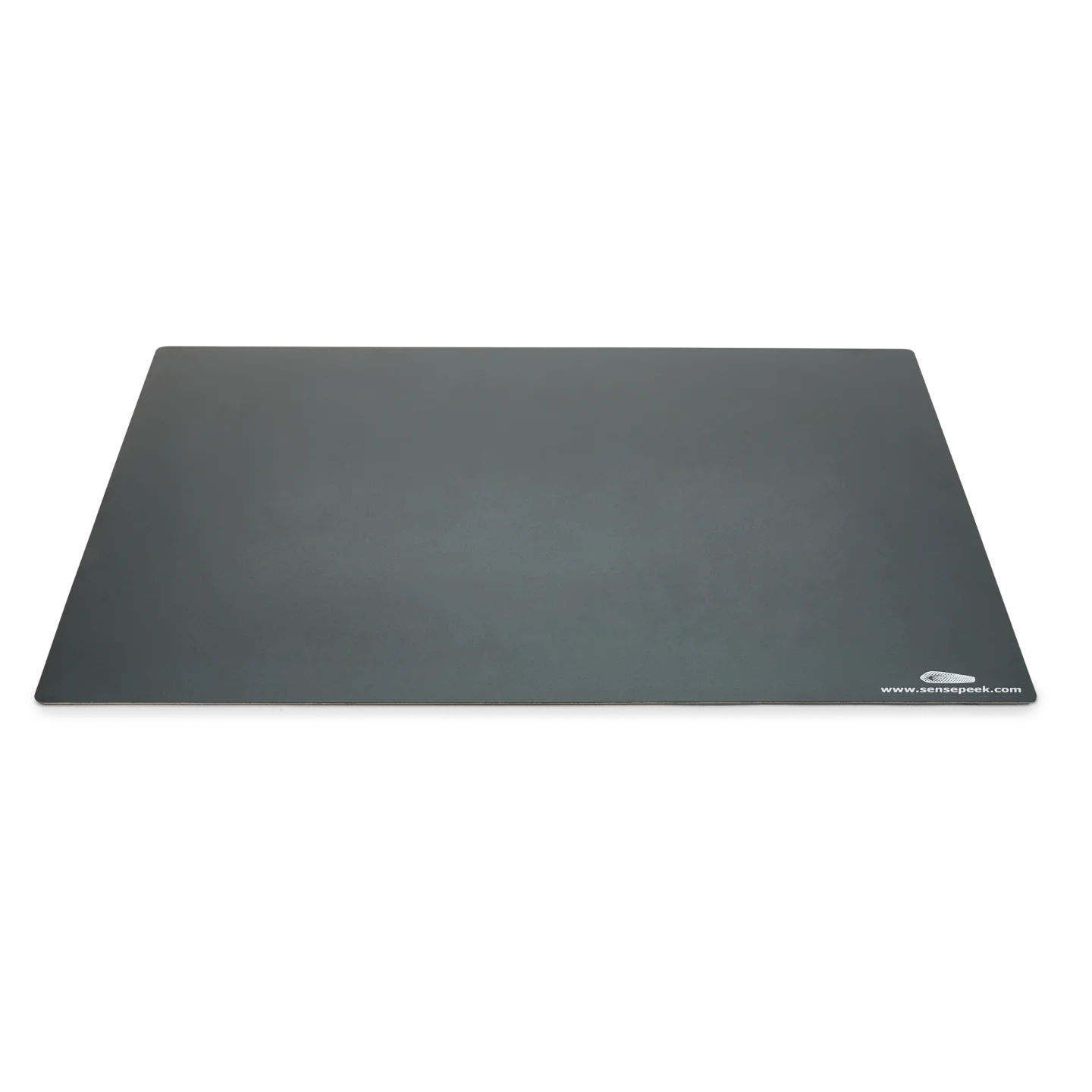

Extra large DIN A3 insulated work surface for hands-free PCB probing and testing (PCBITE-4021)

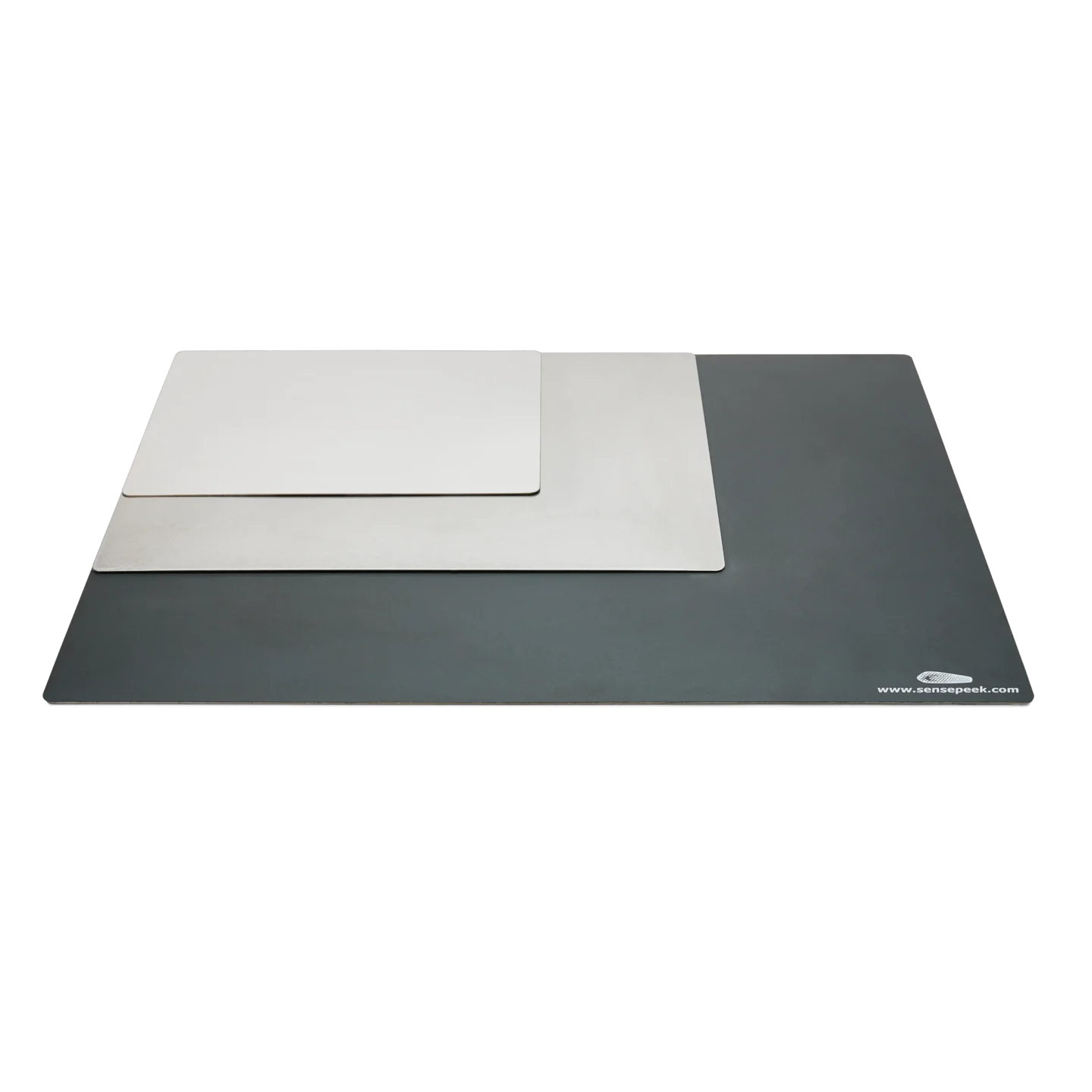

Size comparison of extra large A3 insulated baseplate with other sizes side by side (PCBITE-4021)

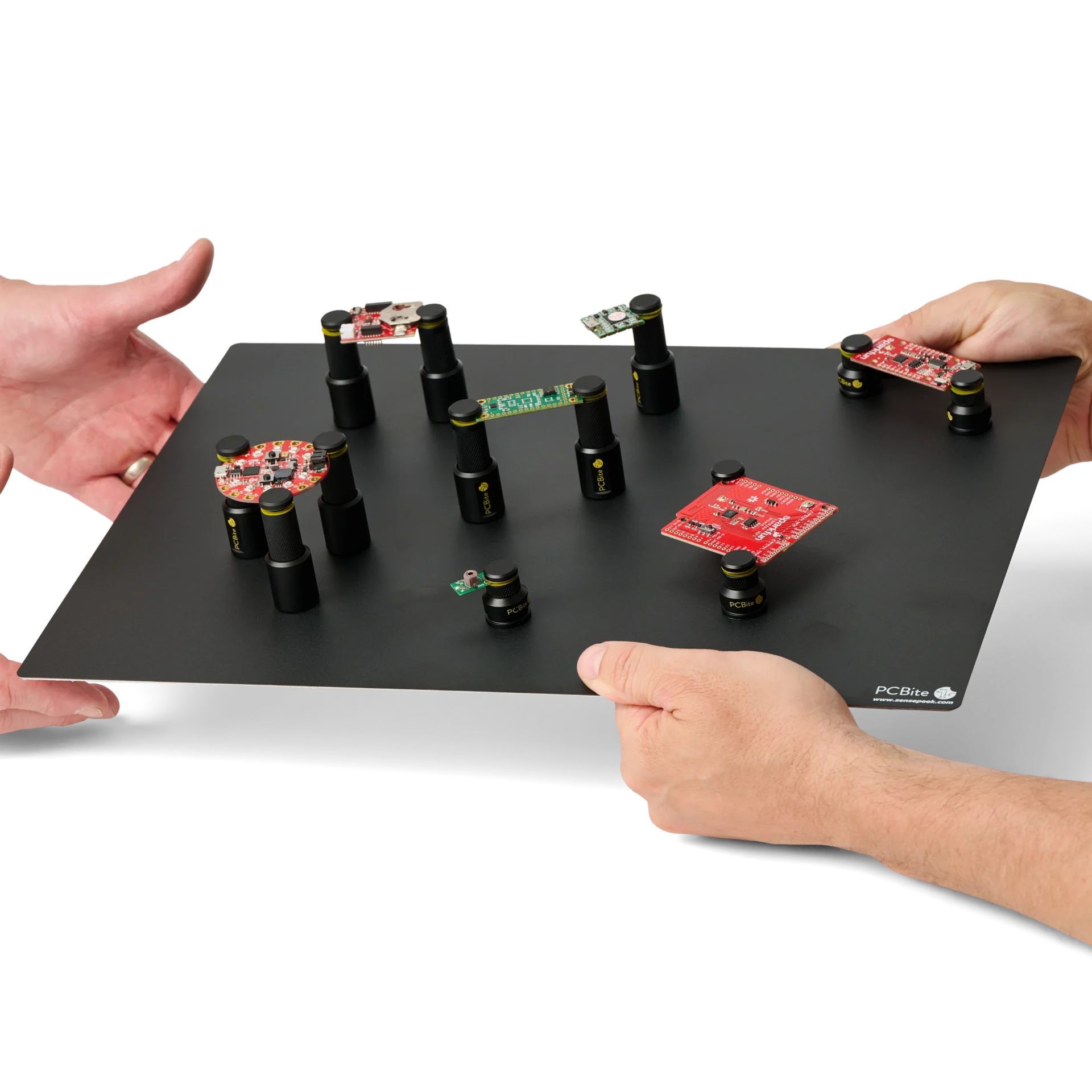

Thirteen mixed low profile and standard height PCB holders securing various boards on XL baseplate (PCBITE-4021)

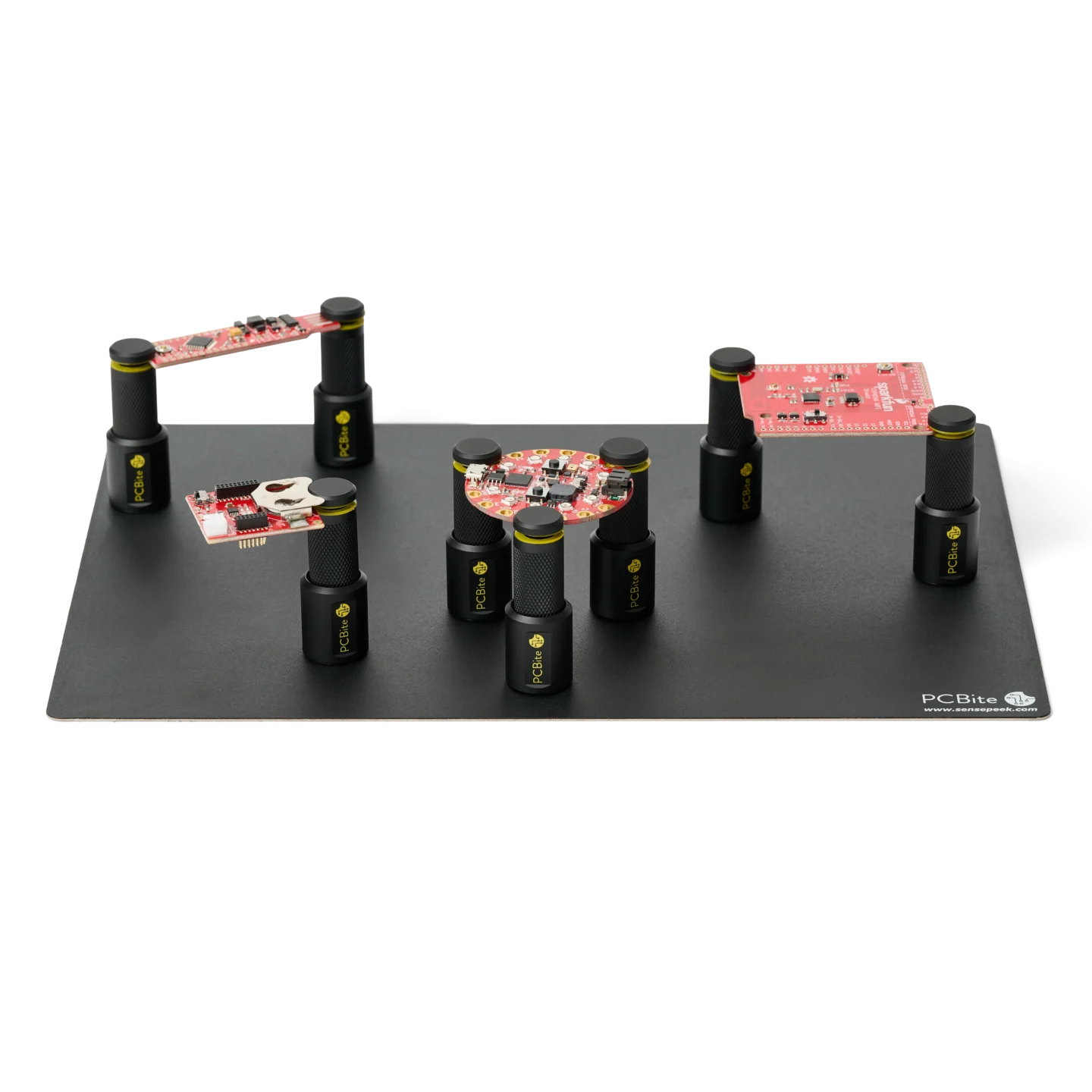

Eight magnetic spring-loaded PCB holders securing various sized boards on XL insulated baseplate (PCBITE-4021)

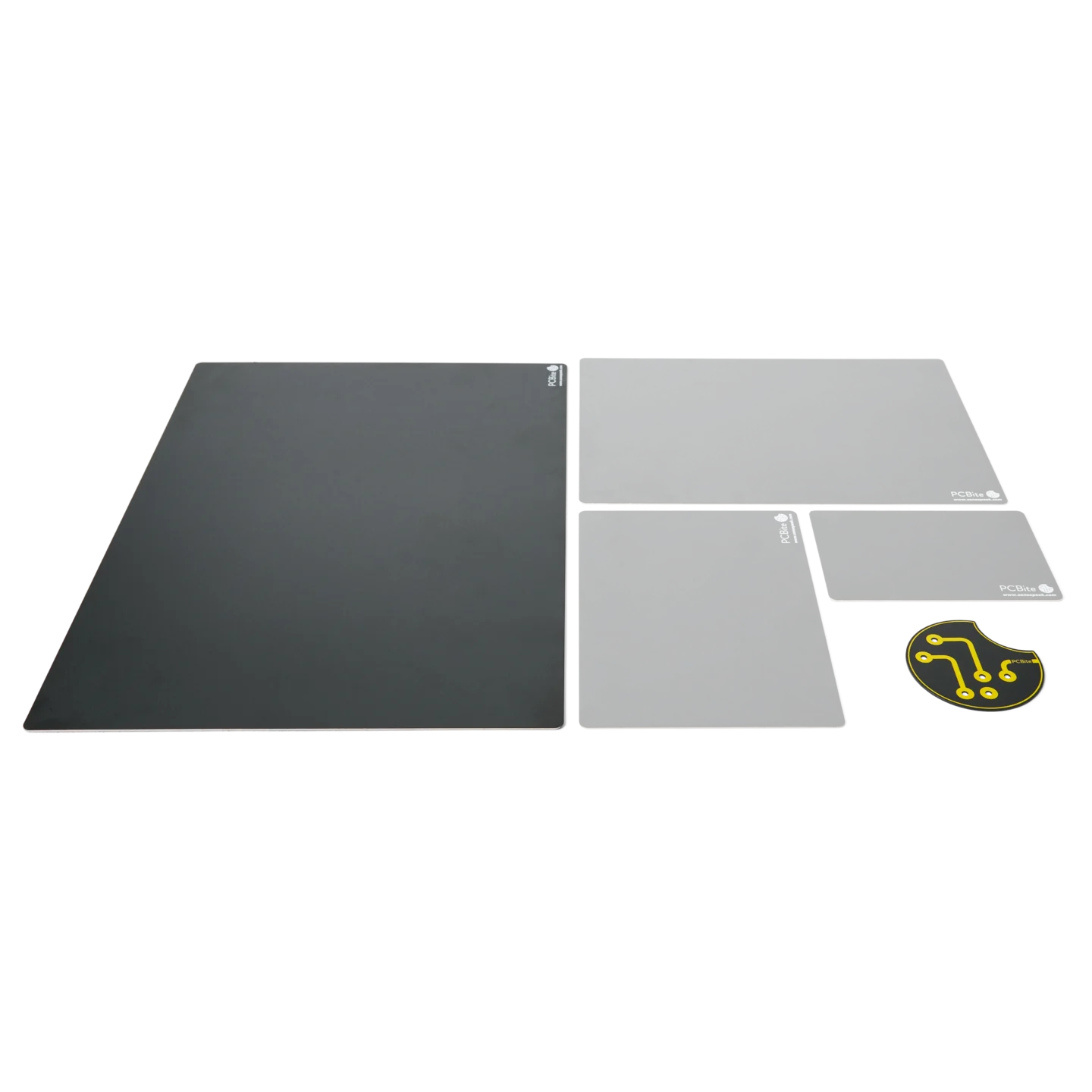

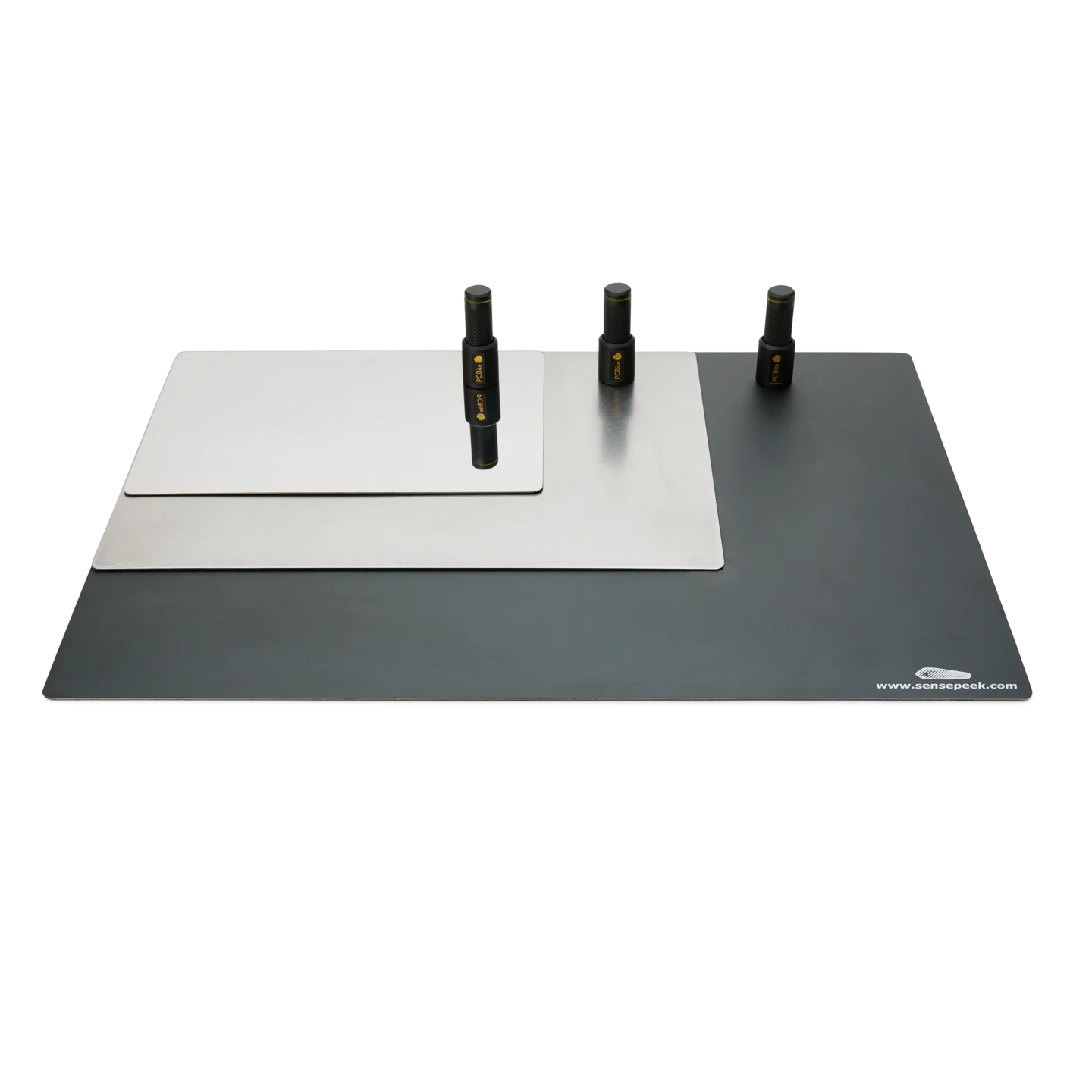

Size comparison of extra large A3 insulated baseplate with other sizes and PCB holders (PCBITE-4021)
Size comparison of the extra large A3 insulated baseplate compared with other sizes (PCBITE-4021)
PCBITE-4021

Insulated XL base plate

Insulated 297 × 420 mm (11.69 × 16.54 in, A3) base plate in solid stainless steel, the largest in the PCBite line. Pre-fitted insulation cover for powered PCBs.

Secure paymentGlobal deliveryPremium quality
In stockDelivery: 1-2 business days

59 € excl. VAT

Introduction

The largest PCBite base plate, for projects that outgrow the PCBite L kit. Room for large PCBs, multi-board setups and handsfree probing with more channels, on an insulated surface ready for powered work.

The XL base plate measures 297 × 420 mm (11.69 × 16.54 in, A3) and is the largest in the PCBite line. It gives room for the largest PCBs, several connected boards and handsfree probing setups that need more channels than the PCBite L kit can fit.

Because the plate is significantly larger than the other PCBite base plates, it is made thicker and heavier. The solid stainless steel stays rigid across the whole surface, with no flex when you press down on components, reposition holders or move the complete setup.

A pre-fitted polycarbonate insulation cover protects the entire working surface, so PCBs can rest safely on the plate when powered.

PCBite holders, handsfree probes, the magnifier and other accessories attach magnetically anywhere on the plate. Holders and probes are sold separately.



Compatible products

  • 1X Insulated XL base plate
Dimensions of Insulated XL base plate: Insulated Base Plate XL
Brand

PCBite
Manufacturer

Sensepeek AB
Article number

PCBITE-4021
GTIN

7350145660199
Country of origin

Sweden
HS code

90309000
HTS code

9030906800
ECCN

EAR99
Safety information

Not applicable
Package weight 1200 g
Package dimensions 475 × 325 × 20 mm
MATERIAL

Made to last

Every material and design detail is chosen to last for years in a demanding lab environment.

Base plate
Solid stainless steel
Insulation cover
Non-conductive polycarbonate (PC)
Construction
Extra thick, no flex
Surface
Matte black, anti-reflective
MATERIAL
Base plate
Solid stainless steel
Insulation cover
Non-conductive polycarbonate (PC)
Construction
Extra thick, no flex
Surface
Matte black, anti-reflective

Made to last

Every material and design detail is chosen to last for years in a demanding lab environment.

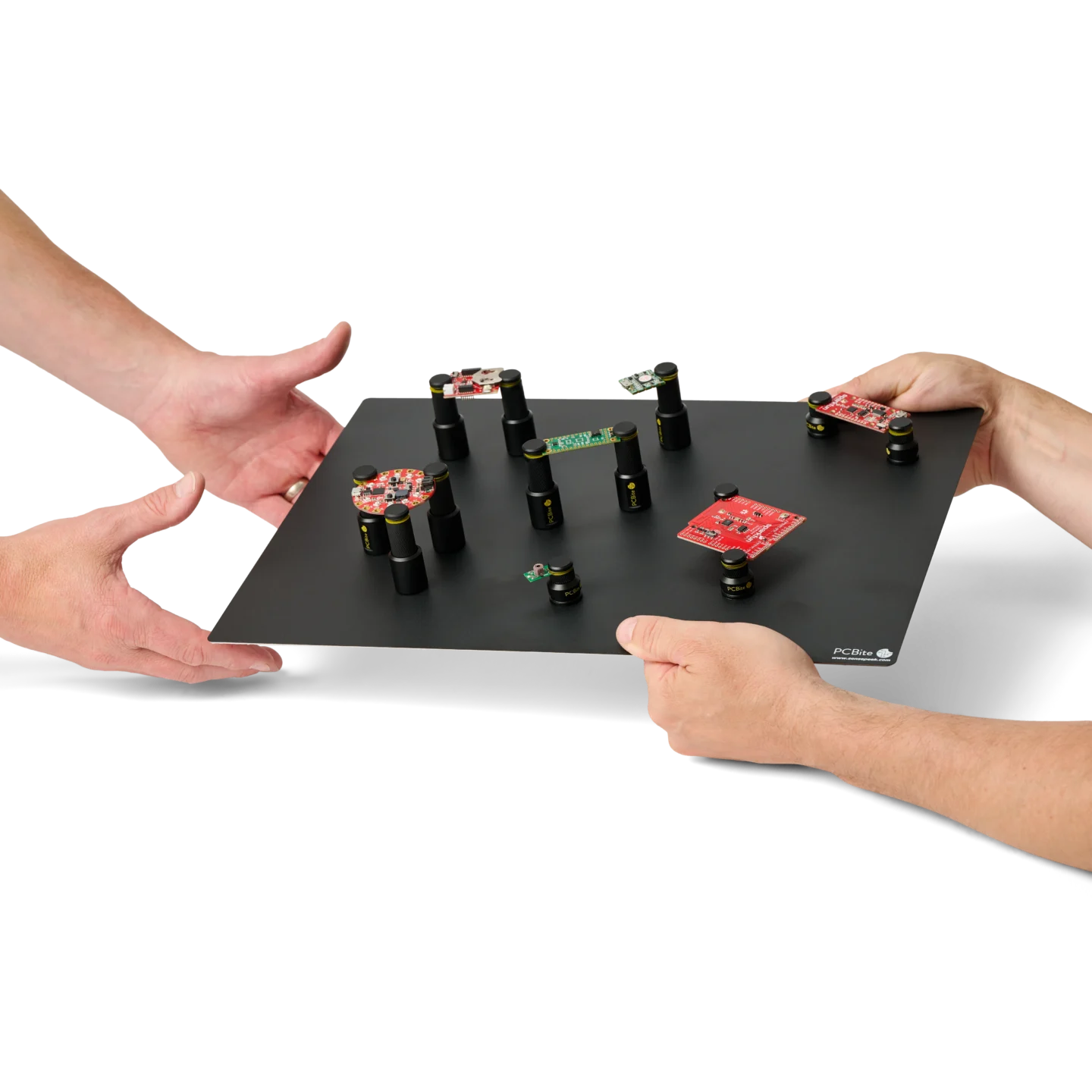

Thirteen mixed low profile and standard height PCB holders securing various boards on XL baseplate (PCBITE-4021)
XL WORKSPACE

Room for the whole project.

Mount several connected boards side by side, add every probe the measurement needs and still have space for a component tray or magnifier. Everything stays on one plate, so the whole setup moves as one.

Powered PCB held by two PCBite holders with yellow insulation washers, probed with red and black probes in front of a bench supply.
DESIGNED FOR POWER

Power up your PCB safely.

The pre-fitted polycarbonate cover gives the steel base plate a non-conductive work surface. Power up a board, probe it and leave it running without the risk of a short against the metal.

PCB in four PCBite holders under an inspection microscope, on a matte insulated surface that keeps glare from the lamp low.
MICROSCOPE WORK

Less reflection. More detail.

The matte surface reduces reflections from microscope lighting, so components and fine details stand out with clear contrast.

HEAT RESISTANT

Handles the heat of the lab.

The polycarbonate cover is rated from −40 to +120 °C (−40 to +248 °F). Mounted on the base plate, it handles even higher temperatures, because the steel plate works as a heat sink and draws the heat away. Solder and use a heat gun with confidence.

ECOSYSTEM

Built to work together.

PCBite base plates from XS to XL, each with PCB holders on it, plus a magnifier, a component tray and a solder wire stand.
Standard and low profile PCB holders holding PCBs for height comparison
Two PCBite component trays for SMD parts, mounted on a low and a standard PCBite holder to keep the parts at board height.
Three wire stand showing two different size of solder and one empty spool
Magnifier with magnetic base, 3x magnification and AR coated lens for PCB soldering and inspection
PCBite SQ, SQG, SQ10 and SP10 probe heads with color-coded cable holders mounted on flexible arms.

From XS to XL, every size uses the same magnetic system, so all holders and accessories fit.
