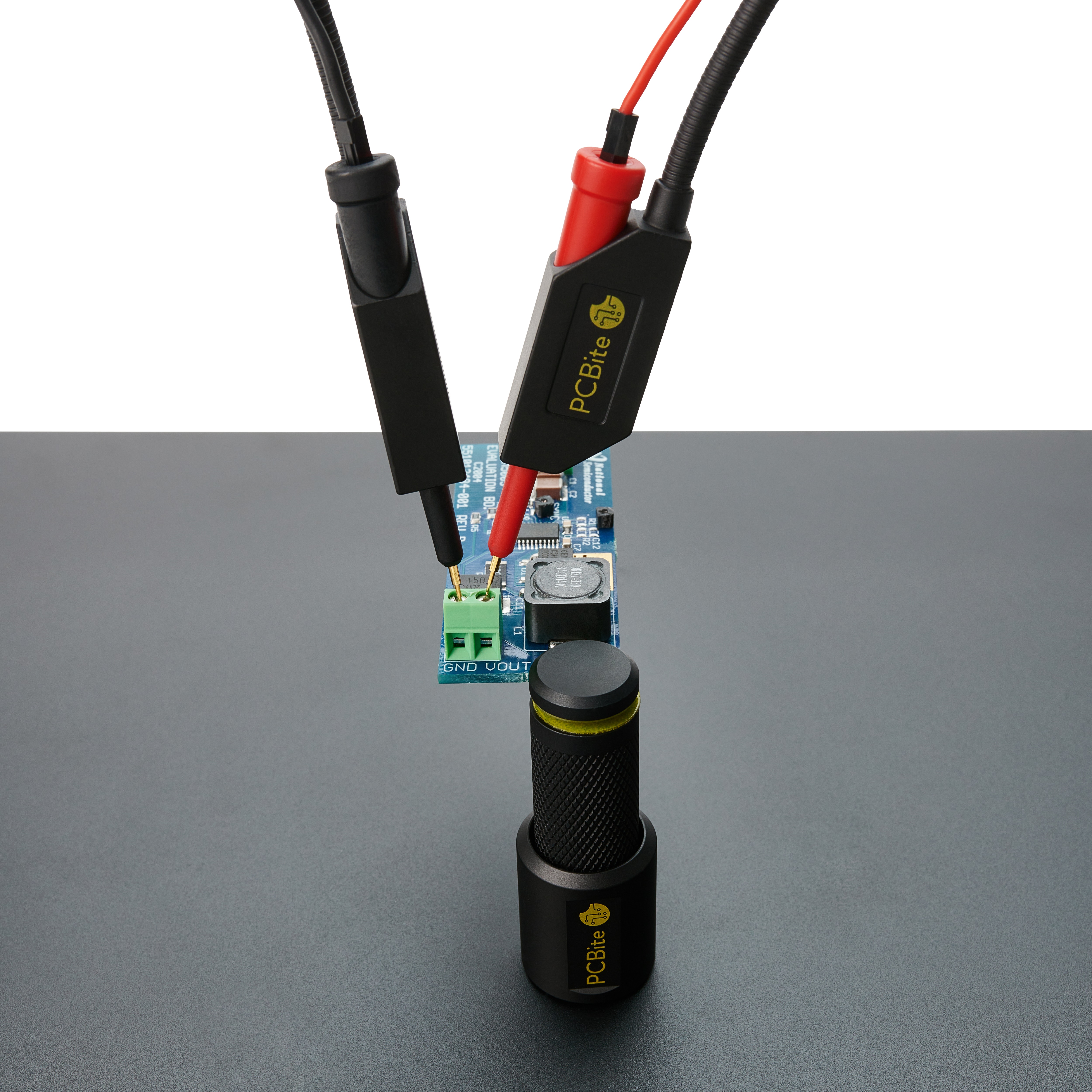

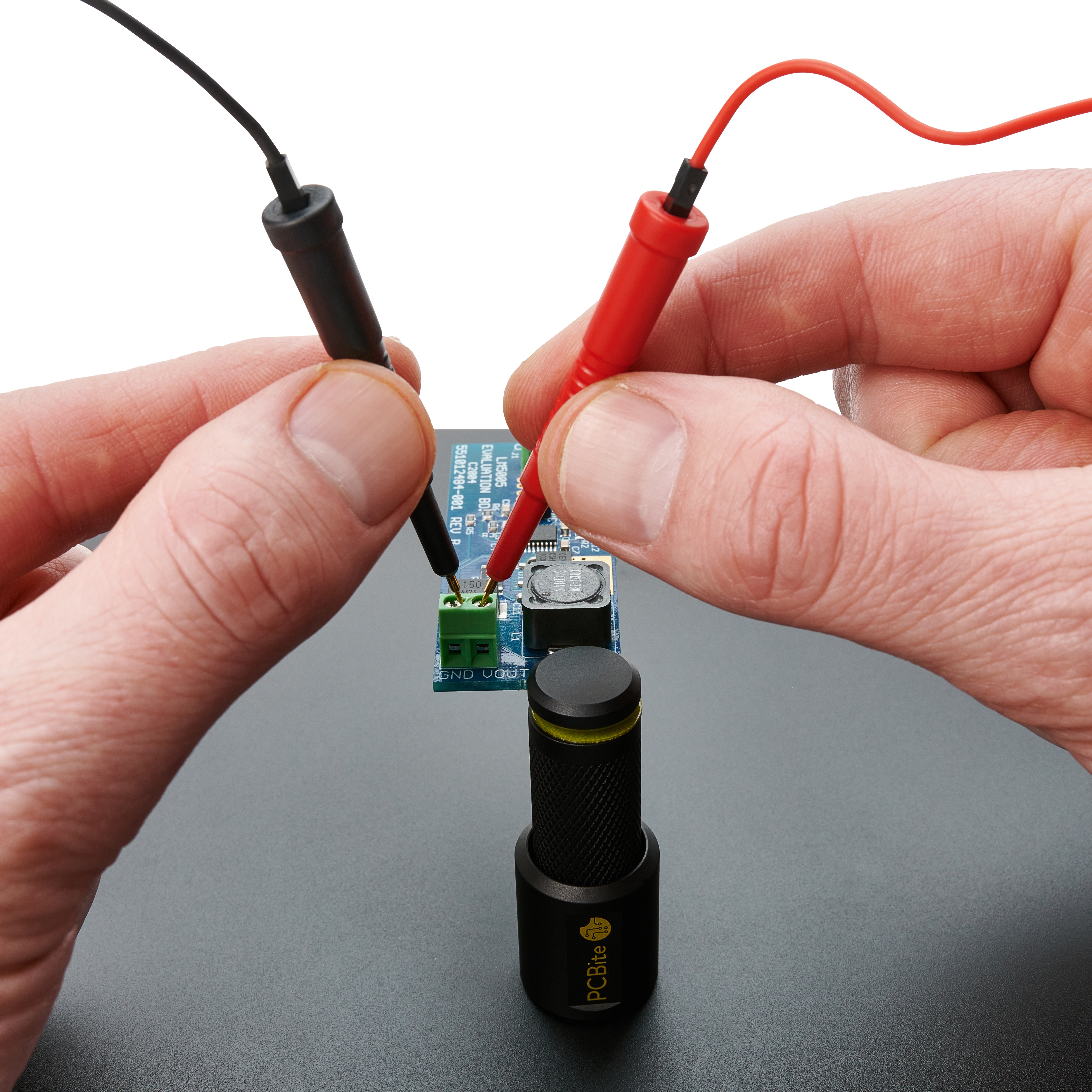

Hands holding two red/black SQ10 probes with spring-loaded tips on circuit board (PCBITE-6011)
Handsfree measuring with two red/black SQ10 probes with spring-loaded tips on circuit board (PCBITE-6011)
Handsfree SQ10 probe in action and a standard multimeter probe unused (PCBITE-6011)
Comparing a handheld SQ10 probe with a traditional larger multimeter probe (PCBITE-6011)
Hands holding and comparing a handheld SQ10 probe with a traditional larger multimeter probe (PCBITE-6011)

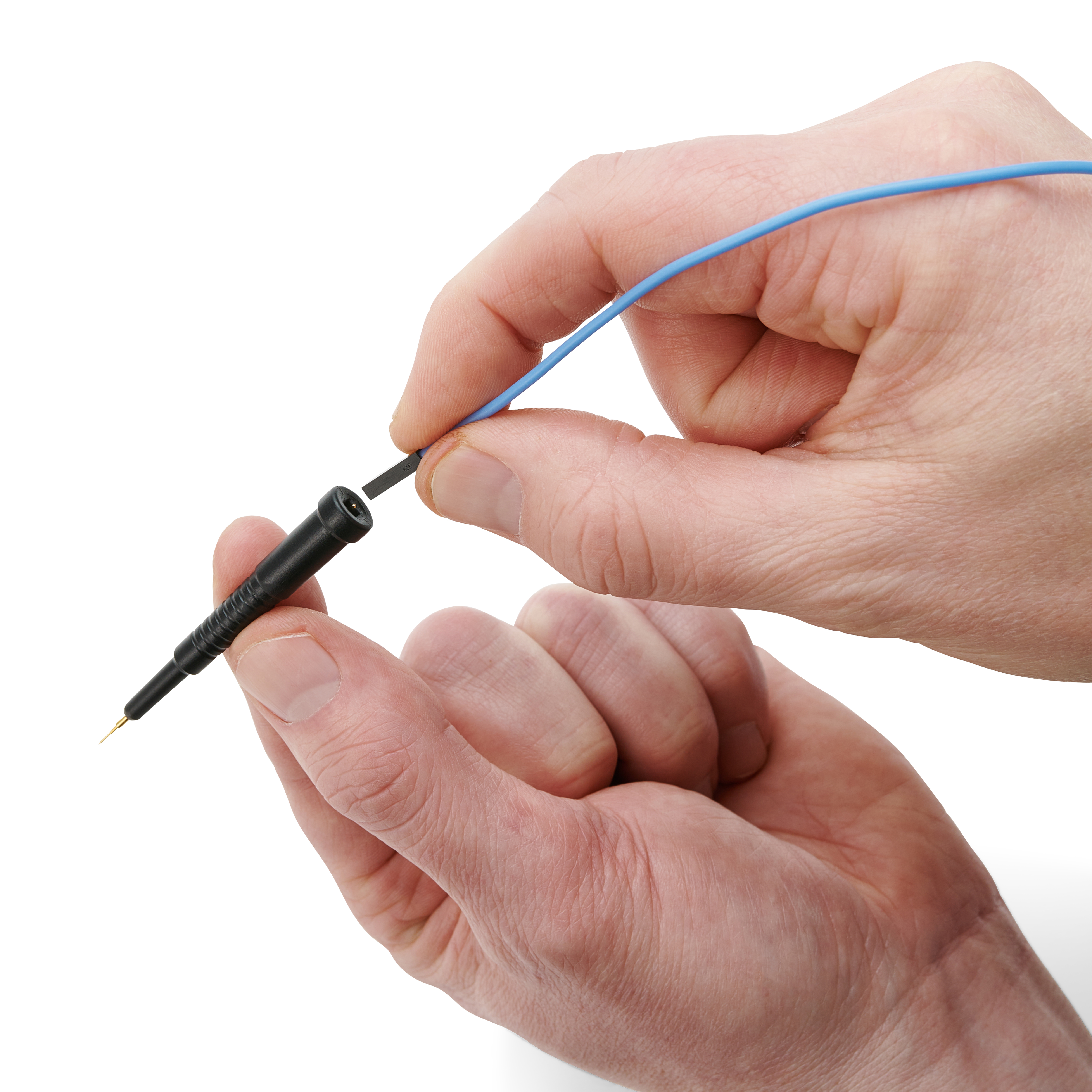

Hand showing how to connect a dupont test wire to the SQ10 probe (PCBITE-6011)

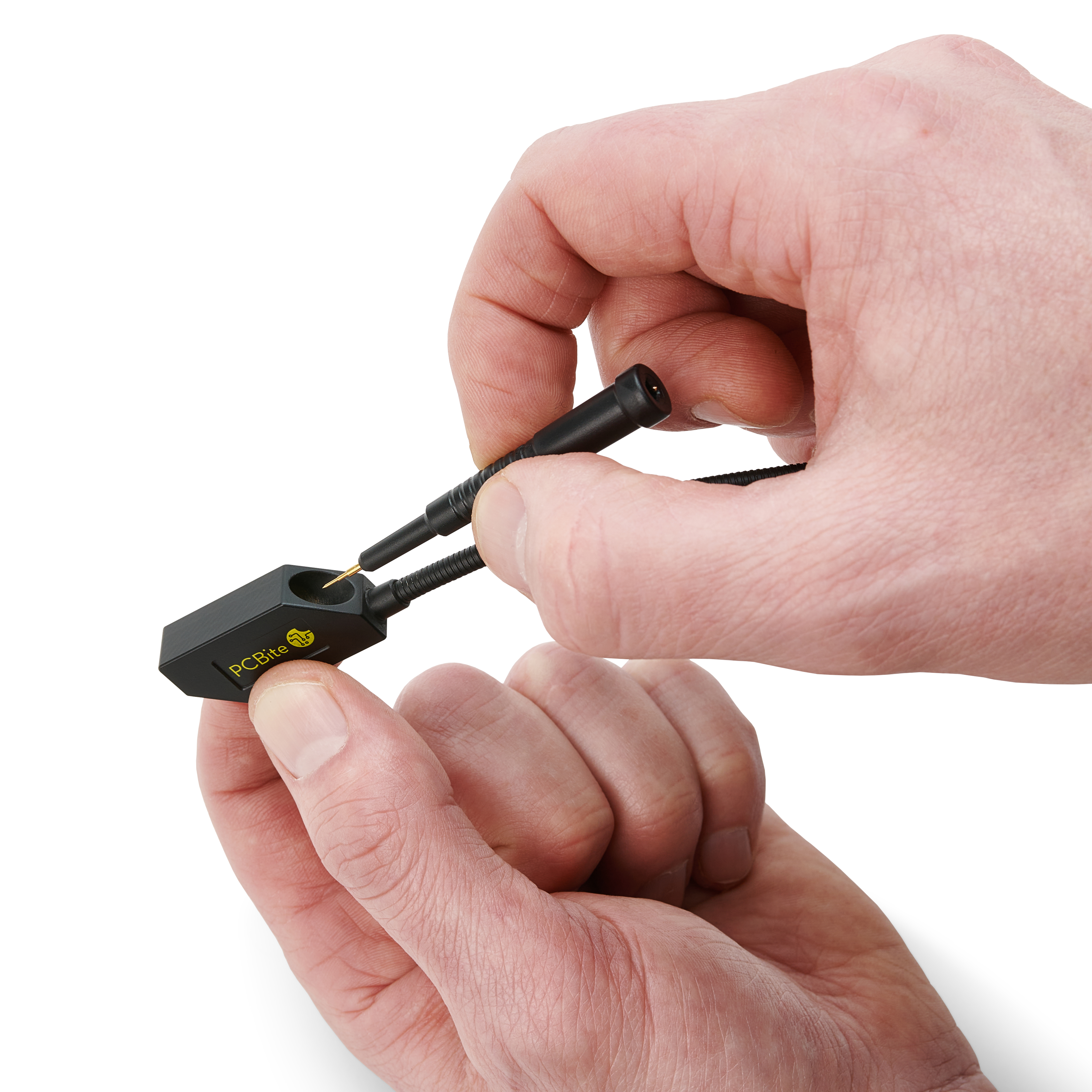

Hand showing how to mount the SQ10 probe in the SQ probe holder for handsfree measurements (PCBITE-6011)

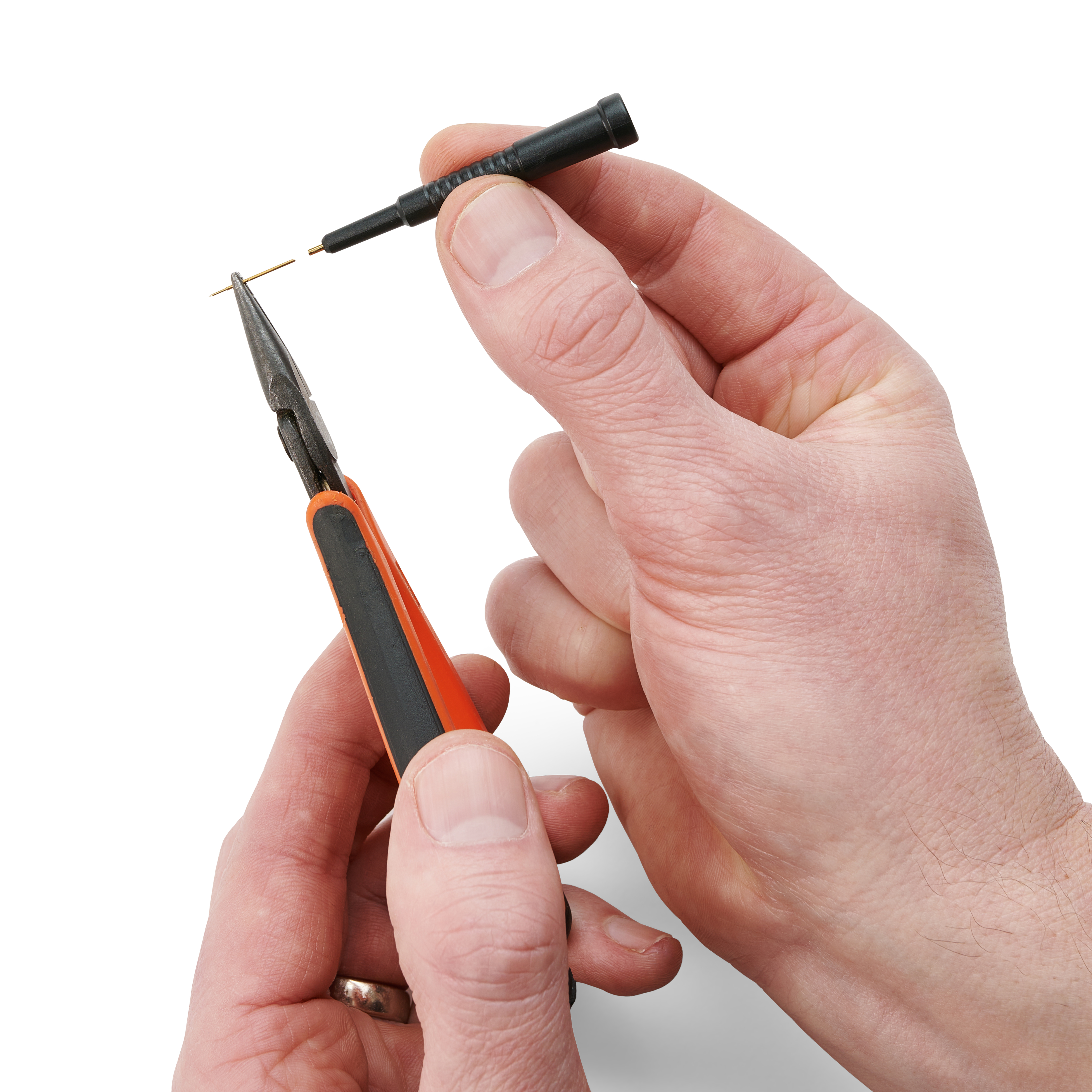

Hands showing how to change the replaceable spring-loaded test needle of the SQ10 probe (PCBITE-6011)

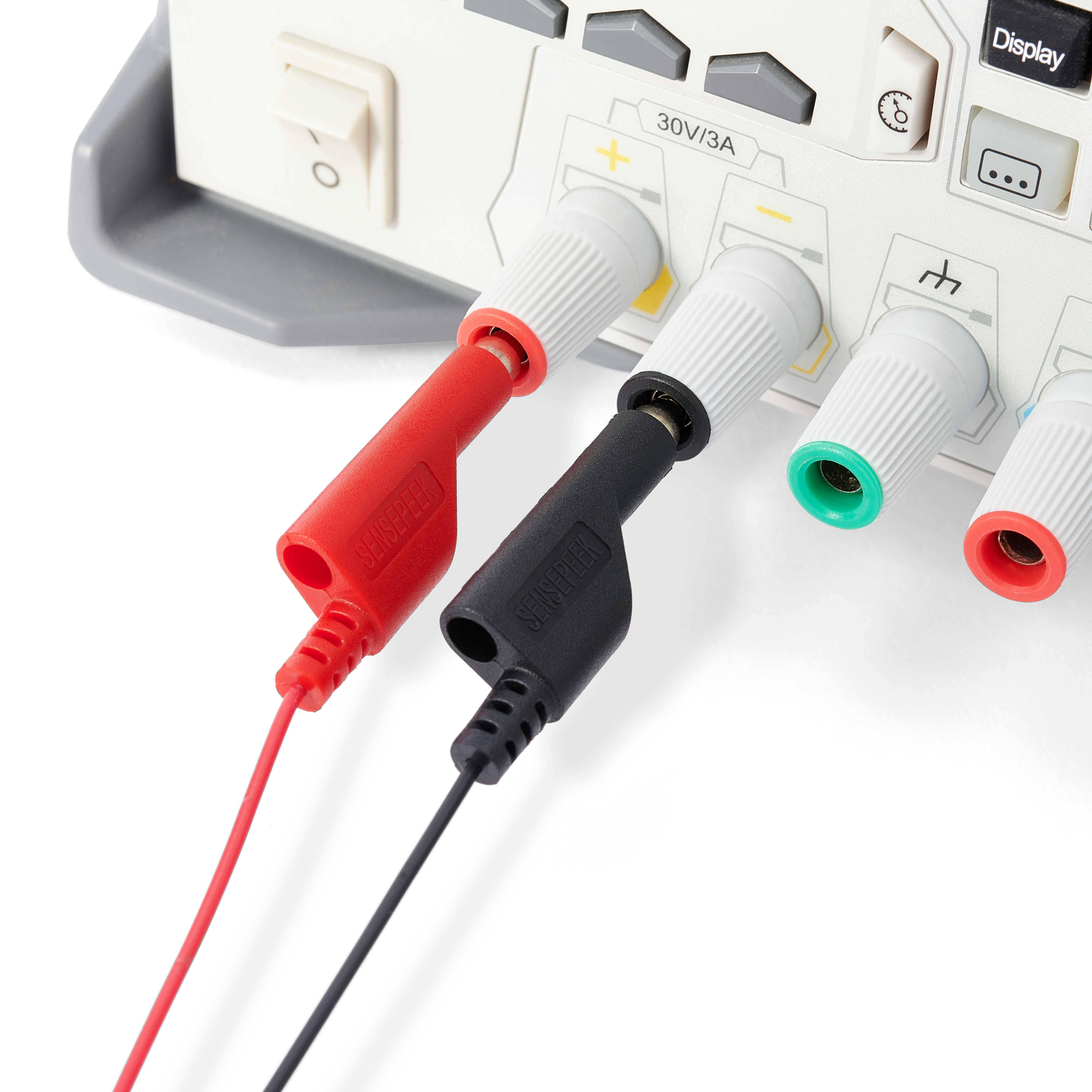

SQ10, Red and black banana plug test leads connected to power supply (PCBITE-6011)

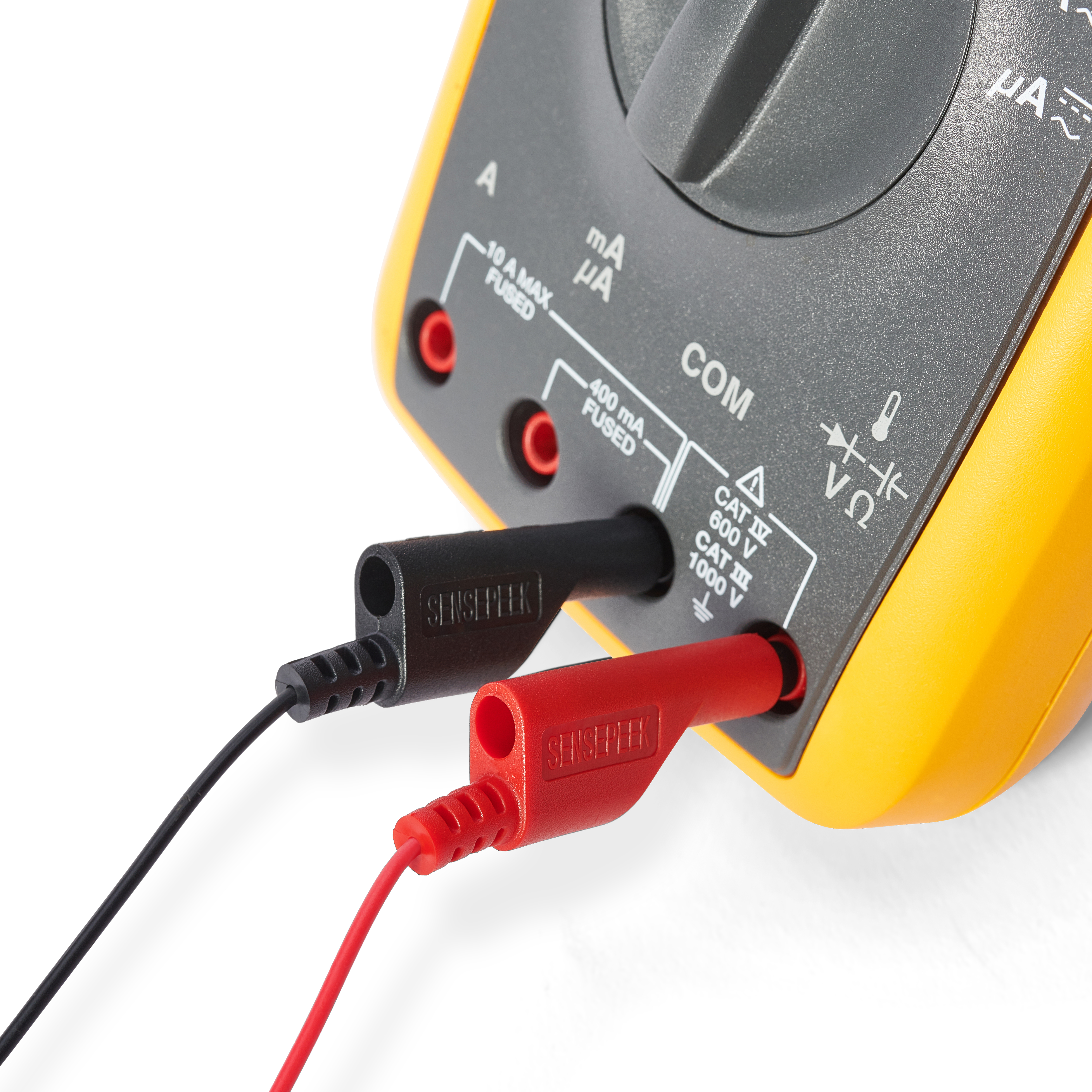

SQ10, Red and black banana plug test leads connected to multimeter probing terminals (PCBITE-6011)

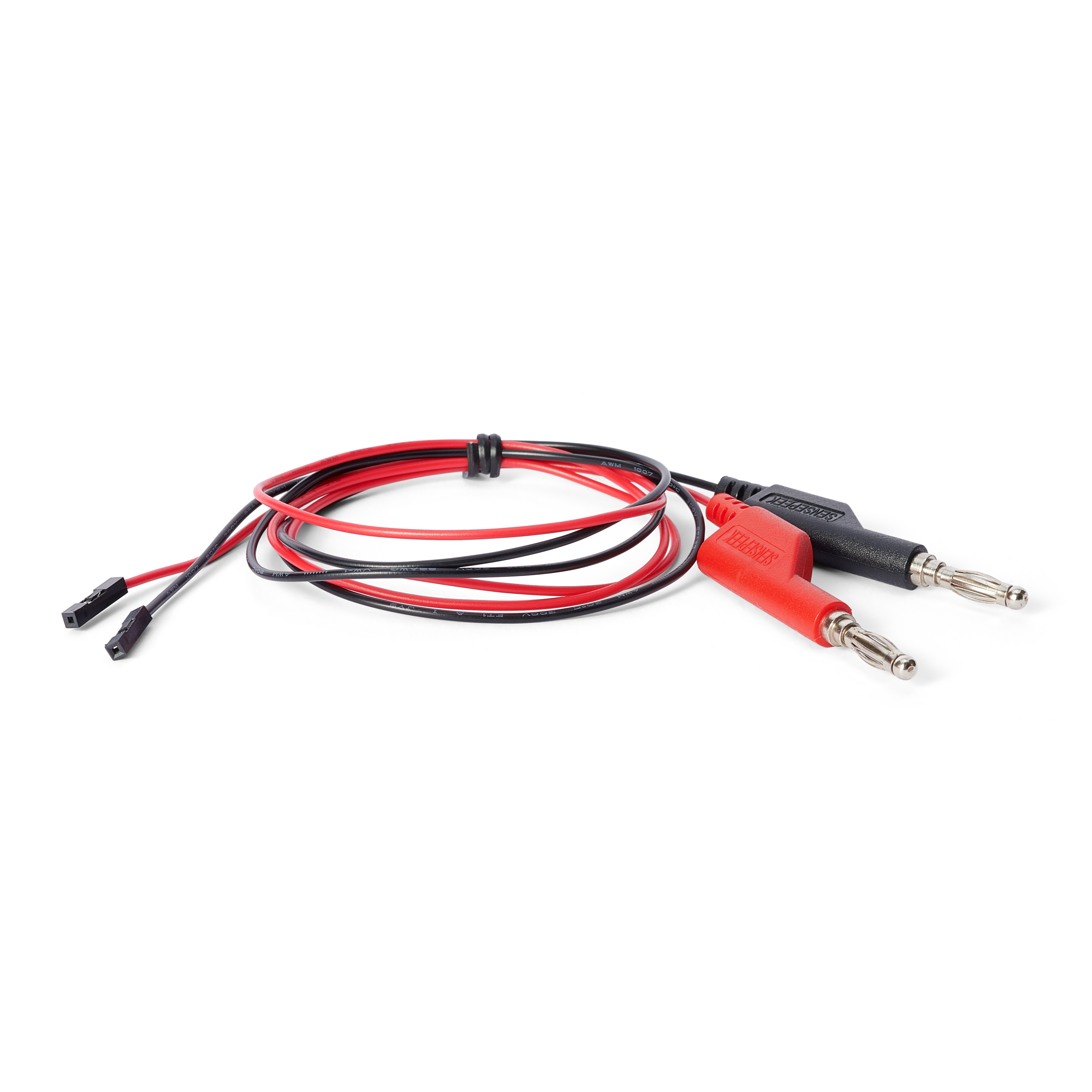

Red and black banana plug leads with dupont connectors for SQ10 probe connection (PCBITE-6011)

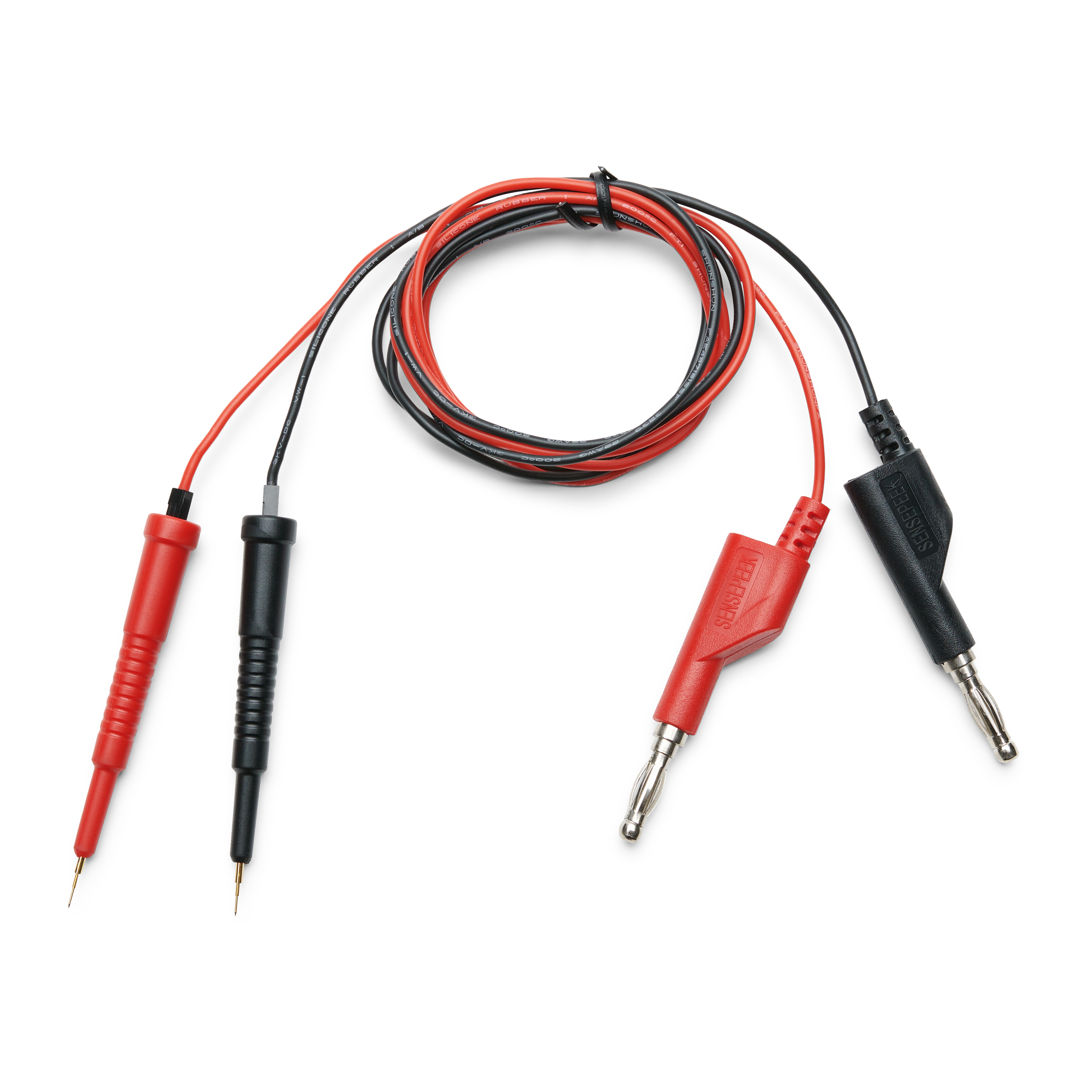

Two SQ10 probe heads connected to red and black banana plug leads (PCBITE-6011)

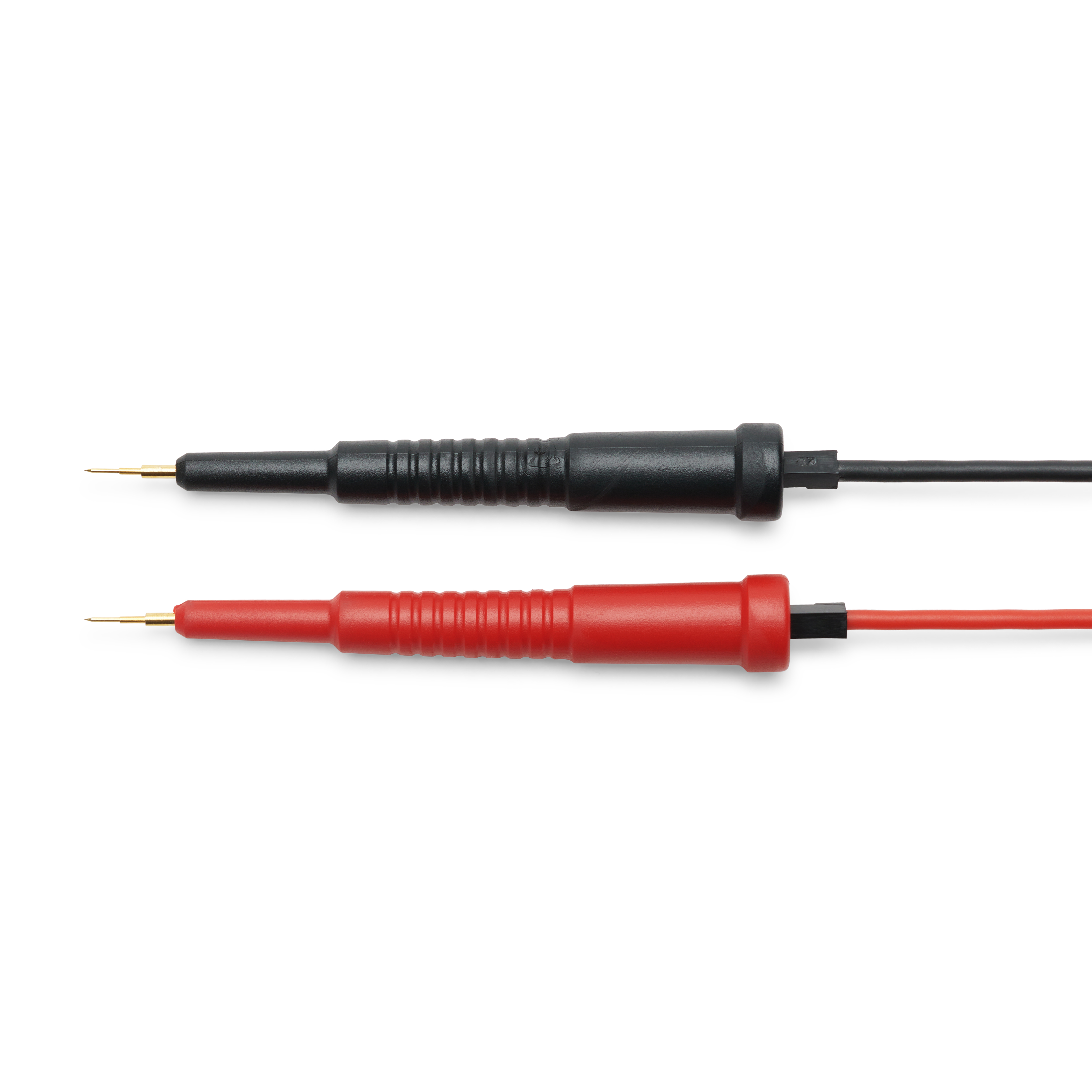

Red and black SQ10 probes with matching test wires connected (PCBITE-6011)
Red and black SQ10 probes mounted in the SQ probe holders with test wire connected (PCBITE-6011)

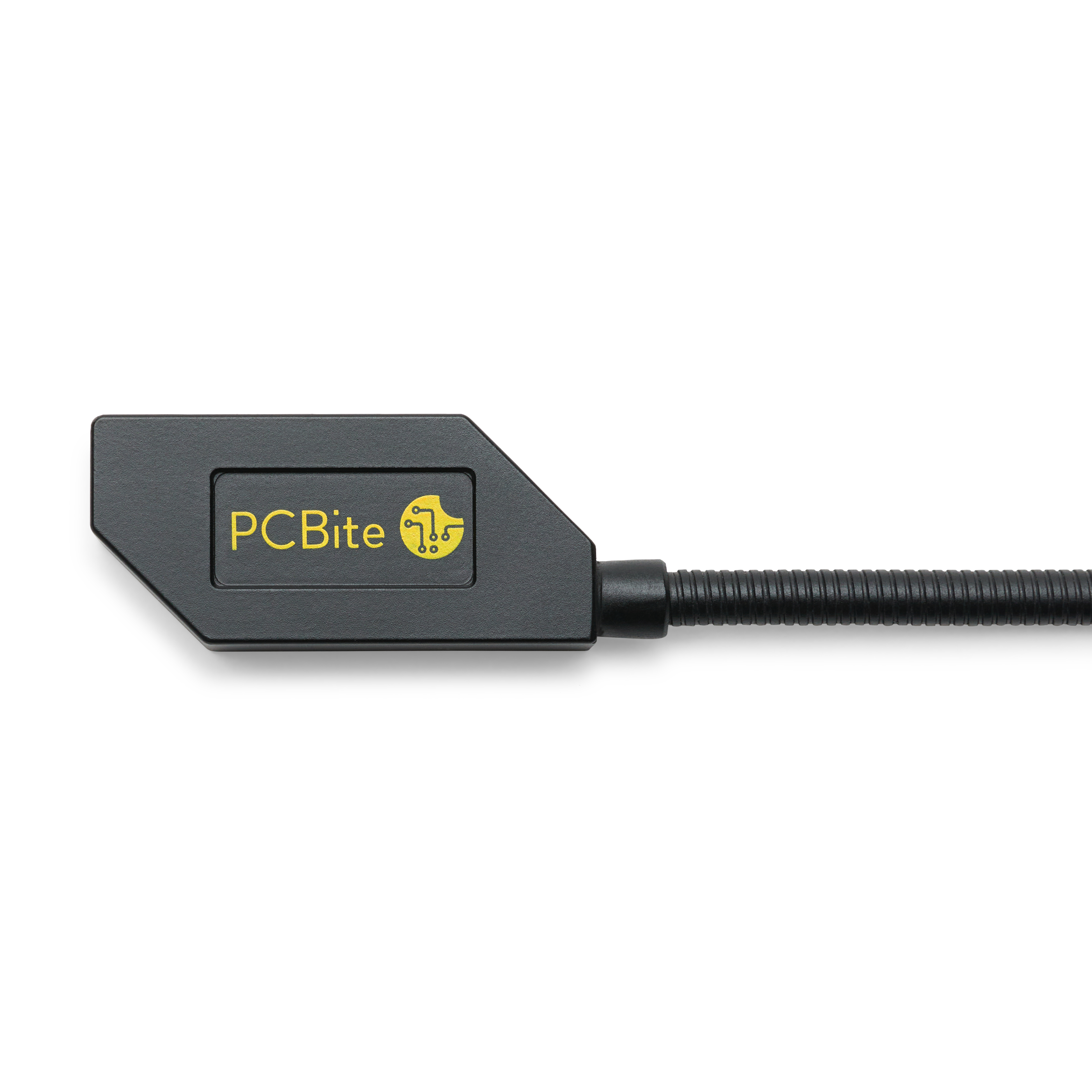

SQ10 Probe holder with magnetic base for handsfree PCB testing, fits any SQ series probe (PCBITE-6011)

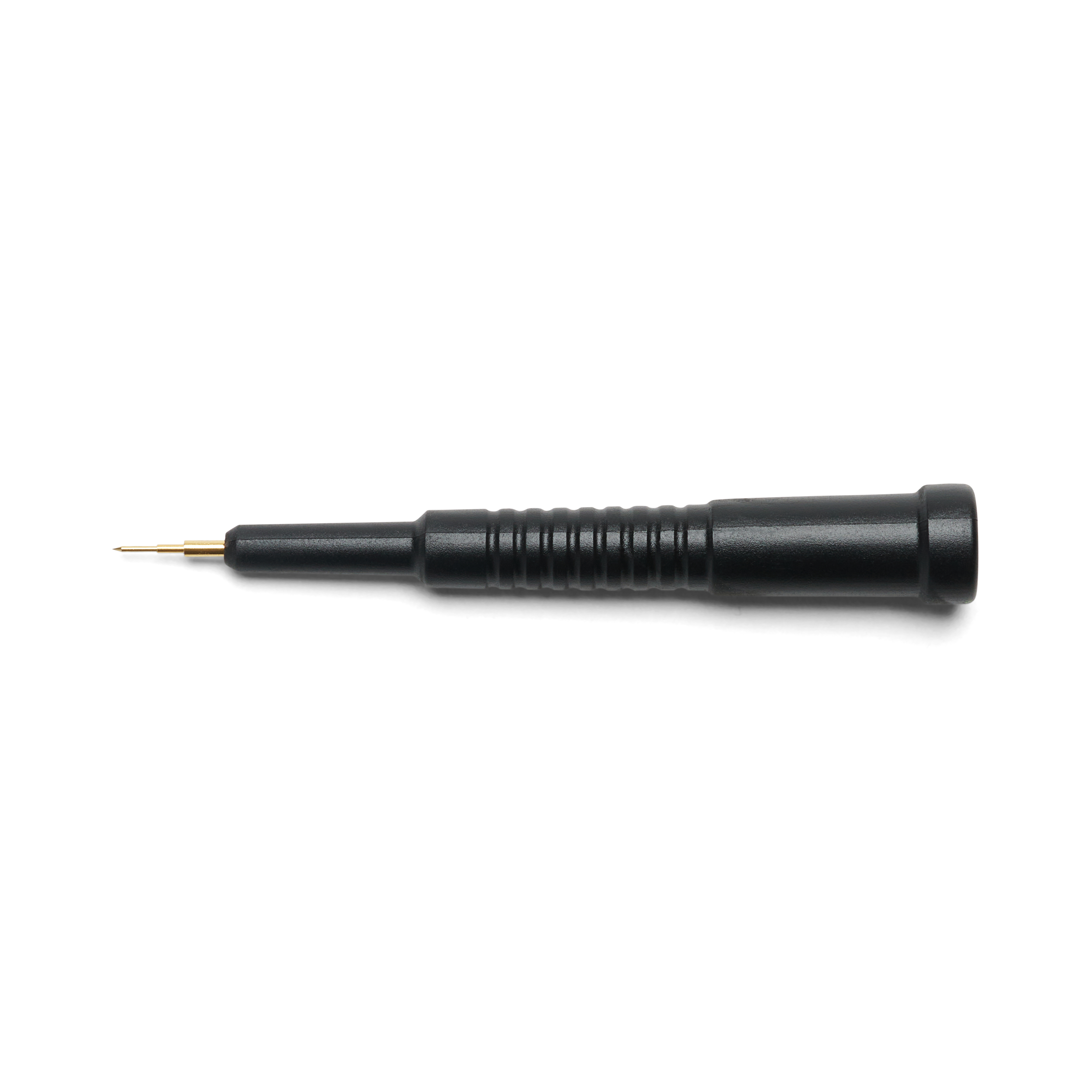

Black SQ10 probe head showing the fine-pitch spring-loaded test needle that can be handheld (PCBITE-6011)
Red SQ10 probe head showing the fine-pitch spring-loaded test needle that can be handheld (PCBITE-6011)

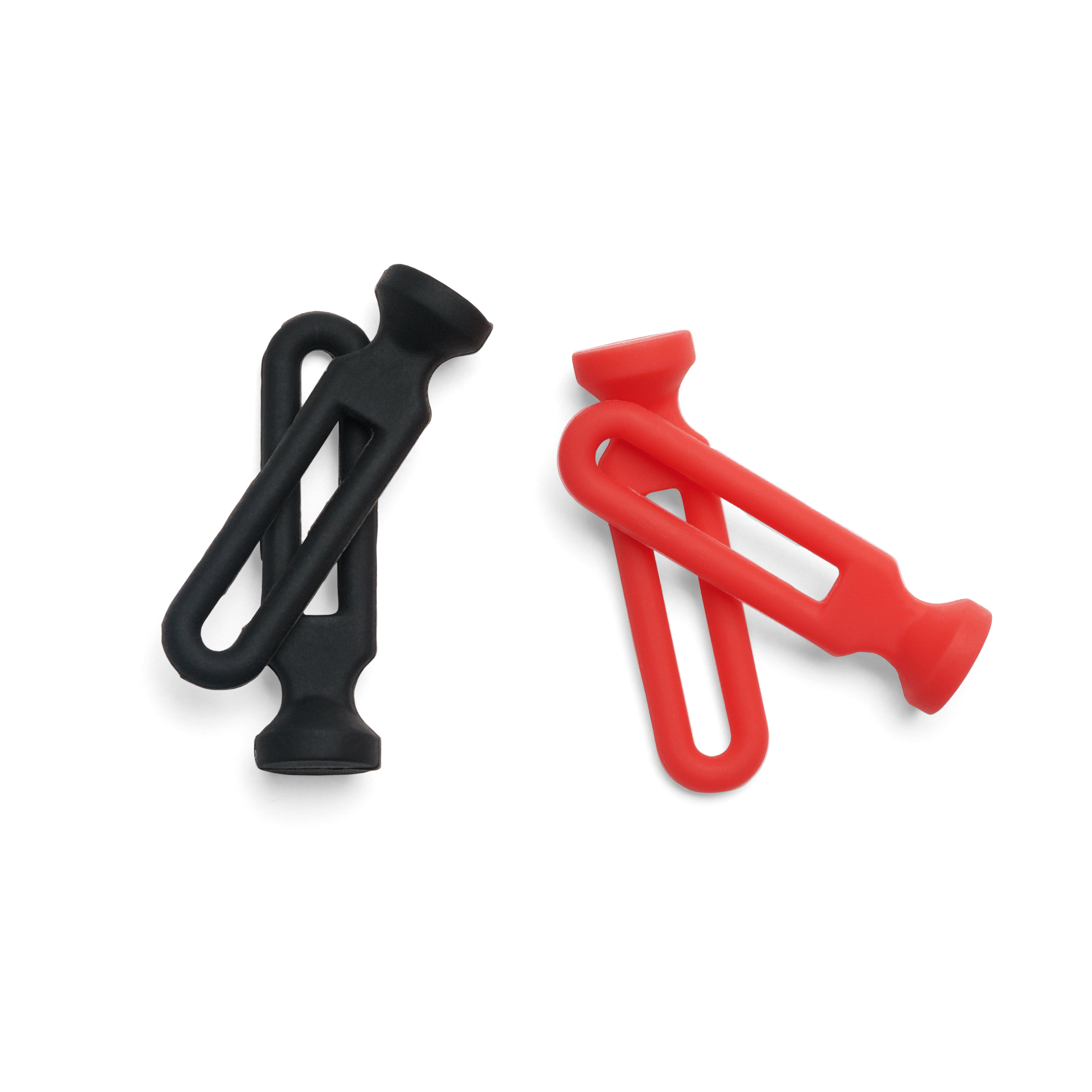

SQ10, Cable holders in red and black matching banana plug leads (PCBITE-6011)
PCBITE-6011

2x SQ10 probes for DMM (red/black)

Two SQ10 handsfree probes with red and black banana test leads add multimeter and power supply connections to your existing PCBite setup. Insulated design for safer probing on powered PCBs.

Secure paymentGlobal deliveryPremium quality
In stockDelivery: 1-2 business days

45 € excl. VAT

Accessories

Five yellow probe tip protection caps, protecting the spring-loaded needle tips when stored (PCBITE-7007)
PCBITE-7007
Probe tip protection caps
7 €
Out of stockExpected back in stock 2026-11-30
Add to cart
Cable holders in eight colors for organizing test cables away from PCB under test (PCBITE-7006)
PCBITE-7006
Cable holders
9 €
In stockDelivery: 1-2 business days
Color-coded wire harness connecting PCBite probes directly to Saleae logic analyzers (PCBITE-4008)
PCBITE-4008
Wire Harness - 2x4 Saleae
10 €
In stockDelivery: 1-2 business days
Ground cable accessories, test hooks, alligator clips and ground clips for secure connections (PCBITE-7004)
PCBITE-7004
Ground cable accessories
18 €
In stockDelivery: 1-2 business days

Introduction

These two handsfree SQ10 probes, one red and one black, expand your existing PCBite setup for powering, measuring and loading the circuit. Use them to supply the PCB from a bench power supply, monitor voltage or current with a multimeter, or connect a passive or active load. Color coding provides clear polarity identification from the probe to the instrument, and the insulated body makes work on powered PCBs safer.

Place the spring-loaded needle on any test point in the signal path and release. The flexible arm holds the needle in position, while the N52 neodymium magnet in the base keeps the probe locked to the base plate. No soldered wires and no fixtures. Detach a probe for handheld use. The insulated body makes work on powered PCBs safer.

A low center of gravity keeps the probe stable and helps maintain consistent contact throughout the measurement.

The probes support DC to 10 MHz measurements and can also be used with I2C, I3C, UART, CAN bus and other digital signals when suitable connection leads are used.

A PCBite base plate and holders are required for handsfree use.

Compatible accessories

Set of two handsfree SQ10 probes with spring-loaded tips plus banana cables and color-coded cable holders (PCBITE-6011)
  • 1X SQ10 probe with spring tipped test needle (black)
  • 1X SQ10 probe with spring tipped test needle (red)
  • 2X SQ probe holder for handsfree measurement
  • 2X Banana to Dupont test lead (red, black)
  • 2X Extra test needle (SP/SQ)
  • 1X Set of cable holders (red, black)
User guide SQ10 Probes
Dimensions of 2x SQ10 probes for DMM (red/black): SQ10 Probe
Brand

PCBite
Manufacturer

Sensepeek AB
Article number

PCBITE-6011
GTIN

7350145660229
Country of origin

Sweden
HS code

90309000
HTS code

9030906800
ECCN

EAR99
Safety information

See downloads
Package weight 190 g
Package dimensions 145 × 220 × 20 mm
MATERIAL

Made to last

Every material and design detail is chosen to last for years in a demanding lab environment.

Flexible arm
Flexible, adaptable, mechanically stable metal design
Test needle
Exchangeable, fine-pitch spring-loaded
Magnet
Strong N52 neodymium
Probe body
Insulated design
MATERIAL
Flexible arm
Flexible, adaptable, mechanically stable metal design
Test needle
Exchangeable, fine-pitch spring-loaded
Magnet
Strong N52 neodymium
Probe body
Insulated design

Made to last

Every material and design detail is chosen to last for years in a demanding lab environment.

SQ10, Red and black banana plug test leads connected to multimeter probing terminals (PCBITE-6012)
DMM READY

Color coded from probe to instrument.

Red for positive, black for negative. The included banana to Dupont test leads plug into the probe at one end and into a multimeter or bench power supply at the other, so the polarity is clear all the way from the test point to the instrument. No adapters and no alligator clips.

Red and black SQ10 probes mounted in the SQ probe holders with test wire connected (PCBITE-6011)
INSULATED

SQ10 probes, insulated design.

The SQ10 is a 10 MHz handsfree probe for I2C, I3C, UART, CAN bus and similar signals, with an insulated body that makes powered work safer. Detach it from the arm for handheld use, then mount it back to work handsfree.

NEEDLES

Every needle, spring-loaded.

The test needle is spring-loaded, providing a defined, consistent contact force on the pad. This keeps the connection stable throughout the measurement, even if the setup is bumped or exposed to vibration. When the tip wears, pull it out and insert a new one. Two spare needles are included.

STABILITY

A low center of gravity.

A low center of gravity keeps the probe stable and helps maintain consistent contact throughout the measurement.

COMPATIBILITY

Connects to the instruments on your bench.

Red and black SQ10 probes resting on a PCB in PCBite holders, wired to a FLUKE multimeter so the readings need no hands.
Red and black SQ10 probes on a PCB in PCBite holders, connected to a Rigol bench power supply to power the board.
Four handsfree SQ10 probes with color-coded cable holders measuring finepitch IC on PCB

Place the red and black probes on the board and read continuity, voltage or current without holding anything. Needle resistance below 0.02 Ω keeps the readings accurate. Red and black test leads with 4 mm banana plugs provide direct connection to a DMM.

Hands lifting a whole PCBite setup with probes on a PCB and a Saleae logic analyzer, every needle staying in contact.
ANTI-SHAKE

Steady placement. Reliable contact.

The flexible arm and probe weight keep the spring-loaded needle partially compressed during measurement, maintaining contact even if the setup is disturbed. The arm also adds controlled resistance when positioning the needle on fine-pitch components, making precise placement easier even with a slightly unsteady hand.

Handsfree measuring with two SQ10 probes on small component on PCB held by PCB holders (PCBITE-6011)
MULTI-POINT MEASUREMENT

Multiple probes. Long measurements. No hands required.

Position several probes across the board and leave them in place for both quick measurements and long triggering sessions. The probes maintain contact throughout the measurement, enabling simultaneous multi-point measurements that are impractical with handheld probes.
