PCBite 5x Ground spring 3.5mm, short ground springs for handheld oscilloscope probe measurements (PCBITE-7001)

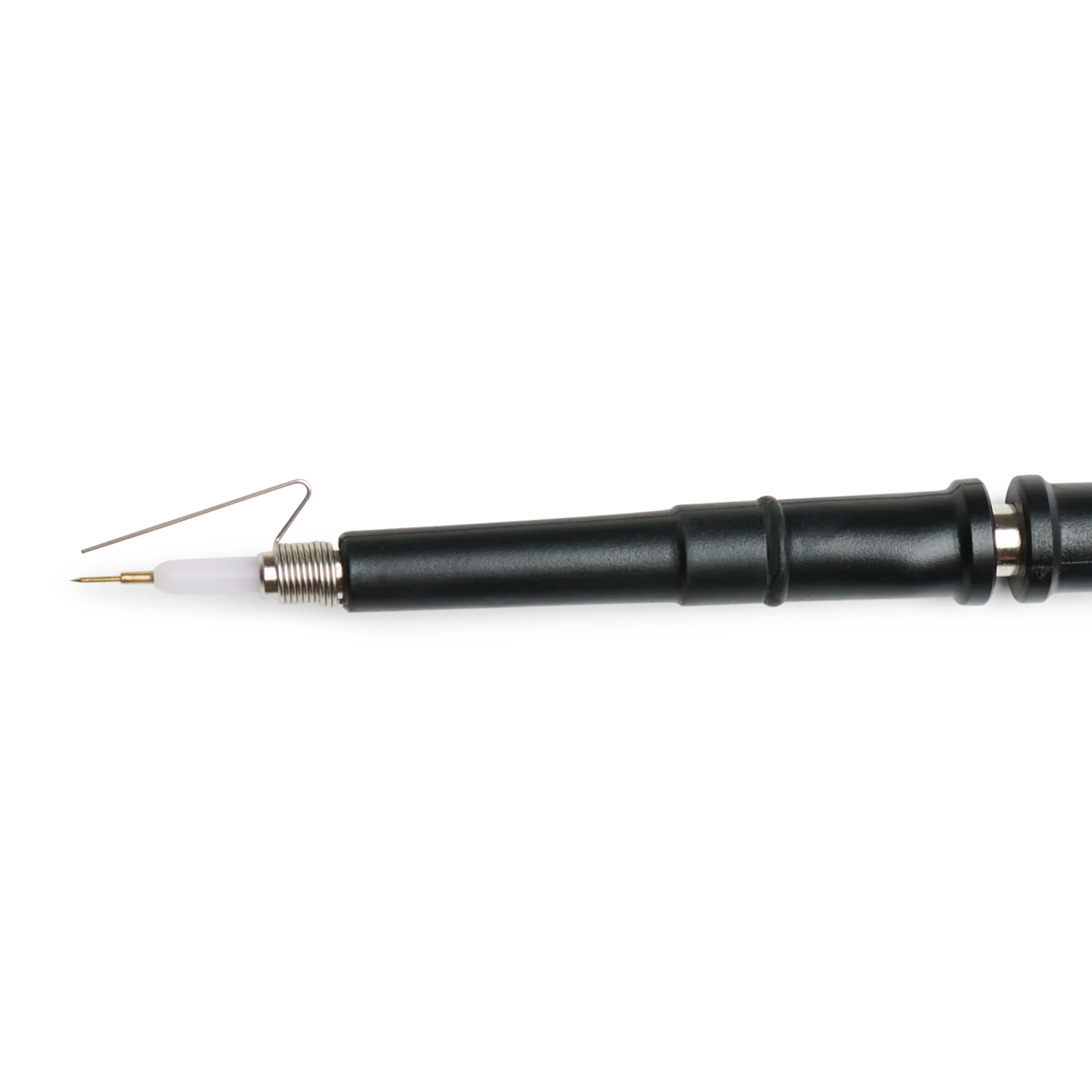

Closeup of oscilloscope probe front showing a mounted ground spring for handheld oscilloscope probe measurements (PCBITE-7001)

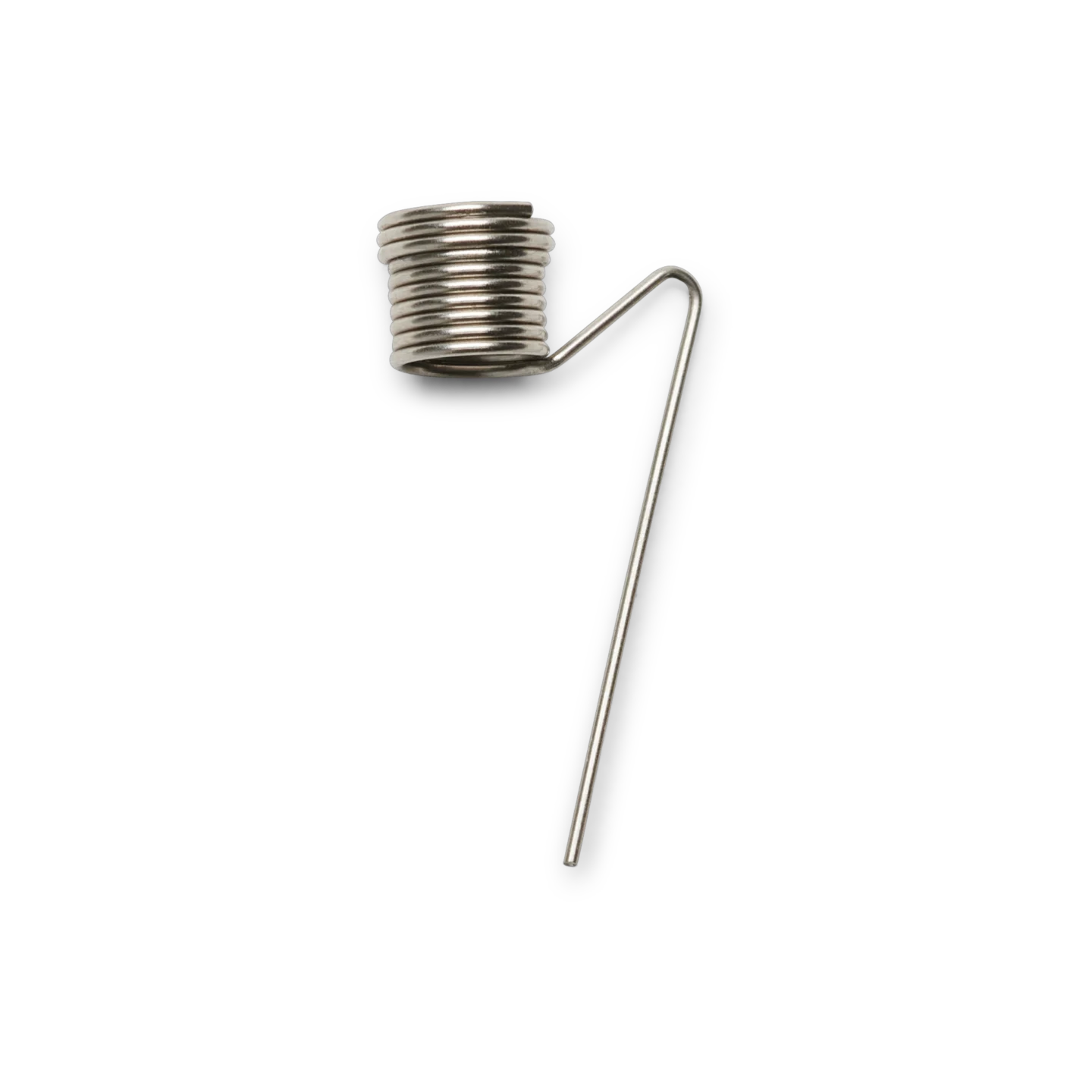

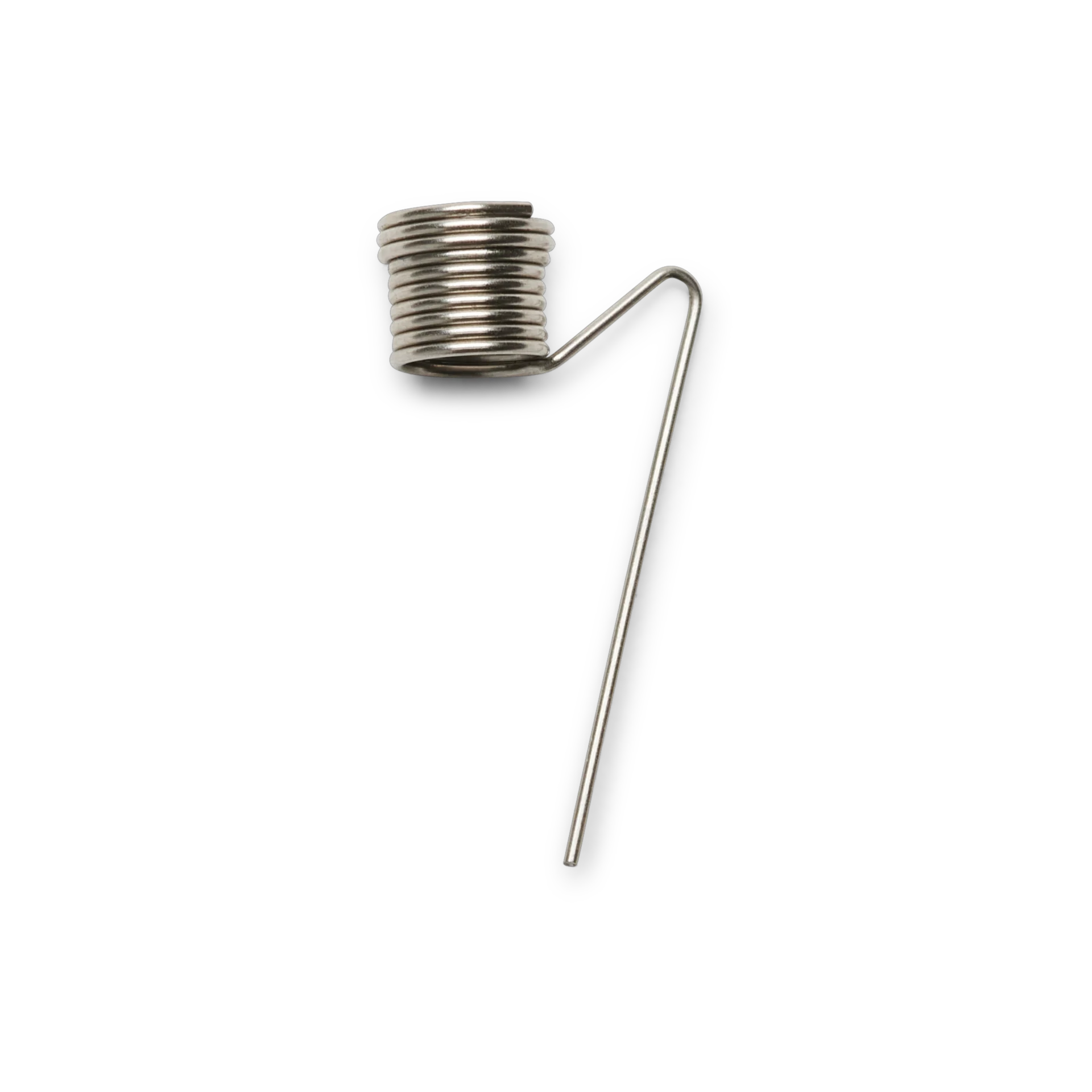

Ground spring for handheld oscilloscope probe measurements (PCBITE-7001)

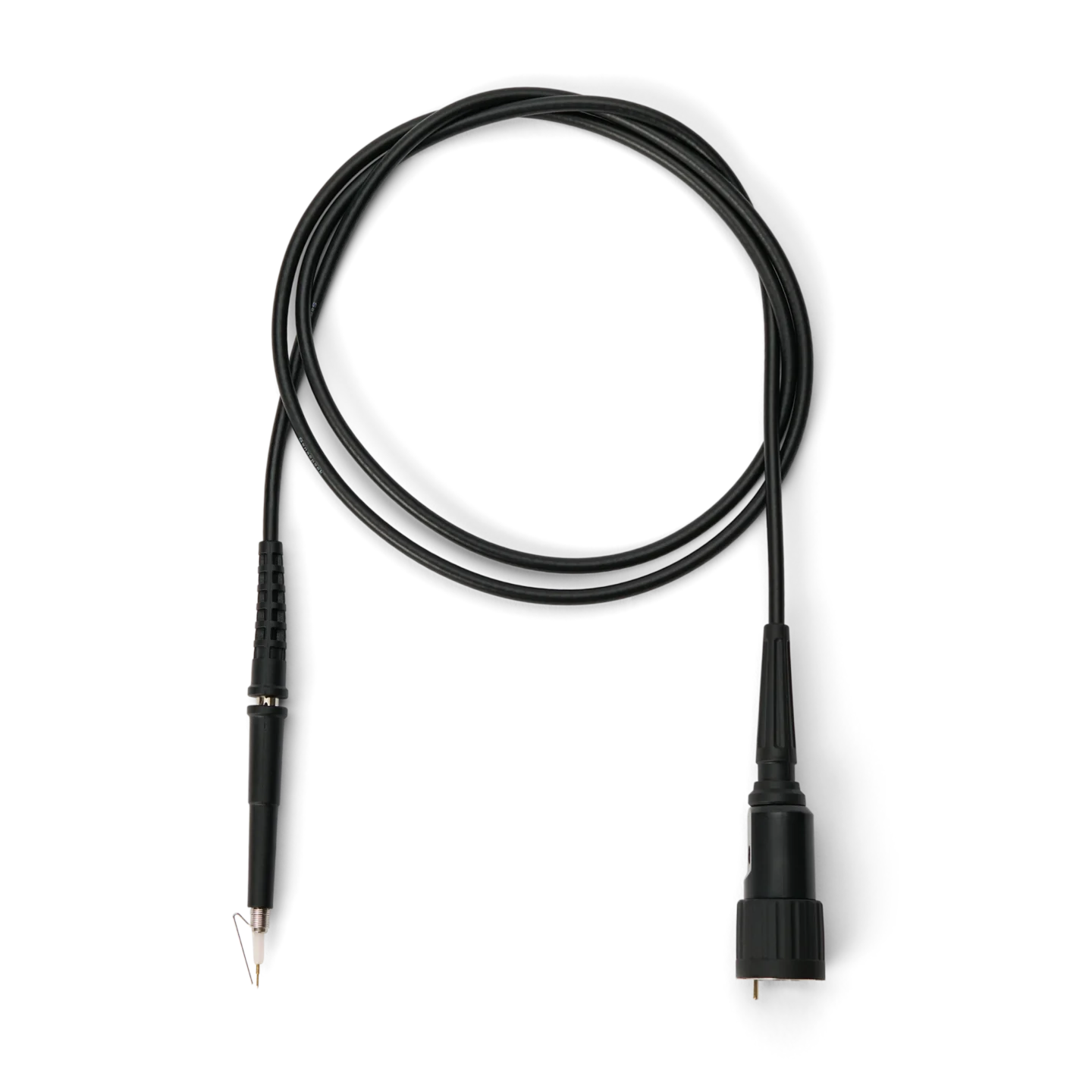

Probe without holder, ground spring mounted as ground option (PCBITE-7001)
PCBITE-7001

5x Ground spring 3,5mm

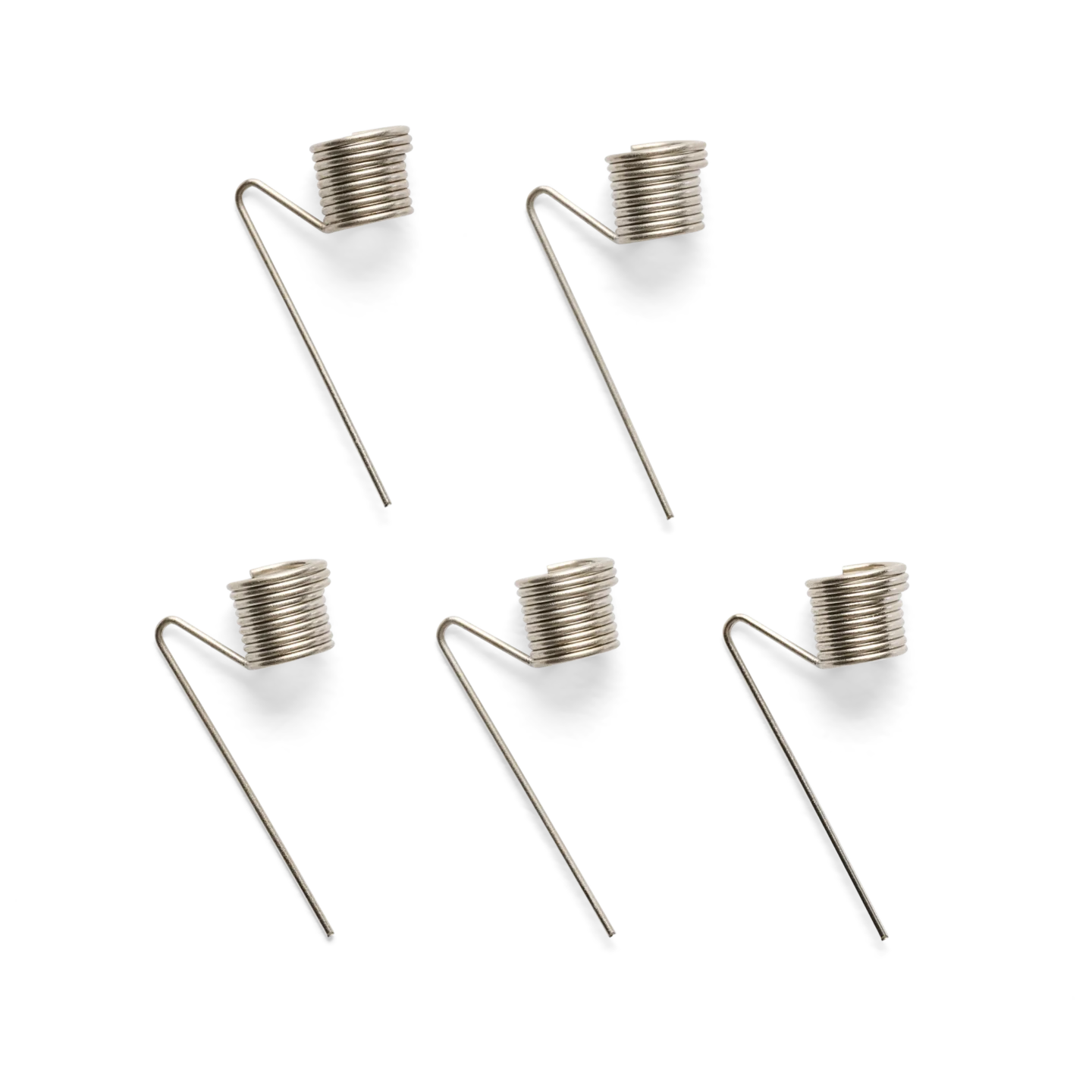

Five ground springs for PCBite SQ100, SQ200, SQ350 and SQ500 probes. A short ground path for handheld measurements at the full rated bandwidth.

Secure paymentGlobal deliveryPremium quality
In stockDelivery: 1-2 business days

7 € excl. VAT

Introduction

Spare ground springs for PCBite SQ oscilloscope probes. A short ground path for handheld measurements at the full rated bandwidth.

Five ground springs for the PCBite SQ100, SQ200, SQ350 and SQ500 oscilloscope probes. The ground spring mounts on the probe tip and gives a short ground path for handheld measurements at the full rated bandwidth.

Compared with a long ground lead, the short ground path reduces loop inductance and improves signal integrity. Place the signal needle on the test point and the ground spring on a nearby ground.

Each SQ oscilloscope probe is delivered with one ground spring for handheld use and one ground spring needle for handsfree measurements. Keep spares at hand to replace a bent or lost spring.

Compatible products

  • 5X Ground spring, for handheld measurements at rated bandwidth
Instruction 5x Ground spring 3,5mm

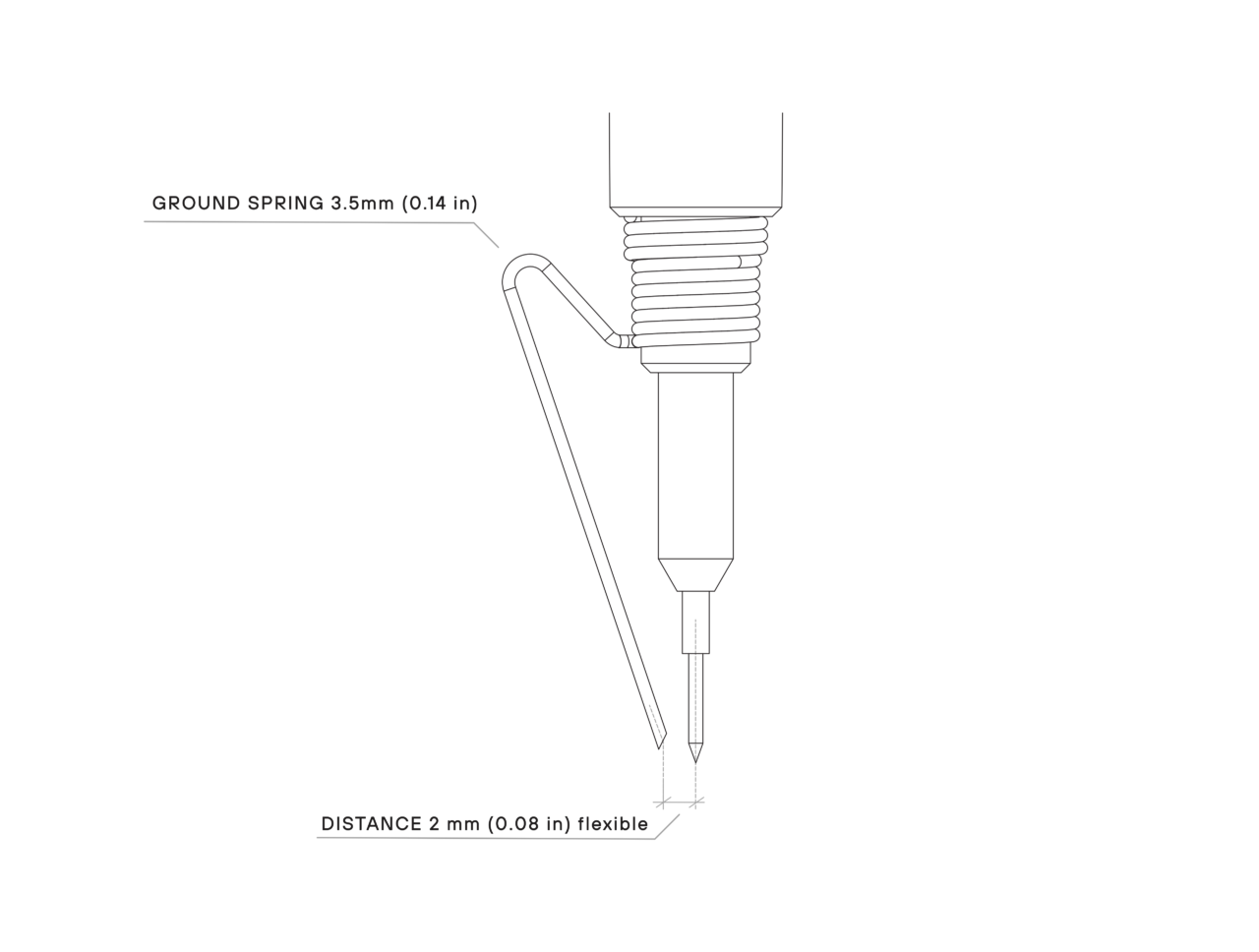

Dimensions of 5x Ground spring 3,5mm: SQXX0 ground spring
Brand

PCBite
Manufacturer

Sensepeek AB
Article number

PCBITE-7001
GTIN

7350145660397
Country of origin

China
HS code

90309000
HTS code

9030906800
ECCN

EAR99
Safety information

See downloads
Package weight 30 g
Package dimensions 176 × 125 × 10 mm
MATERIAL

Made to last

Every material and design detail is chosen to last for years in a demanding lab environment.

Ground spring
Short ground path for handheld use
Fit
3.5 mm (0.14 in) diameter
MATERIAL
Ground spring
Short ground path for handheld use
Fit
3.5 mm (0.14 in) diameter

Made to last

Every material and design detail is chosen to last for years in a demanding lab environment.

Ground spring for handheld oscilloscope probe measurements (PCBITE-7001)
GROUND PATH

Every millimeter counts.

Each millimeter of ground lead adds approximately 1 nH of inductance, which makes the measurement more sensitive to switching noise and ringing. The ground spring replaces the long lead with a connection right at the probe tip, so ripple and fast edges look the way they really are on the board.
