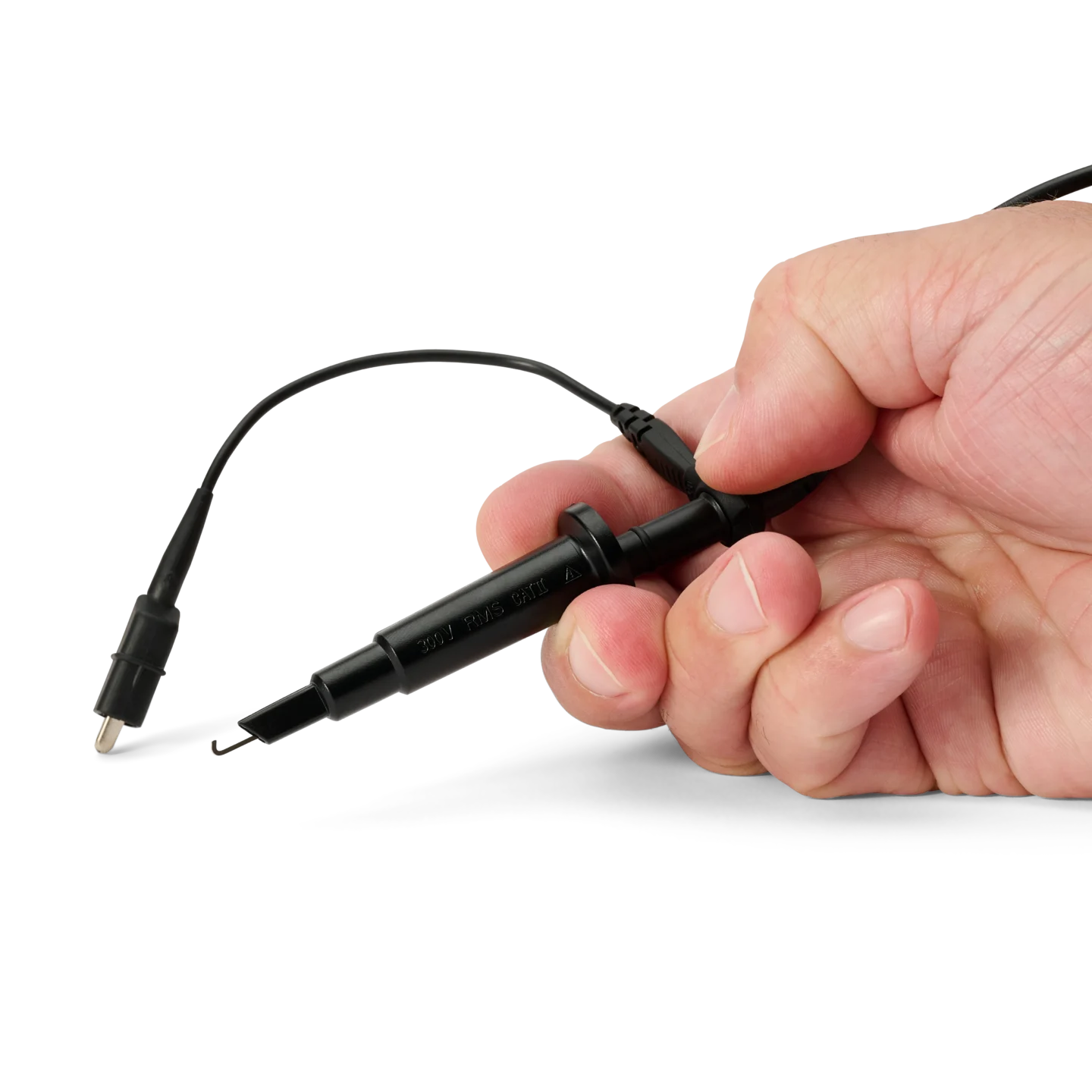

Hand opening the sprung hook mounted on probe with ground connection for safe probing (PCBITE-7005)
Hand showing how to connect sprung hook to wire end (PCBITE-7005)

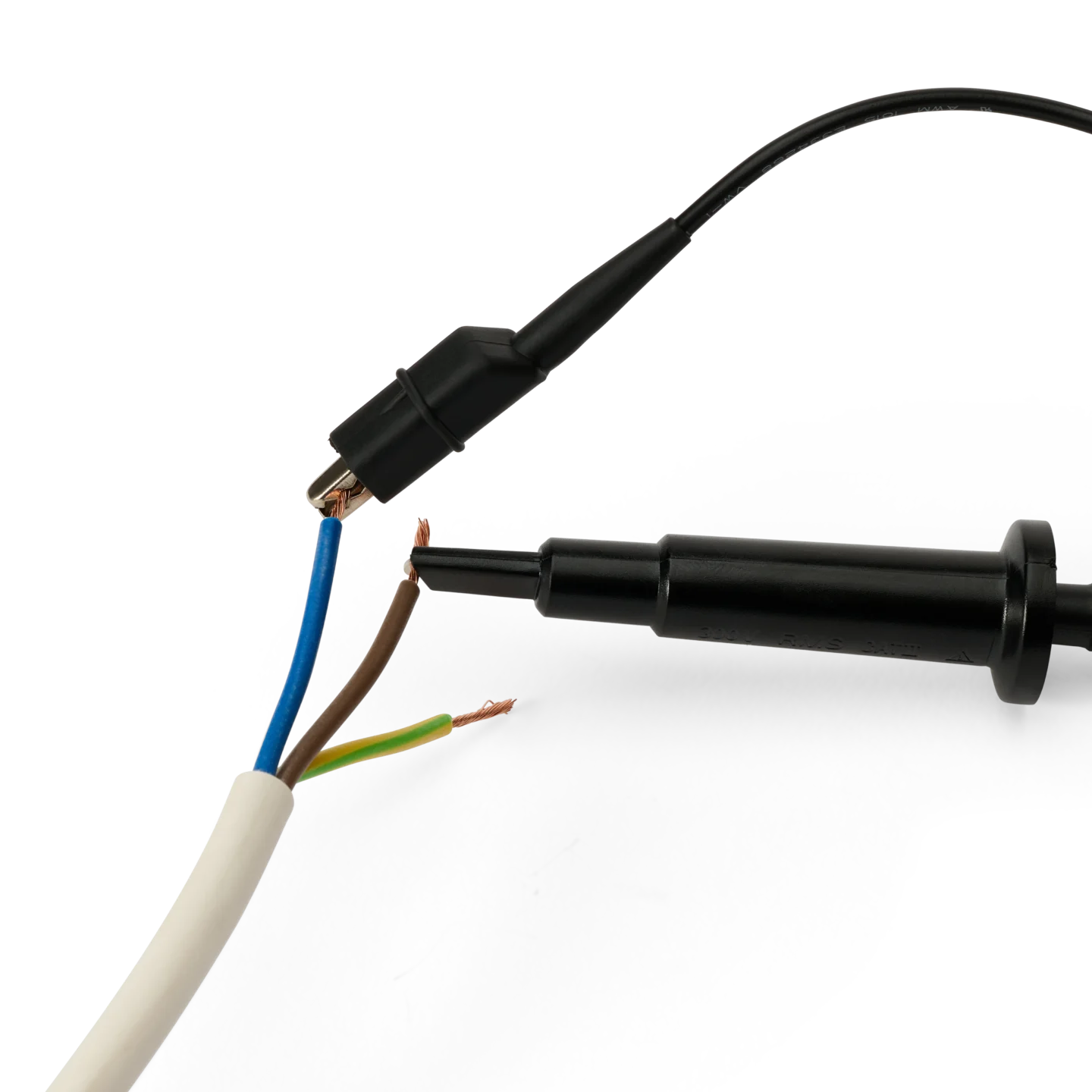

Sprung hook and ground lead with alligator clip connected to wire ends (PCBITE-7005)

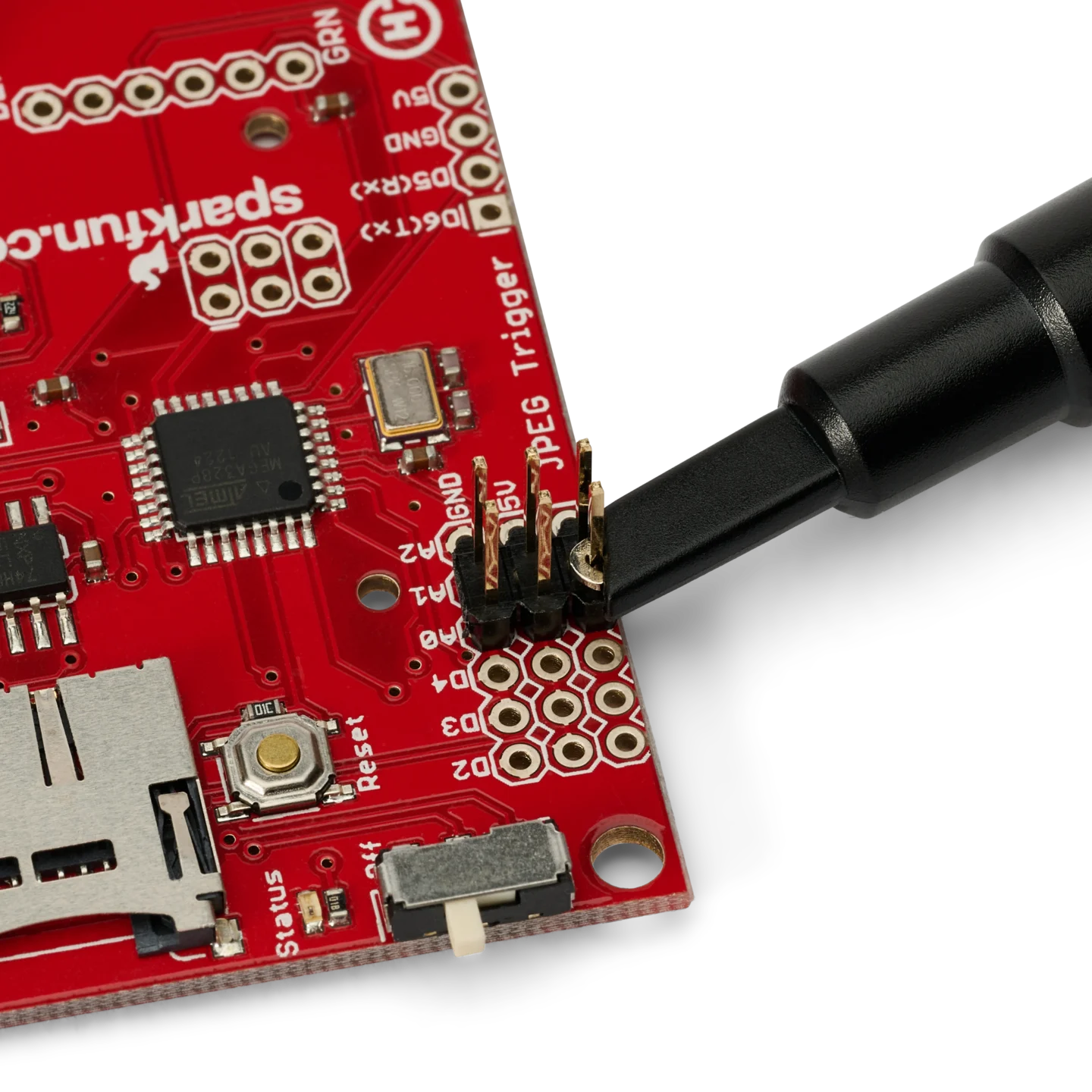

Sprung hook connected showing signal directly connected to pinheader on PCB (PCBITE-7005)

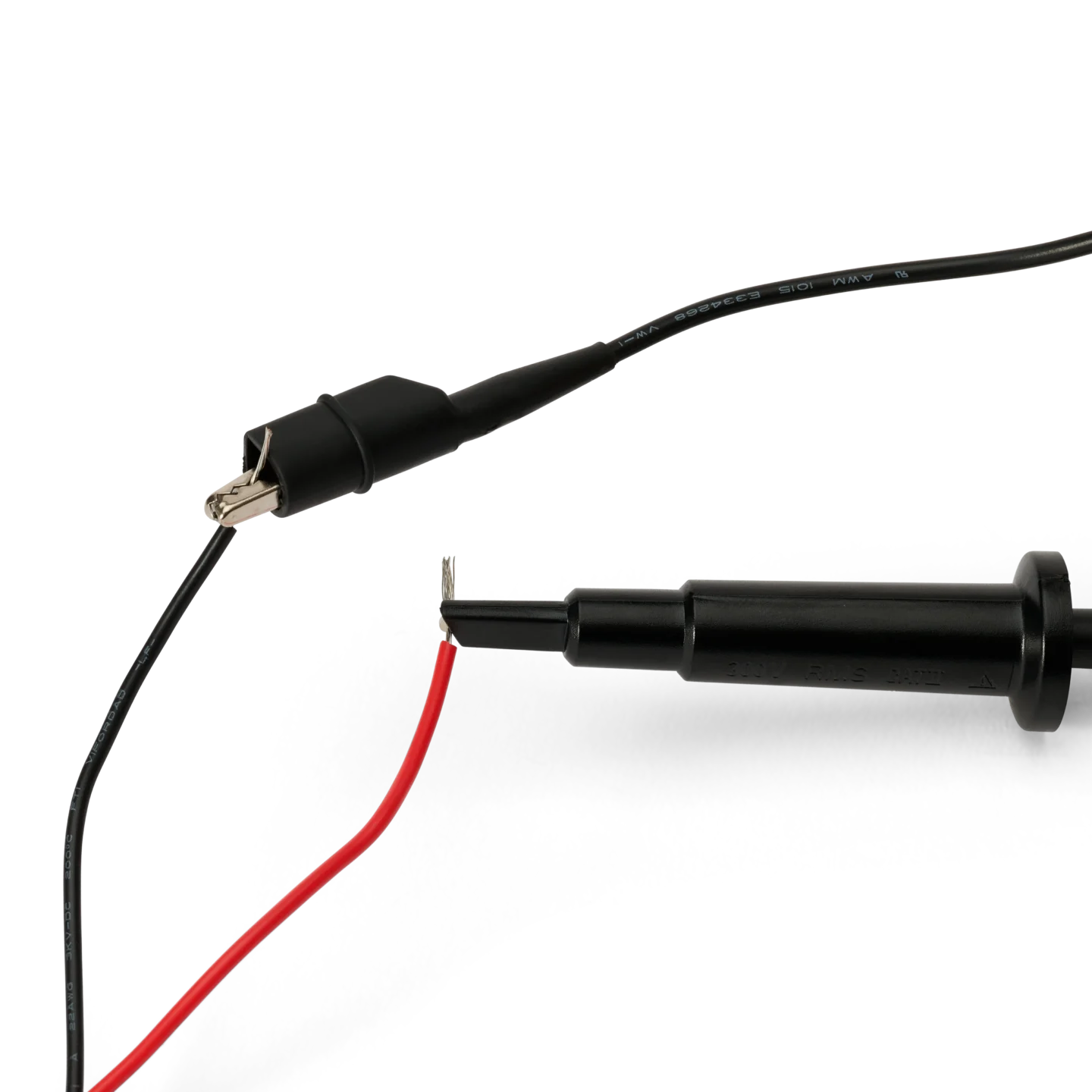

Sprung hook and ground lead with alligator clip connected to black and read wire ends (PCBITE-7005)

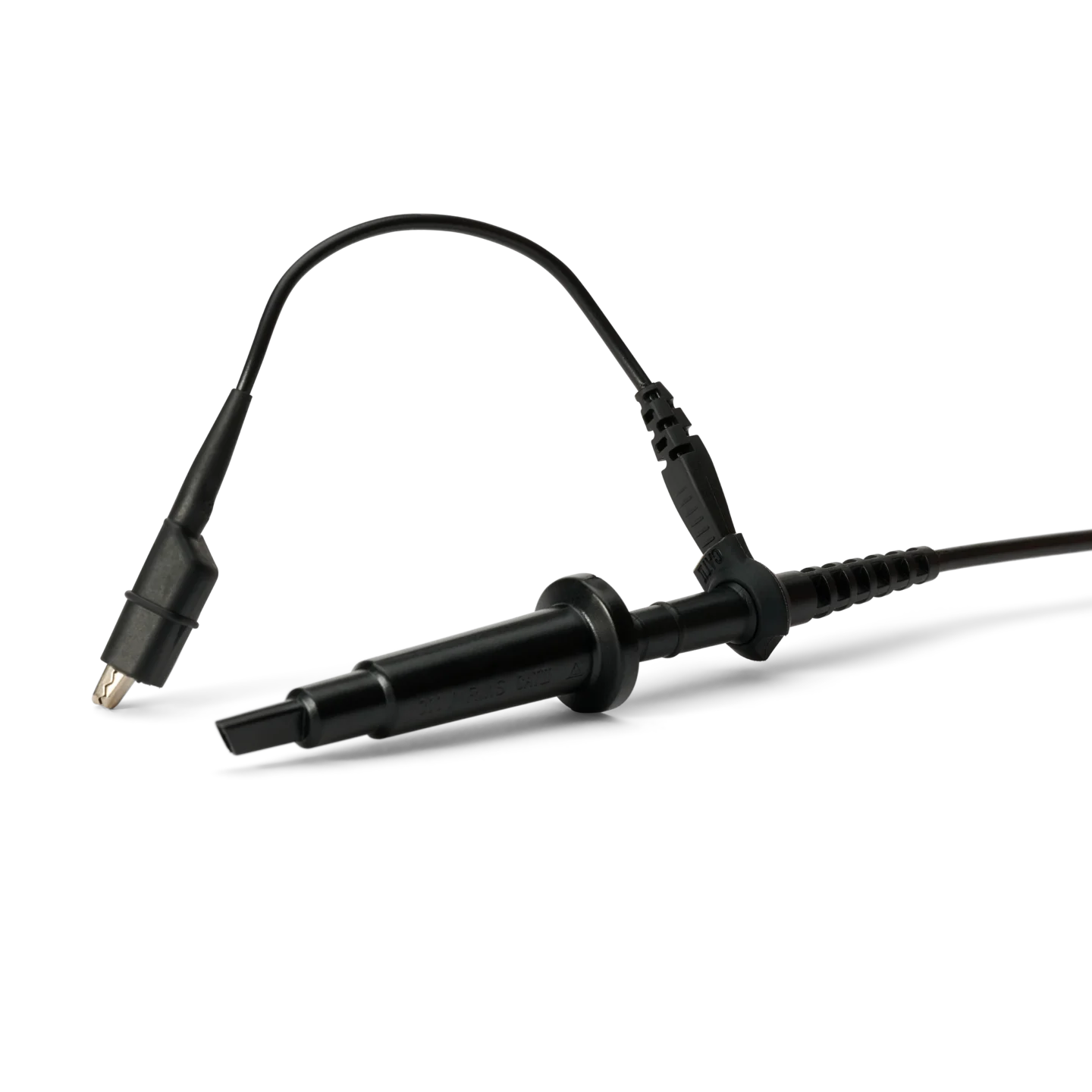

Sprung hook CAT II mounted on probe, secure wire connection with alligator cable for safe probing (PCBITE-7005)
Sprung hook CAT II, secure connection accessory for wires and pins with safety rating (PCBITE-7005)

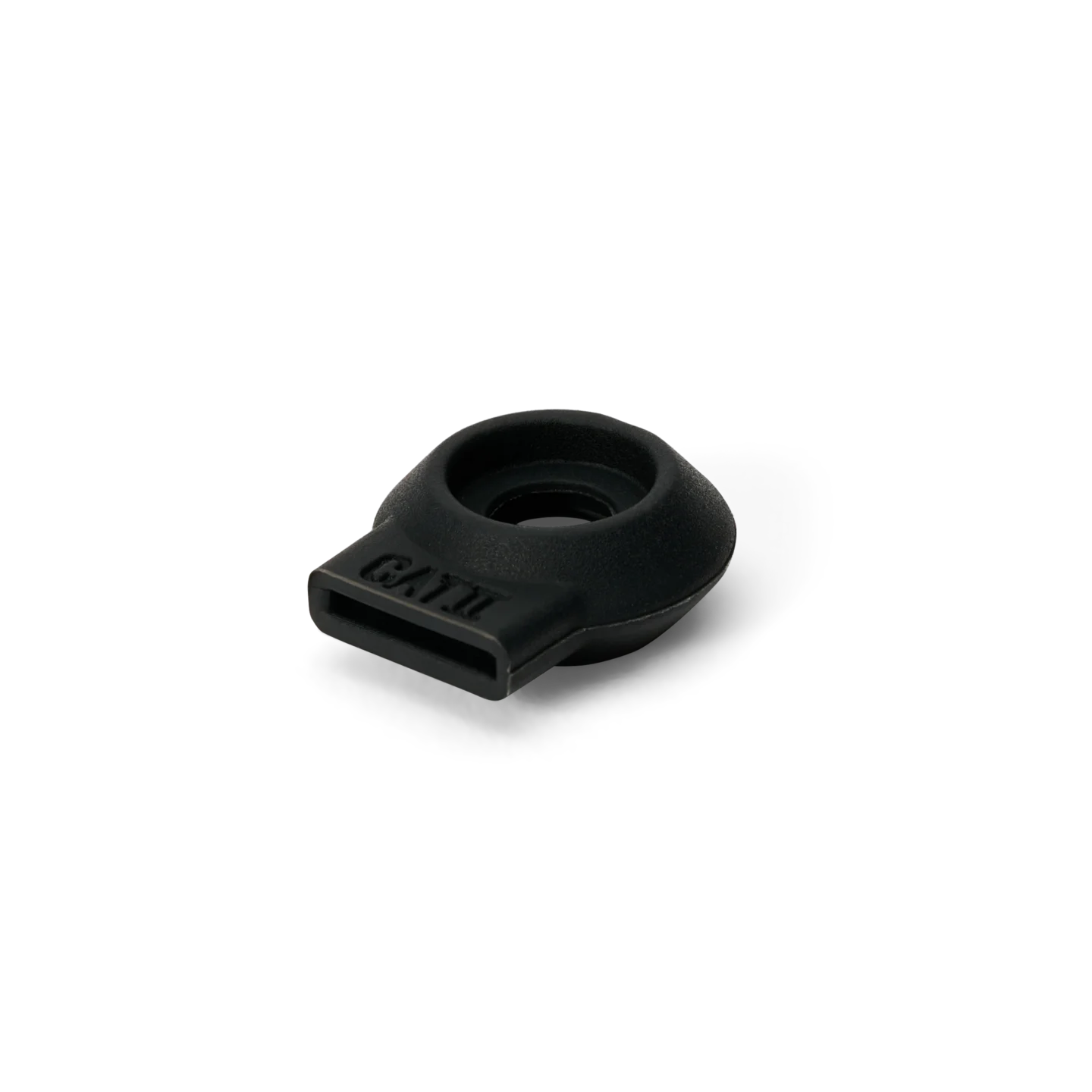

CAT2 safety accessory for oscilloscope probe 5mm ground interface enabling safe measurements (PCBITE-7005)

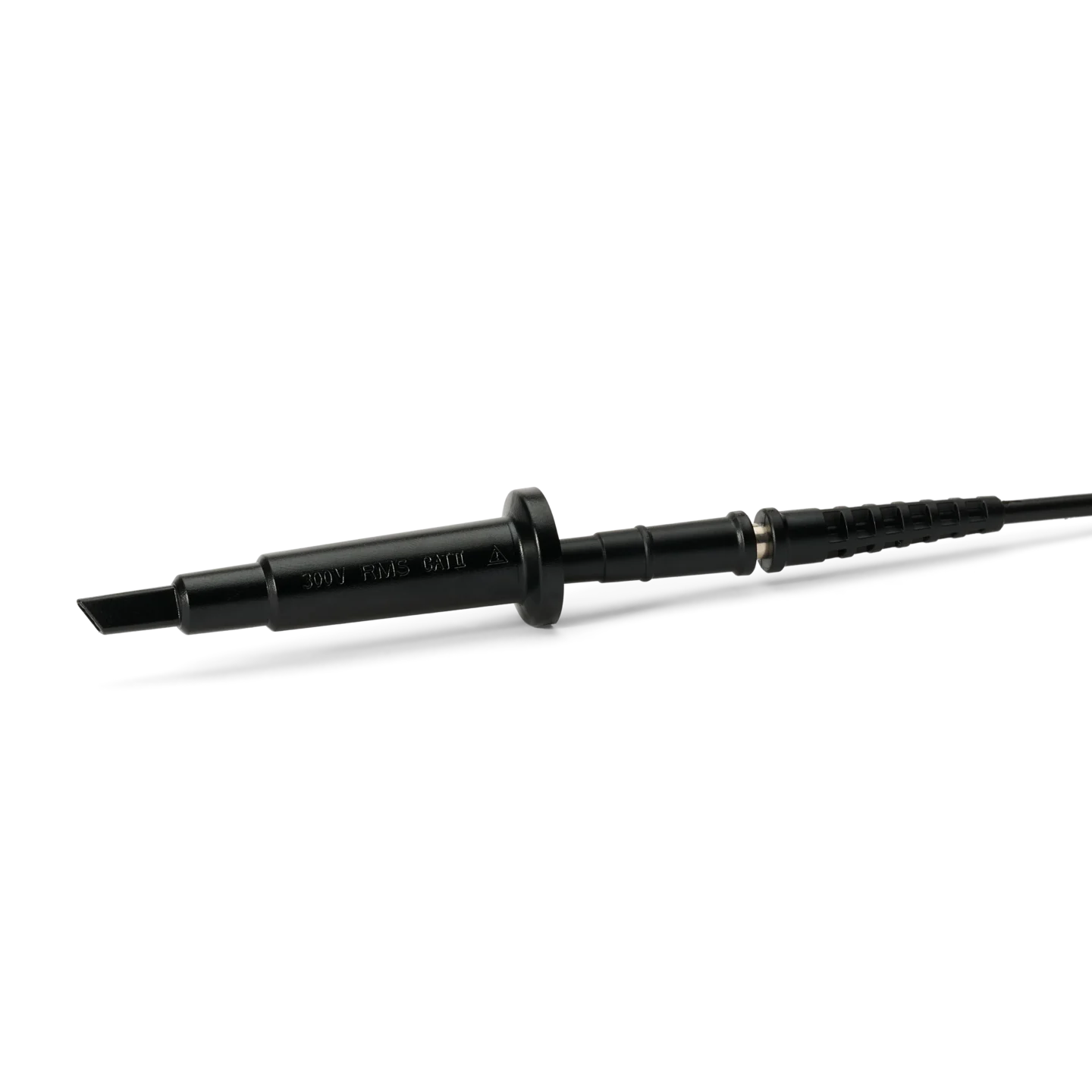

Sprung hook CAT II mounted on probe for safe connection to wires and pins (PCBITE-7005)
PCBITE-7005

Sprung hook CATII

CAT II 300 V RMS sprung hook for PCBite SQ100, SQ200, SQ350 and SQ500 probes, for wires and pins where handsfree probing is not possible. Includes finger protections and a ground lead.

Secure paymentGlobal deliveryPremium quality
In stockDelivery: 1-2 business days

12 € excl. VAT

Introduction

Connect a PCBite SQ oscilloscope probe to wires, component leads and test pins where handsfree probing is not possible. A CAT II 300 V RMS sprung hook with ground lead and finger protections.

A sprung hook adapter for the PCBite SQ100, SQ200, SQ350 and SQ500 oscilloscope probes. It mounts on the probe tip and grips wires, component leads and test pins with a spring-loaded hook.

Use the sprung hook where a handsfree probe cannot be placed, such as on wires, leads or pins without a flat pad for the needle. Open the hook, place it around the wire or pin and release, and the spring keeps the contact secure through the whole measurement.

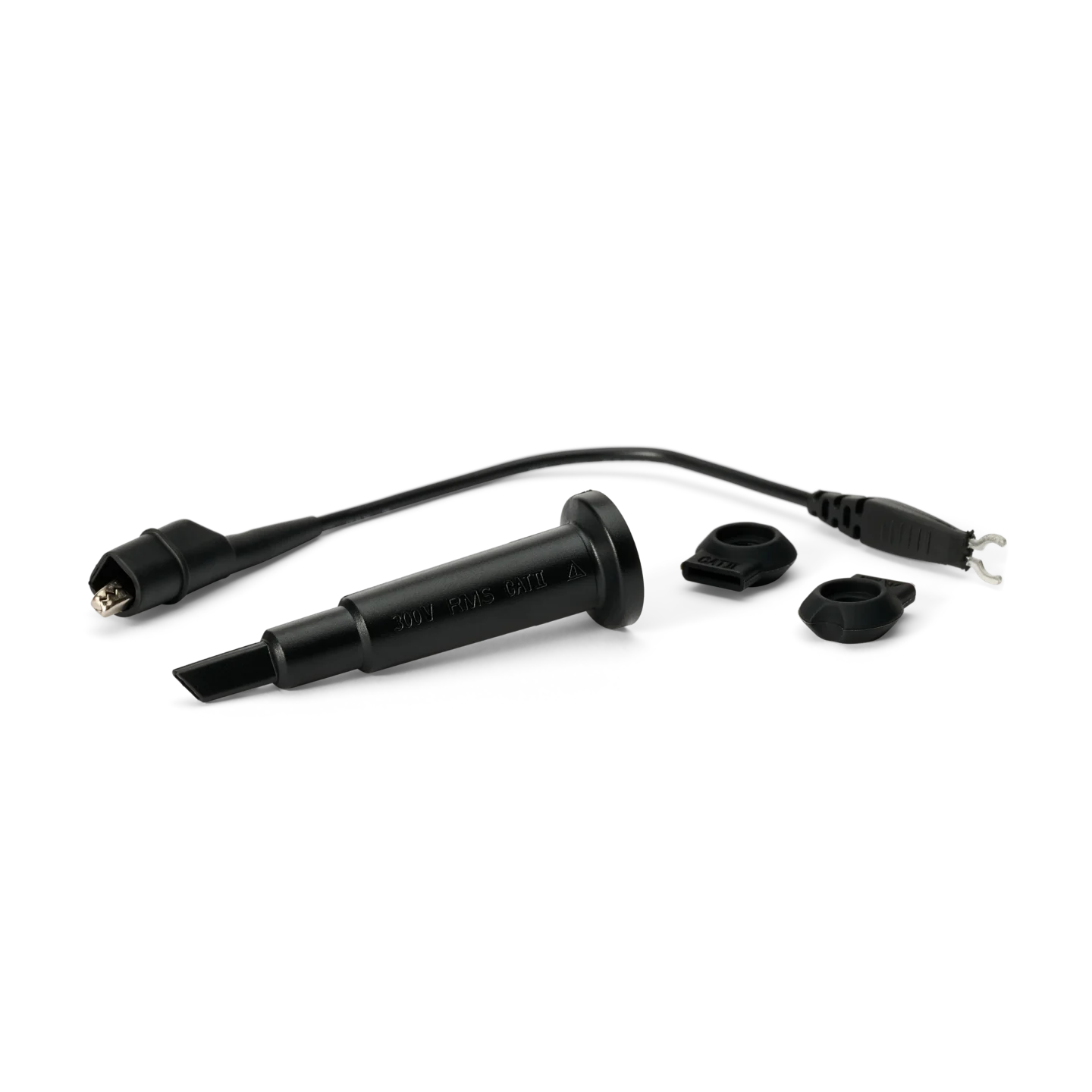

The set includes the sprung hook, two finger protections and a ground lead with an alligator clip at one end and a 5 mm (0.20 in) clip at the other. All parts are rated CAT II 300 V RMS and designed according to IEC 61010-031:2022.



Compatible products

  • 1X Alligator to 5 mm clip ground lead CAT II
  • 2X Finger protection CAT II
  • 1X Sprung-hook probe adapter CAT II
User guide SQ Oscilloscope probes
Brand

PCBite
Manufacturer

Sensepeek AB
Article number

PCBITE-7005
GTIN

7350145660434
Country of origin

Sweden
HS code

90309000
HTS code

9030906800
ECCN

EAR99
Safety information

See downloads
Package weight 50 g
Package dimensions 176 × 125 × 10 mm
MATERIAL

Made to last

Every material and design detail is chosen to last for years in a demanding lab environment.

Rating
CAT II 300 V RMS
Standard
IEC 61010-031:2022
MATERIAL
Rating
CAT II 300 V RMS
Standard
IEC 61010-031:2022

Made to last

Every material and design detail is chosen to last for years in a demanding lab environment.

Sprung hook CAT II, secure connection accessory for wires and pins with safety rating
SAFETY

Measure with confidence.

Our standard PCBite oscilloscope probes are designed and independently tested against IEC 61010-031 and rated CAT II 300 V RMS. Performance matters. So does using a probe designed for the measurement environment.

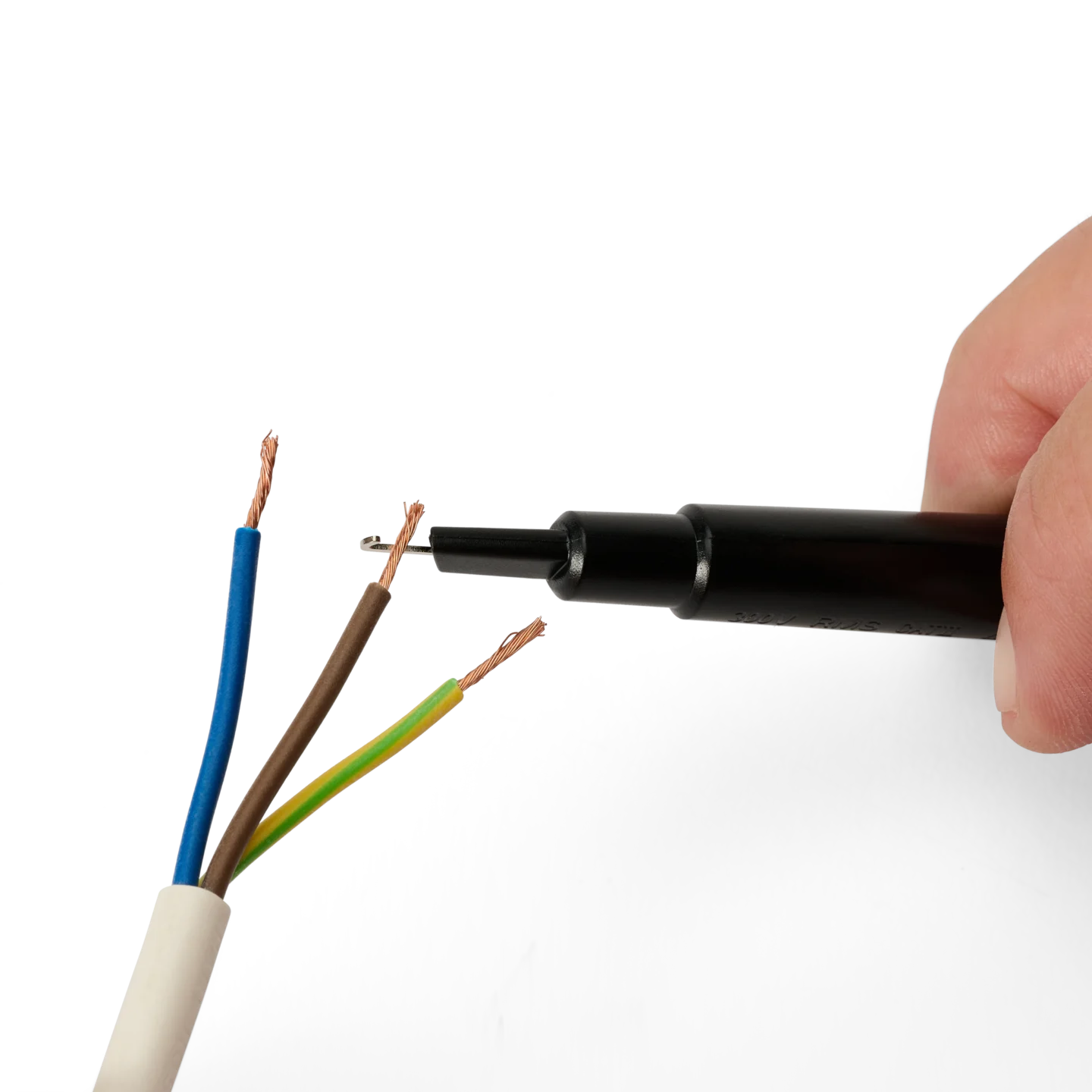

Hand showing how to connect sprung hook to wire end (PCBITE-7005)
SPRING-LOADED HOOK

A secure grip on wires and pins.

Press the sleeve to extend the metal hook, place it around the wire, pin or component lead, and release. The spring retracts the hook and holds it securely on the test point, leaving both hands free to operate the oscilloscope.

GROUND OPTION

Alligator to 5 mm clip ground lead

Provides a secure ground connection for higher-voltage measurements. Rated CAT II 300 V RMS and suitable for measurements up to approximately 15 MHz.
