01 / 04 PCBITE-7003

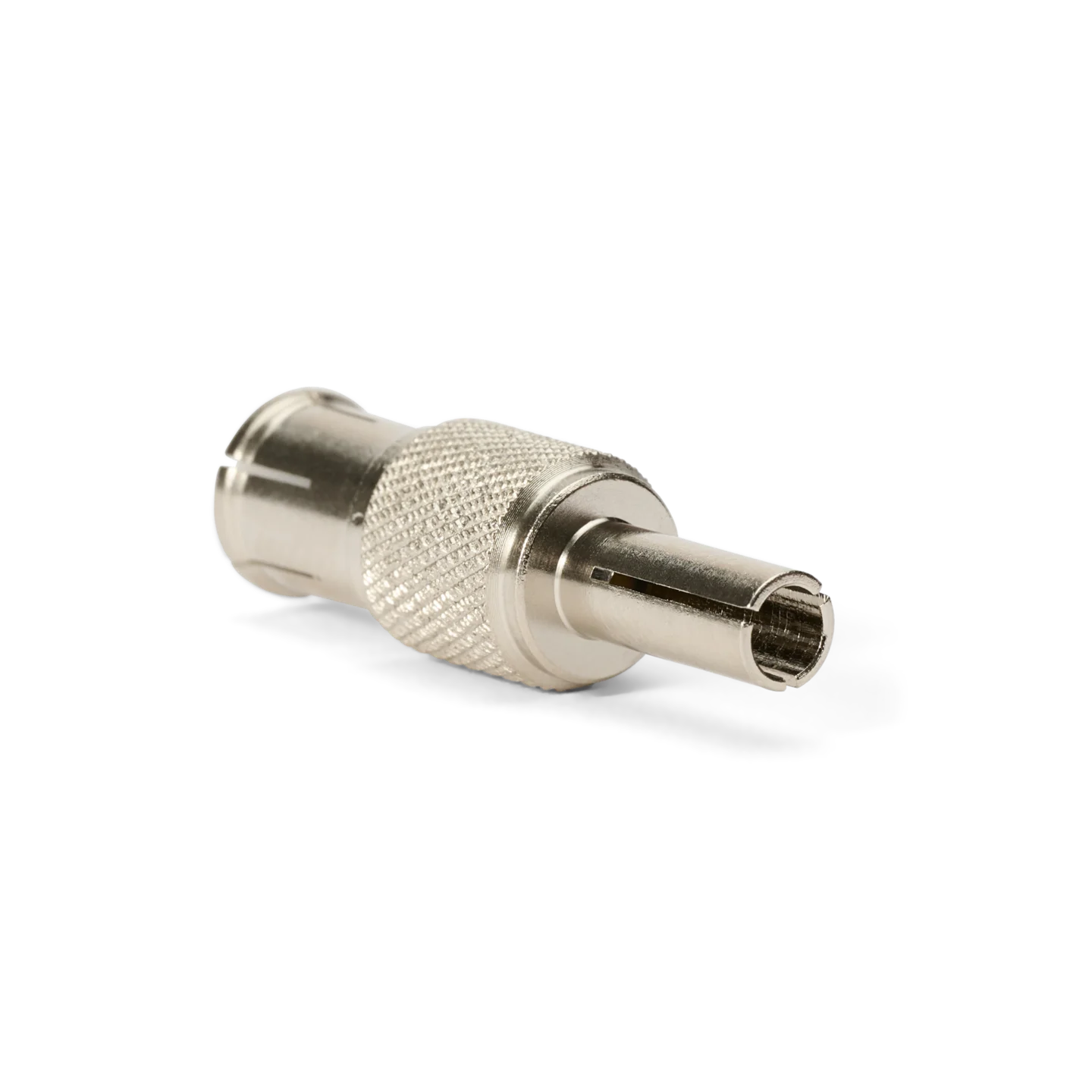

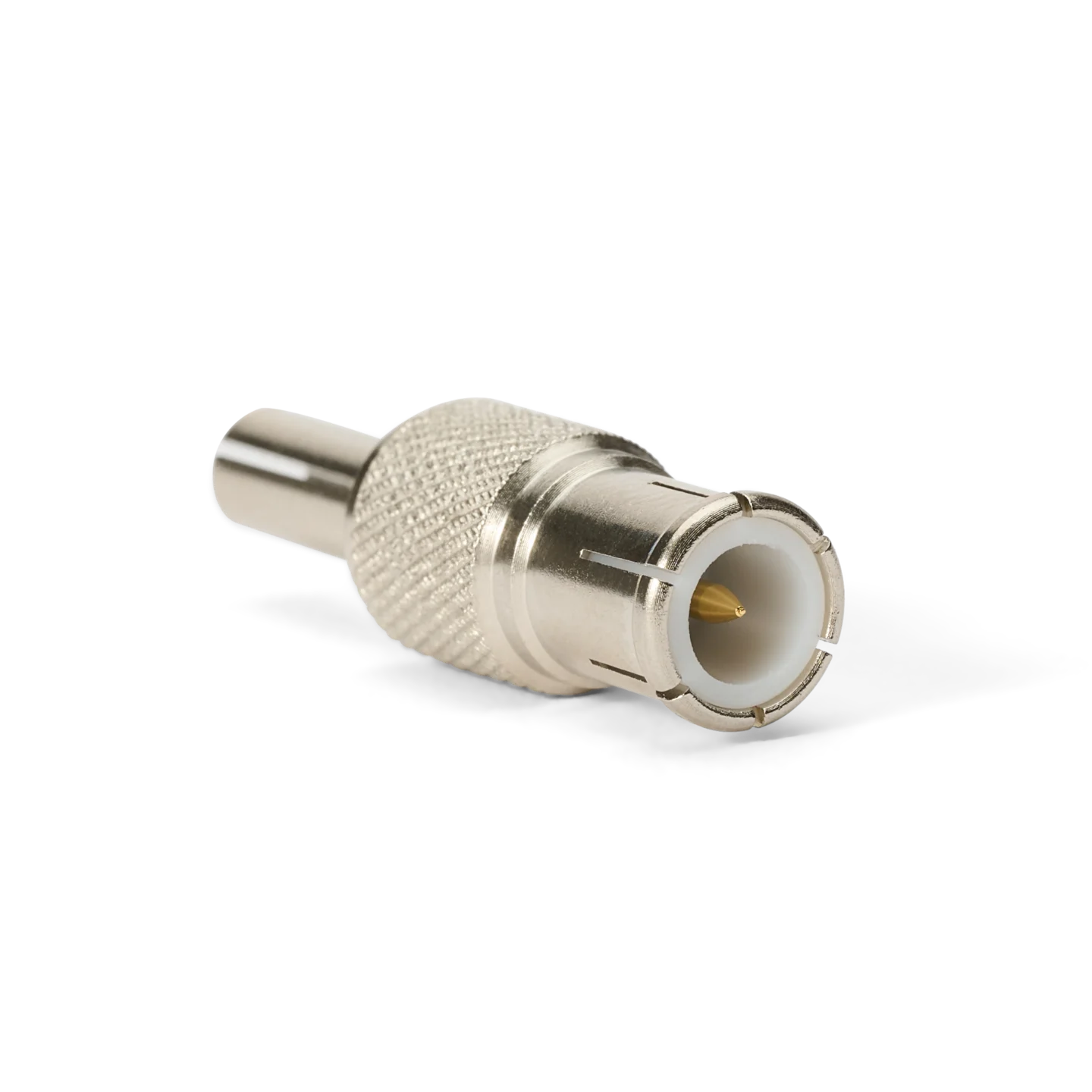

BNC adapter for PCBite SQ100, SQ200, SQ350 and SQ500 probes. Connects probe signal and ground directly to a BNC connector for a short, clean signal path.
9 € excl. VAT
Connect a PCBite SQ oscilloscope probe directly to a BNC connector. A short, clean signal path from the source to the probe, with no ground lead in the way.

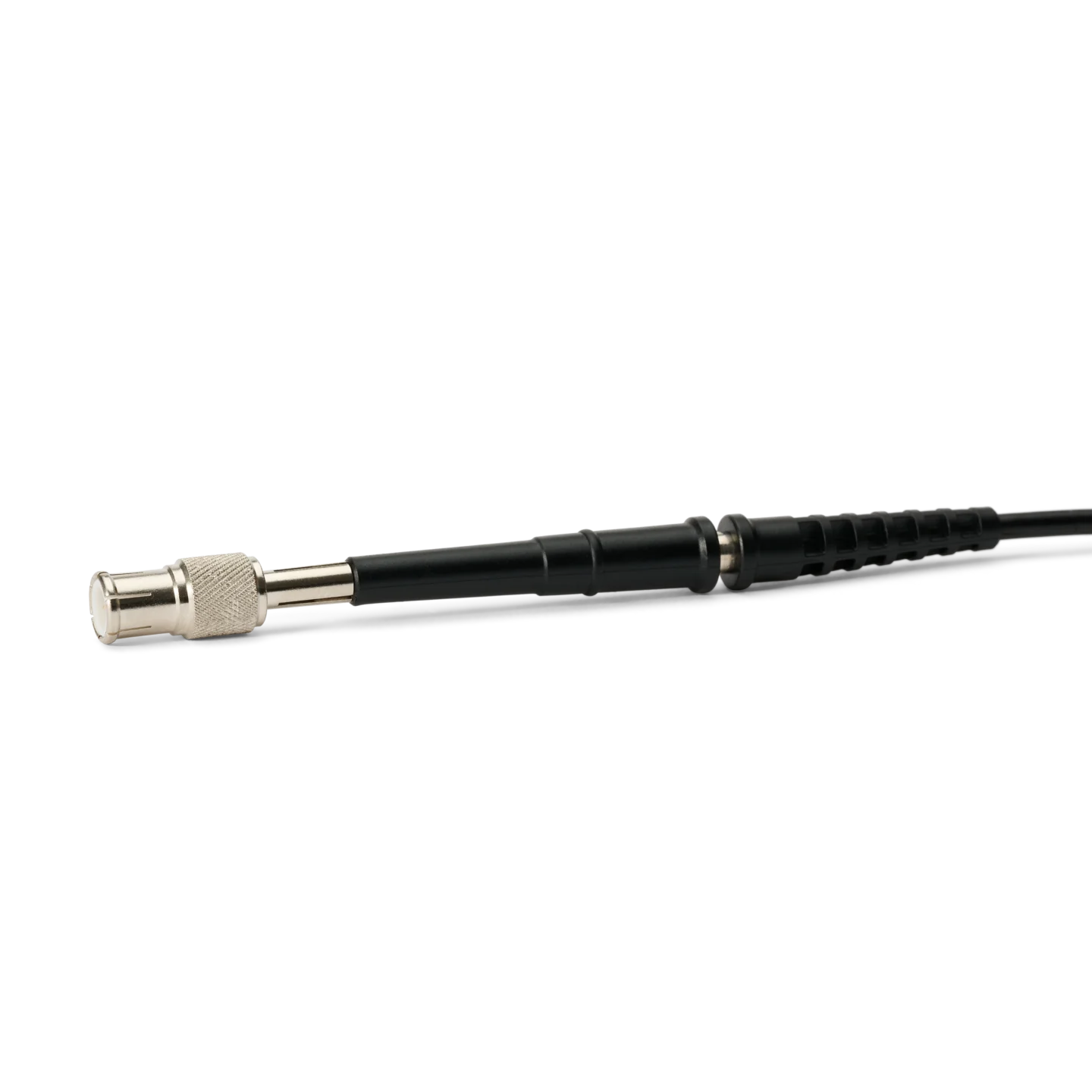

The BNC adapter mounts on the tip of a PCBite SQ100, SQ200, SQ350 or SQ500 oscilloscope probe and connects the probe signal and ground directly to a BNC connector.

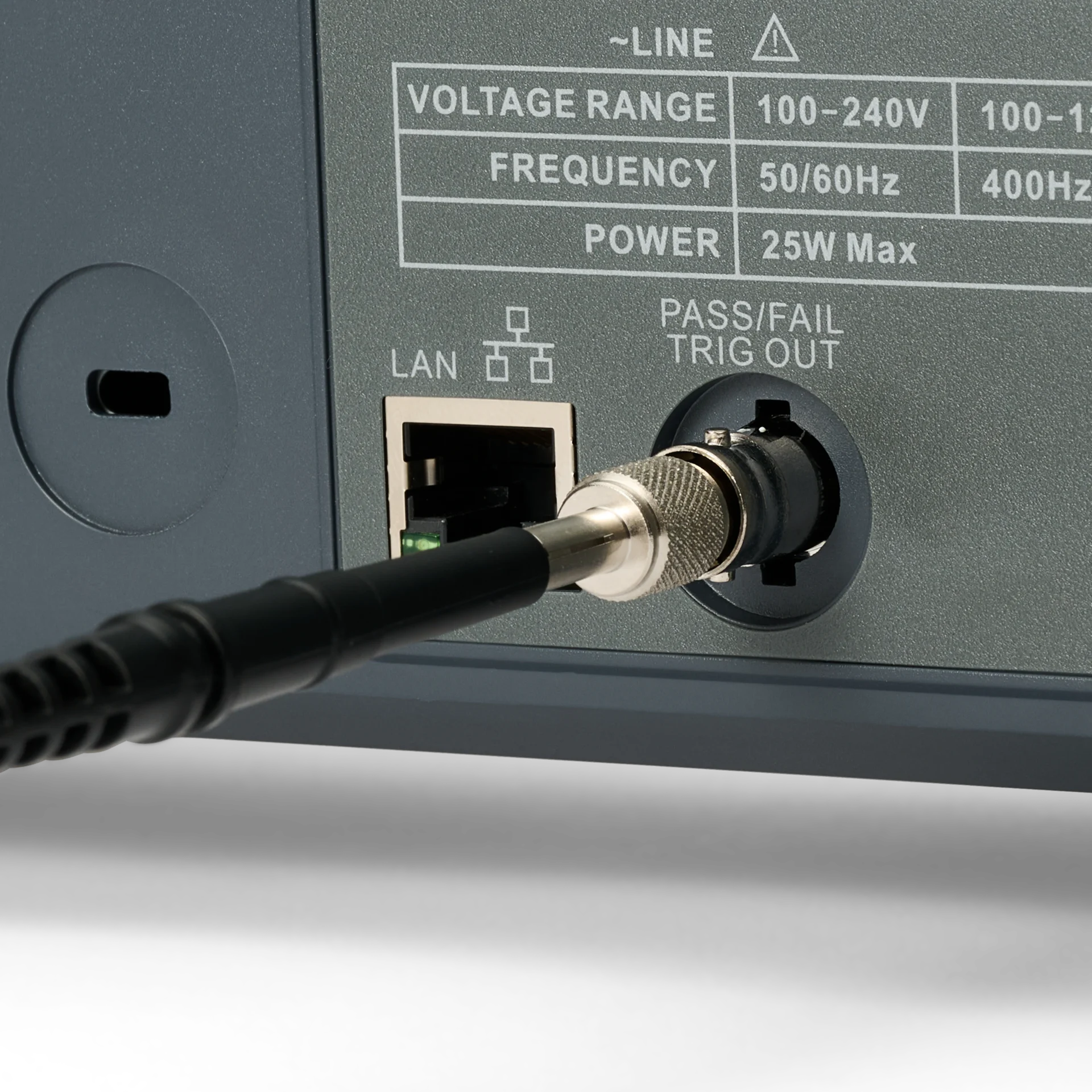

Use it to measure signals that are available on a BNC connector, such as the output of a signal generator or a test fixture. The connection is direct, with the ground taken at the connector shield instead of through a long ground lead.
| Brand | PCBite |
|---|---|
| Manufacturer | Sensepeek AB |
| Article number | PCBITE-7003 |
| GTIN | 7350145660410 |
| Country of origin | China |
| HS code | 90309000 |
| HTS code | 9030906800 |
| ECCN | EAR99 |
| Safety information | Not applicable |
| Package weight | 40 g |
| Package dimensions | 176 × 125 × 10 mm |
Every material and design detail is chosen to last for years in a demanding lab environment.
Every material and design detail is chosen to last for years in a demanding lab environment.
The adapter connects signal and ground at the BNC itself, so the ground path is as short as it can be. What you see on the screen is the signal at the connector, without ringing added by a long ground lead.
