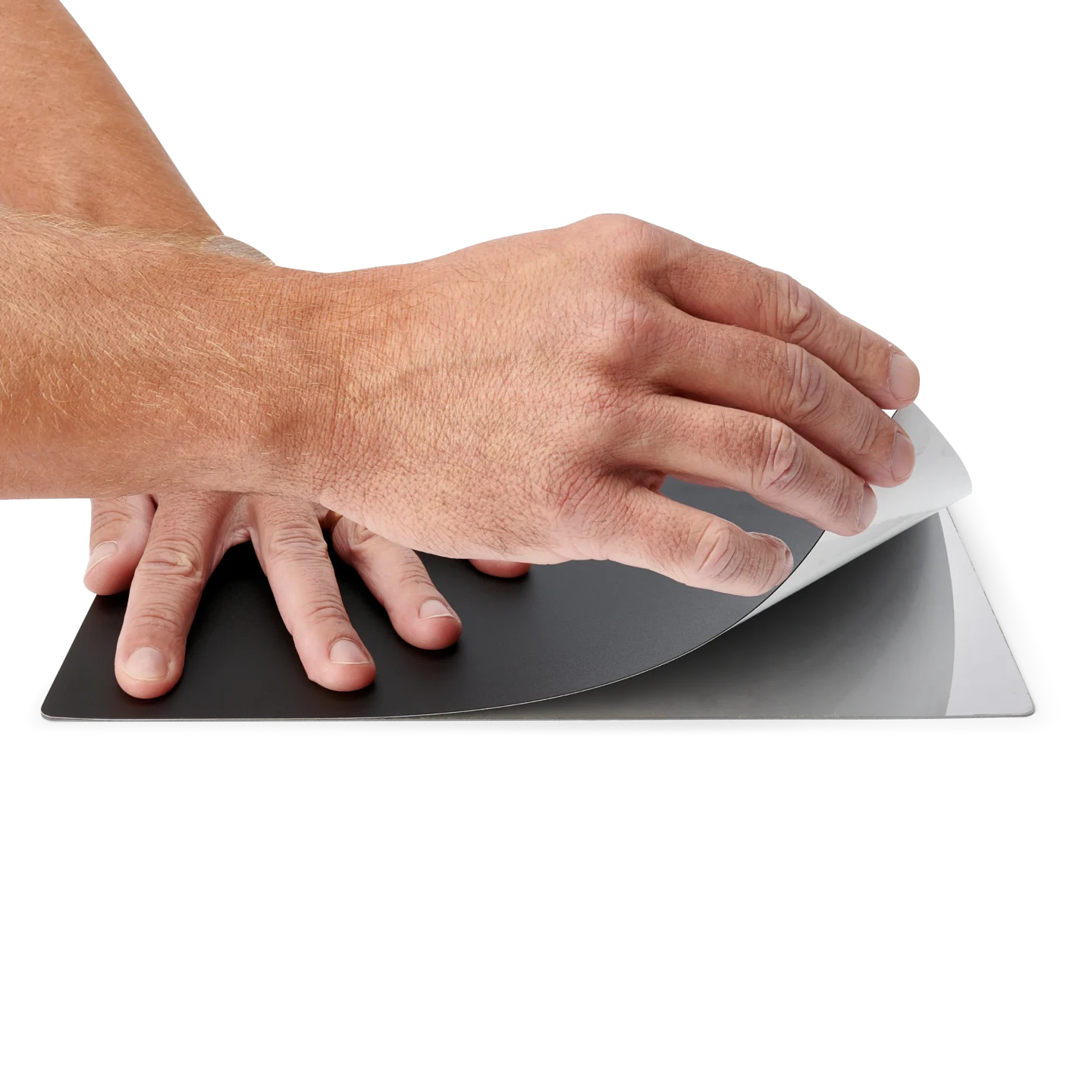

Hands applying the A4 sized insulation cover on the large baseplate (PCBITE-4017)

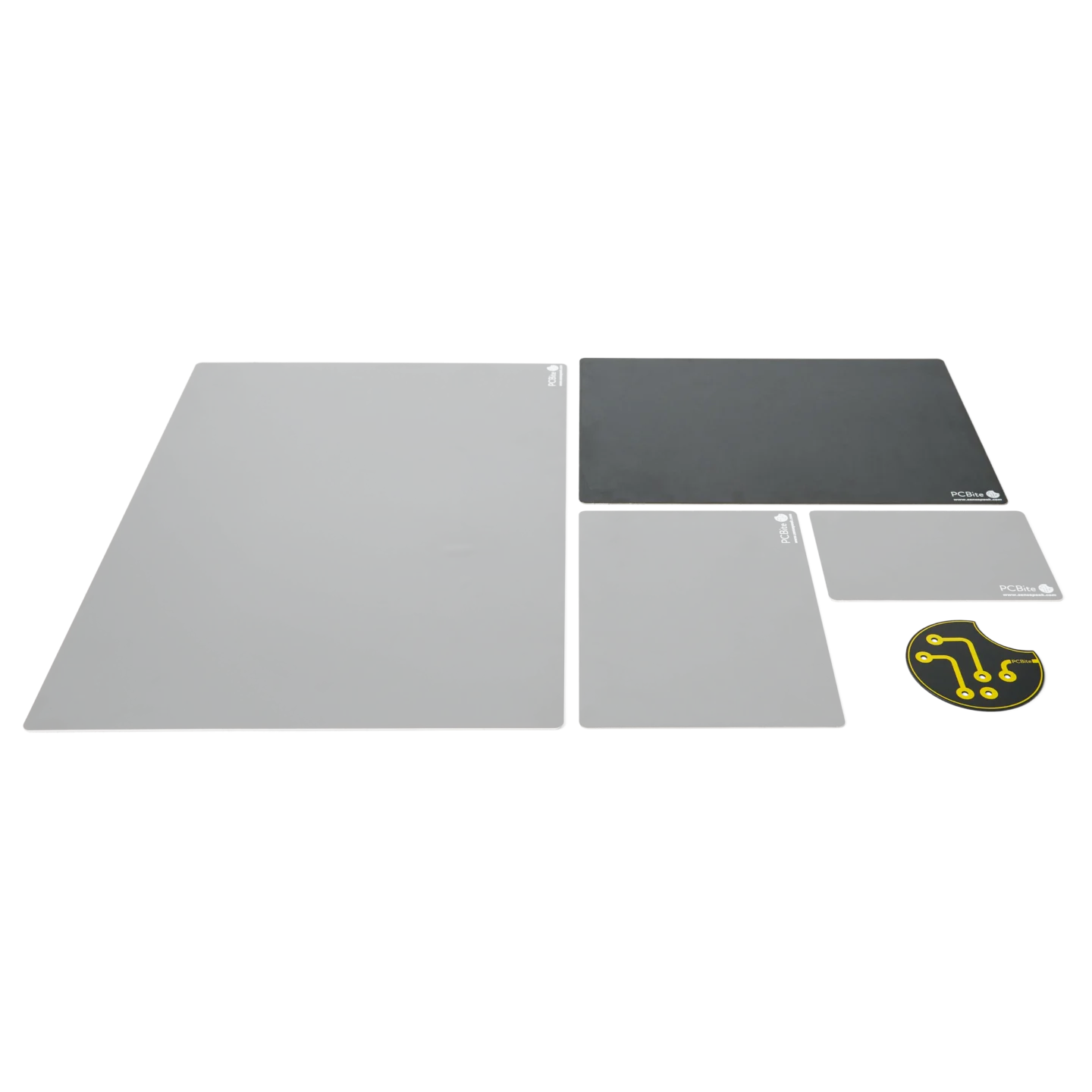

Size comparison of the large A4 insulated baseplate compared with other sizes side by side (PCBITE-4017)

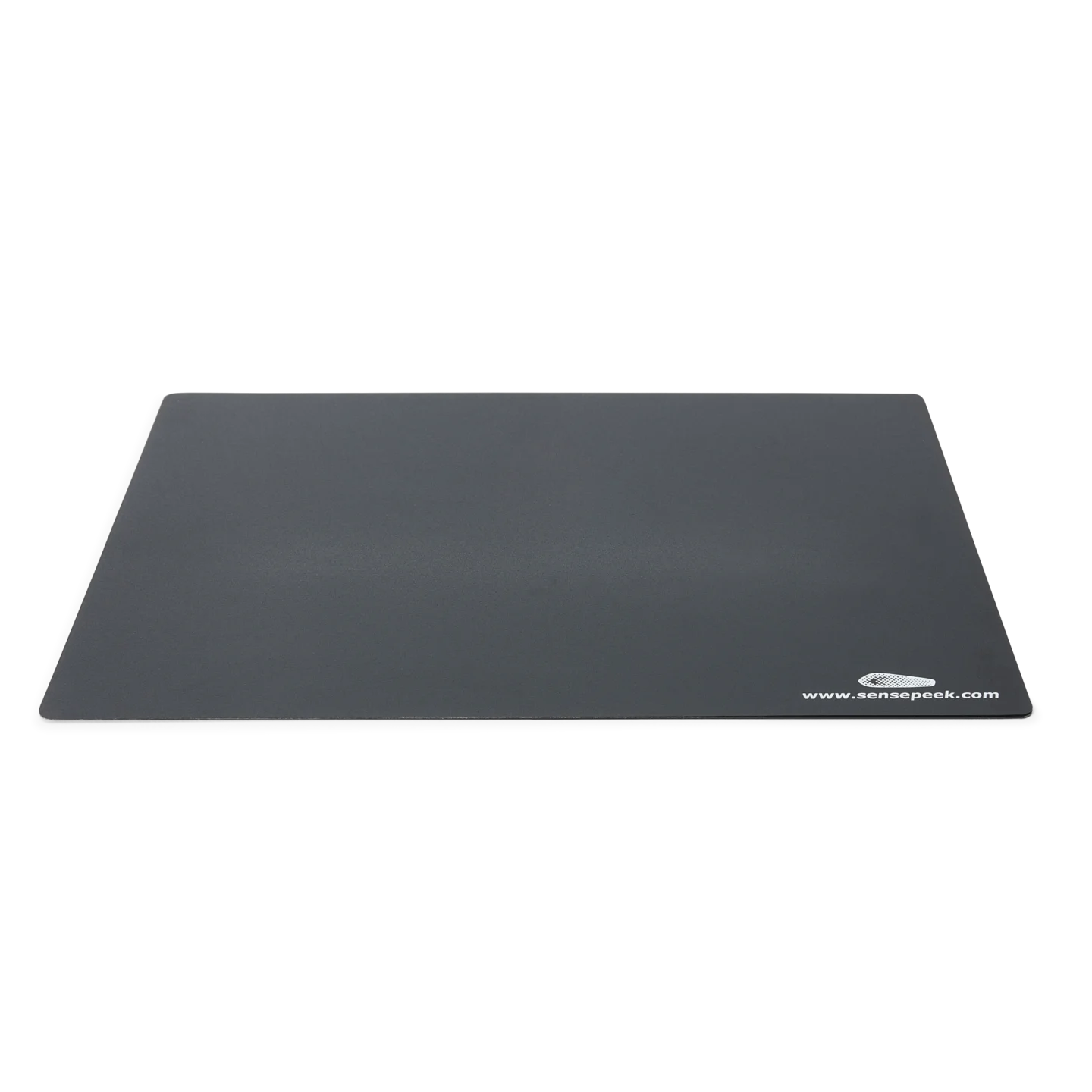

Insulation cover A4 for the large baseplate protecting PCBs during probing (PCBITE-4017)

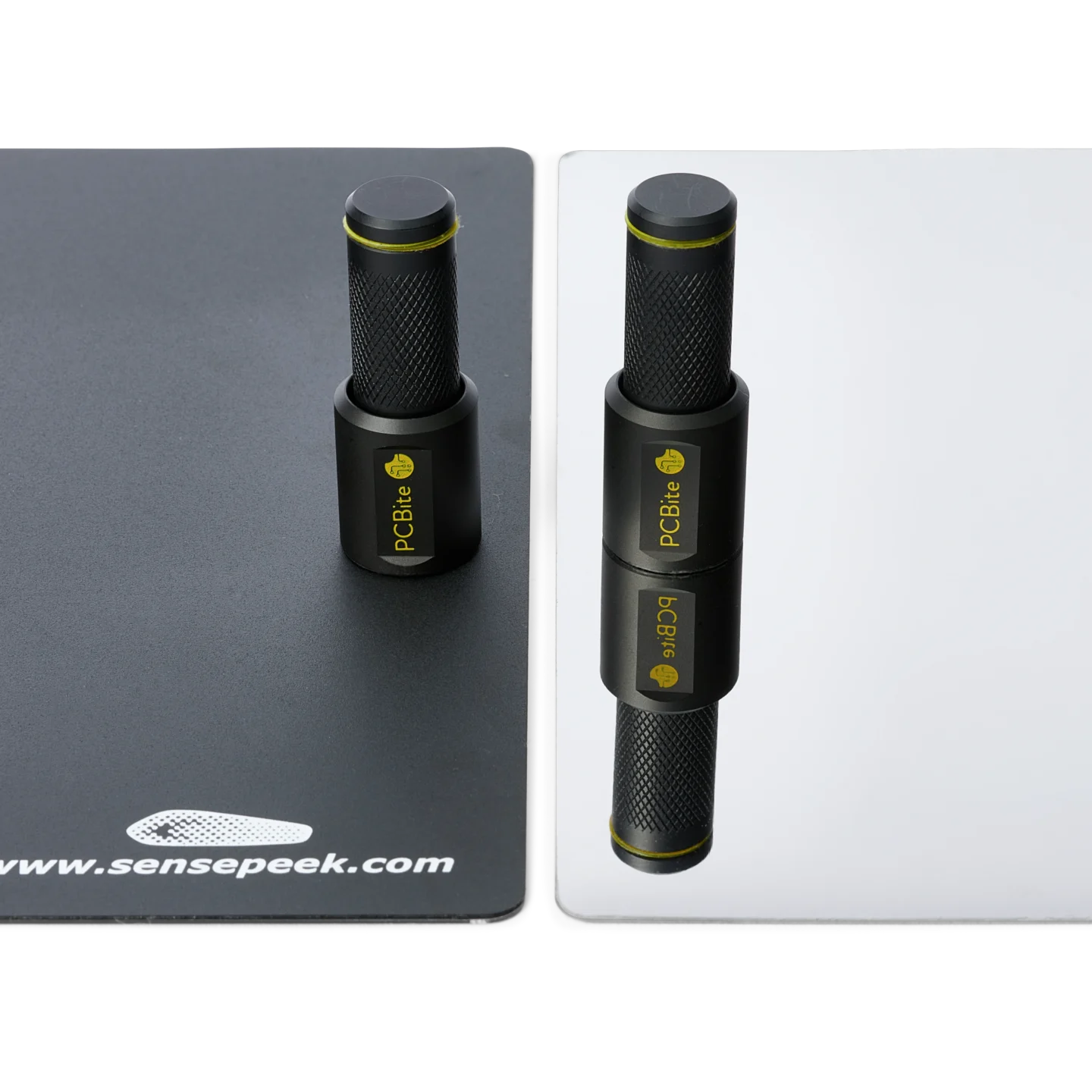

Two magnetic PCB holders showing difference between an insulated and the mirror sides of baseplate (PCBITE-4017)

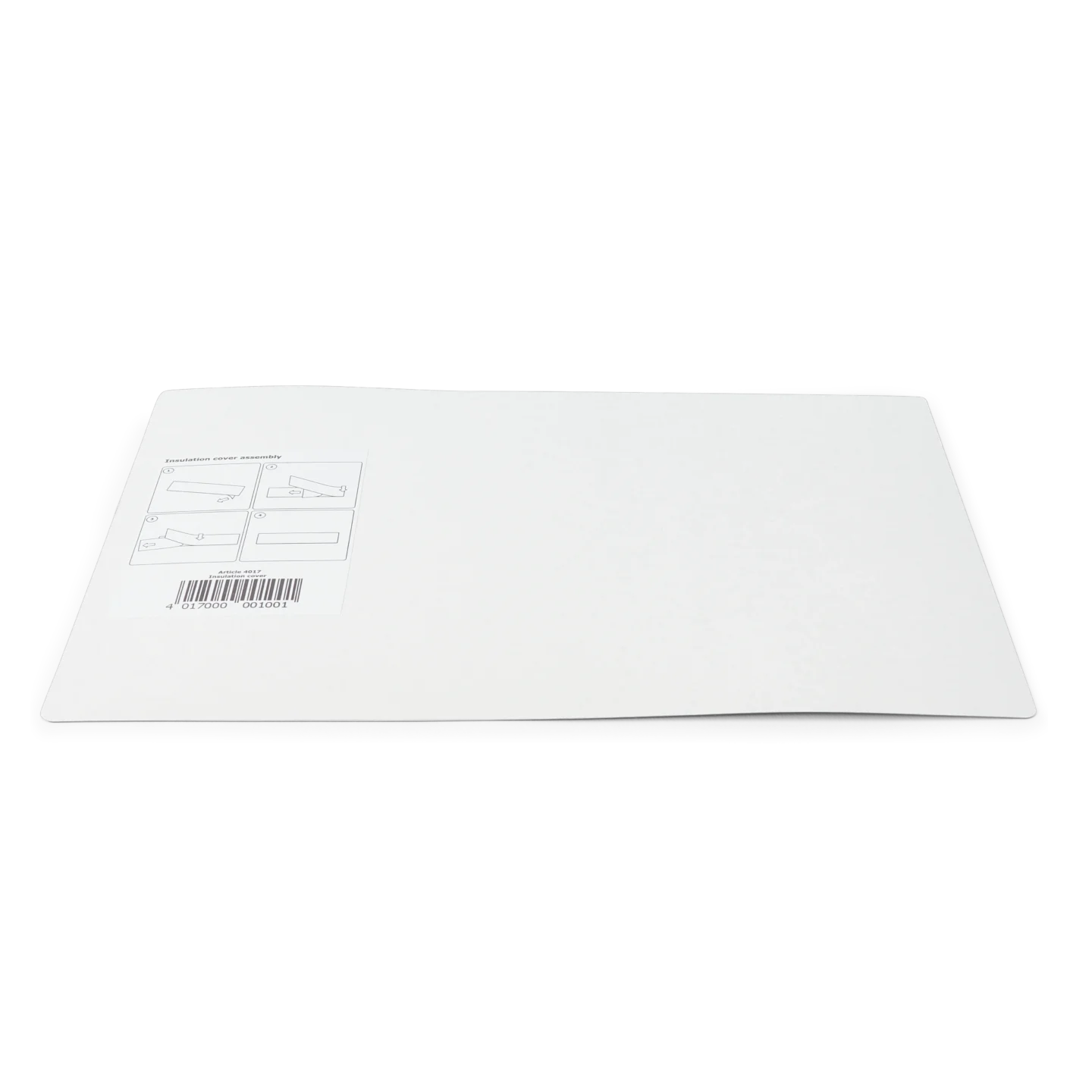

Backside of the insulation cover showing instruction and barcode (PCBITE-4017)
PCBITE-4017

Insulation cover large (A4)

Polycarbonate insulation cover for the PCBite L base plate, 297 × 210 mm (11.69 × 8.27 in, A4). Protects powered PCBs and reduces glare under the microscope.

Secure paymentGlobal deliveryPremium quality
In stockDelivery: 1-2 business days

8 € excl. VAT

Introduction

Insulation for the PCBite L base plate. Add it to an earlier base plate without a cover or replace a worn one, for safe work on powered PCBs and less glare under the microscope.

The large insulation cover fits the PCBite L base plate, 297 × 210 mm (11.69 × 8.27 in, A4). Use it to add insulation to an earlier PCBite base plate without a pre-fitted cover, or to replace a worn cover on a current one.

The non-conductive polycarbonate keeps powered PCBs from shorting against the metal surface, with no tape or improvised insulation needed. Its anti-reflective finish reduces glare from microscope lighting, which makes small PCBs and fine-pitch components easier to see under magnification.

The cover is 1 mm (0.04 in) thick and attaches with a strong adhesive. Peel off the backing and place it on the base plate. Installation instructions are included.

All current PCBite base plates in sizes XS, S, L and XL come with a pre-fitted insulation cover. The base plate is sold separately.

Compatible products

Insulation cover A4 for the large baseplate protecting PCBs during probing (PCBITE-4017)
  • 1X Insulation cover large (A4)
Instruction Insulation cover large
Brand

PCBite
Manufacturer

Sensepeek AB
Article number

PCBITE-4017
GTIN

7350145660151
Country of origin

China
HS code

90309000
HTS code

9030906800
ECCN

EAR99
Safety information

Not applicable
Package weight 35 g
Package dimensions 297 × 210 × 1 mm
MATERIAL

Made to last

Every material and design detail is chosen to last for years in a demanding lab environment.

Material
Non-conductive polycarbonate (PC)
Profile
Slim 1 mm (0.04 in) design
Surface
Matte black, anti-reflective
Attachment
Strong peel-and-stick adhesive
MATERIAL
Material
Non-conductive polycarbonate (PC)
Profile
Slim 1 mm (0.04 in) design
Surface
Matte black, anti-reflective
Attachment
Strong peel-and-stick adhesive

Made to last

Every material and design detail is chosen to last for years in a demanding lab environment.

Powered PCB held by two PCBite holders with yellow insulation washers, probed with red and black probes in front of a bench supply.
DESIGNED FOR POWER

Power up your PCB safely.

The polycarbonate cover turns the steel base plate into a non-conductive work surface. Power up a board, probe it and leave it running without the risk of a short against the metal.

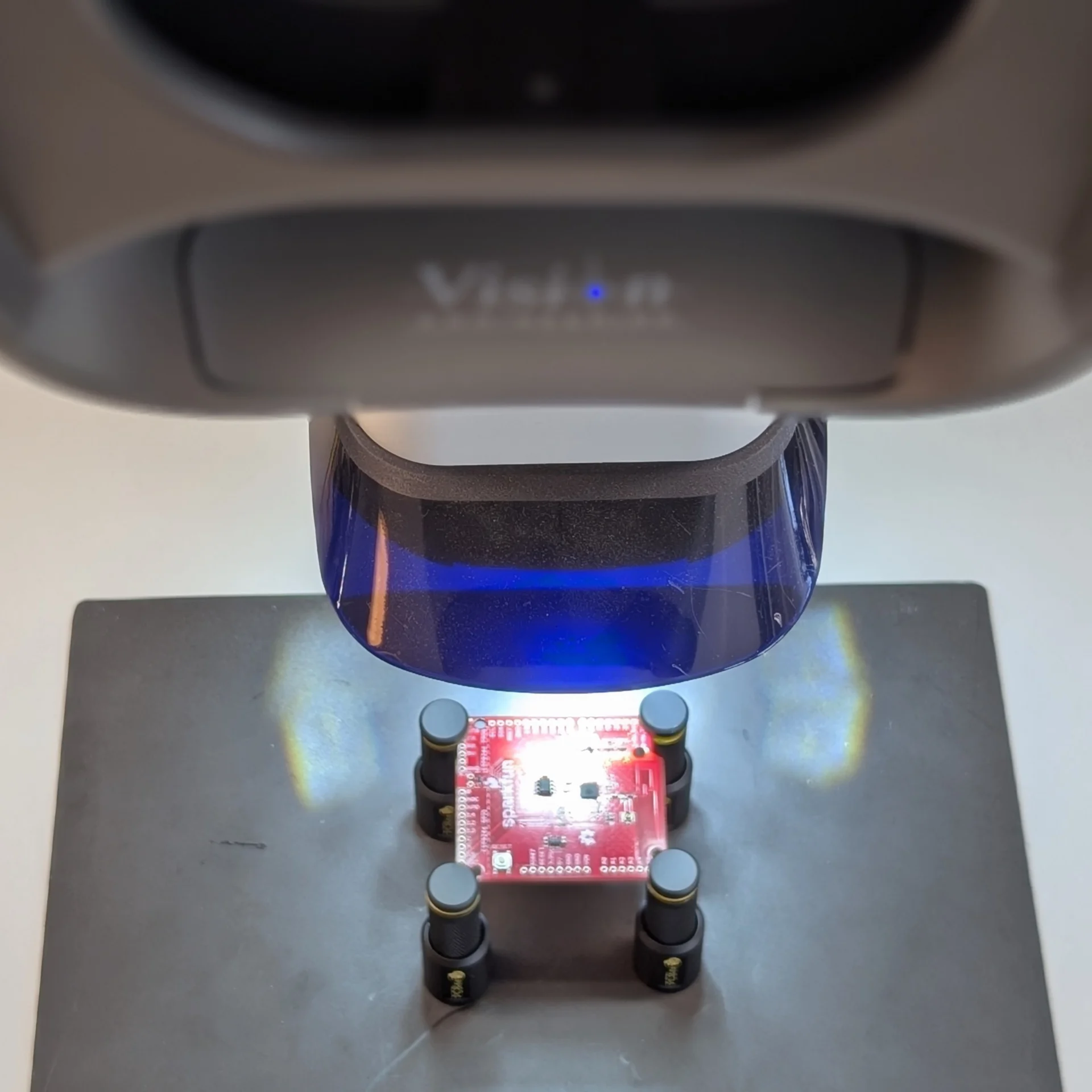

PCB in four PCBite holders under an inspection microscope, on a matte insulated surface that keeps glare from the lamp low.
MICROSCOPE WORK

Less reflection. More detail.

The matte surface reduces reflections from microscope lighting, so components and fine details stand out with clear contrast.

HEAT RESISTANT

Handles the heat of the lab.

The polycarbonate cover is rated from −40 to +120 °C (−40 to +248 °F). Mounted on the base plate, it handles even higher temperatures, because the steel plate works as a heat sink and draws the heat away. Solder and use a heat gun with confidence.

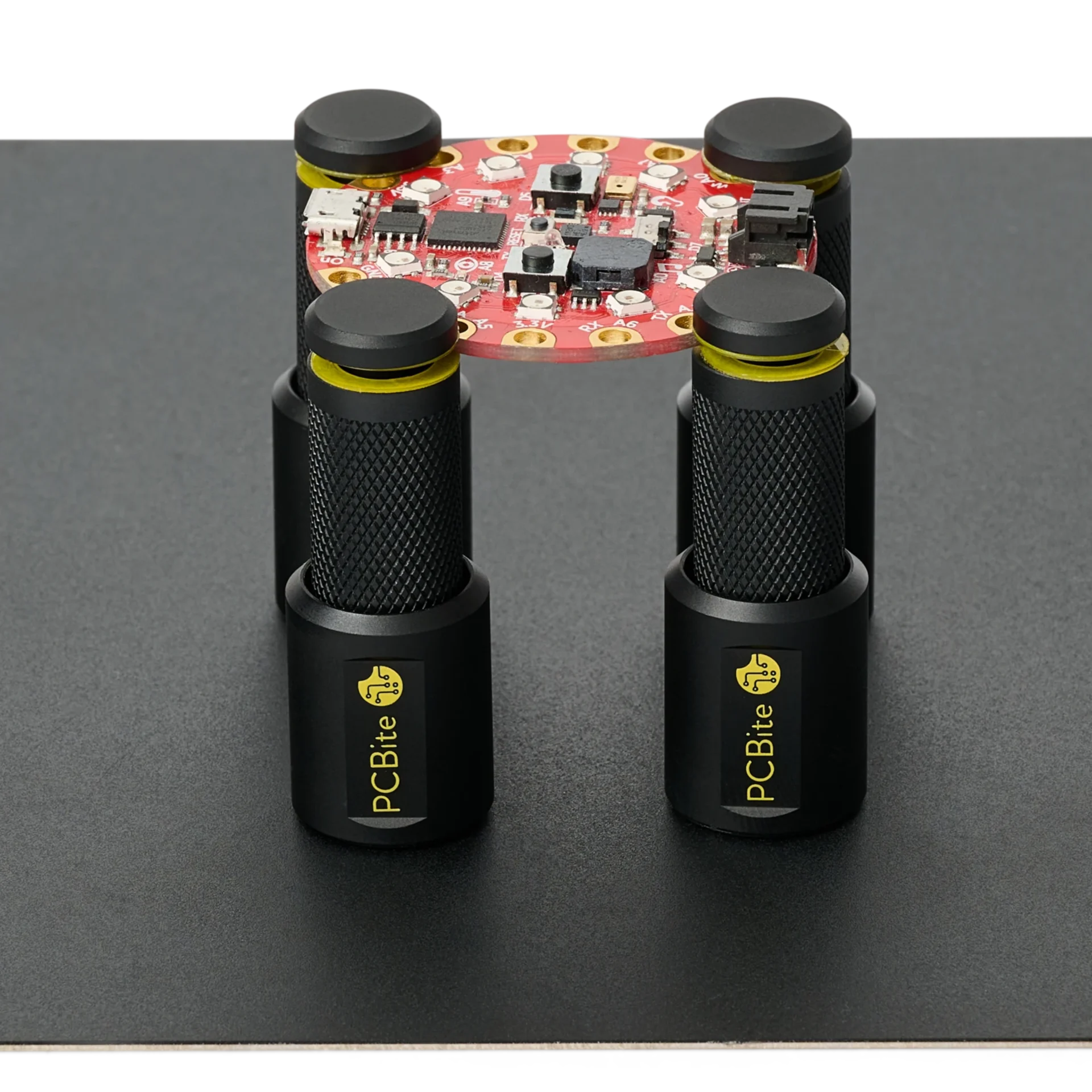

Four PCBite holders keeping a firm magnetic grip on an insulated base plate while holding a round PCB above it.
UPGRADE

Add insulation. Keep the magnetic grip.

The cover is only 1 mm (0.04 in) thick, so the magnetic grip stays strong. Every PCBite holder, probe and accessory locks firmly to the plate, and your setup works exactly as before, now on an insulated surface.
