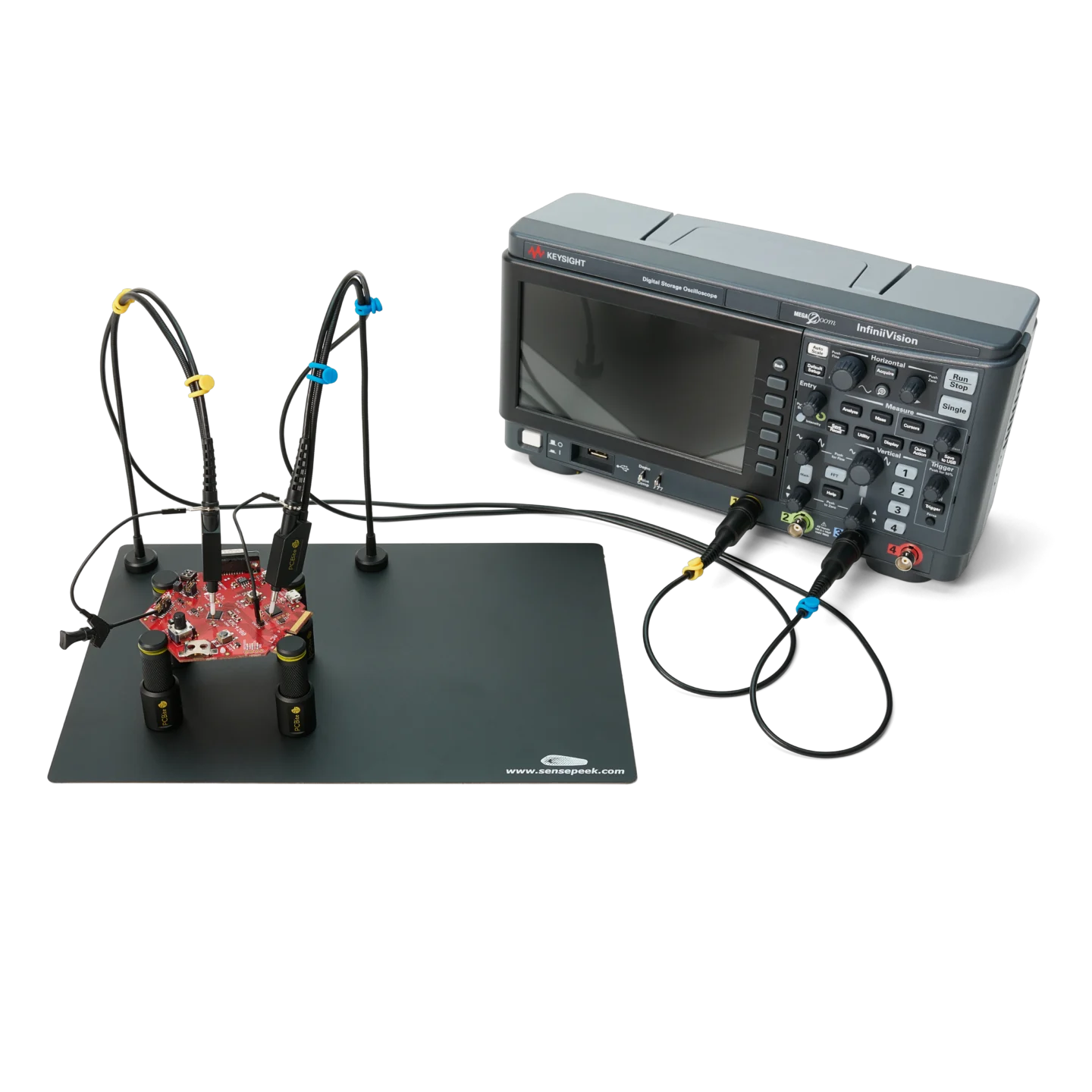

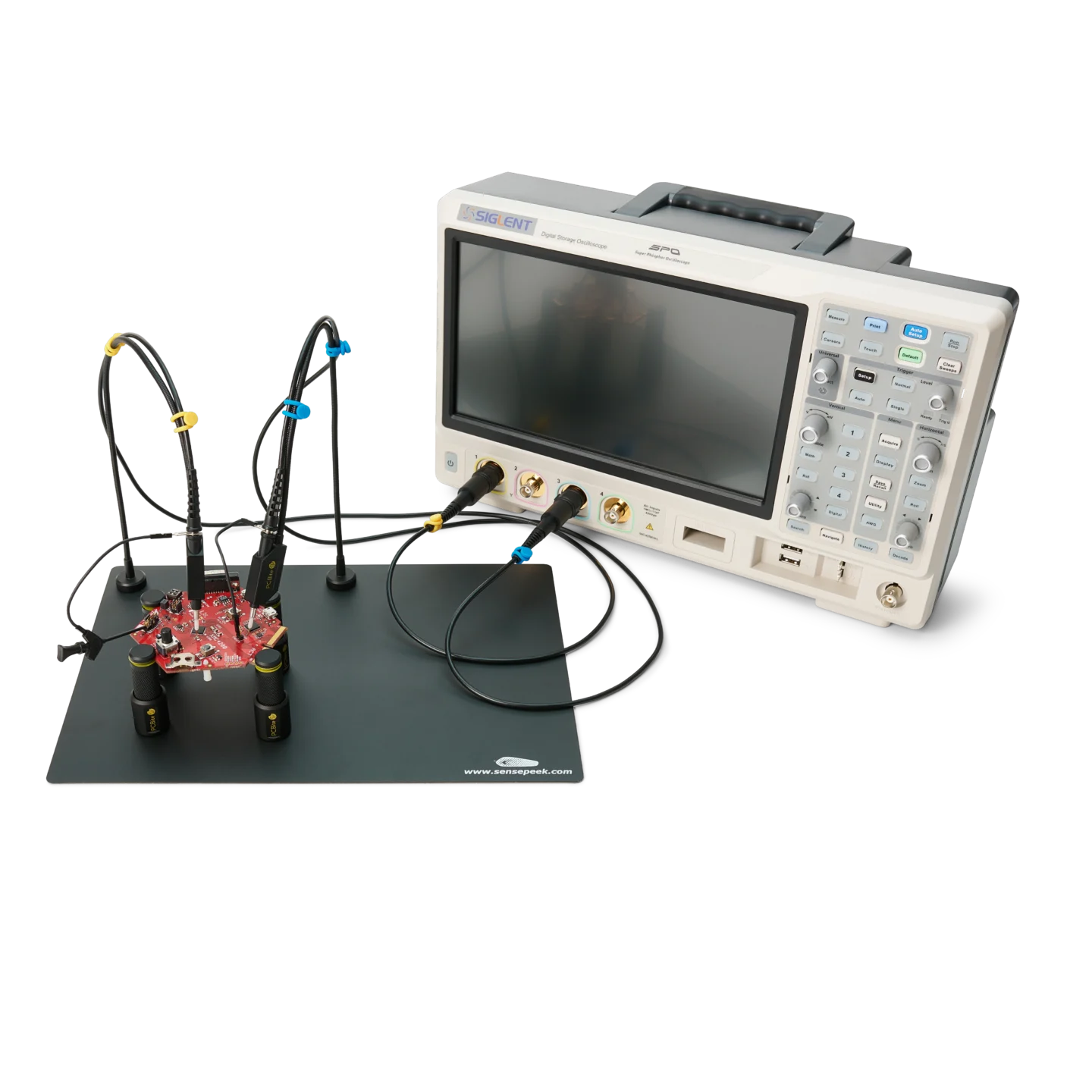

Complete kit with 2x handsfree SQ200 200 MHz oscilloscope probes and 4x PCB holders (PCBITE-6016)

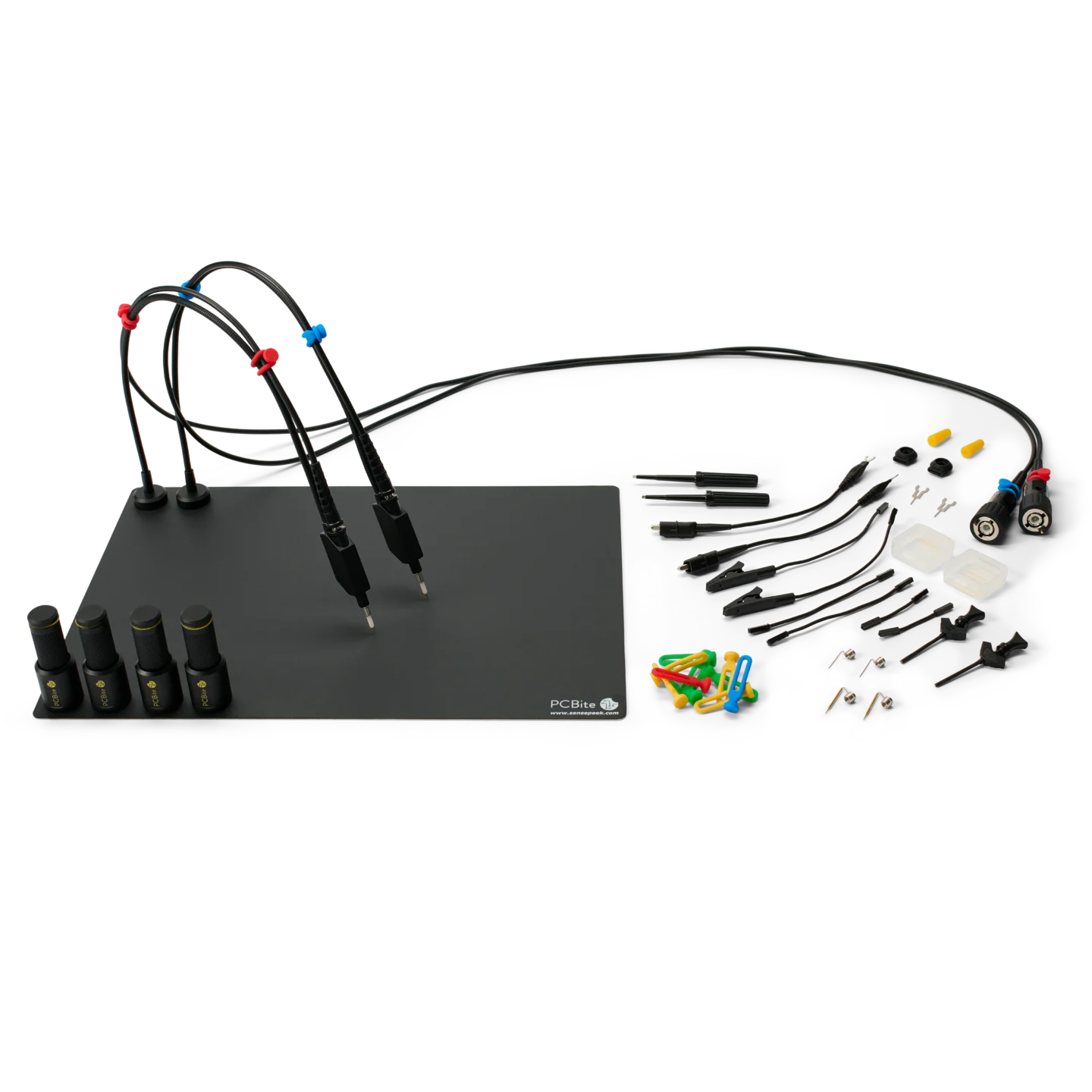

Complete hands-free probing system with 2x SQ200 200 MHz oscilloscope probes, magnetic PCB holders and accessories (PCBITE-6016)

Four handsfree SQ200 200 MHz oscilloscope probes measuring close signal pins on MCU test PCB (PCBITE-6016)

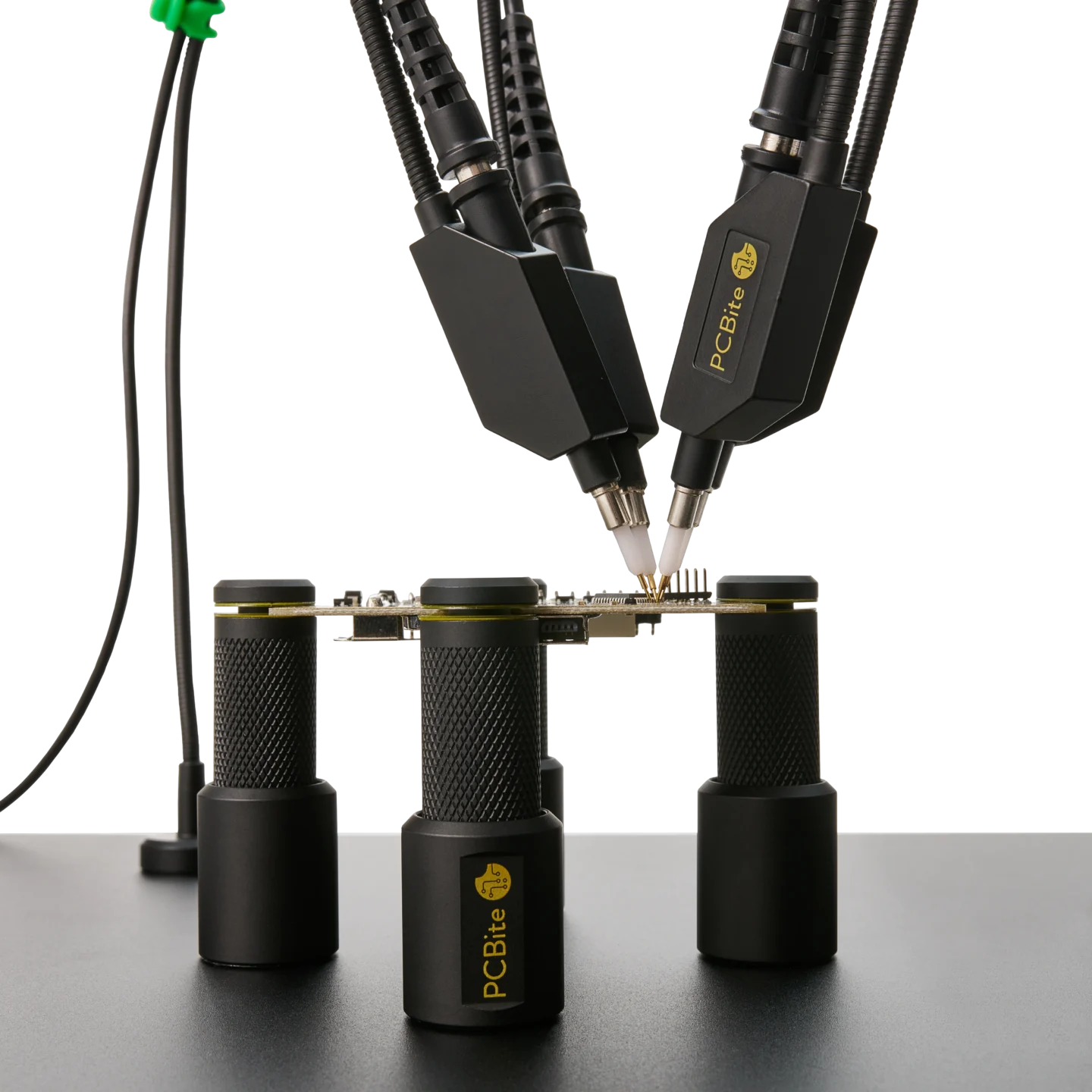

Complete PCB under test with PCBite holders and four handsfree SQ200 200 MHz oscilloscope probes testing signals (PCBITE-6016)

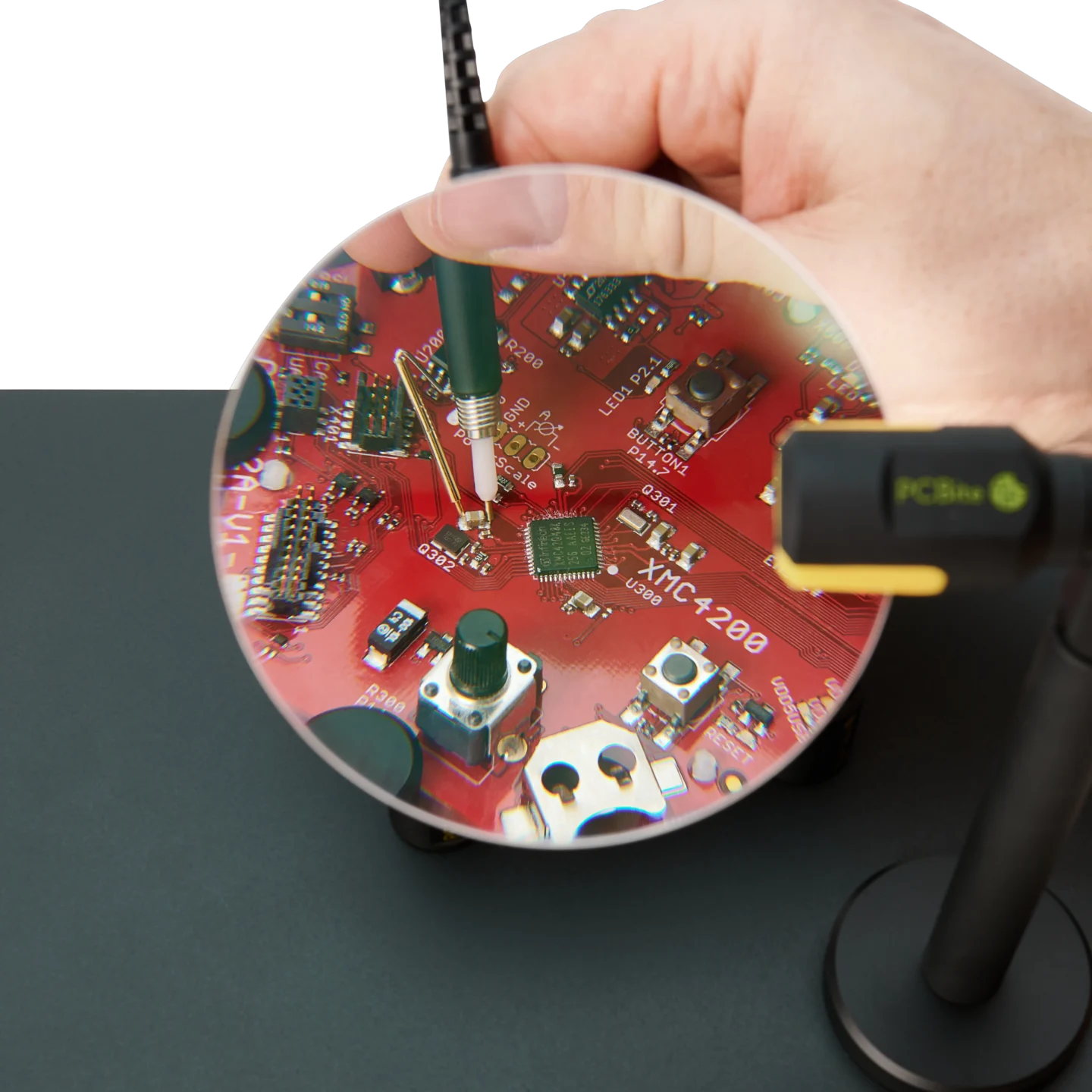

Measuring handheld on SMD component using SQ200 200 MHz oscilloscope probe with the ground spring needle (PCBITE-6016)

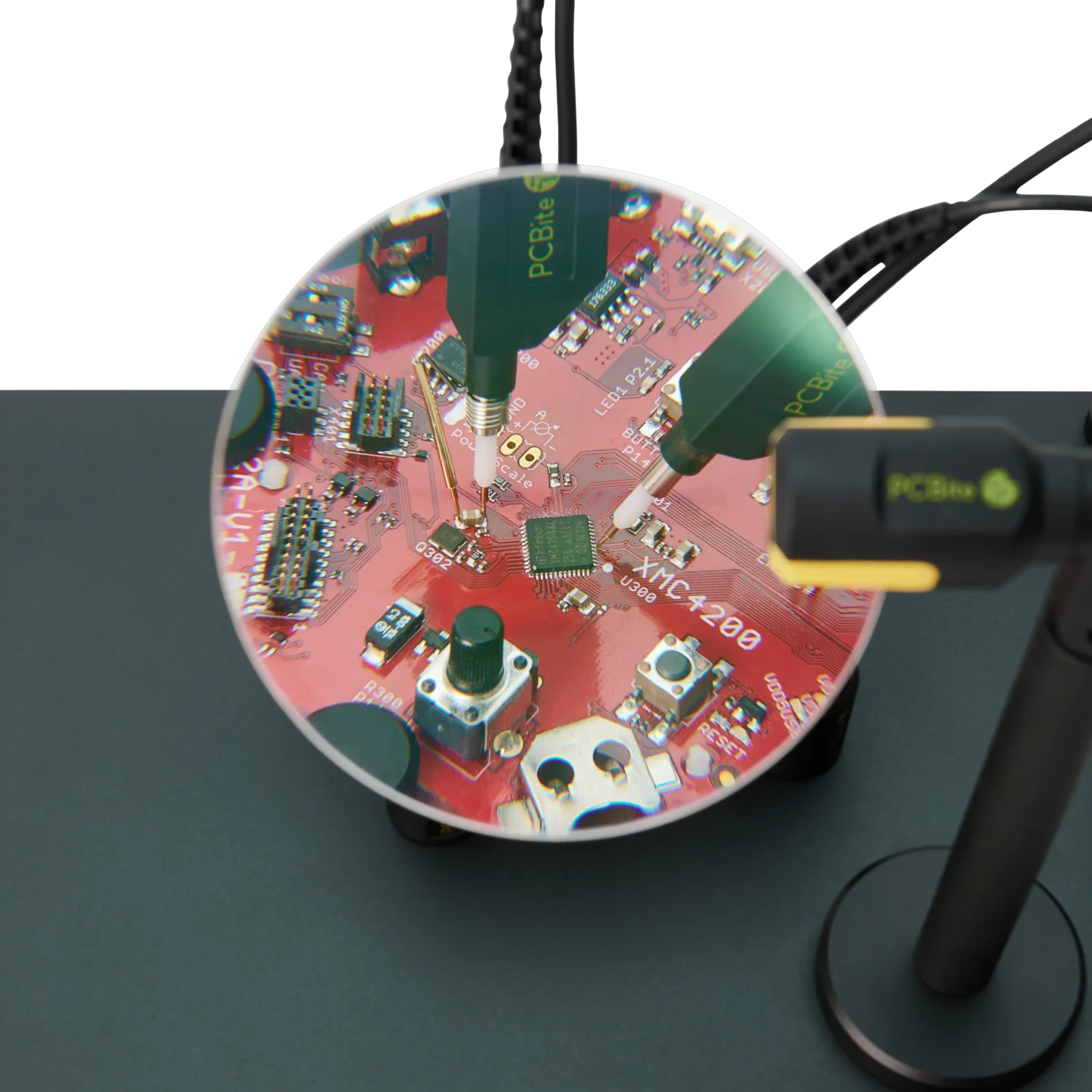

Two SQ200 200 MHz oscilloscope probes measuring handsfree on PCB showing different grounding options through magnifier lens (PCBITE-6016)

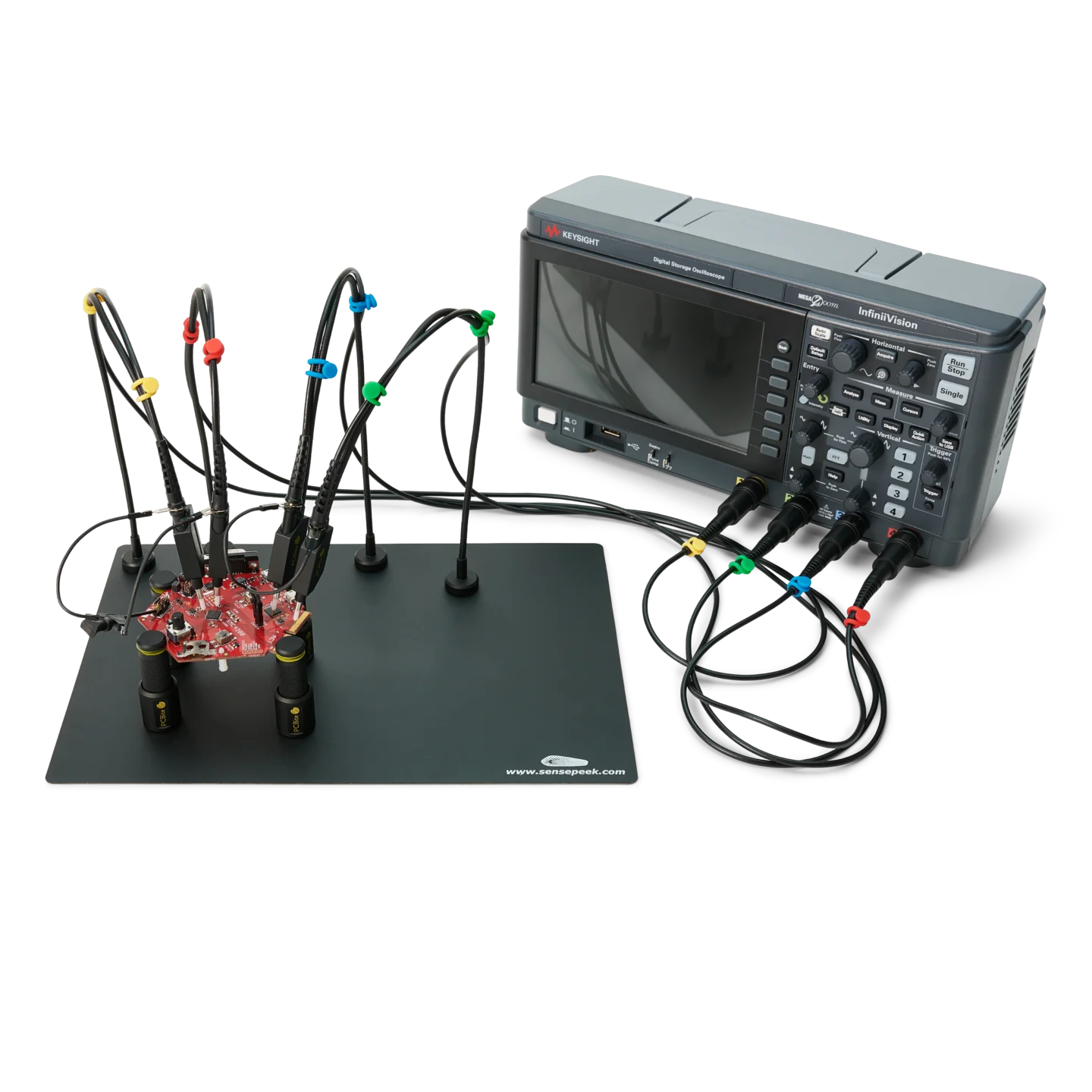

Complete setup with 4x handsfree SQ200 200 MHz oscilloscope probes and 4x PCB holders (PCBITE-6016)

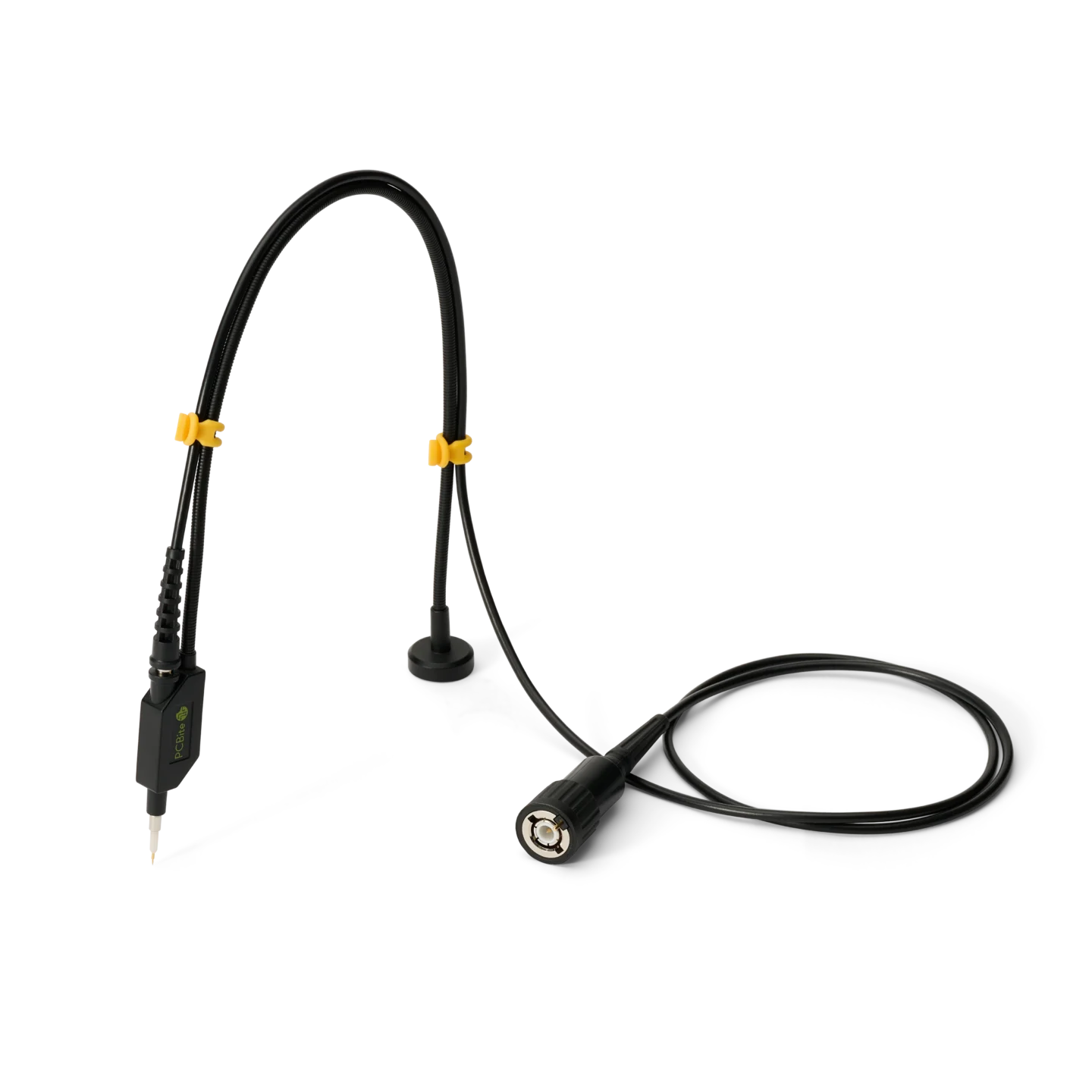

Single handsfree SQ200 200 MHz probe with yellow color-coded cable holders and BNC connector with x10 identifier (PCBITE-6016)

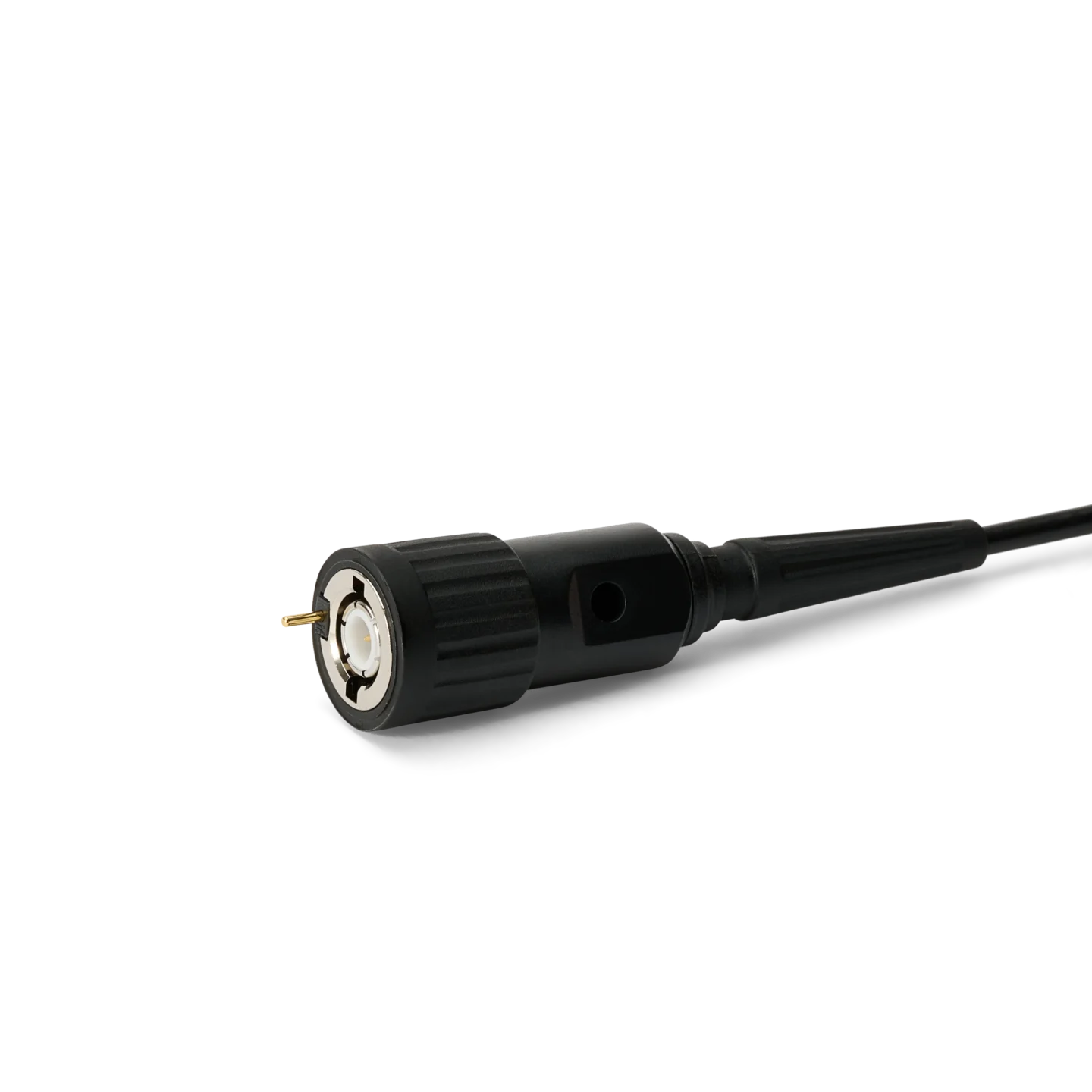

BNC connector of SQ200 200 MHz oscilloscope probe showing the x10 identifier pin (PCBITE-6016)

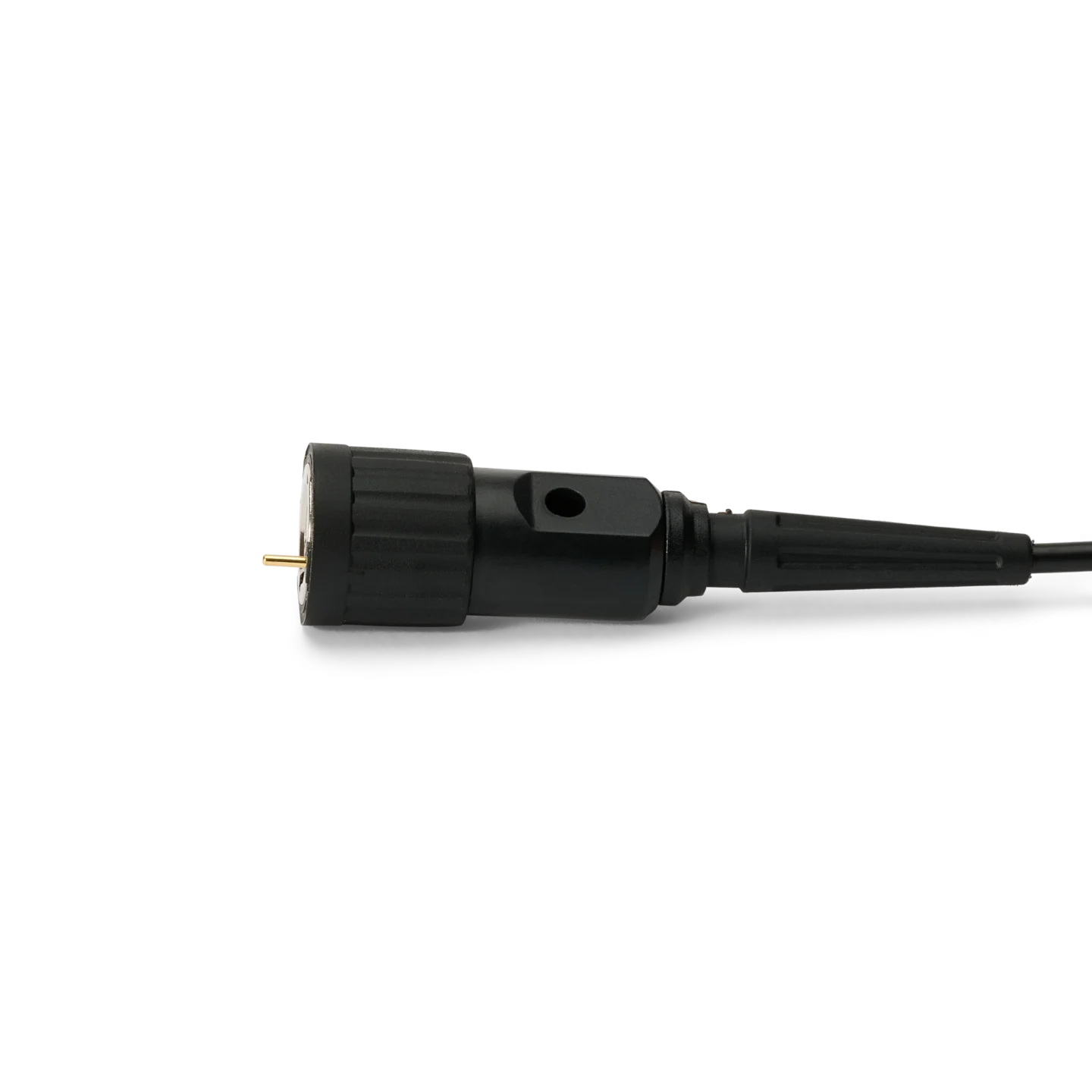

SQ200 200 MHz, Side view of BNC connector showing x10 identifier pin and low frequency tuning hole (PCBITE-6016)

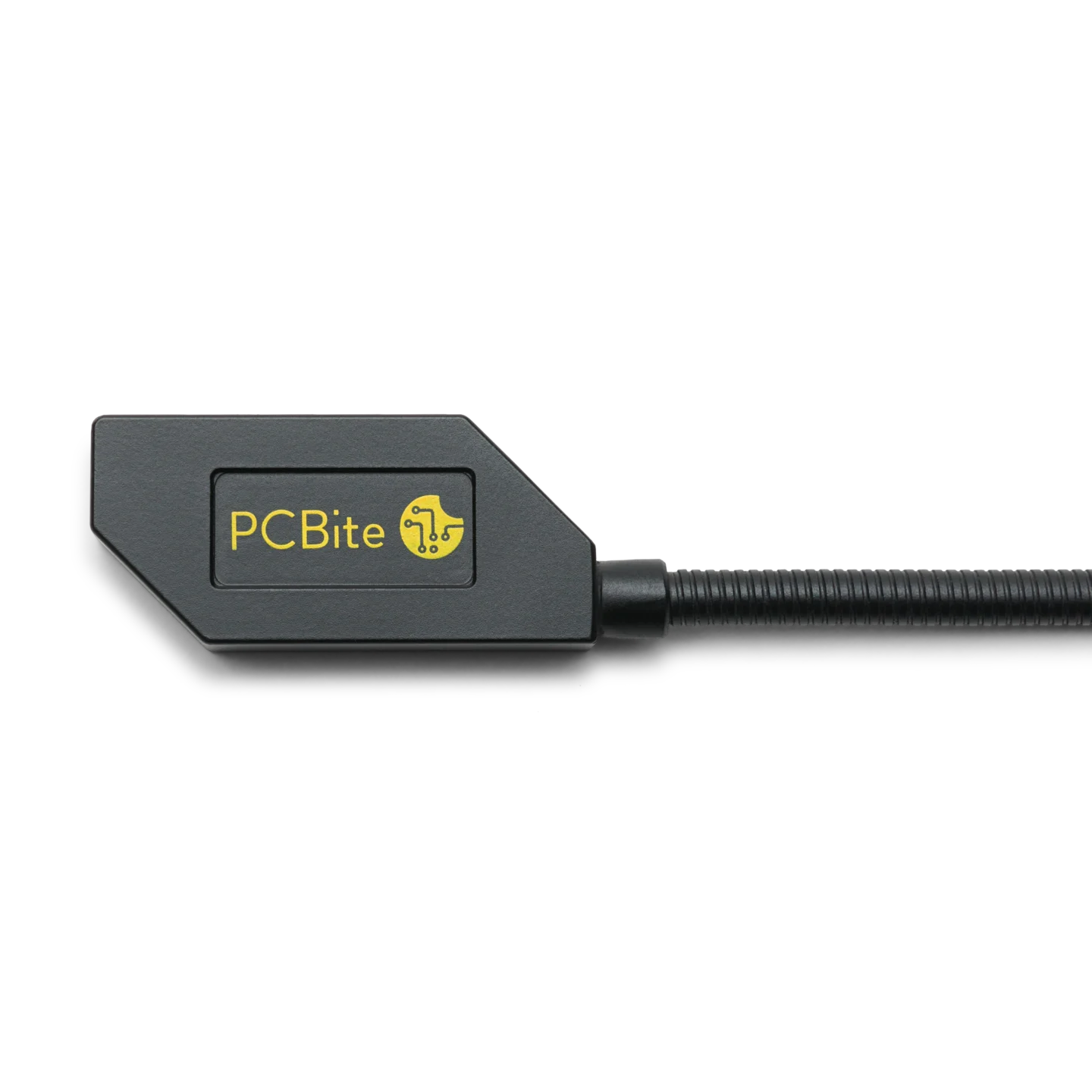

SQ200 200 MHz Probe holder with magnetic base for handsfree PCB testing, fits any SQ series probe (PCBITE-6016)

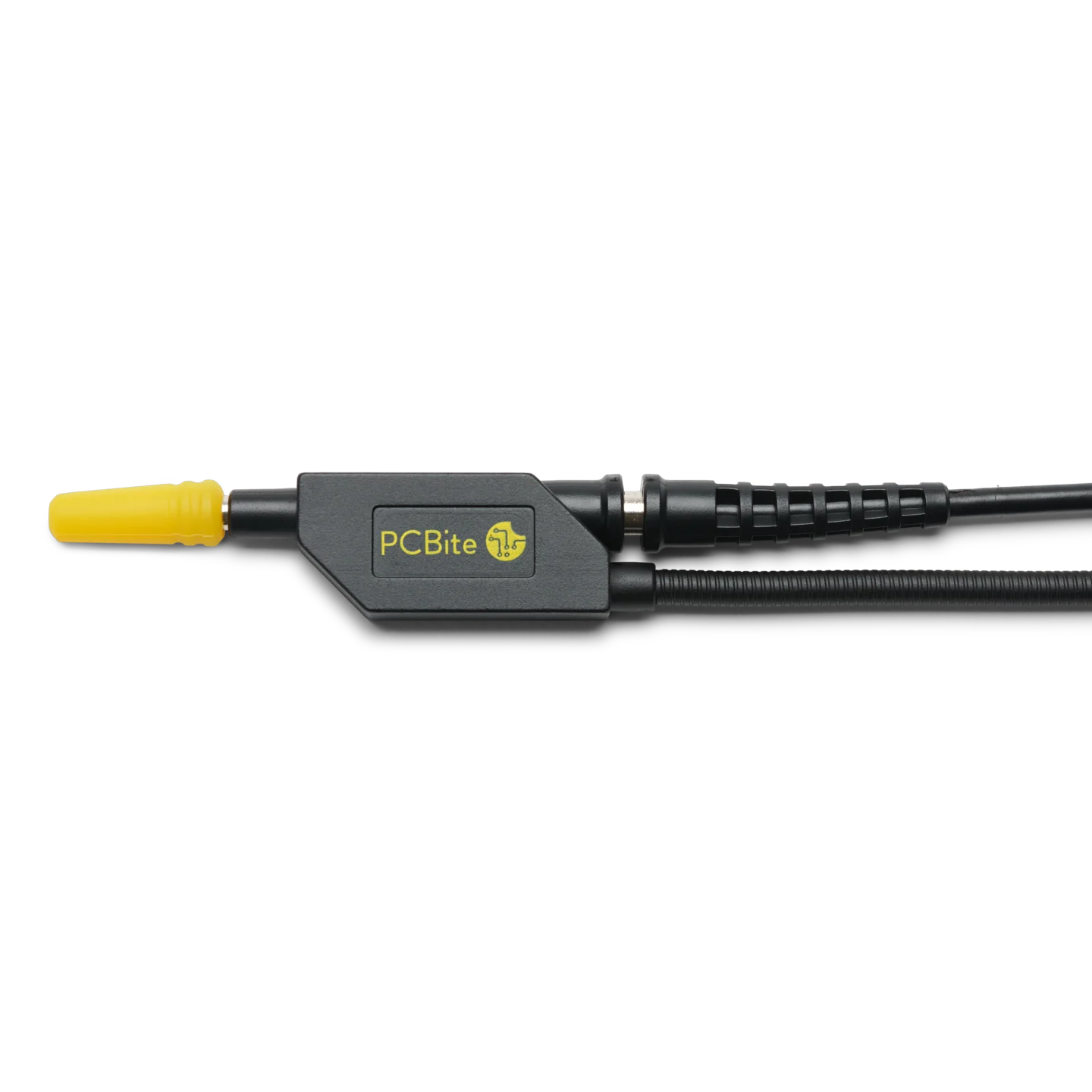

SQ200 200 MHz Oscilloscope probe mounted in holder with protective cap covering the probe tip (PCBITE-6016)

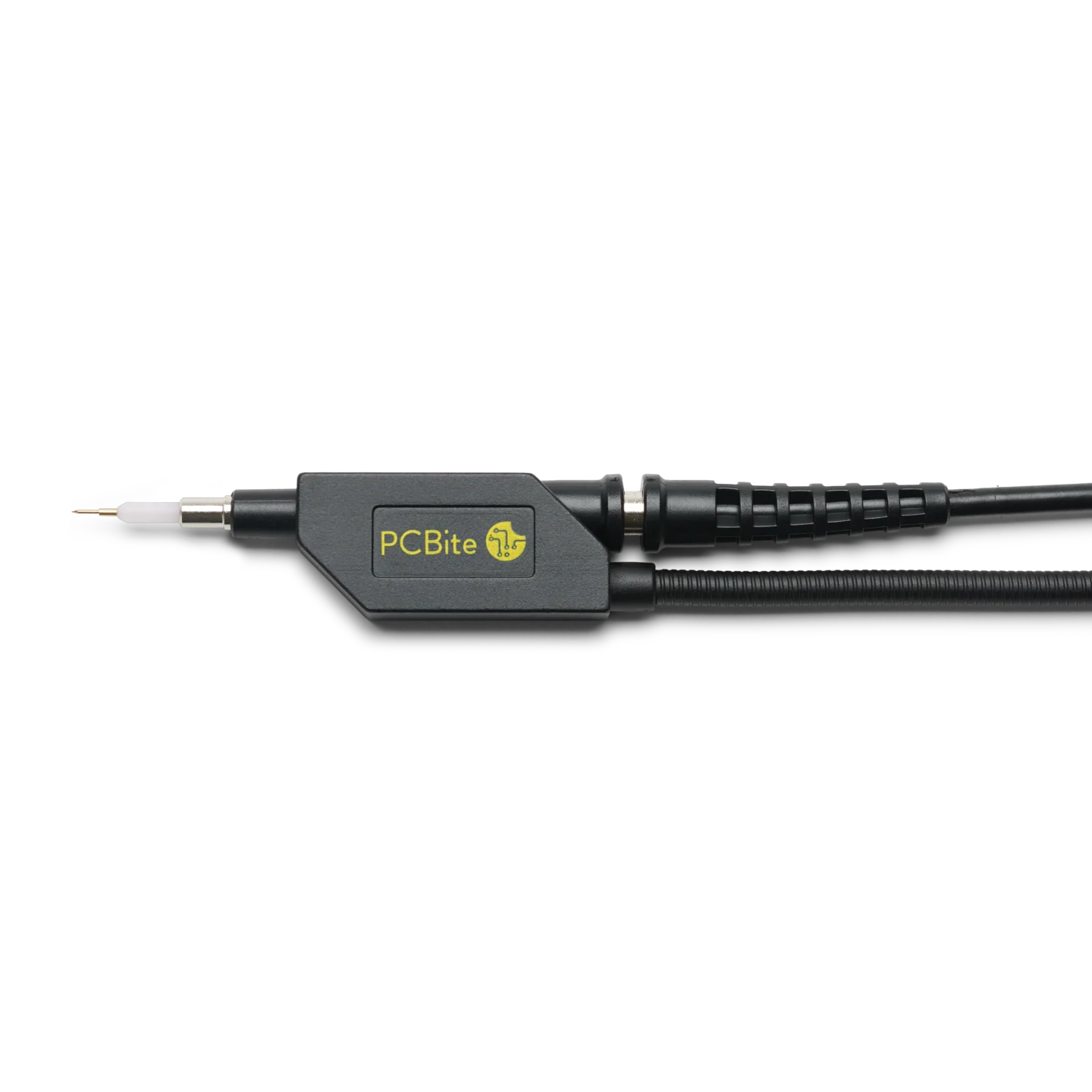

SQ200 200 MHz Oscilloscope probe mounted in probe holder without any ground options connected (PCBITE-6016)

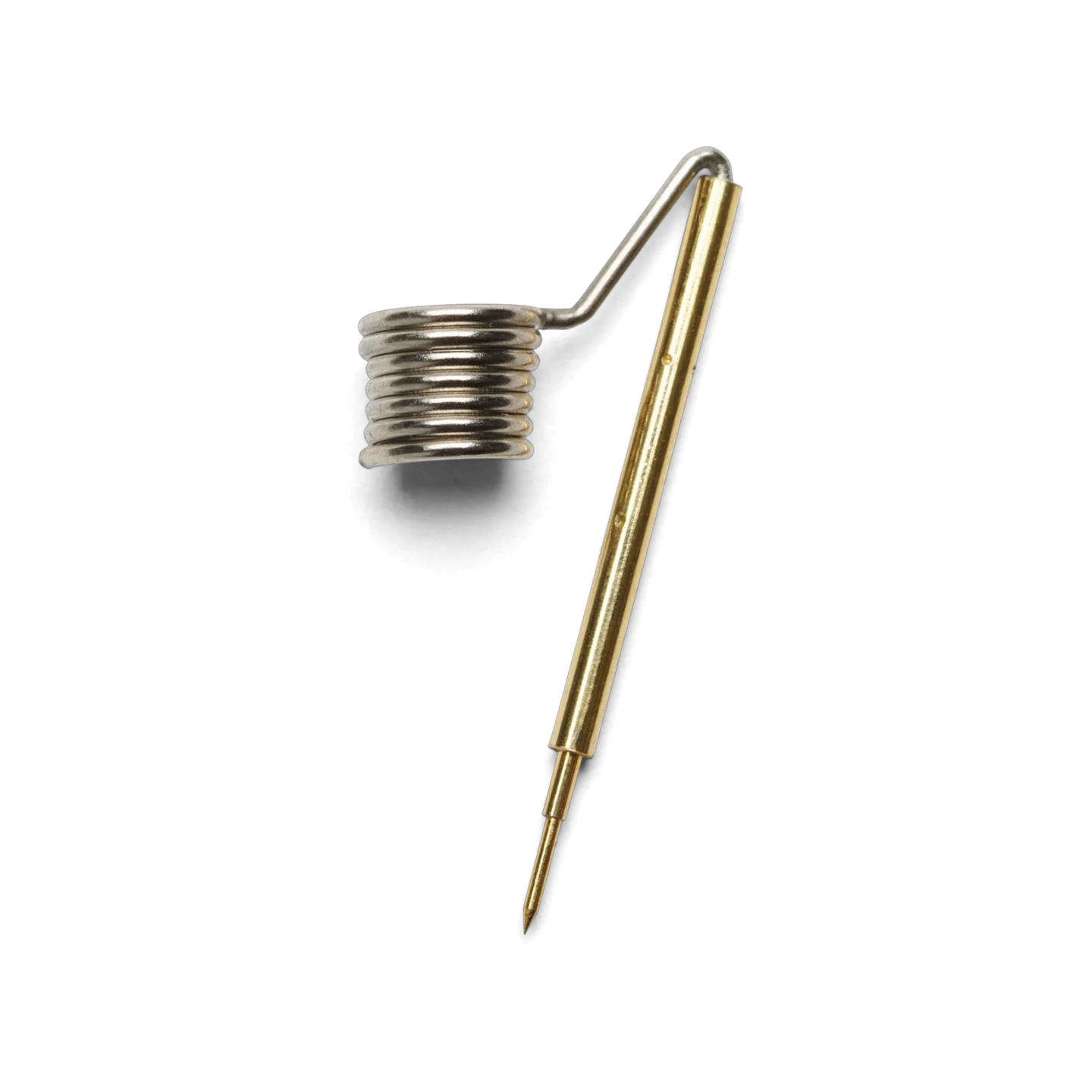

Spring-loaded ground needle for highest possible SQ200 200 MHz probe bandwidth during handheld or handsfree measurements (PCBITE-6016)

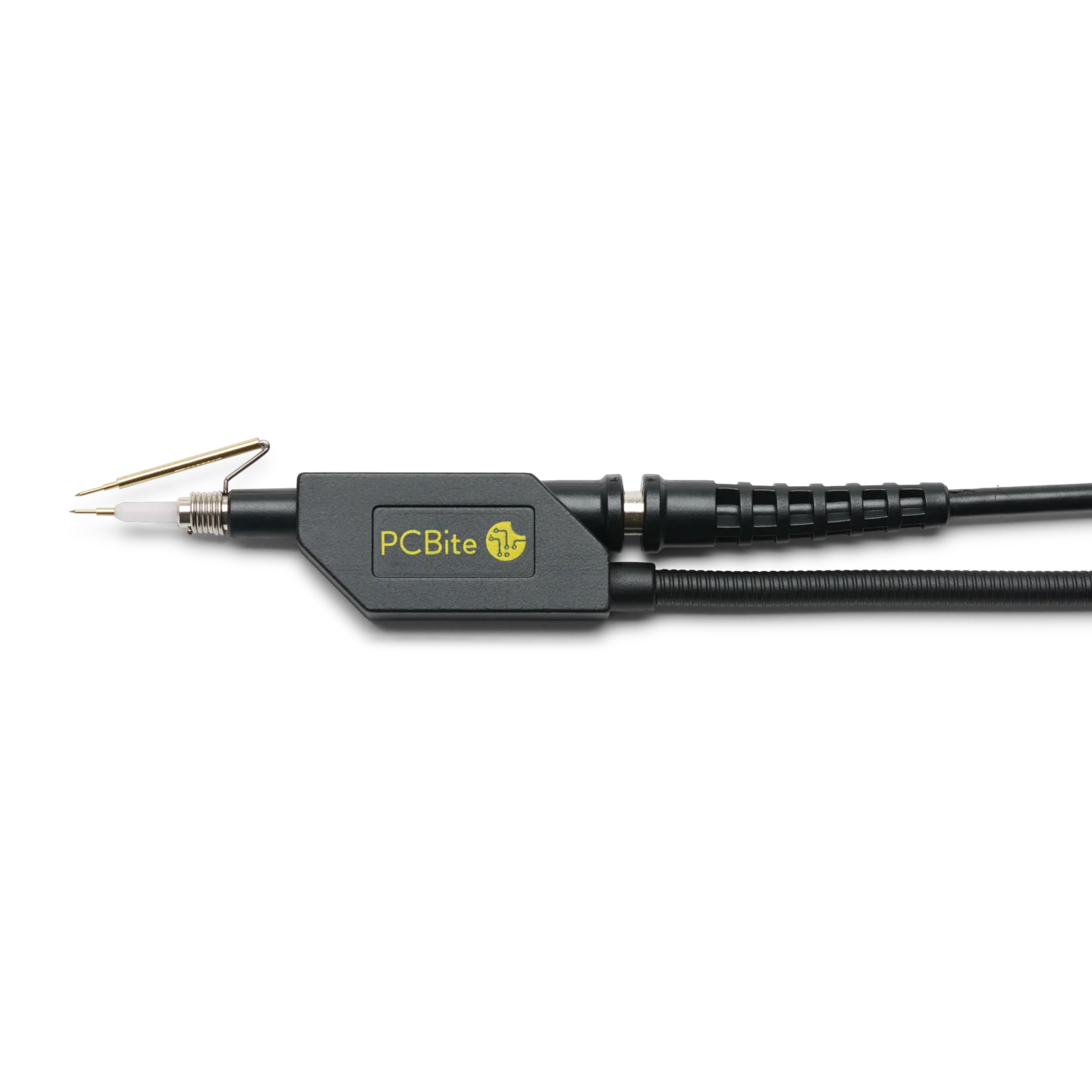

SQ200 200 MHz Oscilloscope probe in holder with unique ground spring with spring-loaded ground needle (PCBITE-6016)

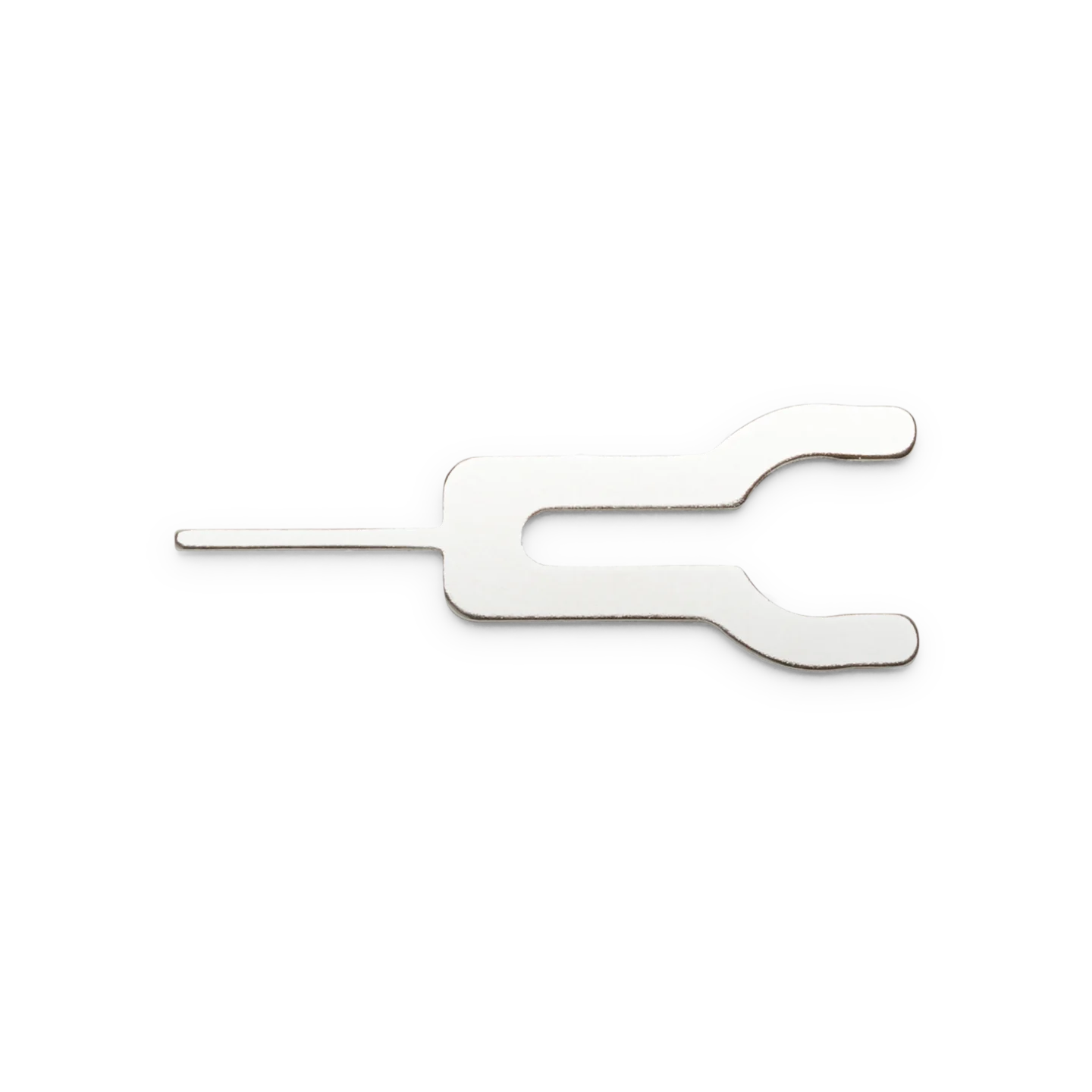

SQ200 200 MHz, Ground clip for the 5mm convenient ground interface to connect to any dupont accessory (PCBITE-6016)

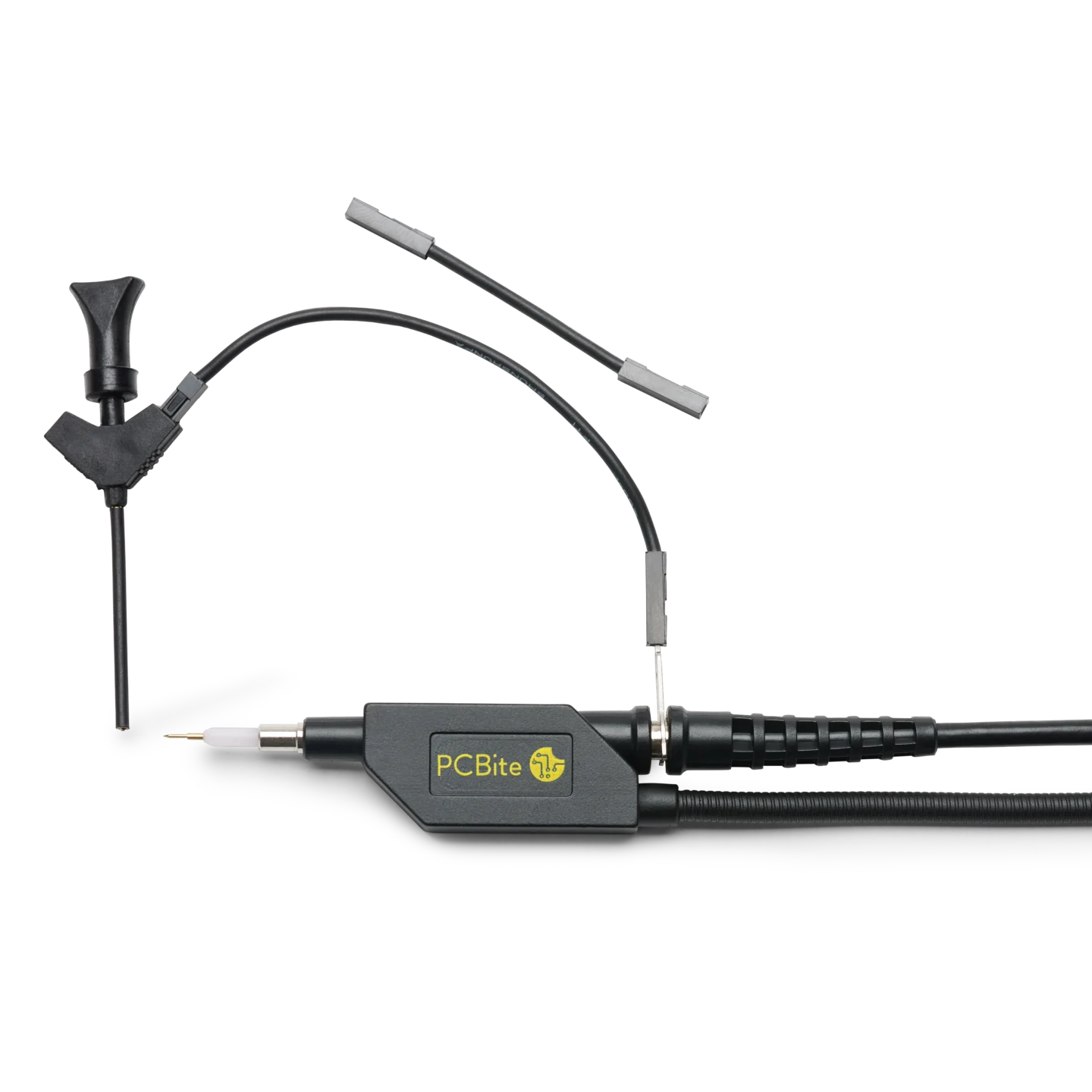

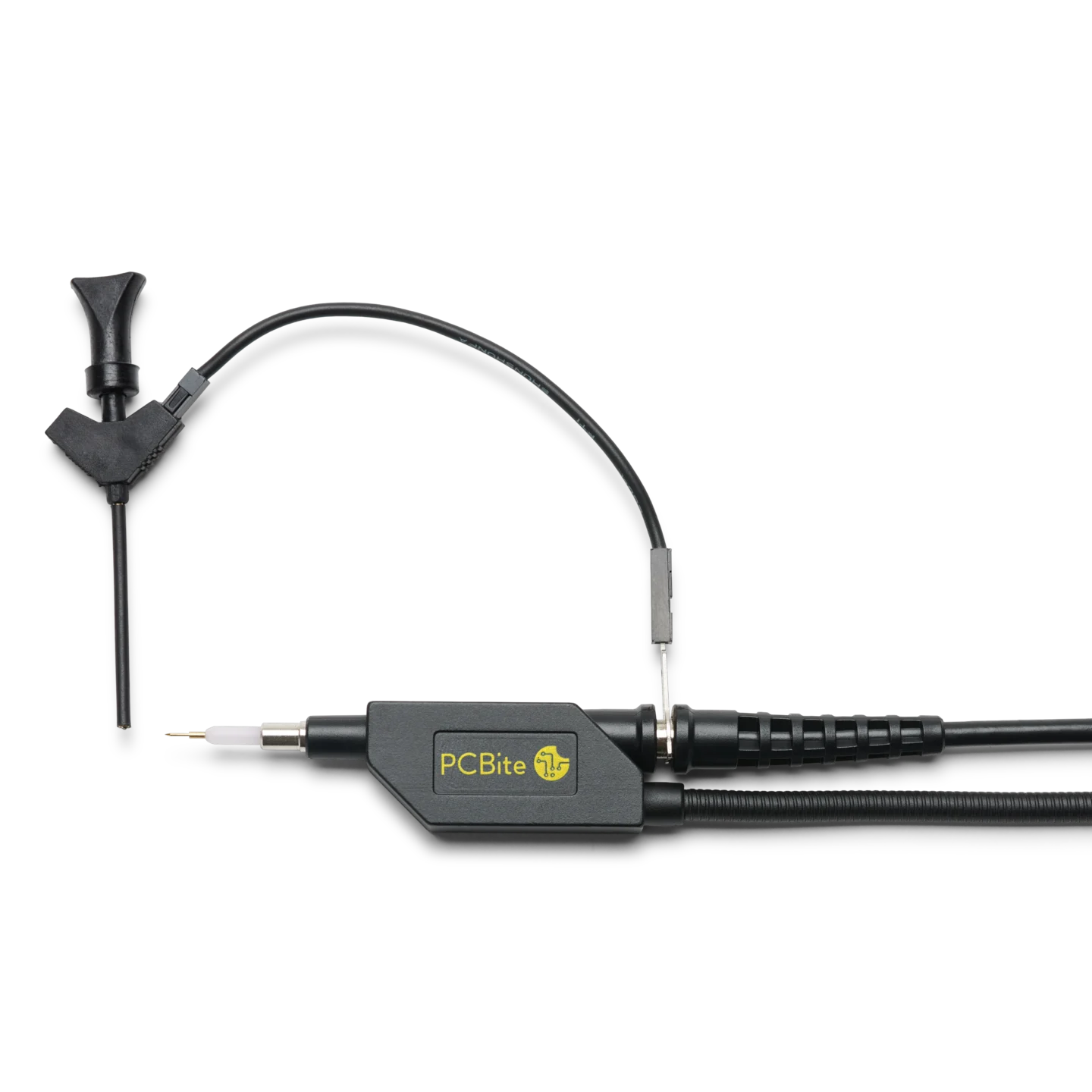

SQ200 200 MHz Probe in holder with airplane test hook connected to 5mm ground via dupont cable (PCBITE-6016)

SQ200 200 MHz Probe in holder with airplane test hook connected to 5mm ground using dupont cable (PCBITE-6016)

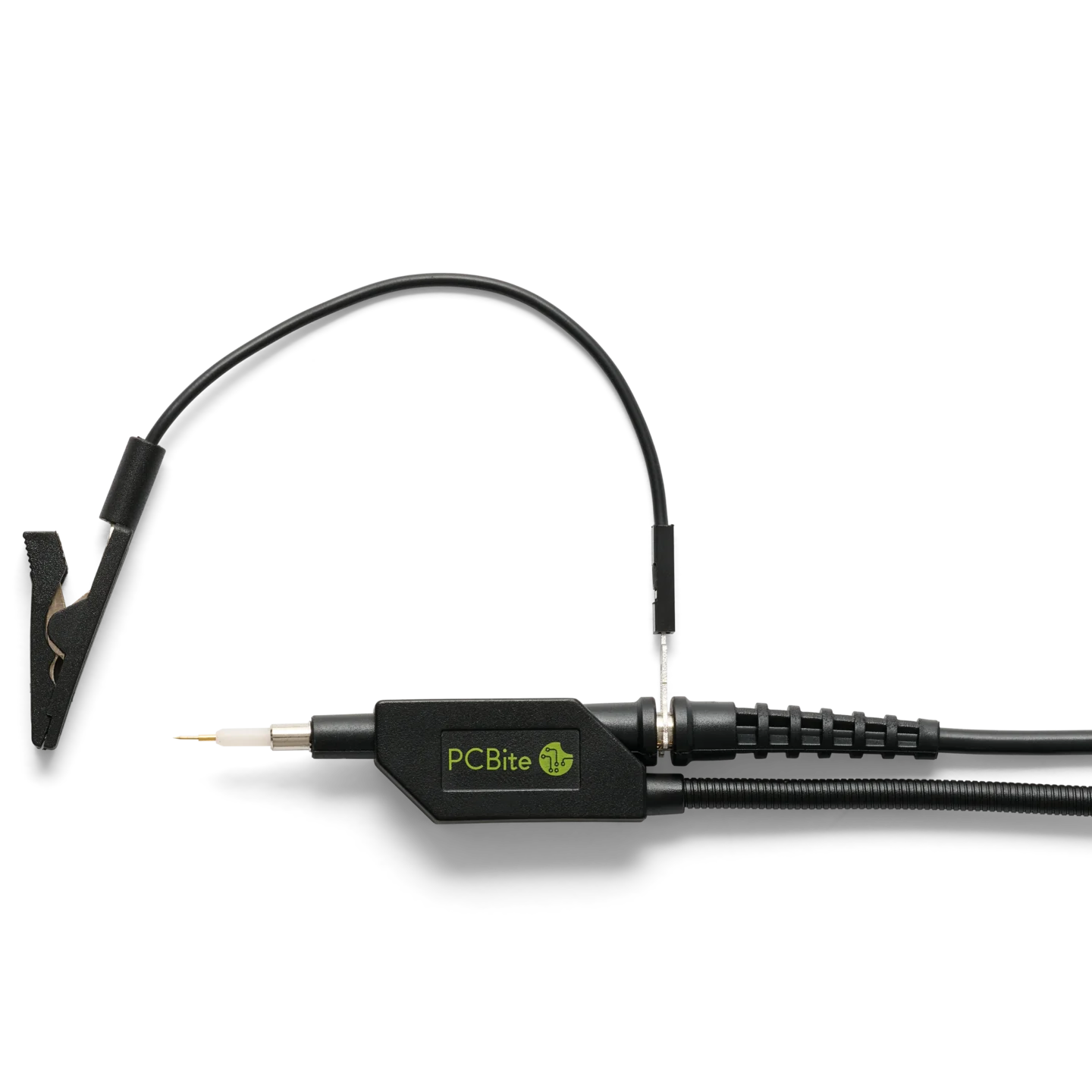

SQ200 200 MHz Probe in holder with high quality alligator and clip connected to 5mm ground interface (PCBITE-6016)

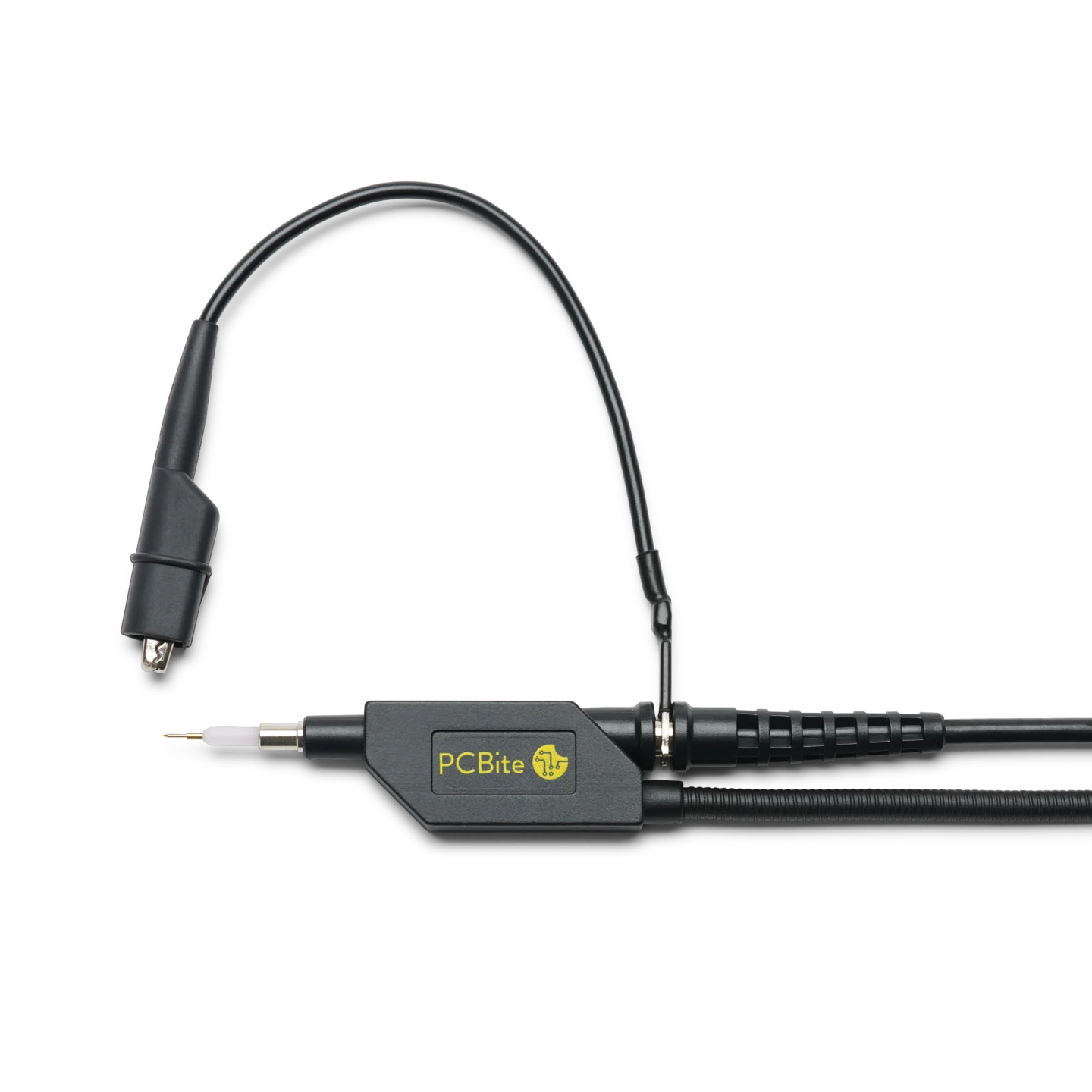

SQ200 200 MHz Oscilloscope probe mounted in probe holder with insulated alligator clip connected to 5mm ground interface (PCBITE-6016)

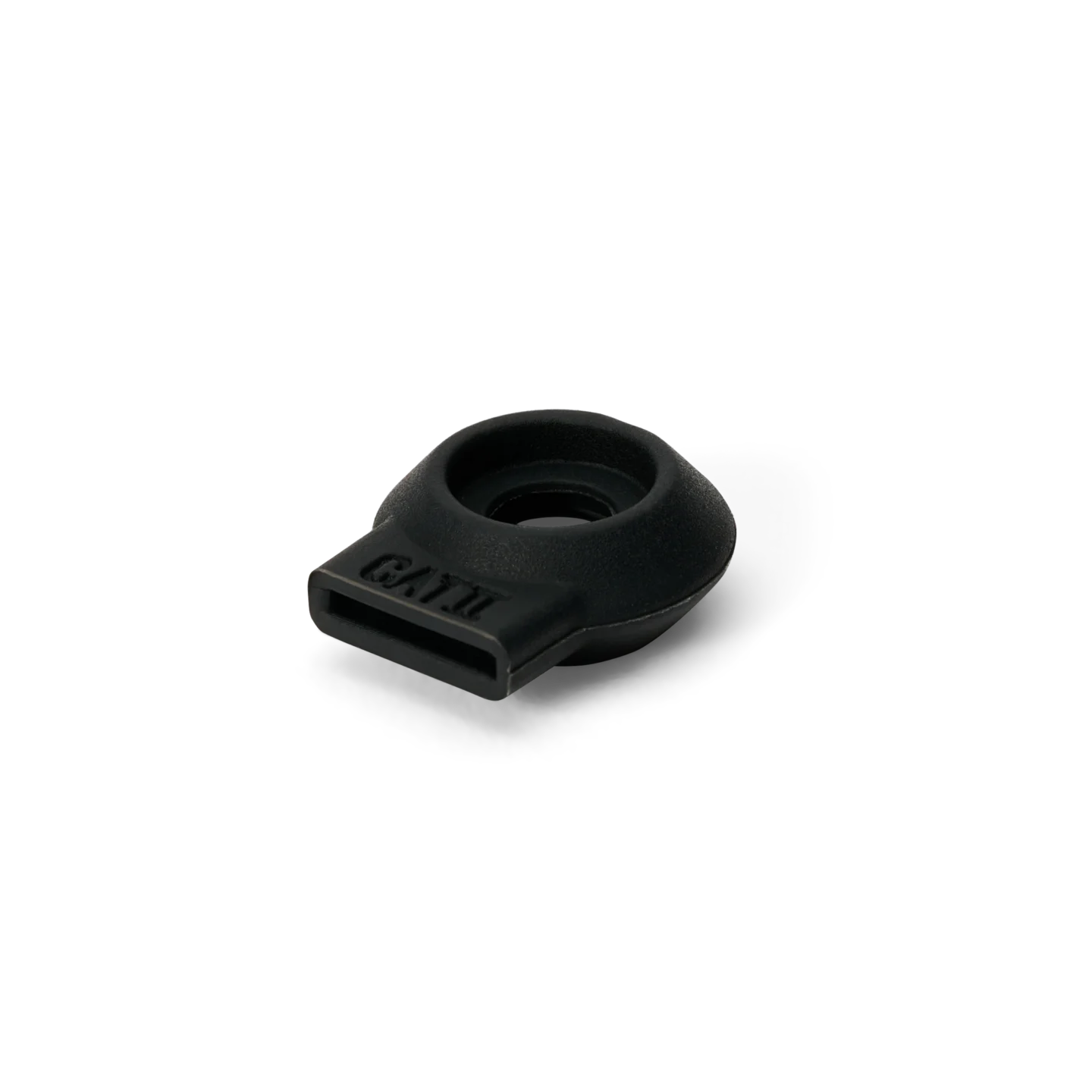

CAT2 safety accessory for SQ200 200 MHz oscilloscope probe 5mm ground interface enabling safe measurements (PCBITE-6016)

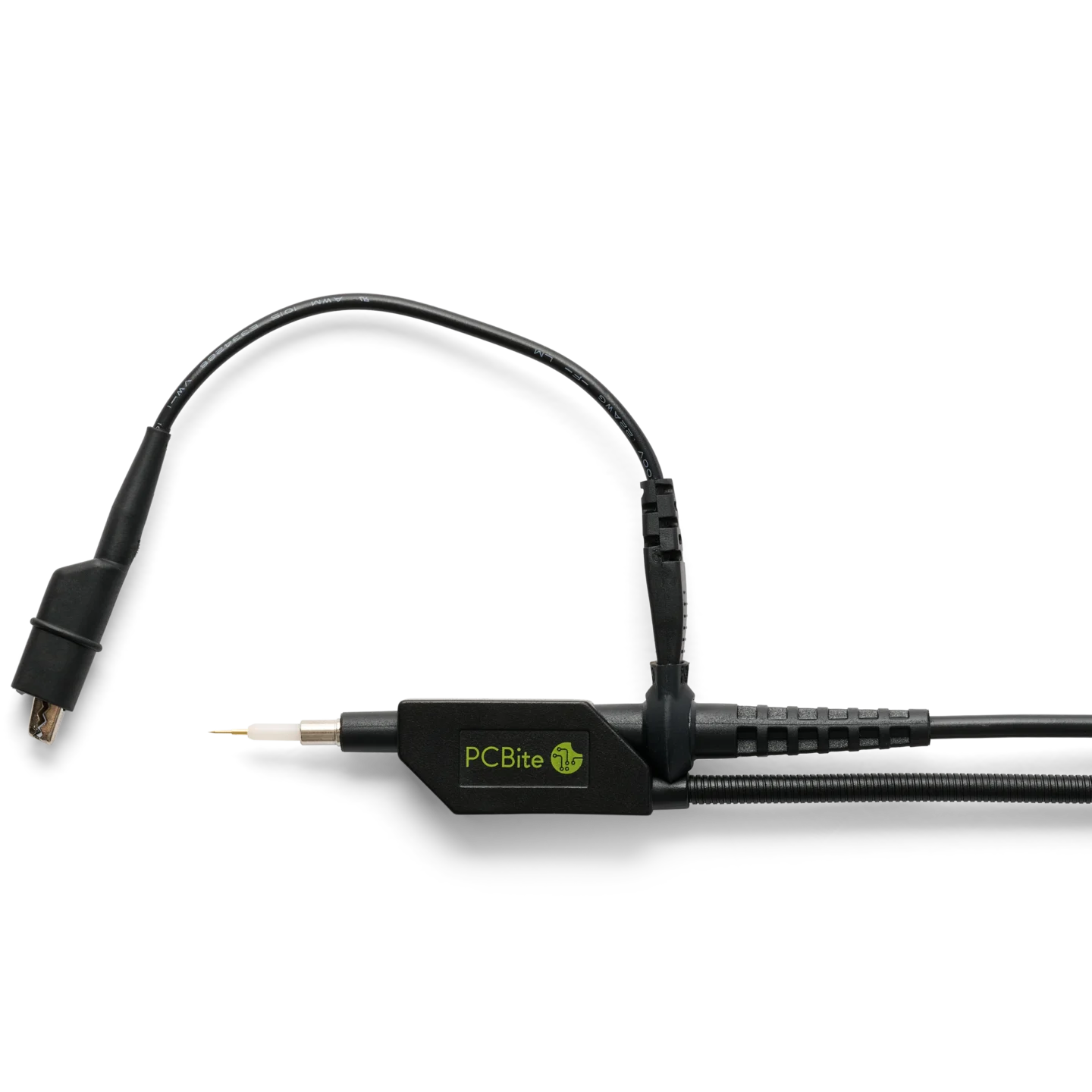

SQ200 200 MHz Probe in holder with insulated alligator clip together with insulator connected to 5mm ground interface (PCBITE-6016)

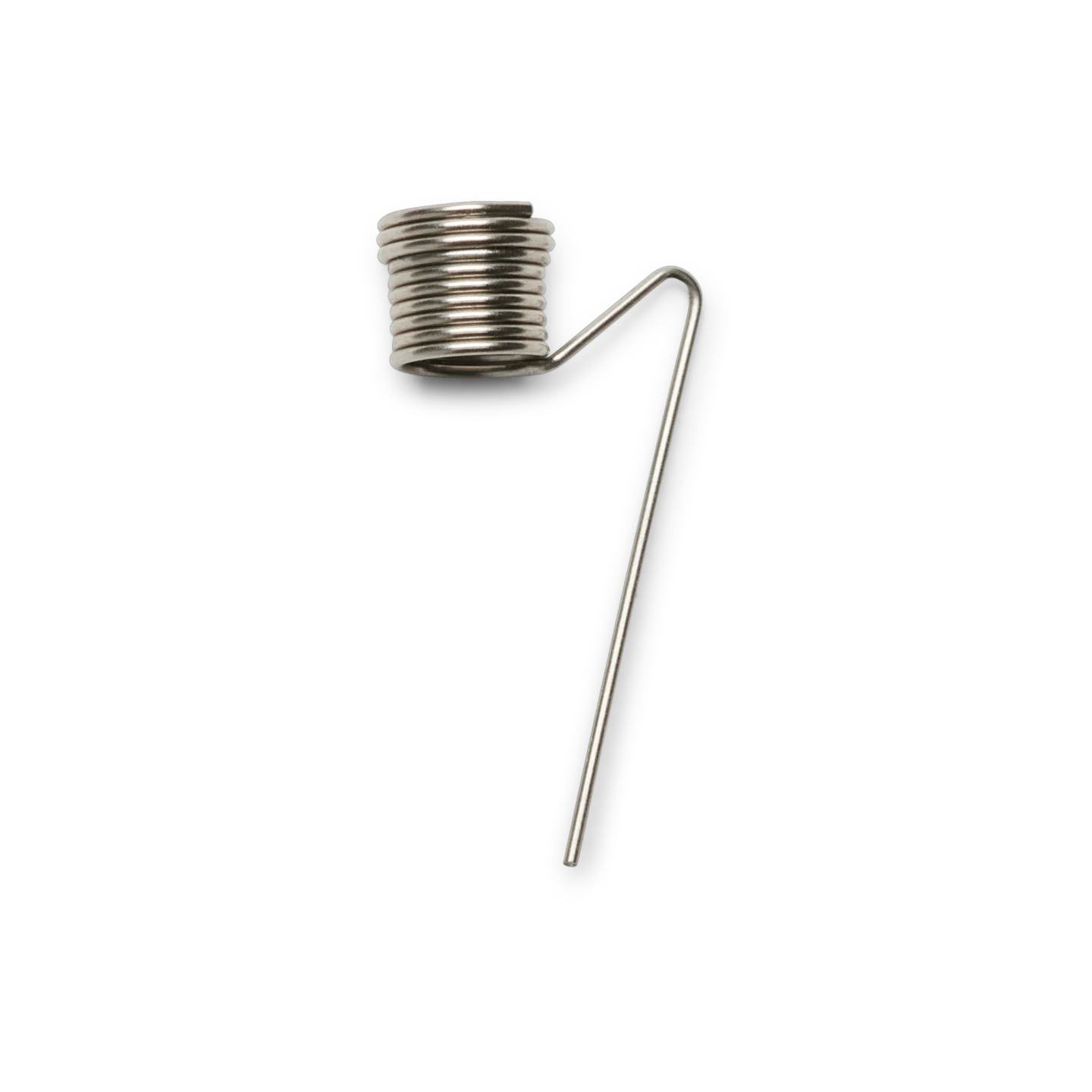

Ground spring for handheld SQ200 200 MHz oscilloscope probe measurements (PCBITE-6016)

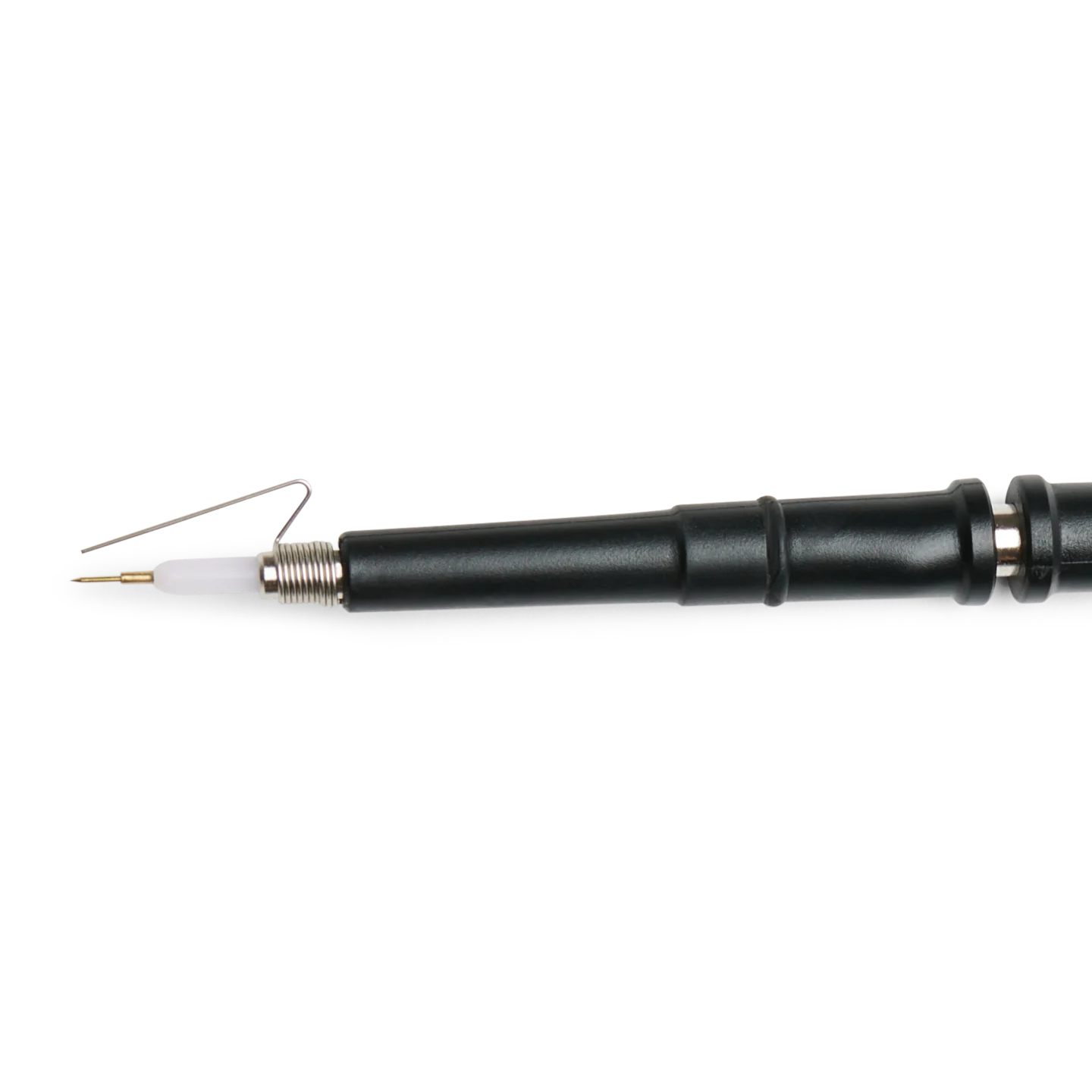

Closeup of SQ200 200 MHz oscilloscope probe front showing a mounted ground spring for handheld oscilloscope probe measurements (PCBITE-6016)

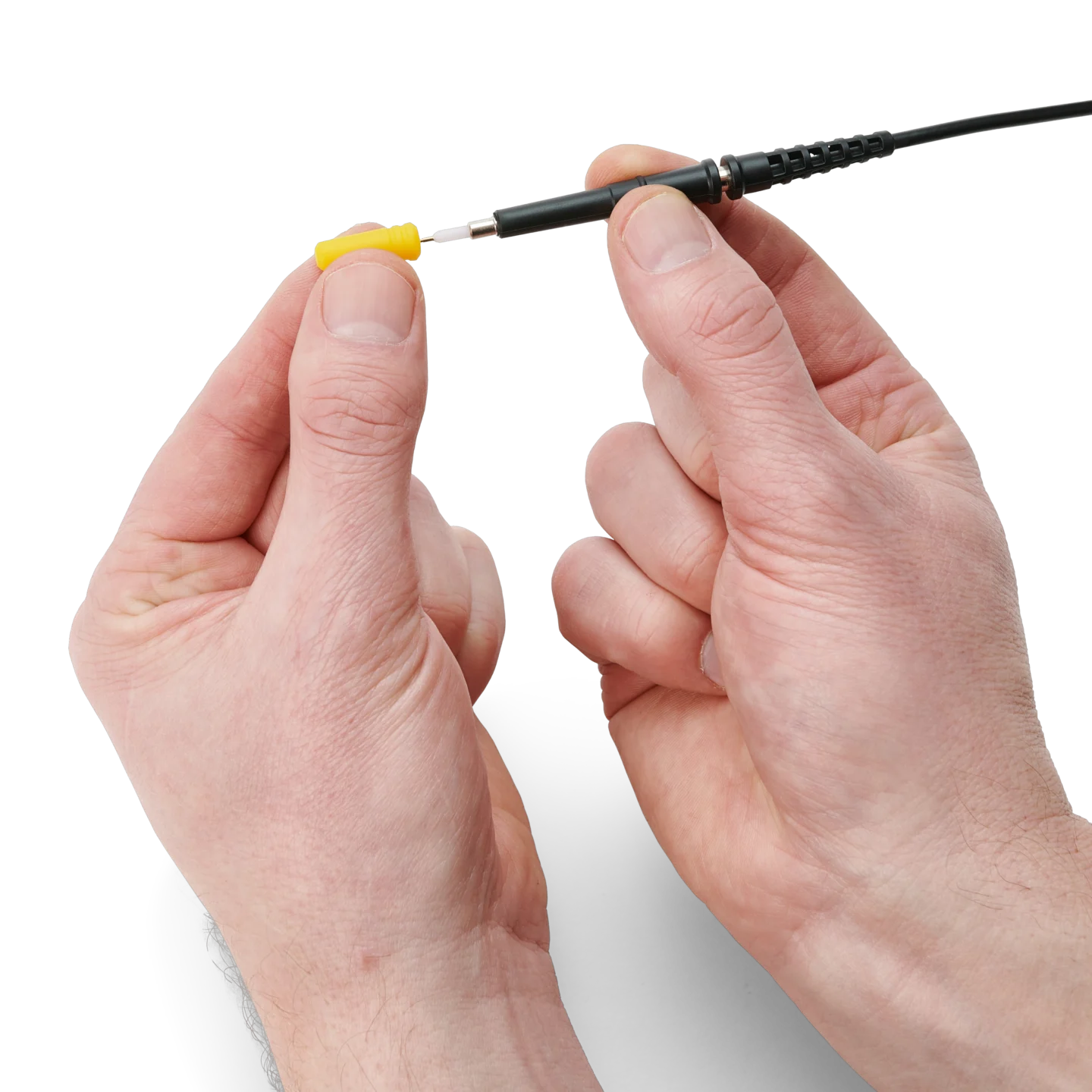

Hand showing how to mount or dismount the probe protection from the SQ200 200 MHz oscilloscope probe (PCBITE-6016)

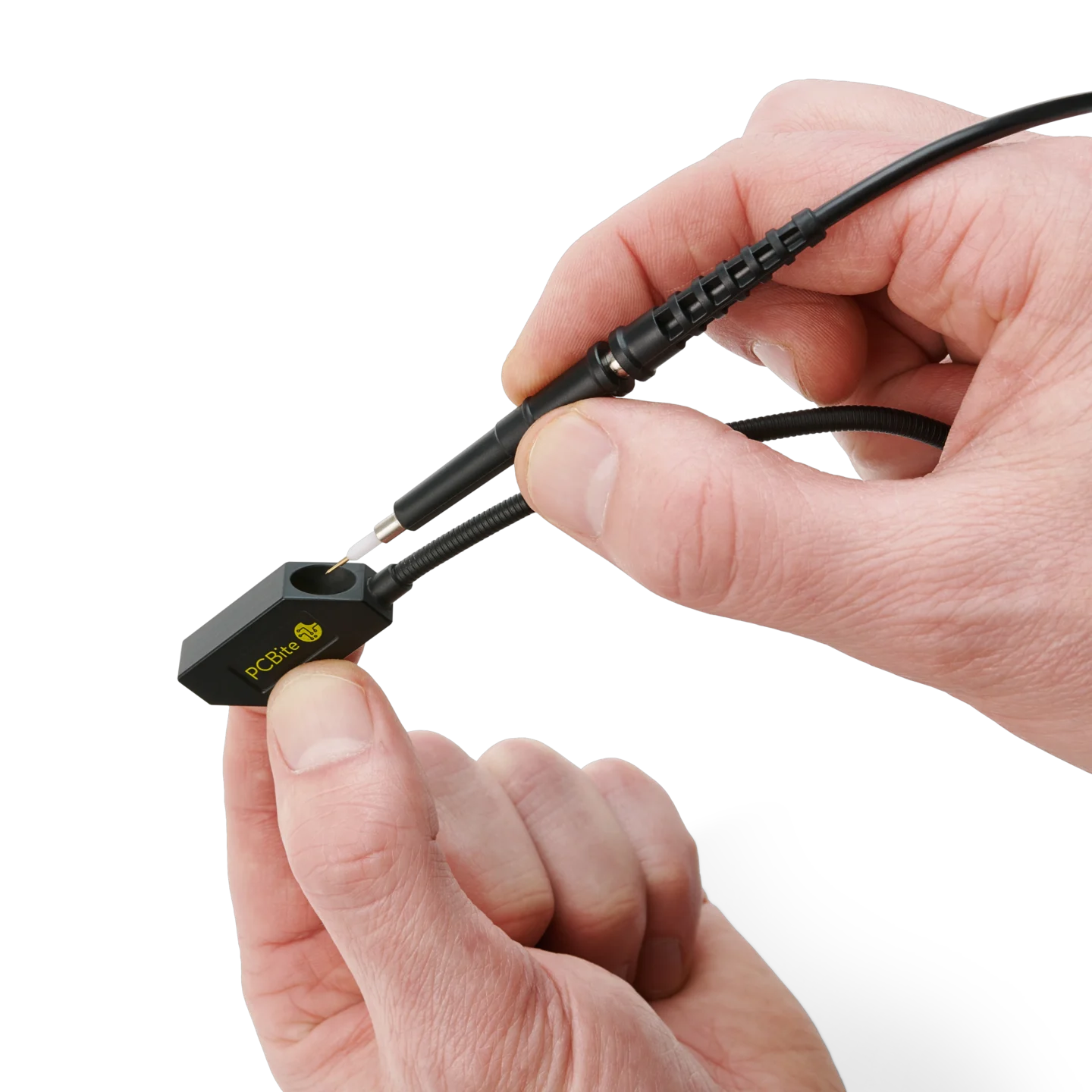

Hand showing how to mount SQ200 200 MHz oscilloscope probe in the SQ probe holder for handsfree measurements (PCBITE-6016)

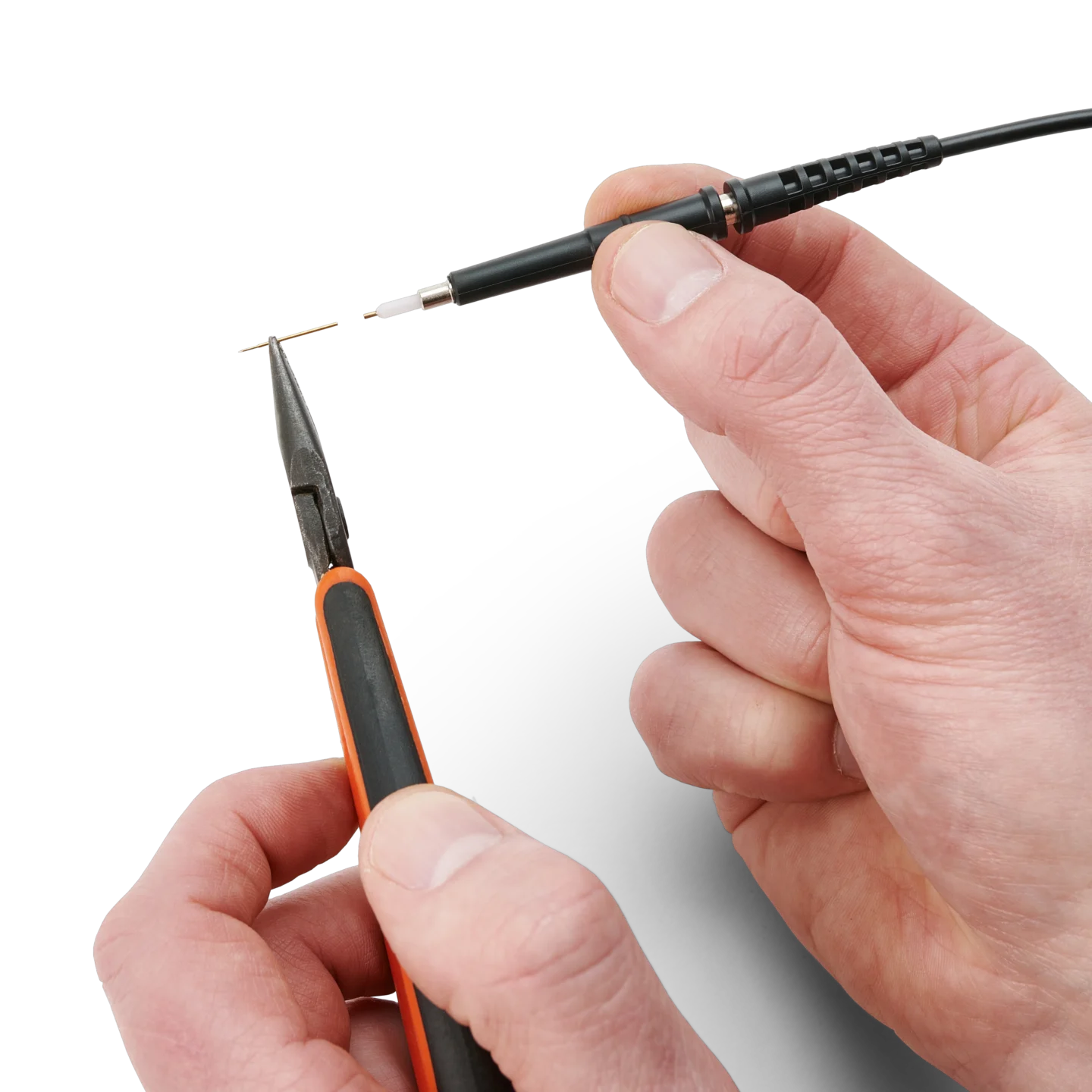

Hands showing how to change the replaceable spring-loaded test needle of the SQ200 200 MHz oscilloscope probe (PCBITE-6016)

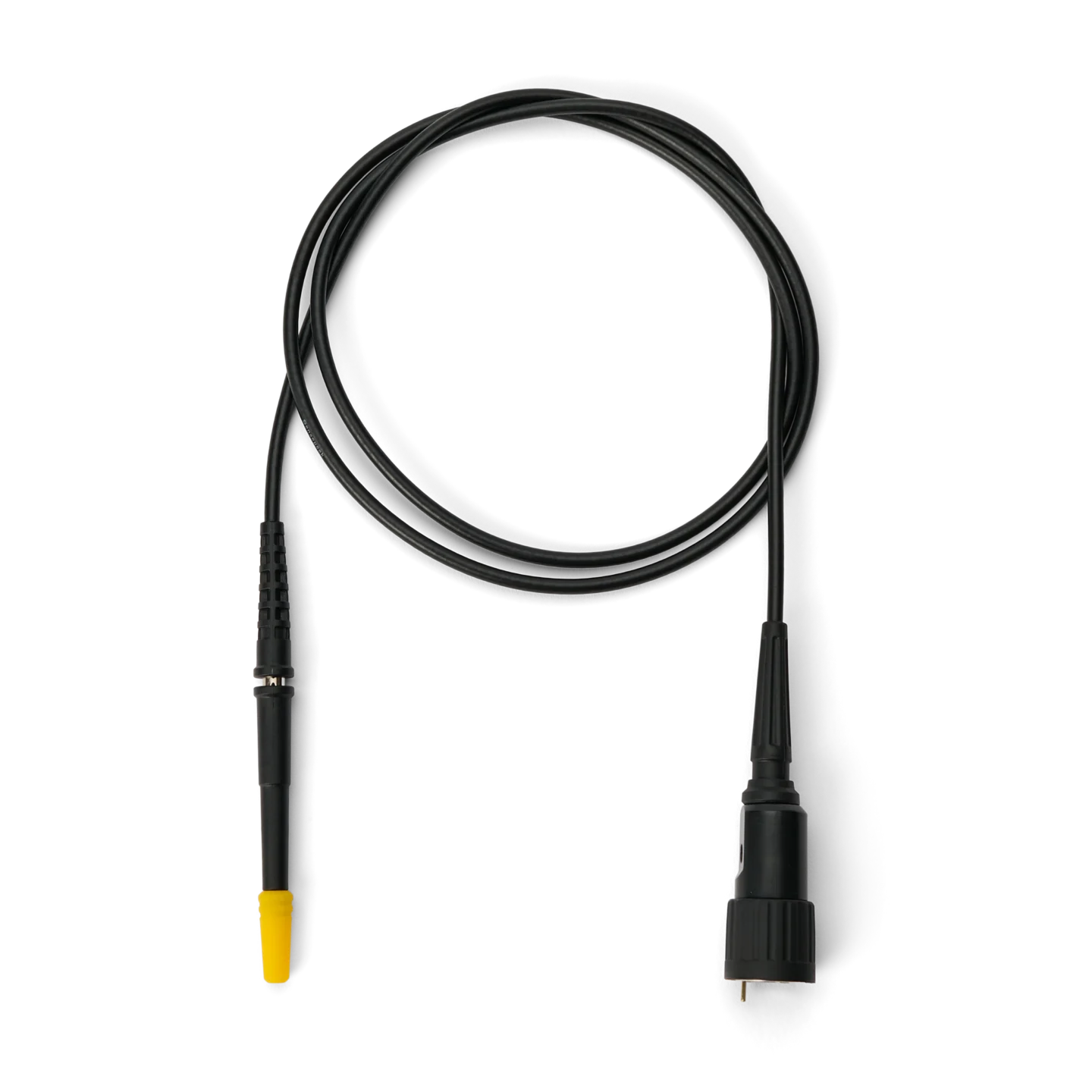

SQ200 200 MHz Probe without holder, probe protection cap mounted to protect the probes test needle (PCBITE-6016)

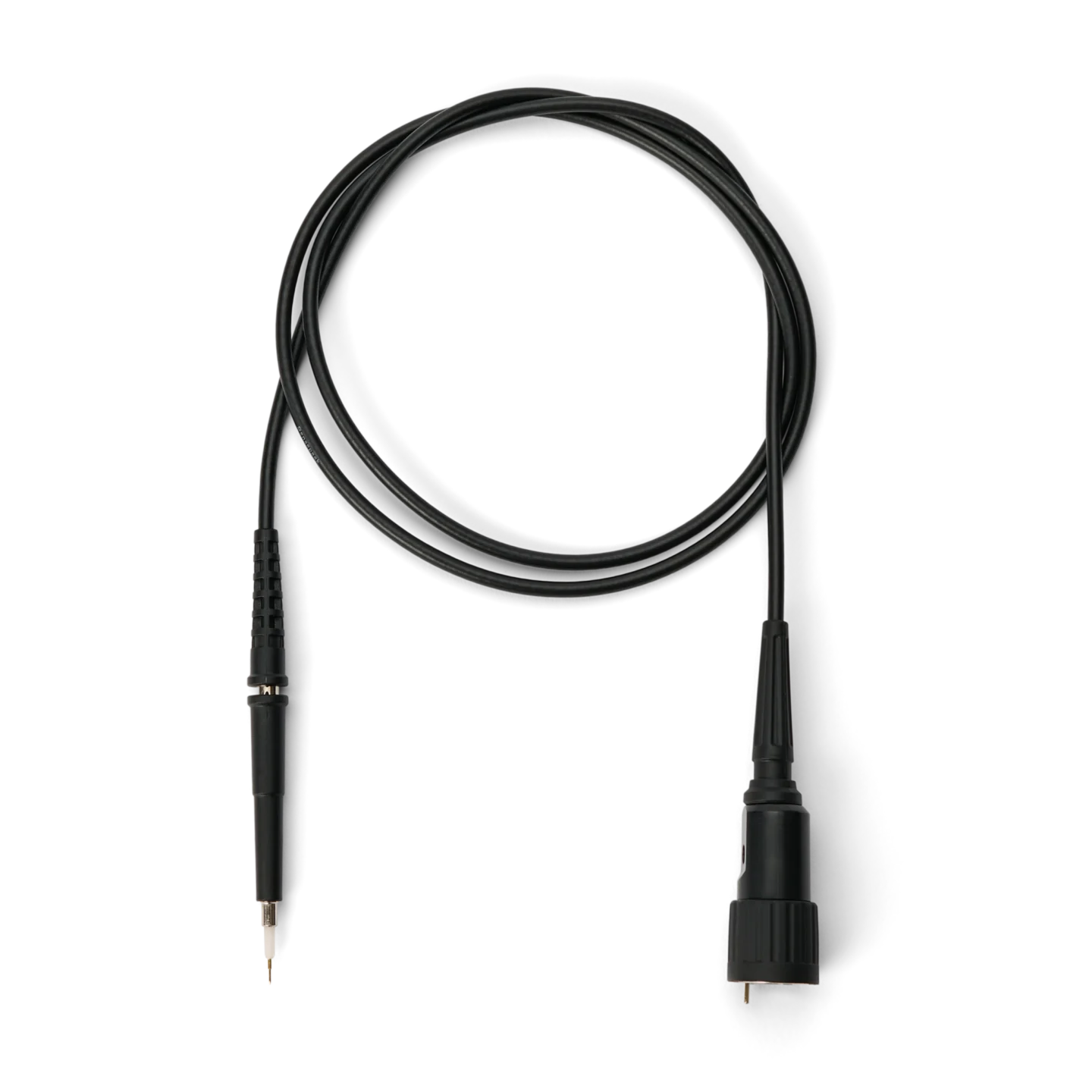

SQ200 200 MHz Probe without holder, showing the probe test needle (PCBITE-6016)

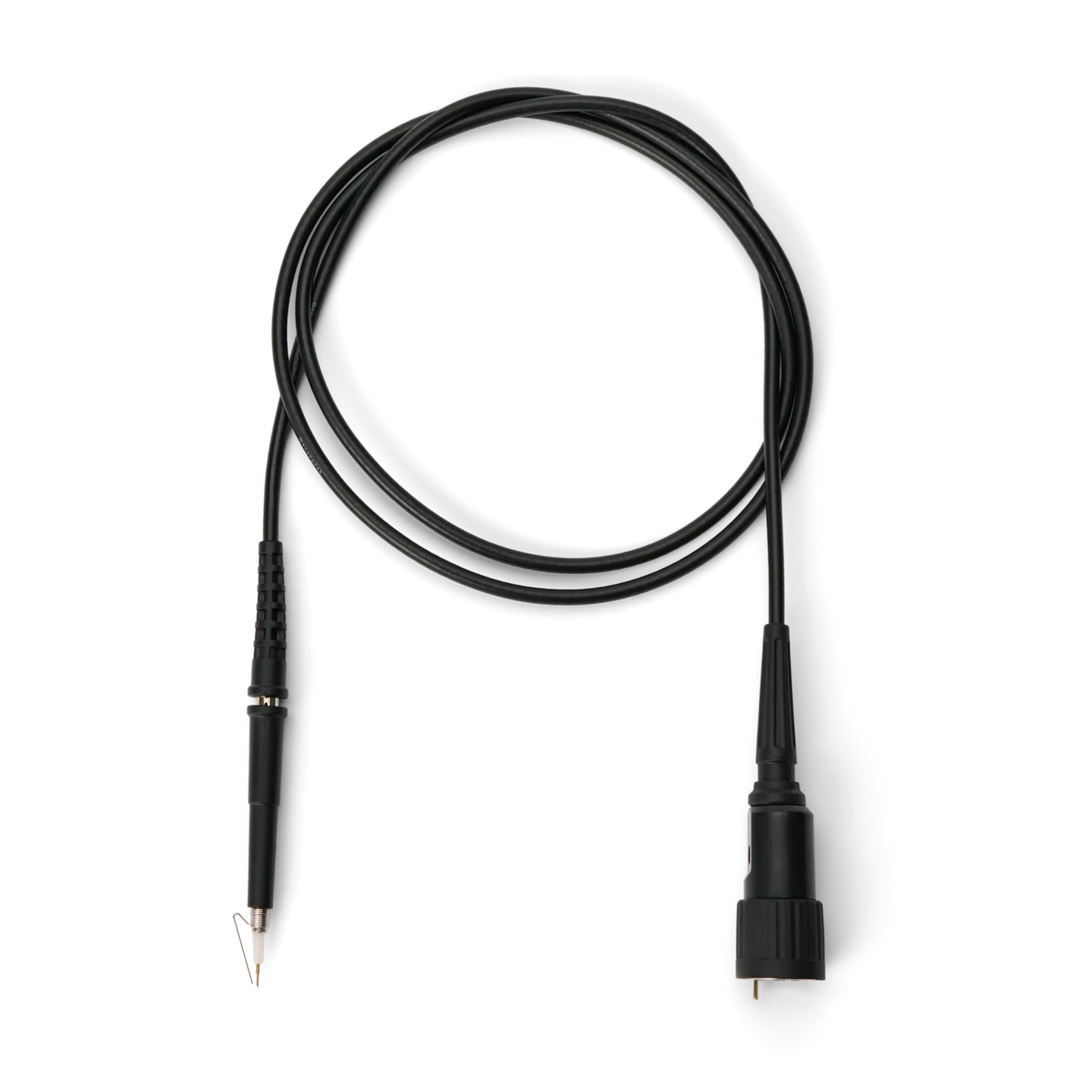

SQ200 200 MHz Probe without holder, ground spring mounted as ground option (PCBITE-6016)

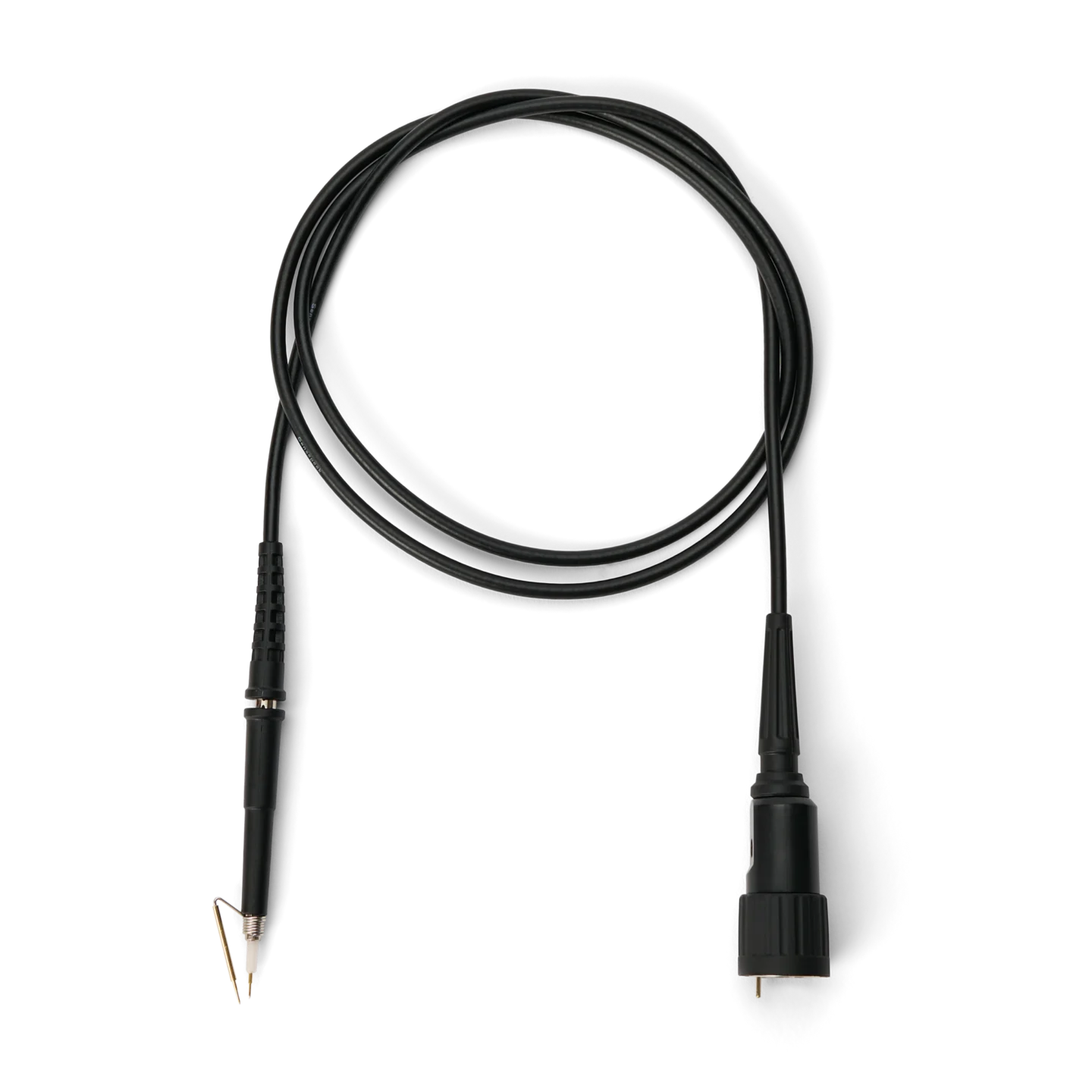

SQ200 200 MHz Probe without holder, unique ground spring needle mounted as ground option (PCBITE-6016)

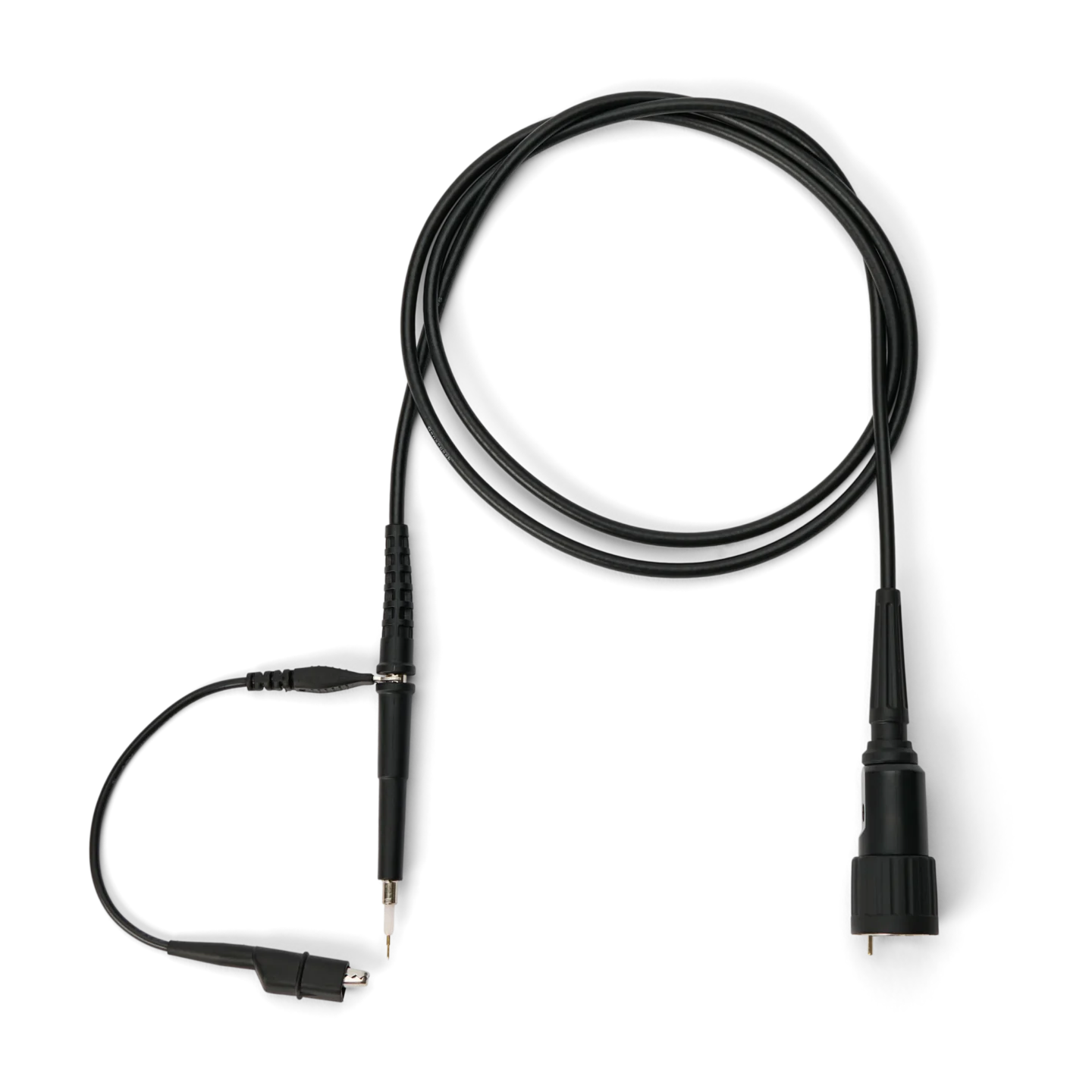

SQ200 200 MHz Probe without holder, insulated alligator clip as ground option (PCBITE-6016)

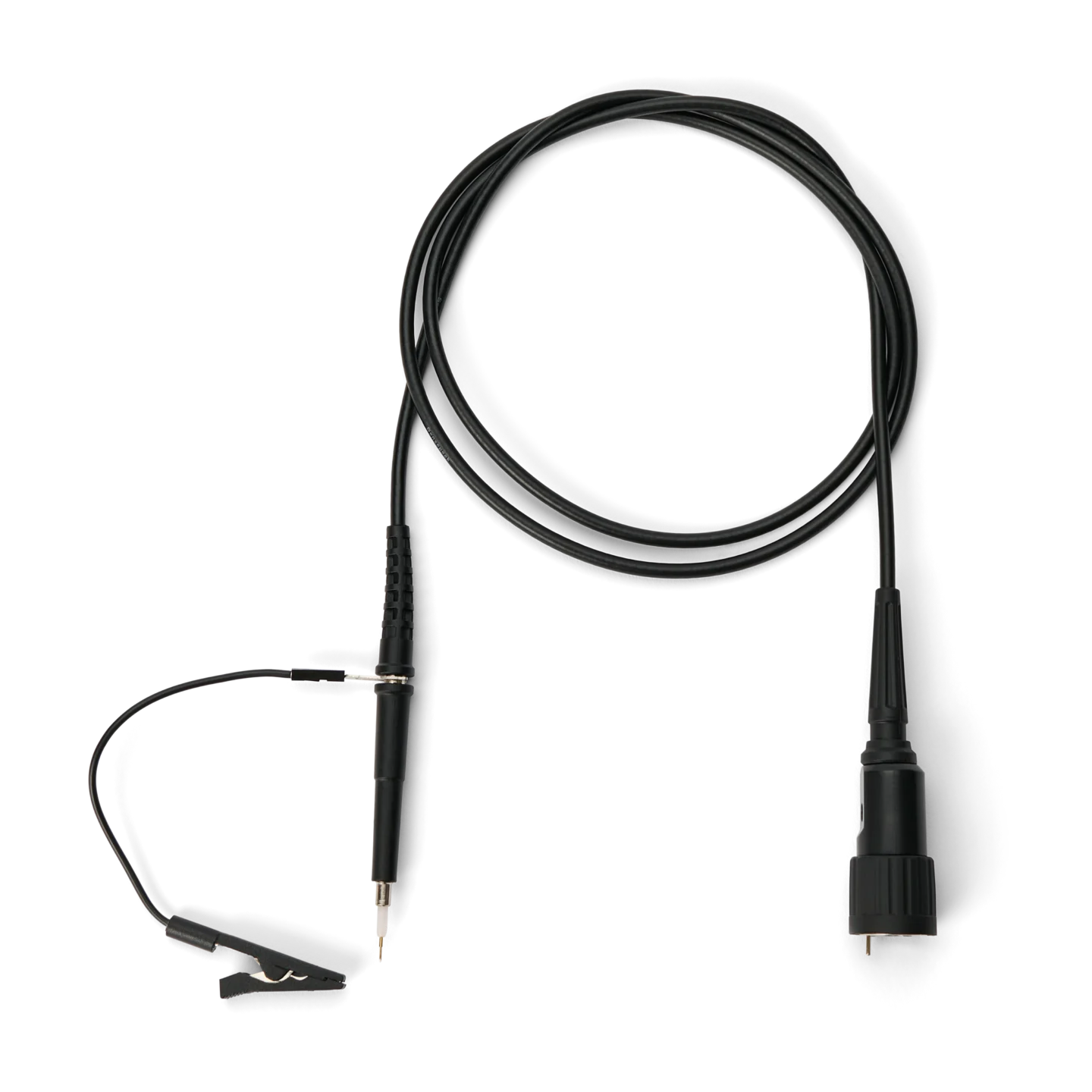

SQ200 200 MHz Probe without holder, high quality alligator clip as ground option (PCBITE-6016)

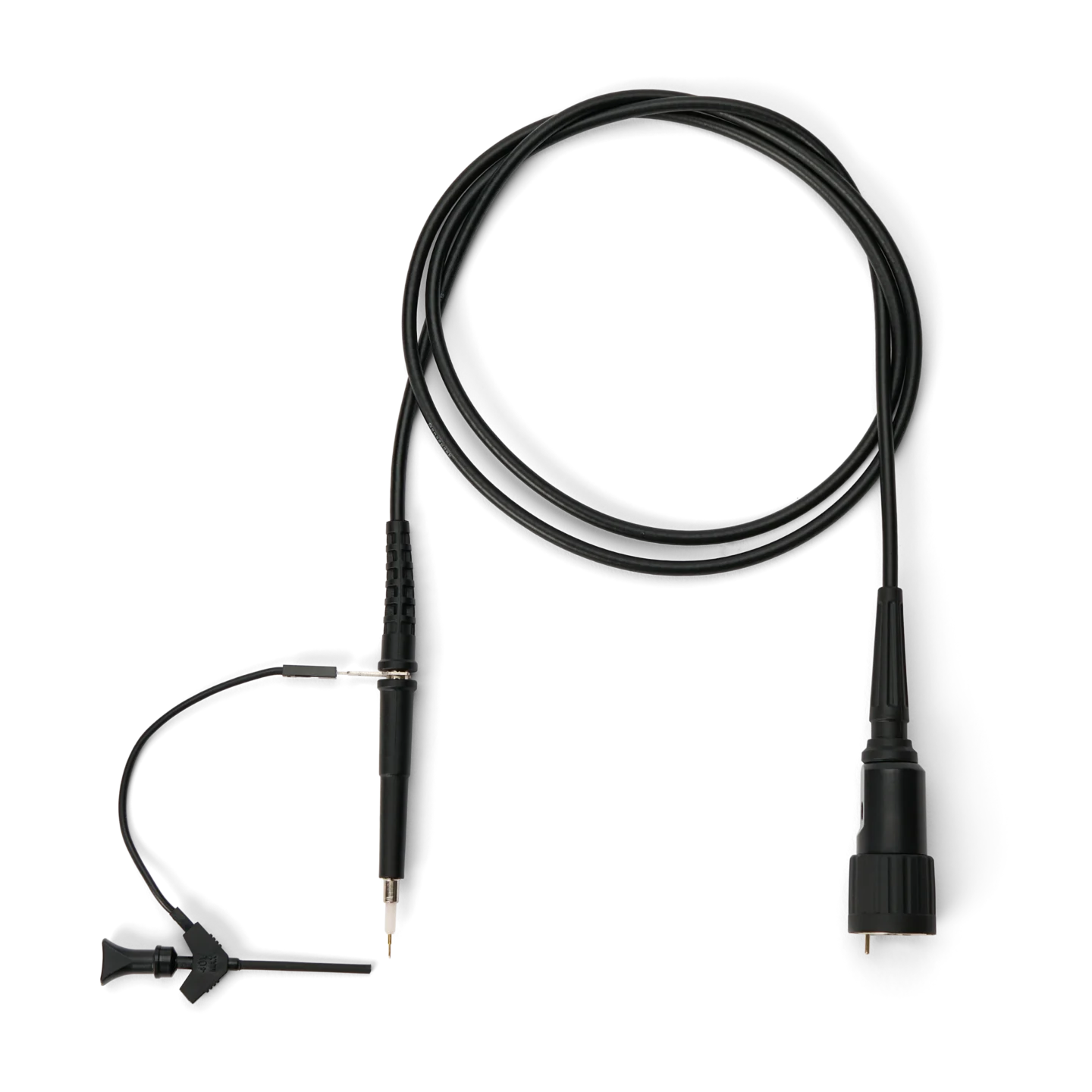

SQ200 200 MHz Probe without holder, airplane test-hook with 10cm dupont cable as ground option (PCBITE-6016)

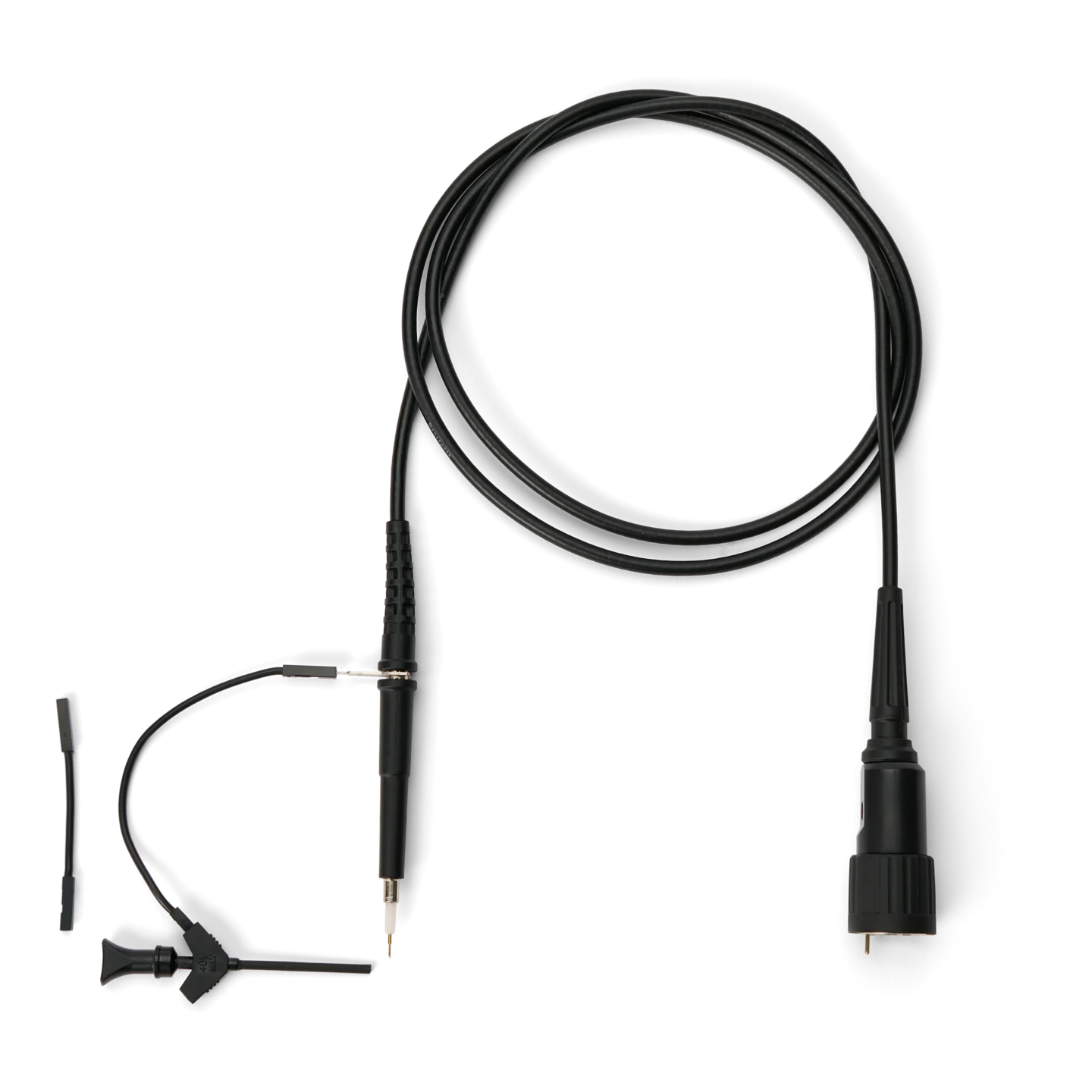

SQ200 200 MHz Probe without holder using airplane test-hook with dupont cable as ground option (PCBITE-6016)

SQ200 200 MHz Probe without holder, with 10cm dupont cable as ground option connects to any pinheader (PCBITE-6016)

Four handsfree SQ200 200 MHz oscilloscope probes measuring on PCB with different color-coded cable holders (PCBITE-6016)

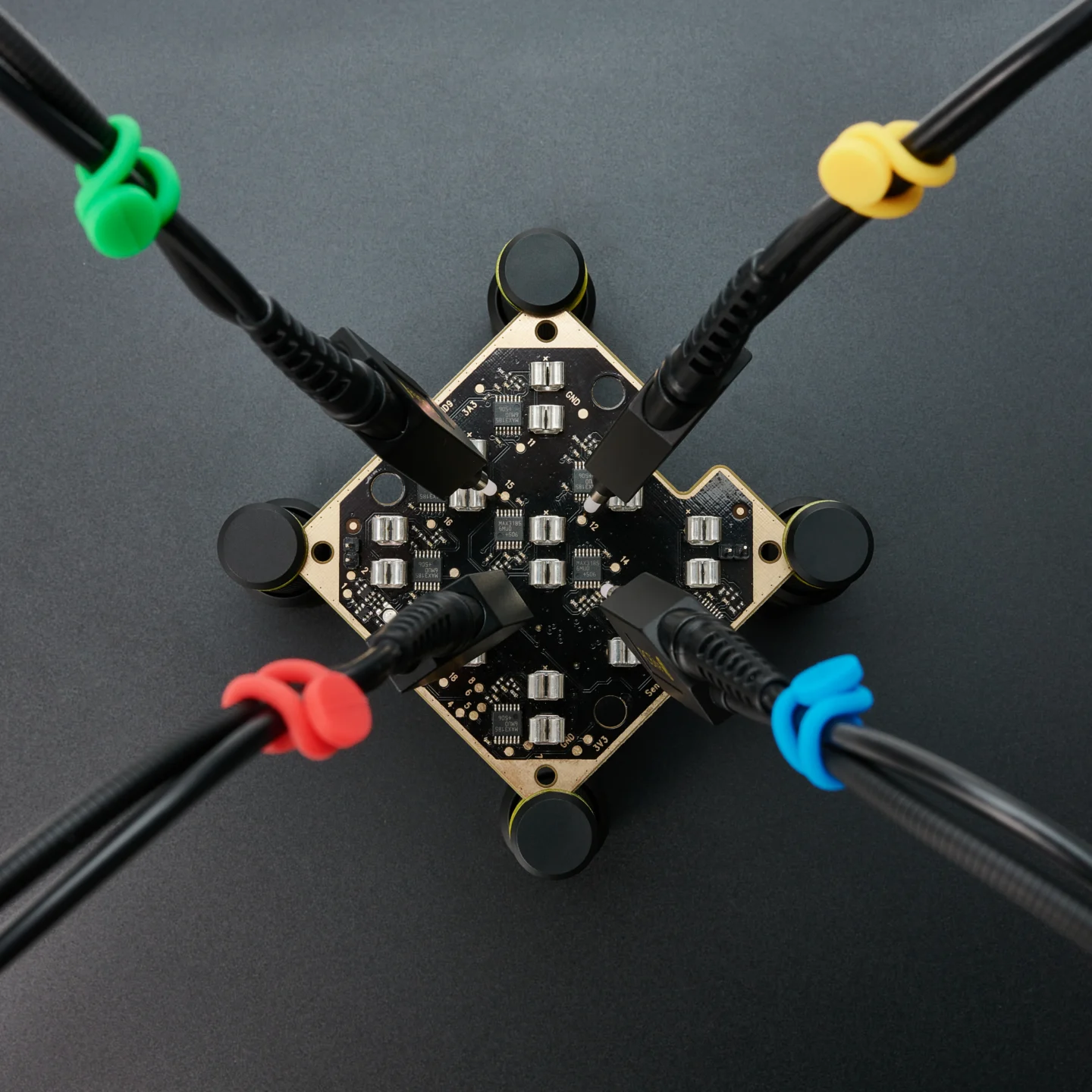

Four handsfree SQ200 200 MHz probes measuring on different PCB testpoints with color-coded cable holders (PCBITE-6016)

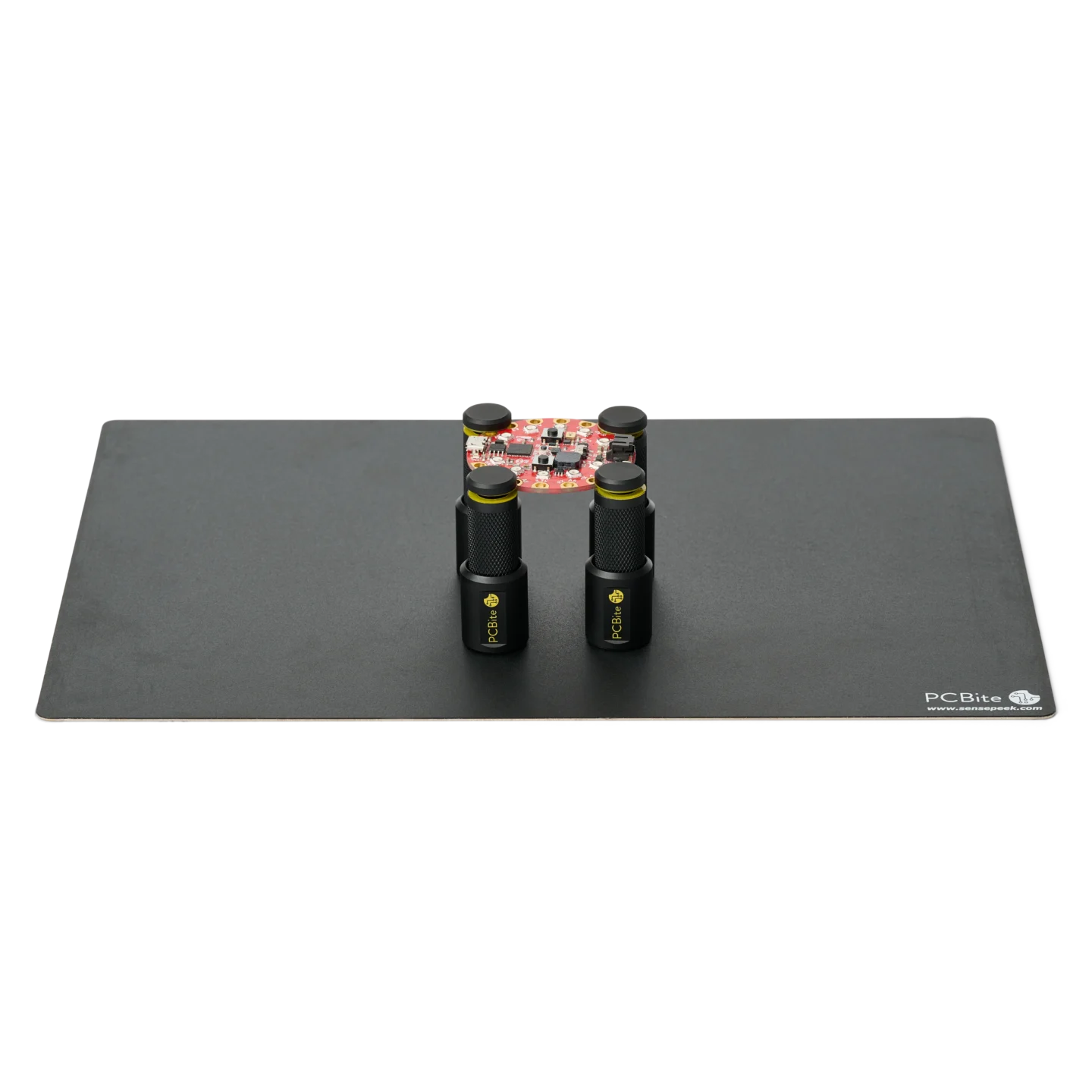

SQ200 200 MHz, Set of four magnetic spring-loaded PCB holders on a large insulated baseplate holding a PCB (PCBITE-6016)

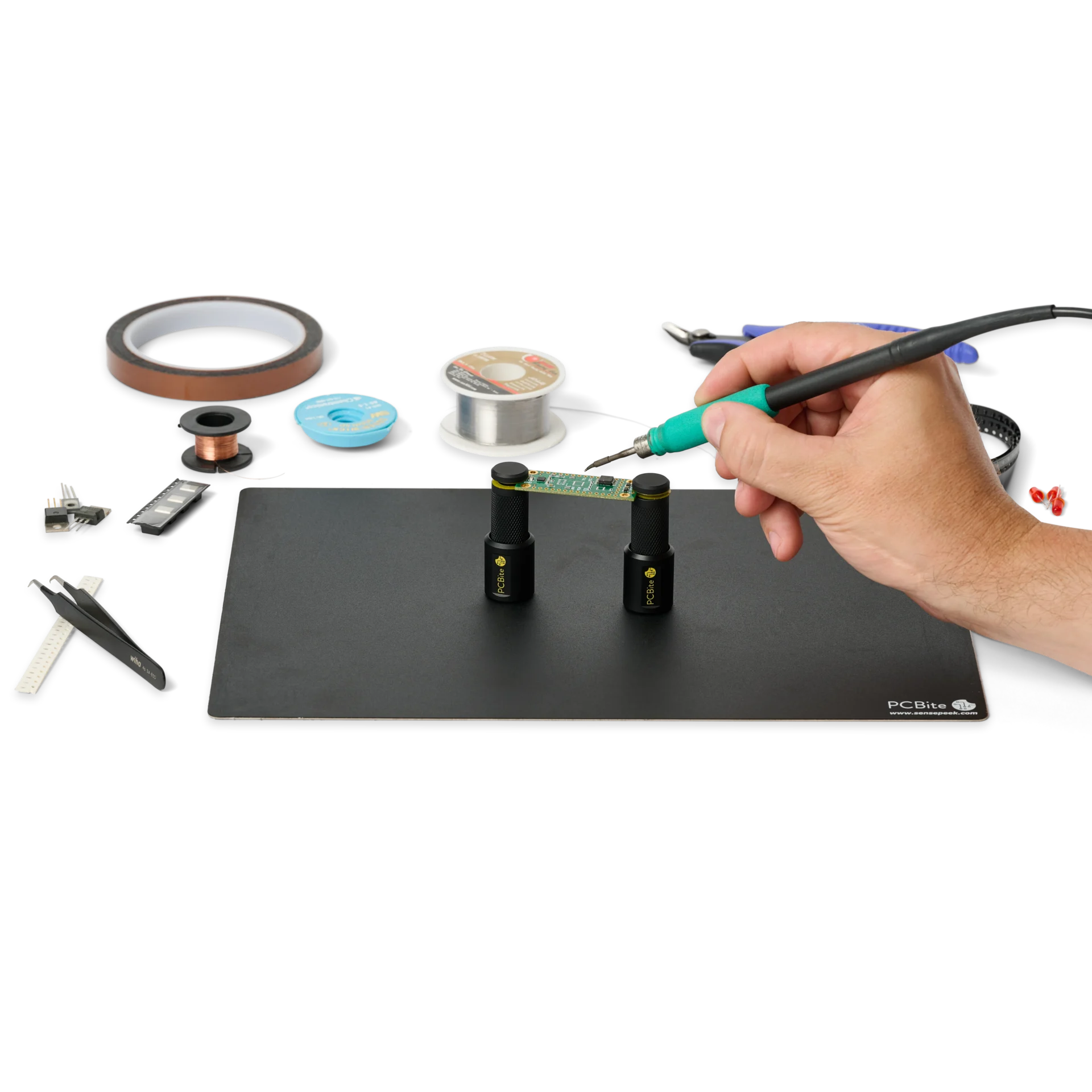

SQ200 200 MHz, Hand soldering PCB held by two magnetic spring-loaded PCB holders (PCBITE-6016)

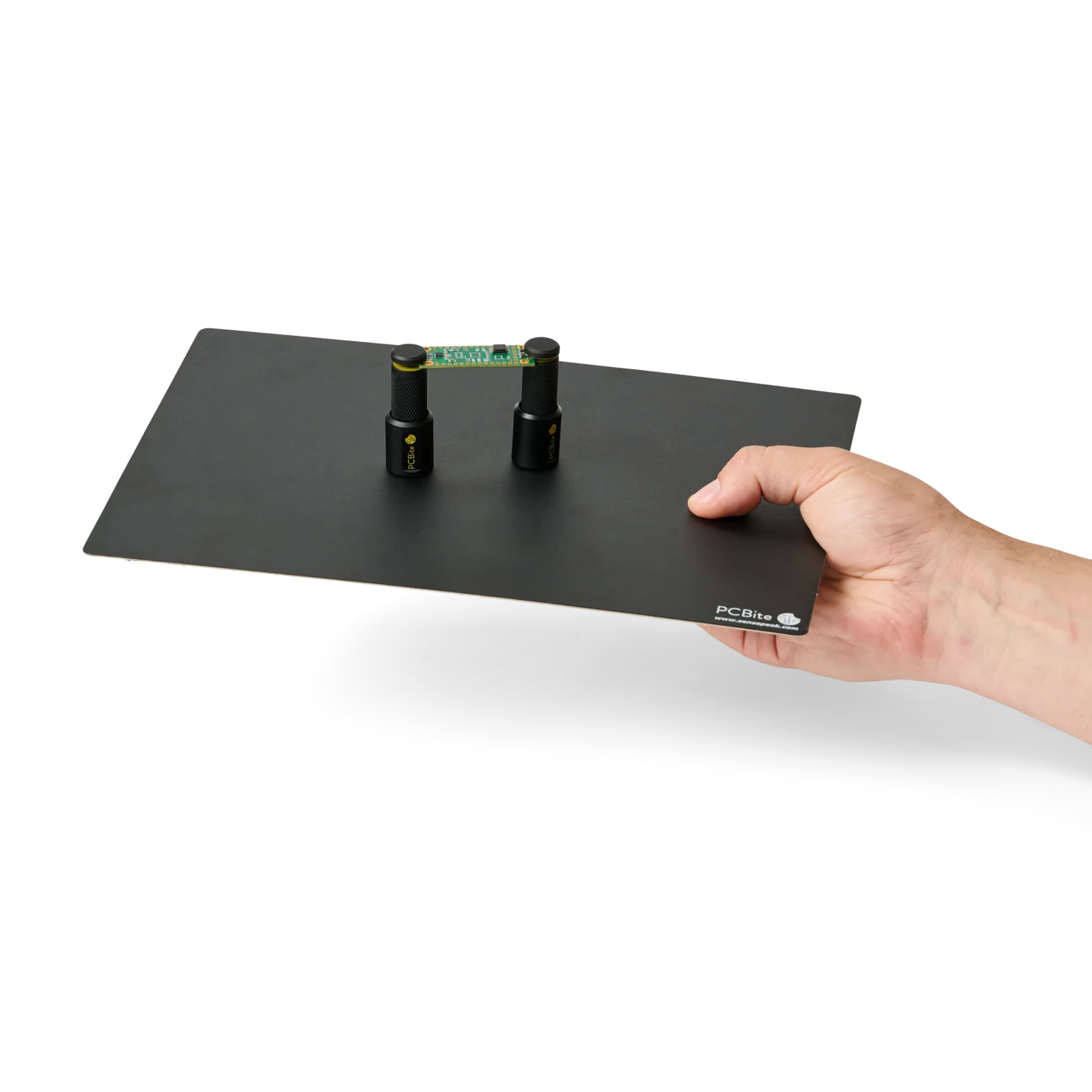

SQ200 200 MHz, Hand handing over a setup with two spring-loaded PCB holders on a large insulated baseplate (PCBITE-6016)

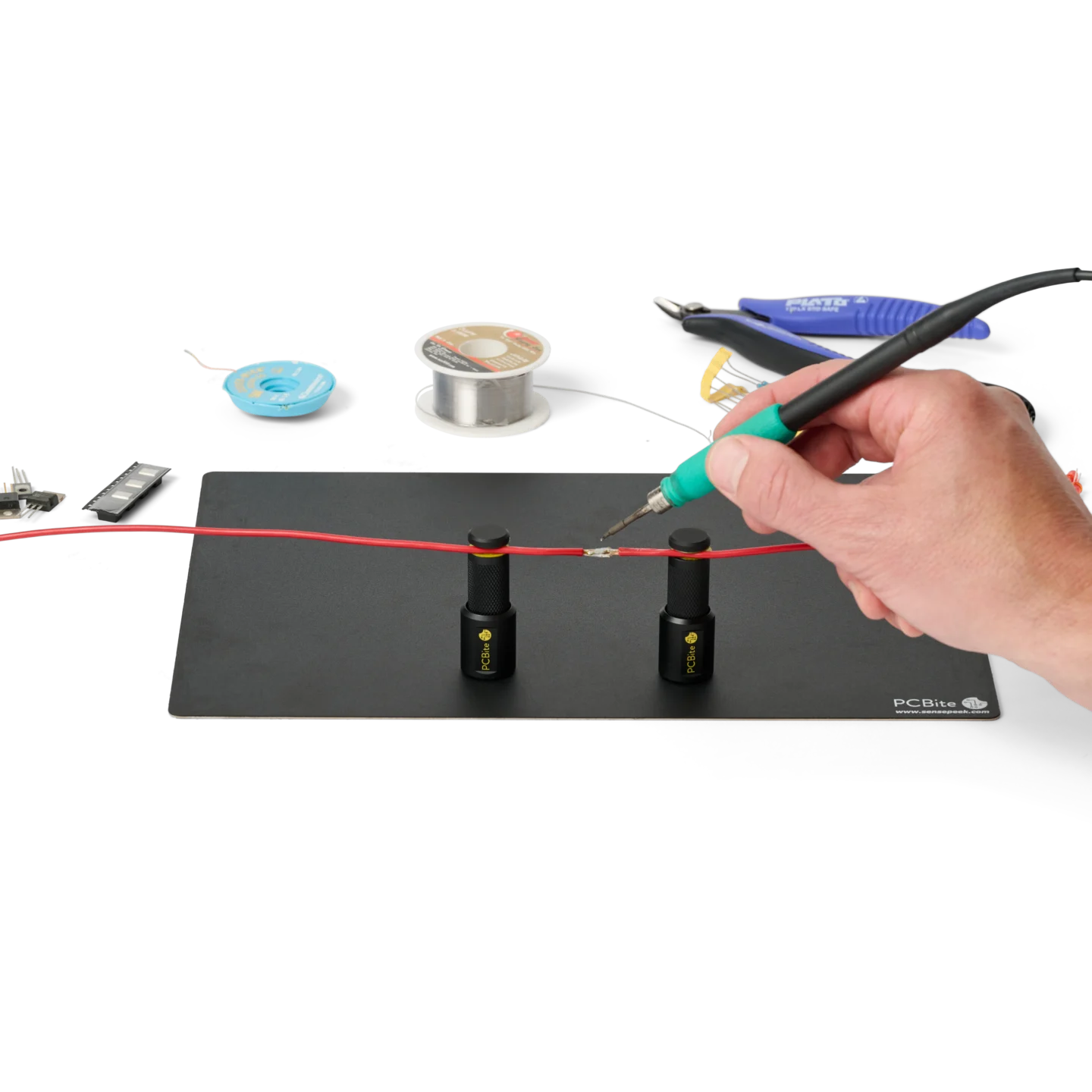

SQ200 200 MHz, Hand soldering wire held by two magnetic spring-loaded PCB holders (PCBITE-6016)

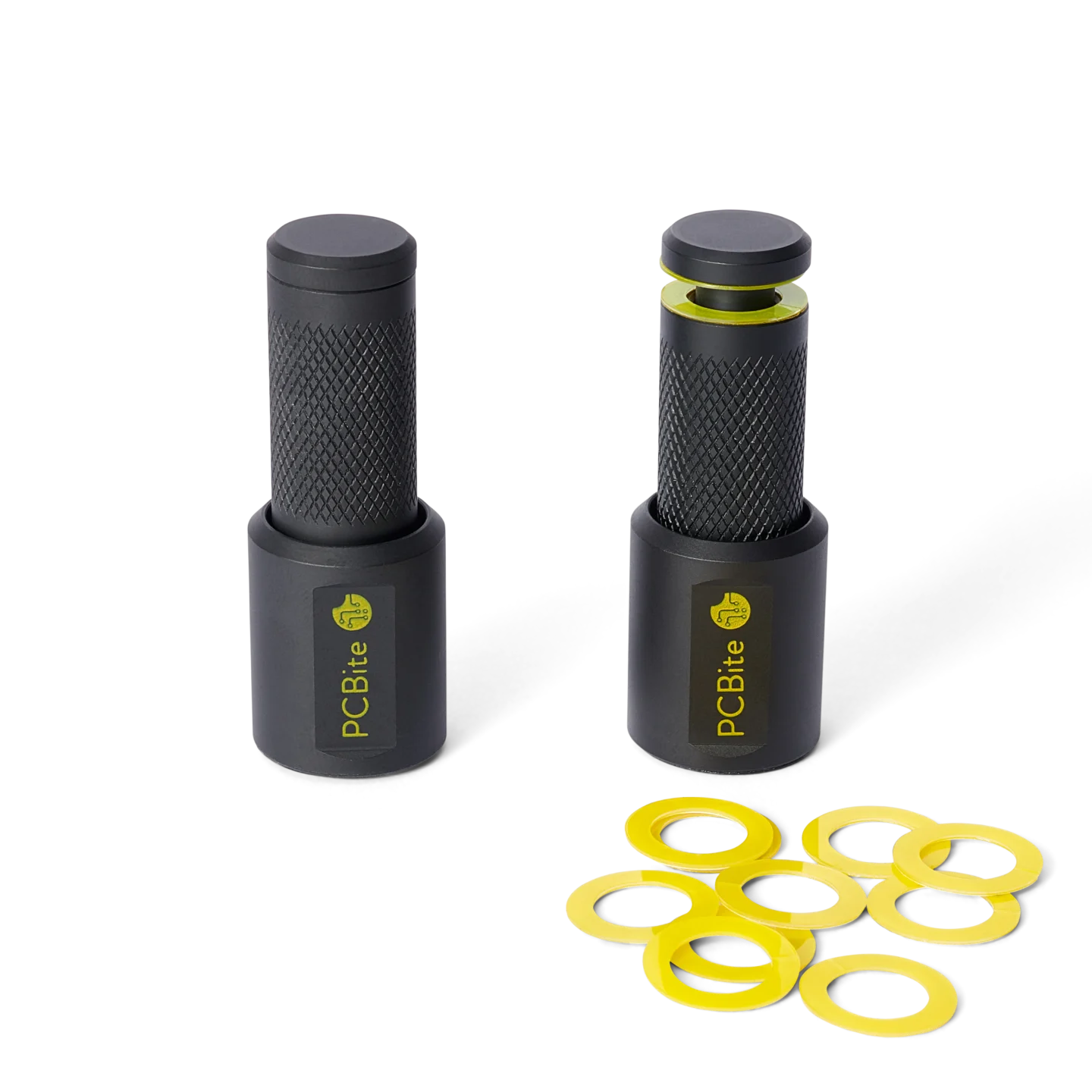

SQ200 200 MHz, Two PCB holders, magnetic spring-loaded with insulation washers for secure circuit board holding (PCBITE-6016)

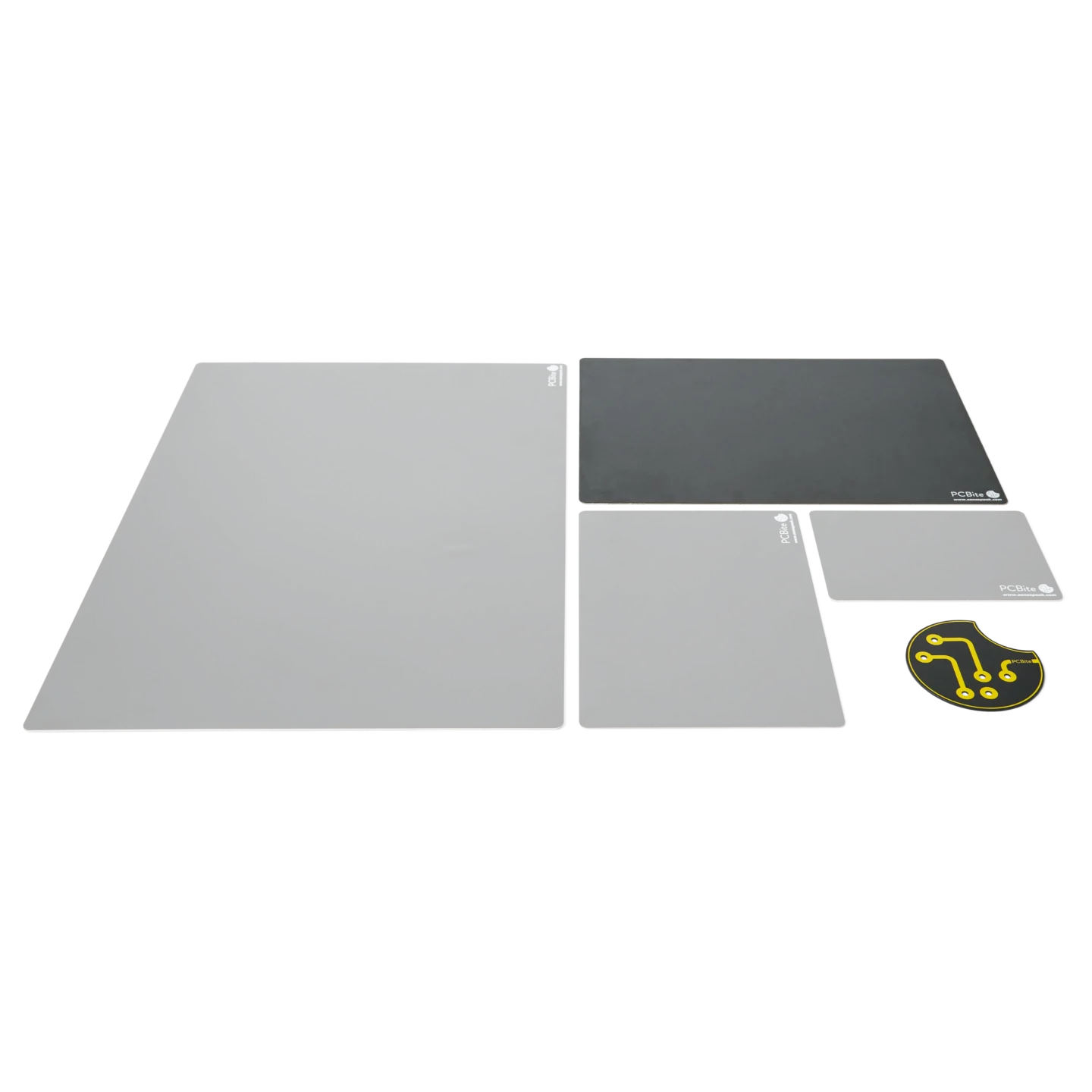

SQ200 200 MHz, Size comparison of the large A4 insulated baseplate compared with other sizes side by side (PCBITE-6016)

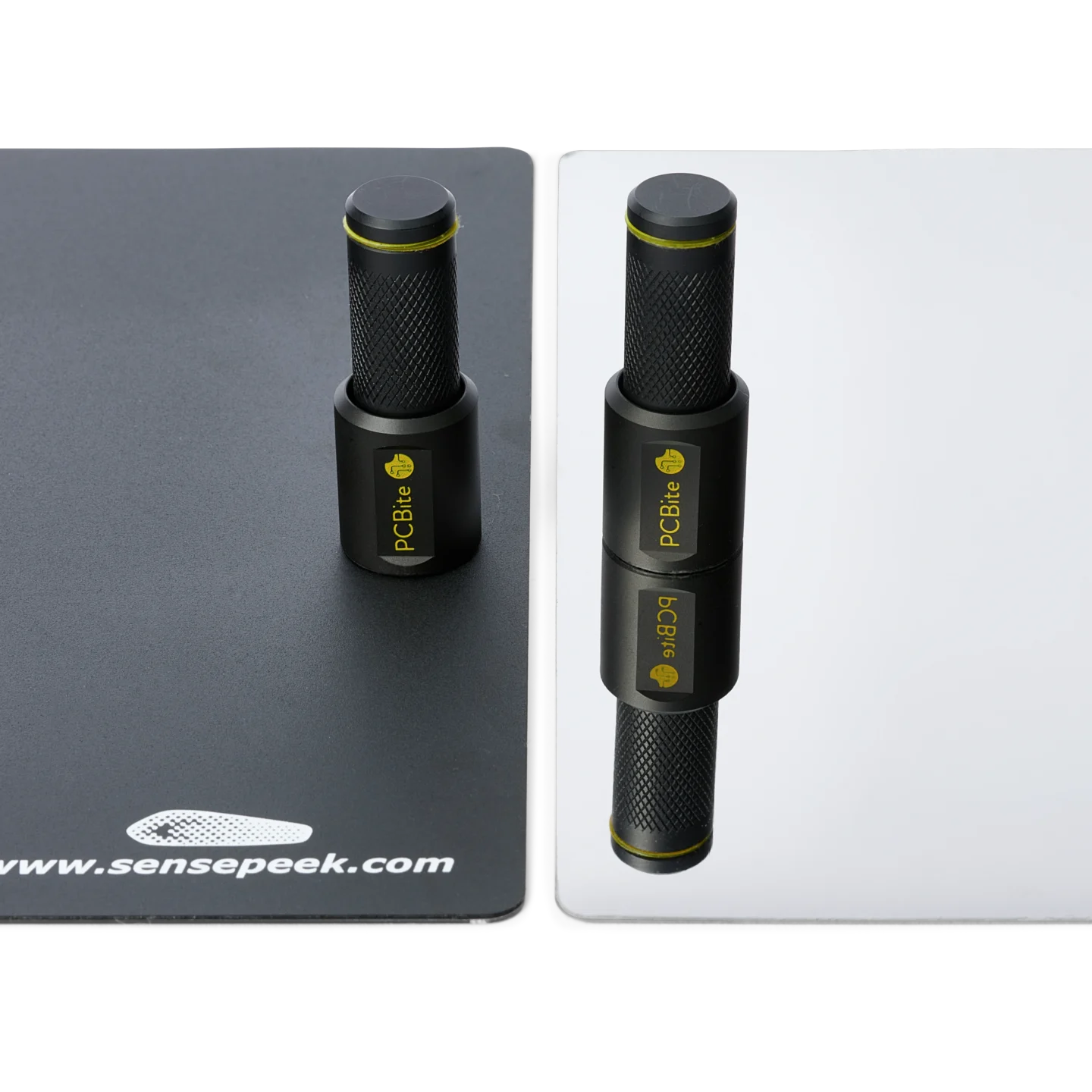

SQ200 200 MHz, Two magnetic PCB holders showing difference between an insulated and the mirror sides of baseplate (PCBITE-6016)

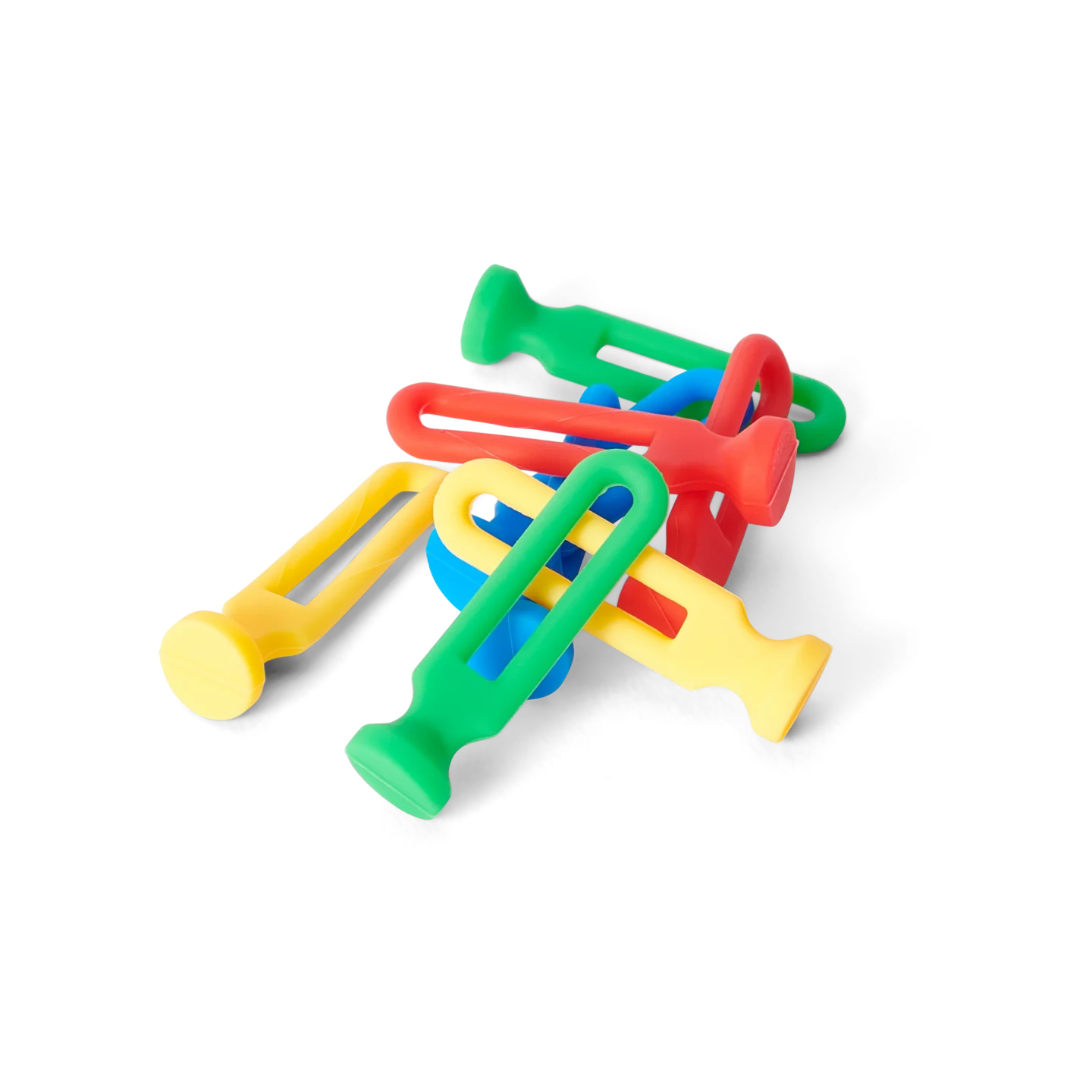

SQ200 200 MHz, Cable holders in four colors matching oscilloscope input channel identification (PCBITE-6016)

PCBITE-6016

PCBite kit with 2x SQ200 200 MHz handsfree oscilloscope probes

Four standard holders on a large insulated base plate and two SQ200 200 MHz handsfree oscilloscope probes, for soldering, inspection and handsfree measurement. Insulated design for safer probing on powered PCBs.

Secure paymentGlobal deliveryPremium quality

In stockDelivery: 1-2 business days

199 € excl. VAT

Magnifier with magnetic base, 3x magnification and AR coated lens for PCB soldering and inspection (PCBITE-4020)

PCBITE-4020

In stockDelivery: 1-2 business days

Magnetic solder wire holder with rotating spool for hands-free soldering workstations (PCBITE-7030)

PCBITE-7030

In stockDelivery: 1-2 business days

Two PCB holders, magnetic spring-loaded with insulation washers for secure circuit board holding (PCBITE-4022)

PCBITE-4022

In stockDelivery: 1-2 business days

PCBITE-7023

In stockDelivery: 1-2 business days

Introduction

The largest PCBite kit with an insulated base plate, holders and two handsfree SQ200 oscilloscope probes. The base plate gives you room for large PCBs, several connected boards or a complete handsfree probing setup. Position each probe on the signal, let go and keep both hands free to make measurements and adjust the oscilloscope.

Place the spring-loaded test needle on the signal, set the spring-loaded ground needle next to it and release. The flexible arm holds the probe in position, while the N52 neodymium magnet in the base keeps it locked to the base plate. The 200 MHz passive 10:1 probe stays in place for quick measurements and long triggering sessions, with a probe ID pin that lets compatible oscilloscopes automatically select the correct 10:1 scaling. No soldered wires and no fixtures.

The probe is insulated and can be used handheld like a traditional probe. A low center of gravity keeps it stable when used handsfree, and color coded cable holders in four standard channel colors make each channel easy to trace.

Two ground options are included, the ground spring needle for handsfree measurements and the ground spring for handheld use, both at the full rated bandwidth. A test hook, an alligator clip and ground leads with 2.54 mm (0.100 in) jumper connectors, often called Dupont connectors, cover the connections where no ground pad is close by.

Every PCBite holder uses the same magnetic base, knurled grip and pressure spring, with a standard working height of 50 mm (1.97 in). Each holder includes insulation washers for holding powered PCBs.

Compatible accessories

Complete hands-free probing system with 2x SQ200 200 MHz oscilloscope probes, magnetic PCB holders and accessories (PCBITE-6016)

1X Insulated base plate, large
4X PCB holder
2X SQ200 200 MHz probe with spring tipped test needle
2X SQ probe holder for handsfree measurement
2X Dupont ground lead 10 cm (4 in)
2X Dupont ground lead 5 cm (2 in)
2X Test hook with Dupont connector
2X Alligator to 5 mm clip ground lead CAT II
2X Alligator to Dupont ground lead
2X Ground clip 5 mm to Dupont
2X Ground spring, for handheld measurements at rated bandwidth
2X Ground spring needle, for total handsfree measurements at rated bandwidth
2X Extra test needle (SP/SQ)
2X Adjustment tool (for probe compensation)
2X Set of cable holders (red, yellow, green, blue)

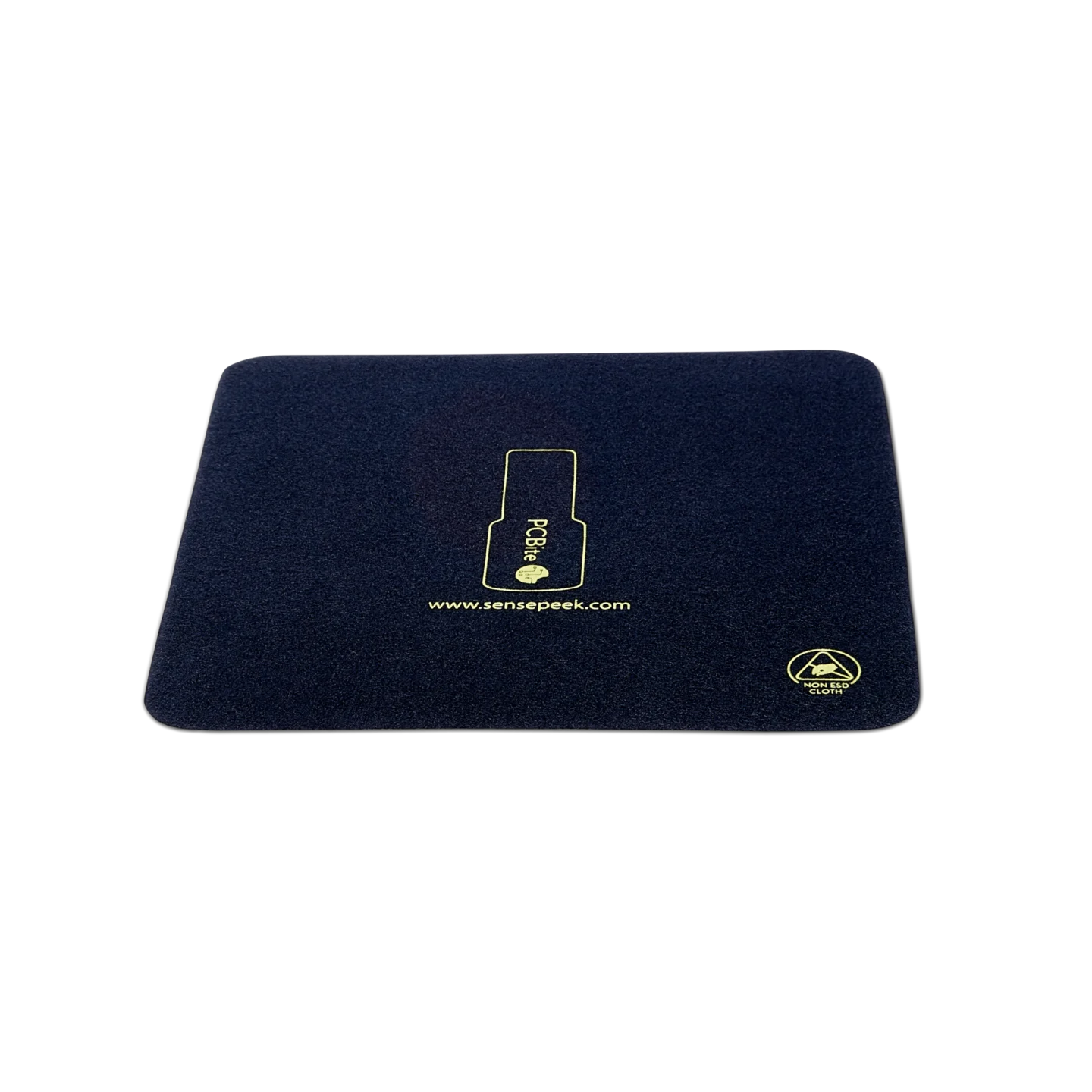

1X Micro fiber cloth (to polish the mirror side of base plate)
1X Set of insulation washers
2X Finger protection CAT II
2X Probe tip protection cap

User guide PCBite kit User guide SQ Oscilloscope probes Datasheet SQ-series oscilloscope probes

Dimensions of PCBite kit with 2x SQ200 200 MHz handsfree oscilloscope probes: Base Plate

Brand	PCBite
Manufacturer	Sensepeek AB
Article number	PCBITE-6016
GTIN	7350145660267
Country of origin	Sweden
HS code	90309000
HTS code	9030906800
ECCN	EAR99
Safety information	See downloads
Package weight	900 g
Package dimensions	310 × 215 × 27 mm

MATERIAL

Made to last

Every material and design detail is chosen to last for years in a demanding lab environment.

Flexible arm

Flexible, adaptable, mechanically stable metal design

Test needle

Exchangeable, fine-pitch spring-loaded

Magnet

Strong N52 neodymium

Connector

BNC with readout pin for automatic 10:1 scaling

MATERIAL

Flexible arm

Flexible, adaptable, mechanically stable metal design

Test needle

Exchangeable, fine-pitch spring-loaded

Magnet

Strong N52 neodymium

Connector

BNC with readout pin for automatic 10:1 scaling

Made to last

Every material and design detail is chosen to last for years in a demanding lab environment.

SQ200 200 MHz Probe with probe holder and accessories included with a single probe purchase (PCBITE-6014)

BANDWIDTH WITHOUT COMPROMISE

Your oscilloscope is only as good as the probe connected to it.

PCBite probes are engineered for low loading, flat frequency response and accurate signal reproduction. In many setups, replacing the supplied general-purpose probe with a carefully matched PCBite probe can improve the performance of the complete measurement system. We design the probe to reveal what your oscilloscope can really do, not to become its limitation.

Two handsfree oscilloscope probes with long ground leads clipped on, measuring a PCB in PCBite holders for an oscilloscope.

PCB with multiple MMCX connectors and adapters for quick probe repositioning between test points

Two oscilloscope probes and four SQ10 probes measuring a PCB handsfree, connected to a Keysight oscilloscope.

Four SQ10 probes with gold spring-loaded needles on the pins of a fine-pitch IC, picking up bus signals handsfree.

Four handsfree oscilloscope probes with yellow, blue, green and red cable holders on a small PCB, one per scope channel.

Switching and PWM Open Close

Long ground leads are useful for locating the signal and making initial contact, but their added inductance can introduce ringing on fast switching edges. For accurate measurements, replace the long ground lead with the short spring-loaded ground to minimize the ground loop. This provides a cleaner view of edge shape, overshoot and dead time while keeping the probe in place handsfree. Leave the probe connected while adjusting the control loop or changing the duty cycle.

Power rails and ripple Open Close

Ripple and noise measurements are highly sensitive to ground path inductance. Each millimeter of ground lead adds approximately 1 nH, increasing susceptibility to switching noise and measurement-induced ringing. Use the ground spring for the shortest possible connection to a test point, or the optional MMCX adapter for a coaxial connection to an onboard MMCX connector.

Clocks and digital edges Open Close

For sine-wave measurements, a system bandwidth of approximately three times the signal frequency is often sufficient. Digital signals require more bandwidth to preserve edge shape, with five times the clock frequency commonly used as a practical guideline. Signals with very fast rise and fall times may require higher bandwidth still.

Serial buses Open Close

Analog sensors Open Close

MULTI-POINT MEASUREMENT

Multiple probes. Long measurements. No hands required.

Position several probes across the board and leave them in place for both quick measurements and long triggering sessions. The probes maintain contact throughout the measurement, enabling simultaneous multi-point measurements that are impractical with handheld probes.

SPRING-LOADED GROUND

We reinvented the ground.

High-end probes often use a spring-loaded signal needle for reliable contact. The same principle is applied to ground with Sensepeek’s patented spring-loaded ground, positioned close to the signal point. The short ground path reduces loop inductance and improves signal integrity, while the spring-loaded ground adds the mechanical stability needed for reliable handsfree measurements.

SQ200 200 MHz, Hand soldering PCB held by two magnetic spring-loaded PCB holders (PCBITE-6016)

SOLDERING

Built for soldering.

Place a component, solder it, adjust and move on to the next one. The board stays where you put it, at a comfortable working height, from the first component to the last.

Microscope work

Move the board, not the focus.

The PCB is held level at the same working height, so it stays sharp under the microscope. Slide the whole base plate sideways, forward or back to bring the next area into view, without touching the board or refocusing. Inspect, solder and rework in one continuous session.

PCBite base plates from XS to XL, each with PCB holders on it, plus a magnifier, a component tray and a solder wire stand.

Two PCBite component trays for SMD parts, mounted on a low and a standard PCBite holder to keep the parts at board height.

Three wire stand showing two different size of solder and one empty spool

Magnifier with magnetic base, 3x magnification and AR coated lens for PCB soldering and inspection

PCBite SQ, SQG, SQ10 and SP10 probe heads with color-coded cable holders mounted on flexible arms.

Base plates Open Close

From XS to XL, every size uses the same magnetic system, so all holders and accessories fit.

PCBite holders Open Close

Component tray Open Close

Wire stand Open Close

Magnifier Open Close

Handsfree probes Open Close

Single handsfree SQ200 200 MHz probe with yellow color-coded cable holders and BNC connector with x10 identifier (PCBITE-6014)

Four handsfree SQ200 200 MHz oscilloscope probes measuring close signal pins on MCU test PCB (PCBITE-6014)

Probes for oscilloscopes

Magnifier with magnetic base, 3x magnification and AR coated lens for PCB soldering and inspection (PCBITE-4020)

Hand measuring on small PCB components visible through the AR coated 3x magnifying lens (PCBITE-4020)

PCBite accessories

Magnetic solder wire holder with rotating spool for hands-free soldering workstations (PCBITE-7030)

Hand holding the small wire stand when soldering on PCB (PCBITE-7030)

PCBite accessories

Two PCB holders, magnetic spring-loaded with insulation washers for secure circuit board holding (PCBITE-4022)

Eight magnetic spring-loaded PCB holders securing various sized boards on XL insulated baseplate (PCBITE-4022)

PCBite accessories

PCBite accessories

Component tray numbered compartments filled with different SMD components (PCBITE-7029)

Hand picking components with tweezer from the component tray held by a PCB holder (PCBITE-7029)

PCBite accessories

Extra large DIN A3 insulated work surface for hands-free PCB probing and testing (PCBITE-4021)

Size comparison of extra large A3 insulated baseplate with other sizes side by side (PCBITE-4021)

PCBite accessories

Hands applying the A4 sized insulation cover on the large baseplate (PCBITE-4017)

Size comparison of the large A4 insulated baseplate compared with other sizes side by side (PCBITE-4017)

PCBite accessories

Multipurpose baseplates, four 80mm metal plates for magnifier support and flexible hands-free probe mounting (PCBITE-7027)

Wall-mounted multipurpose baseplate for flexible handsfree probe positioning where no standard baseplate can be used (PCBITE-7027)

PCBite accessories
