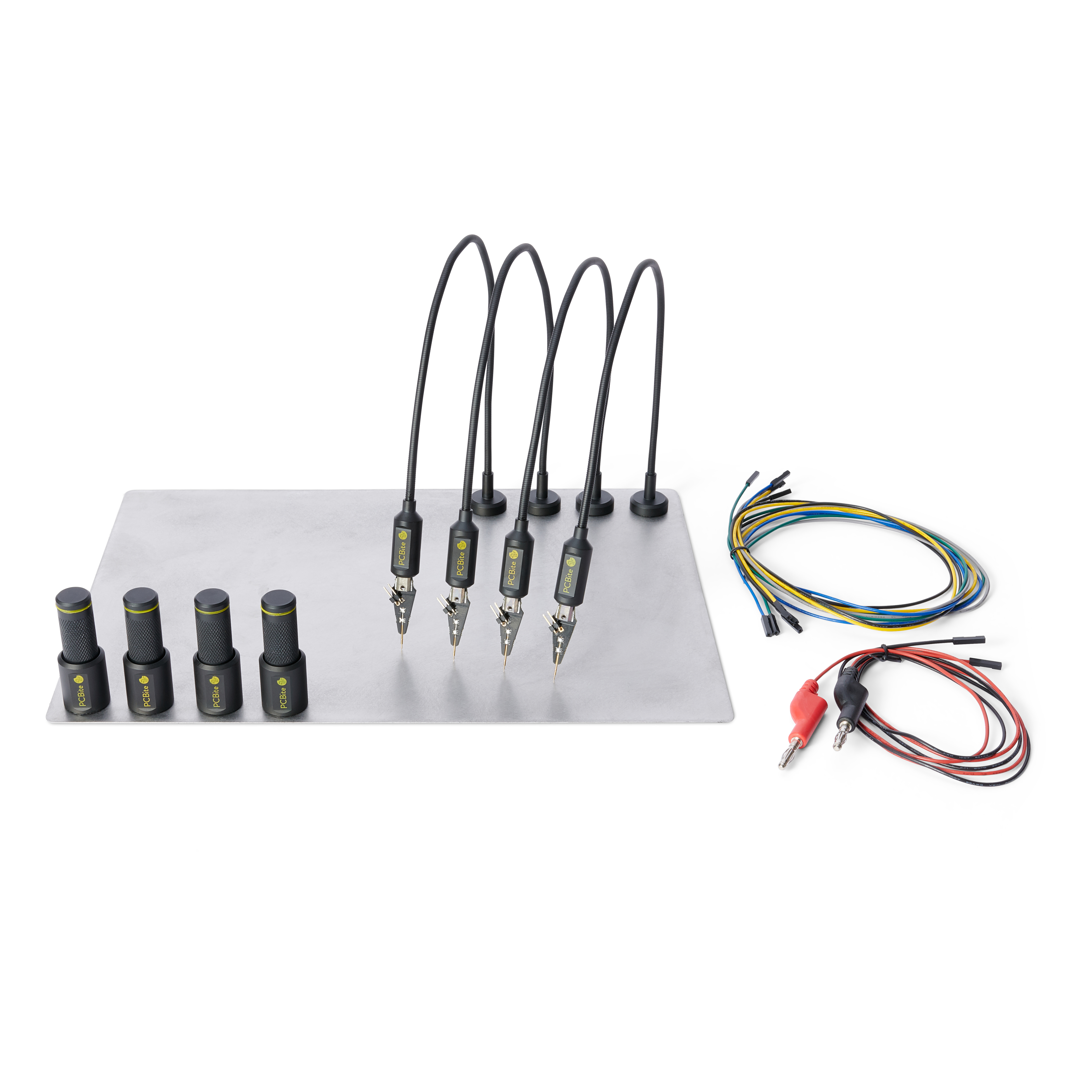

Complete kit with PCB holders and handsfree SP10 probes with spring-loaded tips plus test wires (PCBITE-7028)

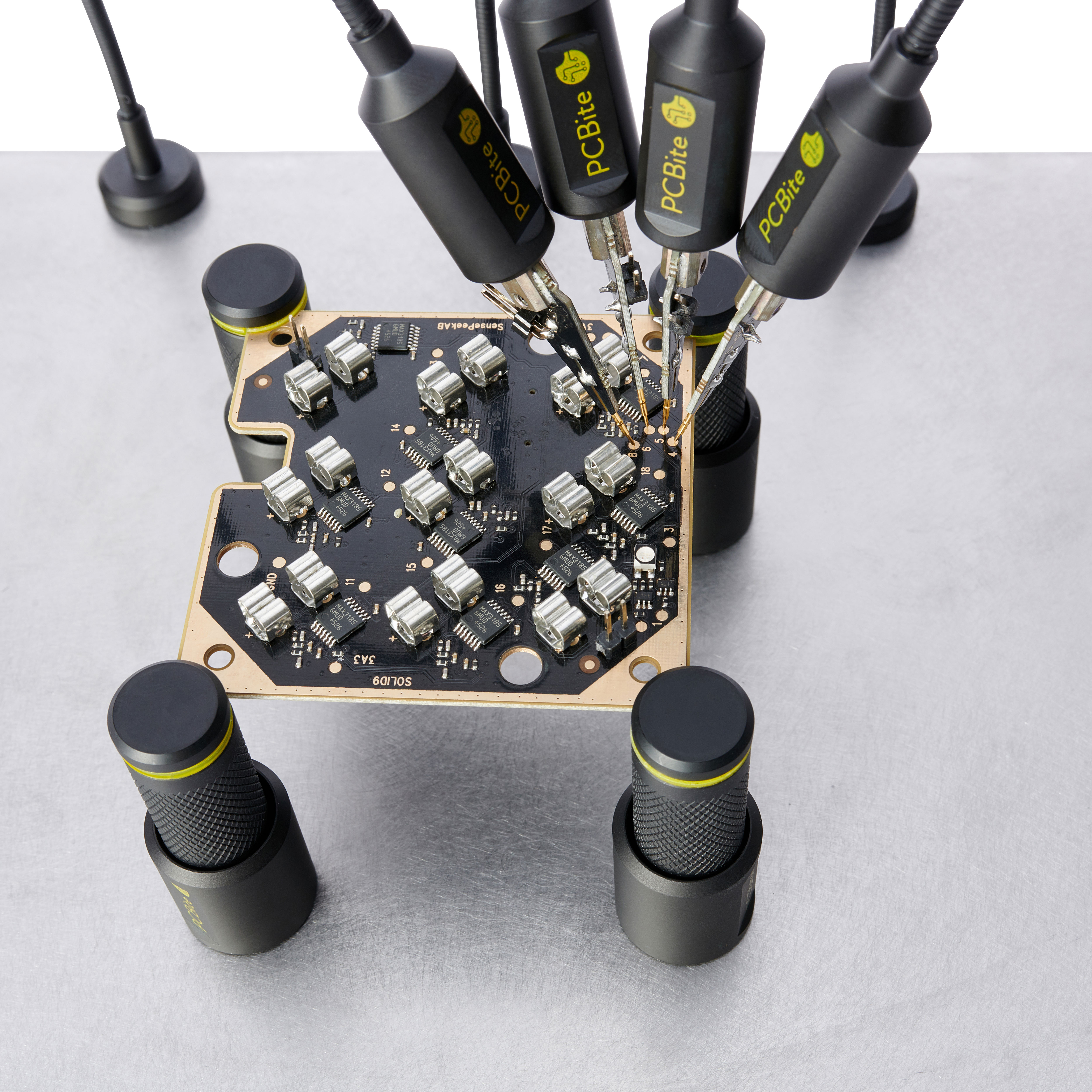

Closeup of four IC signals tested simultaneously completely handsfree using SP10 probes (PCBITE-7028)
Multiple circuit board signals tested simultaneously completely handsfree using SP10 probes (PCBITE-7028)
Complete handsfree test setup with SP10 probes and any mixed signal oscilloscope ready for debugging (PCBITE-7028)
Four IC signals tested simultaneously completely handsfree using SP10 probes (PCBITE-7028)
Closeup of multiple circuit board signals tested simultaneously completely handsfree using SP10 probes (PCBITE-7028)
Closeup of SP10 probe showing threaded interface, spring-loaded test needle and dual pinheader for cable connection (PCBITE-7028)
Single SP10 probe with flexible gooseneck arm and spring-loaded needle tip for hands-free PCB testing (PCBITE-7028)

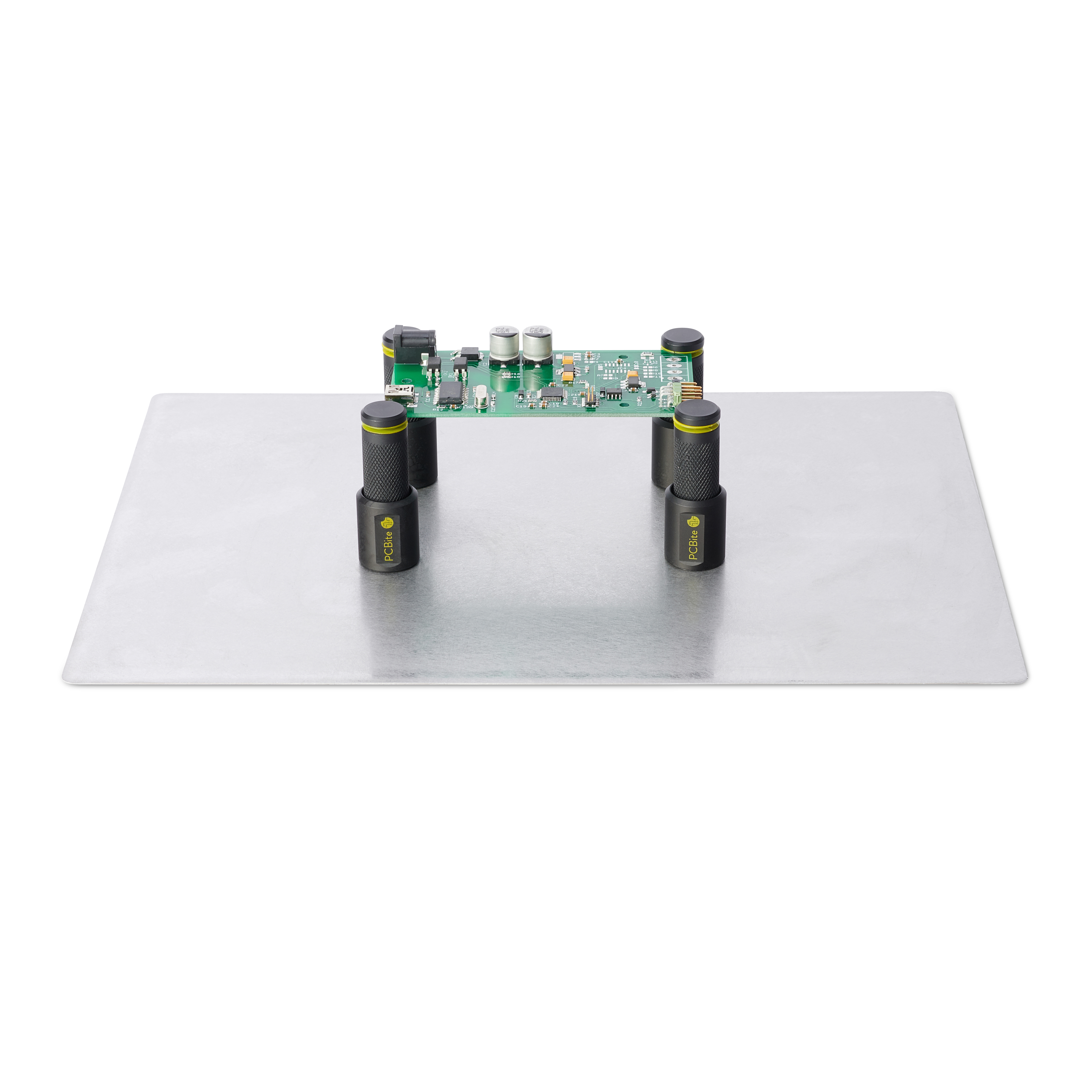

SP10, Set of four magnetic spring-loaded PCB holders on a large insulated baseplate holding a PCB (PCBITE-7028)

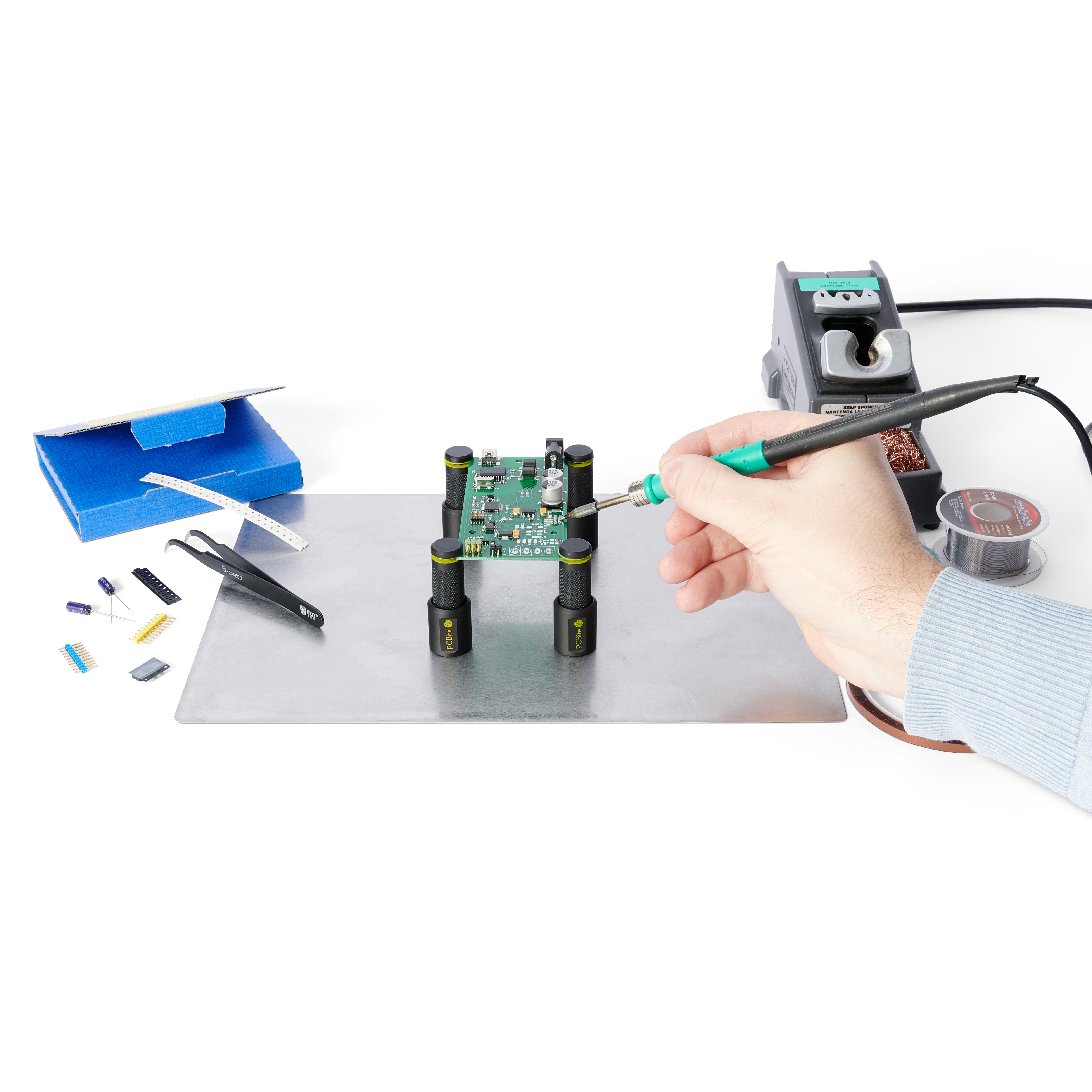

SP10, Hand soldering PCB held by two magnetic spring-loaded PCB holders (PCBITE-7028)

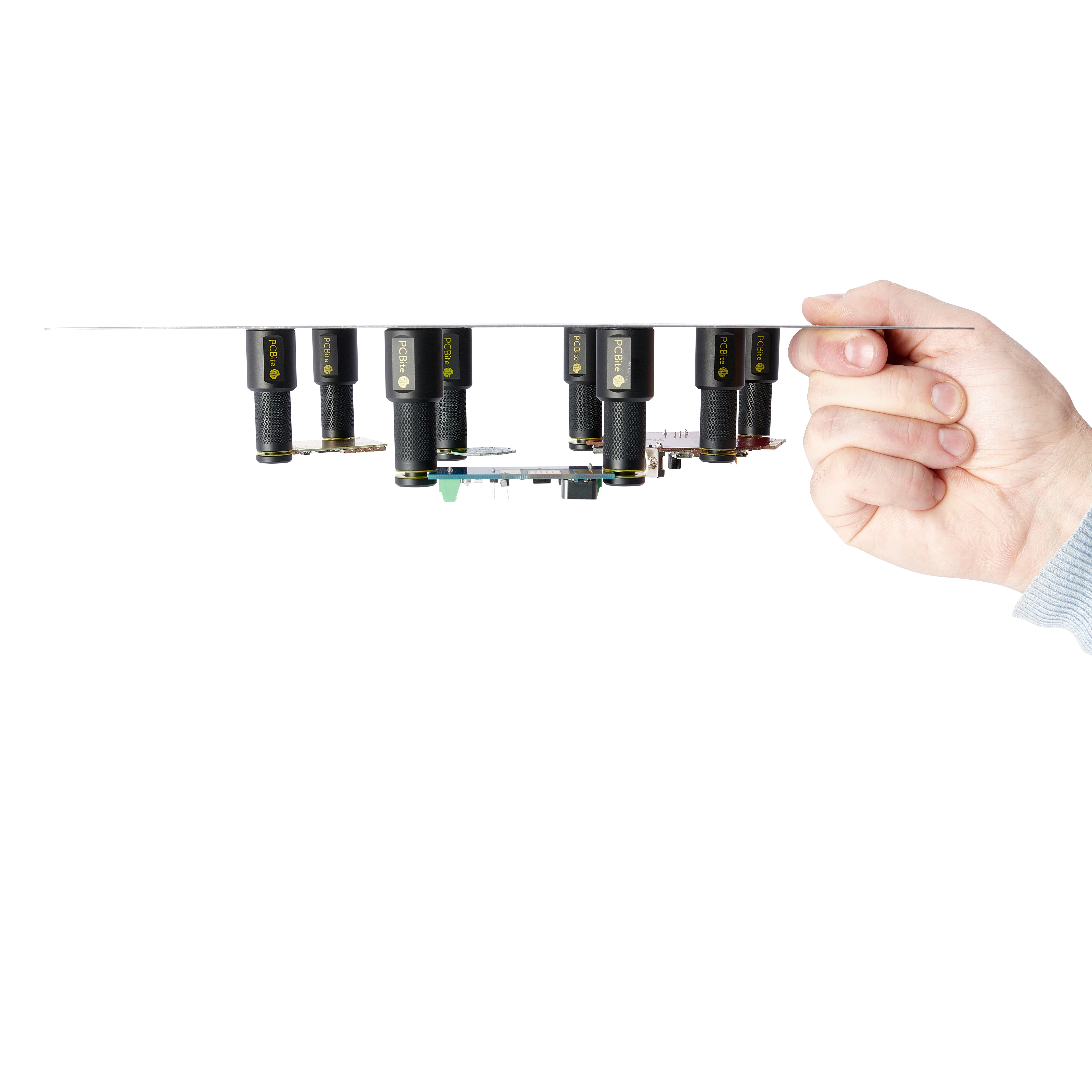

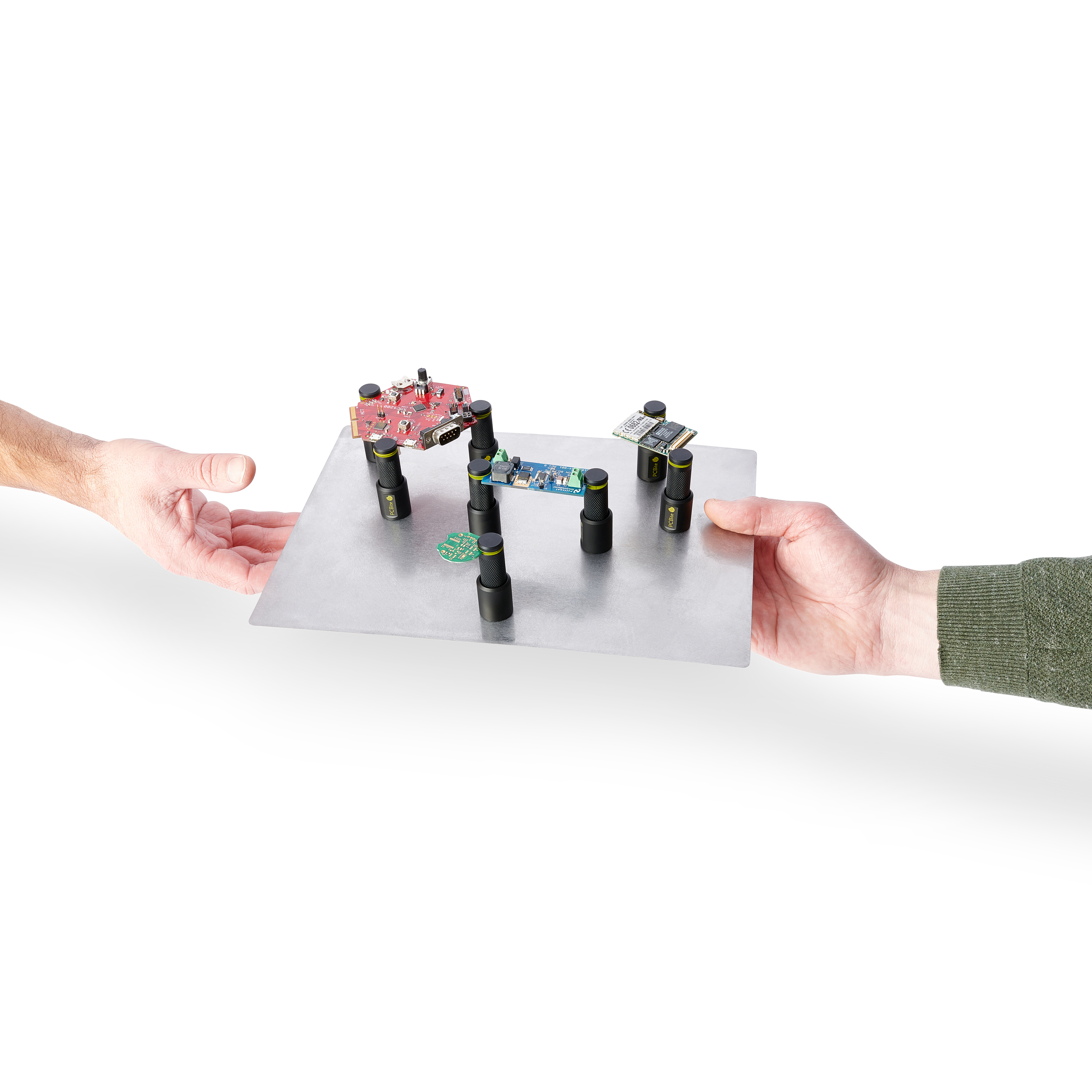

SP10, Hand handing over a setup with two spring-loaded PCB holders on a large insulated baseplate (PCBITE-7028)
SP10, Hand soldering wire held by two magnetic spring-loaded PCB holders (PCBITE-7028)
SP10, Hand receiving a setup with two spring-loaded PCB holders on a large insulated baseplate (PCBITE-7028)
SP10, Two PCB holder holding a PCB with multiple BNC edge connectors visible (PCBITE-7028)
SP10, Two PCB holders, magnetic spring-loaded with insulation washers for secure circuit board holding (PCBITE-7028)
SP10, Size comparison of the large A4 insulated baseplate compared with other sizes side by side (PCBITE-7028)

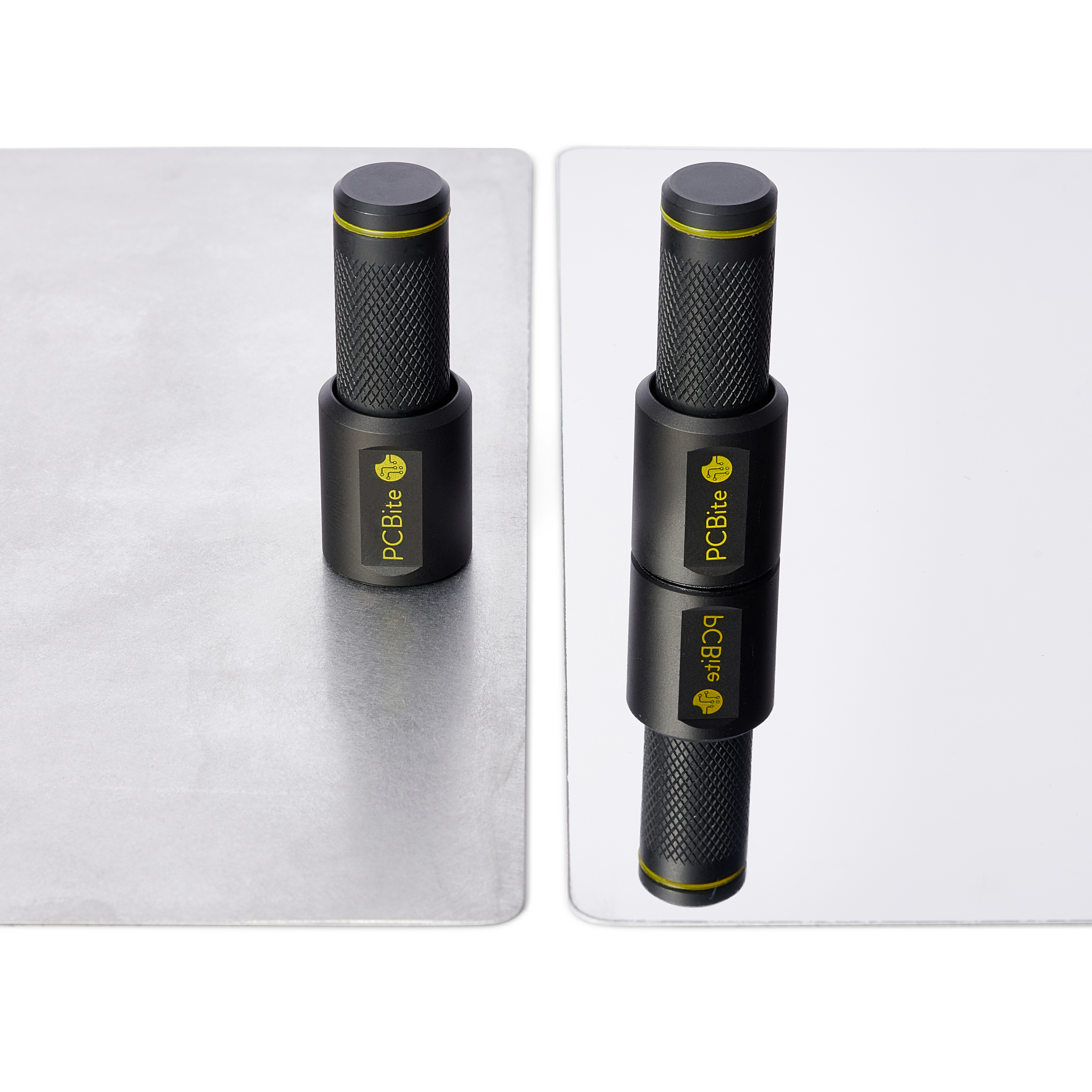

SP10, Two magnetic PCB holders showing difference between an insulated and the mirror sides of baseplate (PCBITE-7028)
Set of four handsfree SP10 probes with spring-loaded tips plus test wires for PCB probing (PCBITE-7028)

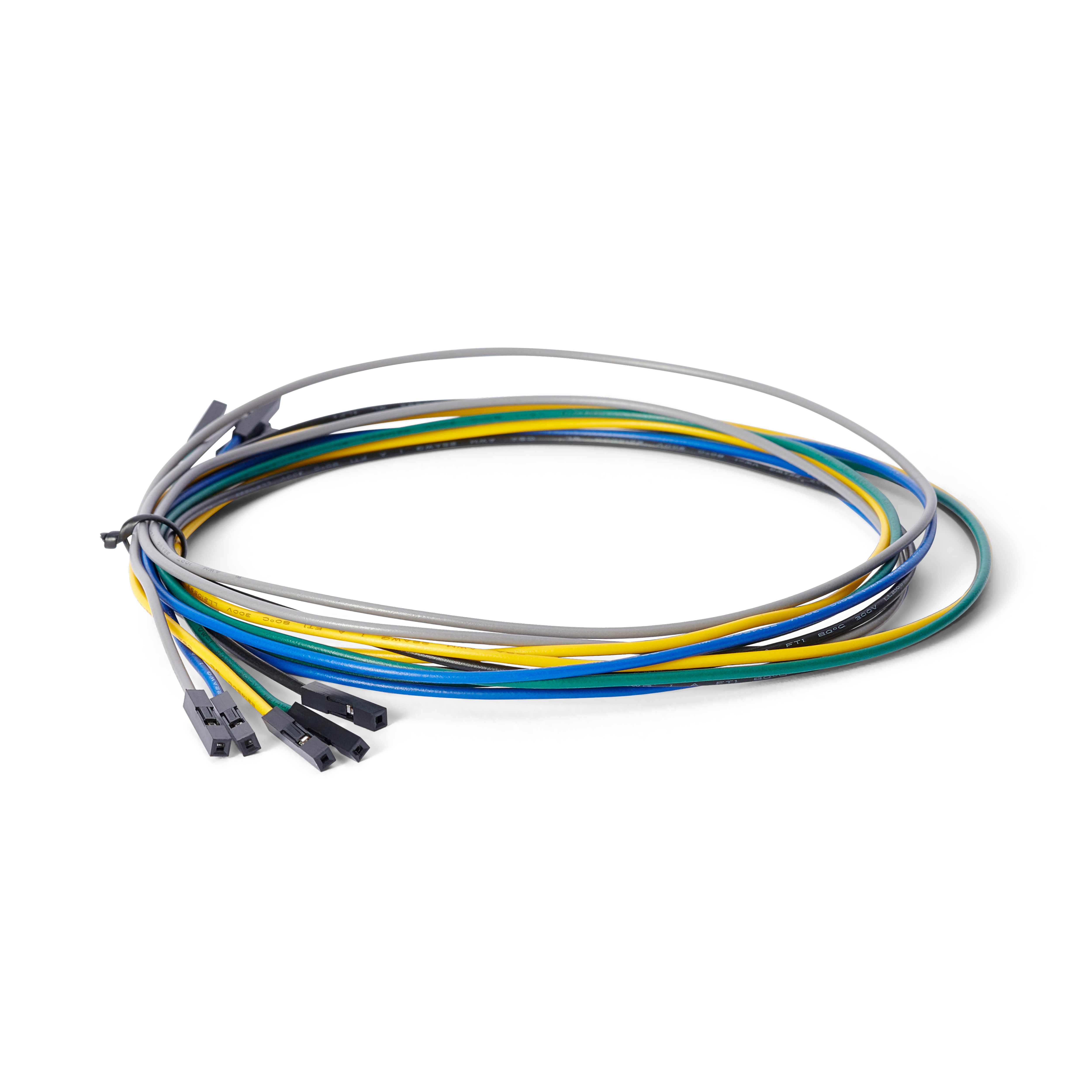

Test wires with dupont connector cables in multiple colors for SP10 probe connections (PCBITE-7028)
JTAG/SWD connection using SP10 probes connect directly with dupont wires to J-Link for debugging (PCBITE-7028)
Complete handsfree test setup with SP10 probes and Segger Jlink ready for debugging (PCBITE-7028)
Red and black banana plug leads with dupont connectors for SP10 probe connection (PCBITE-7028)

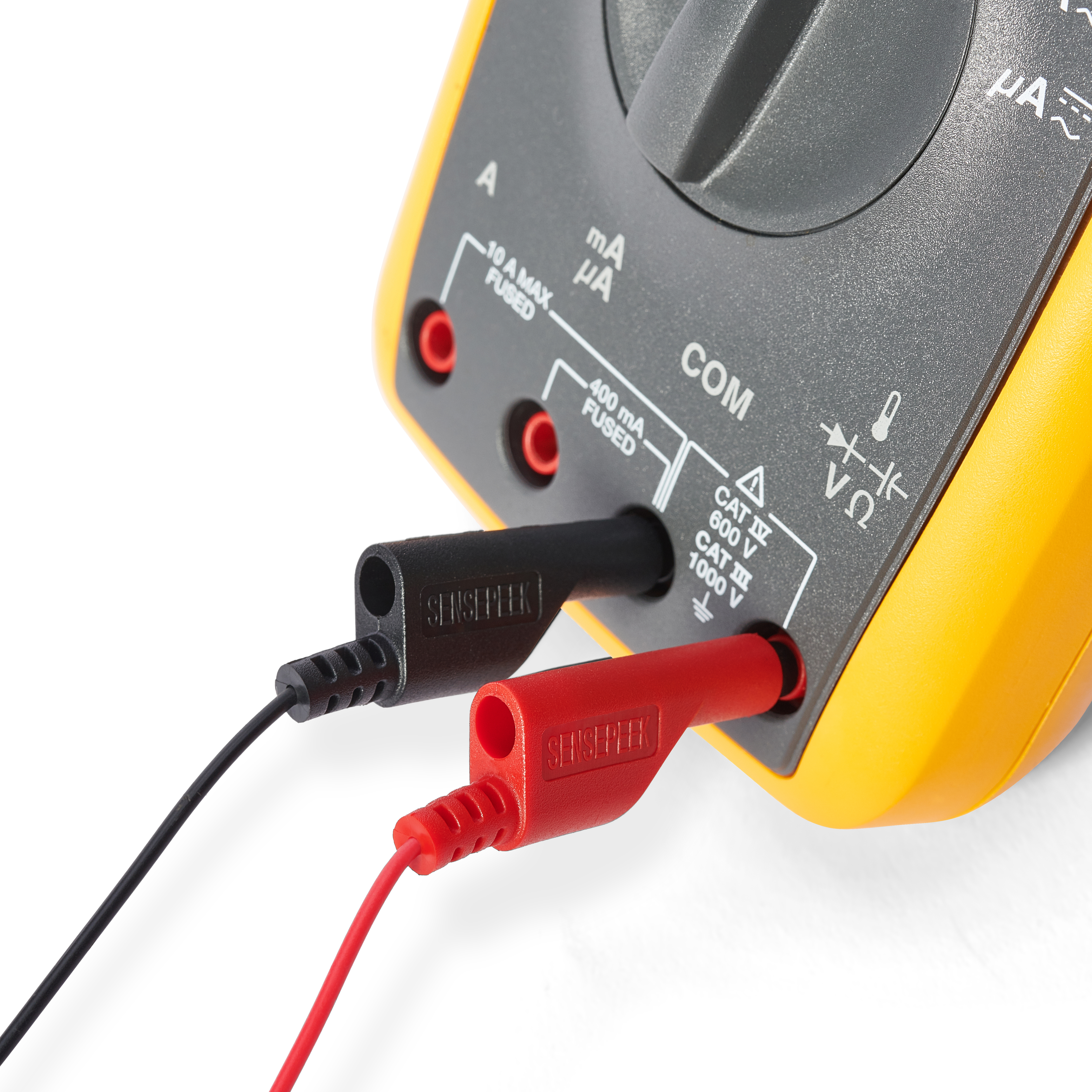

SP10, Red and black banana plug test leads connected to multimeter probing terminals (PCBITE-7028)
Complete handsfree test setup with SP10 probes connected directly to a Fluke multimeter ready for measuring (PCBITE-7028)

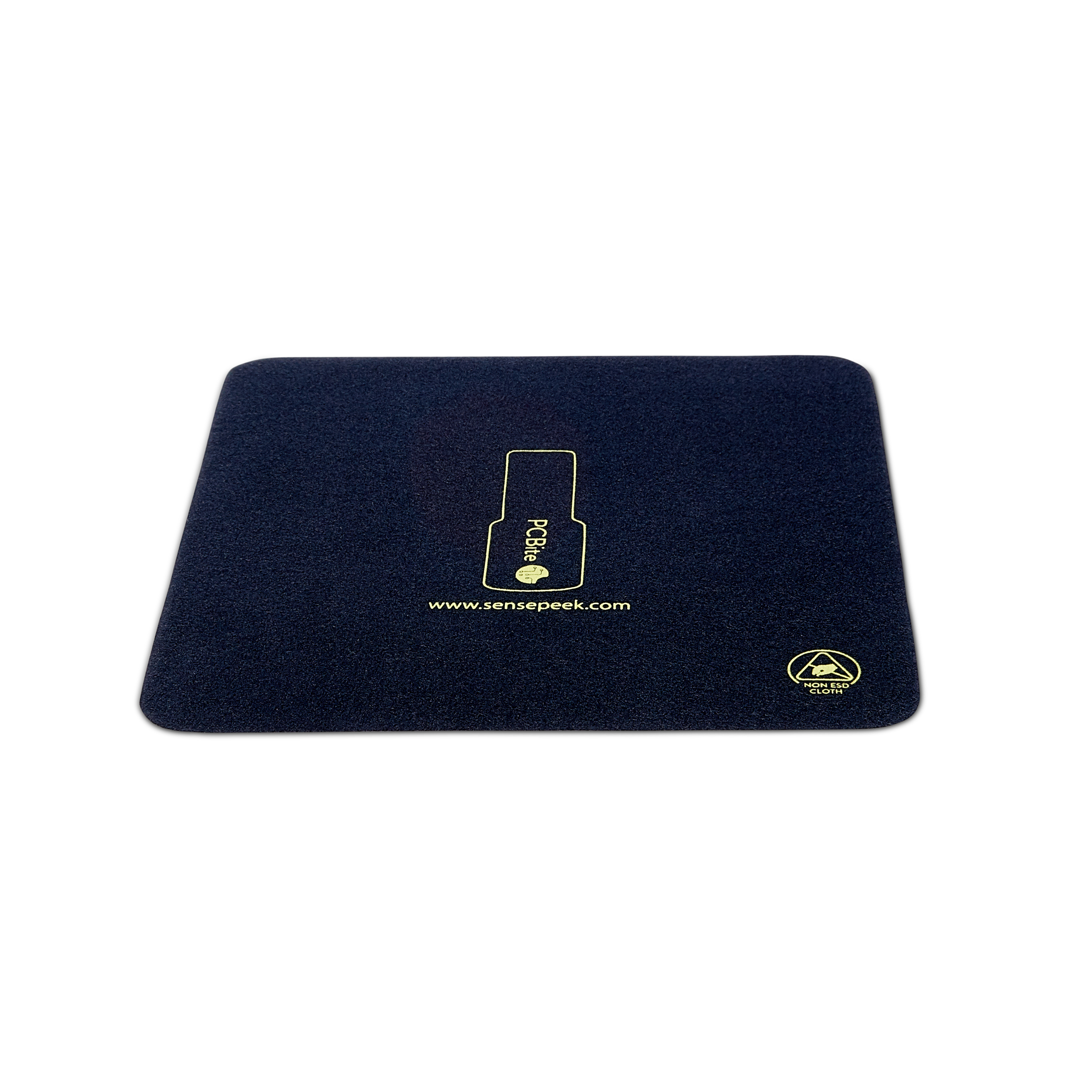

SP10, Polishing cloth with logo used to polish the mirror side of the baseplate (PCBITE-7028)
PCBITE-7028

PCBite kit with 4x SP10 probes and test wires

Four standard holders on a large insulated base plate and four SP10 handsfree probes with test wires, for soldering, inspection and handsfree measurement.

Secure paymentGlobal deliveryPremium quality
In stockDelivery: 1-2 business days

129 € excl. VAT

Accessories

Magnifier with magnetic base, 3x magnification and AR coated lens for PCB soldering and inspection (PCBITE-4020)
PCBITE-4020
PCBite Magnifier 3x
59 €
In stockDelivery: 1-2 business days
Magnetic solder wire holder with rotating spool for hands-free soldering workstations (PCBITE-7030)
PCBITE-7030
PCBite Wire stand
25 €
In stockDelivery: 1-2 business days
Two PCB holders, magnetic spring-loaded with insulation washers for secure circuit board holding (PCBITE-4022)
PCBITE-4022
2x PCBite PCB holders
30 €
In stockDelivery: 1-2 business days
Two low profile PCB holders, magnetic spring-loaded with insulation washers for secure circuit board holding (PCBITE-7023)
PCBITE-7023
2x PCBite PCB holders low profile
30 €
In stockDelivery: 1-2 business days

Introduction

The largest PCBite kit with an insulated base plate, holders and four handsfree SP10 probes. The base plate gives you room for large PCBs, several connected boards or a complete handsfree probing setup. Position each probe on the signals you need and monitor them with your logic analyzer, multimeter or debug adapter while keeping both hands free.

Place the spring-loaded needle on any test point in the signal path and release. The flexible arm holds the needle in position, while the N52 neodymium magnet in the base keeps the probe locked to the base plate. No soldered wires and no fixtures.

The 2.54 mm (0.100 in) dual pin header accepts two cables at the same time, enabling simultaneous power and measurement or signal pass through to another probe.

Color coded test wires with 2.54 mm (0.100 in) jumper connectors are included for direct connection to logic analyzers, multimeters, mixed signal oscilloscopes and debug adapters. Red and black test leads with 4 mm banana plugs connect directly to multimeters, bench power supplies and other instruments with standard 4 mm inputs.

Designed for DC to 10 MHz measurements and well suited for I2C, I3C, UART, CAN bus and other digital signals.

Replaces PCBITE-4003 and adds a pre-fitted insulation cover to the base plate.

Compatible accessories

Complete kit with PCB holders and handsfree SP10 probes with spring-loaded tips plus test wires (PCBITE-7028)

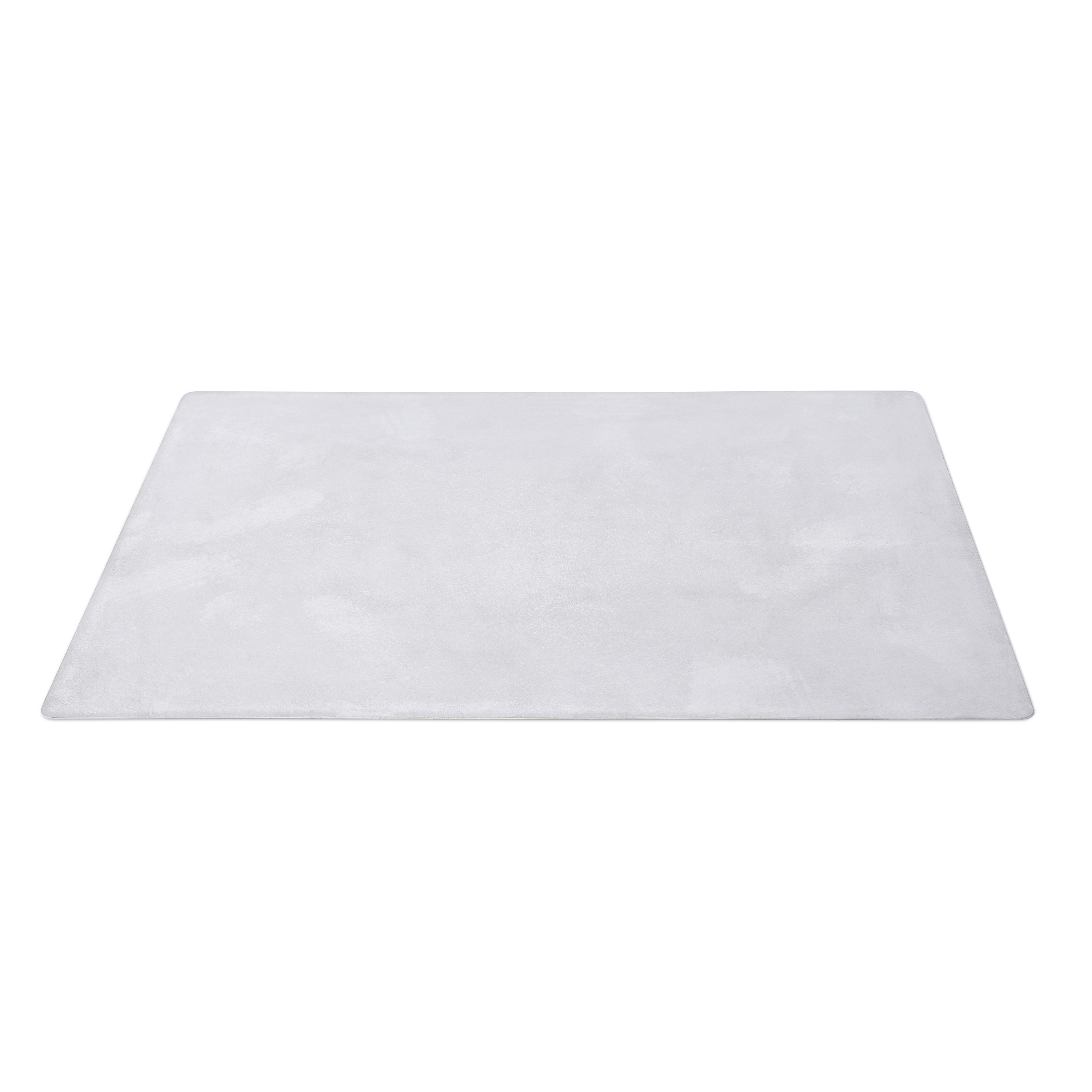

  • 1X Insulated base plate, large
  • 4X PCB holder
  • 4X SP10 probe with spring tipped test needle (black)
  • 4X SP probe holder for handsfree measurement
  • 2X Banana to Dupont test lead (red, black)
  • 5X Dupont test lead 80 cm (31 in), 5 colors
  • 4X Extra test needle (SP/SQ)
  • 1X Micro fiber cloth (to polish the mirror side of base plate)
  • 1X Set of insulation washers
User guide PCBite kit User guide SP10 Probes
Dimensions of PCBite kit with 4x SP10 probes and test wires: Base Plate
Brand

PCBite
Manufacturer

Sensepeek AB
Article number

PCBITE-7028
GTIN

7350145660670
Country of origin

Sweden
HS code

90309000
HTS code

9030906800
ECCN

EAR99
Safety information

See downloads
Package weight 940 g
Package dimensions 310 × 215 × 27 mm
MATERIAL

Made to last

Every material and design detail is chosen to last for years in a demanding lab environment.

Flexible arm
Flexible, adaptable, mechanically stable metal design
Test needle
Exchangeable, fine-pitch spring-loaded
Magnet
Strong N52 neodymium
Connector
Dual pin header
MATERIAL
Flexible arm
Flexible, adaptable, mechanically stable metal design
Test needle
Exchangeable, fine-pitch spring-loaded
Magnet
Strong N52 neodymium
Connector
Dual pin header

Made to last

Every material and design detail is chosen to last for years in a demanding lab environment.

Closeup of four IC signals tested simultaneously completely handsfree using SP10 probes
Single SP10 probe with flexible gooseneck arm and spring-loaded needle tip for hands-free PCB testing (PCBITE-4005)
ULTRA-THIN PROFILE

SP10 probes, built for fine pitch.

The SP10 probe head is a bare, ultra-thin PCB with no plastic body around the contact point. Several probes fit side by side on fine-pitch components, for measurements on I²C, I³C, UART, CAN bus and other signals from DC to 10 MHz. The 2.54 mm (0.100 in) dual pin header accepts two cables at the same time, for simultaneous power and measurement.

NEEDLES

Every needle, spring-loaded.

The test needle is spring-loaded, providing a defined, consistent contact force on the pad. This keeps the connection stable throughout the measurement, even if the setup is bumped or exposed to vibration. When the tip wears, pull it out and insert a new one.

DUAL PIN-HEADER

Two connections at once.

The 2.54 mm (0.100 in) dual pin header accepts two cables at the same time. Keep one instrument connected and add a second, for example a multimeter next to a logic analyzer, without unplugging.

COMPATIBILITY

Connects to the instruments on your bench.

Complete handsfree test setup with SP10 probes and Saleae Logic analyzer ready for debugging
PCBs in PCBite holders, with a rear display reflected in the base plate and probes supplying power from a Rigol bench supply.
Complete handsfree test setup with SP10 probes connected directly to a Fluke multimeter ready for measuring (PCBITE-7028)

Standard 2.54 mm (0.100 in) jumper connectors, often called Dupont connectors, plug straight into any logic analyzer. Put one probe per line and one on ground, and decode I2C, I3C, SPI or UART while the board runs. The same connectors reach a programmer or debug adapter for SWD and JTAG.

SP10, Hand soldering PCB held by two magnetic spring-loaded PCB holders (PCBITE-7028)
SOLDERING

Built for soldering.

Place a component, solder it, adjust and move on to the next one. The board stays where you put it, at a comfortable working height, from the first component to the last.

Microscope work

Move the board, not the focus.

The PCB is held level at the same working height, so it stays sharp under the microscope. Slide the whole base plate sideways, forward or back to bring the next area into view, without touching the board or refocusing. Inspect, solder and rework in one continuous session.

ECOSYSTEM

Built to work together.

PCBite base plates from XS to XL, each with PCB holders on it, plus a magnifier, a component tray and a solder wire stand.
Standard and low profile PCB holders holding PCBs for height comparison
Two PCBite component trays for SMD parts, mounted on a low and a standard PCBite holder to keep the parts at board height.
Three wire stand showing two different size of solder and one empty spool
Magnifier with magnetic base, 3x magnification and AR coated lens for PCB soldering and inspection
PCBite SQ, SQG, SQ10 and SP10 probe heads with color-coded cable holders mounted on flexible arms.

From XS to XL, every size uses the same magnetic system, so all holders and accessories fit.
